8-80 — WINDSHIELD WIPER AND WASHER (#139157) — 140 parça

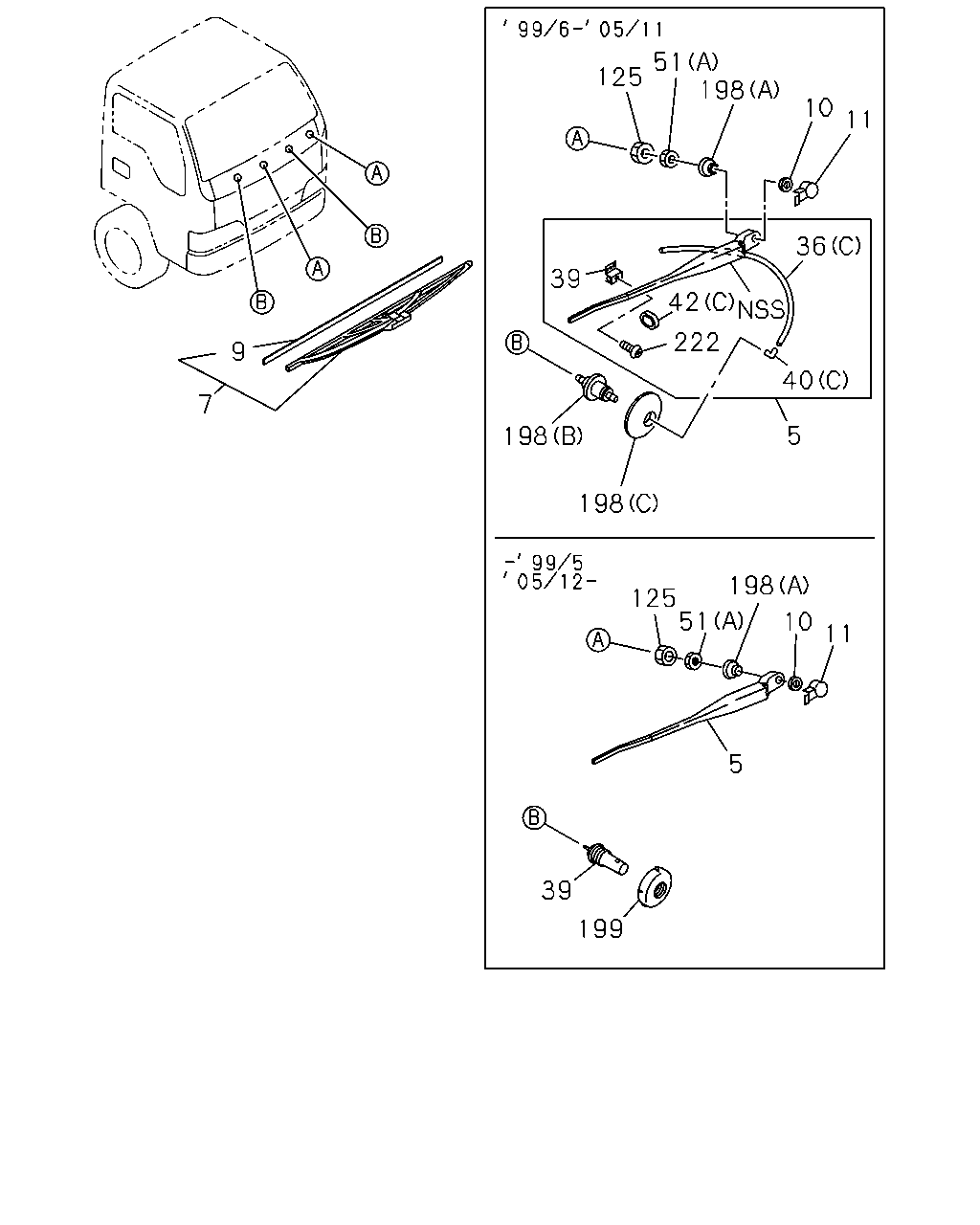

çizim 420910
51 198 125 10 11 36 39 42 222 9 40 7 5 198 198 198 125 51 10 11 5 39 199
BalonParca AdiParca NoAdetTipApplied Date
5 ARM; WIPER
PASSENGER SIDE 		8-97093-562-0 01 1 9701-9901
5 ARM; WIPER
PASSENGER SIDE 		8-97226-885-0 01 1 9902-9905
5 ARM; WIPER
PASSENGER SIDE 		8-97184-555-1 01 1 9906-0411
5 ARM; WIPER
PASSENGER SIDE 		8-97184-555-1 01 1 0412-0511
5 ARM; WIPER
PASSENGER SIDE 		8-97226-885-0 01 1 0512-
5 ARM; WIPER
DRIVER SIDE 		8-97093-564-0 01 1 9701-9901
5 ARM; WIPER
DRIVER SIDE 		8-97226-886-0 01 1 9902-9905
5 ARM; WIPER
DRIVER SIDE 		8-97184-556-1 01 1 9906-0411
5 ARM; WIPER
DRIVER SIDE 		8-97184-556-1 01 1 0412-0511
5 ARM; WIPER
DRIVER SIDE 		8-97226-886-0 01 1 0512-
7 BLADE; WIPER 8-97137-469-2 02 1 9701-0411
7 BLADE; WIPER 8-97137-469-2 02 1 0412-
9 RUBBER; FRT WIPER BLADE 8-97142-093-1 02 1 9701-0411
9 RUBBER; FRT WIPER BLADE 8-97142-093-1 02 1 0412-
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		9-09110-408-0 02 1 9701-0411
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		9-09110-408-0 02 1 0412-0512
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		0-91110-508-0 02 1 0601-
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9701-0411
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0412-
36 HOSE; WASHER
(A) SERVICED BY L=10000 TAI 		8-94389-303-0 01 1 9701-0411
36 HOSE; WASHER
(A) SERVICED BY L=10000 TAI 		8-94389-303-0 01 1 0412-
36 HOSE; WASHER
(B) SERVICED BY L=10000 TAI 		9-09914-906-0 01 1 9701-0411
36 HOSE; WASHER
(B) SERVICED BY L=10000 TAI 		9-09914-906-0 01 1 0412-
36 HOSE; WASHER
(C) DRIVER SIDE 		8-97216-109-0 01 1 9906-0411
36 HOSE; WASHER
(C) DRIVER SIDE 		8-97216-109-0 01 1 0412-0511
36 HOSE; WASHER
(C) PASSENGER SIDE 		8-97216-110-0 01 1 9906-0411
36 HOSE; WASHER
(C) PASSENGER SIDE 		8-97216-110-0 01 1 0412-0511
39 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 9701-9905
39 NOZZLE; WINDSHIELD WASHER 8-97216-108-1 02 1 9906-0411
39 NOZZLE; WINDSHIELD WASHER 8-97216-108-1 02 1 0412-0511
39 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 0512-
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 9701-0411
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0412-
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9701-0411
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0412-
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 9906-0411
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 0412-0511
42 CLIP; WASHER HOSE
(A) TAI 		8-94144-956-0 02 1 9701-0411
42 CLIP; WASHER HOSE
(A) TAI 		8-94144-956-0 02 1 0412-
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 9701-0411
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 0412-
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 9906-0411
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0412-0511
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE TAI 		5-09440-005-0 04 1 9701-0411
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE TAI 		5-09440-005-0 04 1 0412-0611
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		8-97581-233-0 04 1 0612-
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 9701-0411
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0412-
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9701-0411
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0412-
198 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9701-0305
198 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0306-0411
198 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0412-
198 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 9906-0411
198 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 0412-0511
198 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 9906-0411
198 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 0412-0511
199 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 9701-9905
199 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 0512-
222 SCREW; WASHER NOZZLE 8-97216-113-0 04 1 9906-0411
222 SCREW; WASHER NOZZLE 8-97216-113-0 04 1 0412-0508
222 SCREW; WASHER NOZZLE 8-97216-113-0 02 1 0509-0511

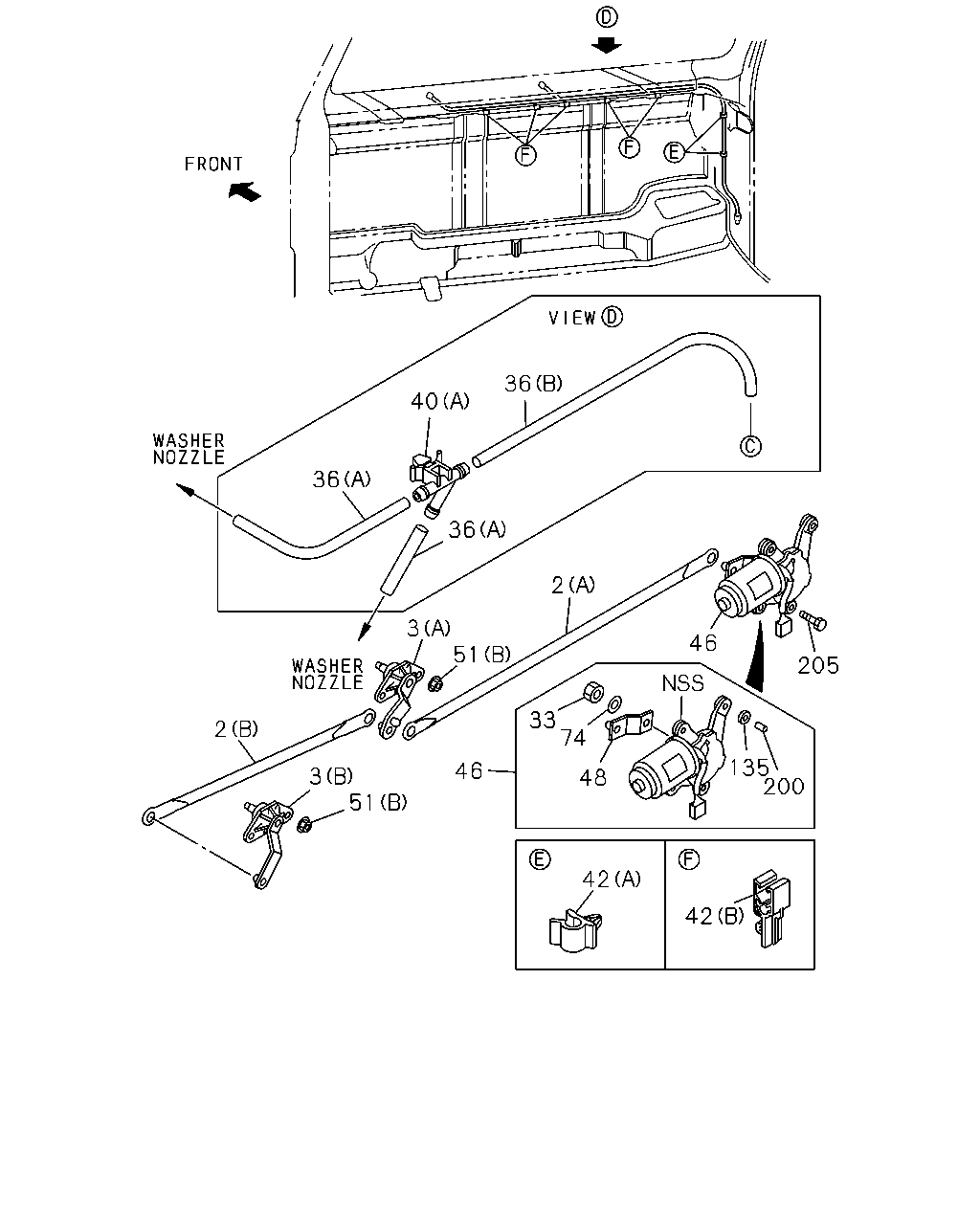

çizim 420922
36 40 36 36 2 3 51 46 205 33 74 2 135 200 46 3 51 48 42 42
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(A) MOTOR TO PIVOT 		8-97855-150-0 01 1 9701-0411
2 LINK; FRT WIPER
(A) MOTOR TO PIVOT 		8-97855-150-0 01 1 0412-
2 LINK; FRT WIPER
(B) PIVOT TO PIVOT L=580 W/CAP 		8-97855-153-0 01 1 9701-0411
2 LINK; FRT WIPER
(B) PIVOT TO PIVOT L=580 W/CAP 		8-97855-153-0 01 1 0412-
3 PIVOT ASM; FRT WIPER
(A) CENTER 		8-97855-145-1 01 1 9701-0411
3 PIVOT ASM; FRT WIPER
(A) CENTER 		8-97855-145-1 01 1 0412-
3 PIVOT ASM; FRT WIPER
(B) DRIVER SIDE 		8-97855-148-0 01 1 9701-0407
3 PIVOT ASM; FRT WIPER
(B) DRIVER SIDE 		8-98003-074-0 01 1 0408-0411
3 PIVOT ASM; FRT WIPER
(B) DRIVER SIDE 		8-98003-074-0 01 1 0412-
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 9701-0411
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0412-
36 HOSE; WASHER
(A) SERVICED BY L=10000 TAI 		8-94389-303-0 01 1 9701-0411
36 HOSE; WASHER
(A) SERVICED BY L=10000 TAI 		8-94389-303-0 01 1 0412-
36 HOSE; WASHER
(B) SERVICED BY L=10000 TAI 		9-09914-906-0 01 1 9701-0411
36 HOSE; WASHER
(B) SERVICED BY L=10000 TAI 		9-09914-906-0 01 1 0412-
36 HOSE; WASHER
(C) DRIVER SIDE 		8-97216-109-0 01 1 9906-0411
36 HOSE; WASHER
(C) DRIVER SIDE 		8-97216-109-0 01 1 0412-0511
36 HOSE; WASHER
(C) PASSENGER SIDE 		8-97216-110-0 01 1 9906-0411
36 HOSE; WASHER
(C) PASSENGER SIDE 		8-97216-110-0 01 1 0412-0511
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 9701-0411
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0412-
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9701-0411
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0412-
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 9906-0411
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 0412-0511
42 CLIP; WASHER HOSE
(A) TAI 		8-94144-956-0 02 1 9701-0411
42 CLIP; WASHER HOSE
(A) TAI 		8-94144-956-0 02 1 0412-
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 9701-0411
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 0412-
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 9906-0411
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0412-0511
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97855-060-5 01 1 9701-9811
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97216-350-0 01 1 9812-0210
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-375-1 01 1 0211-0411
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-375-1 01 1 0412-0610
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-376-1 01 1 0611-
48 ARM; WIPER MOTOR 8-97855-162-0 01 1 9701-9811
48 ARM; WIPER MOTOR 8-97218-924-0 01 1 9812-0411
48 ARM; WIPER MOTOR 8-97218-924-0 01 1 0412-
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE TAI 		5-09440-005-0 04 1 9701-0411
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE TAI 		5-09440-005-0 04 1 0412-0611
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		8-97581-233-0 04 1 0612-
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 9701-0411
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0412-
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 9701-0411
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0412-
135 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 9701-0411
135 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 0412-
200 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 9701-0411
200 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 0412-
205 BOLT; WIPER MOTOR
M6X28 W/PL WASHER 		8-94148-420-0 03 1 9701-0411
205 BOLT; WIPER MOTOR
M6X28 W/PL WASHER 		8-94148-420-0 03 1 0412-
çizim 420923
27 196 40 34 25 30 206 25 201
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 9701-0411
25 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 0412-
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 9701-0411
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0412-
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 9701-0411
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0412-
30 MOTOR ASM; FRT WASHER TANK
USA 		8-97855-138-0 01 1 9701-0411
30 MOTOR ASM; FRT WASHER TANK
USA 		8-97855-138-0 01 1 0412-0610
30 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0611-
34 CAP; WASHER TANK 8-97855-140-0 01 1 9701-0411
34 CAP; WASHER TANK 8-97855-140-0 01 1 0412-
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 9701-0411
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0412-
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9701-0411
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0412-
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 9906-0411
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 0412-0511
196 TANK; WASHER 8-97855-065-6 01 1 9701-0411
196 TANK; WASHER 8-97855-065-6 01 1 0412-0610
196 TANK; WASHER 8-97855-066-6 01 1 0611-
201 LINING; WIPER MOTOR 8-97855-141-0 01 1 9701-0207
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0208-0411
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0412-
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28680-616-0 02 1 9701-0411
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28680-616-0 02 1 0412-0512
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28650-616-0 02 1 0601-
