Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#139156) — 267 parça

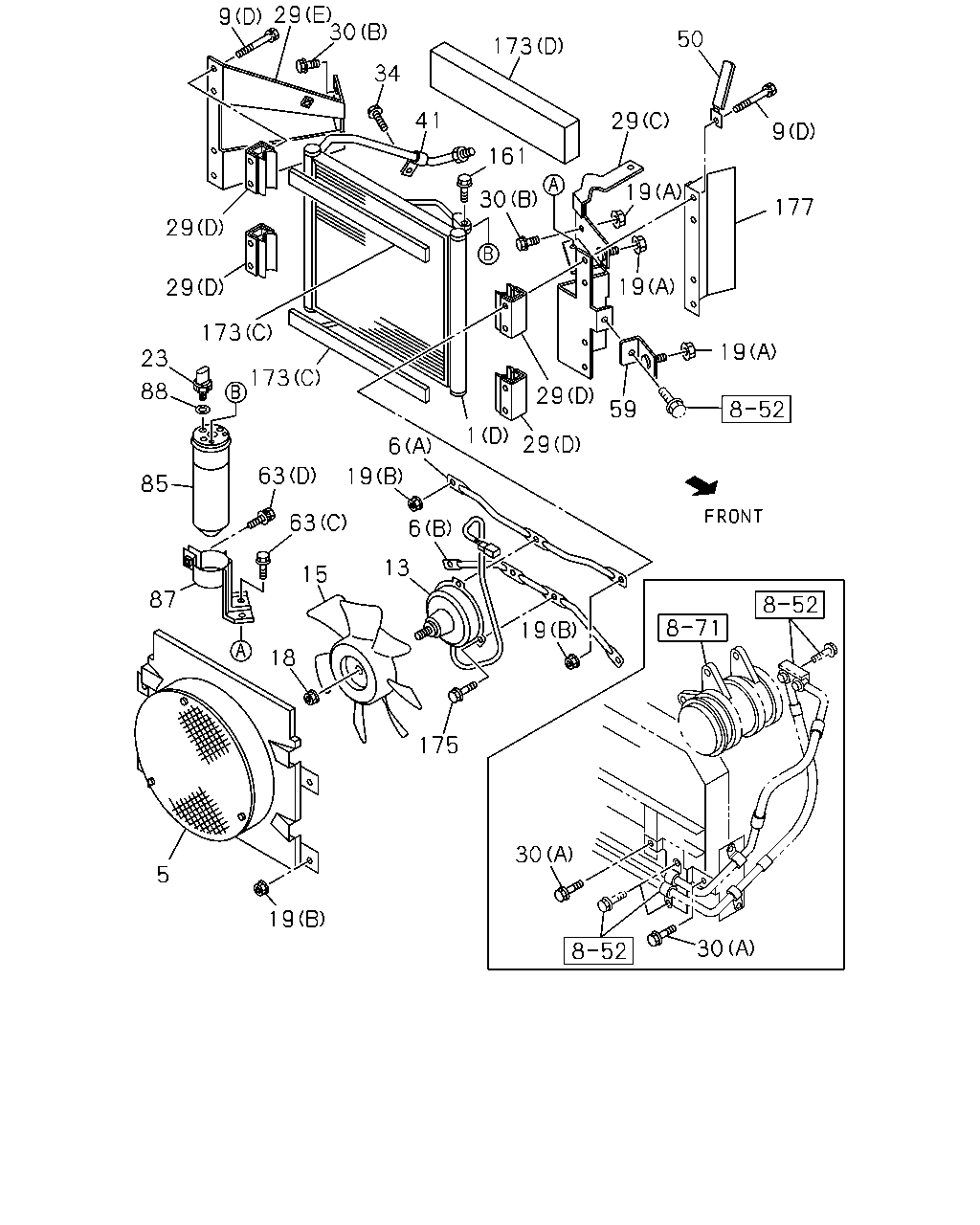

29 30 9 50 173 34 29 41 9 161 19 30 177 29 19 29 173 19 23 173 88 29 59 8 52 1 29 6 63 19 85 6 63 13 15 87 8 52 19 8 71 18 175 30 5 19 30 8 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-471-0	01	1	9701-9704
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-295-0	01	1	9705-9905
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-018-0	01	1	9906-0207
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-366-0	01	1	0208-0411
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-366-0	01	1	0412-0511
1	CONDENSER; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-366-0	01	1	0512-0610
1	CONDENSER; A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-366-0	01	1	0611-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-378-0	01	1	0208-0411
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-378-0	01	1	0412-0511
5	SHROUD; FAN MOTOR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-378-0	01	1	0512-0610
5	SHROUD; FAN MOTOR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-378-0	01	1	0611-
6	STAY; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-376-0	01	1	0208-0411
6	STAY; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-376-0	01	1	0412-0511
6	STAY; FAN MOTOR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-376-0	01	1	0512-0610
6	STAY; FAN MOTOR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-376-0	01	1	0611-
6	STAY; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-377-0	01	1	0208-0411
6	STAY; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-377-0	01	1	0412-0511
6	STAY; FAN MOTOR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-377-0	01	1	0512-0610
6	STAY; FAN MOTOR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-377-0	01	1	0611-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-298-0	06	1	9705-9905
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-310-0	04	1	9906-0207
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-370-0	08	1	0208-0411
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-370-0	08	1	0412-0511
9	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-370-0	08	1	0512-0610
9	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-370-0	08	1	0611-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-305-0	01	1	9705-9905
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-021-0	04	1	9906-0207
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-024-0	04	1	9906-0207
13	MOTOR; FAN AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-372-0	01	1	0208-0411
13	MOTOR; FAN AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-372-0	01	1	0412-0511
13	MOTOR; FAN 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-372-0	01	1	0512-0610
13	MOTOR; FAN 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-372-0	01	1	0611-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-373-0	01	1	0208-0411
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-373-0	01	1	0412-0511
15	FAN; MOTOR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-373-0	01	1	0512-0610
15	FAN; MOTOR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-373-0	01	1	0611-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-374-0	01	1	0208-0411
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-374-0	01	1	0412-0511
18	NUT; FAN,CENTER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-374-0	01	1	0512-0610
18	NUT; FAN,CENTER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-374-0	01	1	0611-
19	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	04	1	0208-0411
19	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	04	1	0412-0511
19	NUT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10 FLANGE	0-91150-110-0	04	1	0512-0602
19	NUT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10 FLANGE	0-91180-110-0	04	1	0603-0610
19	NUT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M10 FLANGE	0-91180-110-0	04	1	0611-
19	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-371-0	08	1	0208-0411
19	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-371-0	08	1	0412-0511
19	NUT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-371-0	08	1	0512-0610
19	NUT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-371-0	08	1	0611-
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-394-0	01	1	0208-0411
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-394-0	01	1	0412-0511
23	SWITCH; PRESSURE,CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-394-0	01	1	0512-0610
23	SWITCH; PRESSURE,CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-394-0	01	1	0611-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-369-0	01	1	0208-0411
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-369-0	01	1	0412-0511
29	BRACKET; SIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-369-0	01	1	0512-0610
29	BRACKET; SIDE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-369-0	01	1	0611-
29	BRACKET; SIDE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-019-0	01	1	9906-0207
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-367-0	04	1	0208-0411
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-367-0	04	1	0412-0511
29	BRACKET; SIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-367-0	04	1	0512-0610
29	BRACKET; SIDE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-367-0	04	1	0611-
29	BRACKET; SIDE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-020-0	01	1	9906-0207
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (E) TAI	8-97967-368-0	01	1	0208-0411
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (E) TAI	8-97967-368-0	01	1	0412-0511
29	BRACKET; SIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-368-0	01	1	0512-0610
29	BRACKET; SIDE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-368-0	01	1	0611-
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9701-9708
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	04	1	9709-9905
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	02	1	9906-0411
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	02	1	0412-0512
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-0610
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (C) M8X20 FLANGE	0-28680-820-0	04	1	9906-0207
30	BOLT; CONDENSER,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (D) M8X12 FLANGE	0-28080-812-0	02	1	9906-0207
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	04	1	0208-0411
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	04	1	0412-0511
30	BOLT; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28681-025-0	04	1	0512-0512
30	BOLT; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-0610
30	BOLT; CONDENSER,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	04	1	0611-
34	SCREW; CONDENSER,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-025-0	01	1	9906-0207
34	SCREW; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-380-0	01	1	0208-0411
34	SCREW; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-380-0	01	1	0412-0511
34	SCREW; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-380-0	01	1	0512-0610
34	SCREW; CONDENSER,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-380-0	01	1	0611-
41	CLIP; PIPE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-379-0	01	1	0208-0411
41	CLIP; PIPE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-379-0	01	1	0412-0511
41	CLIP; PIPE TO CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-379-0	01	1	0512-0610
41	CLIP; PIPE TO CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-379-0	01	1	0611-
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-311-0	01	1	9705-9905
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-382-0	01	1	0208-0411
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-382-0	01	1	0412-0511
50	CLIP; CABLE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-382-0	01	1	0512-0610
50	CLIP; CABLE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-382-0	01	1	0611-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-245-0	01	1	0208-0411
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-245-0	01	1	0412-0511
59	BRACKET; CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-245-0	01	1	0512-0610
59	BRACKET; CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-245-0	01	1	0611-
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-303-0	04	1	9705-9905
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-310-0	01	1	9705-9905
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) M8X12 FLANGE	0-28080-812-0	02	1	0208-0211
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) M8X16 FLANGE	0-28080-816-0	02	1	0212-0411
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) M8X16 FLANGE	0-28080-816-0	02	1	0412-0511
63	BOLT; RECEIVER TANK 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) M8X16 FLANGE	0-28080-816-0	02	1	0512-0610
63	BOLT; RECEIVER TANK 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M8X12 FLANGE	0-28080-812-0	02	1	0611-
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-029-0	01	1	0208-0411
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-029-0	01	1	0412-0511
63	BOLT; RECEIVER TANK 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-029-0	01	1	0512-0610
63	BOLT; RECEIVER TANK 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-029-0	01	1	0611-
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-299-0	01	1	9705-9905
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-391-0	01	1	0208-0411
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-391-0	01	1	0412-0511
85	DRYER; RECEIVER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-391-0	01	1	0512-0610
85	DRYER; RECEIVER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-391-0	01	1	0611-
87	BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-392-0	01	1	0208-0411
87	BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-392-0	01	1	0412-0511
87	BRACKET; RECEIVER DRYER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-392-0	01	1	0512-0610
87	BRACKET; RECEIVER DRYER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-392-0	01	1	0611-
88	GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-393-0	01	1	0208-0411
88	GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-393-0	01	1	0412-0511
88	GASKET; PRESSURE SW 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-393-0	01	1	0512-0610
88	GASKET; PRESSURE SW 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-393-0	01	1	0611-
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M6X25 FLANGE	0-28080-625-0	01	1	0208-0411
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M6X25 FLANGE	0-28080-625-0	01	1	0412-0511
161	BOLT; PIPE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28080-625-0	01	1	0512-0610
161	BOLT; PIPE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28080-625-0	01	1	0611-
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-308-0	02	1	9705-9905
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-309-0	02	1	9705-9905
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-381-0	02	1	0208-0411
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-381-0	02	1	0412-0511
173	INSULATOR; CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-381-0	02	1	0512-0610
173	INSULATOR; CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-381-0	02	1	0611-
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-383-0	01	1	0208-0411
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-383-0	01	1	0412-0511
173	INSULATOR; CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-383-0	01	1	0512-0610
173	INSULATOR; CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-383-0	01	1	0611-
175	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-375-0	03	1	0208-0411
175	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-375-0	03	1	0412-0511
175	BOLT; FAN MOTOR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-375-0	03	1	0512-0610
175	BOLT; FAN MOTOR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-375-0	03	1	0611-
177	DAMPER; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-384-0	01	1	0208-0411
177	DAMPER; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-384-0	01	1	0412-0511
177	DAMPER; CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-384-0	01	1	0512-0610
177	DAMPER; CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-384-0	01	1	0611-

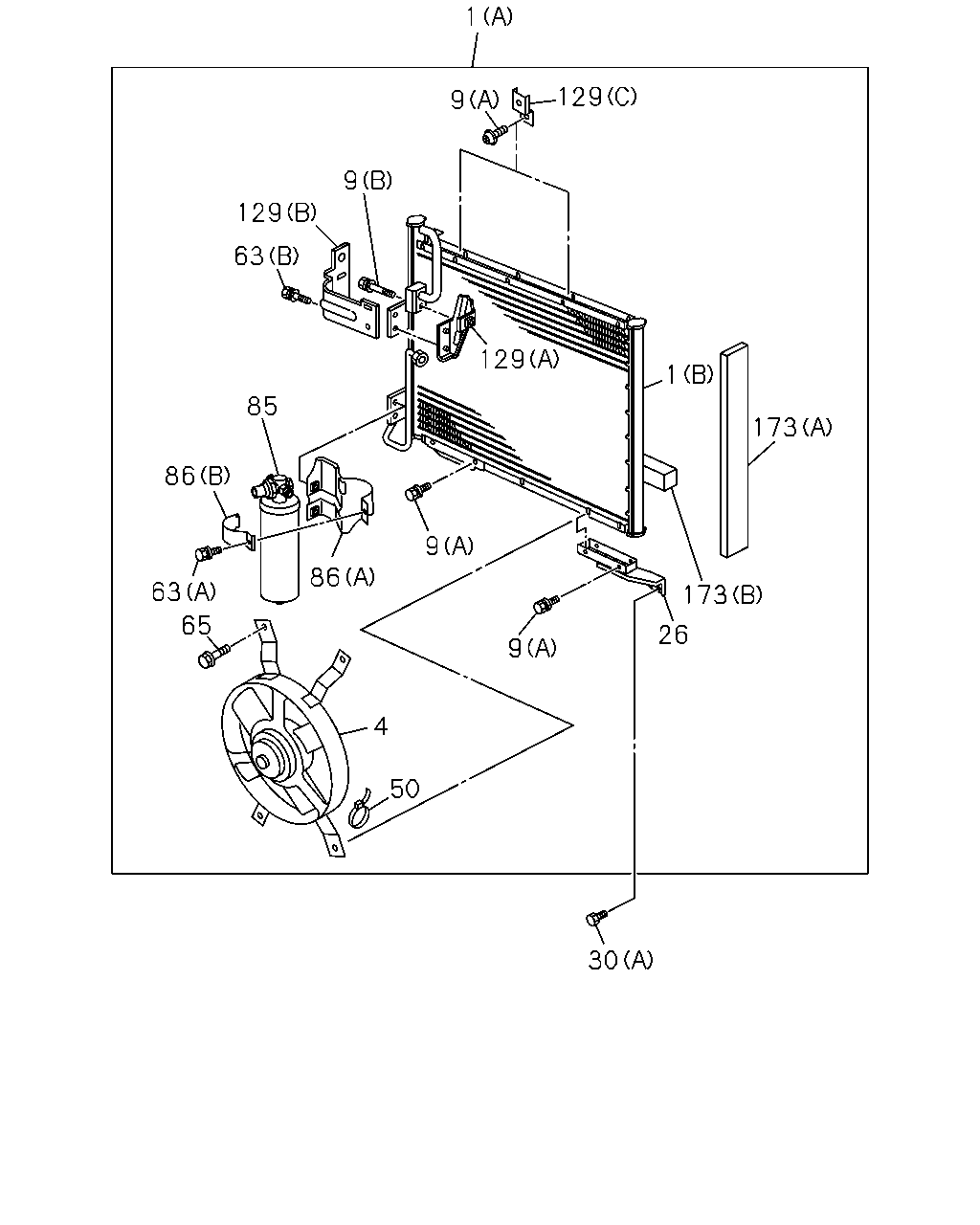

1 129 9 9 129 63 129 1 85 173 86 9 86 63 173 65 26 9 4 50 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-471-0	01	1	9701-9704
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-295-0	01	1	9705-9905
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-018-0	01	1	9906-0207
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-366-0	01	1	0208-0411
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-366-0	01	1	0412-0511
1	CONDENSER; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-366-0	01	1	0512-0610
1	CONDENSER; A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-366-0	01	1	0611-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-296-0	01	1	9705-9905
4	MOTOR ASM; FAN 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-023-0	01	1	9906-0207
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-298-0	06	1	9705-9905
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-310-0	04	1	9906-0207
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-370-0	08	1	0208-0411
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-370-0	08	1	0412-0511
9	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-370-0	08	1	0512-0610
9	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-370-0	08	1	0611-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-305-0	01	1	9705-9905
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-021-0	04	1	9906-0207
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-024-0	04	1	9906-0207
26	BRACKET; LOW AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-306-0	01	1	9705-9905
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9701-9708
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	04	1	9709-9905
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	02	1	9906-0411
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	02	1	0412-0512
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-0610
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (C) M8X20 FLANGE	0-28680-820-0	04	1	9906-0207
30	BOLT; CONDENSER,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (D) M8X12 FLANGE	0-28080-812-0	02	1	9906-0207
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	04	1	0208-0411
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	04	1	0412-0511
30	BOLT; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28681-025-0	04	1	0512-0512
30	BOLT; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-0610
30	BOLT; CONDENSER,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	04	1	0611-
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-311-0	01	1	9705-9905
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-382-0	01	1	0208-0411
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-382-0	01	1	0412-0511
50	CLIP; CABLE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-382-0	01	1	0512-0610
50	CLIP; CABLE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-382-0	01	1	0611-
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-303-0	04	1	9705-9905
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-310-0	01	1	9705-9905
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) M8X12 FLANGE	0-28080-812-0	02	1	0208-0211
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) M8X16 FLANGE	0-28080-816-0	02	1	0212-0411
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) M8X16 FLANGE	0-28080-816-0	02	1	0412-0511
63	BOLT; RECEIVER TANK 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) M8X16 FLANGE	0-28080-816-0	02	1	0512-0610
63	BOLT; RECEIVER TANK 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M8X12 FLANGE	0-28080-812-0	02	1	0611-
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-029-0	01	1	0208-0411
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-029-0	01	1	0412-0511
63	BOLT; RECEIVER TANK 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-029-0	01	1	0512-0610
63	BOLT; RECEIVER TANK 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-029-0	01	1	0611-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-297-0	04	1	9705-9905
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-299-0	01	1	9705-9905
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-391-0	01	1	0208-0411
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-391-0	01	1	0412-0511
85	DRYER; RECEIVER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-391-0	01	1	0512-0610
85	DRYER; RECEIVER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-391-0	01	1	0611-
86	BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-302-0	01	1	9705-9905
86	BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-307-0	01	1	9705-9905
129	BRACKET; UPR AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-300-0	01	1	9705-9905
129	BRACKET; UPR AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-301-0	01	1	9705-9905
129	BRACKET; UPR AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97966-304-0	01	1	9705-9905
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-308-0	02	1	9705-9905
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-309-0	02	1	9705-9905
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-381-0	02	1	0208-0411
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-381-0	02	1	0412-0511
173	INSULATOR; CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-381-0	02	1	0512-0610
173	INSULATOR; CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-381-0	02	1	0611-
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-383-0	01	1	0208-0411
173	INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-383-0	01	1	0412-0511
173	INSULATOR; CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-383-0	01	1	0512-0610
173	INSULATOR; CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-383-0	01	1	0611-

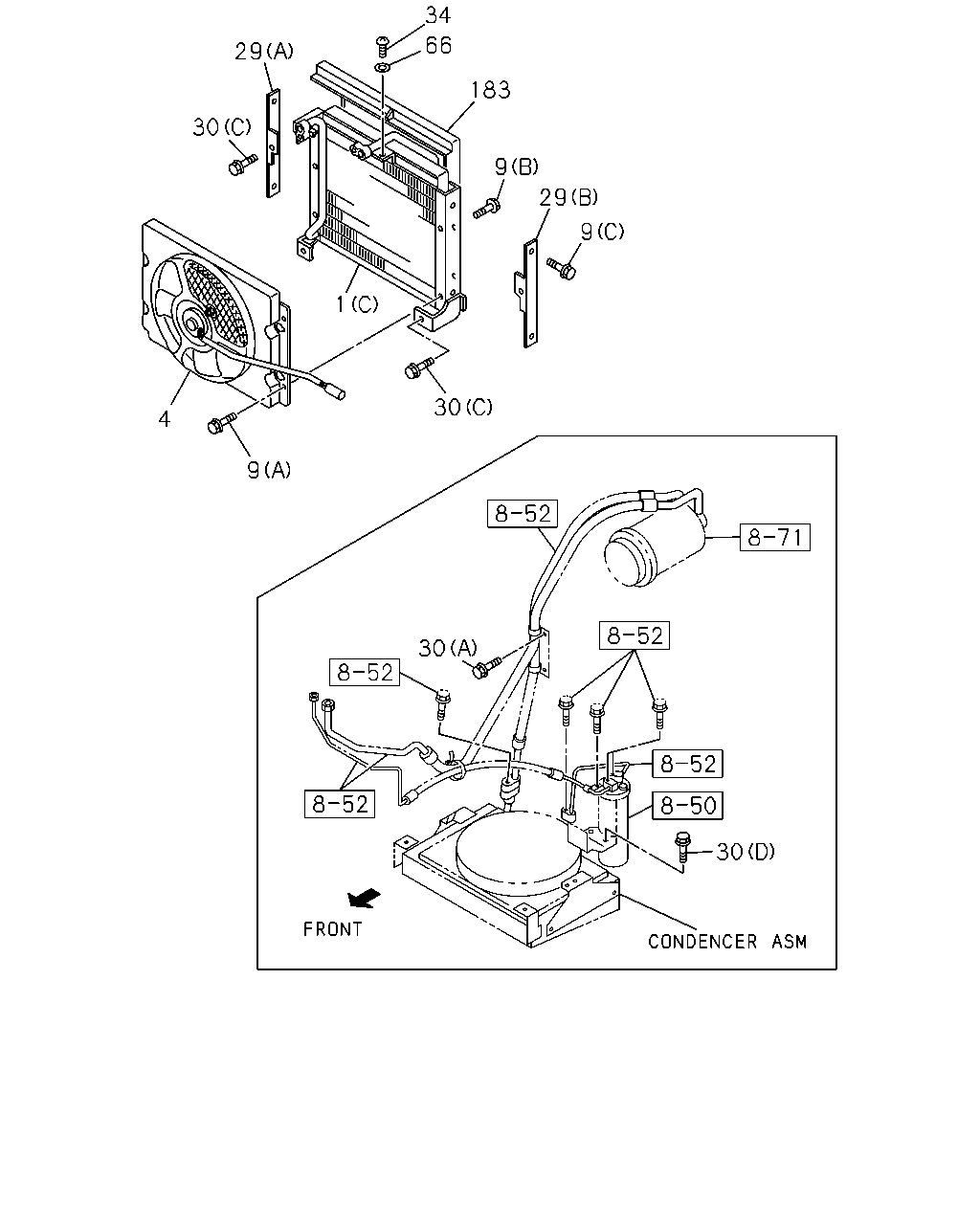

34 66 29 183 30 9 29 9 1 30 4 9 8 52 8 71 8 52 30 8 52 8 52 8 52 8 50 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-471-0	01	1	9701-9704
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-295-0	01	1	9705-9905
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-018-0	01	1	9906-0207
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-366-0	01	1	0208-0411
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-366-0	01	1	0412-0511
1	CONDENSER; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-366-0	01	1	0512-0610
1	CONDENSER; A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-366-0	01	1	0611-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-296-0	01	1	9705-9905
4	MOTOR ASM; FAN 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-023-0	01	1	9906-0207
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-298-0	06	1	9705-9905
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-310-0	04	1	9906-0207
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-370-0	08	1	0208-0411
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-370-0	08	1	0412-0511
9	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-370-0	08	1	0512-0610
9	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-370-0	08	1	0611-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-305-0	01	1	9705-9905
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-021-0	04	1	9906-0207
9	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-024-0	04	1	9906-0207
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-369-0	01	1	0208-0411
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-369-0	01	1	0412-0511
29	BRACKET; SIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-369-0	01	1	0512-0610
29	BRACKET; SIDE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-369-0	01	1	0611-
29	BRACKET; SIDE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-019-0	01	1	9906-0207
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-367-0	04	1	0208-0411
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-367-0	04	1	0412-0511
29	BRACKET; SIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-367-0	04	1	0512-0610
29	BRACKET; SIDE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-367-0	04	1	0611-
29	BRACKET; SIDE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-020-0	01	1	9906-0207
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (E) TAI	8-97967-368-0	01	1	0208-0411
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (E) TAI	8-97967-368-0	01	1	0412-0511
29	BRACKET; SIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-368-0	01	1	0512-0610
29	BRACKET; SIDE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-368-0	01	1	0611-
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9701-9708
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	04	1	9709-9905
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	02	1	9906-0411
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28080-612-0	02	1	0412-0512
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-0610
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) (C) M8X20 FLANGE	0-28680-820-0	04	1	9906-0207
30	BOLT; CONDENSER,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (D) M8X12 FLANGE	0-28080-812-0	02	1	9906-0207
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	04	1	0208-0411
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	04	1	0412-0511
30	BOLT; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28681-025-0	04	1	0512-0512
30	BOLT; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-0610
30	BOLT; CONDENSER,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	04	1	0611-
34	SCREW; CONDENSER,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-025-0	01	1	9906-0207
34	SCREW; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-380-0	01	1	0208-0411
34	SCREW; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-380-0	01	1	0412-0511
34	SCREW; CONDENSER,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-380-0	01	1	0512-0610
34	SCREW; CONDENSER,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-380-0	01	1	0611-
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-311-0	01	1	9705-9905
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-382-0	01	1	0208-0411
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-382-0	01	1	0412-0511
50	CLIP; CABLE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-382-0	01	1	0512-0610
50	CLIP; CABLE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-382-0	01	1	0611-
66	WASHER; PL,CONDENSER,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-026-0	01	1	9906-0207
183	GUIDE; AIR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-022-0	01	1	9906-0207

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
