8-74 — EVAPORATOR (#139155) — 115 parça

44 48 33 47 37 46 37 38 45 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-045-0	01	1	9701-0411
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-045-0	01	1	0412-0610
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97205-564-0	01	1	0611-
33	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97085-278-2	01	1	0611-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5 TAI	8-94248-212-0	01	1	0611-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.07 TAI	8-94461-902-0	01	1	0611-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A" TAI	8-97112-753-0	01	1	0611-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-94481-717-0	01	1	0611-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97191-213-0	01	1	0611-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) TAI	8-97205-565-0	01	1	0611-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) TAI	1-83574-214-0	01	1	0611-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97130-601-0	01	1	0611-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	1-83579-784-0	01	1	0611-

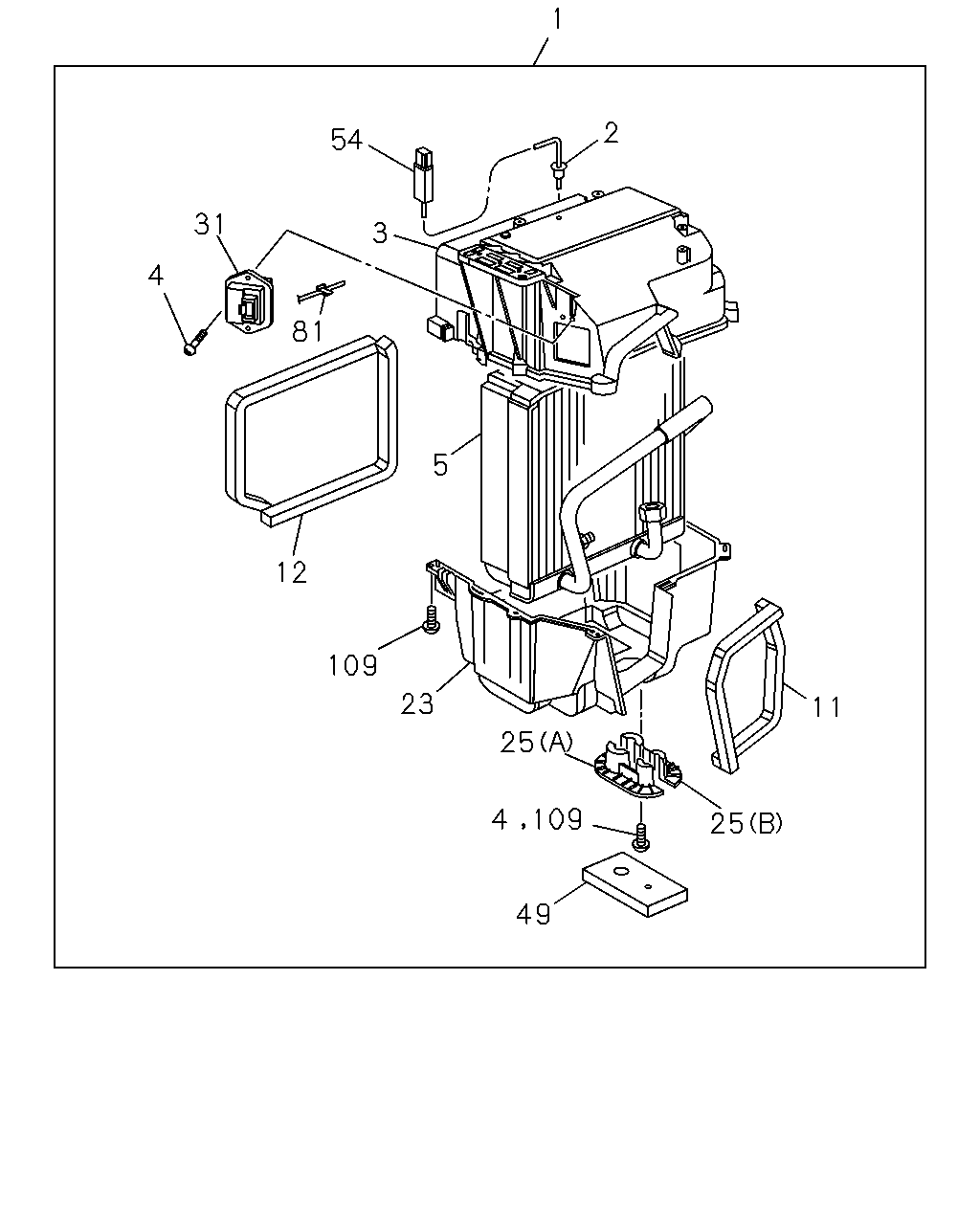

1 2 54 31 3 4 81 5 12 109 23 11 25 109 4 25 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-472-0	01	1	9701-0411
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-472-0	01	1	0412-0610
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97374-883-0	01	1	0611-0701
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-589-0	01	1	0702-
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-052-0	01	1	9701-0411
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-052-0	01	1	0412-0610
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) USA	8-94380-565-0	01	1	0611-
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-046-0	01	1	9701-0411
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-046-0	01	1	0412-0610
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97102-597-0	01	1	0611-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	02	1	9701-0411
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	02	1	0412-0610
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	02	1	0611-
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-045-0	01	1	9701-0411
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-045-0	01	1	0412-0610
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97205-564-0	01	1	0611-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-056-0	01	1	9701-0411
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-056-0	01	1	0412-0610
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97114-549-0	01	1	0611-
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-057-0	01	1	9701-0411
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-057-0	01	1	0412-0610
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97188-565-0	01	1	0611-
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-047-0	01	1	9701-0411
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-047-0	01	1	0412-0610
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97102-598-1	01	1	0611-
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-049-0	01	1	9701-0411
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-049-0	01	1	0412-0610
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97085-281-0	01	1	0611-
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-050-0	01	1	9701-0411
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-050-0	01	1	0412-0610
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97085-282-0	01	1	0611-
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-054-0	01	1	9701-0411
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-054-0	01	1	0412-0610
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97358-389-0	01	1	0611-
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-055-0	01	1	9701-0411
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-055-0	01	1	0412-0610
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97069-404-1	01	1	0611-
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-051-0	01	1	9701-0411
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-051-0	01	1	0412-0610
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97302-052-0	01	1	0611-
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-053-0	01	1	9701-0411
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-053-0	01	1	0412-0610
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) USA	8-94481-724-0	01	1	0611-
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	06	1	9701-0411
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	06	1	0412-0610
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	05	1	0611-

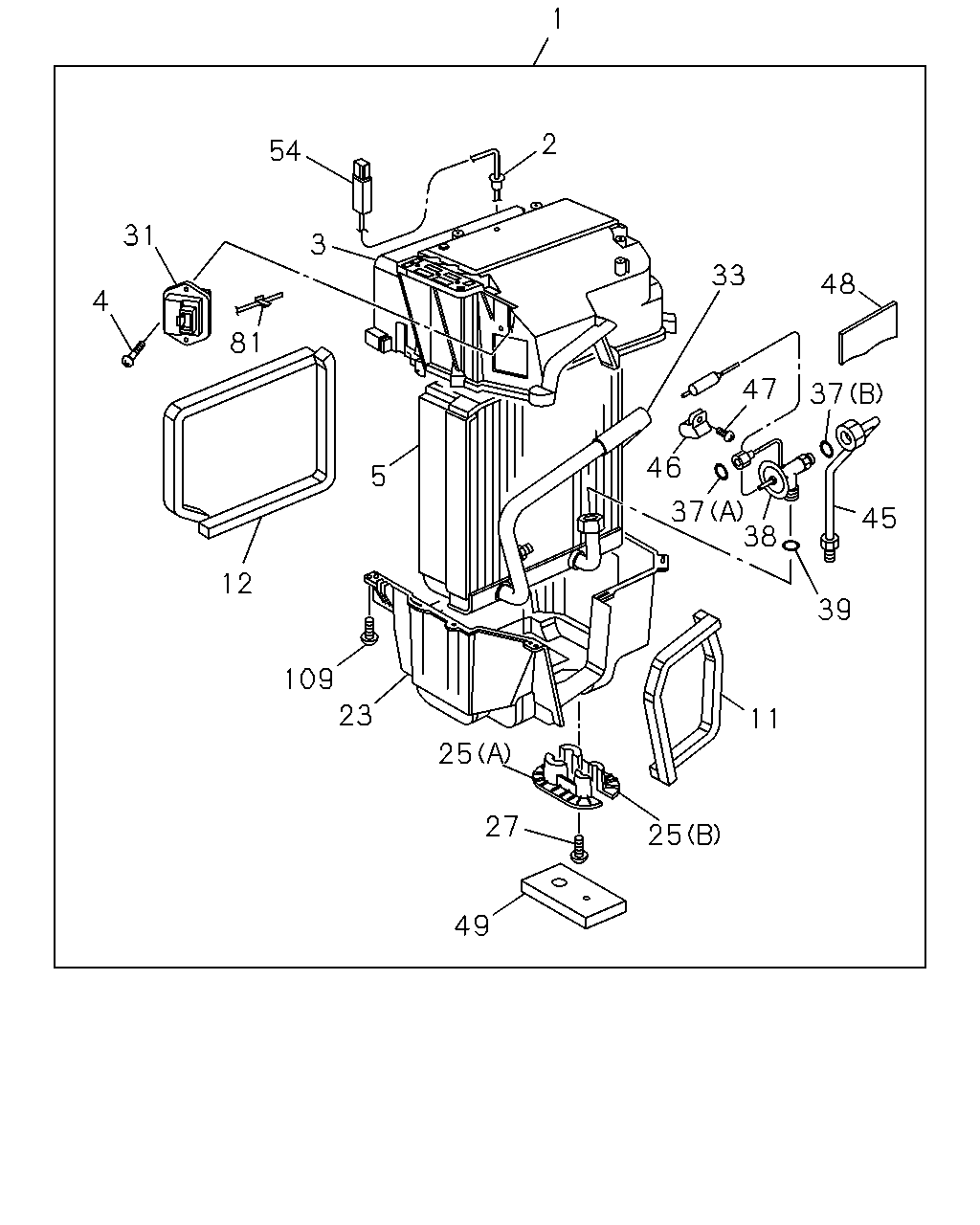

1 2 54 31 3 33 48 4 81 47 37 46 5 37 38 45 12 39 109 23 11 25 27 25 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-472-0	01	1	9701-0411
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-472-0	01	1	0412-0610
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97374-883-0	01	1	0611-0701
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-589-0	01	1	0702-
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-052-0	01	1	9701-0411
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-052-0	01	1	0412-0610
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) USA	8-94380-565-0	01	1	0611-
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-046-0	01	1	9701-0411
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-046-0	01	1	0412-0610
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97102-597-0	01	1	0611-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	02	1	9701-0411
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	02	1	0412-0610
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	02	1	0611-
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-045-0	01	1	9701-0411
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-045-0	01	1	0412-0610
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97205-564-0	01	1	0611-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-056-0	01	1	9701-0411
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-056-0	01	1	0412-0610
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97114-549-0	01	1	0611-
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-057-0	01	1	9701-0411
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-057-0	01	1	0412-0610
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97188-565-0	01	1	0611-
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-047-0	01	1	9701-0411
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-047-0	01	1	0412-0610
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97102-598-1	01	1	0611-
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-049-0	01	1	9701-0411
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-049-0	01	1	0412-0610
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97085-281-0	01	1	0611-
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-050-0	01	1	9701-0411
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-050-0	01	1	0412-0610
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97085-282-0	01	1	0611-
27	SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	01	1	0611-
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-054-0	01	1	9701-0411
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-054-0	01	1	0412-0610
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97358-389-0	01	1	0611-
33	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97085-278-2	01	1	0611-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5 TAI	8-94248-212-0	01	1	0611-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.07 TAI	8-94461-902-0	01	1	0611-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A" TAI	8-97112-753-0	01	1	0611-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-94481-717-0	01	1	0611-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) TAI	8-97205-565-0	01	1	0611-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) TAI	1-83574-214-0	01	1	0611-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97130-601-0	01	1	0611-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	1-83579-784-0	01	1	0611-
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-055-0	01	1	9701-0411
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-055-0	01	1	0412-0610
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97069-404-1	01	1	0611-
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-051-0	01	1	9701-0411
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-051-0	01	1	0412-0610
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97302-052-0	01	1	0611-
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-053-0	01	1	9701-0411
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-053-0	01	1	0412-0610
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) USA	8-94481-724-0	01	1	0611-
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	06	1	9701-0411
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-048-0	06	1	0412-0610
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	05	1	0611-
