Isuzu WW
▶
TRUCKS
▶
NHR
▶
50760 - NHR/NKR TAIWAN
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

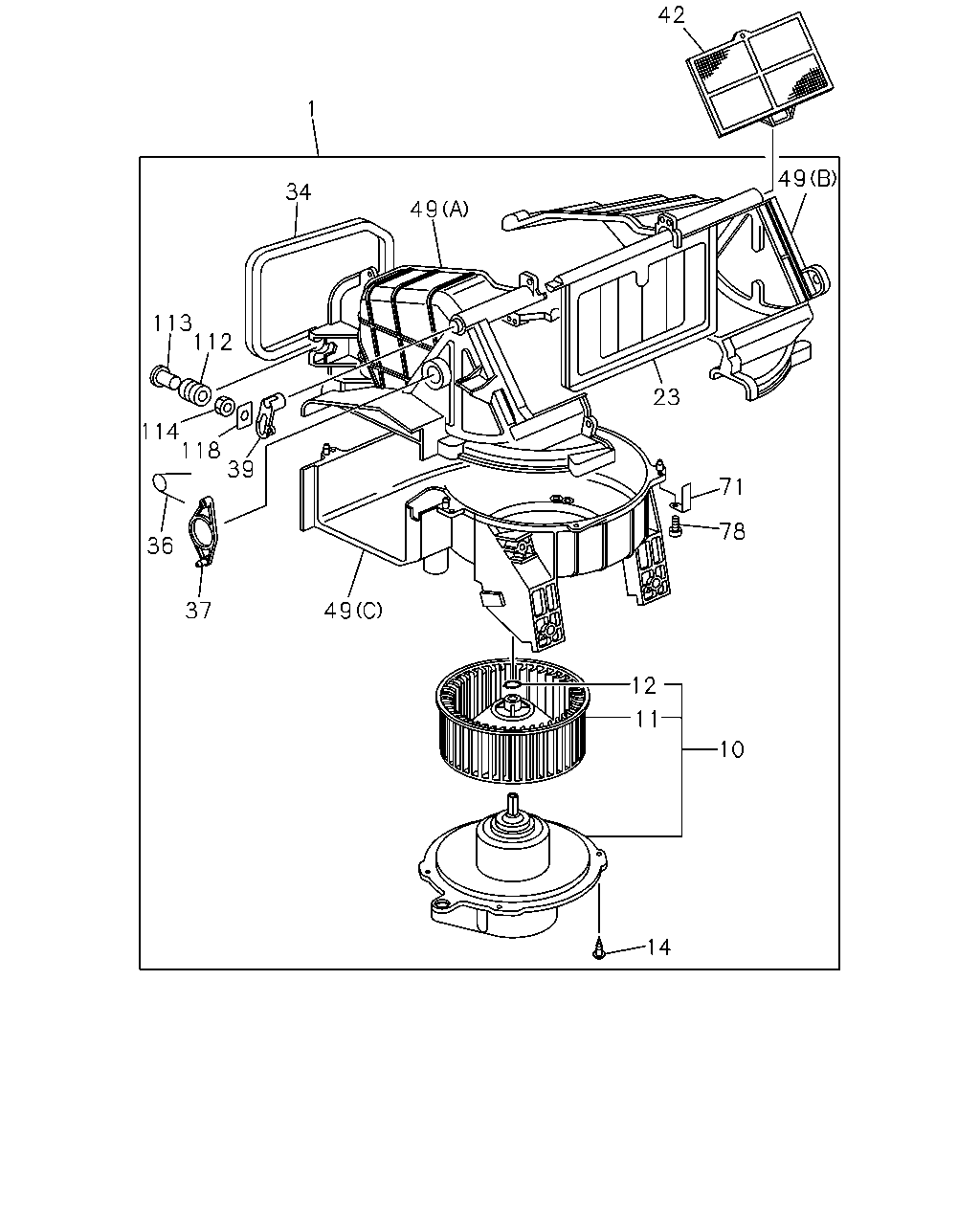

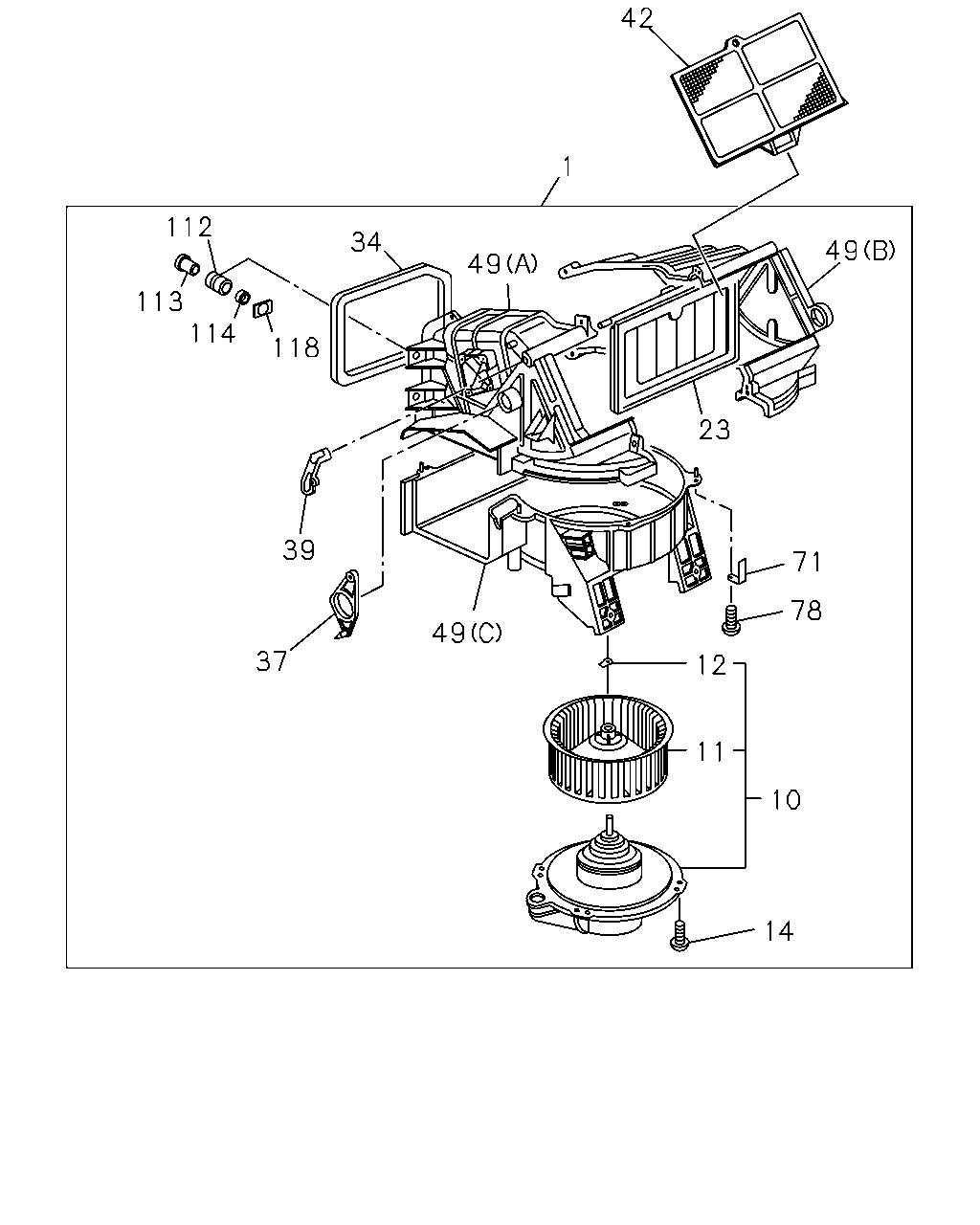

8-73 — BLOWER UNIT
(#139154) — 94 parça
◀
[873A] -'06/10 (46 parça)
[873A] '06/11- (48 parça)
▶
42
1
49
34
49
113
112
3
114
118
39
71
78
36
37
49
12
11
10
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-97120-691-3
01
1
9701-0009
1
BLOWER ASM
8-97288-167-0
01
1
0010-0207
1
BLOWER ASM
TAI
8-97967-273-0
01
1
0208-0411
1
BLOWER ASM
TAI
8-97967-273-0
01
1
0412-0610
1
BLOWER ASM
TAI
8-97288-168-0
01
1
0611-0701
1
BLOWER ASM
TAI
8-97967-588-0
01
1
0702-
10
MOTOR ASM; FAN,BLOWER UNIT
8-97101-656-1
01
1
9701-9809
10
MOTOR ASM; FAN,BLOWER UNIT
TAI
8-97211-953-0
01
1
9810-0411
10
MOTOR ASM; FAN,BLOWER UNIT
TAI
8-97211-953-0
01
1
0412-0610
10
MOTOR ASM; FAN,BLOWER UNIT
TAI
8-97211-954-0
01
1
0611-
11
IMPELLER; FAN MOTOR
TAI
8-97096-067-0
01
1
9701-0411
11
IMPELLER; FAN MOTOR
TAI
8-97096-067-0
01
1
0412-
12
RING; SNAP,FAN MOTOR
TAI
8-94243-962-0
01
1
9701-0411
12
RING; SNAP,FAN MOTOR
TAI
8-94243-962-0
01
1
0412-
14
SCREW; COVER TO CASE
M5X20 TAI
9-09829-324-1
04
1
9701-9902
14
SCREW; COVER TO CASE
M5X16
8-94248-820-0
04
1
9903-9905
14
SCREW; COVER TO CASE
M5X20 TAI
9-09829-324-1
04
1
9906-0411
14
SCREW; COVER TO CASE
M5X20 TAI
9-09829-324-1
04
1
0412-
34
LINING; BLOWER UNIT
TAI
8-97085-612-1
01
1
9701-0411
34
LINING; BLOWER UNIT
TAI
8-97085-612-1
01
1
0412-
36
SPRING; BLOWER UNIT
8-97109-014-0
01
1
9701-9809
37
LEVER; MODE LEVER
TAI
8-97101-667-1
01
1
9701-0411
37
LEVER; MODE LEVER
TAI
8-97101-667-1
01
1
0412-
39
LEVER; SHUTTER,BLOWER UNIT
TAI
8-97101-666-1
01
1
9701-0411
39
LEVER; SHUTTER,BLOWER UNIT
TAI
8-97101-666-1
01
1
0412-
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) TAI
8-97965-483-1
01
1
9701-0411
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) TAI
8-97965-483-1
01
1
0412-
49
CASE; BLOWER UNIT
(A) TAI
8-97101-647-3
01
1
9701-0411
49
CASE; BLOWER UNIT
(A) TAI
8-97101-647-3
01
1
0412-
49
CASE; BLOWER UNIT
(B) TAI
8-97101-648-1
01
1
9701-0411
49
CASE; BLOWER UNIT
(B) TAI
8-97101-648-1
01
1
0412-
49
CASE; BLOWER UNIT
(C) TAI
8-97101-649-0
01
1
9701-0411
49
CASE; BLOWER UNIT
(C) TAI
8-97101-649-0
01
1
0412-
71
CLIP; HARNESS
1-83574-080-0
01
1
9701-9902
71
CLIP; HARNESS
8-94158-260-0
01
1
9903-0411
71
CLIP; HARNESS
8-94158-260-0
01
1
0412-
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
9701-0411
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
0412-
112
ISOLATOR; CASE
TAI
8-97096-641-0
02
1
9701-0411
112
ISOLATOR; CASE
TAI
8-97096-641-0
02
1
0412-
113
BUSHING; ISOLATOR
TAI
8-97096-642-0
02
1
9701-0411
113
BUSHING; ISOLATOR
TAI
8-97096-642-0
02
1
0412-
114
NUT; ISOLATOR
M8 FLANGE TAI
5-09440-005-0
02
1
9701-0411
114
NUT; ISOLATOR
M8 FLANGE TAI
5-09440-005-0
02
1
0412-
118
BRACKET; BUSHING
TAI
8-97107-979-0
01
1
9701-0411
118
BRACKET; BUSHING
TAI
8-97107-979-0
01
1
0412-
42
1
112
34
49
49
113
114
118
23
39
71
78
49
37
12
11
10
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-97120-691-3
01
1
9701-0009
1
BLOWER ASM
8-97288-167-0
01
1
0010-0207
1
BLOWER ASM
TAI
8-97967-273-0
01
1
0208-0411
1
BLOWER ASM
TAI
8-97967-273-0
01
1
0412-0610
1
BLOWER ASM
TAI
8-97288-168-0
01
1
0611-0701
1
BLOWER ASM
TAI
8-97967-588-0
01
1
0702-
10
MOTOR ASM; FAN,BLOWER UNIT
8-97101-656-1
01
1
9701-9809
10
MOTOR ASM; FAN,BLOWER UNIT
TAI
8-97211-953-0
01
1
9810-0411
10
MOTOR ASM; FAN,BLOWER UNIT
TAI
8-97211-953-0
01
1
0412-0610
10
MOTOR ASM; FAN,BLOWER UNIT
TAI
8-97211-954-0
01
1
0611-
11
IMPELLER; FAN MOTOR
TAI
8-97096-067-0
01
1
9701-0411
11
IMPELLER; FAN MOTOR
TAI
8-97096-067-0
01
1
0412-
12
RING; SNAP,FAN MOTOR
TAI
8-94243-962-0
01
1
9701-0411
12
RING; SNAP,FAN MOTOR
TAI
8-94243-962-0
01
1
0412-
14
SCREW; COVER TO CASE
M5X20 TAI
9-09829-324-1
04
1
9701-9902
14
SCREW; COVER TO CASE
M5X16
8-94248-820-0
04
1
9903-9905
14
SCREW; COVER TO CASE
M5X20 TAI
9-09829-324-1
04
1
9906-0411
14
SCREW; COVER TO CASE
M5X20 TAI
9-09829-324-1
04
1
0412-
23
SHUTTER; BLOWER UNIT
8-97101-650-1
01
1
9701-9809
23
SHUTTER; BLOWER UNIT
TAI
8-97096-640-3
01
1
9810-0411
23
SHUTTER; BLOWER UNIT
TAI
8-97096-640-3
01
1
0412-
34
LINING; BLOWER UNIT
TAI
8-97085-612-1
01
1
9701-0411
34
LINING; BLOWER UNIT
TAI
8-97085-612-1
01
1
0412-
37
LEVER; MODE LEVER
TAI
8-97101-667-1
01
1
9701-0411
37
LEVER; MODE LEVER
TAI
8-97101-667-1
01
1
0412-
39
LEVER; SHUTTER,BLOWER UNIT
TAI
8-97101-666-1
01
1
9701-0411
39
LEVER; SHUTTER,BLOWER UNIT
TAI
8-97101-666-1
01
1
0412-
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) TAI
8-97965-483-1
01
1
9701-0411
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) TAI
8-97965-483-1
01
1
0412-
49
CASE; BLOWER UNIT
(A) TAI
8-97101-647-3
01
1
9701-0411
49
CASE; BLOWER UNIT
(A) TAI
8-97101-647-3
01
1
0412-
49
CASE; BLOWER UNIT
(B) TAI
8-97101-648-1
01
1
9701-0411
49
CASE; BLOWER UNIT
(B) TAI
8-97101-648-1
01
1
0412-
49
CASE; BLOWER UNIT
(C) TAI
8-97101-649-0
01
1
9701-0411
49
CASE; BLOWER UNIT
(C) TAI
8-97101-649-0
01
1
0412-
71
CLIP; HARNESS
1-83574-080-0
01
1
9701-9902
71
CLIP; HARNESS
8-94158-260-0
01
1
9903-0411
71
CLIP; HARNESS
8-94158-260-0
01
1
0412-
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
9701-0411
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
0412-
112
ISOLATOR; CASE
TAI
8-97096-641-0
02
1
9701-0411
112
ISOLATOR; CASE
TAI
8-97096-641-0
02
1
0412-
113
BUSHING; ISOLATOR
TAI
8-97096-642-0
02
1
9701-0411
113
BUSHING; ISOLATOR
TAI
8-97096-642-0
02
1
0412-
114
NUT; ISOLATOR
M8 FLANGE TAI
5-09440-005-0
02
1
9701-0411
114
NUT; ISOLATOR
M8 FLANGE TAI
5-09440-005-0
02
1
0412-
118
BRACKET; BUSHING
TAI
8-97107-979-0
01
1
9701-0411
118
BRACKET; BUSHING
TAI
8-97107-979-0
01
1
0412-
