◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#139153) — 8 parça

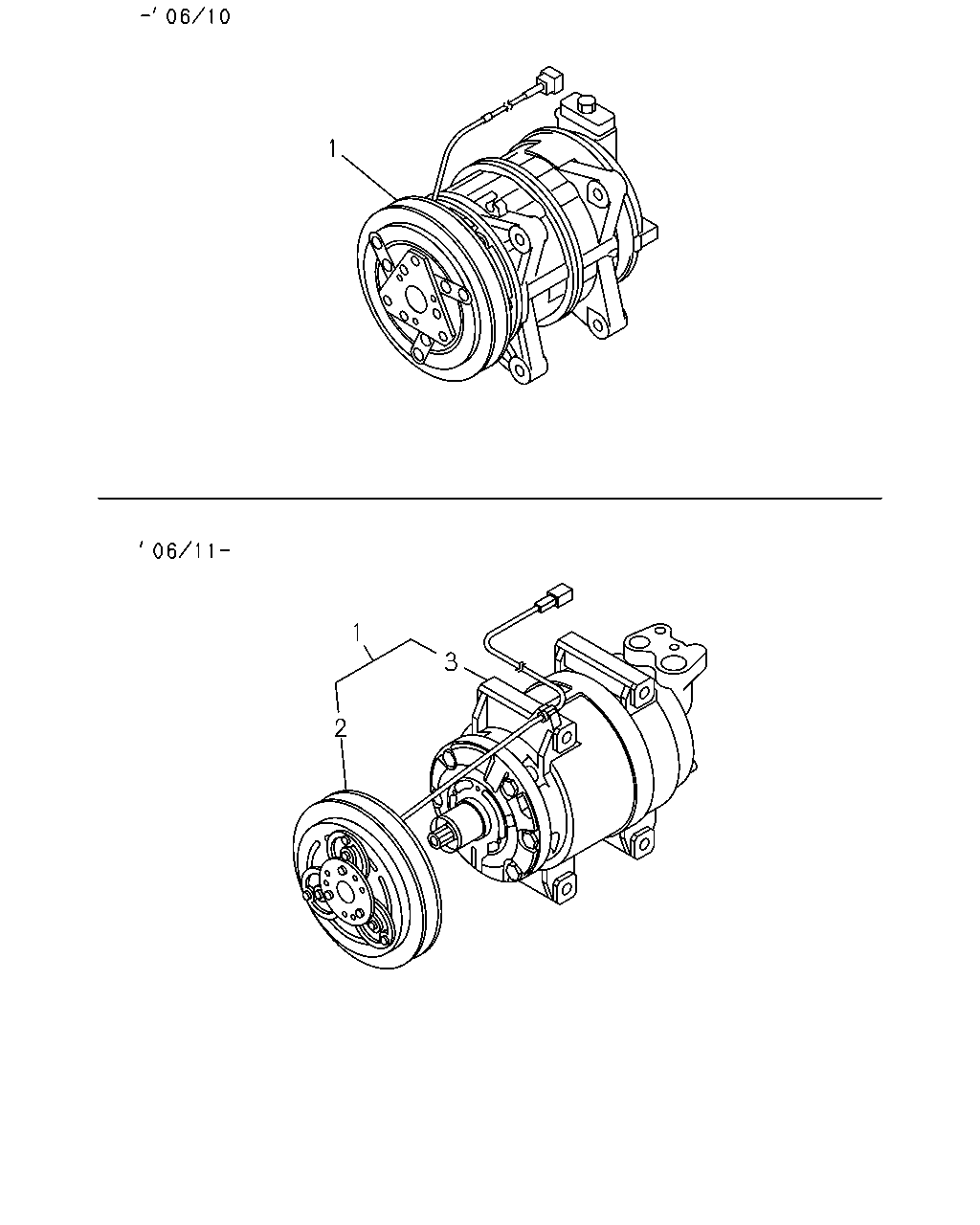

çizim 420743
1 1 3 2
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) TAI 		8-97965-476-1 01 1 9701-9905
1 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI 		8-97965-476-1 01 1 9906-0207
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI 		8-97967-254-0 01 1 0208-0411
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI 		8-97967-254-0 01 1 0412-0511
1 COMPRESSOR ASM; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI 		8-97967-254-0 01 1 0512-0610
1 COMPRESSOR ASM; A/C
4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98000-988-2 01 1 0611-
2 CLUTCH; MAGNET,A/C
4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 		8-98042-534-1 01 1 0611-
3 COMPRESSOR ASM; A/C
4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 0611-
