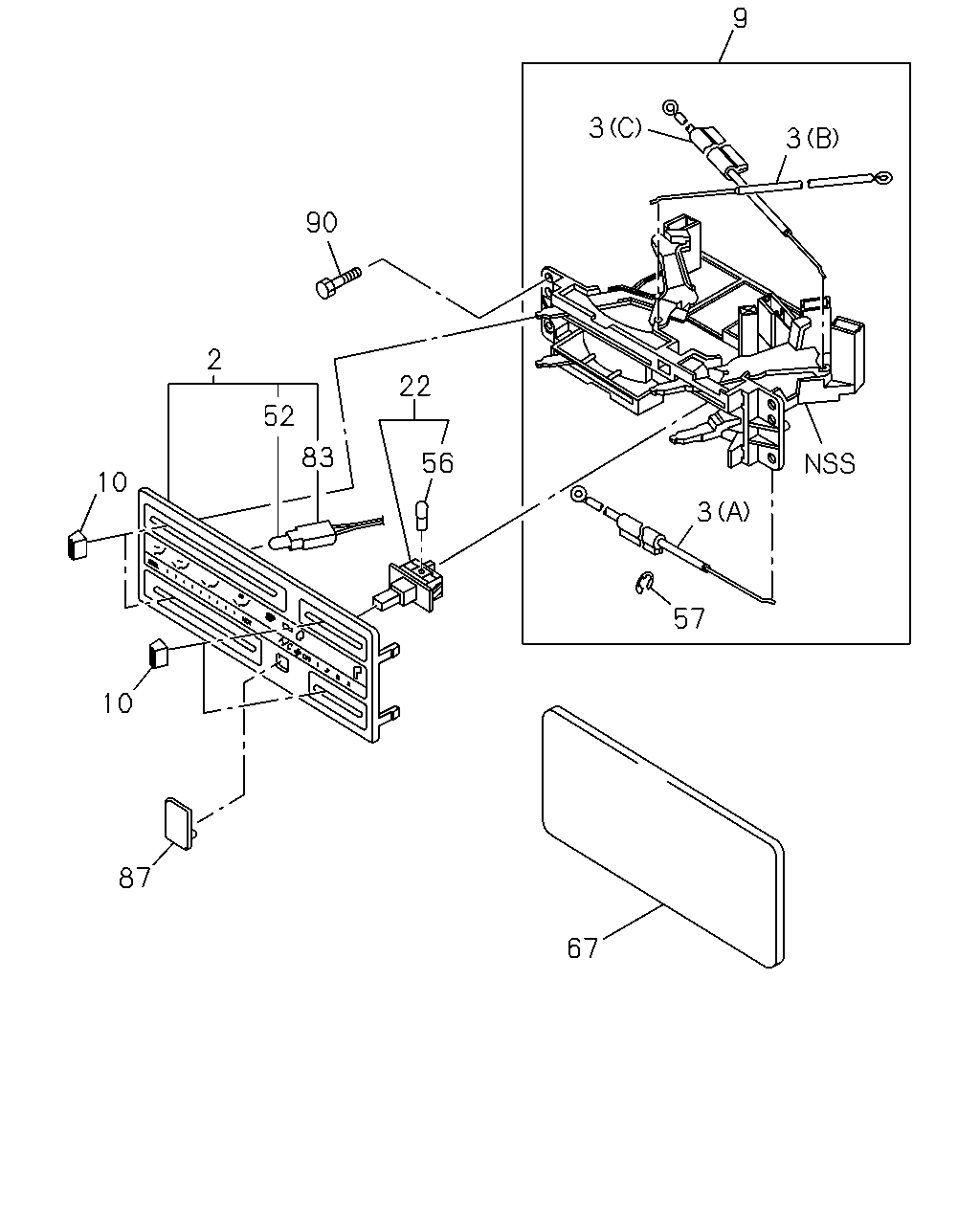

8-65 — CONTROL LEVER; HEATER AND AIR CON (#139152) — 42 parça

9 3 3 90 2 22 52 83 56 10 3 57 10 87 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PANEL ASM; CONT,ILLUMINATION	8-97048-330-1	01	1	9701-0411
2	PANEL ASM; CONT,ILLUMINATION	8-97048-330-1	01	1	0412-0610
2	PANEL ASM; CONT,ILLUMINATION	8-97048-331-2	01	1	0611-
3	CABLE; HTR CONT LVR (B) MODE	8-97101-674-2	01	1	9701-0411
3	CABLE; HTR CONT LVR (B) MODE	8-97101-674-2	01	1	0412-
3	CABLE; HTR CONT LVR (C) FRESH	8-97101-675-3	01	1	9701-0411
3	CABLE; HTR CONT LVR (C) FRESH	8-97101-675-3	01	1	0412-
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX	8-97101-660-2	01	1	9701-0207
3	CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) MIX	8-97101-660-2	01	1	0208-0411
3	CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) MIX	8-97101-660-2	01	1	0412-
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-831-1	01	1	9701-0207
9	LEVER ASM; HTR & A/C CONT AIR CONDITIONER MANUAL CONT(C60)	8-97069-831-1	01	1	0208-0411
9	LEVER ASM; HTR & A/C CONT AIR CONDITIONER MANUAL CONT(C60)	8-97069-831-1	01	1	0412-
9	LEVER ASM; HTR & A/C CONT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-219-0	01	1	9701-0207
9	LEVER ASM; HTR & A/C CONT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-219-0	01	1	0208-0411
9	LEVER ASM; HTR & A/C CONT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-219-0	01	1	0412-
10	KNOB; CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	04	1	9701-0207
10	KNOB; CONT LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	04	1	0208-0411
10	KNOB; CONT LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	04	1	0412-
10	KNOB; CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	03	1	9701-0207
10	KNOB; CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	03	1	0208-0411
10	KNOB; CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	03	1	0412-
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-484-1	01	1	9701-0411
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-484-1	01	1	0412-0610
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60) TAI	8-97048-329-1	01	1	0611-0701
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-590-0	01	1	0702-
52	BULB; PANEL ILLUMINATION 14V 140MA	8-97100-290-0	01	1	9701-0411
52	BULB; PANEL ILLUMINATION 14V 140MA	8-97100-290-0	01	1	0412-0610
52	BULB; PANEL ILLUMINATION 28V 65MA	8-97182-225-0	01	1	0611-
56	BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60) 28V 33MA TAI	8-97182-224-0	01	1	0611-
57	RING; SNAP,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97311-509-0	01	1	9701-0207
57	RING; SNAP,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97311-509-0	01	1	0208-0411
57	RING; SNAP,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97311-509-0	01	1	0412-
67	CAP; BEZEL,CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-228-0	01	1	9701-0207
67	CAP; BEZEL,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-228-0	01	1	0208-0411
67	CAP; BEZEL,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-228-0	01	1	0412-
83	HARNESS; CONT PANEL	8-97308-566-0	01	1	9701-0411
83	HARNESS; CONT PANEL	8-97308-566-0	01	1	0412-
87	CAP; A/C SWITCH EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97065-448-2	01	1	9701-0411
87	CAP; A/C SWITCH EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97065-448-2	01	1	0412-
90	BOLT; CONT PANEL M6X16 W/LK&PL WASHER	8-94139-963-0	03	1	9701-0411
90	BOLT; CONT PANEL M6X16 W/LK&PL WASHER	8-94139-963-0	03	1	0412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
