8-60 — HEATER UNIT; FRONT (#139151) — 154 parça

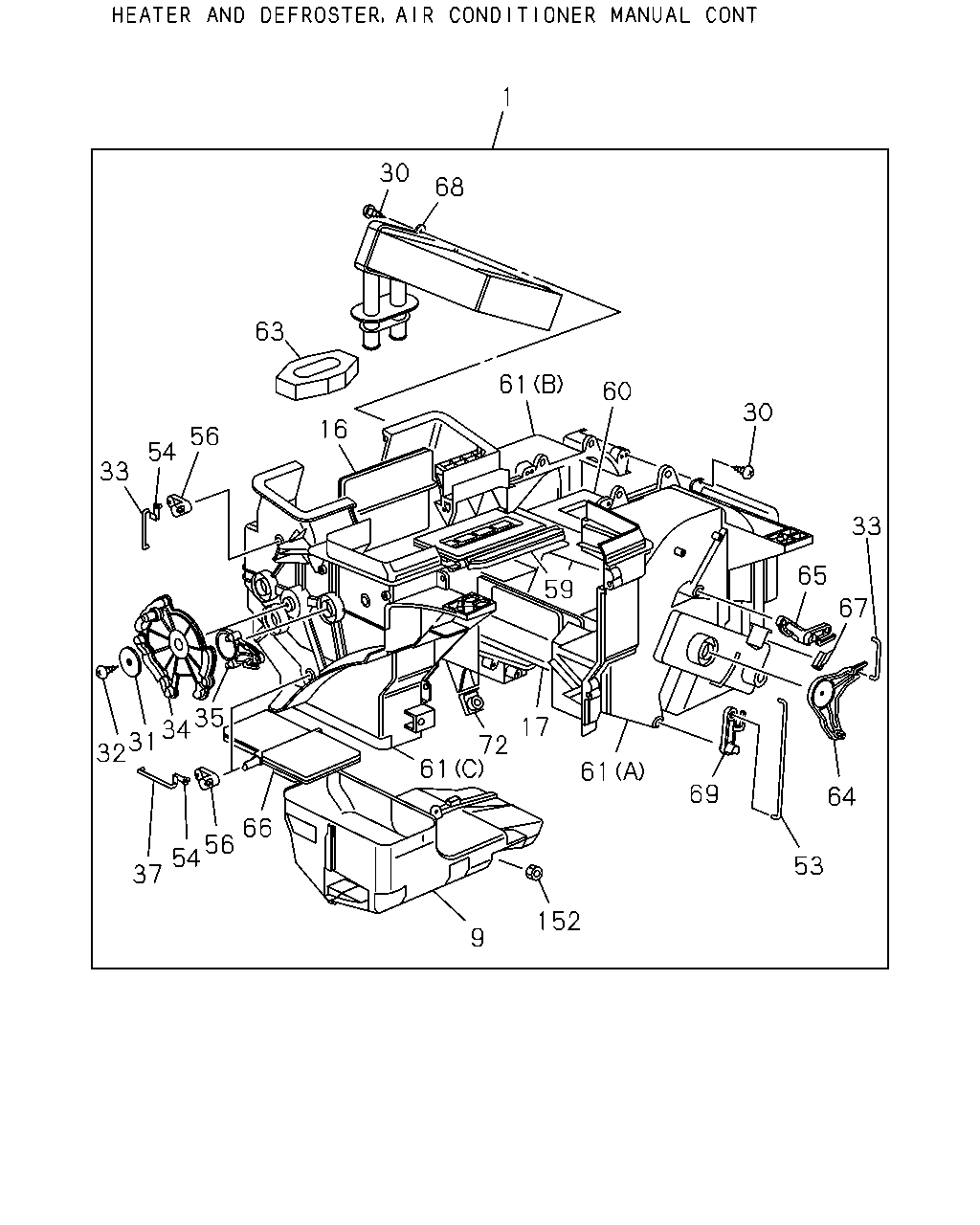

1 30 68 63 61 60 30 16 56 54 33 33 65 59 67 35 34 31 32 17 72 61 61 69 64 66 56 54 37 53 152 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-814-3	01	1	9701-9701
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-6	01	1	9702-0207
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-6	01	1	0208-0411
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-6	01	1	0412-
1	HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9701-0207
1	HEATER UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	0208-0411
1	HEATER UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	0412-
9	DUCT; HTR UNIT	8-97101-638-0	01	1	9701-0411
9	DUCT; HTR UNIT	8-97101-638-0	01	1	0412-
16	SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9701-0411
16	SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	0412-
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	9701-0207
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	0208-0411
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	0412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	9701-0207
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	0208-0411
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	0412-
30	SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	9701-0207
30	SCREW; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	0208-0411
30	SCREW; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	0412-
31	WASHER; HTR UNIT TAI	8-94129-950-0	01	1	9701-0411
31	WASHER; HTR UNIT TAI	8-94129-950-0	01	1	0412-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAI	9-09829-324-1	01	1	9701-9704
32	SCREW; HTR UNIT M5X20 TAI	9-09829-324-1	01	1	9705-0411
32	SCREW; HTR UNIT M5X20 TAI	9-09829-324-1	01	1	0412-
32	SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16	8-94248-820-0	01	1	9701-9704
33	ROD; SHUTTER LEVER	8-97087-566-0	02	1	9701-0002
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0003-0207
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0208-0411
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0412-
33	ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0003-0207
33	ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0208-0411
33	ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0412-
34	LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	9701-0411
34	LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	0412-
35	LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9701-0411
35	LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	0412-
37	ROD; LEVER	8-97101-677-2	02	1	9701-0411
37	ROD; LEVER	8-97101-677-2	02	1	0412-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-567-1	01	1	9701-0207
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97087-567-1	01	1	0208-0411
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97087-567-1	01	1	0412-
54	CLIP; SHUTTER LEVER TAI	1-83574-136-0	03	1	9701-0411
54	CLIP; SHUTTER LEVER TAI	1-83574-136-0	03	1	0412-
56	LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9701-0411
56	LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	0412-
59	SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9701-0411
59	SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	0412-
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-639-0	01	1	9701-9701
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	9702-0207
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	0208-0411
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	0412-
61	CASE; HTR UNIT (A)	8-97101-634-4	01	1	9701-0411
61	CASE; HTR UNIT (A)	8-97101-634-4	01	1	0412-
61	CASE; HTR UNIT (B)	8-97101-635-4	01	1	9701-0411
61	CASE; HTR UNIT (B)	8-97101-635-4	01	1	0412-
61	CASE; HTR UNIT (C)	8-97101-636-4	01	1	9701-0411
61	CASE; HTR UNIT (C)	8-97101-636-4	01	1	0412-
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97131-323-0	01	1	9701-9701
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97131-580-0	01	1	9702-0207
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97131-580-0	01	1	0208-0411
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97131-580-0	01	1	0412-
64	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	9701-0207
64	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	0208-0411
64	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	0412-
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-672-0	01	1	9701-9910
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97200-276-0	01	1	9911-0207
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONT(C60)	8-97200-276-0	01	1	0208-0411
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONT(C60)	8-97200-276-0	01	1	0412-
66	SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9701-0411
66	SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	0412-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	02	1	9906-0207
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	02	1	0208-0411
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	02	1	0412-
67	CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	01	1	9701-0207
67	CLIP; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	01	1	0208-0411
67	CLIP; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	01	1	0412-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-637-0	01	1	9701-9701
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-735-0	01	1	9702-9910
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97240-941-0	01	1	9911-0001
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97251-291-0	01	1	0002-0002
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97240-941-0	01	1	0003-0207
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97240-941-0	01	1	0208-0411
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97240-941-0	01	1	0412-
69	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	9701-0207
69	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	0208-0411
69	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	0412-
72	NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9701-0411
72	NUT; CASE,HTR UNIT	8-97085-613-0	01	1	0412-
152	NUT; HTR UNIT	8-97107-811-0	01	1	9701-0411
152	NUT; HTR UNIT	8-97107-811-0	01	1	0412-

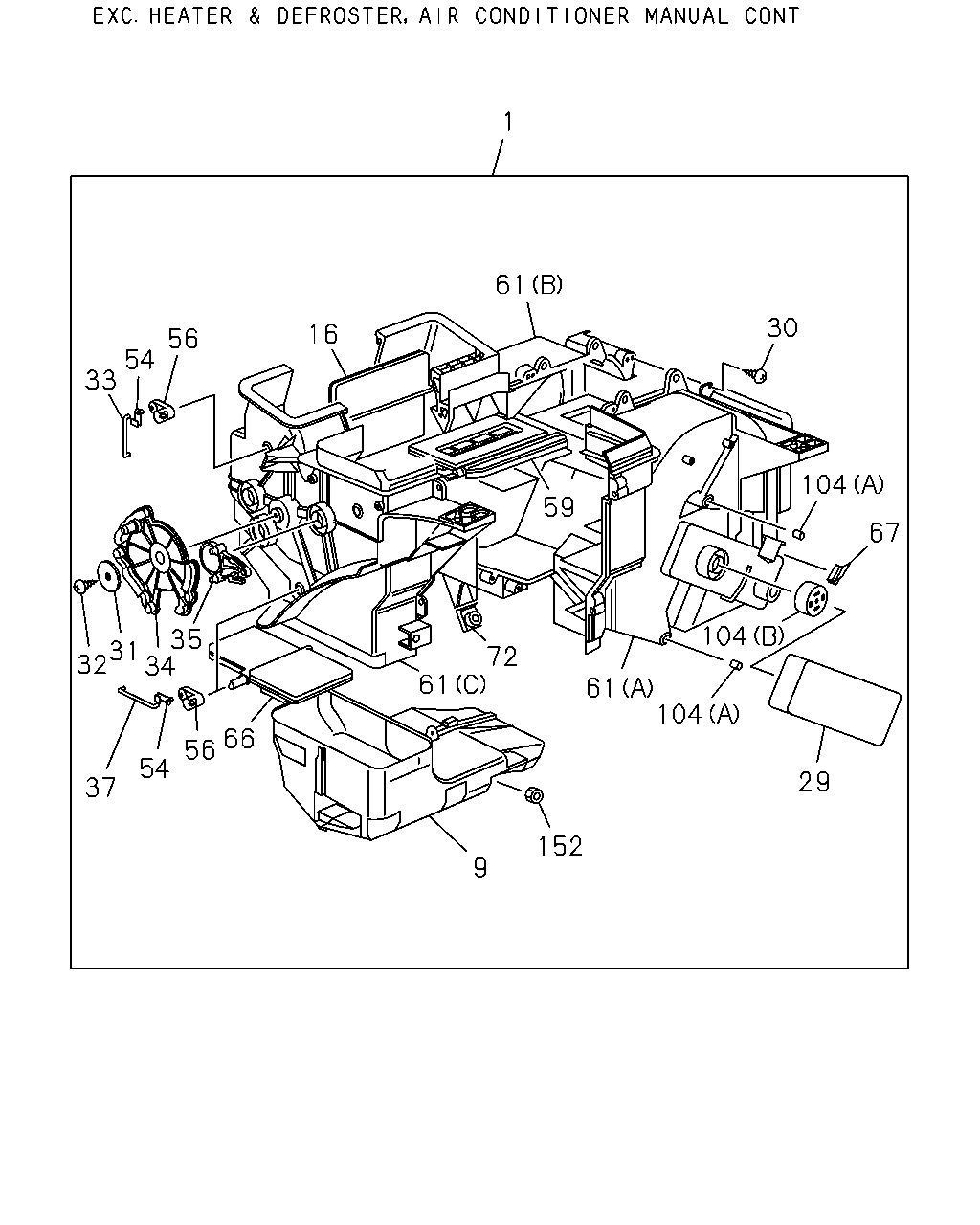

1 61 30 16 56 54 33 104 59 67 104 35 31 72 61 61 104 66 56 54 29 37 152 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-814-3	01	1	9701-9701
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-6	01	1	9702-0207
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-6	01	1	0208-0411
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-6	01	1	0412-
1	HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9701-0207
1	HEATER UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	0208-0411
1	HEATER UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	0412-
9	DUCT; HTR UNIT	8-97101-638-0	01	1	9701-0411
9	DUCT; HTR UNIT	8-97101-638-0	01	1	0412-
16	SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9701-0411
16	SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	0412-
29	COVER; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	9701-0207
29	COVER; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	0208-0411
29	COVER; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	0412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	9701-0207
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	0208-0411
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	0412-
30	SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	9701-0207
30	SCREW; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	0208-0411
30	SCREW; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	0412-
31	WASHER; HTR UNIT TAI	8-94129-950-0	01	1	9701-0411
31	WASHER; HTR UNIT TAI	8-94129-950-0	01	1	0412-
33	ROD; SHUTTER LEVER	8-97087-566-0	02	1	9701-0002
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0003-0207
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0208-0411
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0412-
33	ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0003-0207
33	ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0208-0411
33	ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0412-
35	LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9701-0411
35	LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	0412-
37	ROD; LEVER	8-97101-677-2	02	1	9701-0411
37	ROD; LEVER	8-97101-677-2	02	1	0412-
54	CLIP; SHUTTER LEVER TAI	1-83574-136-0	03	1	9701-0411
54	CLIP; SHUTTER LEVER TAI	1-83574-136-0	03	1	0412-
56	LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9701-0411
56	LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	0412-
59	SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9701-0411
59	SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	0412-
61	CASE; HTR UNIT (A)	8-97101-634-4	01	1	9701-0411
61	CASE; HTR UNIT (A)	8-97101-634-4	01	1	0412-
61	CASE; HTR UNIT (B)	8-97101-635-4	01	1	9701-0411
61	CASE; HTR UNIT (B)	8-97101-635-4	01	1	0412-
61	CASE; HTR UNIT (C)	8-97101-636-4	01	1	9701-0411
61	CASE; HTR UNIT (C)	8-97101-636-4	01	1	0412-
66	SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9701-0411
66	SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	0412-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	02	1	9906-0207
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	02	1	0208-0411
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	02	1	0412-
67	CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	01	1	9701-0207
67	CLIP; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	01	1	0208-0411
67	CLIP; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) USA	8-94337-654-0	01	1	0412-
72	NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9701-0411
72	NUT; CASE,HTR UNIT	8-97085-613-0	01	1	0412-
104	CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94328-657-0	04	1	9701-0207
104	CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-94328-657-0	04	1	0208-0411
104	CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-94328-657-0	04	1	0412-
104	CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) USA	8-94387-703-0	01	1	9701-0207
104	CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (B) USA	8-94387-703-0	01	1	0208-0411
104	CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (B) USA	8-94387-703-0	01	1	0412-
152	NUT; HTR UNIT	8-97107-811-0	01	1	9701-0411
152	NUT; HTR UNIT	8-97107-811-0	01	1	0412-
