Sayfa 8-52 - Isuzu EPC

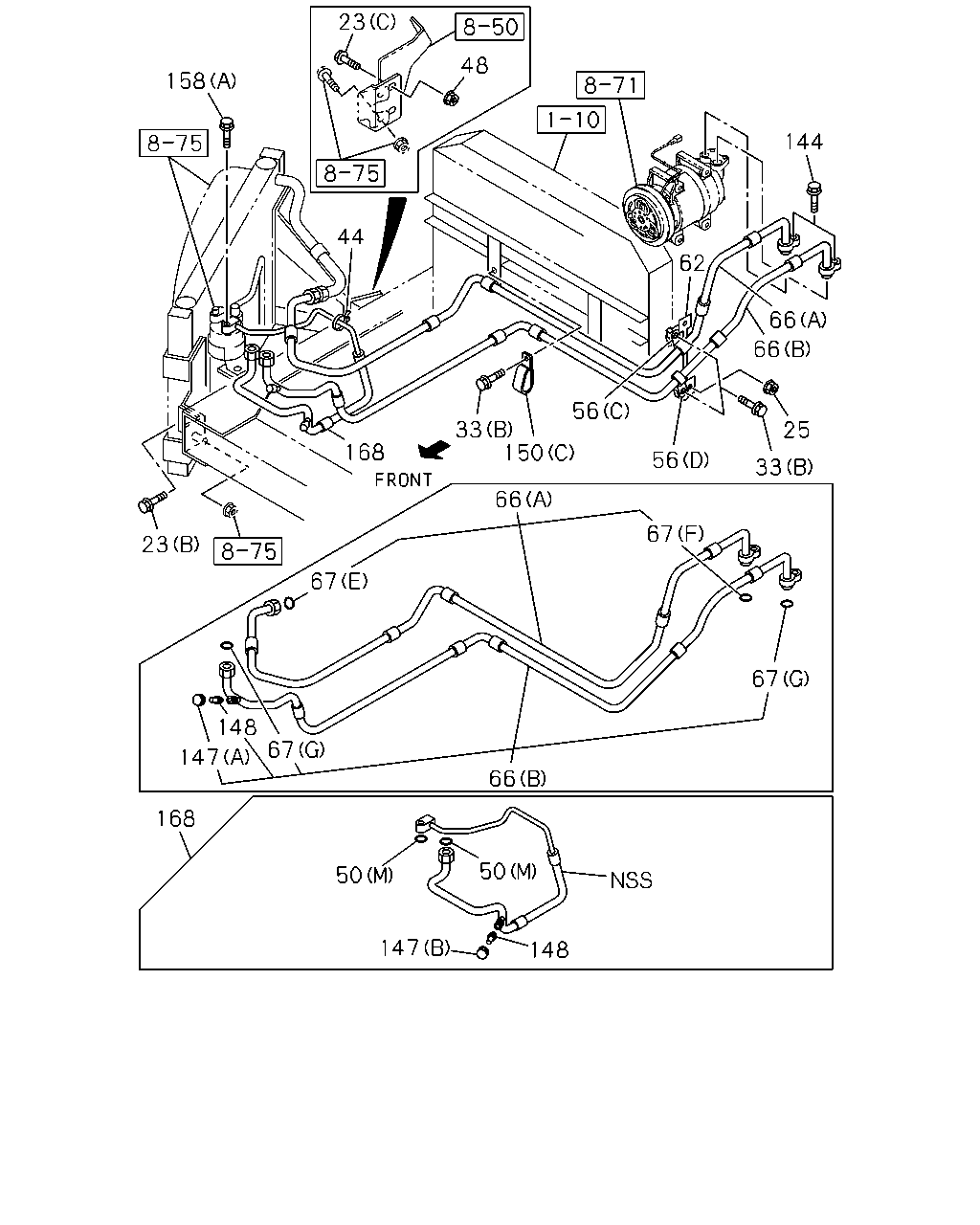

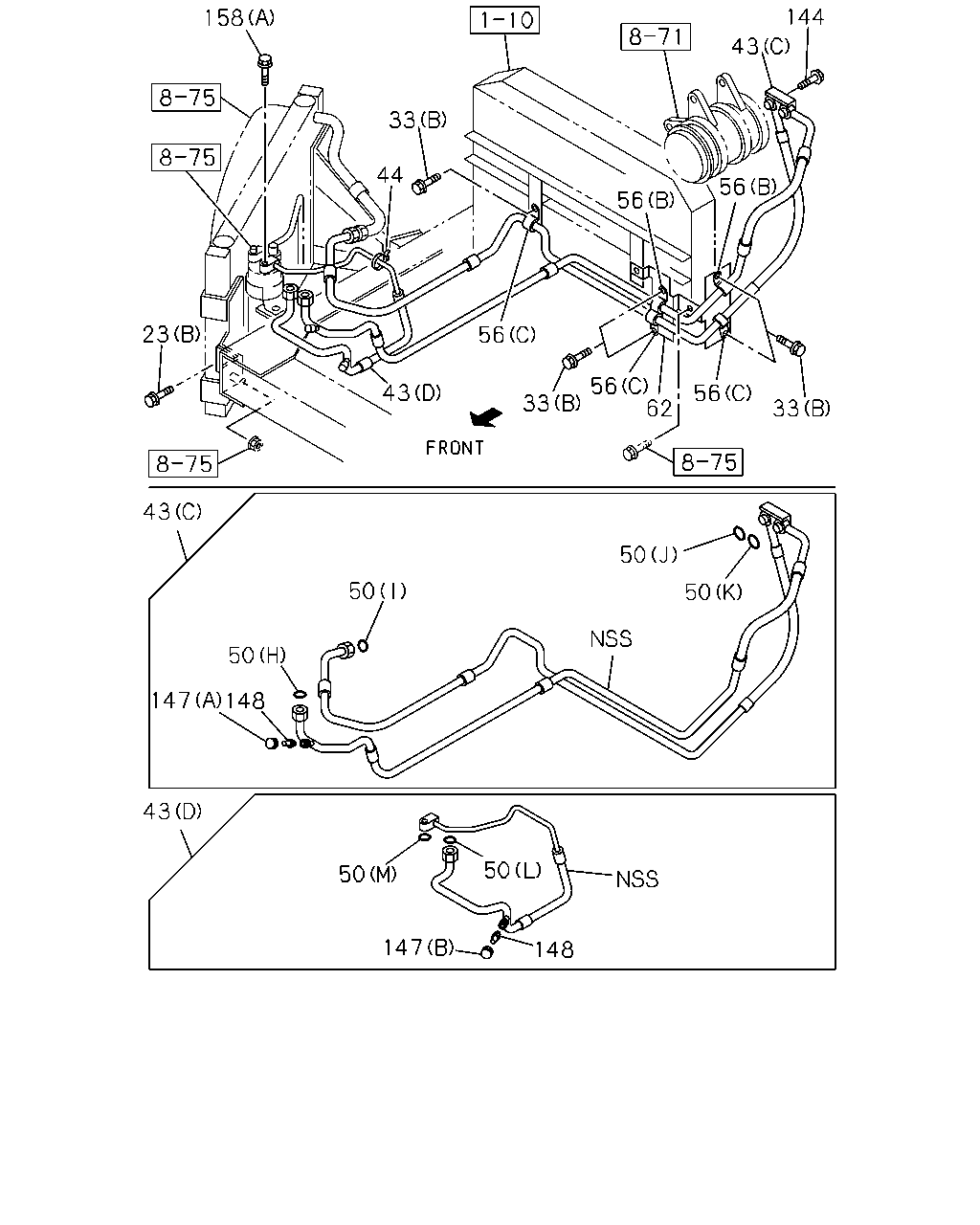

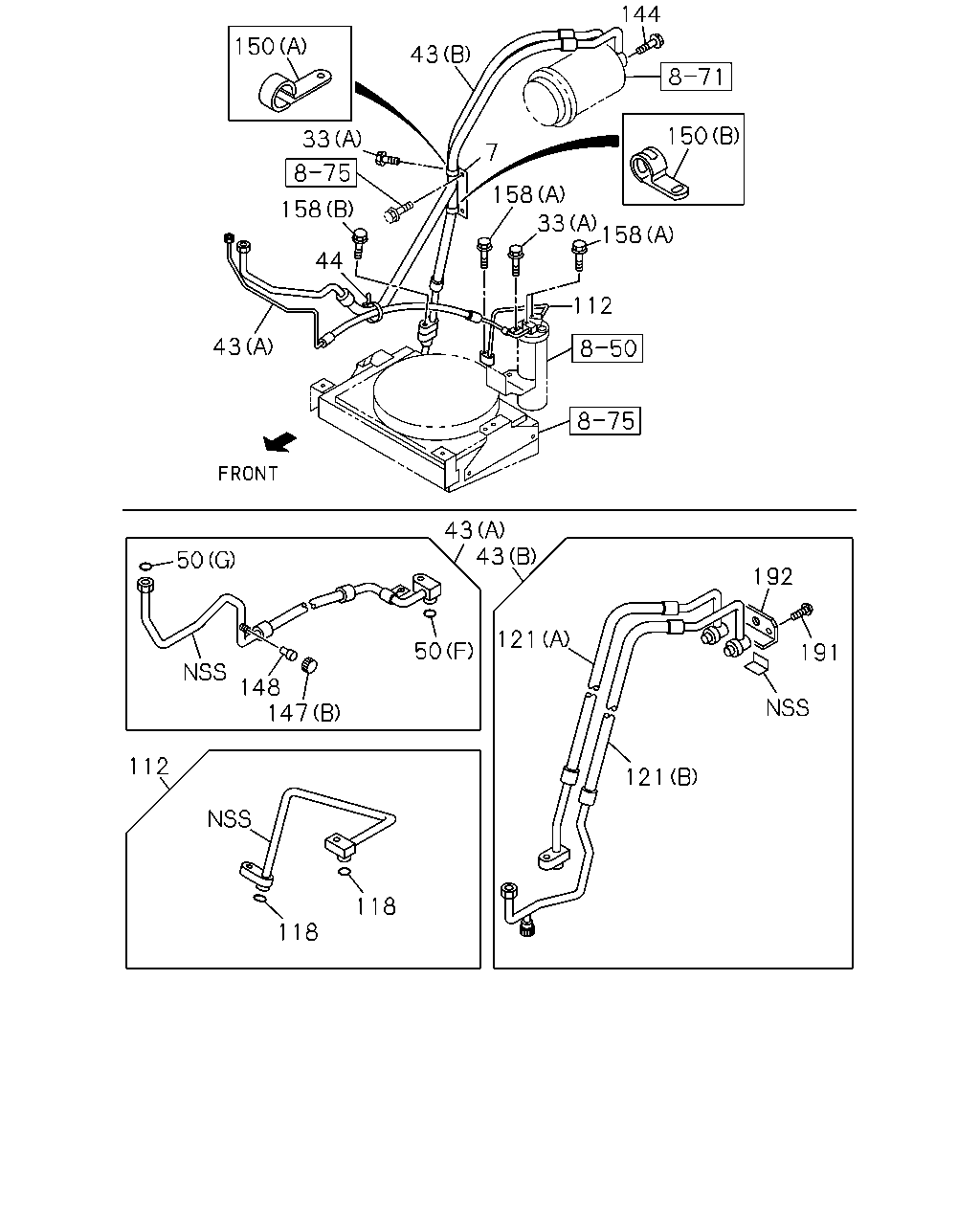

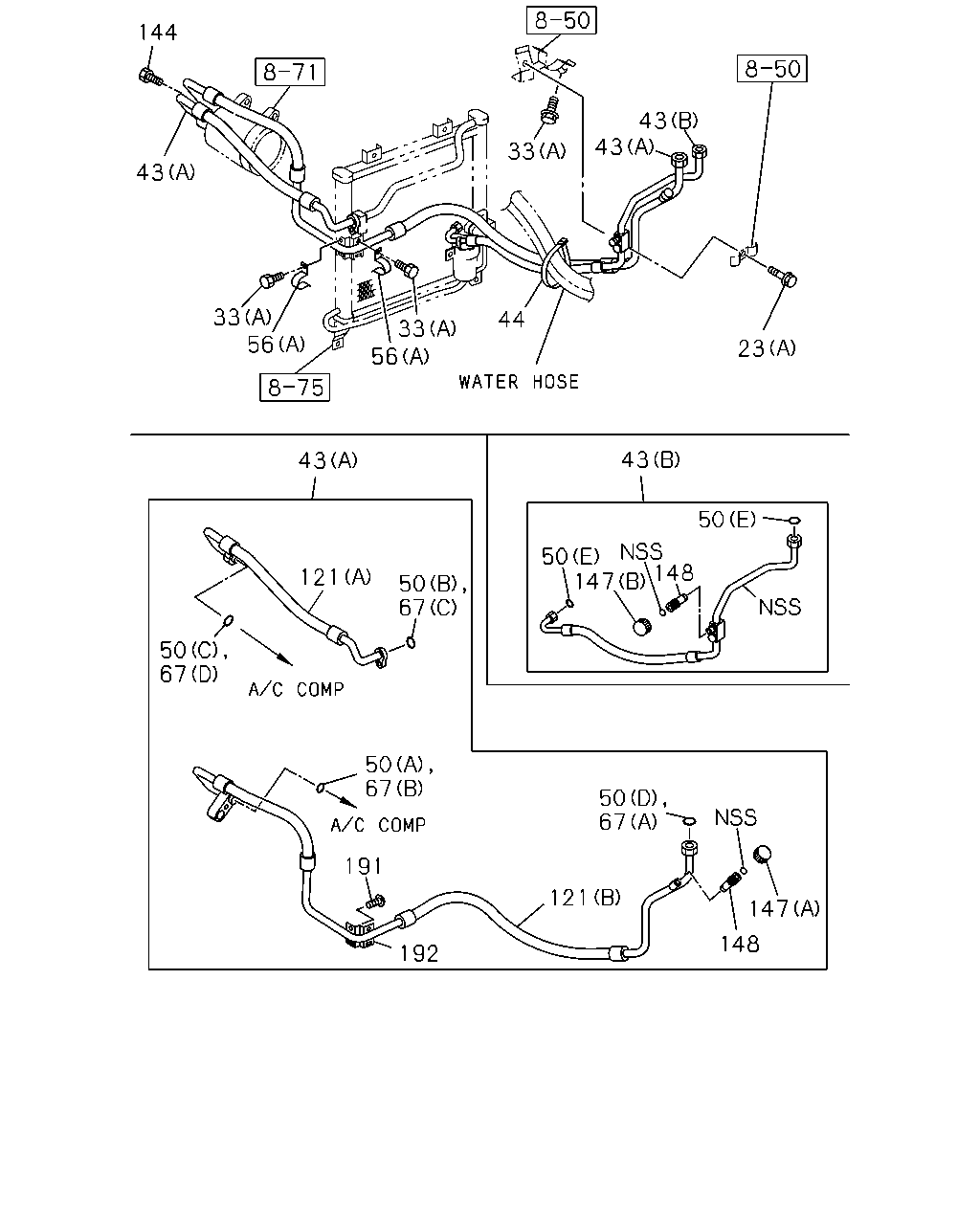

8-52 — PIPING; AIR CONDITIONING (#139150) — 495 parça

144 158 1 10 8 71 43 8 75 33 8 75 44 56 56 23 56 56 62 43 56 33 33 8 75 8 75 43 50 50 50 50 147 43 50 50 147 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28080-620-0	01	1	9701-0207
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0412-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0412-0511
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-0610
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0611-
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M10X35 FLANGE	0-28651-035-0	02	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	03	1	9701-9905
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9906-0207
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	01	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28080-612-0	05	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	05	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	03	1	0611-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-479-2	01	1	9701-9905
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-908-1	01	1	9906-0207
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-252-2	01	1	0208-0411
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-252-2	01	1	0412-0511
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-252-2	01	1	0512-0610
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-613-1	01	1	9702-9905
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-909-0	01	1	9906-0207
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-253-1	01	1	0208-0211
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-412-0	01	1	0212-0411
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-412-0	01	1	0412-0511
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-412-0	01	1	0512-0610
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250	5-09707-030-0	03	1	9701-9712
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	06	1	9801-9905
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	03	1	9906-0207
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0208-0411
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0412-0511
44	CLIP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0512-0610
44	CLIP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-030-0	02	1	9701-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (G) TAI	8-97967-030-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (L) TAI	8-97967-030-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-037-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (F) TAI	8-97967-044-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	02	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-038-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-040-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-041-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (H) TAI	8-97967-038-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (I) TAI	8-97967-040-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (J) TAI	8-97967-388-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (K) TAI	8-97967-389-0	01	1	0512-0610
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97024-716-0	02	1	9701-9905
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-94125-948-0	02	1	0208-0411
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-94125-948-0	02	1	0412-0511
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-94125-948-0	02	1	0512-0610
56	CLIP; PIPE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) ID=16 L=20	0-95235-532-0	01	1	0611-
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=13 L=16	9-09525-222-0	03	1	0208-0411
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=13 L=16	9-09525-222-0	03	1	0412-0511
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	9-09525-222-0	03	1	0512-0606
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	0-95235-222-0	03	1	0607-0610
56	CLIP; PIPE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	0-95235-222-0	01	1	0611-
62	BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-249-0	01	1	0208-0411
62	BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-249-0	01	1	0412-0511
62	BRACKET; PIPE HIGH PRESSURE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-249-0	01	1	0512-0610
62	BRACKET; PIPE HIGH PRESSURE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97388-130-1	01	1	0611-0701
62	BRACKET; PIPE HIGH PRESSURE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-591-0	01	1	0702-
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9701-9702
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9703-9905
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X35 FLANGE	0-28681-035-0	01	1	9906-9910
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	9911-0411
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	0412-0512
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28051-045-0	01	1	0601-0610
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9701-9905
147	CAP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9906-0207
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	9701-9905
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0611-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	9701-9905
148	VALVE; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	01	1	9906-0207
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0208-0411
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0412-0511
148	VALVE; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0512-0610
148	VALVE; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0611-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28680-625-0	03	1	9906-0207
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X25 FLANGE	0-28680-625-0	01	1	0208-0411
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X25 FLANGE	0-28680-625-0	01	1	0412-0511
158	BOLT; PIPE FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28680-625-0	01	1	0512-0512
158	BOLT; PIPE FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	01	1	0601-0610
158	BOLT; PIPE FIX 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	01	1	0611-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M8X40 FLANGE	0-28680-840-0	01	1	9906-0207

8 50 144 8 50 8 71 43 43 33 43 33 56 44 33 56 23 8 75 43 43 50 148 50 147 121 50 67 50 67 50 67 50 67 191 121 147 148 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28080-620-0	01	1	9701-0207
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0412-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0412-0511
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-0610
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0611-
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M10X35 FLANGE	0-28651-035-0	02	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	03	1	9701-9905
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9906-0207
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	01	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28080-612-0	05	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	05	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	03	1	0611-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-479-2	01	1	9701-9905
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-908-1	01	1	9906-0207
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-252-2	01	1	0208-0411
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-252-2	01	1	0412-0511
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-252-2	01	1	0512-0610
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-613-1	01	1	9702-9905
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-909-0	01	1	9906-0207
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-253-1	01	1	0208-0211
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-412-0	01	1	0212-0411
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-412-0	01	1	0412-0511
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-412-0	01	1	0512-0610
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250	5-09707-030-0	03	1	9701-9712
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	06	1	9801-9905
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	03	1	9906-0207
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0208-0411
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0412-0511
44	CLIP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0512-0610
44	CLIP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-030-0	02	1	9701-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (G) TAI	8-97967-030-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (L) TAI	8-97967-030-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-037-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (F) TAI	8-97967-044-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	02	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-038-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-040-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-041-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (H) TAI	8-97967-038-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (I) TAI	8-97967-040-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (J) TAI	8-97967-388-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (K) TAI	8-97967-389-0	01	1	0512-0610
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97024-716-0	02	1	9701-9905
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-94125-948-0	02	1	0208-0411
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-94125-948-0	02	1	0412-0511
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-94125-948-0	02	1	0512-0610
56	CLIP; PIPE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) ID=16 L=20	0-95235-532-0	01	1	0611-
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=13 L=16	9-09525-222-0	03	1	0208-0411
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=13 L=16	9-09525-222-0	03	1	0412-0511
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	9-09525-222-0	03	1	0512-0606
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	0-95235-222-0	03	1	0607-0610
56	CLIP; PIPE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	0-95235-222-0	01	1	0611-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-037-0	02	1	9701-9701
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-038-0	01	1	9701-9701
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-040-0	01	1	9701-9701
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-041-0	01	1	9701-9701
67	GASKET; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-040-0	01	1	0611-
67	GASKET; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (F) TAI	8-97967-558-0	01	1	0611-
67	GASKET; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (G) TAI	8-97967-559-0	02	1	0611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-477-0	01	1	9702-9905
121	HOSE; COOLER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-042-0	01	1	9906-0207
121	HOSE; COOLER AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-478-0	01	1	9702-9905
121	HOSE; COOLER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-043-0	01	1	9906-0207
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9701-9702
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9703-9905
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X35 FLANGE	0-28681-035-0	01	1	9906-9910
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	9911-0411
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	0412-0512
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28051-045-0	01	1	0601-0610
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9701-9905
147	CAP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9906-0207
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	9701-9905
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0611-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	9701-9905
148	VALVE; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	01	1	9906-0207
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0208-0411
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0412-0511
148	VALVE; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0512-0610
148	VALVE; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0611-
191	SCREW; CONNECTOR,COOLER HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-036-0	02	1	9702-9905
191	SCREW; CONNECTOR,COOLER HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-036-0	02	1	9906-0207
192	PLATE; COOLER HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-035-0	01	1	9702-9905
192	PLATE; COOLER HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-035-0	01	1	9906-0207

144 150 43 8 71 150 33 7 8 75 158 33 158 158 44 112 43 8 50 8 75 43 43 50 192 121 50 191 148 147 112 121 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-907-1	01	1	9906-0207
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	03	1	9701-9905
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9906-0207
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	01	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28080-612-0	05	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	05	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	03	1	0611-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-479-2	01	1	9701-9905
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97966-908-1	01	1	9906-0207
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-252-2	01	1	0208-0411
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) TAI	8-97967-252-2	01	1	0412-0511
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-252-2	01	1	0512-0610
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-613-1	01	1	9702-9905
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97966-909-0	01	1	9906-0207
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-253-1	01	1	0208-0211
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-412-0	01	1	0212-0411
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D) TAI	8-97967-412-0	01	1	0412-0511
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-412-0	01	1	0512-0610
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250	5-09707-030-0	03	1	9701-9712
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	06	1	9801-9905
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	03	1	9906-0207
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0208-0411
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0412-0511
44	CLIP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0512-0610
44	CLIP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-030-0	02	1	9701-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (G) TAI	8-97967-030-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (L) TAI	8-97967-030-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-037-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (F) TAI	8-97967-044-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	02	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-038-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-040-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-041-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (H) TAI	8-97967-038-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (I) TAI	8-97967-040-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (J) TAI	8-97967-388-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (K) TAI	8-97967-389-0	01	1	0512-0610
112	PIPE; RECEIVER TANK TO A/C UNIT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-906-0	01	1	9906-0207
118	GASKET; RECEIVER TANK TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-044-0	02	1	9906-0207
121	HOSE; COOLER AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-477-0	01	1	9702-9905
121	HOSE; COOLER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-042-0	01	1	9906-0207
121	HOSE; COOLER AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-478-0	01	1	9702-9905
121	HOSE; COOLER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-043-0	01	1	9906-0207
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9701-9702
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9703-9905
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X35 FLANGE	0-28681-035-0	01	1	9906-9910
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	9911-0411
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	0412-0512
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28051-045-0	01	1	0601-0610
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9701-9905
147	CAP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9906-0207
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	9701-9905
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0611-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	9701-9905
148	VALVE; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	01	1	9906-0207
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0208-0411
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0412-0511
148	VALVE; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0512-0610
148	VALVE; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0611-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=25 L=32	1-09700-572-0	01	1	9906-0207
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=21	9-09916-638-1	01	1	9906-0207
150	CLIP; HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98033-179-0	01	1	0611-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28680-625-0	03	1	9906-0207
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X25 FLANGE	0-28680-625-0	01	1	0208-0411
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X25 FLANGE	0-28680-625-0	01	1	0412-0511
158	BOLT; PIPE FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28680-625-0	01	1	0512-0512
158	BOLT; PIPE FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	01	1	0601-0610
158	BOLT; PIPE FIX 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	01	1	0611-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M8X40 FLANGE	0-28680-840-0	01	1	9906-0207
191	SCREW; CONNECTOR,COOLER HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-036-0	02	1	9702-9905
191	SCREW; CONNECTOR,COOLER HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-036-0	02	1	9906-0207
192	PLATE; COOLER HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-035-0	01	1	9702-9905
192	PLATE; COOLER HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-035-0	01	1	9906-0207

23 8 50 48 158 8 71 1 10 144 8 75 8 75 44 62 66 66 56 33 150 25 168 56 33 66 67 23 8 75 67 67 148 67 147 66 168 50 50 147 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28080-620-0	01	1	9701-0207
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0412-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0412-0511
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-0610
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0611-
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M10X35 FLANGE	0-28651-035-0	02	1	0611-
25	NUT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	02	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	03	1	9701-9905
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9906-0207
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	01	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28080-612-0	05	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	05	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	03	1	0611-
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250	5-09707-030-0	03	1	9701-9712
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	06	1	9801-9905
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	03	1	9906-0207
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0208-0411
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0412-0511
44	CLIP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0512-0610
44	CLIP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0611-
48	NUT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91180-110-0	02	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-030-0	02	1	9701-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (G) TAI	8-97967-030-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (L) TAI	8-97967-030-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-037-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (F) TAI	8-97967-044-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	02	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-038-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-040-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-041-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (H) TAI	8-97967-038-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (I) TAI	8-97967-040-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (J) TAI	8-97967-388-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (K) TAI	8-97967-389-0	01	1	0512-0610
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97024-716-0	02	1	9701-9905
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-94125-948-0	02	1	0208-0411
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-94125-948-0	02	1	0412-0511
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-94125-948-0	02	1	0512-0610
56	CLIP; PIPE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) ID=16 L=20	0-95235-532-0	01	1	0611-
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=13 L=16	9-09525-222-0	03	1	0208-0411
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=13 L=16	9-09525-222-0	03	1	0412-0511
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	9-09525-222-0	03	1	0512-0606
56	CLIP; PIPE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	0-95235-222-0	03	1	0607-0610
56	CLIP; PIPE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 L=16	0-95235-222-0	01	1	0611-
62	BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-249-0	01	1	0208-0411
62	BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-249-0	01	1	0412-0511
62	BRACKET; PIPE HIGH PRESSURE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-249-0	01	1	0512-0610
62	BRACKET; PIPE HIGH PRESSURE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97388-130-1	01	1	0611-0701
62	BRACKET; PIPE HIGH PRESSURE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-591-0	01	1	0702-
66	HOSE; FLEX,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-505-1	01	1	0611-
66	HOSE; FLEX,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-507-1	01	1	0611-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-037-0	02	1	9701-9701
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-038-0	01	1	9701-9701
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-040-0	01	1	9701-9701
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-041-0	01	1	9701-9701
67	GASKET; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-040-0	01	1	0611-
67	GASKET; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (F) TAI	8-97967-558-0	01	1	0611-
67	GASKET; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (G) TAI	8-97967-559-0	02	1	0611-
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9701-9702
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9703-9905
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X35 FLANGE	0-28681-035-0	01	1	9906-9910
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	9911-0411
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	0412-0512
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28051-045-0	01	1	0601-0610
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9701-9905
147	CAP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	9906-0207
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) TAI	8-97967-032-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-032-0	01	1	0611-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	9701-9905
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0208-0411
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) TAI	8-97967-039-0	01	1	0412-0511
147	CAP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0512-0610
147	CAP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-039-0	01	1	0611-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	9701-9905
148	VALVE; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	01	1	9906-0207
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0208-0411
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-031-0	02	1	0412-0511
148	VALVE; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0512-0610
148	VALVE; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-031-0	02	1	0611-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=25 L=32	1-09700-572-0	01	1	9906-0207
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=21	9-09916-638-1	01	1	9906-0207
150	CLIP; HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98033-179-0	01	1	0611-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28680-625-0	03	1	9906-0207
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X25 FLANGE	0-28680-625-0	01	1	0208-0411
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X25 FLANGE	0-28680-625-0	01	1	0412-0511
158	BOLT; PIPE FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28680-625-0	01	1	0512-0512
158	BOLT; PIPE FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	01	1	0601-0610
158	BOLT; PIPE FIX 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	01	1	0611-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M8X40 FLANGE	0-28680-840-0	01	1	9906-0207
168	HOSE; FLEX,TANK TO EVAP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-504-0	01	1	0611-

44 44 8 50 8 40 5 15 8 50 8 50 33 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28080-620-0	01	1	9701-0207
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0412-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0208-0411
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M10X25 FLANGE	0-28681-025-0	01	1	0412-0511
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
23	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-0610
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28651-025-0	01	1	0611-
23	BOLT; BRKT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M10X35 FLANGE	0-28651-035-0	02	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	03	1	9701-9905
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	04	1	9906-0207
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	01	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28080-616-0	01	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0208-0411
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	05	1	0412-0511
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28080-612-0	05	1	0512-0512
33	BOLT; CLIP 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	05	1	0601-0610
33	BOLT; CLIP 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28050-612-0	03	1	0611-
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250	5-09707-030-0	03	1	9701-9712
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	06	1	9801-9905
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	03	1	9906-0207
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0208-0411
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) L=250 TAI	5-09707-030-1	05	1	0412-0511
44	CLIP; FLEX HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0512-0610
44	CLIP; FLEX HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=250 TAI	5-09707-030-1	05	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (E) TAI	8-97967-030-0	02	1	9701-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (G) TAI	8-97967-030-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (L) TAI	8-97967-030-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (L) TAI	8-97967-030-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97967-037-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (F) TAI	8-97967-044-0	01	1	9906-0207
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (M) TAI	8-97967-044-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (M) TAI	8-97967-044-0	02	1	0611-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-038-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97967-040-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C) TAI	8-97967-041-0	01	1	9702-9905
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (H) TAI	8-97967-038-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (H) TAI	8-97967-038-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (I) TAI	8-97967-040-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (I) TAI	8-97967-040-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (J) TAI	8-97967-388-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (J) TAI	8-97967-388-0	01	1	0512-0610
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0208-0411
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (K) TAI	8-97967-389-0	01	1	0412-0511
50	GASKET; FLEX HOSE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (K) TAI	8-97967-389-0	01	1	0512-0610

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
