6-01 — FRONT BUMPER (#13915) — 54 parça

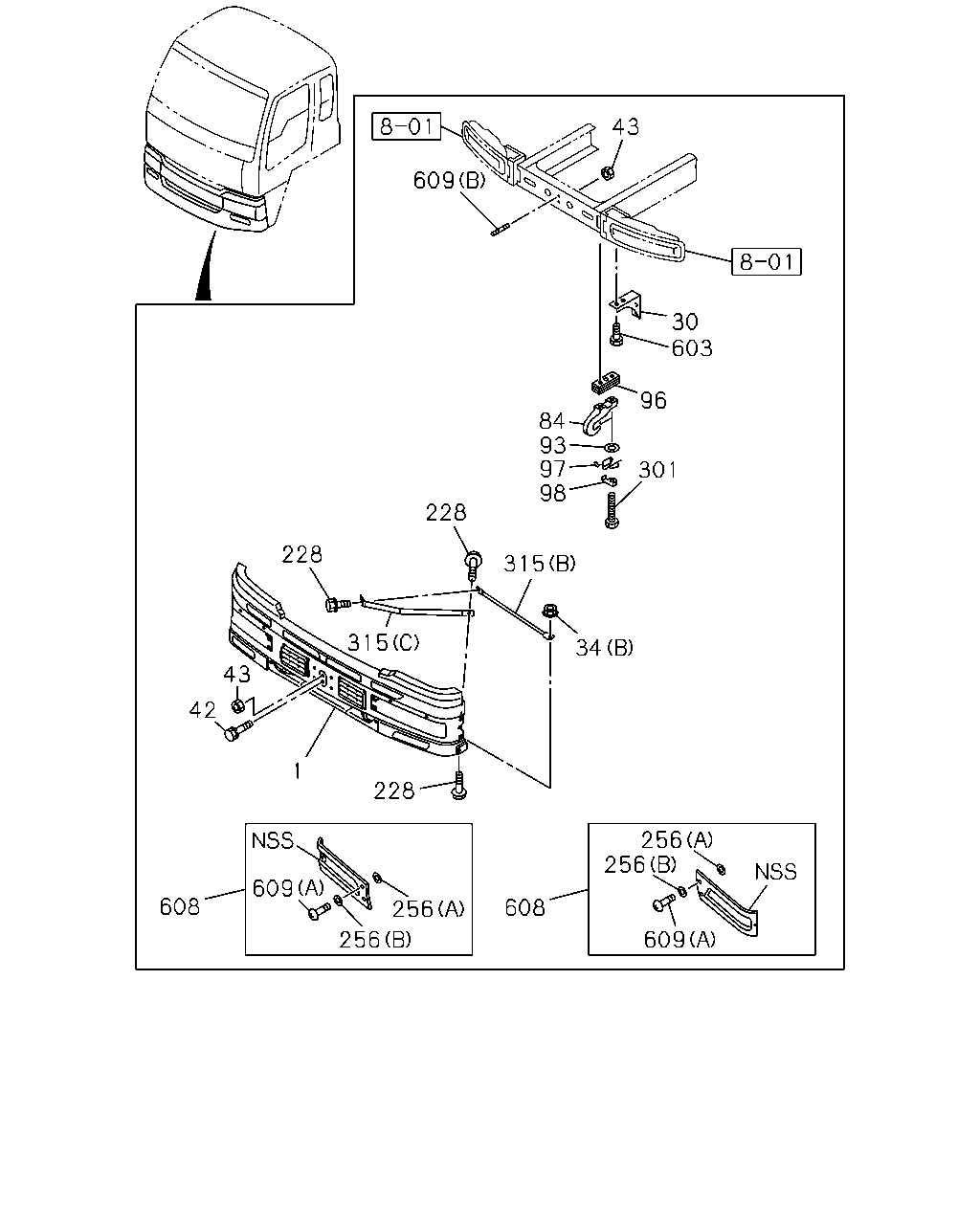

çizim 92926
609 43 30 603 96 301 84 93 97 98 228 315 34 315 228 43 42 228 608 609 256 256 608 256 256 609
BalonParca AdiParca NoAdetTipApplied Date
30 BRACKET; FRT BUMPER 1-71230-428-0 01 1 0710-
30 BRACKET; FRT BUMPER 1-71230-429-0 01 1 0710-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 03 1 0710-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0710-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0710-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0710-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0710-
84 HOOK 1-57181-027-1 01 1 0710-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0710-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0710-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0710-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0710-
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0710-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0710-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0710-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0710-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0710-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0710-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0710-
315 STAY; BUMPER
(C) 		1-71230-435-0 01 1 0710-
315 STAY; BUMPER
(B) 		1-71230-444-0 01 1 0710-
315 STAY; BUMPER
(C) 		1-71230-447-0 01 1 0710-
315 STAY; BUMPER
(B) 		8-97608-941-0 01 1 0710-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
608 LID; BUMPER 1-71210-752-6 01 1 0710-
608 LID; BUMPER 1-71210-753-6 01 1 0710-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0710-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0710-

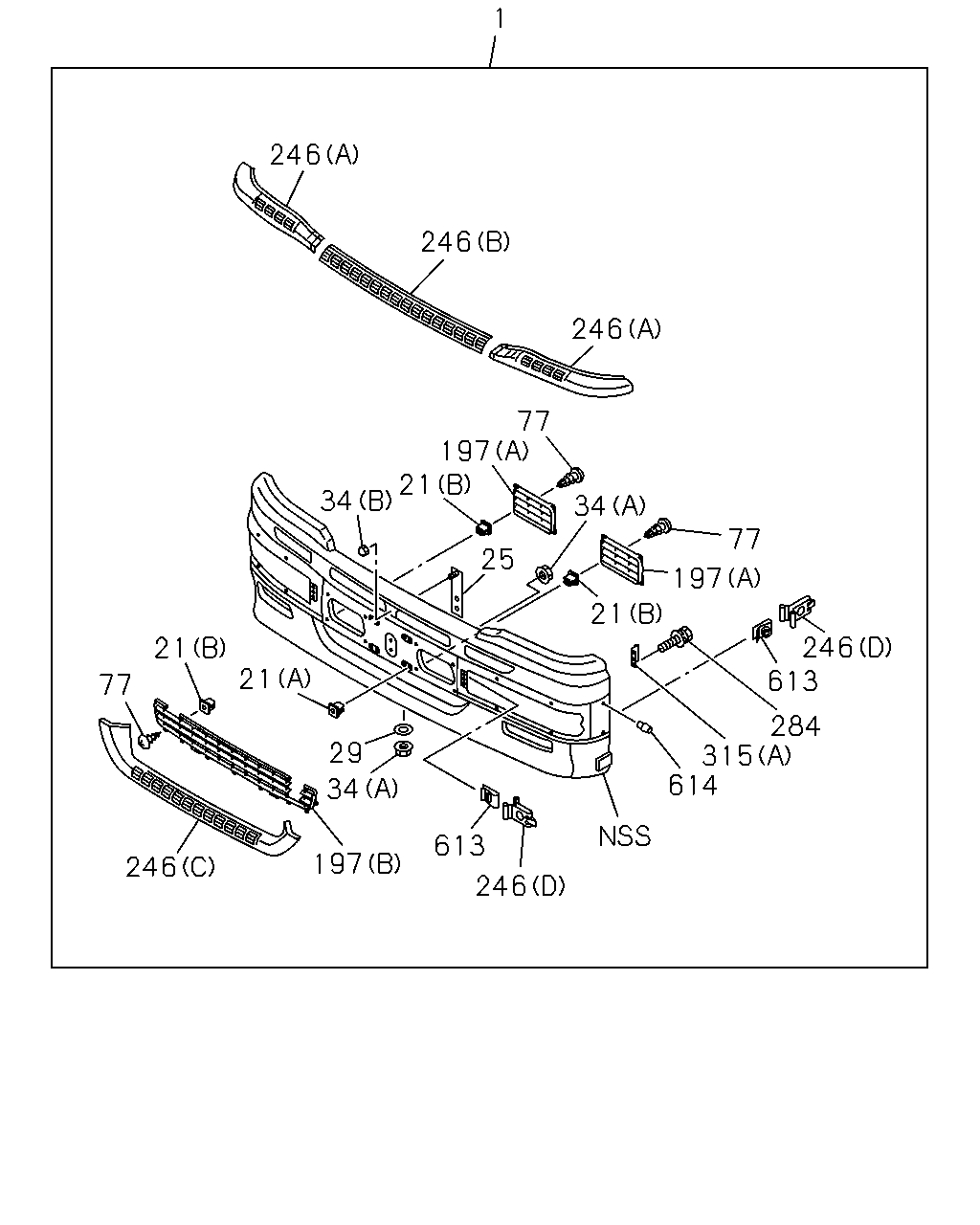

çizim 93540
246 246 1 246 77 197 21 34 34 25 77 197 21 246 613 284 315 614 246 613 197 34 29 246 77 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0710-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 22 1 0710-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0710-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0710-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 03 1 0710-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0710-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0710-
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 22 1 0710-
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 0710-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 0710-
197 GRILLE; BUMPER
(B) 		8-97617-998-0 01 1 0710-
246 PROTECTOR; BUMPER
(A) 		1-71260-094-2 01 1 0710-
246 PROTECTOR; BUMPER
(A) 		1-71260-095-2 01 1 0710-
246 PROTECTOR; BUMPER
(B) 		1-71260-155-1 01 1 0710-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0710-
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0710-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0710-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0710-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0710-
315 STAY; BUMPER
(C) 		1-71230-435-0 01 1 0710-
315 STAY; BUMPER
(B) 		1-71230-444-0 01 1 0710-
315 STAY; BUMPER
(C) 		1-71230-447-0 01 1 0710-
315 STAY; BUMPER
(B) 		8-97608-941-0 01 1 0710-
613 CLIP 1-71260-174-0 06 1 0710-
614 STOPPER; LID 1-71260-163-0 12 1 0710-
