Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#139149) — 248 parça

206 224 227 8 75 8 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
206	BOLT; CLIP BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-029-0	01	1	9906-0207
224	TANK ASM; RECEIVER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-027-0	01	1	9906-0009
224	TANK ASM; RECEIVER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-211-0	01	1	0010-0207
227	BRACKET; RECEIVER TANK 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-028-0	01	1	9906-0207

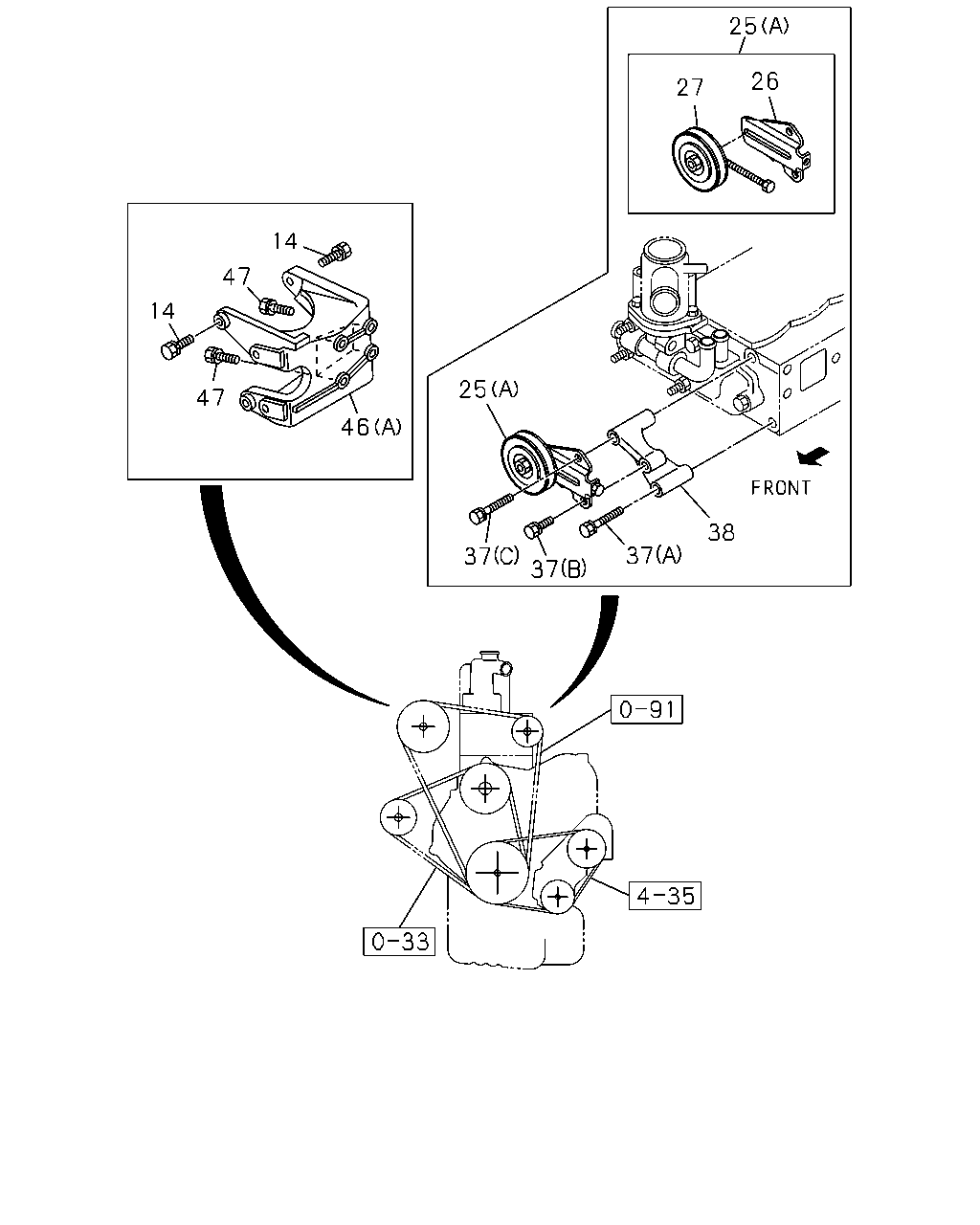

25 26 27 14 47 14 25 47 46 38 37 37 37 91 4 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	9701-9905
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	9906-0207
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M10X40 FLANGE	0-28681-040-0	04	1	0208-0411
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M10X40 FLANGE	0-28681-040-0	04	1	0412-0511
14	BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	0512-0512
14	BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28651-040-0	04	1	0601-0610
14	BOLT; CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M8X100 FLANGE	0-28050-800-0	04	1	0611-
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A) TAI	8-97080-948-0	01	1	9701-9701
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-627-0	01	1	9702-9704
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-821-0	01	1	9705-9905
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-821-0	01	1	9906-0207
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0208-0411
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0412-0511
25	PULLEY ASM; IDLER,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0512-0610
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) 1-GROOVE	8-98051-011-0	01	1	0611-
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-94120-998-2	01	1	9701-9701
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-317-0	01	1	9702-9905
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-317-0	01	1	9906-0207
26	BRACKET; IDLE PULLEY,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0208-0411
26	BRACKET; IDLE PULLEY,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0412-0511
26	BRACKET; IDLE PULLEY,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0512-0610
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97126-290-0	01	1	9701-9701
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-312-0	01	1	9702-9905
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-312-0	01	1	9906-0207
27	PULLEY; IDLE,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0208-0411
27	PULLEY; IDLE,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0412-0511
27	PULLEY; IDLE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0512-0610
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-322-0	01	1	9702-9905
33	NUT; IDLER PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-322-0	01	1	9906-0207
37	BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A) M8X60 FLANGE	0-28080-860-0	01	1	9701-9905
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE	0-28080-860-0	01	1	9906-0207
37	BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (C) M10X80 FLANGE	0-28081-080-0	01	1	9701-9905
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X80 FLANGE	0-28081-080-0	01	1	9906-0207
37	BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) M10X30 FLANGE	0-28681-030-0	01	1	9701-9905
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X30 FLANGE	0-28681-030-0	01	1	9906-0207
38	BRACKET; PULLEY TO CYL HD AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97107-868-0	01	1	9701-9701
38	BRACKET; PULLEY TO CYL HD AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97965-625-0	01	1	9702-9905
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-625-0	01	1	9906-0207
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97038-618-1	01	1	0208-0307
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0308-0411
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0412-0511
38	BRACKET; PULLEY TO CYL HD 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0512-0610
46	BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A)	8-97089-616-0	01	1	9701-9905
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97089-616-0	01	1	9906-0207
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0512-0610
46	BRACKET; CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98037-322-0	01	1	0611-
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0512-0610
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> M8X60 FLANGE	0-28080-860-0	02	1	9701-9905
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X60 FLANGE	0-28080-860-0	02	1	9906-0207
47	BOLT; BRKT TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0208-0411
47	BOLT; BRKT TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0412-0511
47	BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0512-0512
47	BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> M10X35 FLANGE	0-28681-035-0	02	1	9701-9905
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X35 FLANGE	0-28681-035-0	02	1	9906-0207

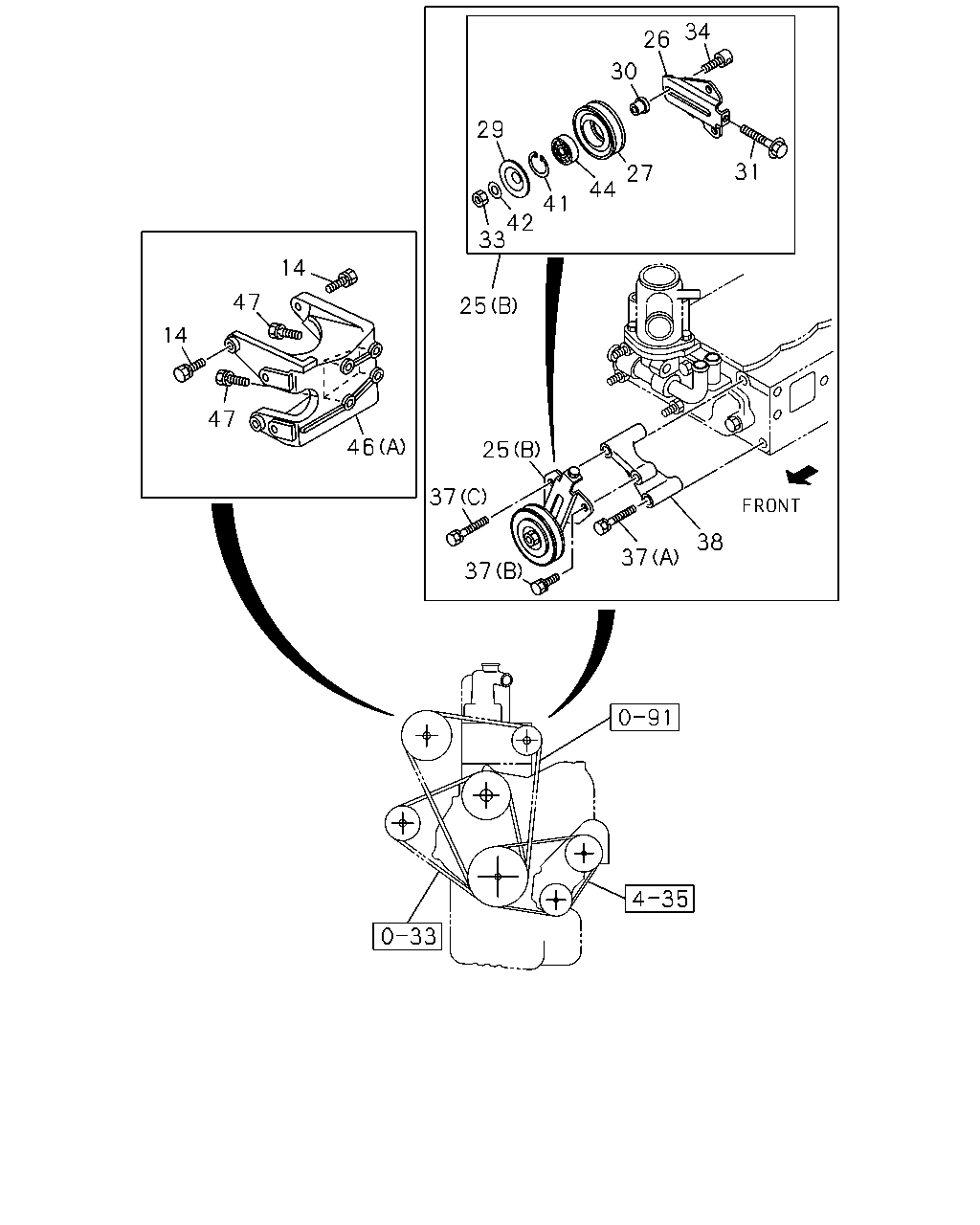

34 26 30 29 31 27 44 41 42 33 14 47 25 14 47 46 25 37 38 37 37 91 4 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	9701-9905
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	9906-0207
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M10X40 FLANGE	0-28681-040-0	04	1	0208-0411
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M10X40 FLANGE	0-28681-040-0	04	1	0412-0511
14	BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	0512-0512
14	BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28651-040-0	04	1	0601-0610
14	BOLT; CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M8X100 FLANGE	0-28050-800-0	04	1	0611-
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A) TAI	8-97080-948-0	01	1	9701-9701
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-627-0	01	1	9702-9704
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-821-0	01	1	9705-9905
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-821-0	01	1	9906-0207
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0208-0411
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0412-0511
25	PULLEY ASM; IDLER,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0512-0610
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) 1-GROOVE	8-98051-011-0	01	1	0611-
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-94120-998-2	01	1	9701-9701
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-317-0	01	1	9702-9905
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-317-0	01	1	9906-0207
26	BRACKET; IDLE PULLEY,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0208-0411
26	BRACKET; IDLE PULLEY,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0412-0511
26	BRACKET; IDLE PULLEY,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0512-0610
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97126-290-0	01	1	9701-9701
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-312-0	01	1	9702-9905
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-312-0	01	1	9906-0207
27	PULLEY; IDLE,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0208-0411
27	PULLEY; IDLE,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0412-0511
27	PULLEY; IDLE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0512-0610
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-320-0	01	1	9702-9905
29	COVER; DUST,IDLE PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-320-0	01	1	9906-0207
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-314-0	01	1	9702-9905
30	COLLAR; IDLE PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-314-0	01	1	9906-0207
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-316-0	01	1	9702-9905
31	BOLT; ADJ,IDLE PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-316-0	01	1	9906-0207
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-322-0	01	1	9702-9905
33	NUT; IDLER PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-322-0	01	1	9906-0207
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-315-0	01	1	9702-9905
34	SHAFT; IDLE PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-315-0	01	1	9906-0207
37	BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A) M8X60 FLANGE	0-28080-860-0	01	1	9701-9905
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE	0-28080-860-0	01	1	9906-0207
37	BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (C) M10X80 FLANGE	0-28081-080-0	01	1	9701-9905
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X80 FLANGE	0-28081-080-0	01	1	9906-0207
37	BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) M10X30 FLANGE	0-28681-030-0	01	1	9701-9905
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X30 FLANGE	0-28681-030-0	01	1	9906-0207
38	BRACKET; PULLEY TO CYL HD AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97107-868-0	01	1	9701-9701
38	BRACKET; PULLEY TO CYL HD AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97965-625-0	01	1	9702-9905
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-625-0	01	1	9906-0207
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97038-618-1	01	1	0208-0307
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0308-0411
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0412-0511
38	BRACKET; PULLEY TO CYL HD 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0512-0610
41	RING; SNAP,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-319-0	01	1	9702-9905
41	RING; SNAP,IDLE PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-319-0	01	1	9906-0207
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-321-0	01	1	9702-9905
42	WASHER; PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-321-0	01	1	9906-0207
44	BEARING; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-313-0	01	1	9702-9905
44	BEARING; IDLE PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-313-0	01	1	9906-0207
46	BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A)	8-97089-616-0	01	1	9701-9905
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97089-616-0	01	1	9906-0207
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0512-0610
46	BRACKET; CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98037-322-0	01	1	0611-
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0512-0610
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> M8X60 FLANGE	0-28080-860-0	02	1	9701-9905
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X60 FLANGE	0-28080-860-0	02	1	9906-0207
47	BOLT; BRKT TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0208-0411
47	BOLT; BRKT TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0412-0511
47	BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0512-0512
47	BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> M10X35 FLANGE	0-28681-035-0	02	1	9701-9905
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X35 FLANGE	0-28681-035-0	02	1	9906-0207

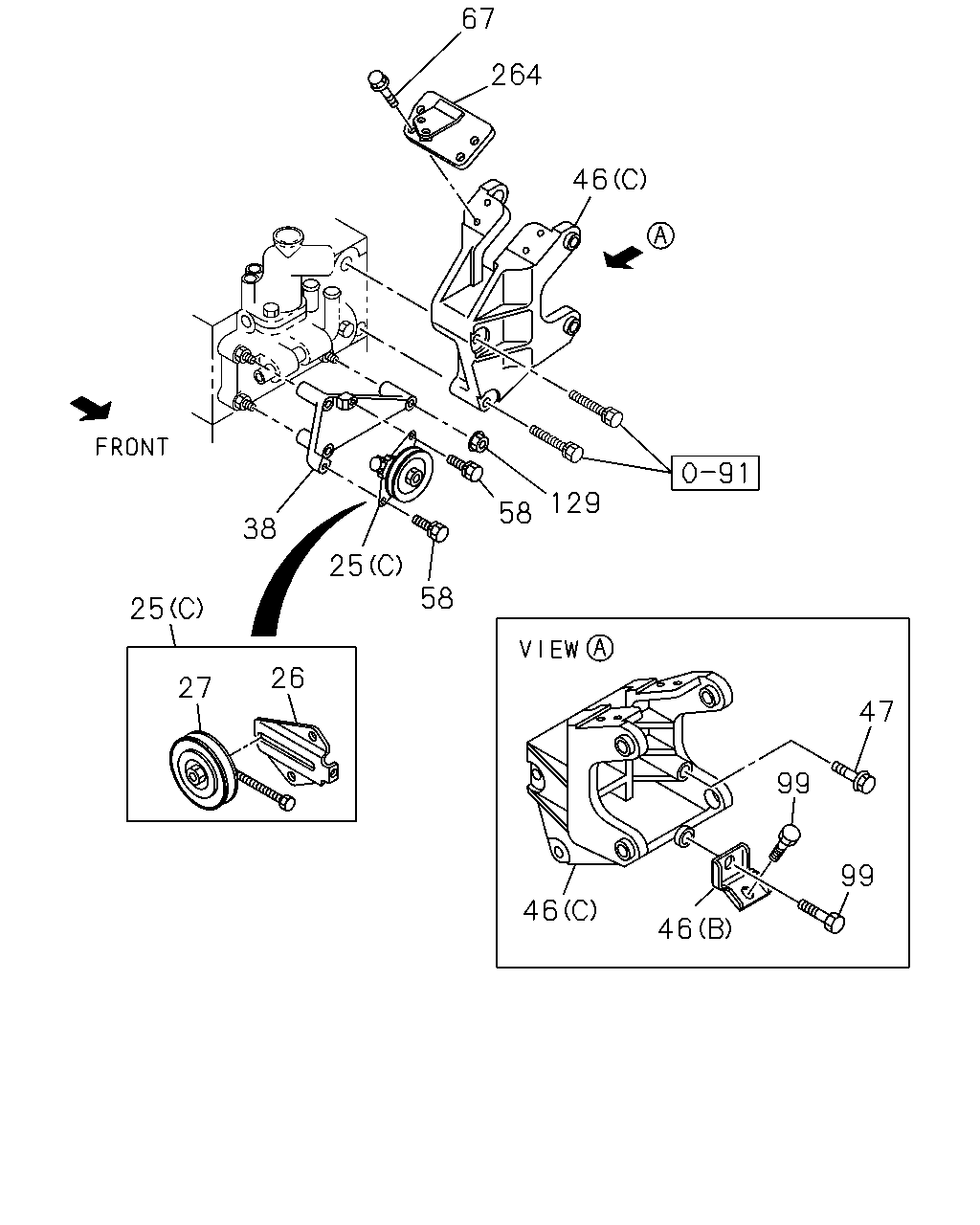

67 264 46 91 129 58 38 25 58 25 26 27 47 99 99 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A) TAI	8-97080-948-0	01	1	9701-9701
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-627-0	01	1	9702-9704
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-821-0	01	1	9705-9905
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-821-0	01	1	9906-0207
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0208-0411
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0412-0511
25	PULLEY ASM; IDLER,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0512-0610
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) 1-GROOVE	8-98051-011-0	01	1	0611-
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-94120-998-2	01	1	9701-9701
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-317-0	01	1	9702-9905
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-317-0	01	1	9906-0207
26	BRACKET; IDLE PULLEY,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0208-0411
26	BRACKET; IDLE PULLEY,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0412-0511
26	BRACKET; IDLE PULLEY,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97080-891-1	01	1	0512-0610
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97126-290-0	01	1	9701-9701
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-312-0	01	1	9702-9905
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-312-0	01	1	9906-0207
27	PULLEY; IDLE,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0208-0411
27	PULLEY; IDLE,A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0412-0511
27	PULLEY; IDLE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97126-652-0	01	1	0512-0610
38	BRACKET; PULLEY TO CYL HD AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97107-868-0	01	1	9701-9701
38	BRACKET; PULLEY TO CYL HD AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97965-625-0	01	1	9702-9905
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-625-0	01	1	9906-0207
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97038-618-1	01	1	0208-0307
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0308-0411
38	BRACKET; PULLEY TO CYL HD 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0412-0511
38	BRACKET; PULLEY TO CYL HD 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97372-359-0	01	1	0512-0610
46	BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A)	8-97089-616-0	01	1	9701-9905
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97089-616-0	01	1	9906-0207
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0512-0610
46	BRACKET; CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98037-322-0	01	1	0611-
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0512-0610
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> M8X60 FLANGE	0-28080-860-0	02	1	9701-9905
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X60 FLANGE	0-28080-860-0	02	1	9906-0207
47	BOLT; BRKT TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0208-0411
47	BOLT; BRKT TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0412-0511
47	BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28080-880-0	01	1	0512-0512
47	BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> M10X35 FLANGE	0-28681-035-0	02	1	9701-9905
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X35 FLANGE	0-28681-035-0	02	1	9906-0207
58	BOLT; IDLER PULLEY TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X20 W/LK WASHER	0-50040-820-0	02	1	0208-0411
58	BOLT; IDLER PULLEY TO BODY 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X20 W/LK WASHER	0-50040-820-0	02	1	0412-0511
58	BOLT; IDLER PULLEY TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X20 W/LK WASHER	0-50040-820-0	02	1	0512-0610
67	BOLT; PLATE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M8X30 FLANGE	0-28680-830-0	02	1	0208-0411
67	BOLT; PLATE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M8X30 FLANGE	0-28680-830-0	02	1	0412-0511
67	BOLT; PLATE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
67	BOLT; PLATE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610
67	BOLT; PLATE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0208-0411
67	BOLT; PLATE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0412-0511
67	BOLT; PLATE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
67	BOLT; PLATE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610
99	BOLT; BRKT 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0208-0411
99	BOLT; BRKT 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0412-0511
99	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
99	BOLT; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28050-816-0	02	1	0601-0610
129	NUT; LK,ADJ BRKT,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	03	1	0208-0411
129	NUT; LK,ADJ BRKT,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	03	1	0412-0511
129	NUT; LK,ADJ BRKT,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	03	1	0512-0602
129	NUT; LK,ADJ BRKT,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	03	1	0603-0610
264	PLATE; BRKT 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97254-390-0	01	1	0208-0411
264	PLATE; BRKT 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60)	8-97254-390-0	01	1	0412-0511
264	PLATE; BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97254-390-0	01	1	0512-0610

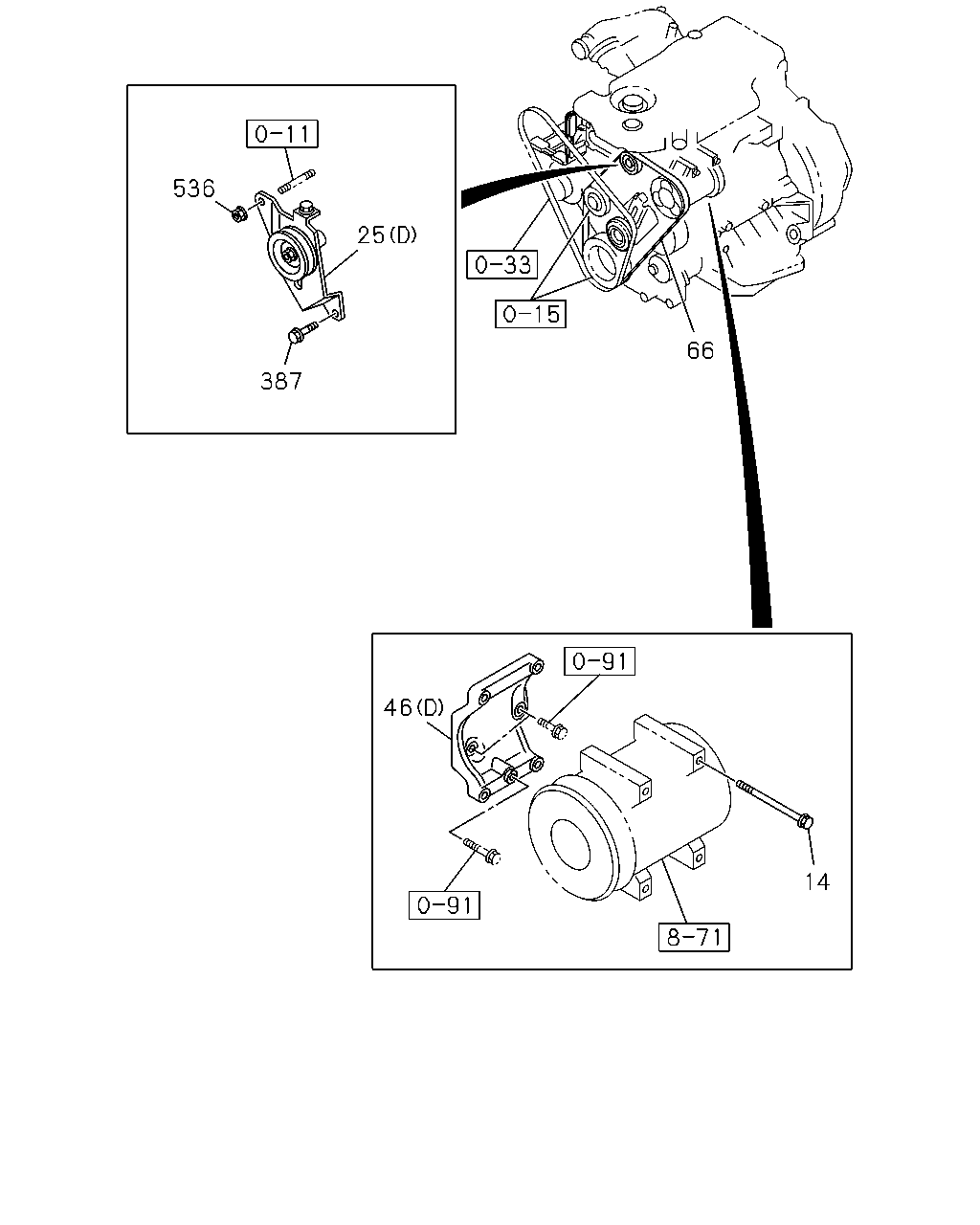

11 536 25 33 15 66 387 91 46 14 91 8 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	9701-9905
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	9906-0207
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M10X40 FLANGE	0-28681-040-0	04	1	0208-0411
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) M10X40 FLANGE	0-28681-040-0	04	1	0412-0511
14	BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28681-040-0	04	1	0512-0512
14	BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE	0-28651-040-0	04	1	0601-0610
14	BOLT; CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M8X100 FLANGE	0-28050-800-0	04	1	0611-
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A) TAI	8-97080-948-0	01	1	9701-9701
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-627-0	01	1	9702-9704
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) TAI	8-97965-821-0	01	1	9705-9905
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) TAI	8-97965-821-0	01	1	9906-0207
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0208-0411
25	PULLEY ASM; IDLER,CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0412-0511
25	PULLEY ASM; IDLER,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97080-947-1	01	1	0512-0610
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) 1-GROOVE	8-98051-011-0	01	1	0611-
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> TAI	8-97966-322-0	01	1	9702-9905
33	NUT; IDLER PULLEY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97966-322-0	01	1	9906-0207
46	BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (A)	8-97089-616-0	01	1	9701-9905
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97089-616-0	01	1	9906-0207
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97222-647-1	01	1	0512-0610
46	BRACKET; CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98037-322-0	01	1	0611-
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0208-0411
46	BRACKET; CMPR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0412-0511
46	BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97228-378-2	01	1	0512-0610
66	BELT; A/C CMPR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1369 MITSUBOSHI	8-94252-342-0	01	1	0611-
387	BOLT; TENSIONER FIX 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28650-820-0	01	1	0611-
536	NUT; TENSIONER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	01	1	0611-

78 8 74 378 8 52 5 15 262 177 8 75 8 75 166 177 8 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE	0-28680-620-0	02	1	9701-0411
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE	0-28680-620-0	02	1	0412-0512
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE	0-28650-620-0	02	1	0601-
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28680-820-0	01	1	9701-0411
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28680-820-0	01	1	0412-0512
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	9701-9912
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-195-0	01	1	0001-0411
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-195-0	01	1	0412-
177	BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	9701-0411
177	BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	0412-0511
177	BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97358-577-0	01	1	0512-
177	BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97090-311-1	01	1	9701-0411
177	BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97090-311-2	01	1	0412-
262	BRACKET; CONDENSER 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-885-0	01	1	0611-
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-480-0	01	1	9701-0411
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-480-0	01	1	0412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
