Sayfa 8-45 - Isuzu EPC

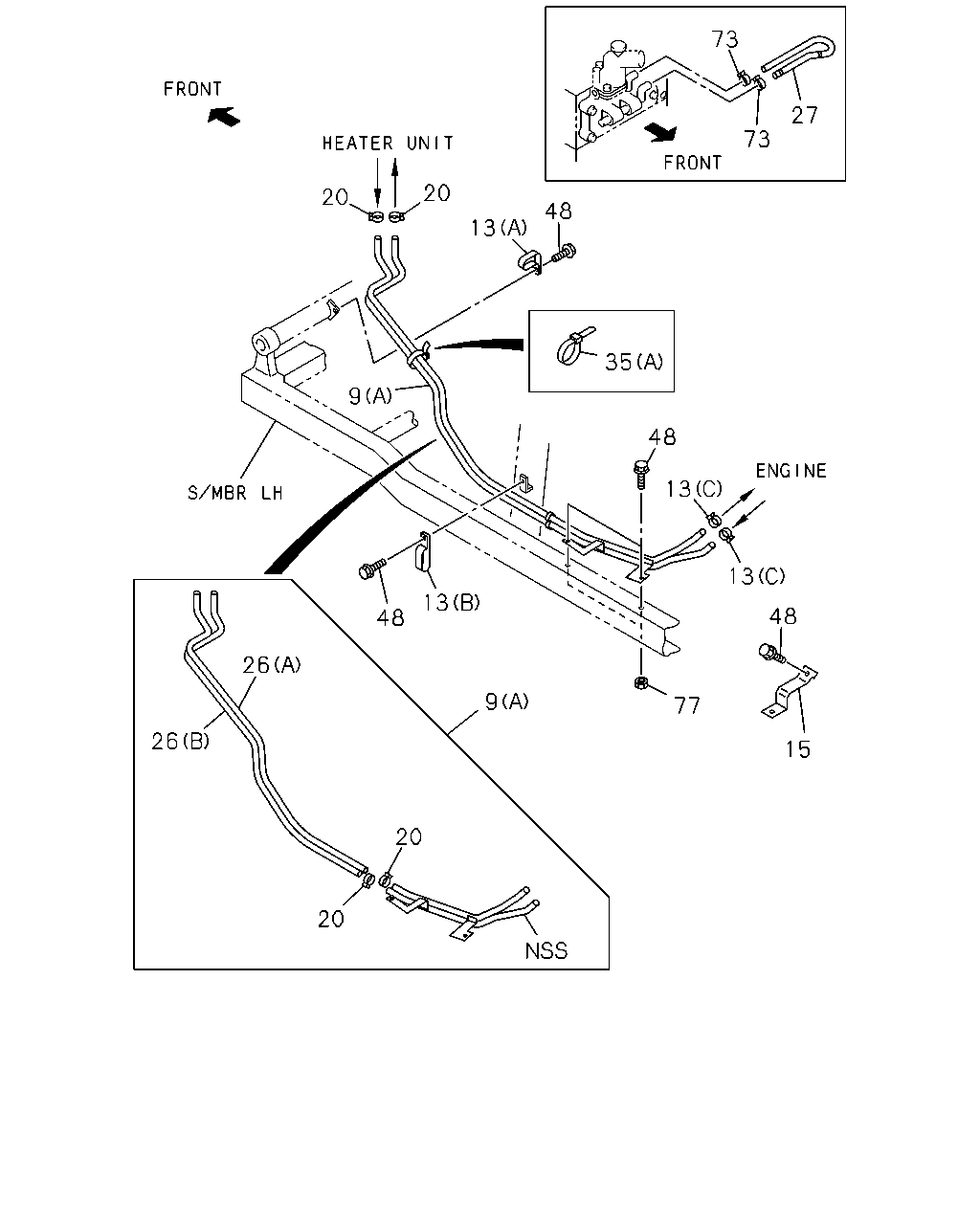

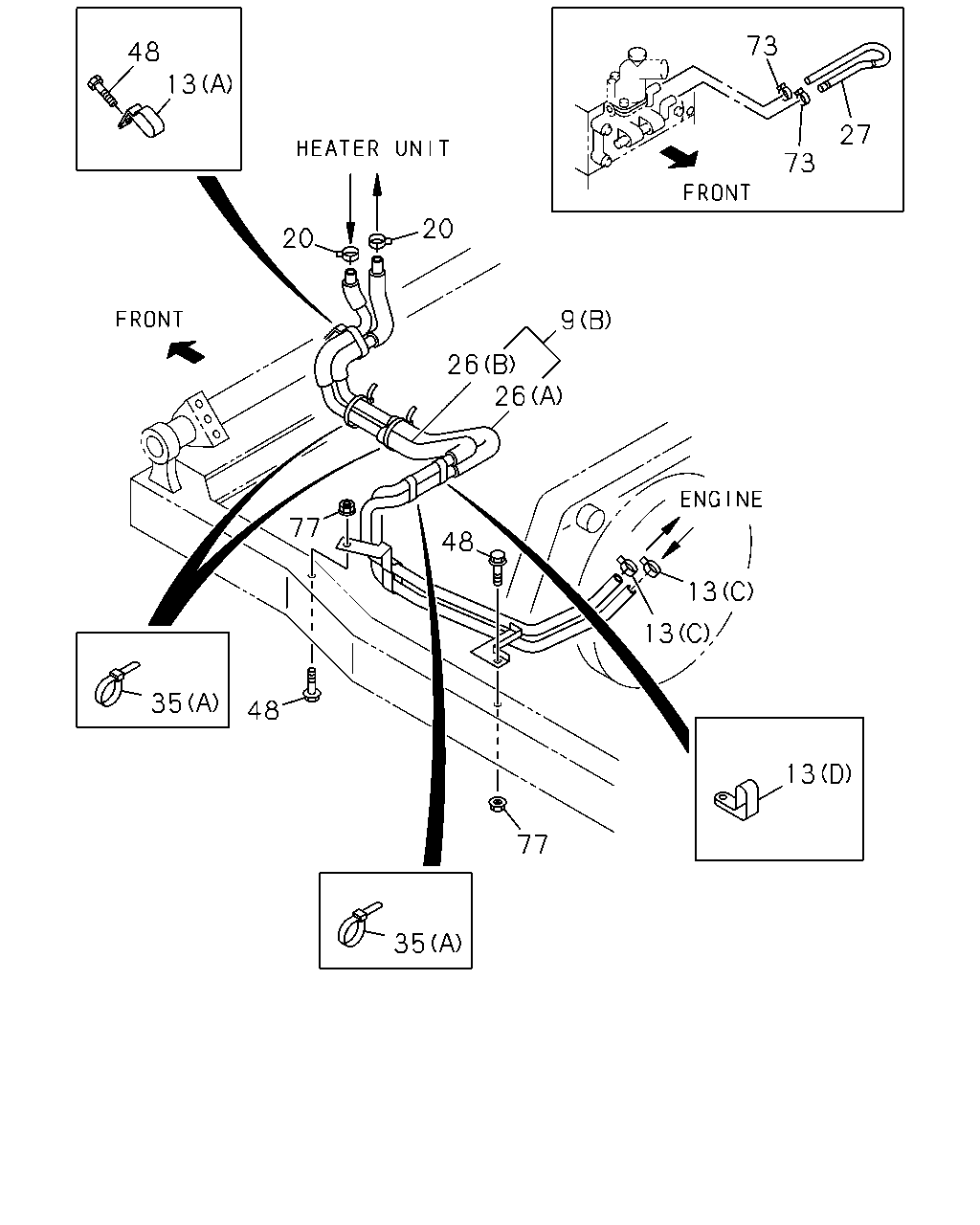

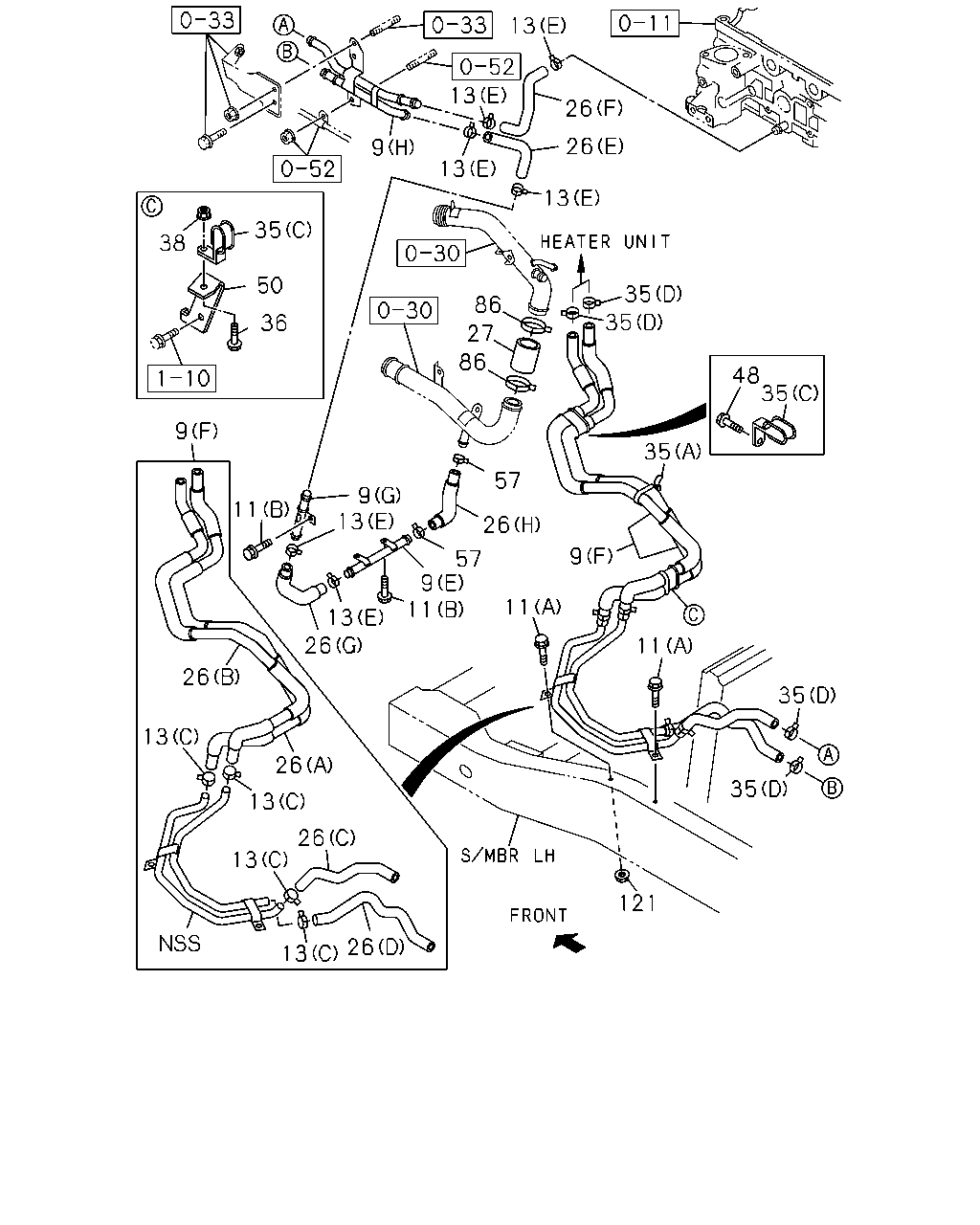

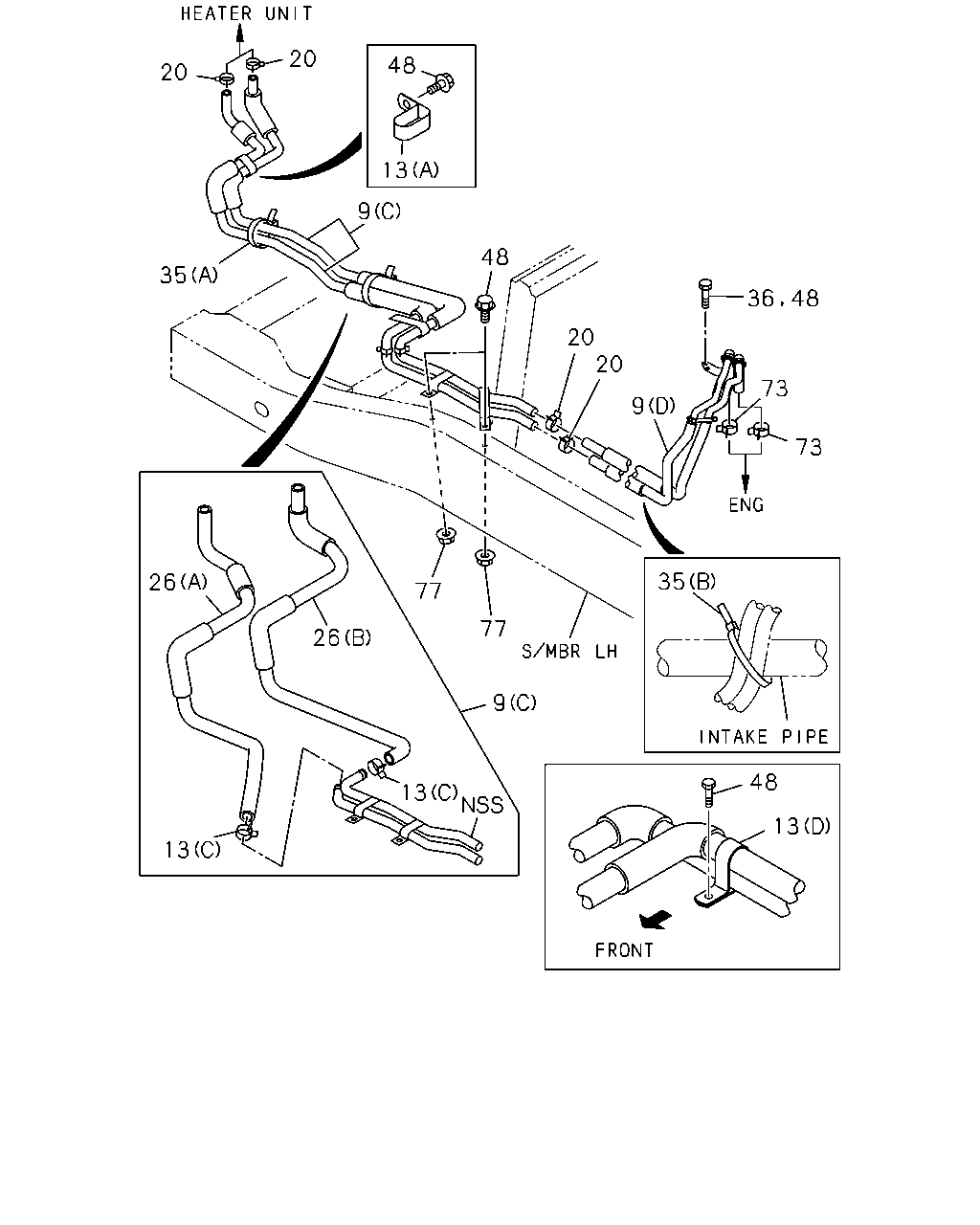

8-45 — HEATER PIPING (#139148) — 382 parça

33 11 33 13 52 13 26 26 9 13 52 13 35 38 30 50 35 86 30 35 36 27 86 48 35 1 10 9 35 57 9 13 11 26 9 57 9 11 11 13 26 11 26 35 13 26 35 13 26 13 121 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	9701-9712
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9801-9905
9	PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9906-0207
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-3	01	1	0208-0411
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-4	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97260-268-4	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (F)	8-97386-898-3	01	1	0611-
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0208-0411
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-97381-481-3	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	8-97383-035-1	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98028-829-1	01	1	0611-
11	BOLT; HTR PIPE AIR CONDITIONER MANUAL CONT(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0611-
11	BOLT; HTR PIPE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE	0-28050-816-0	03	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9701-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0412-0610
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9701-9905
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9906-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0412-0511
13	CLIP; HTR HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	0512-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	04	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9701-9702
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-006-0	01	1	9703-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0412-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E) ID=20.8	8-94125-862-1	06	1	0611-
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0611-
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98050-289-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98050-290-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	0-03516-240-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (F)	8-97383-048-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-98000-099-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98000-101-2	01	1	0611-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9701-9905
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0101
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97300-262-0	02	1	0102-0207
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF>	8-98009-701-0	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) L=450	1-09707-142-1	02	1	0512-0610
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22 TAI	8-94382-401-0	04	1	0611-0611
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	0611-
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-0	02	1	9701-9702
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9703-9905
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9906-0105
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	04	1	0106-0207
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0512-0610
35	CLIP; WATER HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-129-0	02	1	0611-
36	BOLT; BRKT 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0308-0308
36	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	01	1	0611-
38	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	01	1	0611-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M6X14 FLANGE	0-28080-614-0	02	1	9701-9702
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	02	1	9703-9703
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	01	1	9704-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	01	1	0601-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9701-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0208-0307
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0309-0411
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0412-0511
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28050-816-0	02	1	0601-0610
50	BRACKET AIR CONDITIONER MANUAL CONT(C60)	8-97230-028-0	01	1	0611-
57	CLIP; HOSE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> ID=20.8	8-94125-862-1	02	1	0611-
86	CLIP; HTR HOSE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> ID=40.5	8-97313-472-0	02	1	0611-
121	NUT; PIPE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	01	1	0611-

73 27 73 20 20 48 13 35 9 48 13 13 13 48 48 26 9 77 26 15 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	9701-9712
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9801-9905
9	PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9906-0207
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-3	01	1	0208-0411
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-4	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97260-268-4	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (F)	8-97386-898-3	01	1	0611-
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0208-0411
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-97381-481-3	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	8-97383-035-1	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98028-829-1	01	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9701-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0412-0610
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9701-9905
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9906-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0412-0511
13	CLIP; HTR HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	0512-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	04	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9701-9702
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-006-0	01	1	9703-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0412-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E) ID=20.8	8-94125-862-1	06	1	0611-
15	BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-872-0	01	1	9701-9703
20	CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	9701-9905
20	CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	9906-0207
20	CLIP; WATER HOSE TO HTR PIPE AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	0208-0411
20	CLIP; WATER HOSE TO HTR PIPE AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	0412-0610
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0611-
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98050-289-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98050-290-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	0-03516-240-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (F)	8-97383-048-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-98000-099-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98000-101-2	01	1	0611-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9701-9905
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0101
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97300-262-0	02	1	0102-0207
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF>	8-98009-701-0	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) L=450	1-09707-142-1	02	1	0512-0610
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22 TAI	8-94382-401-0	04	1	0611-0611
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	0611-
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-0	02	1	9701-9702
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9703-9905
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9906-0105
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	04	1	0106-0207
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0512-0610
35	CLIP; WATER HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-129-0	02	1	0611-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M6X14 FLANGE	0-28080-614-0	02	1	9701-9702
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	02	1	9703-9703
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	01	1	9704-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	01	1	0601-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9701-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0208-0307
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0309-0411
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0412-0511
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28050-816-0	02	1	0601-0610
73	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> ID=22 TAI	8-94382-401-0	02	1	9701-9905
73	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	9906-0207
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=25	9-09915-642-2	02	1	0208-0310
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0311-0411
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0412-0511
73	CLIP; HTR HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0512-0610
77	NUT; WATER HOSE HEATER & DEFROSTER(C41) M8 FLANGE	0-91150-208-0	01	1	9701-9702
77	NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	9703-9905
77	NUT; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	9906-0207
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	0208-0411
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	0412-0602
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	01	1	0603-0610

73 48 13 27 73 20 20 9 26 26 77 48 13 1 35 48 13 77 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	9701-9712
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9801-9905
9	PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9906-0207
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-3	01	1	0208-0411
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-4	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97260-268-4	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (F)	8-97386-898-3	01	1	0611-
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0208-0411
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-97381-481-3	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	8-97383-035-1	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98028-829-1	01	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9701-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0412-0610
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9701-9905
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9906-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0412-0511
13	CLIP; HTR HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	0512-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	04	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9701-9702
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-006-0	01	1	9703-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0412-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E) ID=20.8	8-94125-862-1	06	1	0611-
20	CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	9701-9905
20	CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	9906-0207
20	CLIP; WATER HOSE TO HTR PIPE AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	0208-0411
20	CLIP; WATER HOSE TO HTR PIPE AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	0412-0610
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0611-
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98050-289-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98050-290-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	0-03516-240-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (F)	8-97383-048-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-98000-099-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98000-101-2	01	1	0611-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9701-9905
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0101
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97300-262-0	02	1	0102-0207
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF>	8-98009-701-0	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) L=450	1-09707-142-1	02	1	0512-0610
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22 TAI	8-94382-401-0	04	1	0611-0611
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	0611-
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-0	02	1	9701-9702
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9703-9905
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9906-0105
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	04	1	0106-0207
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0512-0610
35	CLIP; WATER HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-129-0	02	1	0611-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M6X14 FLANGE	0-28080-614-0	02	1	9701-9702
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	02	1	9703-9703
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	01	1	9704-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	01	1	0601-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9701-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0208-0307
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0309-0411
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0412-0511
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28050-816-0	02	1	0601-0610
73	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> ID=22 TAI	8-94382-401-0	02	1	9701-9905
73	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	9906-0207
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=25	9-09915-642-2	02	1	0208-0310
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0311-0411
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0412-0511
73	CLIP; HTR HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0512-0610
77	NUT; WATER HOSE HEATER & DEFROSTER(C41) M8 FLANGE	0-91150-208-0	01	1	9701-9702
77	NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	9703-9905
77	NUT; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	9906-0207
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	0208-0411
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	0412-0602
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	01	1	0603-0610

20 48 20 13 9 48 35 3648 20 20 73 9 73 35 26 77 77 26 9 48 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97129-185-0	01	1	9701-9712
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9801-9905
9	PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97191-802-1	01	1	9906-0207
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-3	01	1	0208-0411
9	PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C)	8-97260-268-4	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97260-268-4	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (F)	8-97386-898-3	01	1	0611-
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0208-0411
9	PIPE; HTR 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0412-0511
9	PIPE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97261-456-3	01	1	0512-0610
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-97381-481-3	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	8-97383-035-1	01	1	0611-
9	PIPE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98028-829-1	01	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9701-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	0412-0610
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9701-9905
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	9906-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (C) ID=22 TAI	8-94382-401-0	02	1	0412-0511
13	CLIP; HTR HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	02	1	0512-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 TAI	8-94382-401-0	04	1	0611-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9701-9702
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-006-0	01	1	9703-0207
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0208-0411
13	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-006-0	01	1	0412-0610
13	CLIP; HTR HOSE 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E) ID=20.8	8-94125-862-1	06	1	0611-
20	CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	9701-9905
20	CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	9906-0207
20	CLIP; WATER HOSE TO HTR PIPE AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	0208-0411
20	CLIP; WATER HOSE TO HTR PIPE AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	04	1	0412-0610
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97203-708-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A)	8-97239-084-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0611-
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9701-9712
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9801-9905
26	HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97203-709-0	01	1	9906-0207
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0208-0411
26	HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B)	8-97239-085-0	01	1	0412-0511
26	HOSE; HTR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0512-0610
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98050-289-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98050-290-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (E)	0-03516-240-0	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (F)	8-97383-048-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (G)	8-98000-099-1	01	1	0611-
26	HOSE; HTR 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (H)	8-98000-101-2	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (B) L=450	1-09707-142-1	02	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) L=450	1-09707-142-1	02	1	0512-0610
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22 TAI	8-94382-401-0	04	1	0611-0611
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	0611-
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-0	02	1	9701-9702
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9703-9905
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	03	1	9906-0105
35	CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	04	1	0106-0207
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0208-0411
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) L=250 TAI	5-09707-030-1	01	1	0412-0511
35	CLIP; WATER HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0512-0610
35	CLIP; WATER HOSE 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) L=250 TAI	5-09707-030-1	01	1	0611-
35	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-129-0	02	1	0611-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M6X14 FLANGE	0-28080-614-0	02	1	9701-9702
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	02	1	9703-9703
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X14 FLANGE	0-28080-614-0	01	1	9704-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	01	1	0601-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9701-9905
48	BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9906-0207
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0208-0411
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0412-0512
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0208-0307
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0309-0411
48	BOLT; CLIP FIX 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0412-0511
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
48	BOLT; CLIP FIX 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28050-816-0	02	1	0601-0610
73	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> ID=22 TAI	8-94382-401-0	02	1	9701-9905
73	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	9906-0207
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=25	9-09915-642-2	02	1	0208-0310
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0311-0411
73	CLIP; HTR HOSE 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0412-0511
73	CLIP; HTR HOSE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) ID=22 TAI	8-94382-401-0	02	1	0512-0610
77	NUT; WATER HOSE HEATER & DEFROSTER(C41) M8 FLANGE	0-91150-208-0	01	1	9701-9702
77	NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	9703-9905
77	NUT; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	9906-0207
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	0208-0411
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-208-0	01	1	0412-0602
77	NUT; WATER HOSE AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	01	1	0603-0610

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
