Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#139147) — 107 parça

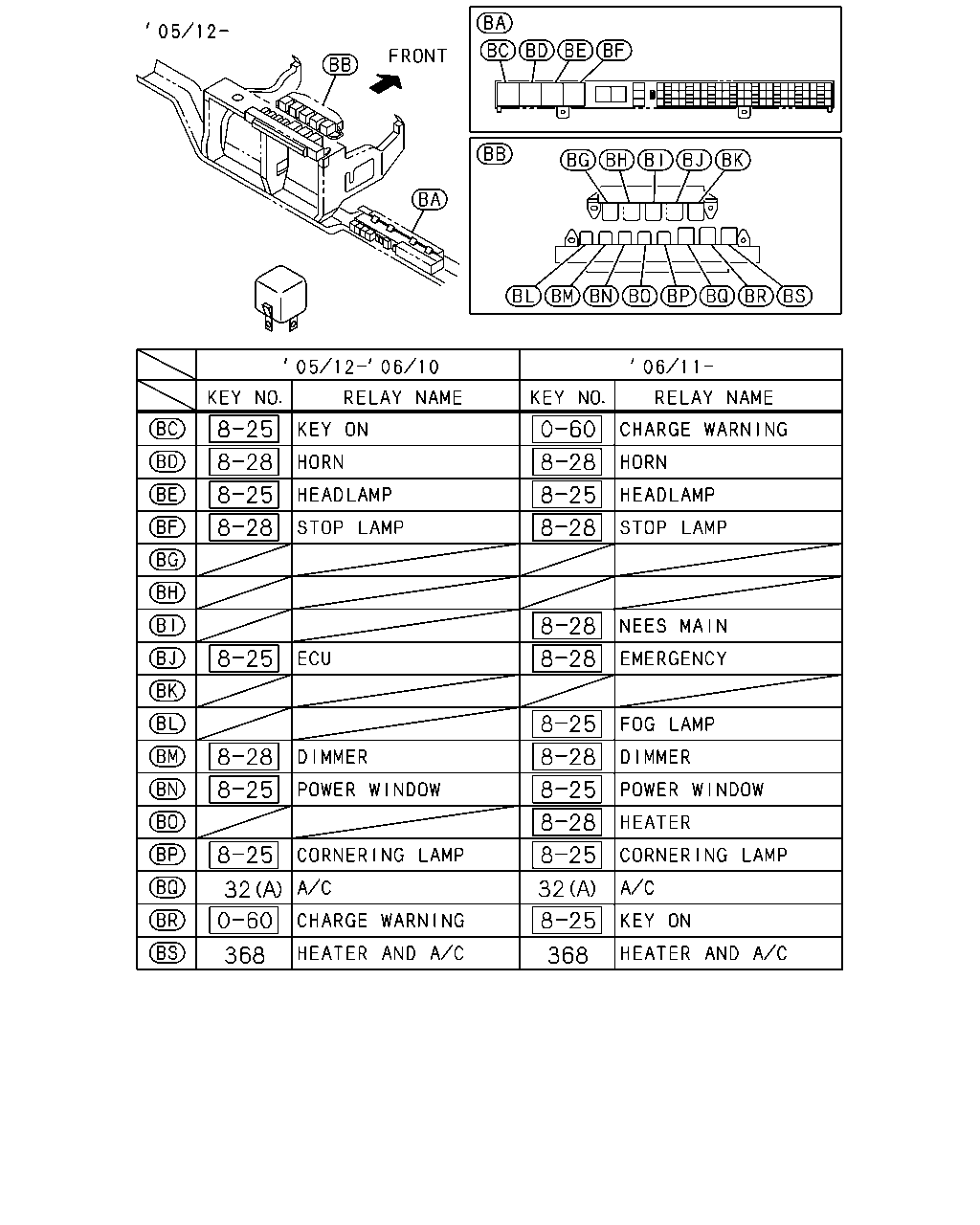

8 25 60 8 28 8 28 8 25 8 25 8 28 8 28 8 28 8 25 8 28 8 25 8 28 8 28 8 25 8 25 8 28 8 25 8 25 32 32 60 8 25 368 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	9701-0207
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0208-0411
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) 12V 20A	8-97060-926-1	01	1	0208-0411
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0412-0511
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) 12V 20A	8-97060-926-1	01	1	0412-0511
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0512-0610
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0611-
32	RELAY; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) 12V 20A	8-97173-037-1	01	1	0512-0610
368	RELAY; HEATER AND A/C 12V 20A	8-97060-926-1	01	1	9701-0411
368	RELAY; HEATER AND A/C 12V 20A	8-97060-926-1	01	1	0412-0610
368	RELAY; HEATER AND A/C 24V 12.5A PANASONIC	8-97262-933-0	01	1	0611-

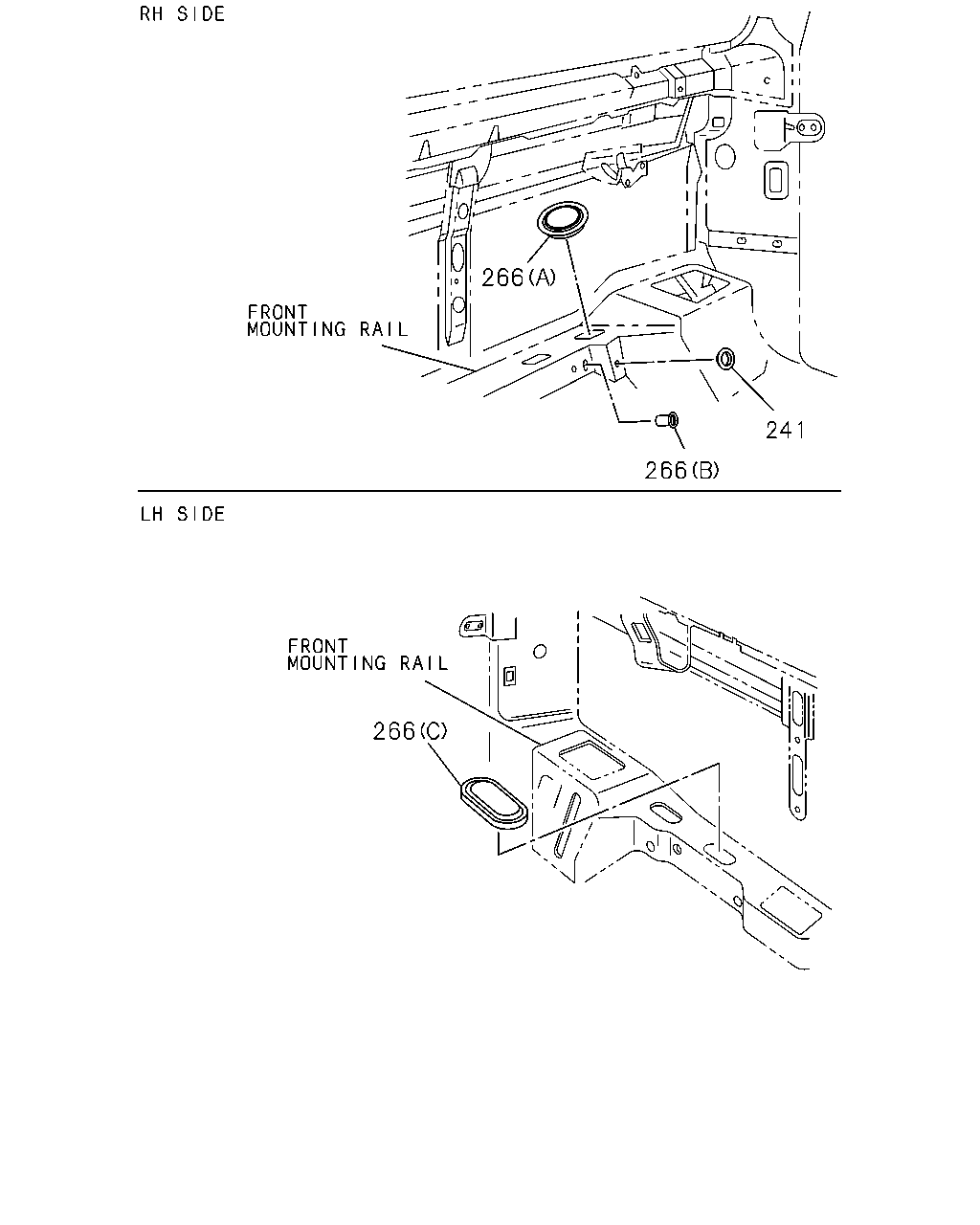

266 241 266 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	9701-0411
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	0412-
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	9701-0411
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	0412-
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=13	9-09756-019-0	01	1	9701-0411
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=13	9-09756-019-0	01	1	0412-
266	PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	9701-0207
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	0208-0411
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	0412-

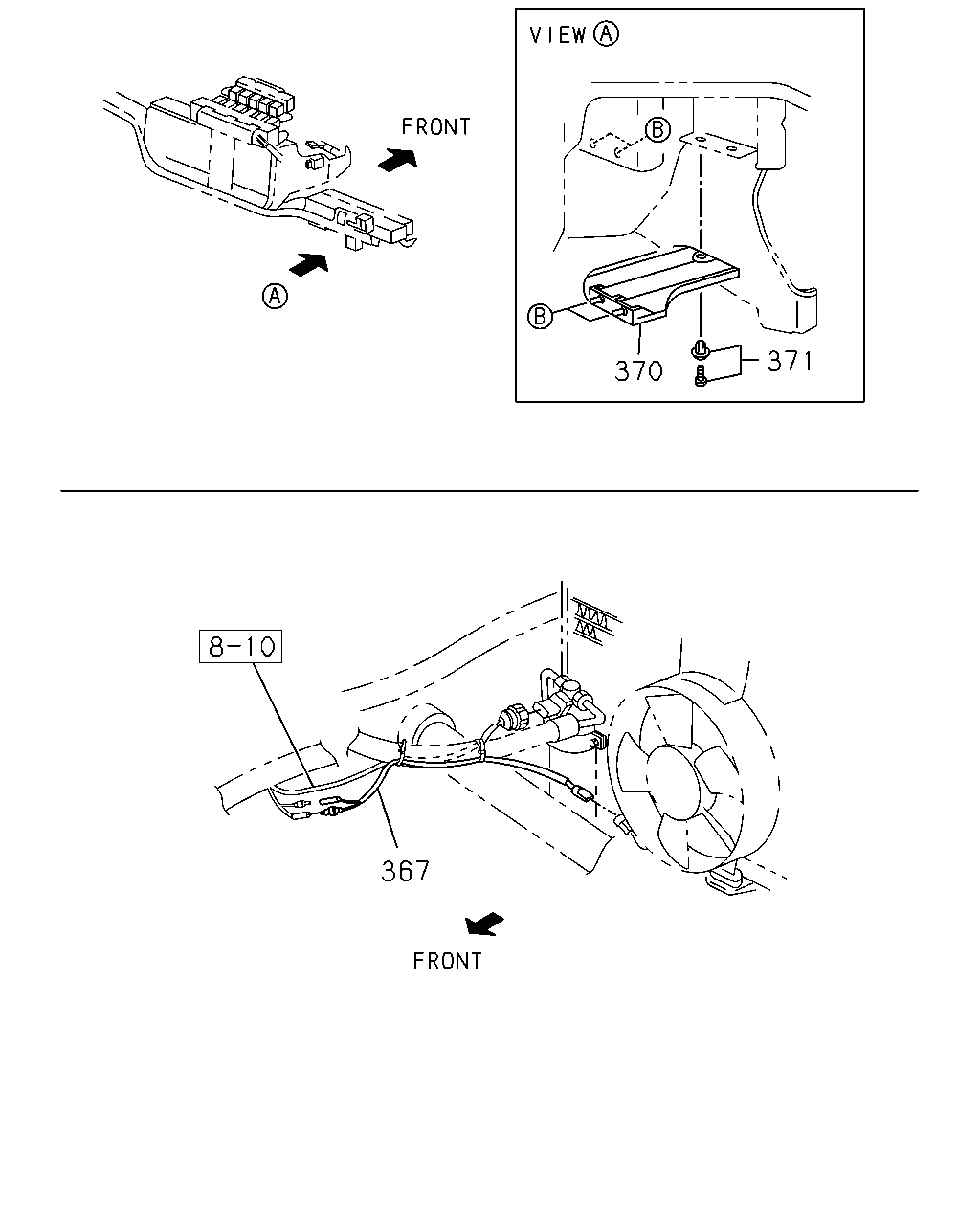

371 370 8 10 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
367	HARNESS; EXT AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-473-0	01	1	9701-9905
367	HARNESS; EXT AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-005-0	01	1	9906-0009
367	HARNESS; EXT AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-210-0	01	1	0010-0207
367	HARNESS; EXT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-307-1	01	1	0208-0411
367	HARNESS; EXT AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) TAI	8-97967-307-1	01	1	0412-0511
367	HARNESS; EXT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-307-1	01	1	0512-0610
367	HARNESS; EXT 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-307-1	01	1	0611-
370	PLATE; BAFFLE,BLOWER UNIT	8-97856-617-1	01	1	9701-0411
370	PLATE; BAFFLE,BLOWER UNIT	8-97856-617-1	01	1	0412-
371	FASTENER; BAFFLE PLATE D=5.8 SCREW & GROMMET NYLON TAI	8-94242-150-0	01	1	9701-0411
371	FASTENER; BAFFLE PLATE D=5.8 SCREW & GROMMET NYLON TAI	8-94242-150-0	01	1	0412-

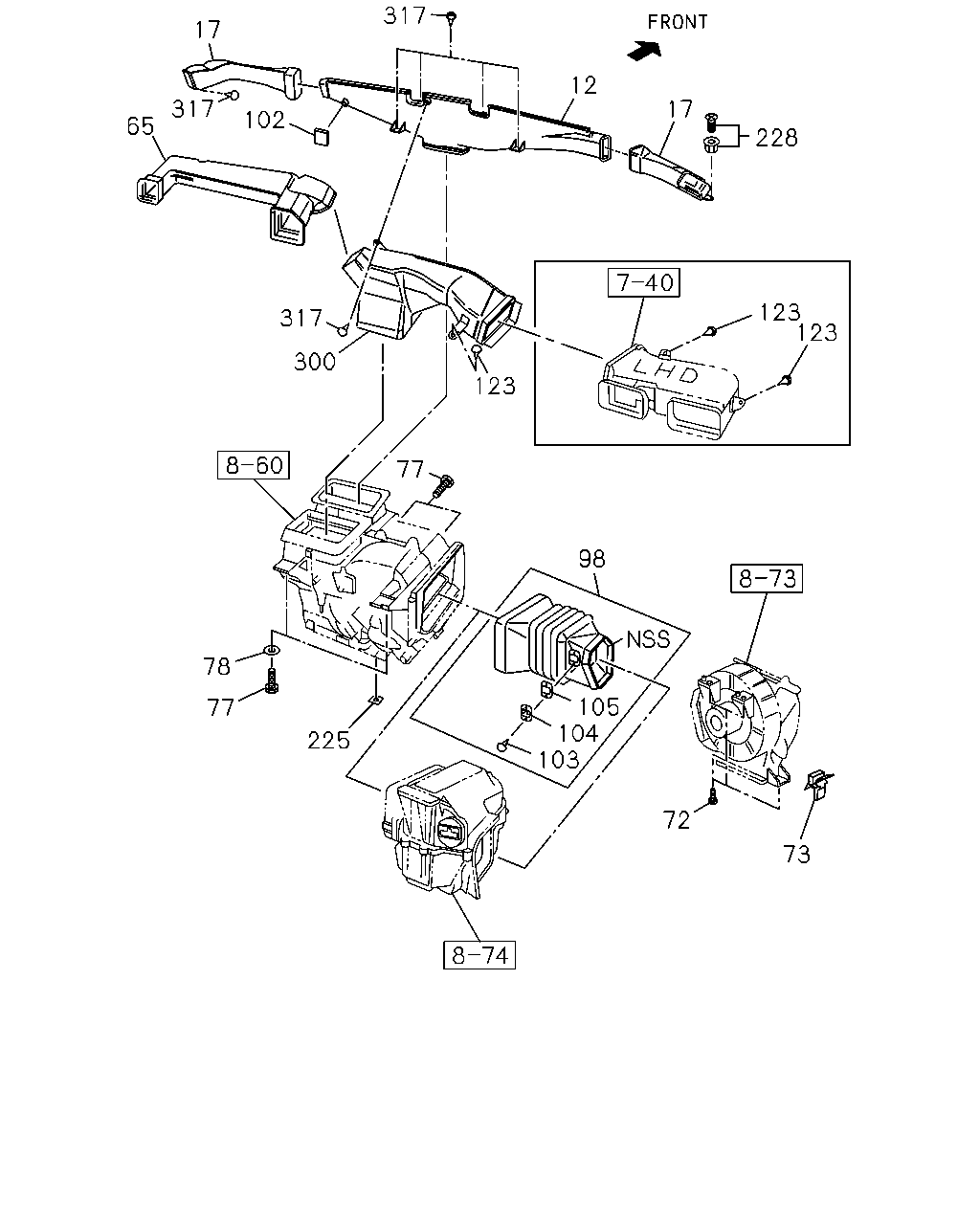

317 17 12 317 17 102 65 228 7 40 123 123 317 123 300 77 8 60 98 8 73 78 105 104 103 77 225 72 73 8 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER TAI	8-97965-294-0	01	1	9701-0005
12	NOZZLE; DEFROSTER TAI	8-97967-196-0	01	1	0006-0411
12	NOZZLE; DEFROSTER TAI	8-97967-196-0	01	1	0412-
17	NOZZLE; DEFROSTER,SIDE	8-97069-819-0	01	1	9701-9707
17	NOZZLE; DEFROSTER,SIDE TAI	8-97965-546-0	01	1	9708-0411
17	NOZZLE; DEFROSTER,SIDE TAI	8-97965-546-0	01	1	0412-
17	NOZZLE; DEFROSTER,SIDE	8-97069-820-0	01	1	9701-9707
17	NOZZLE; DEFROSTER,SIDE TAI	8-97965-548-0	01	1	9708-0411
17	NOZZLE; DEFROSTER,SIDE TAI	8-97965-548-0	01	1	0412-
65	DUCT; VENT,DRIVER SIDE TAI	8-97965-295-0	01	1	9701-0411
65	DUCT; VENT,DRIVER SIDE TAI	8-97965-295-0	01	1	0412-
72	BOLT; BLOWER UNIT M6X20 FLANGE	0-28680-620-0	02	1	9701-0411
72	BOLT; BLOWER UNIT M6X20 FLANGE	0-28680-620-0	02	1	0412-0512
72	BOLT; BLOWER UNIT M6X20 FLANGE	0-28650-620-0	02	1	0601-
72	BOLT; BLOWER UNIT M8X35 TAI	8-97103-452-0	02	1	9701-0411
72	BOLT; BLOWER UNIT M8X35 TAI	8-97103-452-0	02	1	0412-
73	CLIP; HARNESS TO BLOWER UNIT USA	8-94337-654-0	01	1	9701-0411
73	CLIP; HARNESS TO BLOWER UNIT USA	8-94337-654-0	01	1	0412-
77	BOLT; HTR UNIT M6X20 FLANGE	0-28680-620-0	02	1	9701-0411
77	BOLT; HTR UNIT M6X20 FLANGE	0-28680-620-0	02	1	0412-0512
77	BOLT; HTR UNIT M6X20 FLANGE	0-28650-620-0	02	1	0601-
77	BOLT; HTR UNIT M8X40 W/LK WASHER	0-50040-840-0	01	1	9701-9905
77	BOLT; HTR UNIT M8X40 FLANGE	0-28680-840-0	01	1	9906-0411
77	BOLT; HTR UNIT M8X40 FLANGE	0-28680-840-0	01	1	0412-0512
77	BOLT; HTR UNIT M8X40 FLANGE	0-28650-840-0	01	1	0601-
77	BOLT; HTR UNIT M8X25	8-97103-451-0	01	1	9701-0411
77	BOLT; HTR UNIT M8X25	8-97103-451-0	01	1	0412-
78	WASHER; PL,HTR UNIT ID=8.4 OD=22	9-09160-708-0	01	1	9701-0411
78	WASHER; PL,HTR UNIT ID=8.4 OD=22	9-09160-708-0	01	1	0412-0605
78	WASHER; PL,HTR UNIT ID=8.4 OD=22	0-91610-708-0	01	1	0606-
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-296-0	01	1	9701-0411
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97965-296-0	01	1	0412-0610
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97374-885-0	01	1	0611-
102	LINING; HTR DUCT	8-97145-038-0	01	1	9701-0411
102	LINING; HTR DUCT	8-97145-038-0	01	1	0412-
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-016-0	02	1	9701-0411
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-016-0	02	1	0412-0610
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING USA	1-83579-114-0	02	1	0611-
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97358-389-0	01	1	0611-
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97083-136-1	01	1	9701-0411
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97083-136-1	01	1	0412-0610
105	PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-017-0	01	1	9701-0411
105	PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) TAI	8-97967-017-0	01	1	0412-0610
105	PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97020-761-0	01	1	0611-
123	SCREW; DUCT M5X12 W/PL WASHER	8-97147-069-0	02	1	9701-0411
123	SCREW; DUCT M5X12 W/PL WASHER	8-97147-069-0	02	1	0412-0612
123	SCREW; DUCT M5X12 TAPPING	0-72180-512-0	02	1	0701-
225	SEAL; WATER	8-97856-616-0	04	1	9701-0411
225	SEAL; WATER	8-97856-616-0	04	1	0412-
228	CLIP; DEFROSTER D=5.8 SCREW & GROMMET NYLON TAI	8-94242-150-0	01	1	9701-0411
228	CLIP; DEFROSTER D=5.8 SCREW & GROMMET NYLON TAI	8-94242-150-0	01	1	0412-
300	DUCT; VENT,CENTER TAI	8-97965-297-0	01	1	9701-0411
300	DUCT; VENT,CENTER TAI	8-97965-297-0	01	1	0412-
317	SCREW; DEFROSTER NOZZLE M5X12 W/PL WASHER	8-97147-069-0	05	1	9701-0411
317	SCREW; DEFROSTER NOZZLE M5X12 W/PL WASHER	8-97147-069-0	05	1	0412-0612
317	SCREW; DEFROSTER NOZZLE M5X12 TAPPING	0-72180-512-0	05	1	0701-

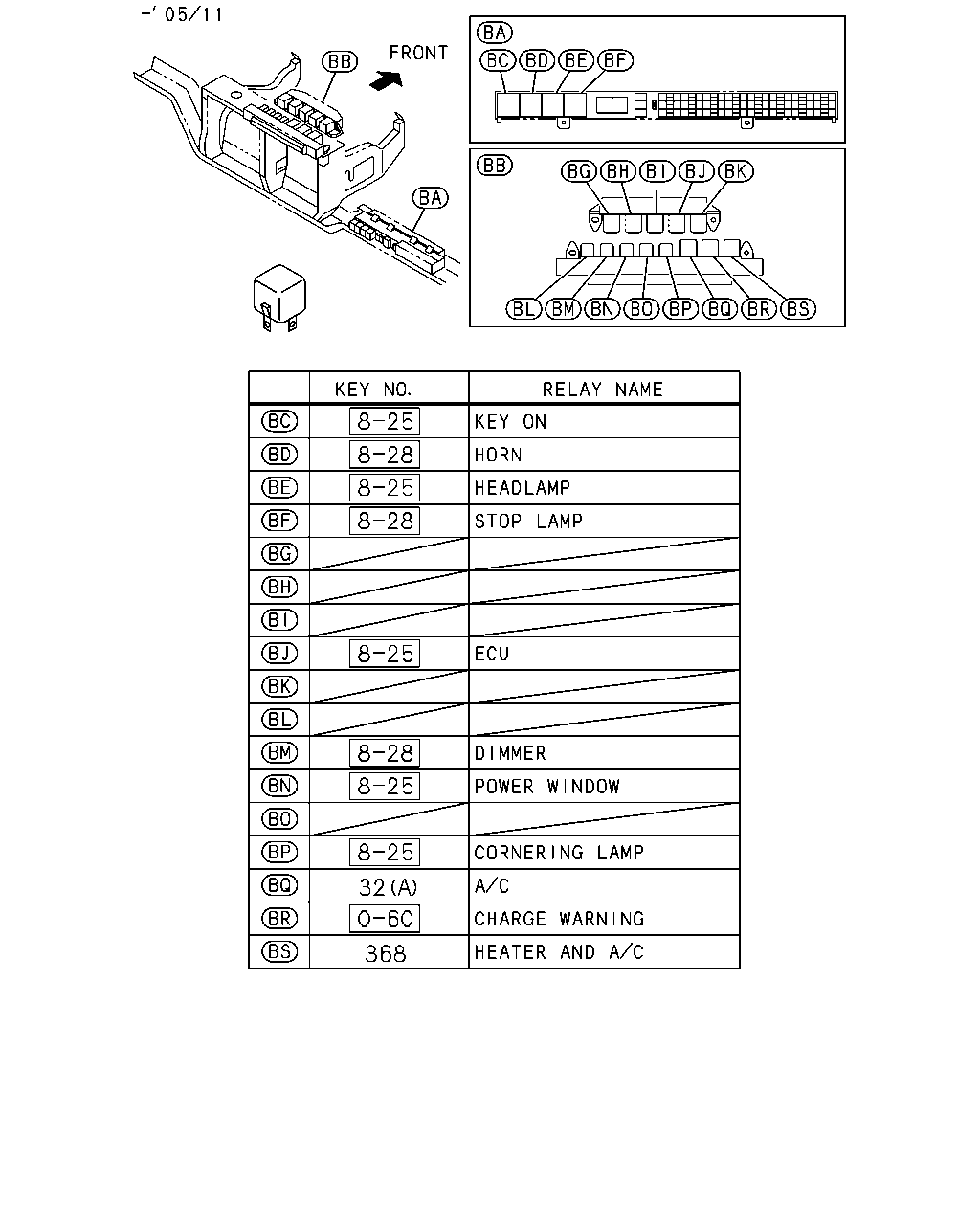

8 25 8 28 8 25 8 28 8 25 8 28 8 25 8 25 32 60 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	9701-0207
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0208-0411
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) 12V 20A	8-97060-926-1	01	1	0208-0411
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0412-0511
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) 12V 20A	8-97060-926-1	01	1	0412-0511
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0512-0610
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0611-
32	RELAY; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) 12V 20A	8-97173-037-1	01	1	0512-0610
368	RELAY; HEATER AND A/C 12V 20A	8-97060-926-1	01	1	9701-0411
368	RELAY; HEATER AND A/C 12V 20A	8-97060-926-1	01	1	0412-0610
368	RELAY; HEATER AND A/C 24V 12.5A PANASONIC	8-97262-933-0	01	1	0611-

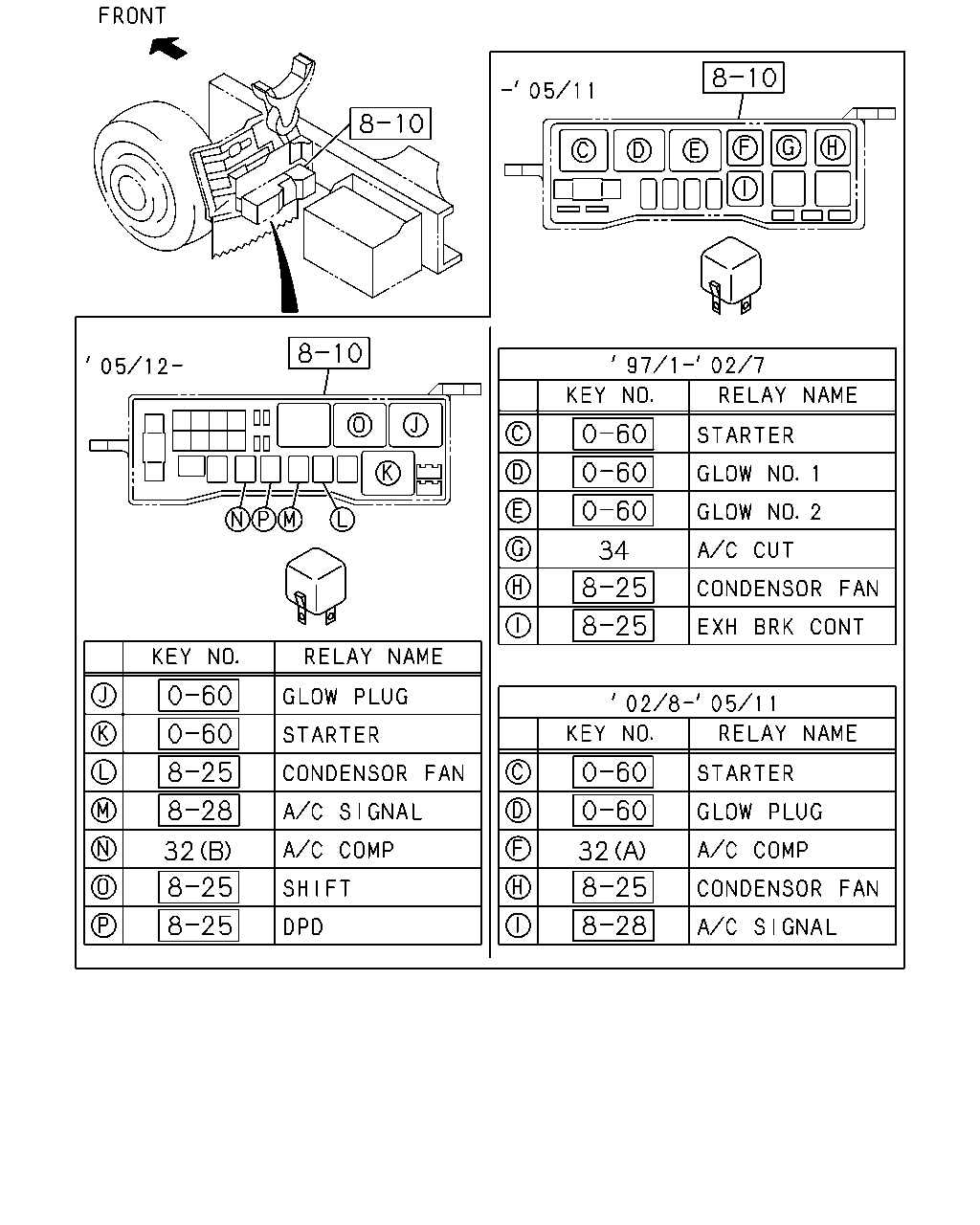

8 10 8 10 8 10 60 60 60 34 8 25 8 25 60 60 8 25 60 8 28 60 32 32 8 25 8 25 8 25 8 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	9701-0207
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0208-0411
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) 12V 20A	8-97060-926-1	01	1	0208-0411
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0412-0511
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (A) 12V 20A	8-97060-926-1	01	1	0412-0511
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 12V 20A	8-97060-926-1	01	1	0512-0610
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0611-
32	RELAY; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) 12V 20A	8-97173-037-1	01	1	0512-0610
34	RELAY; A/C CUT 12V 20A	8-97060-926-1	01	1	9906-0207
