Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#139146) — 104 parça

8 25 60 29 29 8 25 8 25 22 22 551 8 25 551 8 25 11 11 8 25 8 25 123 8 25 8 25 8 40 8 40 60 8 25 8 40 8 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-014-0	01	1	9701-9905
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-186-0	01	1	9906-0207
8	RELAY; WIPER	8-97855-186-0	01	1	0208-0301
8	RELAY; WIPER	8-97363-984-0	01	1	0302-0411
8	RELAY; WIPER	8-97363-984-0	01	1	0412-0610
8	RELAY; WIPER	8-97363-983-0	01	1	0611-
11	RELAY; DIMMER 12V 20A	8-97060-926-1	01	1	9701-0411
11	RELAY; DIMMER 12V 20A	8-97060-926-1	01	1	0412-0511
11	RELAY; DIMMER 12V 20A	8-97173-037-1	01	1	0512-0610
11	RELAY; DIMMER 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
22	RELAY; STOP LAMP 12V 20A	8-97060-926-1	01	1	9701-0411
22	RELAY; STOP LAMP 12V 20A	8-97060-926-1	01	1	0412-0511
22	RELAY; STOP LAMP 12V 20A	8-97173-037-1	01	1	0512-0610
22	RELAY; STOP LAMP 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
29	RELAY; HORN 12V 20A	8-97060-926-1	01	1	9701-0411
29	RELAY; HORN 12V 20A	8-97060-926-1	01	1	0412-0511
29	RELAY; HORN 12V 20A	8-97173-037-1	01	1	0512-0610
29	RELAY; HORN 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
123	RELAY; HTR 4JJ1 ENG(LFB) 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
551	RELAY; TRANSMISSION TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 10A PANASONIC TAI	8-97173-035-1	02	1	0611-

360 8 10 8 1 361 2 584 312 8 26 8 10

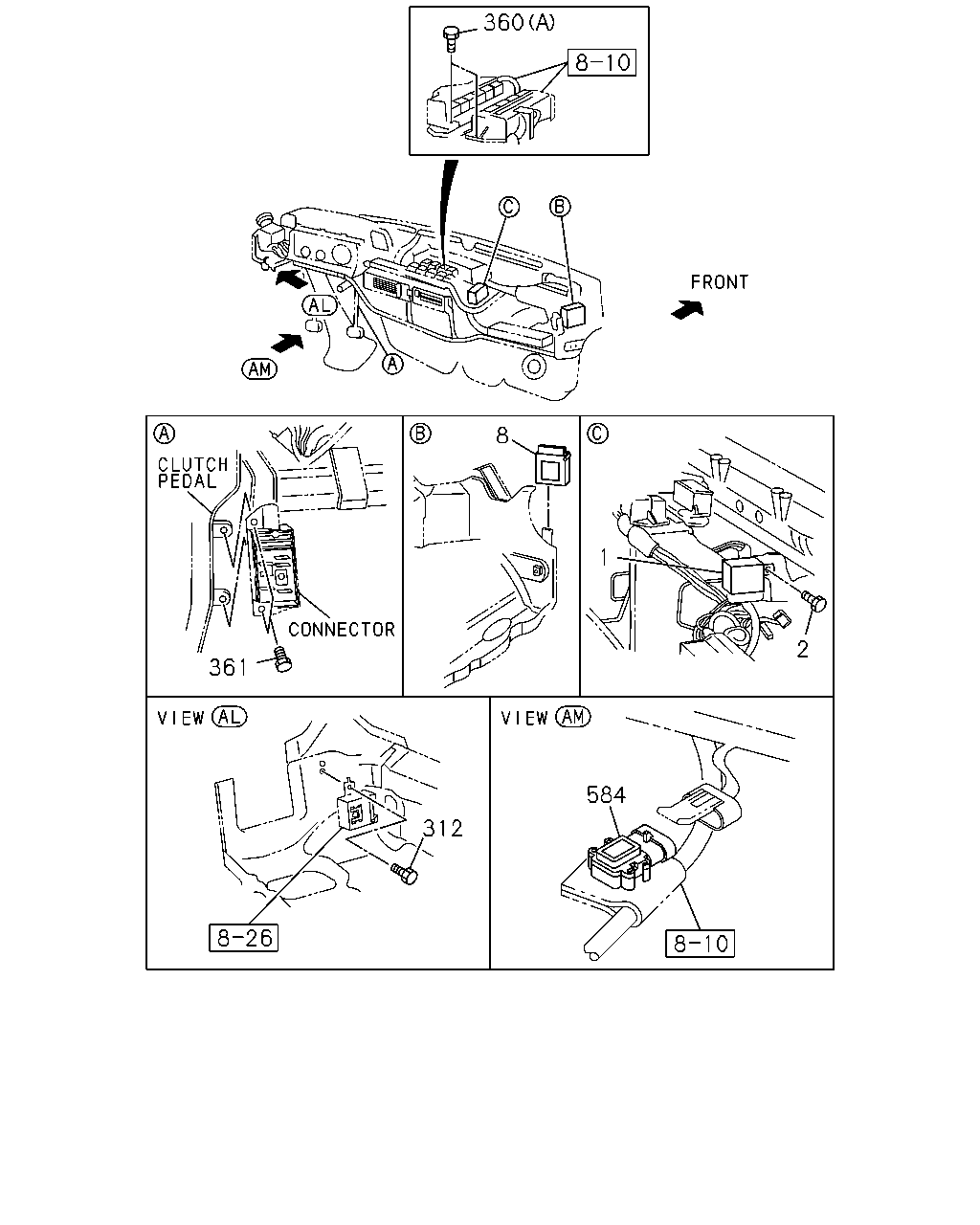

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97086-509-1	01	1	9701-0003
1	UNIT; FLASHER	8-97228-398-0	01	1	0004-0411
1	UNIT; FLASHER	8-97228-398-0	01	1	0412-0610
1	UNIT; FLASHER	8-97360-084-1	01	1	0611-
2	BOLT; FLASHER UNIT M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9701-0411
2	BOLT; FLASHER UNIT M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0412-
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-014-0	01	1	9701-9905
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-186-0	01	1	9906-0207
8	RELAY; WIPER	8-97855-186-0	01	1	0208-0301
8	RELAY; WIPER	8-97363-984-0	01	1	0302-0411
8	RELAY; WIPER	8-97363-984-0	01	1	0412-0610
8	RELAY; WIPER	8-97363-983-0	01	1	0611-
312	BOLT; BUZZER TRANSMISSION CONTROL-SMOOTHER<8GF> M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0611-
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	03	1	9701-0411
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	03	1	0412-0512
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9701-0411
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0412-
361	BOLT; CONNECTOR M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	01	1	9701-0411
361	BOLT; CONNECTOR M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	01	1	0412-
584	SENSOR; PRESSURE 4JJ1 ENG(LFB)	8-09350-899-1	01	1	0611-

6 47 100 8 10 360 100 100 360 360 45 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-014-0	01	1	9701-9905
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-186-0	01	1	9906-0207
8	RELAY; WIPER	8-97855-186-0	01	1	0208-0301
8	RELAY; WIPER	8-97363-984-0	01	1	0302-0411
8	RELAY; WIPER	8-97363-984-0	01	1	0412-0610
8	RELAY; WIPER	8-97363-983-0	01	1	0611-
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-97109-361-0	01	1	9701-9905
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-97109-361-0	01	1	0108-0411
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-97109-361-0	01	1	0412-0610
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-97109-363-0	01	1	0611-
44	HORN; HIGH NOTE DUAL TONE HORN(U05)	8-97211-743-1	01	1	0108-0411
44	HORN; HIGH NOTE DUAL TONE HORN(U05)	8-97211-743-1	01	1	0412-0610
44	HORN; HIGH NOTE DUAL TONE HORN(U05)	8-97211-741-1	01	1	0611-
45	HORN; LOW NOTE DUAL HEAVY DUTY HORN(6KK)	8-97109-362-1	01	1	0108-0411
45	HORN; LOW NOTE DUAL HEAVY DUTY HORN(6KK)	8-97109-362-1	01	1	0412-0610
45	HORN; LOW NOTE DUAL HEAVY DUTY HORN(6KK)	8-97109-364-1	01	1	0611-
45	HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK)	8-97109-362-0	01	1	9701-9707
45	HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) TAI	8-97965-902-0	01	1	9708-9905
45	HORN; LOW NOTE TAI	8-97965-902-0	01	1	9906-0107
45	HORN; LOW NOTE DUAL TONE HORN(U05)	8-97211-744-1	01	1	0108-0411
45	HORN; LOW NOTE DUAL TONE HORN(U05)	8-97211-744-1	01	1	0412-0610
45	HORN; LOW NOTE DUAL TONE HORN(U05)	8-97211-740-1	01	1	0611-
46	BOLT; HORN TO BODY DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9701-9905
46	BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9701-9905
46	BOLT; HORN TO BODY M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9906-0107
46	BOLT; HORN TO BODY M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0108-0207
46	BOLT; HORN TO BODY M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0208-0411
46	BOLT; HORN TO BODY M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0412-
100	NUT; RELAY BOX COVER M8 FLANGE	0-91150-108-0	03	1	9701-0411
100	NUT; RELAY BOX COVER M8 FLANGE	0-91150-108-0	03	1	0412-0602
100	NUT; RELAY BOX COVER M8 FLANGE	0-91180-108-0	03	1	0603-
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	03	1	9701-0411
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	03	1	0412-0512
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9701-0411
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0412-

60 8 25 8 40 22 11 29 8 25 8 25 8 25 8 40 8 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-014-0	01	1	9701-9905
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-186-0	01	1	9906-0207
8	RELAY; WIPER	8-97855-186-0	01	1	0208-0301
8	RELAY; WIPER	8-97363-984-0	01	1	0302-0411
8	RELAY; WIPER	8-97363-984-0	01	1	0412-0610
8	RELAY; WIPER	8-97363-983-0	01	1	0611-
11	RELAY; DIMMER 12V 20A	8-97060-926-1	01	1	9701-0411
11	RELAY; DIMMER 12V 20A	8-97060-926-1	01	1	0412-0511
11	RELAY; DIMMER 12V 20A	8-97173-037-1	01	1	0512-0610
11	RELAY; DIMMER 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
22	RELAY; STOP LAMP 12V 20A	8-97060-926-1	01	1	9701-0411
22	RELAY; STOP LAMP 12V 20A	8-97060-926-1	01	1	0412-0511
22	RELAY; STOP LAMP 12V 20A	8-97173-037-1	01	1	0512-0610
22	RELAY; STOP LAMP 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
29	RELAY; HORN 12V 20A	8-97060-926-1	01	1	9701-0411
29	RELAY; HORN 12V 20A	8-97060-926-1	01	1	0412-0511
29	RELAY; HORN 12V 20A	8-97173-037-1	01	1	0512-0610
29	RELAY; HORN 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-

8 10 8 10 8 10 60 60 60 8 40 8 25 8 25 60 60 8 25 60 60 331 8 40 8 40 8 25 8 25 8 25 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-014-0	01	1	9701-9905
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-186-0	01	1	9906-0207
8	RELAY; WIPER	8-97855-186-0	01	1	0208-0301
8	RELAY; WIPER	8-97363-984-0	01	1	0302-0411
8	RELAY; WIPER	8-97363-984-0	01	1	0412-0610
8	RELAY; WIPER	8-97363-983-0	01	1	0611-
331	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) 12V 20A	8-97060-926-1	01	1	0208-0411
331	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) 12V 20A	8-97060-926-1	01	1	0412-0511
331	RELAY; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97173-037-1	01	1	0512-0610
