Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#139144) — 261 parça

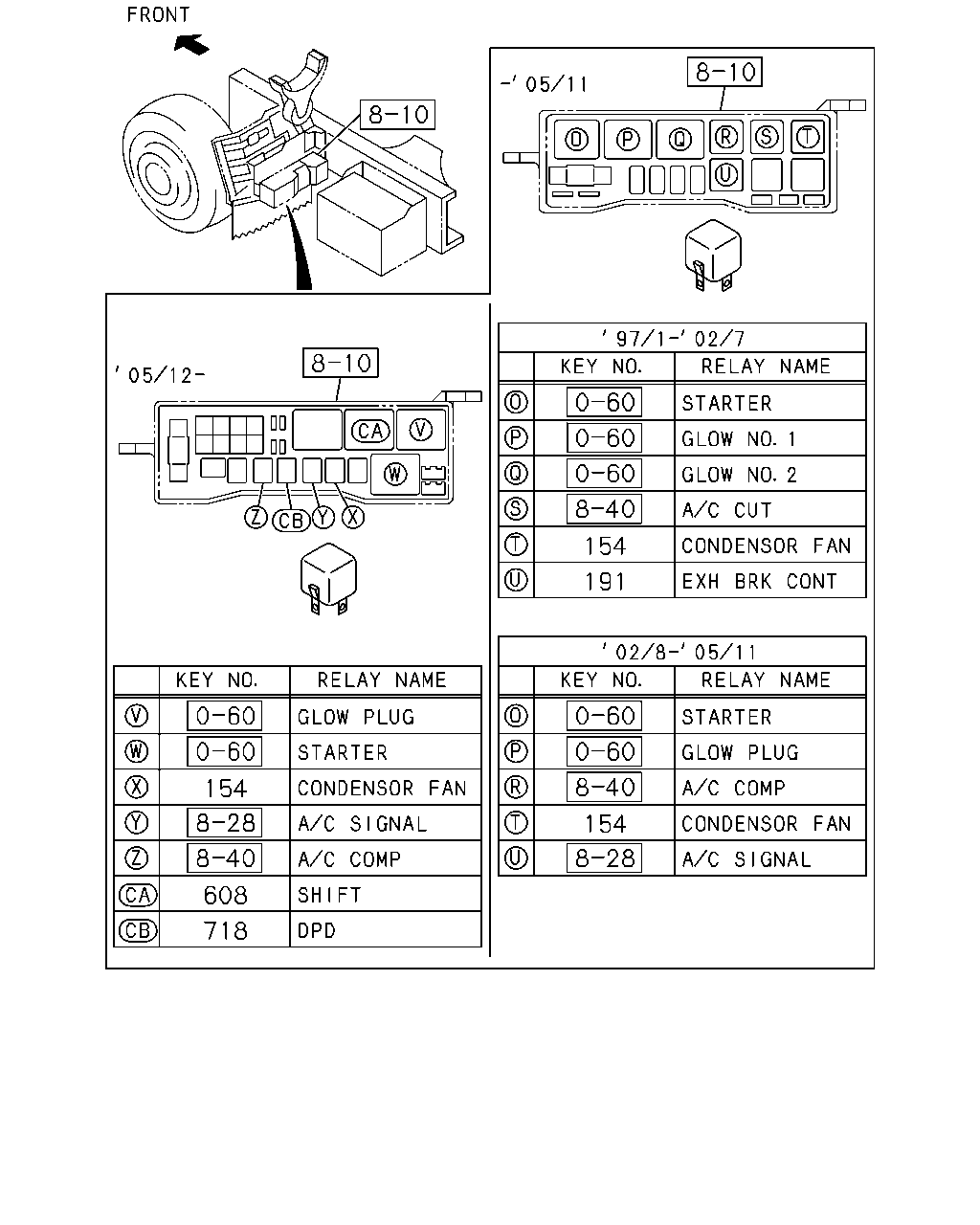

60 610 8 28 8 28 85 85 8 28 8 28 8 28 8 28 531 99 8 28 8 28 12 12 8 28 311 311 8 40 8 40 60 610 8 40 8 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE	8-97073-839-1	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97965-836-0	01	1	9708-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	0412-0610
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97315-178-0	01	1	0611-0702
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97967-560-0	01	1	0703-
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE	8-97166-339-0	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97965-835-0	01	1	9708-9811
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97214-606-0	01	1	9812-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	0412-
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97060-926-1	01	1	9701-0411
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97060-926-1	01	1	0412-0511
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97173-037-1	01	1	0512-0610
12	RELAY; POWER WINDOW POWER WINDOW<A32> 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
85	RELAY; HEADLAMP 12V 20A	8-97060-926-1	01	1	9701-0411
85	RELAY; HEADLAMP 12V 20A	8-97060-926-1	01	1	0412-0511
85	RELAY; HEADLAMP 12V 20A	8-97173-037-1	01	1	0512-0610
85	RELAY; HEADLAMP 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
311	RELAY; CORNERING LAMP 12V 20A	8-97060-926-1	01	1	9701-0411
311	RELAY; CORNERING LAMP 12V 20A	8-97060-926-1	01	1	0412-0511
311	RELAY; CORNERING LAMP 12V 20A	8-97173-037-1	01	1	0512-0610
311	RELAY; CORNERING LAMP 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
531	RELAY; ECU 4JH1 ENG(RJX) 12V 20A	8-97060-926-1	01	1	0208-0411
531	RELAY; ECU 4JH1 ENG(RJX) 12V 20A	8-97060-926-1	01	1	0412-0511
531	RELAY; ECU 4JH1-TC ENG(RDM) 12V 20A	8-97060-926-1	01	1	0512-0610
610	RELAY; KEY ON 12V 20A	8-97173-037-1	01	1	0512-0610
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0611-

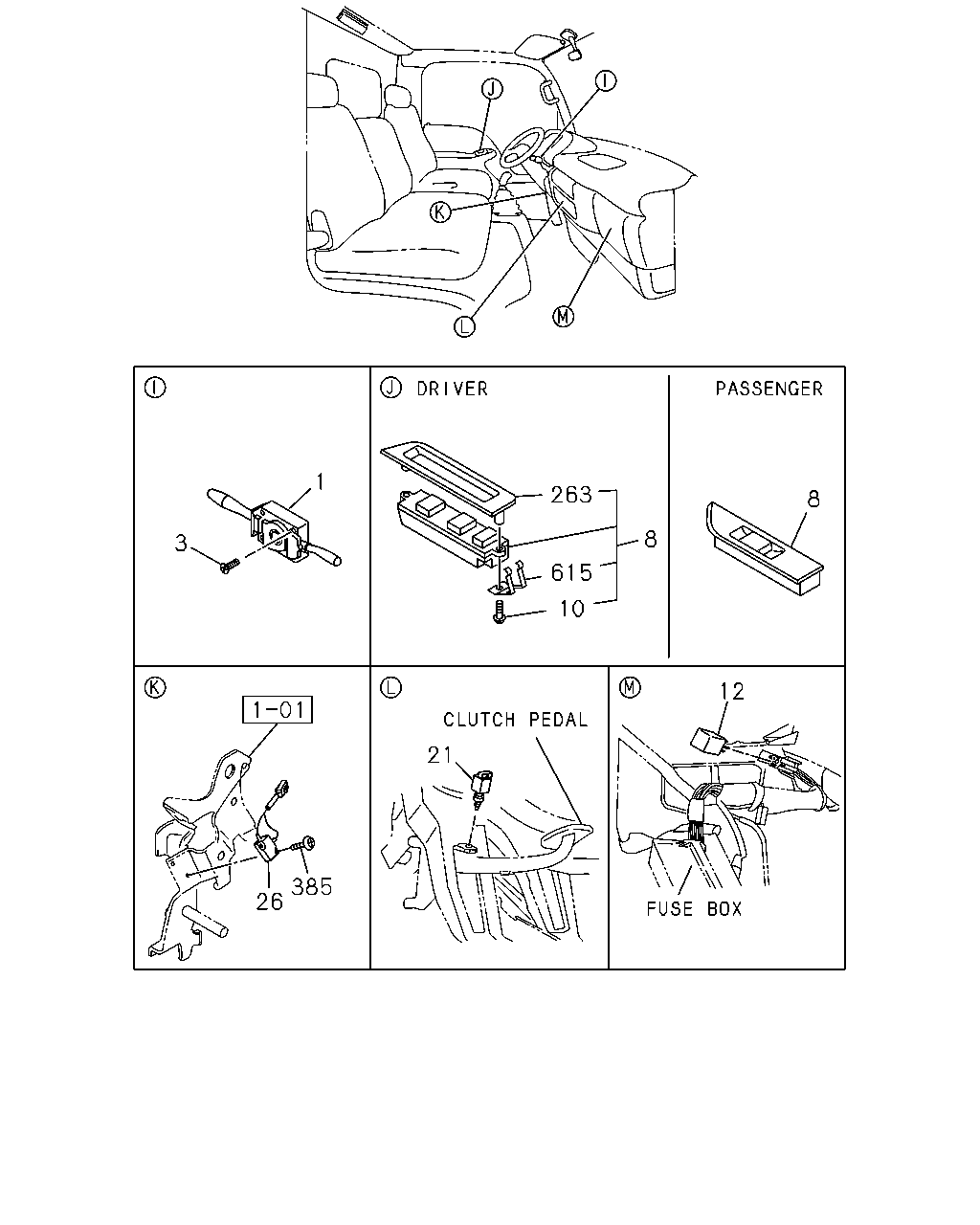

8 10 8 10 8 10 60 60 60 8 40 154 191 60 60 60 60 8 40 154 8 28 154 8 40 8 28 608 718

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE	8-97073-839-1	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97965-836-0	01	1	9708-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	0412-0610
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97315-178-0	01	1	0611-0702
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97967-560-0	01	1	0703-
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE	8-97166-339-0	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97965-835-0	01	1	9708-9811
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97214-606-0	01	1	9812-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	0412-
10	SCREW; POWER WINDOW SW POWER WINDOW<A32> TAI	8-97219-239-0	02	1	9701-9707
10	SCREW; POWER WINDOW SW POWER WINDOW<A32> TAI	8-97219-239-0	02	1	0611-0702
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97060-926-1	01	1	9703-0411
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97060-926-1	01	1	0412-0511
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97173-037-1	01	1	0512-0610
154	RELAY; CONDENSER FAN 4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
191	RELAY; EXH BRK CUT 12V 20A	8-97060-926-1	01	1	9810-0207
608	RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 30A MITUBA	8-97238-540-0	01	1	0611-
718	RELAY; DPD 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-

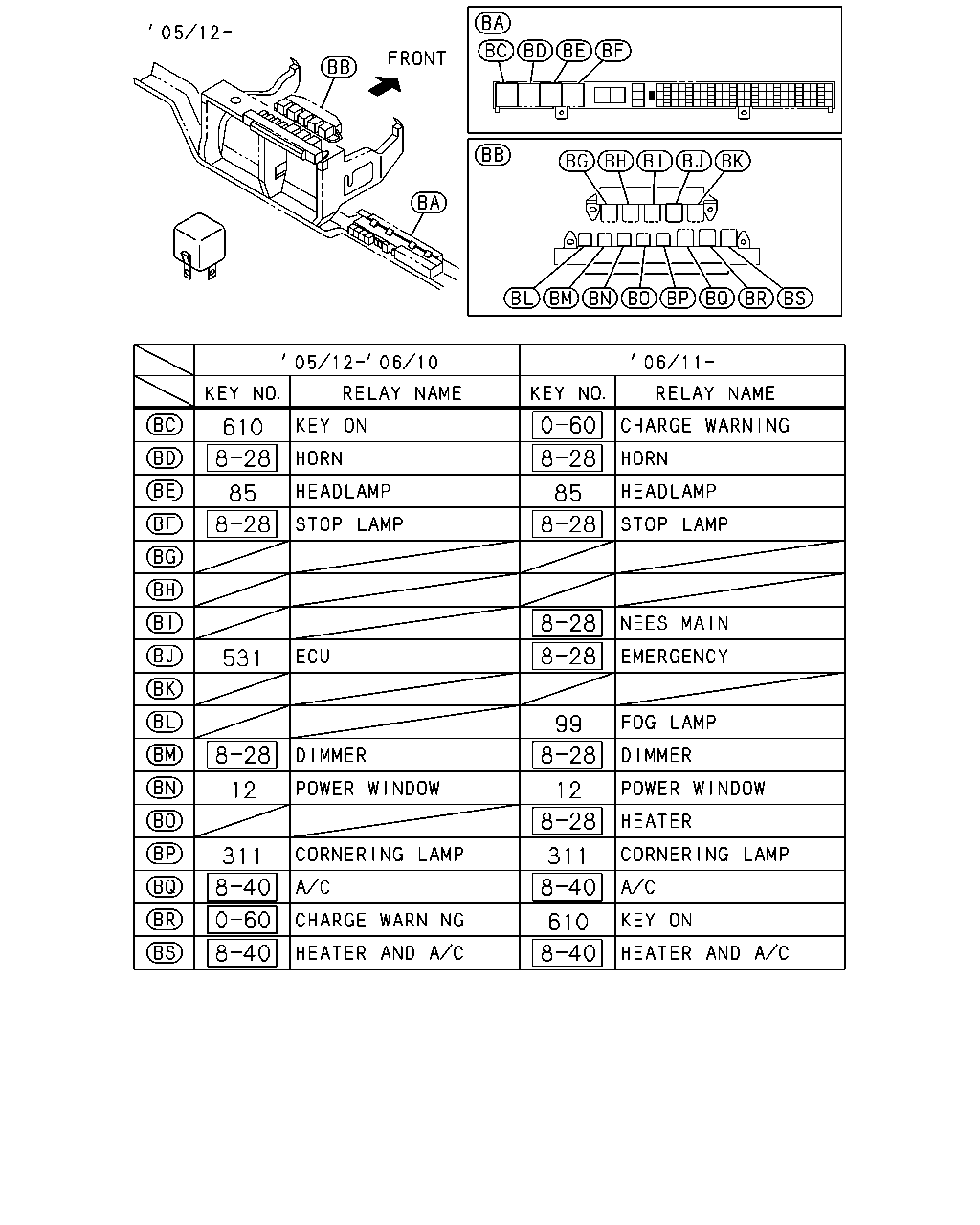

60 85 8 40 8 28 8 28 8 28 531 311 12 8 40 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE	8-97073-839-1	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97965-836-0	01	1	9708-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	0412-0610
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97315-178-0	01	1	0611-0702
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97967-560-0	01	1	0703-
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE	8-97166-339-0	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97965-835-0	01	1	9708-9811
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97214-606-0	01	1	9812-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	0412-
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97060-926-1	01	1	9701-0411
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97060-926-1	01	1	0412-0511
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97173-037-1	01	1	0512-0610
12	RELAY; POWER WINDOW POWER WINDOW<A32> 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
85	RELAY; HEADLAMP 12V 20A	8-97060-926-1	01	1	9701-0411
85	RELAY; HEADLAMP 12V 20A	8-97060-926-1	01	1	0412-0511
85	RELAY; HEADLAMP 12V 20A	8-97173-037-1	01	1	0512-0610
85	RELAY; HEADLAMP 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
311	RELAY; CORNERING LAMP 12V 20A	8-97060-926-1	01	1	9701-0411
311	RELAY; CORNERING LAMP 12V 20A	8-97060-926-1	01	1	0412-0511
311	RELAY; CORNERING LAMP 12V 20A	8-97173-037-1	01	1	0512-0610
311	RELAY; CORNERING LAMP 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
315	RELAY; EXH BRAKE CONT 12V 20A	8-97060-926-1	01	1	9810-0207
531	RELAY; ECU 4JH1 ENG(RJX) 12V 20A	8-97060-926-1	01	1	0208-0411
531	RELAY; ECU 4JH1 ENG(RJX) 12V 20A	8-97060-926-1	01	1	0412-0511
531	RELAY; ECU 4JH1-TC ENG(RDM) 12V 20A	8-97060-926-1	01	1	0512-0610

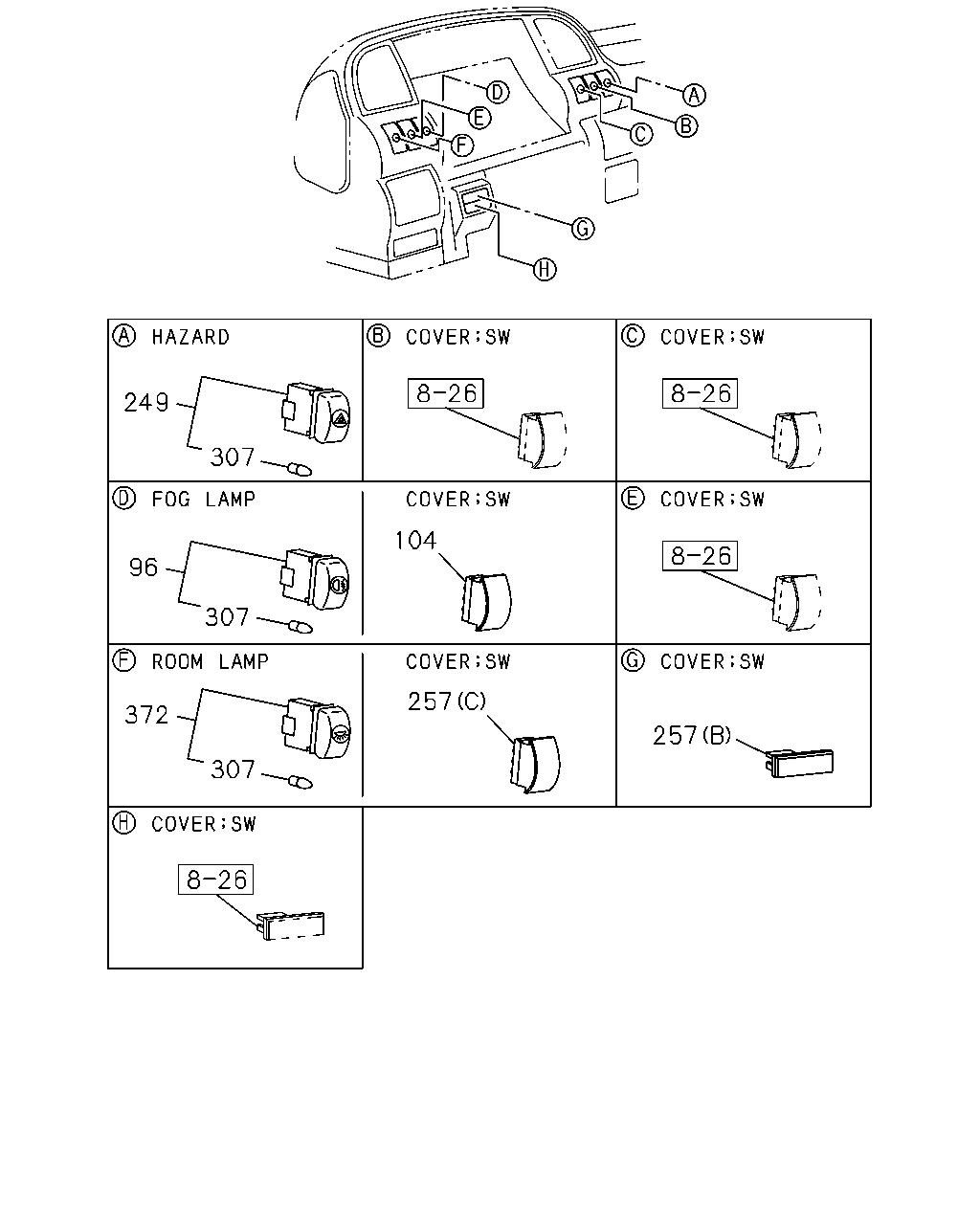

8 26 8 26 249 307 104 8 26 96 307 257 372 257 307 8 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE	8-97073-839-1	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97965-836-0	01	1	9708-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	0412-0610
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97315-178-0	01	1	0611-0702
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97967-560-0	01	1	0703-
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE	8-97166-339-0	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97965-835-0	01	1	9708-9811
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97214-606-0	01	1	9812-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	0412-
26	SWITCH; ACCEL	8-97855-192-0	01	1	9810-0207
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97076-350-4	01	1	9701-9707
96	SWITCH; FOG LAMP FOG LAMP<T96> TAI	8-97965-837-0	01	1	9708-9905
96	SWITCH; FOG LAMP TAI	8-97966-962-0	01	1	9906-0207
96	SWITCH; FOG LAMP FOG LAMP<T96> TAI	8-97966-962-0	01	1	0208-0411
96	SWITCH; FOG LAMP FOG LAMP<T96> TAI	8-97966-962-0	01	1	0412-0610
96	SWITCH; FOG LAMP FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL>	8-97364-308-1	01	1	0611-
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-97047-694-1	01	1	9701-9905
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-97136-694-0	01	1	0208-0411
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-97136-694-0	01	1	0412-0610
249	SWITCH; HAZARD	8-97076-344-2	01	1	9701-9703
249	SWITCH; HAZARD	8-97117-657-0	01	1	9704-9707
249	SWITCH; HAZARD TAI	8-97965-834-0	01	1	9708-9905
249	SWITCH; HAZARD TAI	8-97966-959-0	01	1	9906-0411
249	SWITCH; HAZARD TAI	8-97966-959-0	01	1	0412-0610
249	SWITCH; HAZARD	8-97202-475-0	01	1	0611-
257	COVER; HOLE,SW (A) TAI	8-94229-914-1	01	1	9701-0411
257	COVER; HOLE,SW (A) TAI	8-94229-914-1	01	1	0412-0610
257	COVER; HOLE,SW (D)	8-97136-694-0	01	1	0611-
257	COVER; HOLE,SW (B)	8-94310-890-0	01	1	9701-0411
257	COVER; HOLE,SW (B)	8-94310-890-0	01	1	0412-
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97047-694-1	01	1	9701-9905
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	9906-0411
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	0412-0610
257	COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) TAI	8-94229-914-1	01	1	0611-
307	BULB ASM; SW HAZARD,ROOM LAMP 14V 60MA	8-97116-328-0	01	1	9701-9703
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> HAZARD,ROOM LAMP 14V 60MA	8-97116-328-0	01	1	9701-9703
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	9906-0207
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	9906-0207
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0208-0411
307	BULB ASM; SW FOG LAMP<T96> HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0208-0411
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0412-0610
307	BULB ASM; SW FOG LAMP<T96> HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0412-0610
307	BULB ASM; SW FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> DPD,FOG LAMP 28V 40MA	8-97116-331-0	01	1	0611-
307	BULB ASM; SW DPD,FOG LAMP 28V 40MA	8-97116-331-0	01	1	0611-
307	BULB ASM; SW FOG LAMP<T96> FOG LAMP 14V 60MA	8-97116-329-0	01	1	9701-9703
307	BULB ASM; SW HAZARD,FOG,ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9704-9905
307	BULB ASM; SW FOG LAMP<T96> HAZARD,FOG,ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9704-9905
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> HAZARD,FOG,ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9704-9905
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9906-0411
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> ROOM LAMP 14V 60MA	8-97116-329-0	01	1	0412-0610
307	BULB ASM; SW HAZARD,FOG,ROOM LAMP 28V 40MA	8-97116-331-0	02	1	0611-
307	BULB ASM; SW FOG LAMP<T96> ROOM LAMP SWITCH<7KL> HAZARD,FOG,ROOM LAMP 28V 40MA	8-97116-331-0	02	1	0611-
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97076-360-2	01	1	9701-9703
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97117-660-0	01	1	9704-9905
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-692-0	01	1	9906-0411
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-692-0	01	1	0412-0610

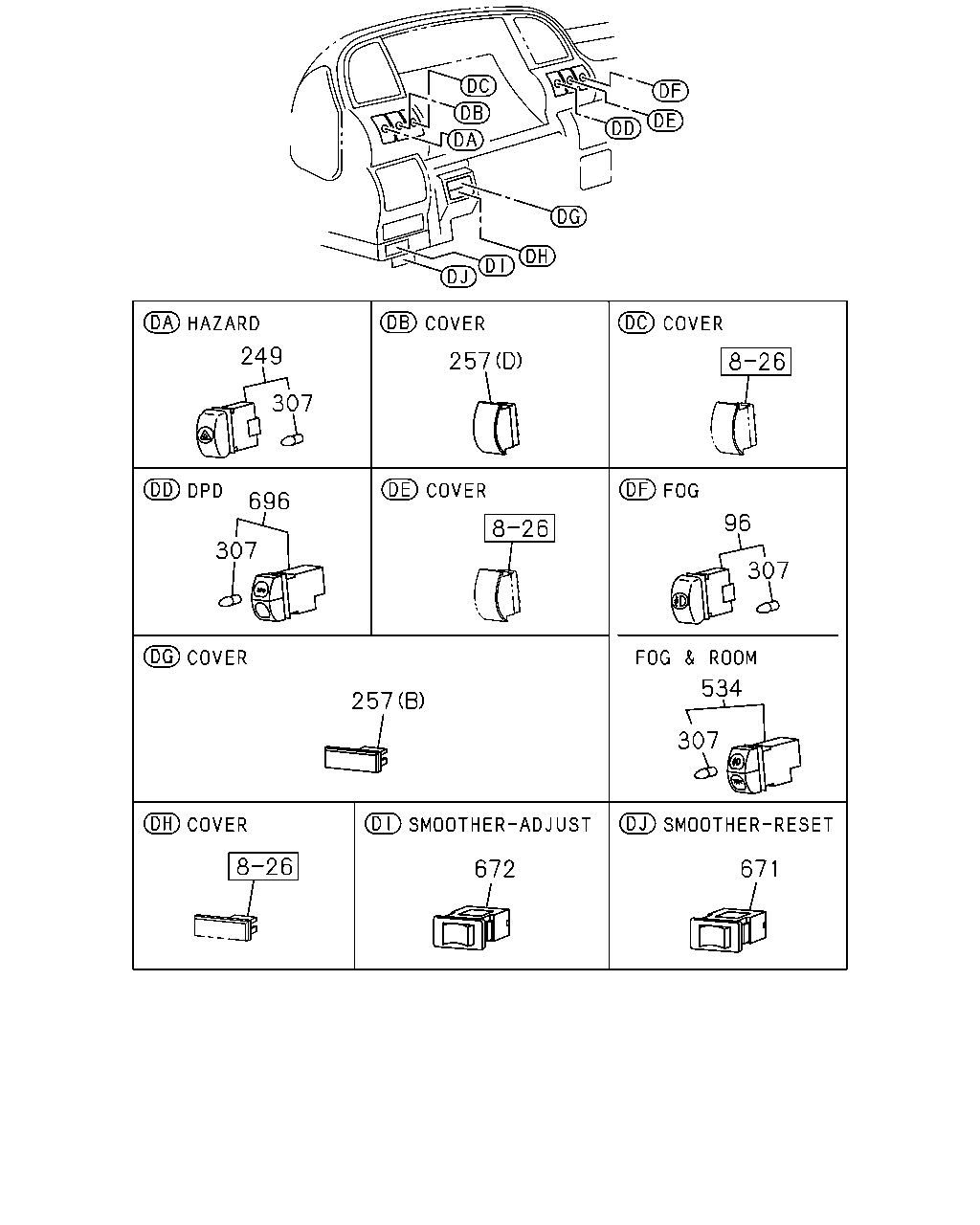

249 257 8 26 307 696 96 8 26 307 307 534 257 307 8 26 672 671

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE	8-97073-839-1	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97965-836-0	01	1	9708-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	0412-0610
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97315-178-0	01	1	0611-0702
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97967-560-0	01	1	0703-
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE	8-97166-339-0	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97965-835-0	01	1	9708-9811
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97214-606-0	01	1	9812-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	0412-
26	SWITCH; ACCEL	8-97855-192-0	01	1	9810-0207
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97076-350-4	01	1	9701-9707
96	SWITCH; FOG LAMP FOG LAMP<T96> TAI	8-97965-837-0	01	1	9708-9905
96	SWITCH; FOG LAMP TAI	8-97966-962-0	01	1	9906-0207
96	SWITCH; FOG LAMP FOG LAMP<T96> TAI	8-97966-962-0	01	1	0208-0411
96	SWITCH; FOG LAMP FOG LAMP<T96> TAI	8-97966-962-0	01	1	0412-0610
96	SWITCH; FOG LAMP FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL>	8-97364-308-1	01	1	0611-
249	SWITCH; HAZARD	8-97076-344-2	01	1	9701-9703
249	SWITCH; HAZARD	8-97117-657-0	01	1	9704-9707
249	SWITCH; HAZARD TAI	8-97965-834-0	01	1	9708-9905
249	SWITCH; HAZARD TAI	8-97966-959-0	01	1	9906-0411
249	SWITCH; HAZARD TAI	8-97966-959-0	01	1	0412-0610
249	SWITCH; HAZARD	8-97202-475-0	01	1	0611-
257	COVER; HOLE,SW (A) TAI	8-94229-914-1	01	1	9701-0411
257	COVER; HOLE,SW (A) TAI	8-94229-914-1	01	1	0412-0610
257	COVER; HOLE,SW (D)	8-97136-694-0	01	1	0611-
257	COVER; HOLE,SW (B)	8-94310-890-0	01	1	9701-0411
257	COVER; HOLE,SW (B)	8-94310-890-0	01	1	0412-
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97047-694-1	01	1	9701-9905
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	9906-0411
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	0412-0610
257	COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) TAI	8-94229-914-1	01	1	0611-
307	BULB ASM; SW HAZARD,ROOM LAMP 14V 60MA	8-97116-328-0	01	1	9701-9703
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> HAZARD,ROOM LAMP 14V 60MA	8-97116-328-0	01	1	9701-9703
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	9906-0207
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	9906-0207
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0208-0411
307	BULB ASM; SW FOG LAMP<T96> HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0208-0411
307	BULB ASM; SW HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0412-0610
307	BULB ASM; SW FOG LAMP<T96> HAZARD,FOG LAMP TAI	8-97967-086-0	01	1	0412-0610
307	BULB ASM; SW FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> DPD,FOG LAMP 28V 40MA	8-97116-331-0	01	1	0611-
307	BULB ASM; SW DPD,FOG LAMP 28V 40MA	8-97116-331-0	01	1	0611-
307	BULB ASM; SW FOG LAMP<T96> FOG LAMP 14V 60MA	8-97116-329-0	01	1	9701-9703
307	BULB ASM; SW HAZARD,FOG,ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9704-9905
307	BULB ASM; SW FOG LAMP<T96> HAZARD,FOG,ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9704-9905
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> HAZARD,FOG,ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9704-9905
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> ROOM LAMP 14V 60MA	8-97116-329-0	01	1	9906-0411
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> ROOM LAMP 14V 60MA	8-97116-329-0	01	1	0412-0610
307	BULB ASM; SW HAZARD,FOG,ROOM LAMP 28V 40MA	8-97116-331-0	02	1	0611-
307	BULB ASM; SW FOG LAMP<T96> ROOM LAMP SWITCH<7KL> HAZARD,FOG,ROOM LAMP 28V 40MA	8-97116-331-0	02	1	0611-
534	SWITCH SET; FOG & ROOM FOG LAMP<T96> ROOM LAMP SWITCH<7KL>	8-97140-585-0	01	1	0611-
671	SWITCH; SMOOTHER,RESET TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97329-833-0	01	1	0611-
672	SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97329-781-0	01	1	0611-
696	SWITCH; DPD	8-97366-763-2	01	1	0611-

1 263 8 8 3 615 10 12 1 21 385 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>	8-97071-007-2	01	1	9701-9809
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97071-007-2	01	1	9810-0101
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97287-882-2	01	1	0102-0207
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> TAI	8-97071-005-2	01	1	9701-9809
1	SWITCH; COMB INTERMITTENT WIPER<C13> TAI	8-97071-005-2	01	1	9810-9901
1	SWITCH; COMB INTERMITTENT WIPER<C13> TAI	8-97966-967-0	01	1	9902-0207
1	SWITCH; COMB TAI	8-97966-967-0	01	1	0208-0411
1	SWITCH; COMB TAI	8-97966-967-0	01	1	0412-0610
1	SWITCH; COMB TAI	8-97383-517-0	01	1	0611-
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> TAI	8-97965-446-0	01	1	9701-9809
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>	8-97071-008-2	01	1	9701-9809
3	SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	04	1	9701-0411
3	SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	04	1	0412-0604
3	SCREW; COMB SW M5X20 W/LK WASHER	0-36220-520-0	04	1	0605-0612
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	04	1	0701-
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE	8-97073-839-1	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97965-836-0	01	1	9708-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97966-961-0	01	1	0412-0610
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97315-178-0	01	1	0611-0702
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97967-560-0	01	1	0703-
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE	8-97166-339-0	01	1	9701-9707
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97965-835-0	01	1	9708-9811
8	SWITCH; POWER WINDOW POWER WINDOW<A32> DRIVER SIDE TAI	8-97214-606-0	01	1	9812-9905
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	9906-0411
8	SWITCH; POWER WINDOW POWER WINDOW<A32> PASSENGER SIDE TAI	8-97966-960-0	01	1	0412-
10	SCREW; POWER WINDOW SW POWER WINDOW<A32> TAI	8-97219-239-0	02	1	9701-9707
10	SCREW; POWER WINDOW SW POWER WINDOW<A32> TAI	8-97219-239-0	02	1	0611-0702
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97060-926-1	01	1	9701-0411
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97060-926-1	01	1	0412-0511
12	RELAY; POWER WINDOW POWER WINDOW<A32> 12V 20A	8-97173-037-1	01	1	0512-0610
12	RELAY; POWER WINDOW POWER WINDOW<A32> 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-
21	SWITCH; CLU	8-94331-723-1	01	1	9810-0207
21	SWITCH; CLU 4JH1 ENG(RJX)	8-97260-603-0	01	1	0208-0411
21	SWITCH; CLU 4JH1 ENG(RJX)	8-97260-603-0	01	1	0412-0511
21	SWITCH; CLU 4JH1-TC ENG(RDM)	8-97260-603-0	01	1	0512-0610
21	SWITCH; CLU 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97358-248-0	01	1	0611-
26	SWITCH; ACCEL	8-97855-192-0	01	1	9810-0207
263	COVER; SW POWER WINDOW<A32>	8-97219-237-0	01	1	9701-9707
263	COVER; SW POWER WINDOW<A32> TAI	8-97219-236-0	01	1	0611-0702
385	SCREW; ACCEL SW M3X16 TAPPING	0-71280-316-0	02	1	9810-0207
615	SPRING; POWER WINDOW SW POWER WINDOW<A32> TAI	8-97219-238-0	01	1	9701-9707
615	SPRING; POWER WINDOW SW POWER WINDOW<A32> TAI	8-97219-238-0	01	1	0611-0702

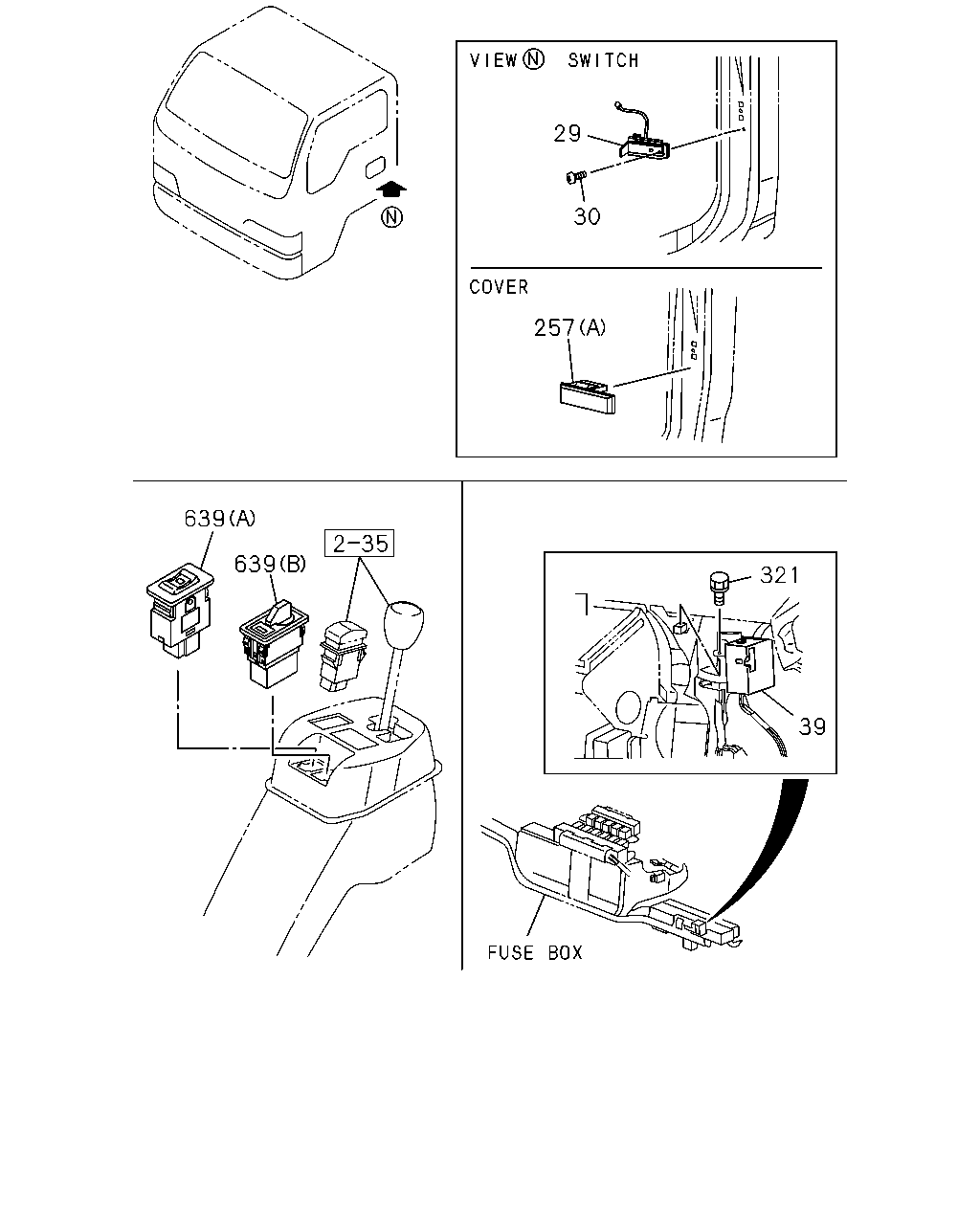

29 30 257 639 2 35 639 321 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR	8-97855-032-3	01	1	9701-0411
29	SWITCH; DOOR	8-97855-032-3	01	1	0412-0610
29	SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97855-032-3	02	1	0611-
29	SWITCH; DOOR EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97855-032-3	01	1	0611-
30	SCREW; DOOR SW M5X16	8-94279-341-0	01	1	9701-0411
30	SCREW; DOOR SW M5X16	8-94279-341-0	01	1	0412-0610
30	SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER<8GF> M5X16	8-94279-341-0	02	1	0611-
30	SCREW; DOOR SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M5X16	8-94279-341-0	01	1	0611-
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97063-658-0	01	1	9701-9705
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-215-0	01	1	9706-9905
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-215-0	01	1	0208-0211
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97359-591-0	01	1	0212-0411
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97359-591-0	01	1	0412-0610
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-214-0	01	1	0611-
257	COVER; HOLE,SW (A) TAI	8-94229-914-1	01	1	9701-0411
257	COVER; HOLE,SW (A) TAI	8-94229-914-1	01	1	0412-0610
257	COVER; HOLE,SW (D)	8-97136-694-0	01	1	0611-
257	COVER; HOLE,SW (B)	8-94310-890-0	01	1	9701-0411
257	COVER; HOLE,SW (B)	8-94310-890-0	01	1	0412-
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97047-694-1	01	1	9701-9905
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	9906-0411
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	0412-0610
257	COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) TAI	8-94229-914-1	01	1	0611-
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X20	8-94436-927-0	01	1	9701-9905
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X20	8-94436-927-0	01	1	0208-0411
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X20	8-94436-927-0	01	1	0412-0612
321	BOLT; RELAY AUTO DOOR LOCK<AU4> T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	1-82350-361-0	01	1	0611-
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97331-179-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
