Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#139143) — 460 parça

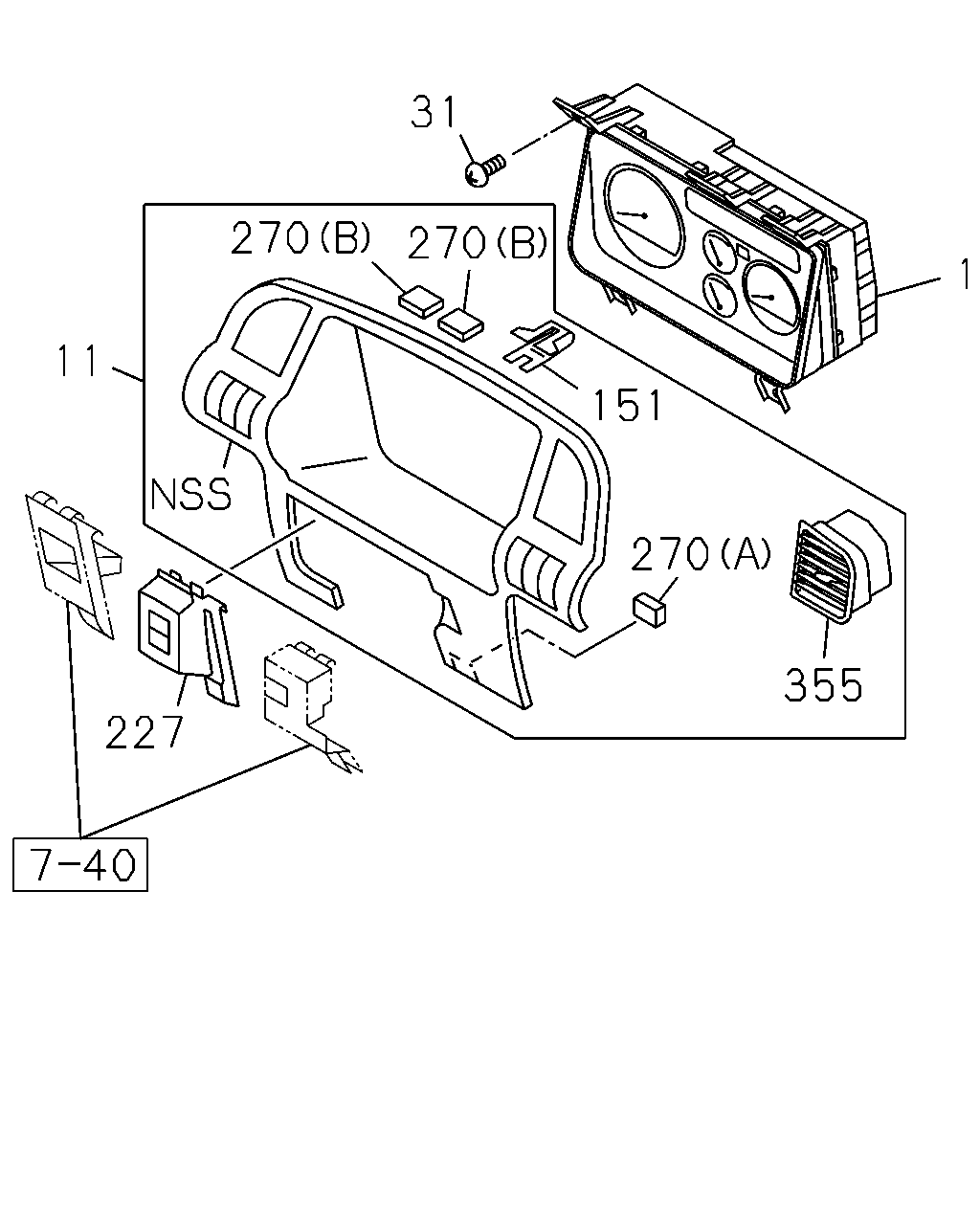

31 270 270 1 11 151 270 355 227 7 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97129-293-0	01	1	9701-9707
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97965-888-0	01	1	9708-9801
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-376-0	01	1	9802-9809
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-688-0	01	1	9810-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97966-688-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0208-0411
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0412-0511
1	METER COMPL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97381-300-0	01	1	0512-0610
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98055-735-0	01	1	0611-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9701-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98000-514-4	01	1	0611-
11	CLUSTER ASM; METER DARK BEIGE	8-97859-354-1	01	1	9701-9905
11	CLUSTER ASM; METER BLACK	8-97867-735-1	01	1	9906-9911
11	CLUSTER ASM; METER BLACK	8-97195-965-1	01	1	9912-0207
11	CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0208-0411
11	CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0412-
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	05	1	9701-0411
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	05	1	0412-
151	CLIP; METER CLUSTER	8-97853-939-4	07	1	9701-9902
151	CLIP; METER CLUSTER TAI	8-97217-066-0	07	1	9903-0207
151	CLIP; METER CLUSTER TAI	8-97217-066-0	07	1	0208-0411
151	CLIP; METER CLUSTER TAI	8-97217-066-0	07	1	0412-
227	BEZEL; METER DARK BEIGE	8-97856-922-2	01	1	9701-9905
227	BEZEL; METER BLACK	8-97868-660-2	01	1	9906-0011
227	BEZEL; METER BLACK	8-97307-066-0	01	1	0012-0207
227	BEZEL; METER BLACK	8-97307-066-0	01	1	0208-0411
227	BEZEL; METER BLACK	8-97307-066-0	01	1	0412-
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	9701-0207
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	0208-0208
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	02	1	0209-0210
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	0211-0411
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	0412-
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	9701-0207
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0208-0208
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	04	1	0209-0210
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0211-0411
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0412-
355	GRILLE; VENT DARK BEIGE	8-97853-872-3	01	1	9701-9904
355	GRILLE; VENT DARK BEIGE	8-97898-030-1	01	1	9905-9905
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	9906-0207
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	0208-0411
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	0412-
355	GRILLE; VENT DARK BEIGE	8-97853-871-3	01	1	9701-9904
355	GRILLE; VENT DARK BEIGE	8-97898-027-1	01	1	9905-9905
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	9906-0207
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	0208-0411
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	0412-

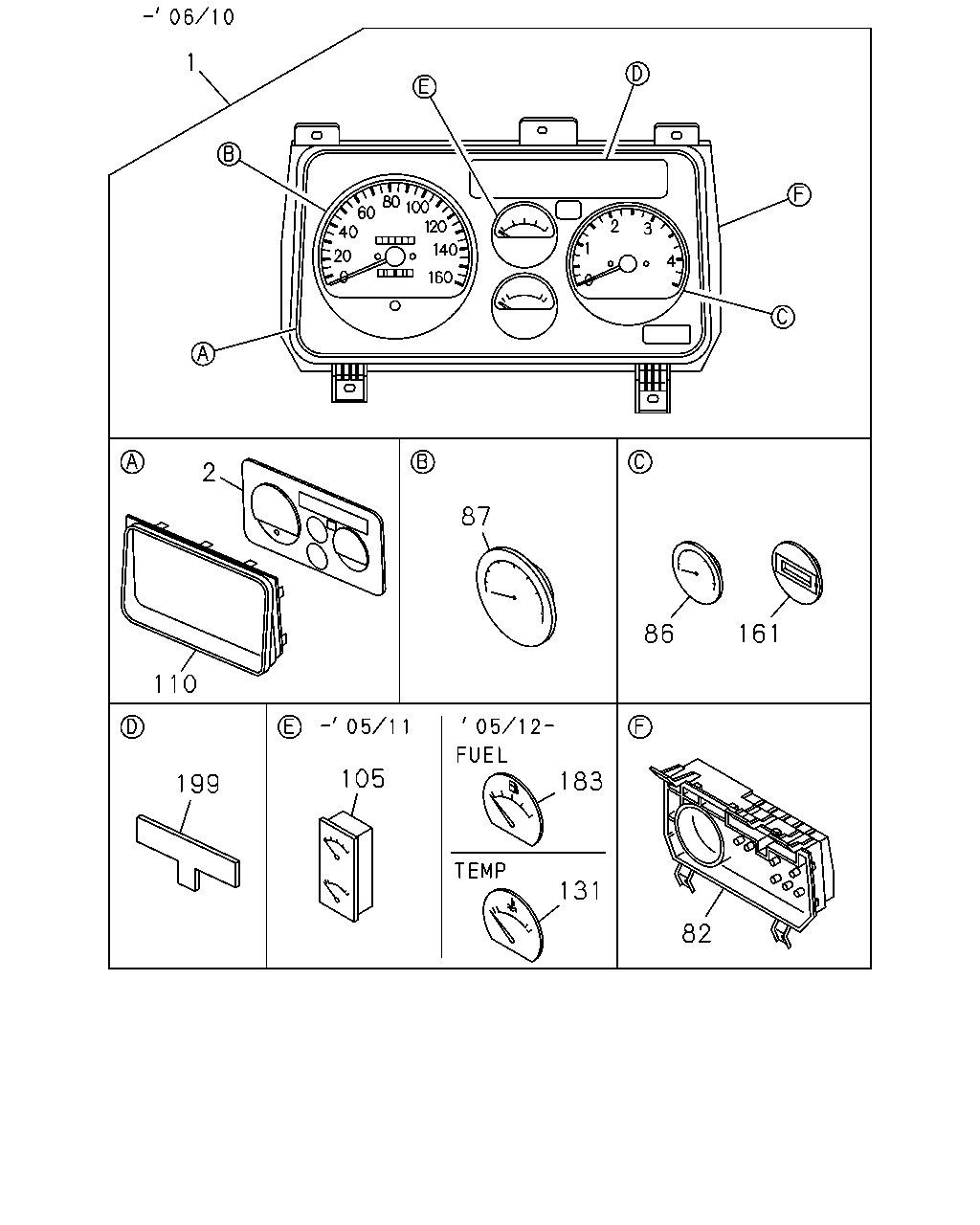

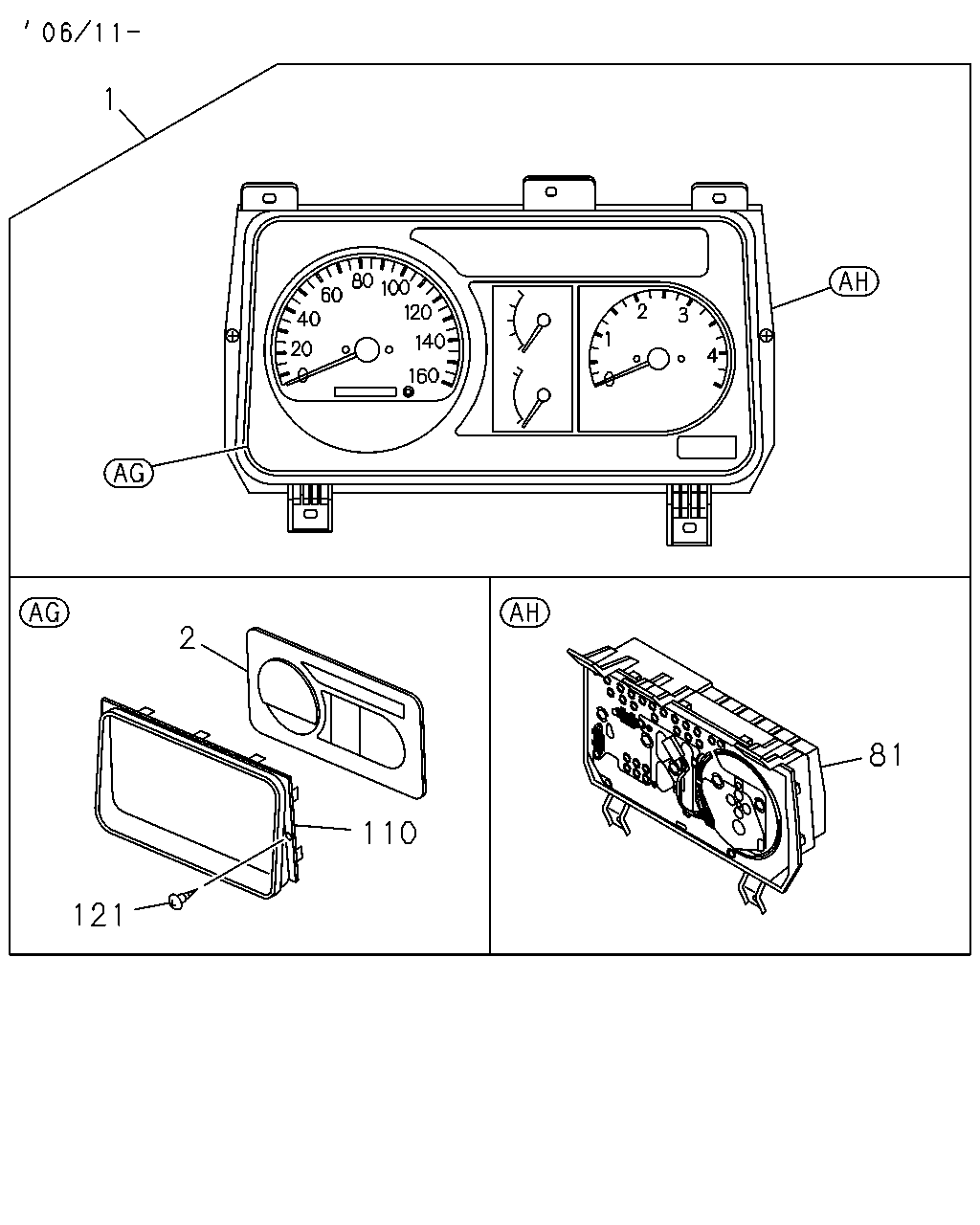

1 80 100 60 120 140 20 2 3 1 160 4 2 87 86 161 110 105 183 199 131 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97129-293-0	01	1	9701-9707
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97965-888-0	01	1	9708-9801
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-376-0	01	1	9802-9809
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-688-0	01	1	9810-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97966-688-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0208-0411
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0412-0511
1	METER COMPL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97381-300-0	01	1	0512-0610
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98055-735-0	01	1	0611-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9701-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98000-514-4	01	1	0611-
2	PANEL; CLUSTER TACHOMETER<U16> TAI	8-97207-717-0	01	1	9708-9905
2	PANEL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-717-0	01	1	9906-0207
2	PANEL; CLUSTER 4JH1 ENG(RJX) TAI	8-97207-717-0	01	1	0208-0411
2	PANEL; CLUSTER 4JH1 ENG(RJX) TAI	8-97207-717-0	01	1	0412-0511
2	PANEL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97185-443-0	01	1	0512-0610
2	PANEL; CLUSTER 4JJ1 ENG(LFB)	8-97185-047-0	01	1	0611-
82	CASE ASM; CLUSTER METER	8-97088-505-0	01	1	9701-9707
82	CASE ASM; CLUSTER METER EXC. TACHOMETER<U16>	8-97088-505-0	01	1	9708-9905
82	CASE ASM; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97088-505-0	01	1	9906-0207
82	CASE ASM; CLUSTER METER TACHOMETER<U16> TAI	8-97207-719-0	01	1	9708-9905
82	CASE ASM; CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-719-0	01	1	9906-0207
82	CASE ASM; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-719-0	01	1	0208-0411
82	CASE ASM; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-719-0	01	1	0412-0511
82	CASE ASM; CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-97185-448-0	01	1	0512-0610
86	TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-97117-464-0	01	1	9701-9707
86	TACHOMETER; CLUSTER METER TACHOMETER<U16> TAI	8-97207-723-0	01	1	9708-9905
86	TACHOMETER; CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-723-0	01	1	9906-0207
86	TACHOMETER; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-746-0	01	1	0208-0411
86	TACHOMETER; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-746-0	01	1	0412-0511
86	TACHOMETER; CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-98002-116-0	01	1	0512-0610
87	SPEEDOMETER	8-97108-126-0	01	1	9701-9707
87	SPEEDOMETER EXC. TACHOMETER<U16>	8-97108-126-0	01	1	9708-9905
87	SPEEDOMETER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-126-0	01	1	9906-0207
87	SPEEDOMETER TACHOMETER<U16> TAI	8-97207-722-0	01	1	9708-9905
87	SPEEDOMETER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-722-0	01	1	9906-0207
87	SPEEDOMETER 4JH1 ENG(RJX) TAI	8-97207-722-0	01	1	0208-0411
87	SPEEDOMETER 4JH1 ENG(RJX) TAI	8-97207-722-0	01	1	0412-0511
87	SPEEDOMETER 4JH1-TC ENG(RDM) TAI	8-98002-108-0	01	1	0512-0610
105	GAUGE; THERMO & FUEL,CLUSTER METER	8-97117-461-0	01	1	9701-9707
105	GAUGE; THERMO & FUEL,CLUSTER METER EXC. TACHOMETER<U16>	8-97117-461-0	01	1	9708-9905
105	GAUGE; THERMO & FUEL,CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97117-461-0	01	1	9906-0207
105	GAUGE; THERMO & FUEL,CLUSTER METER TACHOMETER<U16> TAI	8-97207-729-0	01	1	9708-9905
105	GAUGE; THERMO & FUEL,CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-729-0	01	1	9906-0207
105	GAUGE; THERMO & FUEL,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-729-0	01	1	0208-0411
105	GAUGE; THERMO & FUEL,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-729-0	01	1	0412-0511
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-97092-872-0	01	1	9701-9707
110	GLASS; CLUSTER METER TACHOMETER<U16> TAI	8-97207-709-0	01	1	9708-9905
110	GLASS; CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-709-0	01	1	9906-0207
110	GLASS; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-709-0	01	1	0208-0411
110	GLASS; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-709-0	01	1	0412-0511
110	GLASS; CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-97185-452-0	01	1	0512-0610
110	GLASS; CLUSTER METER 4JJ1 ENG(LFB)	8-97185-045-0	01	1	0611-
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97108-121-0	01	1	9701-9905
110	GLASS; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-121-0	01	1	9906-0207
131	GAUGE; TEMP,CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-98002-122-0	01	1	0512-0610
161	CLOCK; CLUSTER METER EXC. TACHOMETER<U16>	8-97105-398-0	01	1	9701-9905
161	CLOCK; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97105-398-0	01	1	9906-0207
183	GAUGE; FUEL 4JH1-TC ENG(RDM) TAI	8-98002-118-0	01	1	0512-0610
199	LENS; WARNING LAMP	8-97108-123-0	01	1	9701-9707
199	LENS; WARNING LAMP EXC. TACHOMETER<U16>	8-97108-123-0	01	1	9708-9905
199	LENS; WARNING LAMP 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-123-0	01	1	9906-0207
199	LENS; WARNING LAMP TACHOMETER<U16>	8-97207-732-0	01	1	9708-9809
199	LENS; WARNING LAMP TACHOMETER<U16> TAI	8-97967-075-0	01	1	9810-9905
199	LENS; WARNING LAMP 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97967-075-0	01	1	9906-0207
199	LENS; WARNING LAMP 4JH1 ENG(RJX) TAI	8-97353-747-0	01	1	0208-0411
199	LENS; WARNING LAMP 4JH1 ENG(RJX) TAI	8-97353-747-0	01	1	0412-0511
199	LENS; WARNING LAMP 4JH1-TC ENG(RDM) TAI	8-98002-124-0	01	1	0512-0610

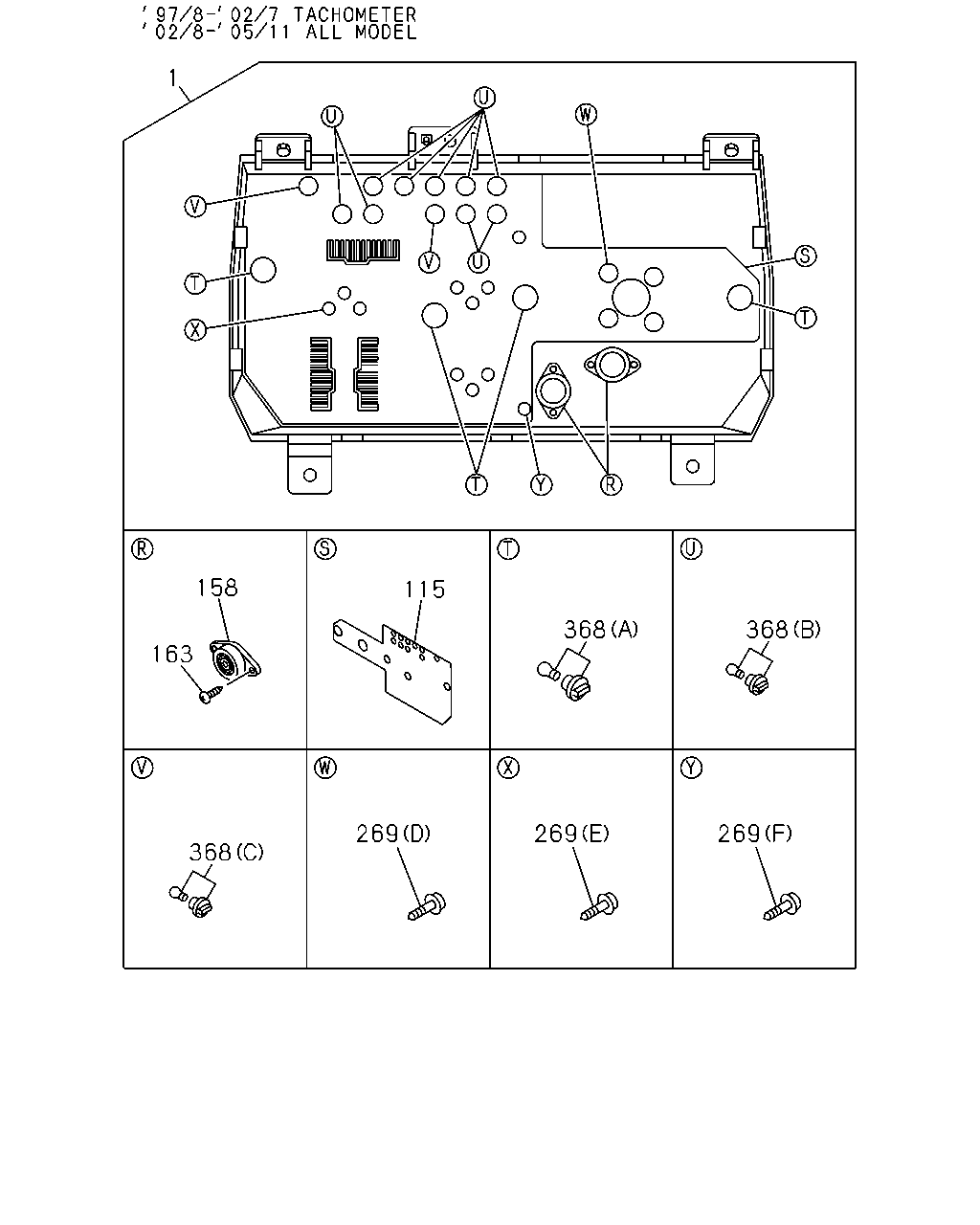

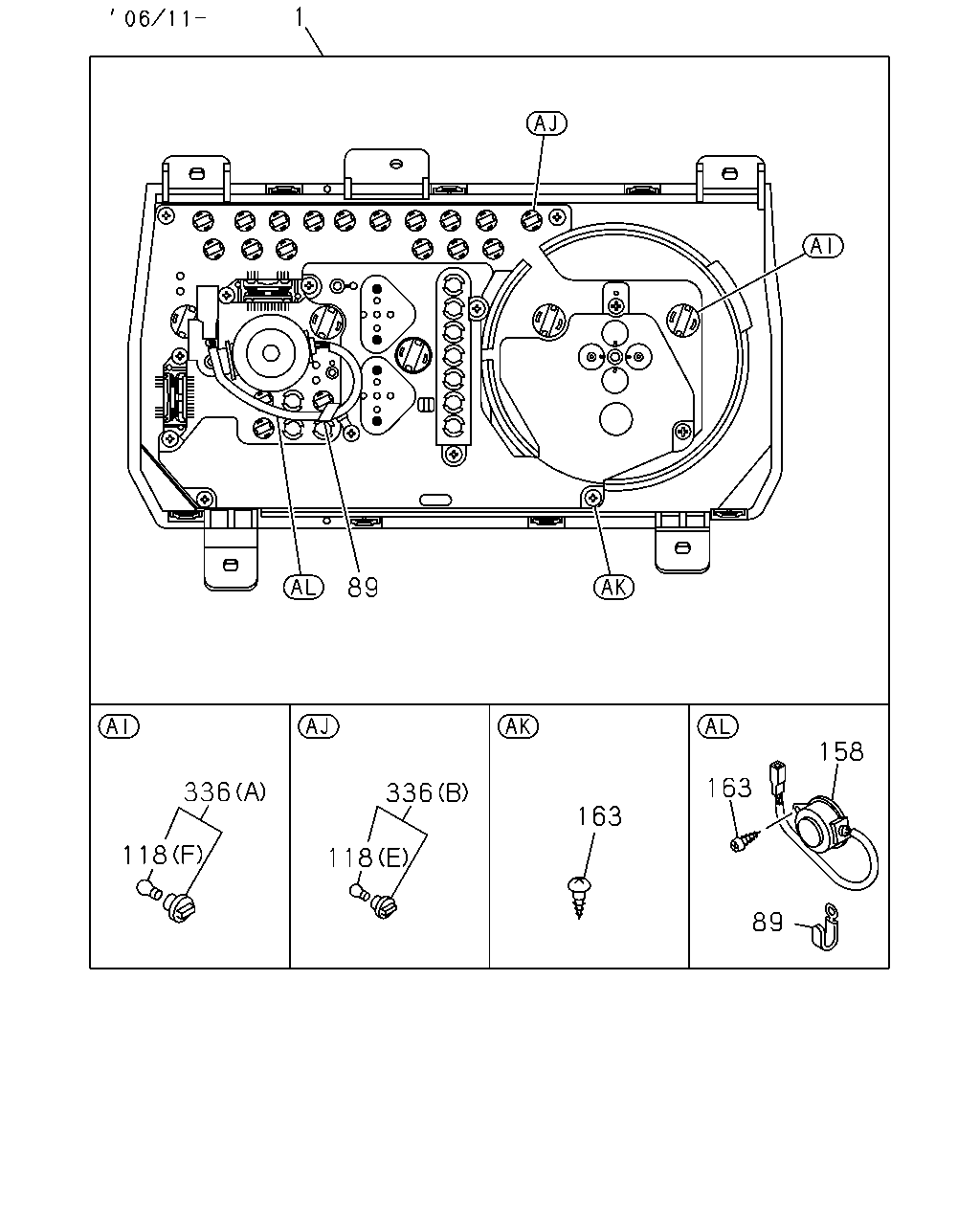

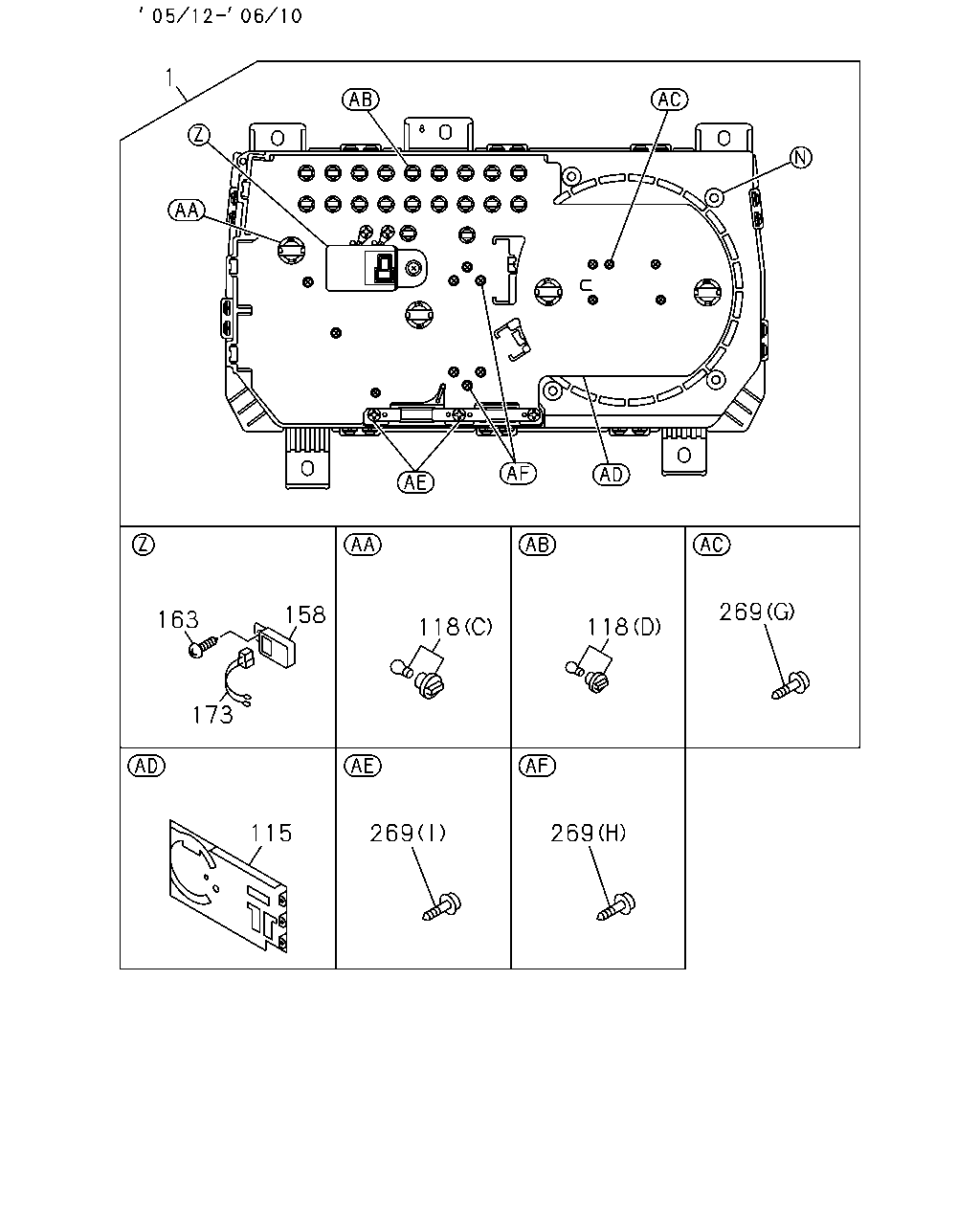

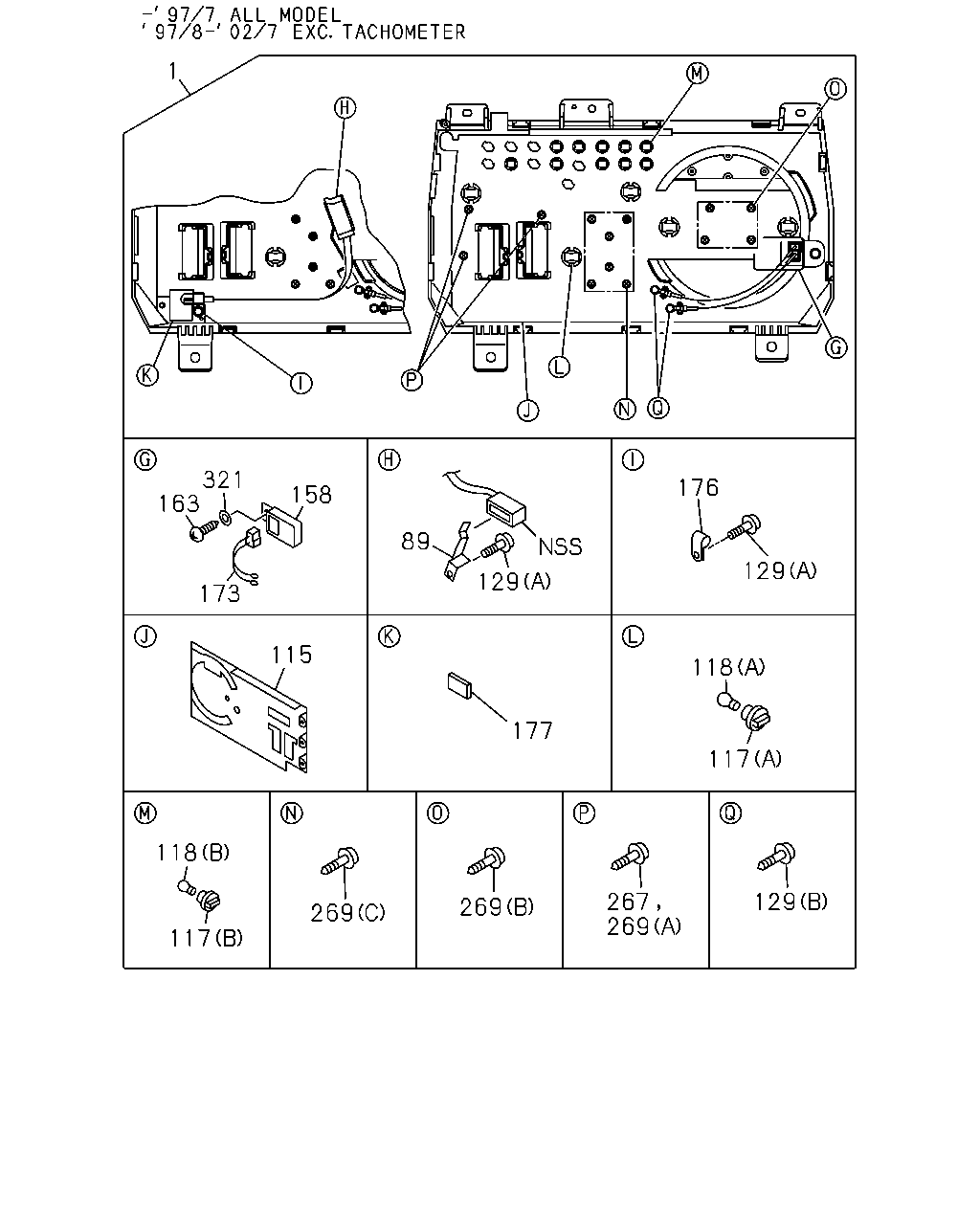

8 1 321 163 176 158 89 129 129 173 115 118 177 117 118 267 269 129 269 269 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97129-293-0	01	1	9701-9707
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97965-888-0	01	1	9708-9801
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-376-0	01	1	9802-9809
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-688-0	01	1	9810-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97966-688-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0208-0411
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0412-0511
1	METER COMPL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97381-300-0	01	1	0512-0610
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98055-735-0	01	1	0611-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9701-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98000-514-4	01	1	0611-
89	CLIP; HARNESS	8-97088-531-1	01	1	9701-9707
89	CLIP; HARNESS EXC. TACHOMETER<U16>	8-97088-531-1	01	1	9708-9905
89	CLIP; HARNESS 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97088-531-1	01	1	9906-0207
89	CLIP; HARNESS 4JJ1 ENG(LFB)	8-97253-928-0	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97108-105-0	01	1	9701-9707
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16> TAI	8-97207-720-0	01	1	9708-9905
115	CIRCUIT; PRINTED,CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-720-0	01	1	9906-0207
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-745-0	01	1	0208-0411
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-745-0	01	1	0412-0511
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-97307-051-0	01	1	0512-0610
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97108-114-0	01	1	9701-9905
115	CIRCUIT; PRINTED,CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-114-0	01	1	9906-0207
117	SOCKET; BULB,GAUGE & CLOCK (B) 12V 1.4W BLACK	8-94114-138-0	09	1	9701-9707
117	SOCKET; BULB,GAUGE & CLOCK EXC. TACHOMETER<U16> (B) 12V 1.4W BLACK	8-94114-138-0	09	1	9708-9905
117	SOCKET; BULB,GAUGE & CLOCK 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 1.4W BLACK	8-94114-138-0	09	1	9906-0207
117	SOCKET; BULB,GAUGE & CLOCK (B) 12V 2W GRAY	8-97031-180-0	01	1	9701-9707
117	SOCKET; BULB,GAUGE & CLOCK EXC. TACHOMETER<U16> (B) 12V 2W GRAY	8-97031-180-0	01	1	9708-9905
117	SOCKET; BULB,GAUGE & CLOCK 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 2W GRAY	8-97031-180-0	01	1	9906-0207
117	SOCKET; BULB,GAUGE & CLOCK TACHOMETER<U16> (A) 12V 3W GREEN	8-97092-901-0	05	1	9701-9707
117	SOCKET; BULB,GAUGE & CLOCK EXC. TACHOMETER<U16> (A) 12V 3W GREEN	8-97092-901-0	04	1	9701-9905
117	SOCKET; BULB,GAUGE & CLOCK 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A) 12V 3W GREEN	8-97092-901-0	04	1	9906-0207
118	BULB; CLUSTER METER (B) 12V 1.4W	8-94152-313-0	09	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V 1.4W	8-94152-313-0	09	1	9708-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 1.4W	8-94152-313-0	09	1	9906-0207
118	BULB; CLUSTER METER (B) 12V 2W	8-97031-178-0	01	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V 2W	8-97031-178-0	01	1	9708-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 2W	8-97031-178-0	01	1	9906-0207
118	BULB; CLUSTER METER TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	05	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	04	1	9701-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	04	1	9906-0207
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (C) 12V SOCKET COLOR BLACK TAI	8-97185-535-0	04	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 28V 1.8W	8-97305-177-0	19	1	0611-
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (D) 12V SOCKET COLOR BLACK TAI	8-97185-536-0	10	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 28V 1.8W	8-97305-177-0	20	1	0611-
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (D) 12V SOCKET COLOR BLUE TAI	8-97185-537-0	02	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) (F) 28V 3W	8-97305-178-0	05	1	0611-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (B)	8-97092-908-0	02	1	9701-9707
129	SCREW; PRINTED CIRCUIT,CLUSTER METER EXC. TACHOMETER<U16> (B)	8-97092-908-0	02	1	9708-9905
129	SCREW; PRINTED CIRCUIT,CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B)	8-97092-908-0	02	1	9906-0207
129	SCREW; PRINTED CIRCUIT,CLUSTER METER TACHOMETER<U16> (A) M4X16	1-09140-005-0	01	1	9701-9707
129	SCREW; PRINTED CIRCUIT,CLUSTER METER EXC. TACHOMETER<U16> (A) M4X16	1-09140-005-0	02	1	9701-9905
129	SCREW; PRINTED CIRCUIT,CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A) M4X16	1-09140-005-0	02	1	9906-0207
158	BUZZER; VAC WARNING 12V	5-83460-006-0	01	1	9701-9707
158	BUZZER; VAC WARNING EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9906-0207
158	BUZZER; VAC WARNING TACHOMETER<U16> TAI	8-97207-741-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-741-0	01	1	9906-0207
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0208-0411
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0412-0511
158	BUZZER; VAC WARNING 4JH1-TC ENG(RDM) 12V TAI	8-97185-520-0	01	1	0512-0610
158	BUZZER; VAC WARNING 4JJ1 ENG(LFB)	8-98003-830-0	01	1	0611-
163	SCREW; BUZZER M4X20	8-94246-136-0	01	1	9701-9707
163	SCREW; BUZZER EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9708-9905
163	SCREW; BUZZER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9906-0207
163	SCREW; BUZZER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97353-749-0	02	1	9906-0207
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0208-0411
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0412-0511
163	SCREW; BUZZER 4JH1-TC ENG(RDM) TAI	8-97185-527-0	01	1	0512-0610
163	SCREW; BUZZER 4JJ1 ENG(LFB)	8-97185-099-0	02	1	0611-
173	WIRE; LEAD	8-97108-141-0	01	1	9701-9707
173	WIRE; LEAD EXC. TACHOMETER<U16>	8-97108-141-0	01	1	9708-9905
173	WIRE; LEAD 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-141-0	01	1	9906-0207
173	WIRE; LEAD 4JH1-TC ENG(RDM) TAI	8-97185-643-0	01	1	0512-0610
176	CLAMP; CORD,METER EXC. TACHOMETER<U16>	8-97088-532-0	01	1	9701-9905
176	CLAMP; CORD,METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97088-532-0	01	1	9906-0207
177	COVER; WIRE HOLE EXC. TACHOMETER<U16>	8-97092-911-0	01	1	9701-9905
177	COVER; WIRE HOLE 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97092-911-0	01	1	9906-0207
267	SCREW; CLOCK EXC. TACHOMETER<U16>	8-97107-891-0	03	1	9701-9905
267	SCREW; CLOCK 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97107-891-0	03	1	9906-0207
269	SCREW; METER CLUSTER (B)	8-97092-904-0	04	1	9701-9707
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (B)	8-97092-904-0	04	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B)	8-97092-904-0	04	1	9906-0207
269	SCREW; METER CLUSTER (C)	8-97092-907-0	06	1	9701-9707
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (C)	8-97092-907-0	06	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (C)	8-97092-907-0	06	1	9906-0207
269	SCREW; METER CLUSTER TACHOMETER<U16> (A)	8-97092-906-0	03	1	9701-9707
269	SCREW; METER CLUSTER TACHOMETER<U16> (D) TAI	8-97207-738-0	04	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (D) TAI	8-97207-738-0	04	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (D) TAI	8-97353-748-0	04	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (D) TAI	8-97353-748-0	04	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (I) TAI	8-97185-528-0	02	1	0512-0610
269	SCREW; METER CLUSTER TACHOMETER<U16> (E) TAI	8-97207-739-0	09	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (E) TAI	8-97207-739-0	09	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (E) TAI	8-97207-739-0	09	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (E) TAI	8-97207-739-0	09	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (G) TAI	8-97185-524-0	08	1	0512-0610
269	SCREW; METER CLUSTER TACHOMETER<U16> (F) TAI	8-97207-740-0	04	1	9708-9905
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A)	8-97115-808-0	03	1	9701-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A)	8-97115-808-0	03	1	9906-0207
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (F) TAI	8-97207-740-0	02	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (F) TAI	8-97207-740-0	02	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (F) TAI	8-97207-740-0	02	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (H) TAI	8-97185-525-0	06	1	0512-0610
321	WASHER; BUZZER	8-97108-140-0	01	1	9701-9707
321	WASHER; BUZZER EXC. TACHOMETER<U16>	8-97108-140-0	01	1	9708-9905
321	WASHER; BUZZER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-140-0	01	1	9906-0207

8 1 158 115 368 368 163 269 269 269 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97129-293-0	01	1	9701-9707
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97965-888-0	01	1	9708-9801
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-376-0	01	1	9802-9809
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-688-0	01	1	9810-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97966-688-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0208-0411
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0412-0511
1	METER COMPL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97381-300-0	01	1	0512-0610
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98055-735-0	01	1	0611-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9701-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98000-514-4	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97108-105-0	01	1	9701-9707
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16> TAI	8-97207-720-0	01	1	9708-9905
115	CIRCUIT; PRINTED,CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-720-0	01	1	9906-0207
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-745-0	01	1	0208-0411
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-745-0	01	1	0412-0511
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-97307-051-0	01	1	0512-0610
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97108-114-0	01	1	9701-9905
115	CIRCUIT; PRINTED,CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-114-0	01	1	9906-0207
158	BUZZER; VAC WARNING 12V	5-83460-006-0	01	1	9701-9707
158	BUZZER; VAC WARNING EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9906-0207
158	BUZZER; VAC WARNING TACHOMETER<U16> TAI	8-97207-741-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-741-0	01	1	9906-0207
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0208-0411
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0412-0511
158	BUZZER; VAC WARNING 4JH1-TC ENG(RDM) 12V TAI	8-97185-520-0	01	1	0512-0610
158	BUZZER; VAC WARNING 4JJ1 ENG(LFB)	8-98003-830-0	01	1	0611-
163	SCREW; BUZZER M4X20	8-94246-136-0	01	1	9701-9707
163	SCREW; BUZZER EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9708-9905
163	SCREW; BUZZER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9906-0207
163	SCREW; BUZZER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97353-749-0	02	1	9906-0207
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0208-0411
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0412-0511
163	SCREW; BUZZER 4JH1-TC ENG(RDM) TAI	8-97185-527-0	01	1	0512-0610
163	SCREW; BUZZER 4JJ1 ENG(LFB)	8-97185-099-0	02	1	0611-
269	SCREW; METER CLUSTER (B)	8-97092-904-0	04	1	9701-9707
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (B)	8-97092-904-0	04	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B)	8-97092-904-0	04	1	9906-0207
269	SCREW; METER CLUSTER (C)	8-97092-907-0	06	1	9701-9707
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (C)	8-97092-907-0	06	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (C)	8-97092-907-0	06	1	9906-0207
269	SCREW; METER CLUSTER TACHOMETER<U16> (A)	8-97092-906-0	03	1	9701-9707
269	SCREW; METER CLUSTER TACHOMETER<U16> (D) TAI	8-97207-738-0	04	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (D) TAI	8-97207-738-0	04	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (D) TAI	8-97353-748-0	04	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (D) TAI	8-97353-748-0	04	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (I) TAI	8-97185-528-0	02	1	0512-0610
269	SCREW; METER CLUSTER TACHOMETER<U16> (E) TAI	8-97207-739-0	09	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (E) TAI	8-97207-739-0	09	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (E) TAI	8-97207-739-0	09	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (E) TAI	8-97207-739-0	09	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (G) TAI	8-97185-524-0	08	1	0512-0610
269	SCREW; METER CLUSTER TACHOMETER<U16> (F) TAI	8-97207-740-0	04	1	9708-9905
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A)	8-97115-808-0	03	1	9701-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A)	8-97115-808-0	03	1	9906-0207
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (F) TAI	8-97207-740-0	02	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (F) TAI	8-97207-740-0	02	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (F) TAI	8-97207-740-0	02	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (H) TAI	8-97185-525-0	06	1	0512-0610
368	LAMP ASM; PILOT TACHOMETER<U16> (A) TAI	8-97207-733-0	04	1	9708-9905
368	LAMP ASM; PILOT 4JG2 ENG(RJC) TACHOMETER<U16> (A) TAI	8-97207-733-0	04	1	9906-0207
368	LAMP ASM; PILOT 4JH1 ENG(RJX) (A) TAI	8-97207-733-0	04	1	0208-0411
368	LAMP ASM; PILOT 4JH1 ENG(RJX) (A) TAI	8-97207-733-0	04	1	0412-0511
368	LAMP ASM; PILOT TACHOMETER<U16> (B) TAI	8-97207-736-0	07	1	9708-9905
368	LAMP ASM; PILOT 4JG2 ENG(RJC) TACHOMETER<U16> (B) TAI	8-97207-736-0	07	1	9906-0110
368	LAMP ASM; PILOT 4JG2 ENG(RJC) TACHOMETER<U16> (B) TAI	8-97967-357-0	07	1	0111-0207
368	LAMP ASM; PILOT 4JH1 ENG(RJX) (B) TAI	8-97967-357-0	09	1	0208-0411
368	LAMP ASM; PILOT 4JH1 ENG(RJX) (B) TAI	8-97967-357-0	09	1	0412-0511
368	LAMP ASM; PILOT TACHOMETER<U16> (C) TAI	8-97207-737-0	02	1	9708-9905
368	LAMP ASM; PILOT 4JG2 ENG(RJC) TACHOMETER<U16> (C) TAI	8-97207-737-0	02	1	9906-0207
368	LAMP ASM; PILOT 4JH1 ENG(RJX) (C) TAI	8-97207-737-0	02	1	0208-0411
368	LAMP ASM; PILOT 4JH1 ENG(RJX) (C) TAI	8-97207-737-0	02	1	0412-0511

1 269 158 163 118 118 173 115 269 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97129-293-0	01	1	9701-9707
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97965-888-0	01	1	9708-9801
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-376-0	01	1	9802-9809
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-688-0	01	1	9810-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97966-688-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0208-0411
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0412-0511
1	METER COMPL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97381-300-0	01	1	0512-0610
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98055-735-0	01	1	0611-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9701-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98000-514-4	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97108-105-0	01	1	9701-9707
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16> TAI	8-97207-720-0	01	1	9708-9905
115	CIRCUIT; PRINTED,CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-720-0	01	1	9906-0207
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-745-0	01	1	0208-0411
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1 ENG(RJX) TAI	8-97353-745-0	01	1	0412-0511
115	CIRCUIT; PRINTED,CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-97307-051-0	01	1	0512-0610
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97108-114-0	01	1	9701-9905
115	CIRCUIT; PRINTED,CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-114-0	01	1	9906-0207
118	BULB; CLUSTER METER (B) 12V 1.4W	8-94152-313-0	09	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V 1.4W	8-94152-313-0	09	1	9708-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 1.4W	8-94152-313-0	09	1	9906-0207
118	BULB; CLUSTER METER (B) 12V 2W	8-97031-178-0	01	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V 2W	8-97031-178-0	01	1	9708-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 2W	8-97031-178-0	01	1	9906-0207
118	BULB; CLUSTER METER TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	05	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	04	1	9701-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	04	1	9906-0207
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (C) 12V SOCKET COLOR BLACK TAI	8-97185-535-0	04	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 28V 1.8W	8-97305-177-0	19	1	0611-
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (D) 12V SOCKET COLOR BLACK TAI	8-97185-536-0	10	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 28V 1.8W	8-97305-177-0	20	1	0611-
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (D) 12V SOCKET COLOR BLUE TAI	8-97185-537-0	02	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) (F) 28V 3W	8-97305-178-0	05	1	0611-
158	BUZZER; VAC WARNING 12V	5-83460-006-0	01	1	9701-9707
158	BUZZER; VAC WARNING EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9906-0207
158	BUZZER; VAC WARNING TACHOMETER<U16> TAI	8-97207-741-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-741-0	01	1	9906-0207
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0208-0411
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0412-0511
158	BUZZER; VAC WARNING 4JH1-TC ENG(RDM) 12V TAI	8-97185-520-0	01	1	0512-0610
158	BUZZER; VAC WARNING 4JJ1 ENG(LFB)	8-98003-830-0	01	1	0611-
163	SCREW; BUZZER M4X20	8-94246-136-0	01	1	9701-9707
163	SCREW; BUZZER EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9708-9905
163	SCREW; BUZZER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9906-0207
163	SCREW; BUZZER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97353-749-0	02	1	9906-0207
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0208-0411
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0412-0511
163	SCREW; BUZZER 4JH1-TC ENG(RDM) TAI	8-97185-527-0	01	1	0512-0610
163	SCREW; BUZZER 4JJ1 ENG(LFB)	8-97185-099-0	02	1	0611-
173	WIRE; LEAD	8-97108-141-0	01	1	9701-9707
173	WIRE; LEAD EXC. TACHOMETER<U16>	8-97108-141-0	01	1	9708-9905
173	WIRE; LEAD 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-141-0	01	1	9906-0207
173	WIRE; LEAD 4JH1-TC ENG(RDM) TAI	8-97185-643-0	01	1	0512-0610
269	SCREW; METER CLUSTER (B)	8-97092-904-0	04	1	9701-9707
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (B)	8-97092-904-0	04	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B)	8-97092-904-0	04	1	9906-0207
269	SCREW; METER CLUSTER (C)	8-97092-907-0	06	1	9701-9707
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (C)	8-97092-907-0	06	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (C)	8-97092-907-0	06	1	9906-0207
269	SCREW; METER CLUSTER TACHOMETER<U16> (A)	8-97092-906-0	03	1	9701-9707
269	SCREW; METER CLUSTER TACHOMETER<U16> (D) TAI	8-97207-738-0	04	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (D) TAI	8-97207-738-0	04	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (D) TAI	8-97353-748-0	04	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (D) TAI	8-97353-748-0	04	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (I) TAI	8-97185-528-0	02	1	0512-0610
269	SCREW; METER CLUSTER TACHOMETER<U16> (E) TAI	8-97207-739-0	09	1	9708-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (E) TAI	8-97207-739-0	09	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (E) TAI	8-97207-739-0	09	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (E) TAI	8-97207-739-0	09	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (G) TAI	8-97185-524-0	08	1	0512-0610
269	SCREW; METER CLUSTER TACHOMETER<U16> (F) TAI	8-97207-740-0	04	1	9708-9905
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A)	8-97115-808-0	03	1	9701-9905
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A)	8-97115-808-0	03	1	9906-0207
269	SCREW; METER CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> (F) TAI	8-97207-740-0	02	1	9906-0207
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (F) TAI	8-97207-740-0	02	1	0208-0411
269	SCREW; METER CLUSTER 4JH1 ENG(RJX) (F) TAI	8-97207-740-0	02	1	0412-0511
269	SCREW; METER CLUSTER 4JH1-TC ENG(RDM) (H) TAI	8-97185-525-0	06	1	0512-0610

1 80 100 60 120 1 40 20 2 3 1 160 4 2 81 110 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97129-293-0	01	1	9701-9707
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97965-888-0	01	1	9708-9801
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-376-0	01	1	9802-9809
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-688-0	01	1	9810-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97966-688-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0208-0411
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0412-0511
1	METER COMPL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97381-300-0	01	1	0512-0610
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98055-735-0	01	1	0611-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9701-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98000-514-4	01	1	0611-
2	PANEL; CLUSTER TACHOMETER<U16> TAI	8-97207-717-0	01	1	9708-9905
2	PANEL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-717-0	01	1	9906-0207
2	PANEL; CLUSTER 4JH1 ENG(RJX) TAI	8-97207-717-0	01	1	0208-0411
2	PANEL; CLUSTER 4JH1 ENG(RJX) TAI	8-97207-717-0	01	1	0412-0511
2	PANEL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97185-443-0	01	1	0512-0610
2	PANEL; CLUSTER 4JJ1 ENG(LFB)	8-97185-047-0	01	1	0611-
81	METER SUB ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98003-836-0	01	1	0611-
81	METER SUB ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98003-835-0	01	1	0611-
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-97092-872-0	01	1	9701-9707
110	GLASS; CLUSTER METER TACHOMETER<U16> TAI	8-97207-709-0	01	1	9708-9905
110	GLASS; CLUSTER METER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-709-0	01	1	9906-0207
110	GLASS; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-709-0	01	1	0208-0411
110	GLASS; CLUSTER METER 4JH1 ENG(RJX) TAI	8-97207-709-0	01	1	0412-0511
110	GLASS; CLUSTER METER 4JH1-TC ENG(RDM) TAI	8-97185-452-0	01	1	0512-0610
110	GLASS; CLUSTER METER 4JJ1 ENG(LFB)	8-97185-045-0	01	1	0611-
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97108-121-0	01	1	9701-9905
110	GLASS; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97108-121-0	01	1	9906-0207
121	SCREW; PANEL FIX,CLUSTER METER 4JJ1 ENG(LFB)	8-97185-100-0	02	1	0611-

1 89 158 163 336 336 163 118 118 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97129-293-0	01	1	9701-9707
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97965-888-0	01	1	9708-9801
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-376-0	01	1	9802-9809
1	METER COMPL; CLUSTER TACHOMETER<U16> TAI	8-97966-688-0	01	1	9810-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97966-688-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0208-0411
1	METER COMPL; CLUSTER 4JH1 ENG(RJX) TAI	8-97967-247-0	01	1	0412-0511
1	METER COMPL; CLUSTER 4JH1-TC ENG(RDM) TAI	8-97381-300-0	01	1	0512-0610
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98055-735-0	01	1	0611-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9701-9905
1	METER COMPL; CLUSTER 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97129-291-0	01	1	9906-0207
1	METER COMPL; CLUSTER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98000-514-4	01	1	0611-
89	CLIP; HARNESS	8-97088-531-1	01	1	9701-9707
89	CLIP; HARNESS EXC. TACHOMETER<U16>	8-97088-531-1	01	1	9708-9905
89	CLIP; HARNESS 4JG2 ENG(RJC) EXC. TACHOMETER<U16>	8-97088-531-1	01	1	9906-0207
89	CLIP; HARNESS 4JJ1 ENG(LFB)	8-97253-928-0	01	1	0611-
118	BULB; CLUSTER METER (B) 12V 1.4W	8-94152-313-0	09	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V 1.4W	8-94152-313-0	09	1	9708-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 1.4W	8-94152-313-0	09	1	9906-0207
118	BULB; CLUSTER METER (B) 12V 2W	8-97031-178-0	01	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V 2W	8-97031-178-0	01	1	9708-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (B) 12V 2W	8-97031-178-0	01	1	9906-0207
118	BULB; CLUSTER METER TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	05	1	9701-9707
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	04	1	9701-9905
118	BULB; CLUSTER METER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> (A) 12V 3.4W	8-97092-898-0	04	1	9906-0207
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (C) 12V SOCKET COLOR BLACK TAI	8-97185-535-0	04	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 28V 1.8W	8-97305-177-0	19	1	0611-
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (D) 12V SOCKET COLOR BLACK TAI	8-97185-536-0	10	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 28V 1.8W	8-97305-177-0	20	1	0611-
118	BULB; CLUSTER METER 4JH1-TC ENG(RDM) (D) 12V SOCKET COLOR BLUE TAI	8-97185-537-0	02	1	0512-0610
118	BULB; CLUSTER METER 4JJ1 ENG(LFB) (F) 28V 3W	8-97305-178-0	05	1	0611-
158	BUZZER; VAC WARNING 12V	5-83460-006-0	01	1	9701-9707
158	BUZZER; VAC WARNING EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) EXC. TACHOMETER<U16> 12V	5-83460-006-0	01	1	9906-0207
158	BUZZER; VAC WARNING TACHOMETER<U16> TAI	8-97207-741-0	01	1	9708-9905
158	BUZZER; VAC WARNING 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97207-741-0	01	1	9906-0207
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0208-0411
158	BUZZER; VAC WARNING 4JH1 ENG(RJX) TAI	8-97207-741-0	01	1	0412-0511
158	BUZZER; VAC WARNING 4JH1-TC ENG(RDM) 12V TAI	8-97185-520-0	01	1	0512-0610
158	BUZZER; VAC WARNING 4JJ1 ENG(LFB)	8-98003-830-0	01	1	0611-
163	SCREW; BUZZER M4X20	8-94246-136-0	01	1	9701-9707
163	SCREW; BUZZER EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9708-9905
163	SCREW; BUZZER 4JG2 ENG(RJC) EXC. TACHOMETER<U16> M4X20	8-94246-136-0	01	1	9906-0207
163	SCREW; BUZZER 4JG2 ENG(RJC) TACHOMETER<U16> TAI	8-97353-749-0	02	1	9906-0207
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0208-0411
163	SCREW; BUZZER 4JH1 ENG(RJX) TAI	8-97353-749-0	02	1	0412-0511
163	SCREW; BUZZER 4JH1-TC ENG(RDM) TAI	8-97185-527-0	01	1	0512-0610
163	SCREW; BUZZER 4JJ1 ENG(LFB)	8-97185-099-0	02	1	0611-
336	LAMP ASM; WARNING 4JJ1 ENG(LFB) (A)	8-97185-093-0	05	1	0611-
336	LAMP ASM; WARNING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97185-091-0	19	1	0611-
336	LAMP ASM; WARNING 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97185-091-0	20	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
