Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#139142) — 696 parça

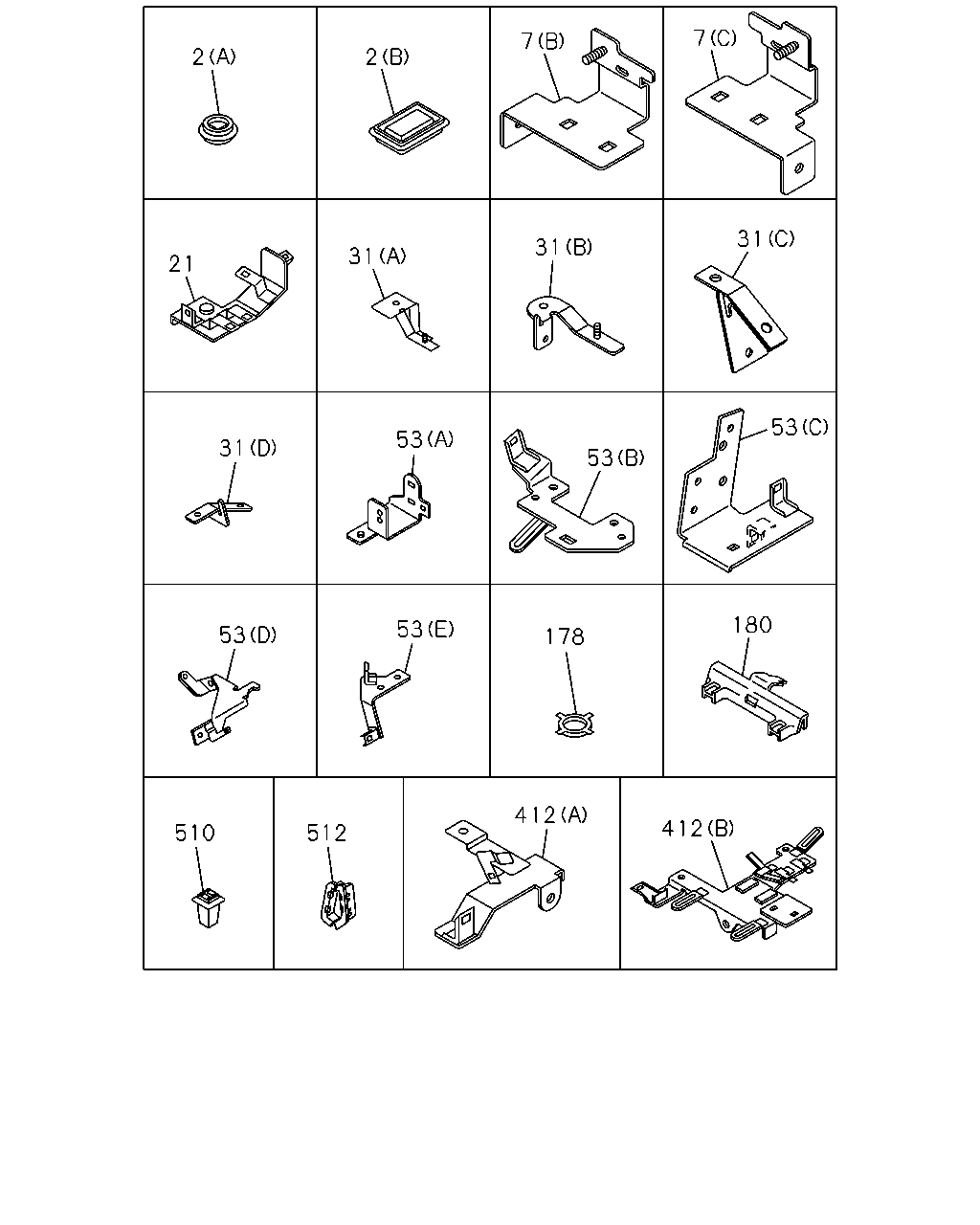

2 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	GROMMET; CLIP HOLE,HARNESS (A) OD=48 T=9.1	8-94279-053-0	01	1	9701-
	2	GROMMET; CLIP HOLE,HARNESS (B)	8-94279-736-0	01	1	9701-

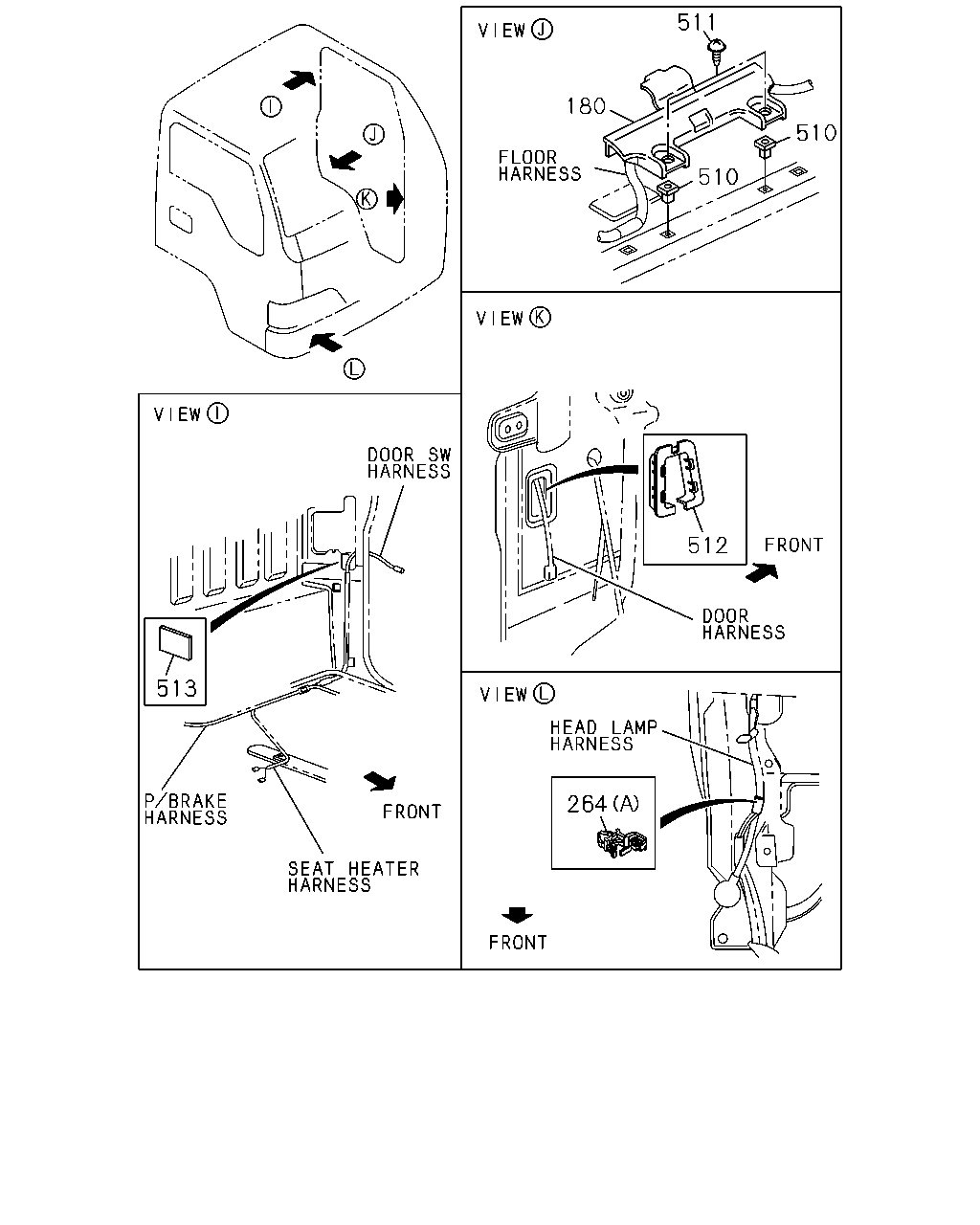

511 180 510 510 512 513 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
180	COVER; HARNESS	8-97856-130-4	02	1	9701-0411
180	COVER; HARNESS	8-97856-130-4	02	1	0412-
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	03	1	9701-0411
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	03	1	0412-0511
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	01	1	0512-0610
264	CLIP; HARNESS,HEADLAMP (B) ID=6 & 10-13 TAI	8-97069-515-0	01	1	0611-
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	9701-0411
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	0412-
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9701-0411
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0412-0604
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-
512	PROTECTOR; HARNESS	8-97072-950-0	02	1	9701-0411
512	PROTECTOR; HARNESS	8-97072-950-0	02	1	0412-
513	TAPE; SOFT,HARNESS 50X45	8-94232-630-0	01	1	9701-0411
513	TAPE; SOFT,HARNESS 50X45	8-94232-630-0	01	1	0412-

219 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0412-
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	0412-
48	CLIP; FRAME HARNESS (D) ID=28 L=32	1-09701-064-1	AR	1	9701-9905
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0412-
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	AR	1	9701-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-0	AR	1	9701-
48	CLIP; FRAME HARNESS (G) T=5.5	5-09709-047-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	0412-
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9701-0411
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0412-
48	CLIP; FRAME HARNESS (K) ID=19 L=60	9-09525-893-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0412-
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0412-
48	CLIP; FRAME HARNESS (N) ID=40 L=90	1-09701-290-0	AR	1	0611-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	0611-
219	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9701-9905
219	NUT (A) M6 FLANGE	0-91150-106-0	03	1	9906-0207
219	NUT 4JH1 ENG(RJX) (A) M6 FLANGE	0-91150-106-0	04	1	0208-0411
219	NUT 4JH1 ENG(RJX) (A) M6 FLANGE	0-91150-106-0	04	1	0412-0511
219	NUT 4JH1-TC ENG(RDM) (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
219	NUT 4JH1-TC ENG(RDM) (A) M6 FLANGE	0-91180-106-0	04	1	0603-0610
219	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0611-
219	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0611-
219	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9701-0411
219	NUT (B) M8 FLANGE	0-91150-108-0	01	1	0412-0602
219	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
219	NUT (A) M6 FLANGE	0-91150-106-0	02	1	9701-9905
219	NUT (C)	8-97108-658-0	01	1	9701-9905
219	NUT 4JH1 ENG(RJX) (C)	8-97108-658-0	01	1	0208-0411
219	NUT 4JH1 ENG(RJX) (C)	8-97108-658-0	01	1	0412-0511
219	NUT 4JH1-TC ENG(RDM) (C)	8-97108-658-0	01	1	0512-0610

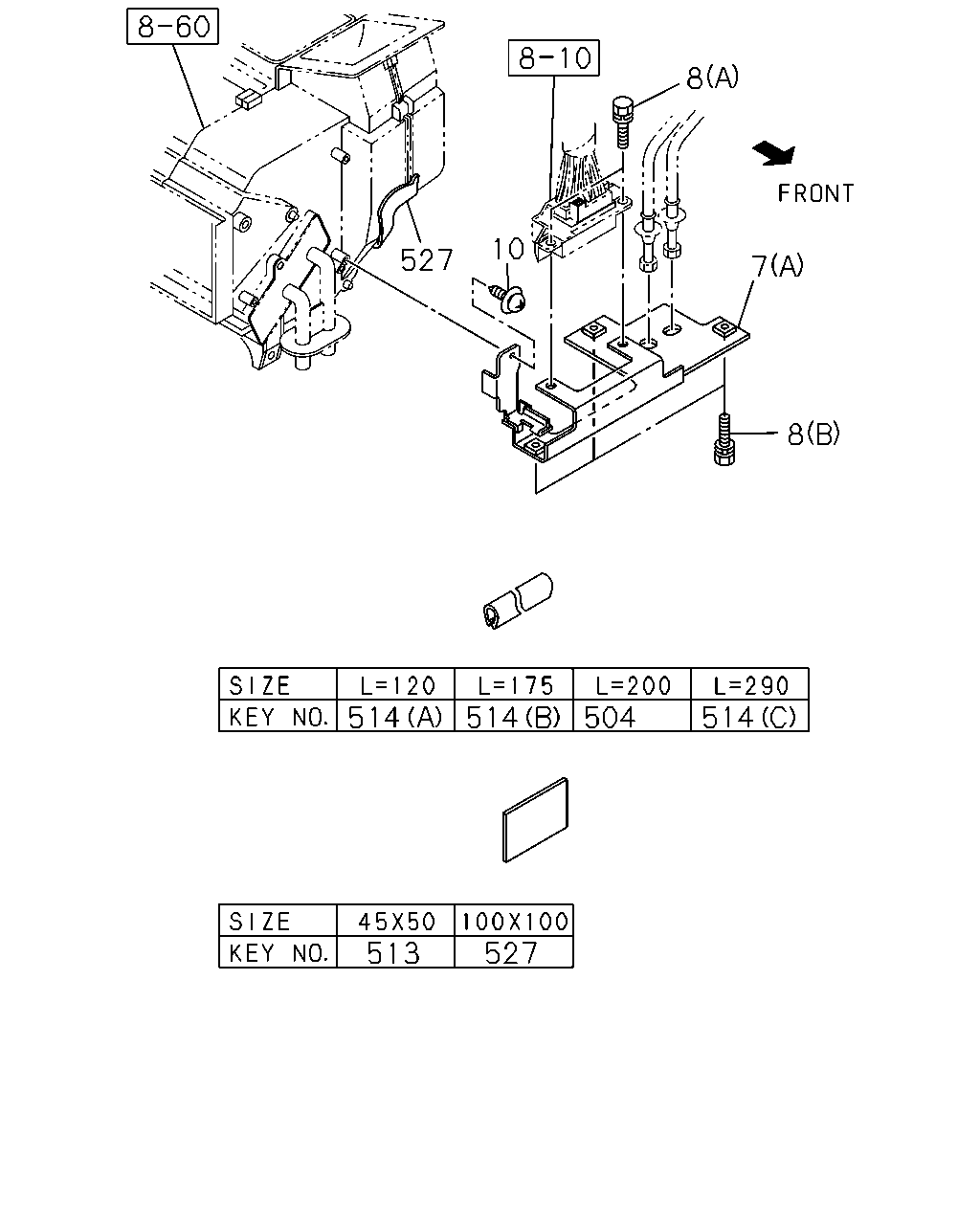

60 150 6 8 386 139 6 38 8 38 150 516 86 139 80 377 386 8 38 159 8 8 8 139 466 139 511 6 10 219 8 219 294 469 515 524 219 515 294 519 139 6 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	9701-0411
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	0412-
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9701-0411
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-0604
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612
10	SCREW; BRKT TO BODY T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9701-0411
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0412-0512
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	01	1	9701-9905
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	02	1	9906-0411
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	02	1	0412-0512
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28650-625-0	02	1	0601-0610
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28650-625-0	01	1	0611-
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	02	1	9701-9905
38	BOLT; CLIP,HARNESS 4JH1 ENG(RJX) (B) M6X25 FLANGE	0-28680-625-0	01	1	0208-0411
38	BOLT; CLIP,HARNESS 4JH1 ENG(RJX) (B) M6X25 FLANGE	0-28680-625-0	01	1	0412-0511
38	BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM) (B) M6X25 FLANGE	0-28680-625-0	01	1	0512-0512
38	BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM) (B) M6X25 FLANGE	0-28650-625-0	01	1	0601-0610
38	BOLT; CLIP,HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (C) M8X12 FLANGE	0-28050-812-0	01	1	0611-
55	WASHER; PL,CLIP ID=6.4 OD=18	9-09160-706-0	01	1	9701-0411
55	WASHER; PL,CLIP ID=6.4 OD=18	9-09160-706-0	01	1	0412-0605
55	WASHER; PL,CLIP ID=6.4 OD=18	0-91610-706-0	01	1	0606-0610
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	9701-0411
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	0412-0512
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	03	1	0601-
139	BOLT; BRKT (A) M10X16 FLANGE	0-28081-016-0	01	1	0208-0411
139	BOLT; BRKT (A) M10X16 FLANGE	0-28081-016-0	01	1	0412-0512
139	BOLT; BRKT (A) M10X16 FLANGE	0-28051-016-0	01	1	0601-0610
139	BOLT; BRKT (E)	8-97028-451-3	01	1	0611-
139	BOLT; BRKT 4JJ1 ENG(LFB) (C) M6X20 FLANGE	0-28650-620-0	01	1	0611-
139	BOLT; BRKT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE	0-28650-835-0	02	1	0611-
150	BOLT; CLIP 4JH1 ENG(RJX) (A) M6X10 FLANGE	0-28080-610-0	01	1	0208-0411
150	BOLT; CLIP 4JH1 ENG(RJX) (A) M6X10 FLANGE	0-28080-610-0	01	1	0412-0511
150	BOLT; CLIP 4JH1-TC ENG(RDM) (A) M6X10 FLANGE	0-28080-610-0	01	1	0512-0512
150	BOLT; CLIP 4JH1-TC ENG(RDM) (A) M6X10 FLANGE	0-28050-610-0	01	1	0601-0610
150	BOLT; CLIP 4JH1 ENG(RJX) (B) M8X12 FLANGE	0-28080-812-0	01	1	0208-0411
150	BOLT; CLIP 4JH1 ENG(RJX) (B) M8X12 FLANGE	0-28080-812-0	01	1	0412-0511
150	BOLT; CLIP 4JH1-TC ENG(RDM) (B) M8X12 FLANGE	0-28080-812-0	01	1	0512-0512
150	BOLT; CLIP 4JH1-TC ENG(RDM) (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0610
159	BOLT; GRAND ENG ELEC M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9701-0411
159	BOLT; GRAND ENG ELEC M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0412-
219	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9701-9905
219	NUT (A) M6 FLANGE	0-91150-106-0	03	1	9906-0207
219	NUT 4JH1 ENG(RJX) (A) M6 FLANGE	0-91150-106-0	04	1	0208-0411
219	NUT 4JH1 ENG(RJX) (A) M6 FLANGE	0-91150-106-0	04	1	0412-0511
219	NUT 4JH1-TC ENG(RDM) (A) M6 FLANGE	0-91150-106-0	04	1	0512-0602
219	NUT 4JH1-TC ENG(RDM) (A) M6 FLANGE	0-91180-106-0	04	1	0603-0610
219	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0611-
219	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0611-
219	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9701-0411
219	NUT (B) M8 FLANGE	0-91150-108-0	01	1	0412-0602
219	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
219	NUT (A) M6 FLANGE	0-91150-106-0	02	1	9701-9905
219	NUT (C)	8-97108-658-0	01	1	9701-9905
219	NUT 4JH1 ENG(RJX) (C)	8-97108-658-0	01	1	0208-0411
219	NUT 4JH1 ENG(RJX) (C)	8-97108-658-0	01	1	0412-0511
219	NUT 4JH1-TC ENG(RDM) (C)	8-97108-658-0	01	1	0512-0610
294	NUT 4JH1 ENG(RJX) (A) M8 FLANGE	0-91150-108-0	02	1	0208-0411
294	NUT 4JH1 ENG(RJX) (A) M8 FLANGE	0-91150-108-0	02	1	0412-0511
294	NUT 4JH1-TC ENG(RDM) (A) M8 FLANGE	0-91150-108-0	02	1	0512-0602
294	NUT 4JH1-TC ENG(RDM) (A) M8 FLANGE	0-91180-108-0	02	1	0603-0610
294	NUT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8 FLANGE	0-91180-108-0	02	1	0611-
294	NUT 4JH1 ENG(RJX) (B) M10 FLANGE	0-91150-110-0	01	1	0208-0411
294	NUT 4JH1 ENG(RJX) (B) M10 FLANGE	0-91150-110-0	01	1	0412-0511
294	NUT 4JH1-TC ENG(RDM) (B) M10 FLANGE	0-91150-110-0	01	1	0512-0602
294	NUT 4JH1-TC ENG(RDM) (B) M10 FLANGE	0-91180-110-0	01	1	0603-0610
294	NUT 4JJ1 ENG(LFB) (B) M10 FLANGE	0-91180-110-0	01	1	0611-
294	NUT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M10 FLANGE	0-91180-110-0	01	1	0611-
377	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9701-0411
377	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0412-
386	BOLT; GRAND HARNESS (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9701-0411
386	BOLT; GRAND HARNESS (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0412-0610
386	BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0611-
466	BOLT; HEAT PROTECTOR M8X35 FLANGE	0-28680-835-0	01	1	9701-0411
466	BOLT; HEAT PROTECTOR M8X35 FLANGE	0-28680-835-0	01	1	0412-0512
466	BOLT; HEAT PROTECTOR M8X35 FLANGE	0-28650-835-0	01	1	0601-
469	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9701-0411
469	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	01	1	0412-0602
469	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	01	1	0603-
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9701-0411
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0412-0604
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-
515	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0611-
515	NUT; BRKT 4JJ1 ENG(LFB) (A) M6 FLANGE	0-91180-106-0	02	1	0611-
515	NUT; BRKT 4JJ1 ENG(LFB) (B) M8 FLANGE	0-91180-108-0	01	1	0611-
515	NUT; BRKT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M6 FLANGE	0-91180-106-0	01	1	0611-
516	BOLT; HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> M8X12 FLANGE	0-28050-812-0	01	1	0611-
519	NUT; EARTH CABLE M12 FLANGE	0-91150-112-0	01	1	9701-0207
524	NUT; HARNESS 4JH1 ENG(RJX) M8 FLANGE	0-91150-208-0	01	1	0208-0411
524	NUT; HARNESS 4JH1 ENG(RJX) M8 FLANGE	0-91150-208-0	01	1	0412-0511
524	NUT; HARNESS 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-208-0	01	1	0512-0602
524	NUT; HARNESS 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-208-0	01	1	0603-0610

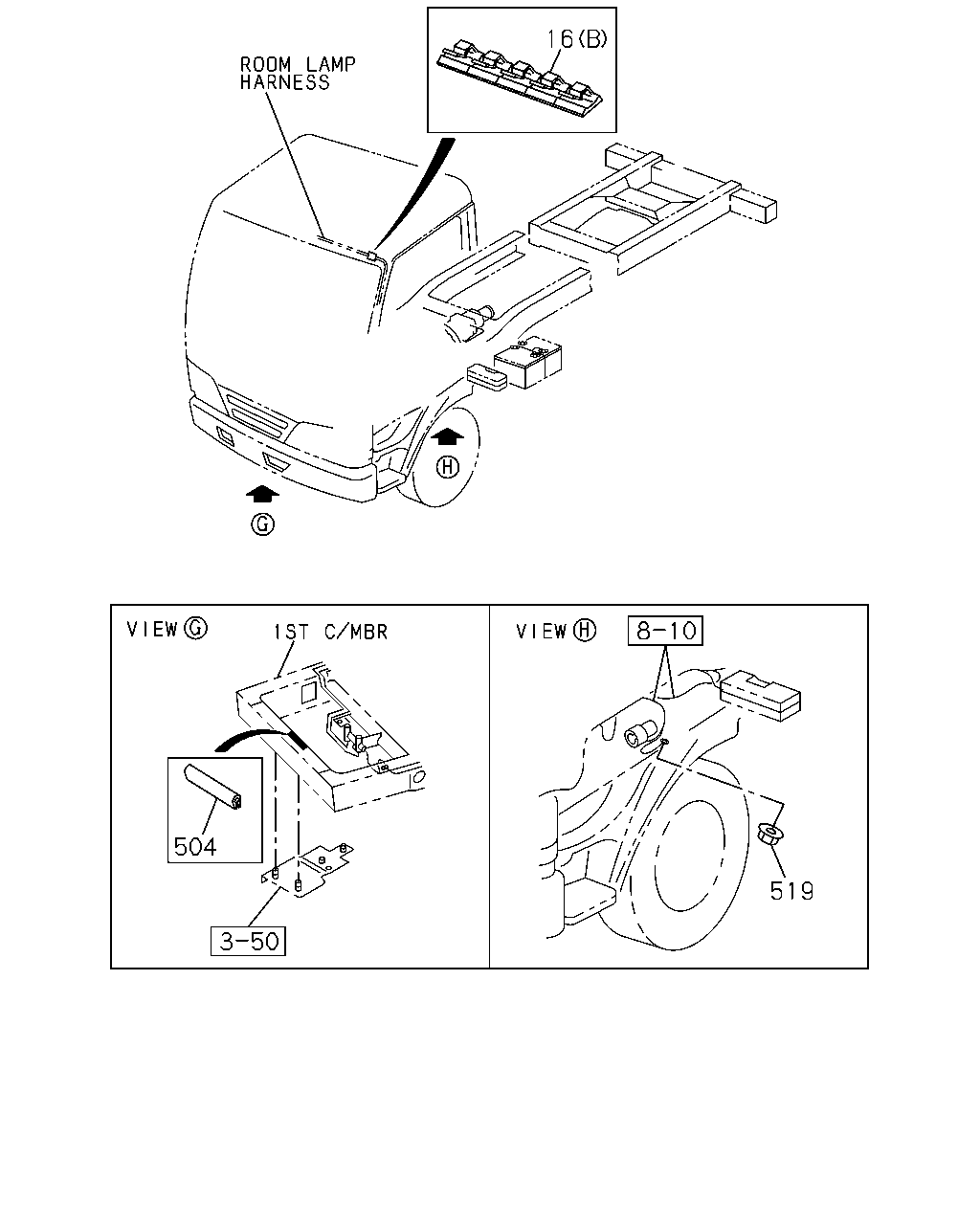

16 48 8 10 48 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	9701-0411
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	0412-
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9701-0411
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-0604
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612
10	SCREW; BRKT TO BODY T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9701-0411
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0412-
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	9701-0411
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	0412-
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	9701-0411
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	0412-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	9701-0411
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	0412-
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	9701-0411
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	0412-
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	9701-0411
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	0412-
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	9701-0411
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	0412-
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	9701-0411
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	0412-
16	CLIP; HARNESS (I) ID=12	5-09700-331-0	AR	1	0208-0302
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0303-0411
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0412-
16	CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	0611-
16	CLIP; HARNESS (J) ID=22 & 22	8-94464-837-0	AR	1	0611-
16	CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0611-
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0412-
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	0412-
48	CLIP; FRAME HARNESS (D) ID=28 L=32	1-09701-064-1	AR	1	9701-9905
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0412-
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	AR	1	9701-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-0	AR	1	9701-
48	CLIP; FRAME HARNESS (G) T=5.5	5-09709-047-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	0412-
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9701-0411
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0412-
48	CLIP; FRAME HARNESS (K) ID=19 L=60	9-09525-893-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0412-
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0412-
48	CLIP; FRAME HARNESS (N) ID=40 L=90	1-09701-290-0	AR	1	0611-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	0611-

16 38 16 31 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9701-0411
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0412-
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	9701-0411
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	0412-
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	9701-0411
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	0412-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	9701-0411
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	0412-
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	9701-0411
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	0412-
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	9701-0411
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	0412-
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	9701-0411
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	0412-
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	9701-0411
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	0412-
16	CLIP; HARNESS (I) ID=12	5-09700-331-0	AR	1	0208-0302
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0303-0411
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0412-
16	CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	0611-
16	CLIP; HARNESS (J) ID=22 & 22	8-94464-837-0	AR	1	0611-
16	CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0611-
31	BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9701-9707
31	BRACKET; HARNESS CLIP,PIPE (A) TAI	8-97965-886-0	01	1	9708-0610
31	BRACKET; HARNESS CLIP,PIPE (D) TAI	8-97967-569-0	01	1	0611-
31	BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9701-9707
31	BRACKET; HARNESS CLIP,PIPE (B) TAI	8-97965-887-0	02	1	9708-0610
31	BRACKET; HARNESS CLIP,PIPE (C) TAI	8-97362-859-0	03	1	0412-0610
31	BRACKET; HARNESS CLIP,PIPE (C) TAI	8-97967-566-0	02	1	0611-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9701-0411
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0412-0512
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	01	1	9701-9905
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	02	1	9906-0411
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	02	1	0412-0512
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28650-625-0	02	1	0601-0610
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28650-625-0	01	1	0611-
38	BOLT; CLIP,HARNESS (B) M6X25 FLANGE	0-28680-625-0	02	1	9701-9905
38	BOLT; CLIP,HARNESS 4JH1 ENG(RJX) (B) M6X25 FLANGE	0-28680-625-0	01	1	0208-0411
38	BOLT; CLIP,HARNESS 4JH1 ENG(RJX) (B) M6X25 FLANGE	0-28680-625-0	01	1	0412-0511
38	BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM) (B) M6X25 FLANGE	0-28680-625-0	01	1	0512-0512
38	BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM) (B) M6X25 FLANGE	0-28650-625-0	01	1	0601-0610
38	BOLT; CLIP,HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (C) M8X12 FLANGE	0-28050-812-0	01	1	0611-
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0412-
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	0412-
48	CLIP; FRAME HARNESS (D) ID=28 L=32	1-09701-064-1	AR	1	9701-9905
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0412-
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	AR	1	9701-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-0	AR	1	9701-
48	CLIP; FRAME HARNESS (G) T=5.5	5-09709-047-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	0412-
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9701-0411
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0412-
48	CLIP; FRAME HARNESS (K) ID=19 L=60	9-09525-893-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0412-
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0412-
48	CLIP; FRAME HARNESS (N) ID=40 L=90	1-09701-290-0	AR	1	0611-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	0611-

48 48 48 48 1 41 139 1 41 139 48 31 48 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9701-9707
31	BRACKET; HARNESS CLIP,PIPE (A) TAI	8-97965-886-0	01	1	9708-0610
31	BRACKET; HARNESS CLIP,PIPE (D) TAI	8-97967-569-0	01	1	0611-
31	BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9701-9707
31	BRACKET; HARNESS CLIP,PIPE (B) TAI	8-97965-887-0	02	1	9708-0610
31	BRACKET; HARNESS CLIP,PIPE (C) TAI	8-97362-859-0	03	1	0412-0610
31	BRACKET; HARNESS CLIP,PIPE (C) TAI	8-97967-566-0	02	1	0611-
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0412-
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	0412-
48	CLIP; FRAME HARNESS (D) ID=28 L=32	1-09701-064-1	AR	1	9701-9905
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0412-
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	AR	1	9701-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-0	AR	1	9701-
48	CLIP; FRAME HARNESS (G) T=5.5	5-09709-047-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	0412-
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9701-0411
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0412-
48	CLIP; FRAME HARNESS (K) ID=19 L=60	9-09525-893-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0412-
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0412-
48	CLIP; FRAME HARNESS (N) ID=40 L=90	1-09701-290-0	AR	1	0611-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	0611-
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	9701-0411
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	0412-0512
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	03	1	0601-
139	BOLT; BRKT (A) M10X16 FLANGE	0-28081-016-0	01	1	0208-0411
139	BOLT; BRKT (A) M10X16 FLANGE	0-28081-016-0	01	1	0412-0512
139	BOLT; BRKT (A) M10X16 FLANGE	0-28051-016-0	01	1	0601-0610
139	BOLT; BRKT (E)	8-97028-451-3	01	1	0611-
139	BOLT; BRKT 4JJ1 ENG(LFB) (C) M6X20 FLANGE	0-28650-620-0	01	1	0611-
139	BOLT; BRKT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE	0-28650-835-0	02	1	0611-

16 8 10 504 519 3 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	9701-0411
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	0412-
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9701-0411
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-0604
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612
10	SCREW; BRKT TO BODY T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9701-0411
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0412-
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	9701-0411
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	0412-
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	9701-0411
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	0412-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	9701-0411
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	0412-
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	9701-0411
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	0412-
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	9701-0411
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	0412-
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	9701-0411
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	0412-
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	9701-0411
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	0412-
16	CLIP; HARNESS (I) ID=12	5-09700-331-0	AR	1	0208-0302
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0303-0411
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0412-
16	CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	0611-
16	CLIP; HARNESS (J) ID=22 & 22	8-94464-837-0	AR	1	0611-
16	CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0611-
504	PROTECTOR; HARNESS L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9701-9905
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	9906-0411
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	0412-
519	NUT; EARTH CABLE M12 FLANGE	0-91150-112-0	01	1	9701-0207

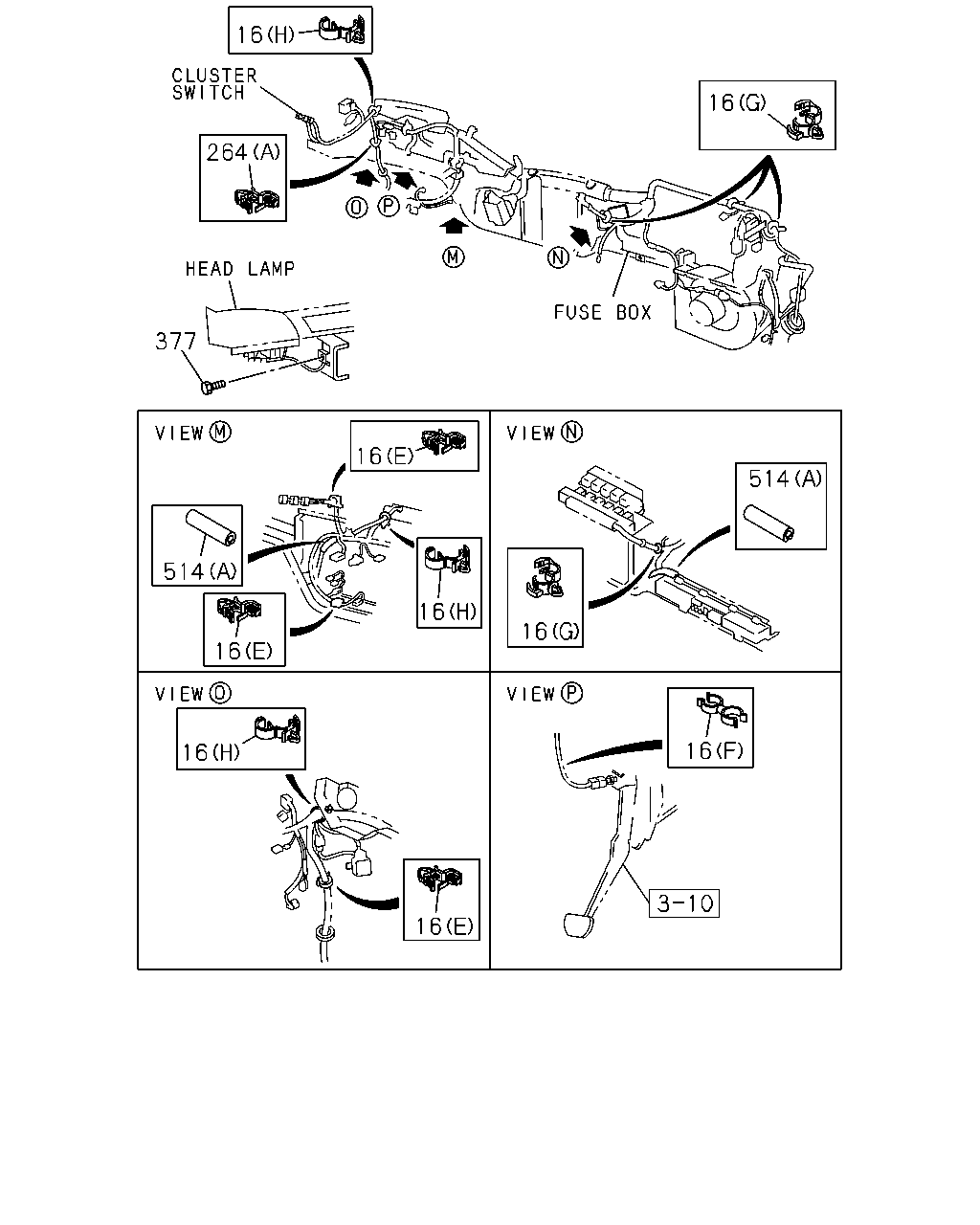

16 16 264 377 16 514 514 16 16 16 16 16 3 10 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9701-0411
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-0604
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612
10	SCREW; BRKT TO BODY T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9701-0411
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0412-
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	9701-0411
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	0412-
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	9701-0411
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	0412-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	9701-0411
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	0412-
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	9701-0411
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	0412-
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	9701-0411
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	0412-
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	9701-0411
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	0412-
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	9701-0411
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	0412-
16	CLIP; HARNESS (I) ID=12	5-09700-331-0	AR	1	0208-0302
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0303-0411
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0412-
16	CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	0611-
16	CLIP; HARNESS (J) ID=22 & 22	8-94464-837-0	AR	1	0611-
16	CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0611-
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	03	1	9701-0411
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	03	1	0412-0511
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	01	1	0512-0610
264	CLIP; HARNESS,HEADLAMP (B) ID=6 & 10-13 TAI	8-97069-515-0	01	1	0611-
377	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9701-0411
377	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0412-
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	9701-0411
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0412-
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	03	1	9701-0411
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0412-0610
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0611-
514	FINISHER; HARNESS (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9701-0411
514	FINISHER; HARNESS (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0412-0610
514	FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	03	1	0611-
514	FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0208-0411
514	FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0412-0503
514	FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0504-0511
514	FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0504-0511
514	FINISHER; HARNESS 4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0512-0610

483 519 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	9701-0411
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	0412-
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9701-0411
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-0604
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612
10	SCREW; BRKT TO BODY T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-
483	CLIP; ENG HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),POWER STEERING<N40> (B) L=197	1-83574-032-0	01	1	9701-9905
483	CLIP; ENG HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) L=197	1-83574-032-0	01	1	9701-9905
483	CLIP; ENG HARNESS 4JG2 ENG(RJC) (B) L=197	1-83574-032-0	01	1	9906-0207
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (B) L=197	1-83574-032-0	01	1	0208-0411
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (B) L=197	1-83574-032-0	01	1	0412-0511
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (B) L=197	1-83574-032-0	01	1	0512-0610
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (A) ID=16 L=20	9-09525-535-0	01	1	0208-0411
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (A) ID=16 L=20	9-09525-535-0	01	1	0412-0511
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (A) ID=16 L=20	9-09525-535-0	01	1	0512-0606
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (A) ID=16 L=20	0-95235-535-0	01	1	0607-0610
519	NUT; EARTH CABLE M12 FLANGE	0-91150-112-0	01	1	9701-0207

16 488 488 16 16 205 48 142 14 22 48 81 162 220 483 81 6 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=140	5-09707-031-1	02	1	0611-
14	CLIP; BAND,HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) T=6.0	5-09709-024-0	02	1	0611-
14	CLIP; BAND,HARNESS 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=140	5-09707-031-1	01	1	0611-
14	CLIP; BAND,HARNESS 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) T=6.0	5-09709-024-0	01	1	0611-
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9701-0411
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0412-
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	9701-0411
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	0412-
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	9701-0411
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	0412-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	9701-0411
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	0412-
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	9701-0411
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	0412-
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	9701-0411
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	0412-
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	9701-0411
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	0412-
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	9701-0411
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	0412-
16	CLIP; HARNESS (I) ID=12	5-09700-331-0	AR	1	0208-0302
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0303-0411
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0412-
16	CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	0611-
16	CLIP; HARNESS (J) ID=22 & 22	8-94464-837-0	AR	1	0611-
16	CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (B) ID=6 & 8.3	8-94167-742-0	01	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (D) ID=12 & 6.8	8-97125-842-0	01	1	0611-
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0412-
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	0412-
48	CLIP; FRAME HARNESS (D) ID=28 L=32	1-09701-064-1	AR	1	9701-9905
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0412-
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	AR	1	9701-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-0	AR	1	9701-
48	CLIP; FRAME HARNESS (G) T=5.5	5-09709-047-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	0412-
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9701-0411
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0412-
48	CLIP; FRAME HARNESS (K) ID=19 L=60	9-09525-893-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0412-
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0412-
48	CLIP; FRAME HARNESS (N) ID=40 L=90	1-09701-290-0	AR	1	0611-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	0611-
81	CLIP; HARNESS 4JH1 ENG(RJX) (A) ID=14 L=47	5-09700-319-0	01	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (A) ID=14 L=47	5-09700-319-0	01	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (A) ID=14 L=47	5-09700-319-0	01	1	0512-0610
81	CLIP; HARNESS 4JH1 ENG(RJX) (B) L=140	5-09707-031-1	02	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (B) L=140	5-09707-031-1	02	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (B) L=140	5-09707-031-1	02	1	0512-0610
81	CLIP; HARNESS 4JH1 ENG(RJX) (C) T=4.5 & 9	5-09709-023-0	01	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (C) T=4.5 & 9	5-09709-023-0	01	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (C) T=4.5 & 9	5-09709-023-0	01	1	0512-0610
81	CLIP; HARNESS 4JH1 ENG(RJX) (D) L=330 USA	5-09709-118-0	01	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (D) L=330 USA	5-09709-118-0	01	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (D) L=330 USA	5-09709-118-0	01	1	0512-0610
142	CLIP; HARNESS,ENG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=170.3	1-09987-182-0	01	1	0611-
162	CLIP; SW HARNESS 4JH1 ENG(RJX) L=140	5-09707-031-1	01	1	0208-0411
162	CLIP; SW HARNESS 4JH1 ENG(RJX) L=140	5-09707-031-1	01	1	0412-0511
162	CLIP; SW HARNESS 4JH1-TC ENG(RDM) L=140	5-09707-031-1	01	1	0512-0610
162	CLIP; SW HARNESS 4JJ1 ENG(LFB) L=140	5-09707-031-1	01	1	0611-
205	CLIP; BACK LAMP HARNESS 4JH1 ENG(RJX) L=135	1-09987-143-1	01	1	0208-0411
205	CLIP; BACK LAMP HARNESS 4JH1 ENG(RJX) L=135	1-09987-143-1	01	1	0412-0511
205	CLIP; BACK LAMP HARNESS 4JH1-TC ENG(RDM) L=135	1-09987-143-1	01	1	0512-0610
205	CLIP; BACK LAMP HARNESS 4JJ1 ENG(LFB) L=135	1-09987-143-1	01	1	0611-0611
205	CLIP; BACK LAMP HARNESS 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=135	1-09987-143-1	01	1	0611-
220	CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) L=140	5-09707-031-1	01	1	0306-0411
220	CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) L=140	5-09707-031-1	01	1	0412-0511
220	CLIP; HARNESS TO CABLE 4JH1-TC ENG(RDM) L=140	5-09707-031-1	01	1	0512-0610
483	CLIP; ENG HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),POWER STEERING<N40> (B) L=197	1-83574-032-0	01	1	9701-9905
483	CLIP; ENG HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) L=197	1-83574-032-0	01	1	9701-9905
483	CLIP; ENG HARNESS 4JG2 ENG(RJC) (B) L=197	1-83574-032-0	01	1	9906-0207
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (B) L=197	1-83574-032-0	01	1	0208-0411
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (B) L=197	1-83574-032-0	01	1	0412-0511
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (B) L=197	1-83574-032-0	01	1	0512-0610
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (A) ID=16 L=20	9-09525-535-0	01	1	0208-0411
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (A) ID=16 L=20	9-09525-535-0	01	1	0412-0511
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (A) ID=16 L=20	9-09525-535-0	01	1	0512-0606
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (A) ID=16 L=20	0-95235-535-0	01	1	0607-0610
488	CLIP; CABLE,TRAILER (B) L=112 USA	8-94232-618-0	04	1	9701-9704
488	CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) (B) L=112 USA	8-94232-618-0	04	1	9705-0112
488	CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (A) L=250 TAI	5-09707-030-1	01	1	9705-0411
488	CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (A) L=250 TAI	5-09707-030-1	01	1	0412-
488	CLIP; CABLE,TRAILER (A) L=250 TAI	5-09707-030-1	01	1	0412-

208 16 48 52 1 48 48 48 48 208 16 49 48 81 48 8 48 48 30 48 6 483 3 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	9701-0411
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	0412-
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9701-0411
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0412-
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	9701-0411
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	0412-
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	9701-0411
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	0412-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	9701-0411
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	0412-
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	9701-0411
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	0412-
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	9701-0411
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	0412-
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	9701-0411
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	0412-
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	9701-0411
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	0412-
16	CLIP; HARNESS (I) ID=12	5-09700-331-0	AR	1	0208-0302
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0303-0411
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0412-
16	CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	0611-
16	CLIP; HARNESS (J) ID=22 & 22	8-94464-837-0	AR	1	0611-
16	CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0611-
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0412-
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	0412-
48	CLIP; FRAME HARNESS (D) ID=28 L=32	1-09701-064-1	AR	1	9701-9905
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0412-
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	AR	1	9701-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-0	AR	1	9701-
48	CLIP; FRAME HARNESS (G) T=5.5	5-09709-047-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	0412-
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9701-0411
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0412-
48	CLIP; FRAME HARNESS (K) ID=19 L=60	9-09525-893-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0412-
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0412-
48	CLIP; FRAME HARNESS (N) ID=40 L=90	1-09701-290-0	AR	1	0611-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	0611-
49	CLIP; GEN HARNESS 4JH1 ENG(RJX) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0208-0411
49	CLIP; GEN HARNESS 4JH1 ENG(RJX) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0412-0511
49	CLIP; GEN HARNESS 4JH1-TC ENG(RDM) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0512-0610
52	CLIP; HARNESS TO BRKT ID=14 L=47	5-09700-319-0	01	1	0412-
81	CLIP; HARNESS 4JH1 ENG(RJX) (A) ID=14 L=47	5-09700-319-0	01	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (A) ID=14 L=47	5-09700-319-0	01	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (A) ID=14 L=47	5-09700-319-0	01	1	0512-0610
81	CLIP; HARNESS 4JH1 ENG(RJX) (B) L=140	5-09707-031-1	02	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (B) L=140	5-09707-031-1	02	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (B) L=140	5-09707-031-1	02	1	0512-0610
81	CLIP; HARNESS 4JH1 ENG(RJX) (C) T=4.5 & 9	5-09709-023-0	01	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (C) T=4.5 & 9	5-09709-023-0	01	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (C) T=4.5 & 9	5-09709-023-0	01	1	0512-0610
81	CLIP; HARNESS 4JH1 ENG(RJX) (D) L=330 USA	5-09709-118-0	01	1	0208-0411
81	CLIP; HARNESS 4JH1 ENG(RJX) (D) L=330 USA	5-09709-118-0	01	1	0412-0511
81	CLIP; HARNESS 4JH1-TC ENG(RDM) (D) L=330 USA	5-09709-118-0	01	1	0512-0610
208	CLIP; HARNESS,MAG VLV (B) T=5.5	5-09709-047-0	01	1	9810-9905
208	CLIP; HARNESS,MAG VLV (A) ID=10	5-09700-318-0	02	1	9810-9905
483	CLIP; ENG HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),POWER STEERING<N40> (B) L=197	1-83574-032-0	01	1	9701-9905
483	CLIP; ENG HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) L=197	1-83574-032-0	01	1	9701-9905
483	CLIP; ENG HARNESS 4JG2 ENG(RJC) (B) L=197	1-83574-032-0	01	1	9906-0207
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (B) L=197	1-83574-032-0	01	1	0208-0411
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (B) L=197	1-83574-032-0	01	1	0412-0511
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (B) L=197	1-83574-032-0	01	1	0512-0610
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (A) ID=16 L=20	9-09525-535-0	01	1	0208-0411
483	CLIP; ENG HARNESS 4JH1 ENG(RJX) (A) ID=16 L=20	9-09525-535-0	01	1	0412-0511
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (A) ID=16 L=20	9-09525-535-0	01	1	0512-0606
483	CLIP; ENG HARNESS 4JH1-TC ENG(RDM) (A) ID=16 L=20	0-95235-535-0	01	1	0607-0610

464 8 16 264 48 16 68 22 68 22 66 16 16 16 16 6 22 16 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	9701-0411
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	0412-
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9701-0411
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0412-
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	9701-0411
16	CLIP; HARNESS (C) ID=14 L=47	5-09700-319-0	AR	1	0412-
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	9701-0411
16	CLIP; HARNESS (A) L=170	5-09707-054-0	AR	1	0412-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	9701-0411
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	AR	1	0412-
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	9701-0411
16	CLIP; HARNESS (F) ID=16.5 & 16.5	8-94468-380-0	AR	1	0412-
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	9701-0411
16	CLIP; HARNESS (G) ID=6 & 10-13 TAI	8-97069-515-0	AR	1	0412-
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	9701-0411
16	CLIP; HARNESS (H) ID=12.5-14.5	8-97087-726-0	AR	1	0412-
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	9701-0411
16	CLIP; HARNESS (D) L=155 TAI	8-97173-307-0	AR	1	0412-
16	CLIP; HARNESS (I) ID=12	5-09700-331-0	AR	1	0208-0302
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0303-0411
16	CLIP; HARNESS (I) ID=12	8-97367-983-0	AR	1	0412-
16	CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	0611-
16	CLIP; HARNESS (J) ID=22 & 22	8-94464-837-0	AR	1	0611-
16	CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (B) ID=6 & 8.3	8-94167-742-0	01	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0611-
22	CLIP; ENG HARNESS 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> (D) ID=12 & 6.8	8-97125-842-0	01	1	0611-
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0412-
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	AR	1	0412-
48	CLIP; FRAME HARNESS (D) ID=28 L=32	1-09701-064-1	AR	1	9701-9905
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0412-
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	AR	1	9701-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-0	AR	1	9701-
48	CLIP; FRAME HARNESS (G) T=5.5	5-09709-047-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	9701-0411
48	CLIP; FRAME HARNESS (J) ID=9	8-97063-874-0	AR	1	0412-
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9701-0411
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0412-
48	CLIP; FRAME HARNESS (K) ID=19 L=60	9-09525-893-0	AR	1	9701-0207
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (M) ID=32 L=35	1-09701-244-0	AR	1	0412-
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0208-0411
48	CLIP; FRAME HARNESS (L) T=4.5 & 9	5-09709-023-0	AR	1	0412-
48	CLIP; FRAME HARNESS (N) ID=40 L=90	1-09701-290-0	AR	1	0611-
48	CLIP; FRAME HARNESS (I) ID=20	5-09700-321-0	AR	1	0611-
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	03	1	9701-0411
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	03	1	0412-0511
264	CLIP; HARNESS,HEADLAMP (A) ID=10 & 16	8-94413-325-0	01	1	0512-0610
264	CLIP; HARNESS,HEADLAMP (B) ID=6 & 10-13 TAI	8-97069-515-0	01	1	0611-
464	CLIP; SEDIMENTER HARNESS ID=6.5	8-94257-639-0	01	1	9701-0411
464	CLIP; SEDIMENTER HARNESS ID=6.5	8-94257-639-0	01	1	0412-0610

7 7 2 2 31 31 31 21 53 53 31 53 180 53 53 178 412 412 510 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GROMMET; CLIP HOLE,HARNESS (A) OD=48 T=9.1	8-94279-053-0	01	1	9701-
2	GROMMET; CLIP HOLE,HARNESS (B)	8-94279-736-0	01	1	9701-
7	BRACKET; CONNECTOR (A) TAI	8-97102-247-2	01	1	9701-9905
7	BRACKET; CONNECTOR (A) TAI	8-97966-957-0	01	1	9906-0411
7	BRACKET; CONNECTOR (A) TAI	8-97966-957-0	01	1	0412-
7	BRACKET; CONNECTOR 4JJ1 ENG(LFB) (B)	8-98019-630-0	01	1	0611-
7	BRACKET; CONNECTOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	8-98019-631-0	01	1	0611-
21	BRACKET; ENG HARNESS 4JJ1 ENG(LFB)	8-98019-634-0	01	1	0611-
31	BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9701-9707
31	BRACKET; HARNESS CLIP,PIPE (A) TAI	8-97965-886-0	01	1	9708-0610
31	BRACKET; HARNESS CLIP,PIPE (D) TAI	8-97967-569-0	01	1	0611-
31	BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9701-9707
31	BRACKET; HARNESS CLIP,PIPE (B) TAI	8-97965-887-0	02	1	9708-0610
31	BRACKET; HARNESS CLIP,PIPE (C) TAI	8-97362-859-0	03	1	0412-0610
31	BRACKET; HARNESS CLIP,PIPE (C) TAI	8-97967-566-0	02	1	0611-
53	BRACKET; HARNESS (C) TAI	8-97967-567-0	01	1	0611-
53	BRACKET; HARNESS 4JJ1 ENG(LFB) (E)	8-98026-091-0	01	1	0611-
53	BRACKET; HARNESS 4JJ1 ENG(LFB) (A)	8-98028-248-0	01	1	0611-
53	BRACKET; HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97373-532-2	01	1	0611-0611
53	BRACKET; HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98018-899-1	01	1	0612-
53	BRACKET; HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98030-988-2	01	1	0611-
178	GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9701-0411
178	GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0412-
180	COVER; HARNESS	8-97856-130-4	02	1	9701-0411
180	COVER; HARNESS	8-97856-130-4	02	1	0412-
412	BRACKET; HARNESS,TRANS 4JH1 ENG(RJX) (A) TAI	8-97324-451-1	01	1	0208-0411
412	BRACKET; HARNESS,TRANS 4JH1 ENG(RJX) (A) TAI	8-97324-451-1	01	1	0412-0511
412	BRACKET; HARNESS,TRANS 4JH1-TC ENG(RDM) (A) TAI	8-97324-451-1	01	1	0512-0610
412	BRACKET; HARNESS,TRANS 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) TAI	8-97324-451-1	01	1	0611-
412	BRACKET; HARNESS,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97369-191-3	01	1	0611-
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	9701-0411
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	0412-
512	PROTECTOR; HARNESS	8-97072-950-0	02	1	9701-0411
512	PROTECTOR; HARNESS	8-97072-950-0	02	1	0412-

8 60 8 10 8 10 527 7 8 514 7 514 504 514 513 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR (A) TAI	8-97102-247-2	01	1	9701-9905
7	BRACKET; CONNECTOR (A) TAI	8-97966-957-0	01	1	9906-0411
7	BRACKET; CONNECTOR (A) TAI	8-97966-957-0	01	1	0412-
7	BRACKET; CONNECTOR 4JJ1 ENG(LFB) (B)	8-98019-630-0	01	1	0611-
7	BRACKET; CONNECTOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	8-98019-631-0	01	1	0611-
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	9701-0411
8	BOLT; BRKT,CONNECTOR (B) M8X29.5 W/LK+PL WASHER TAI	8-94279-209-0	03	1	0412-
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9701-0411
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0412-0604
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612
10	SCREW; BRKT TO BODY T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-
504	PROTECTOR; HARNESS L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9701-9905
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	9906-0411
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	0412-
513	TAPE; SOFT,HARNESS 50X45	8-94232-630-0	01	1	9701-0411
513	TAPE; SOFT,HARNESS 50X45	8-94232-630-0	01	1	0412-
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	9701-0411
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0412-
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	03	1	9701-0411
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0412-0610
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0611-
514	FINISHER; HARNESS (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9701-0411
514	FINISHER; HARNESS (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0412-0610
514	FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	03	1	0611-
514	FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0208-0411
514	FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0412-0503
514	FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0504-0511
514	FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0504-0511
514	FINISHER; HARNESS 4JH1-TC ENG(RDM) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0512-0610
527	TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	9701-0411
527	TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	0412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
