◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#139141) — 355 parça

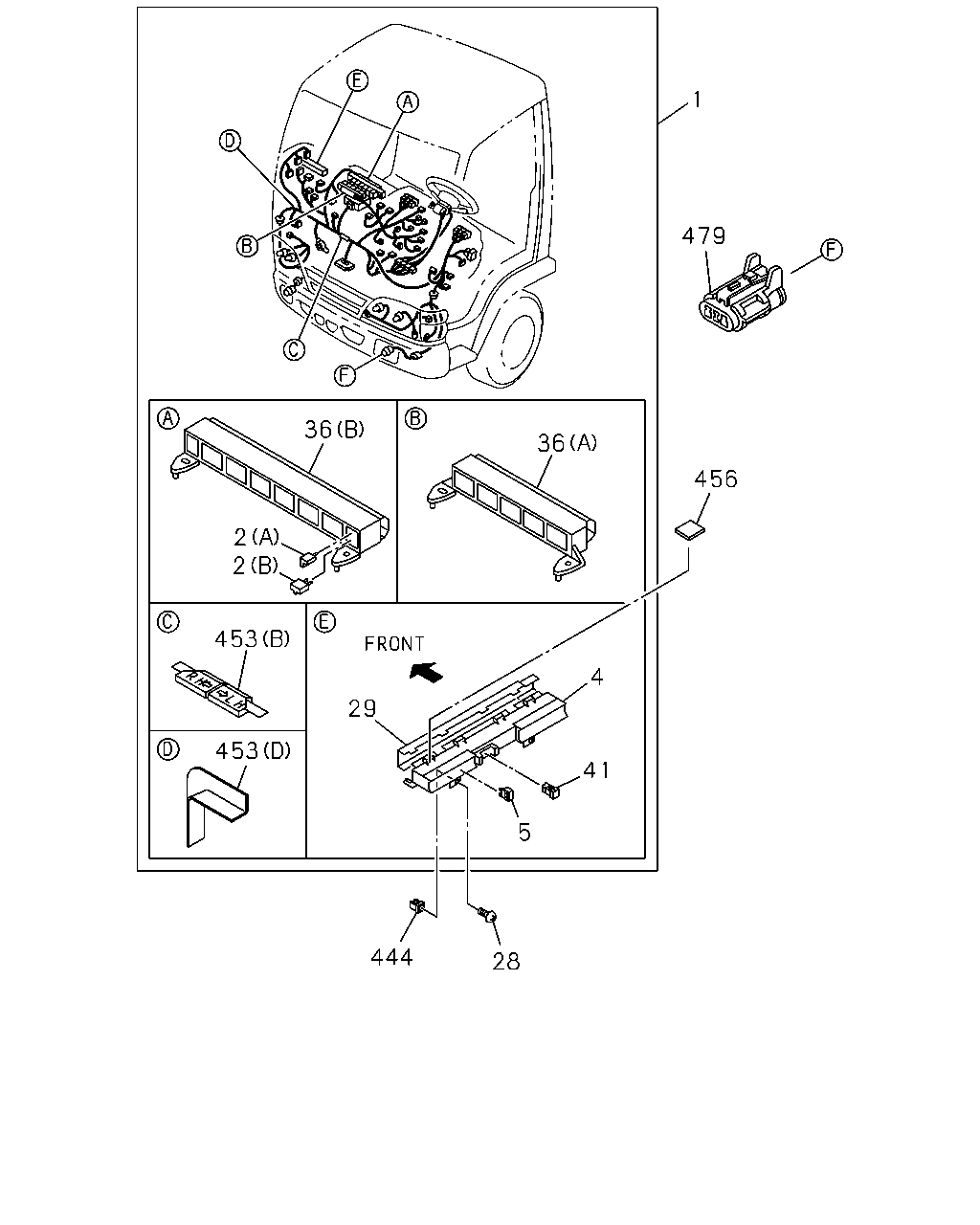

çizim 420575
1 479 36 36 456 2 2 453 4 29 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
TAI 		8-97965-401-1 01 1 9701-9809
1 HARNESS; CAB
TAI 		8-97966-848-0 01 1 9810-9905
1 HARNESS; CAB
TAI 		8-97966-640-1 01 1 9906-0207
1 HARNESS; CAB
4JH1 ENG(RJX) TAI 		8-97967-311-2 01 1 0208-0411
1 HARNESS; CAB
4JH1 ENG(RJX) TAI 		8-97967-311-2 01 1 0412-0511
1 HARNESS; CAB
4JH1-TC ENG(RDM) TAI 		8-97967-462-1 01 1 0512-0610
1 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-516-0 01 1 0611-
1 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-515-0 01 1 0611-
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A TAI 		8-94422-639-1 AR 1 9701-0411
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A TAI 		8-94422-639-1 AR 1 0412-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A TAI 		8-94422-640-2 AR 1 9701-0411
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A TAI 		8-94422-640-2 AR 1 0412-
4 BOX ASM; FUSE,HARNESS
TAI 		8-97077-664-0 01 1 9701-0207
4 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) TAI 		8-97214-415-0 01 1 0208-0411
4 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) TAI 		8-97214-415-0 01 1 0412-0511
4 BOX ASM; FUSE,HARNESS
4JH1-TC ENG(RDM) TAI 		8-97187-921-1 01 1 0512-0610
4 BOX ASM; FUSE,HARNESS
4JJ1 ENG(LFB) TAI 		8-97187-921-1 01 1 0611-
5 FUSE; FACIA HARNESS
10A RED TAI 		5-82516-002-0 AR 1 9701-0411
5 FUSE; FACIA HARNESS
10A RED TAI 		5-82516-002-0 AR 1 0412-0511
5 FUSE; FACIA HARNESS
15A BLUE TAI 		5-82516-003-0 AR 1 9701-0411
5 FUSE; FACIA HARNESS
15A BLUE TAI 		5-82516-003-0 AR 1 0412-0511
5 FUSE; FACIA HARNESS
25A CLEAR TAI 		5-82516-005-0 AR 1 9701-0411
5 FUSE; FACIA HARNESS
25A CLEAR TAI 		5-82516-005-0 AR 1 0412-0511
5 FUSE; FACIA HARNESS
10A MINI RED USA 		8-97062-022-0 AR 1 0512-
5 FUSE; FACIA HARNESS
15A MINI BLUE USA 		8-97062-023-0 AR 1 0512-
5 FUSE; FACIA HARNESS
30A PINK 		8-97183-643-0 AR 1 0512-0610
5 FUSE; FACIA HARNESS
20A MINI YELLOW USA 		8-97062-024-0 AR 1 0611-
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9701-0411
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0412-0604
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612
28 SCREW; FUSE BOX
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-
29 COVER; FUSE BOX
TAI 		8-97074-955-0 01 1 9709-0207
29 COVER; FUSE BOX
4JH1-TC ENG(RDM) TAI 		8-97074-955-0 01 1 0512-0610
29 COVER; FUSE BOX
4JJ1 ENG(LFB) TAI 		8-97074-955-0 01 1 0611-
36 BOX; RELAY
(A) TAI 		8-97087-638-1 01 1 9701-0207
36 BOX; RELAY
4JH1 ENG(RJX) (A) TAI 		8-97087-640-1 01 1 0208-0411
36 BOX; RELAY
4JH1 ENG(RJX) (A) TAI 		8-97087-640-1 01 1 0412-0511
36 BOX; RELAY
4JH1-TC ENG(RDM) (A) TAI 		8-97087-640-2 01 1 0512-0610
36 BOX; RELAY
4JJ1 ENG(LFB) (A) TAI 		8-97087-640-2 01 1 0611-
36 BOX; RELAY
(B) TAI 		8-97087-639-1 01 1 9701-0207
36 BOX; RELAY
4JH1 ENG(RJX) (B) TAI 		8-97087-639-1 01 1 0208-0411
36 BOX; RELAY
4JH1 ENG(RJX) (B) TAI 		8-97087-639-1 01 1 0412-0511
36 BOX; RELAY
4JH1-TC ENG(RDM) (B) TAI 		8-97187-918-1 01 1 0512-0610
36 BOX; RELAY
4JJ1 ENG(LFB) (B) TAI 		8-97187-918-1 01 1 0611-
41 PULLER; FUSE
L=25.3 B=11.5 TAI 		8-94121-482-0 01 1 9701-0207
41 PULLER; FUSE
4JH1 ENG(RJX) L=25.3 B=11.5 TAI 		8-94121-482-0 01 1 0208-0411
41 PULLER; FUSE
4JH1 ENG(RJX) L=25.3 B=11.5 TAI 		8-94121-482-0 01 1 0412-0511
41 PULLER; FUSE
4JH1-TC ENG(RDM) USA 		8-97103-388-0 01 1 0512-0610
41 PULLER; FUSE
4JJ1 ENG(LFB) USA 		8-97103-388-0 01 1 0611-
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 02 1 9701-0411
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 02 1 0412-
453 PROTECTOR; HARNESS
(B) TAI 		8-97074-957-0 01 1 9701-0207
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) TAI 		8-97074-957-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) TAI 		8-97074-957-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) TAI 		8-97074-957-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (B) TAI 		8-97074-957-0 01 1 0611-
453 PROTECTOR; HARNESS
(C) TAI 		8-97120-589-0 01 1 9701-0207
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) TAI 		8-97120-589-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) TAI 		8-97120-589-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) TAI 		8-97120-589-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) TAI 		8-94482-169-0 01 1 0611-
453 PROTECTOR; HARNESS
(A) TAI 		8-97093-668-1 01 1 9906-0003
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) TAI 		8-94452-553-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) TAI 		8-94452-553-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (D) TAI 		8-94452-553-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (D) TAI 		8-94452-553-0 01 1 0611-
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) TAI 		8-97093-668-1 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) TAI 		8-97093-668-1 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) TAI 		8-97093-668-1 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (F) TAI 		8-94417-716-0 01 1 0611-
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) TAI 		8-94482-169-0 02 1 0412-0511
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9701-0411
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0412-
479 CAP; CONNECTOR
EXC. FOG LAMP<T96> USA 		8-94443-789-0 02 1 0208-0411
479 CAP; CONNECTOR
EXC. FOG LAMP<T96> USA 		8-94443-789-0 02 1 0412-

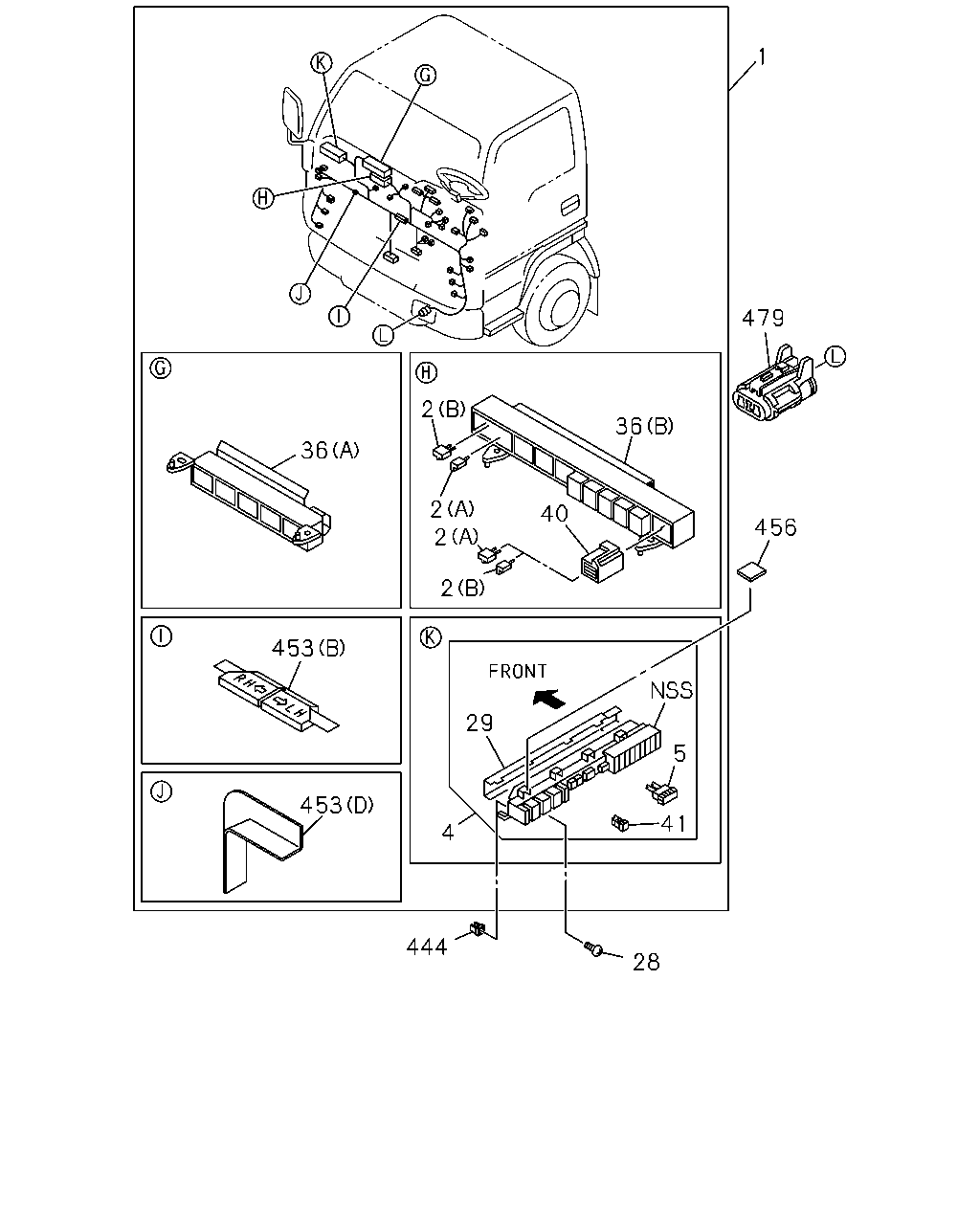

çizim 420584
1 479 2 36 36 2 2 40 456 2 453 29 5 453 41 4 444 28
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
TAI 		8-97965-401-1 01 1 9701-9809
1 HARNESS; CAB
TAI 		8-97966-848-0 01 1 9810-9905
1 HARNESS; CAB
TAI 		8-97966-640-1 01 1 9906-0207
1 HARNESS; CAB
4JH1 ENG(RJX) TAI 		8-97967-311-2 01 1 0208-0411
1 HARNESS; CAB
4JH1 ENG(RJX) TAI 		8-97967-311-2 01 1 0412-0511
1 HARNESS; CAB
4JH1-TC ENG(RDM) TAI 		8-97967-462-1 01 1 0512-0610
1 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-516-0 01 1 0611-
1 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-515-0 01 1 0611-
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A TAI 		8-94422-639-1 AR 1 9701-0411
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A TAI 		8-94422-639-1 AR 1 0412-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A TAI 		8-94422-640-2 AR 1 9701-0411
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A TAI 		8-94422-640-2 AR 1 0412-
4 BOX ASM; FUSE,HARNESS
TAI 		8-97077-664-0 01 1 9701-0207
4 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) TAI 		8-97214-415-0 01 1 0208-0411
4 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) TAI 		8-97214-415-0 01 1 0412-0511
4 BOX ASM; FUSE,HARNESS
4JH1-TC ENG(RDM) TAI 		8-97187-921-1 01 1 0512-0610
4 BOX ASM; FUSE,HARNESS
4JJ1 ENG(LFB) TAI 		8-97187-921-1 01 1 0611-
5 FUSE; FACIA HARNESS
10A RED TAI 		5-82516-002-0 AR 1 9701-0411
5 FUSE; FACIA HARNESS
10A RED TAI 		5-82516-002-0 AR 1 0412-0511
5 FUSE; FACIA HARNESS
15A BLUE TAI 		5-82516-003-0 AR 1 9701-0411
5 FUSE; FACIA HARNESS
15A BLUE TAI 		5-82516-003-0 AR 1 0412-0511
5 FUSE; FACIA HARNESS
25A CLEAR TAI 		5-82516-005-0 AR 1 9701-0411
5 FUSE; FACIA HARNESS
25A CLEAR TAI 		5-82516-005-0 AR 1 0412-0511
5 FUSE; FACIA HARNESS
10A MINI RED USA 		8-97062-022-0 AR 1 0512-
5 FUSE; FACIA HARNESS
15A MINI BLUE USA 		8-97062-023-0 AR 1 0512-
5 FUSE; FACIA HARNESS
30A PINK 		8-97183-643-0 AR 1 0512-0610
5 FUSE; FACIA HARNESS
20A MINI YELLOW USA 		8-97062-024-0 AR 1 0611-
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9701-0411
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0412-0604
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612
28 SCREW; FUSE BOX
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-
29 COVER; FUSE BOX
TAI 		8-97074-955-0 01 1 9709-0207
29 COVER; FUSE BOX
4JH1-TC ENG(RDM) TAI 		8-97074-955-0 01 1 0512-0610
29 COVER; FUSE BOX
4JJ1 ENG(LFB) TAI 		8-97074-955-0 01 1 0611-
36 BOX; RELAY
(A) TAI 		8-97087-638-1 01 1 9701-0207
36 BOX; RELAY
4JH1 ENG(RJX) (A) TAI 		8-97087-640-1 01 1 0208-0411
36 BOX; RELAY
4JH1 ENG(RJX) (A) TAI 		8-97087-640-1 01 1 0412-0511
36 BOX; RELAY
4JH1-TC ENG(RDM) (A) TAI 		8-97087-640-2 01 1 0512-0610
36 BOX; RELAY
4JJ1 ENG(LFB) (A) TAI 		8-97087-640-2 01 1 0611-
36 BOX; RELAY
(B) TAI 		8-97087-639-1 01 1 9701-0207
36 BOX; RELAY
4JH1 ENG(RJX) (B) TAI 		8-97087-639-1 01 1 0208-0411
36 BOX; RELAY
4JH1 ENG(RJX) (B) TAI 		8-97087-639-1 01 1 0412-0511
36 BOX; RELAY
4JH1-TC ENG(RDM) (B) TAI 		8-97187-918-1 01 1 0512-0610
36 BOX; RELAY
4JJ1 ENG(LFB) (B) TAI 		8-97187-918-1 01 1 0611-
40 BOX; DIODE
4JJ1 ENG(LFB) BLACK 8P TAI 		8-97078-064-1 01 1 0611-
41 PULLER; FUSE
L=25.3 B=11.5 TAI 		8-94121-482-0 01 1 9701-0207
41 PULLER; FUSE
4JH1 ENG(RJX) L=25.3 B=11.5 TAI 		8-94121-482-0 01 1 0208-0411
41 PULLER; FUSE
4JH1 ENG(RJX) L=25.3 B=11.5 TAI 		8-94121-482-0 01 1 0412-0511
41 PULLER; FUSE
4JH1-TC ENG(RDM) USA 		8-97103-388-0 01 1 0512-0610
41 PULLER; FUSE
4JJ1 ENG(LFB) USA 		8-97103-388-0 01 1 0611-
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 02 1 9701-0411
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 02 1 0412-
453 PROTECTOR; HARNESS
(B) TAI 		8-97074-957-0 01 1 9701-0207
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) TAI 		8-97074-957-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) TAI 		8-97074-957-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) TAI 		8-97074-957-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (B) TAI 		8-97074-957-0 01 1 0611-
453 PROTECTOR; HARNESS
(C) TAI 		8-97120-589-0 01 1 9701-0207
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) TAI 		8-97120-589-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) TAI 		8-97120-589-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) TAI 		8-97120-589-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) TAI 		8-94482-169-0 01 1 0611-
453 PROTECTOR; HARNESS
(A) TAI 		8-97093-668-1 01 1 9906-0003
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) TAI 		8-94452-553-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) TAI 		8-94452-553-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (D) TAI 		8-94452-553-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (D) TAI 		8-94452-553-0 01 1 0611-
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) TAI 		8-97093-668-1 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) TAI 		8-97093-668-1 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) TAI 		8-97093-668-1 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (F) TAI 		8-94417-716-0 01 1 0611-
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) TAI 		8-94482-169-0 02 1 0412-0511
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9701-0411
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0412-
479 CAP; CONNECTOR
EXC. FOG LAMP<T96> USA 		8-94443-789-0 02 1 0208-0411
479 CAP; CONNECTOR
EXC. FOG LAMP<T96> USA 		8-94443-789-0 02 1 0412-

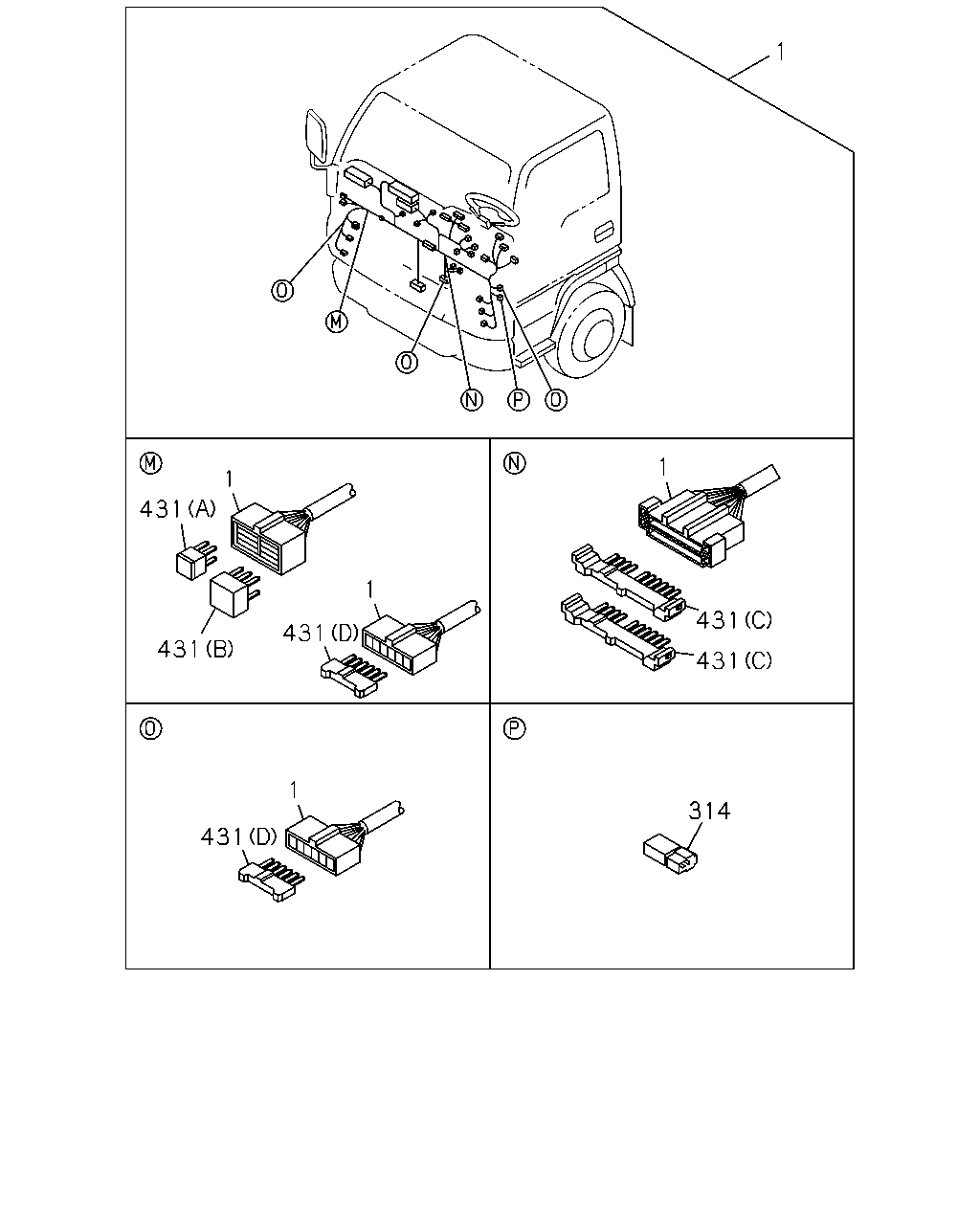

çizim 420585
1 1 1 431 1 431 431 431 431 1 314 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
TAI 		8-97965-401-1 01 1 9701-9809
1 HARNESS; CAB
TAI 		8-97966-848-0 01 1 9810-9905
1 HARNESS; CAB
TAI 		8-97966-640-1 01 1 9906-0207
1 HARNESS; CAB
4JH1 ENG(RJX) TAI 		8-97967-311-2 01 1 0208-0411
1 HARNESS; CAB
4JH1 ENG(RJX) TAI 		8-97967-311-2 01 1 0412-0511
1 HARNESS; CAB
4JH1-TC ENG(RDM) TAI 		8-97967-462-1 01 1 0512-0610
1 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-516-0 01 1 0611-
1 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-515-0 01 1 0611-
314 RESISTOR; HARNESS
4JJ1 ENG(LFB) BLUE TAI 		1-82691-204-0 02 1 0611-
431 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 10P GREEN TAI 		1-82699-599-0 02 1 0512-0610
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (C) 10P GREEN TAI 		1-82699-599-0 02 1 0611-
431 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 4P TAI 		8-97077-939-0 02 1 0512-0610
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (A) 4P TAI 		8-97077-939-0 01 1 0611-
431 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 6P TAI 		8-97077-941-0 02 1 0512-0610
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (B) 6P TAI 		8-97077-941-0 01 1 0611-
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (D) 3P & 3P TAI 		1-82698-170-0 03 1 0611-
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (E) 6P TAI 		8-97381-428-0 02 1 0611-

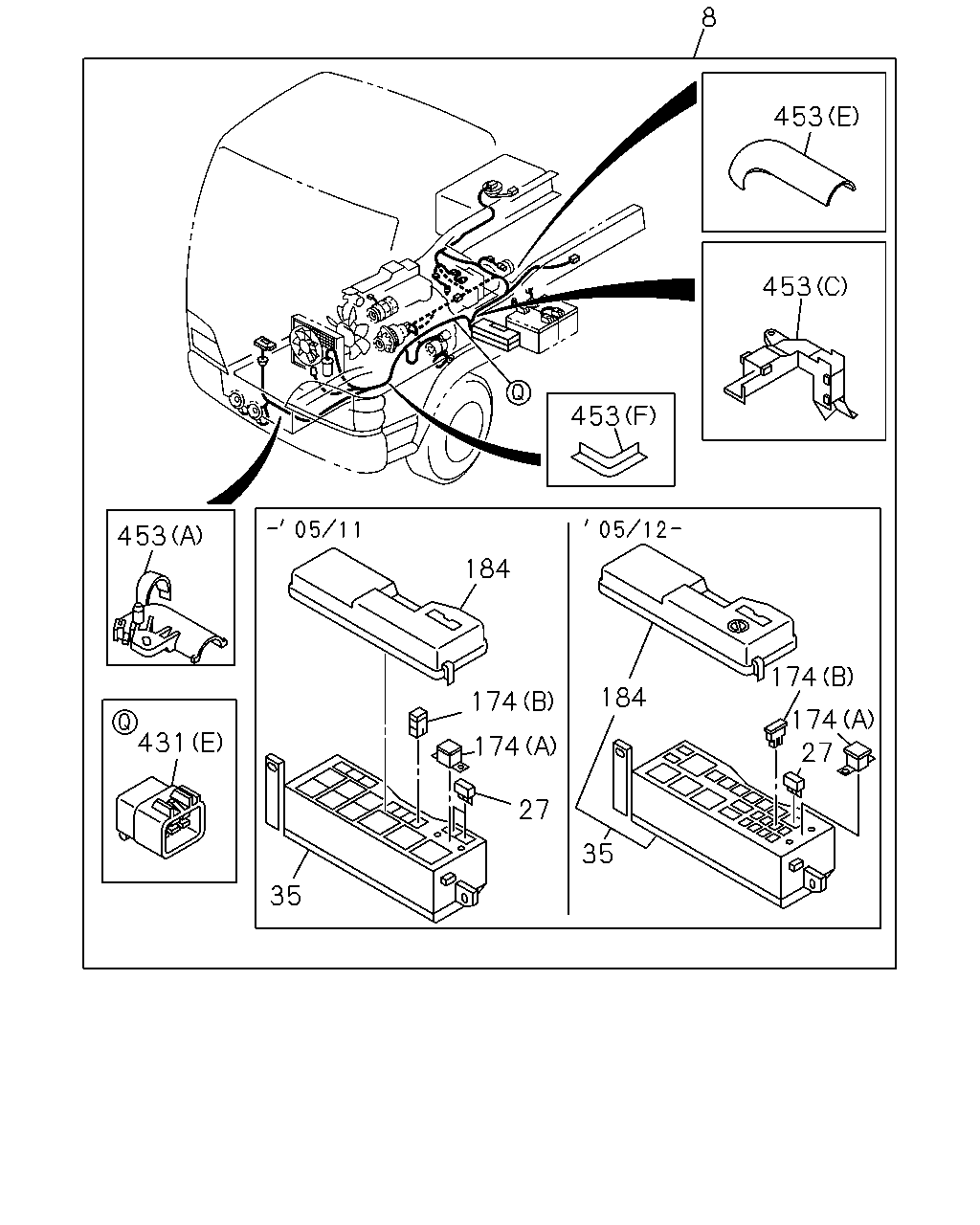

çizim 420591
8 453 453 453 453 184 174 184 174 174 27 431 174 27 35 35
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
TAI 		8-97965-402-0 01 1 9701-9809
8 HARNESS; FRAME,FRT
TAI 		8-97966-849-0 01 1 9810-9905
8 HARNESS; FRAME,FRT
TAI 		8-97967-060-2 01 1 9906-0207
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-312-1 01 1 0208-0305
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-422-0 01 1 0306-0309
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-425-0 01 1 0310-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-463-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-518-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-517-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-427-0 01 1 0412-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-464-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-520-3 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-519-3 01 1 0611-
27 FUSE UNIT
10A RED TAI 		5-82516-002-0 01 1 9701-0006
27 FUSE UNIT
15A BLUE TAI 		5-82516-003-0 01 1 0007-0207
27 FUSE UNIT
4JH1 ENG(RJX) 15A BLUE TAI 		5-82516-003-0 01 1 0208-0411
27 FUSE UNIT
4JH1 ENG(RJX) 15A BLUE TAI 		5-82516-003-0 01 1 0412-0511
27 FUSE UNIT
4JH1-TC ENG(RDM) 15A MINI BLUE USA 		8-97062-023-0 01 1 0512-0610
27 FUSE UNIT
4JJ1 ENG(LFB) 15A MINI BLUE USA 		8-97062-023-0 01 1 0611-
27 FUSE UNIT
4JJ1 ENG(LFB) 10A MINI RED USA 		8-97062-022-0 01 1 0611-
35 BOX; RELAY & FUSE
TAI 		8-97063-150-1 01 1 9701-0207
35 BOX; RELAY & FUSE
4JH1 ENG(RJX) TAI 		8-97063-150-1 01 1 0208-0411
35 BOX; RELAY & FUSE
4JH1 ENG(RJX) TAI 		8-97063-150-1 01 1 0412-0511
35 BOX; RELAY & FUSE
4JH1-TC ENG(RDM) TAI 		8-97377-739-0 01 1 0512-0610
35 BOX; RELAY & FUSE
4JJ1 ENG(LFB) TAI 		8-97377-739-0 01 1 0611-
174 FUSE; SLOW BLOW
(A) 80A BLACK TAI 		8-94388-305-1 AR 1 9701-0411
174 FUSE; SLOW BLOW
(A) 80A BLACK TAI 		8-94388-305-1 AR 1 0412-0511
174 FUSE; SLOW BLOW
(B) 50A RED TAI 		8-94468-663-0 AR 1 9701-0411
174 FUSE; SLOW BLOW
(B) 50A RED TAI 		8-94468-663-0 AR 1 0412-0511
174 FUSE; SLOW BLOW
(B) 60A YELLOW USA 		8-94468-664-0 AR 1 9701-0411
174 FUSE; SLOW BLOW
(B) 60A YELLOW USA 		8-94468-664-0 AR 1 0412-0511
174 FUSE; SLOW BLOW
(A) 100A BLUE USA 		8-94388-306-0 AR 1 0512-
174 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0512-
174 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0512-0610
174 FUSE; SLOW BLOW
(B) 60A YELLOW TAI 		8-97219-407-0 AR 1 0512-
174 FUSE; SLOW BLOW
(B) 40A GREEN TAI 		8-97183-644-0 AR 1 0611-
184 COVER; RELAY & FUSE BOX
TAI 		8-97063-152-1 01 1 9701-0207
184 COVER; RELAY & FUSE BOX
4JH1 ENG(RJX) TAI 		8-97063-152-1 01 1 0208-0411
184 COVER; RELAY & FUSE BOX
4JH1 ENG(RJX) TAI 		8-97063-152-1 01 1 0412-0511
184 COVER; RELAY & FUSE BOX
4JH1-TC ENG(RDM) TAI 		8-97377-741-0 01 1 0512-0610
184 COVER; RELAY & FUSE BOX
4JJ1 ENG(LFB) TAI 		8-97377-741-0 01 1 0611-0611
184 COVER; RELAY & FUSE BOX
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97377-741-0 01 1 0611-0611
184 COVER; RELAY & FUSE BOX
4JJ1 ENG(LFB) TAI 		8-97377-741-0 01 1 0611-
431 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 10P GREEN TAI 		1-82699-599-0 02 1 0512-0610
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (C) 10P GREEN TAI 		1-82699-599-0 02 1 0611-
431 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 4P TAI 		8-97077-939-0 02 1 0512-0610
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (A) 4P TAI 		8-97077-939-0 01 1 0611-
431 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 6P TAI 		8-97077-941-0 02 1 0512-0610
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (B) 6P TAI 		8-97077-941-0 01 1 0611-
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (D) 3P & 3P TAI 		1-82698-170-0 03 1 0611-
431 CONNECTOR; JOINT
4JJ1 ENG(LFB) (E) 6P TAI 		8-97381-428-0 02 1 0611-
453 PROTECTOR; HARNESS
(B) TAI 		8-97074-957-0 01 1 9701-0207
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) TAI 		8-97074-957-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) TAI 		8-97074-957-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) TAI 		8-97074-957-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (B) TAI 		8-97074-957-0 01 1 0611-
453 PROTECTOR; HARNESS
(C) TAI 		8-97120-589-0 01 1 9701-0207
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) TAI 		8-97120-589-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) TAI 		8-97120-589-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) TAI 		8-97120-589-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) TAI 		8-94482-169-0 01 1 0611-
453 PROTECTOR; HARNESS
(A) TAI 		8-97093-668-1 01 1 9906-0003
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) TAI 		8-94452-553-0 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) TAI 		8-94452-553-0 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (D) TAI 		8-94452-553-0 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (D) TAI 		8-94452-553-0 01 1 0611-
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) TAI 		8-97093-668-1 01 1 0208-0411
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) TAI 		8-97093-668-1 01 1 0412-0511
453 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) TAI 		8-97093-668-1 01 1 0512-0610
453 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (F) TAI 		8-94417-716-0 01 1 0611-
453 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) TAI 		8-94482-169-0 02 1 0412-0511

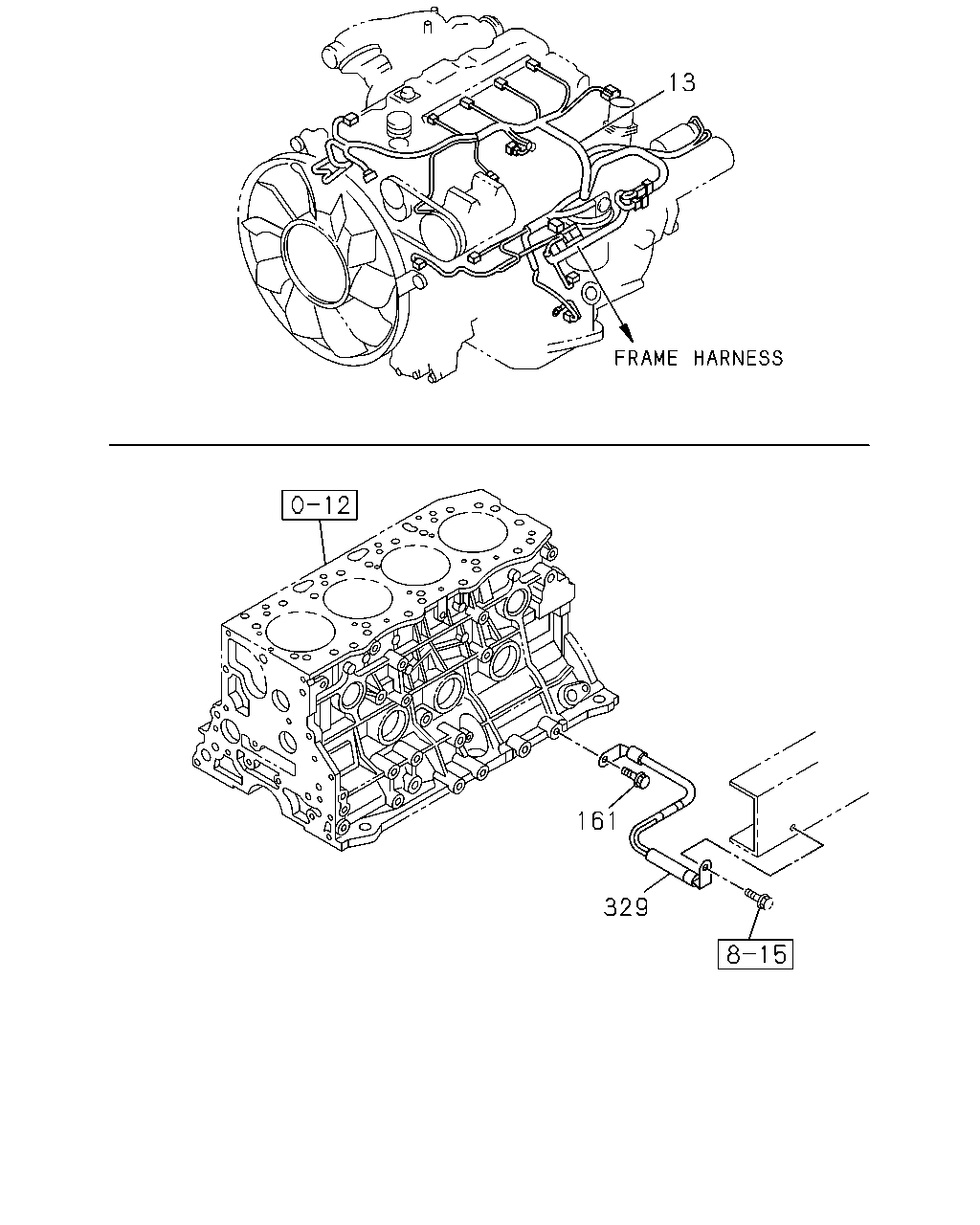

çizim 420592
13 12 161 329 8 15
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
TAI 		8-97965-402-0 01 1 9701-9809
8 HARNESS; FRAME,FRT
TAI 		8-97966-849-0 01 1 9810-9905
8 HARNESS; FRAME,FRT
TAI 		8-97967-060-2 01 1 9906-0207
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-312-1 01 1 0208-0305
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-422-0 01 1 0306-0309
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-425-0 01 1 0310-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-463-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-518-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-517-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-427-0 01 1 0412-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-464-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-520-3 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-519-3 01 1 0611-
13 HARNESS; ENG
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),POWER STEERING<N40> 		8-97121-892-2 01 1 9701-9905
13 HARNESS; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 		8-97121-892-2 01 1 9701-9905
13 HARNESS; ENG
4JG2 ENG(RJC) 		8-97221-976-0 01 1 9906-0207
13 HARNESS; ENG
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 		8-97333-404-1 01 1 0208-0411
13 HARNESS; ENG
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 		8-97333-404-1 01 1 0412-0511
13 HARNESS; ENG
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 		8-97333-404-2 01 1 0512-0610
13 HARNESS; ENG
4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97261-132-5 01 1 0208-0411
13 HARNESS; ENG
4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97261-132-5 01 1 0412-0511
13 HARNESS; ENG
4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97261-132-6 01 1 0512-0610
13 HARNESS; ENG
4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> 		8-97388-800-7 01 1 0611-0703
13 HARNESS; ENG
4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> 		8-98083-034-3 01 1 0704-
161 BOLT; GROUND,HARNESS
4JJ1 ENG(LFB) M10X16 FLANGE 		0-28051-016-0 01 1 0611-
329 CABLE; ENG TO FRAME
TAI 		8-97965-447-0 01 1 9701-0207
329 CABLE; ENG TO FRAME
4JH1 ENG(RJX) TAI 		8-97967-320-0 01 1 0208-0411
329 CABLE; ENG TO FRAME
4JH1 ENG(RJX) TAI 		8-97967-320-0 01 1 0412-0511
329 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) TAI 		8-97967-320-0 01 1 0512-0610
329 CABLE; ENG TO FRAME
4JJ1 ENG(LFB) 		8-98043-362-0 01 1 0611-

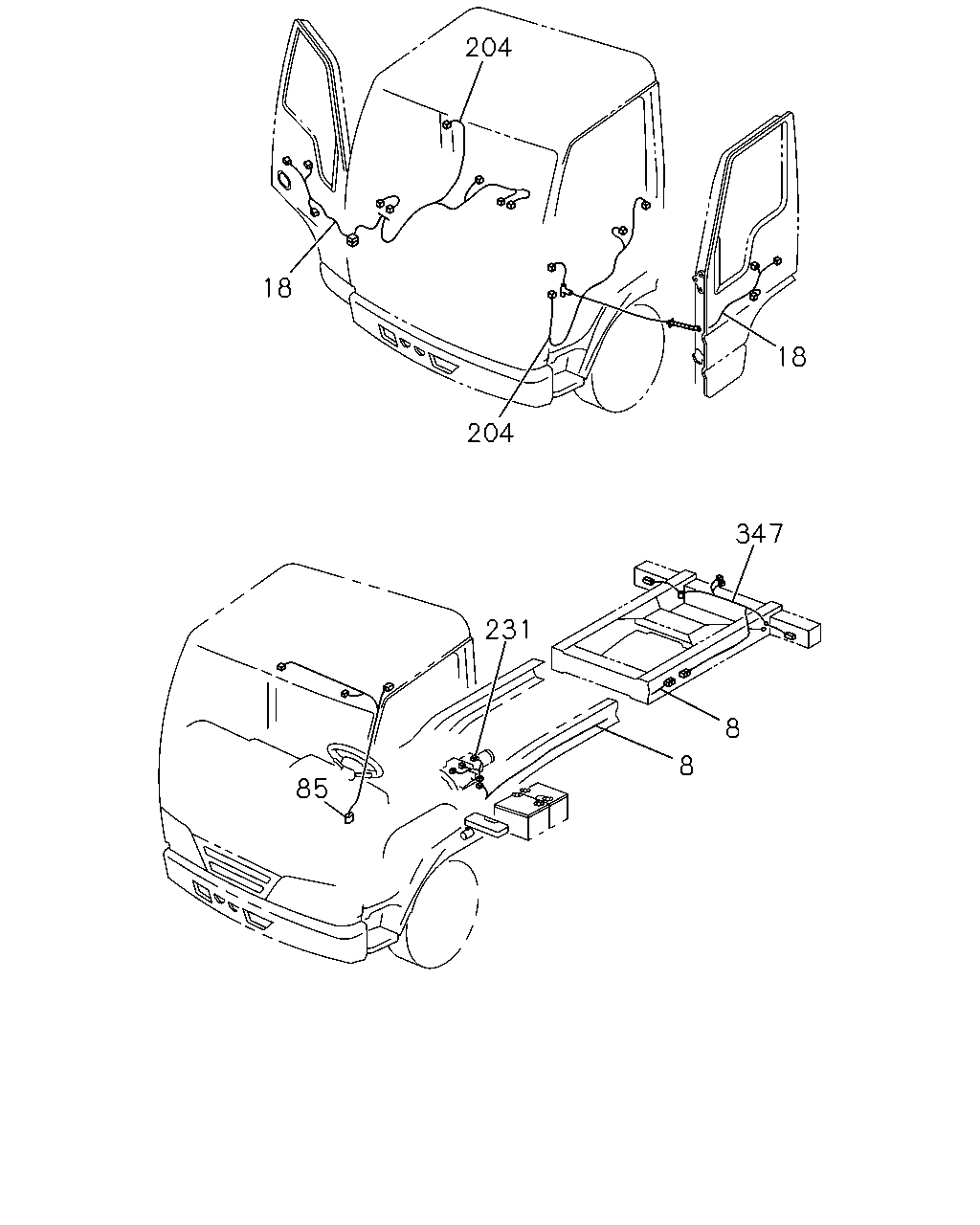

çizim 420670
204 18 18 204 347 231 8 8 85
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
TAI 		8-97965-402-0 01 1 9701-9809
8 HARNESS; FRAME,FRT
TAI 		8-97966-849-0 01 1 9810-9905
8 HARNESS; FRAME,FRT
TAI 		8-97967-060-2 01 1 9906-0207
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-312-1 01 1 0208-0305
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-422-0 01 1 0306-0309
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-425-0 01 1 0310-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-463-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-518-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-517-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-427-0 01 1 0412-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-464-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-520-3 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-519-3 01 1 0611-
18 HARNESS; DOOR
POWER WINDOW<A32> TAI 		8-97965-405-0 01 1 9701-0207
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A32> TAI 		8-97967-313-0 01 1 0208-0411
18 HARNESS; DOOR
POWER WINDOW<A32> TAI 		8-97967-313-0 01 1 0208-0411
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A32> TAI 		8-97967-313-0 01 1 0412-
18 HARNESS; DOOR
POWER WINDOW<A32> TAI 		8-97967-313-0 01 1 0412-
18 HARNESS; DOOR
POWER WINDOW<A32> TAI 		8-97965-406-0 01 1 9701-0207
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A32> TAI 		8-97967-314-0 01 1 0208-0411
18 HARNESS; DOOR
POWER WINDOW<A32> TAI 		8-97967-314-0 01 1 0208-0411
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A32> TAI 		8-97967-314-0 01 1 0412-
18 HARNESS; DOOR
POWER WINDOW<A32> TAI 		8-97967-314-0 01 1 0412-
18 HARNESS; DOOR
EXC. POWER WINDOW<A32> TAI 		8-97965-403-0 01 1 9701-0207
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32> TAI 		8-97965-403-0 01 1 0208-0411
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32> TAI 		8-97965-403-0 01 1 0412-
18 HARNESS; DOOR
EXC. POWER WINDOW<A32> TAI 		8-97965-404-0 01 1 9701-0207
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32> TAI 		8-97965-404-0 01 1 0208-0411
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32> TAI 		8-97965-404-0 01 1 0412-
85 HARNESS; ROOM LAMP
TAI 		8-97164-609-1 01 1 9701-9809
85 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> TAI 		8-97164-609-2 01 1 9810-0610
85 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> TAI 		8-97364-157-0 01 1 0611-
85 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> TAI 		8-97164-610-1 01 1 9810-0207
85 HARNESS; ROOM LAMP
CAB-HIGH ROOF<S2F> TAI 		8-97164-610-2 01 1 0208-0411
85 HARNESS; ROOM LAMP
CAB-HIGH ROOF<S2F> TAI 		8-97164-610-2 01 1 0412-0610
85 HARNESS; ROOM LAMP
TAI 		8-97164-610-2 01 1 0412-0610
85 HARNESS; ROOM LAMP
CAB-HIGH ROOF<S2F> TAI 		8-97364-158-0 01 1 0611-
85 HARNESS; ROOM LAMP
TAI 		8-97364-158-0 01 1 0611-
204 HARNESS; CABLE,FLOOR
DRIVER SIDE TAI 		8-97162-629-2 01 1 9701-0411
204 HARNESS; CABLE,FLOOR
DRIVER SIDE TAI 		8-97162-629-2 01 1 0412-0610
204 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> DRIVER SIDE TAI 		8-97364-140-0 01 1 0611-
204 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER<8GF> ASSIST SIDE TAI 		8-97364-145-0 01 1 0611-
204 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER<8GF> DRIVER SIDE TAI 		8-97373-874-2 01 1 0611-
231 HARNESS; TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97373-511-2 01 1 0611-
347 HARNESS; CABLE,RR BODY
TAI 		8-97147-855-1 01 1 9701-9704
347 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) TAI 		8-97147-855-1 01 1 9705-9905
347 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) TAI 		8-97213-565-0 01 1 9906-0610
347 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) TAI 		8-97364-150-0 01 1 0611-
347 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) TAI 		8-97147-856-1 01 1 9705-9905
347 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) TAI 		8-97213-566-0 01 1 9906-0411
347 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) TAI 		8-97213-566-0 01 1 0412-0610
347 HARNESS; CABLE,RR BODY
TAI 		8-97213-566-0 01 1 0412-0610
347 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) TAI 		8-97364-151-0 01 1 0611-
347 HARNESS; CABLE,RR BODY
TAI 		8-97364-151-0 01 1 0611-
çizim 420715
13 575 8 15 329 8 15
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
TAI 		8-97965-402-0 01 1 9701-9809
8 HARNESS; FRAME,FRT
TAI 		8-97966-849-0 01 1 9810-9905
8 HARNESS; FRAME,FRT
TAI 		8-97967-060-2 01 1 9906-0207
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-312-1 01 1 0208-0305
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-422-0 01 1 0306-0309
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-425-0 01 1 0310-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-463-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-518-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-517-4 01 1 0611-
8 HARNESS; FRAME,FRT
4JH1 ENG(RJX) TAI 		8-97967-427-0 01 1 0412-0511
8 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) TAI 		8-97967-464-0 01 1 0512-0610
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-520-3 01 1 0611-
8 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-519-3 01 1 0611-
13 HARNESS; ENG
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),POWER STEERING<N40> 		8-97121-892-2 01 1 9701-9905
13 HARNESS; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 		8-97121-892-2 01 1 9701-9905
13 HARNESS; ENG
4JG2 ENG(RJC) 		8-97221-976-0 01 1 9906-0207
13 HARNESS; ENG
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 		8-97333-404-1 01 1 0208-0411
13 HARNESS; ENG
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 		8-97333-404-1 01 1 0412-0511
13 HARNESS; ENG
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 		8-97333-404-2 01 1 0512-0610
13 HARNESS; ENG
4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97261-132-5 01 1 0208-0411
13 HARNESS; ENG
4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97261-132-5 01 1 0412-0511
13 HARNESS; ENG
4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97261-132-6 01 1 0512-0610
13 HARNESS; ENG
4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> 		8-97388-800-7 01 1 0611-0703
13 HARNESS; ENG
4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> 		8-98083-034-3 01 1 0704-
329 CABLE; ENG TO FRAME
TAI 		8-97965-447-0 01 1 9701-0207
329 CABLE; ENG TO FRAME
4JH1 ENG(RJX) TAI 		8-97967-320-0 01 1 0208-0411
329 CABLE; ENG TO FRAME
4JH1 ENG(RJX) TAI 		8-97967-320-0 01 1 0412-0511
329 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) TAI 		8-97967-320-0 01 1 0512-0610
329 CABLE; ENG TO FRAME
4JJ1 ENG(LFB) 		8-98043-362-0 01 1 0611-
575 HARNESS; GLOW PLUG
4JH1 ENG(RJX) 		8-97212-328-0 01 1 0208-0411
575 HARNESS; GLOW PLUG
4JH1 ENG(RJX) 		8-97212-328-0 01 1 0412-0511
575 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) 		8-97212-328-0 01 1 0512-0610
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
