◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#139140) — 104 parça

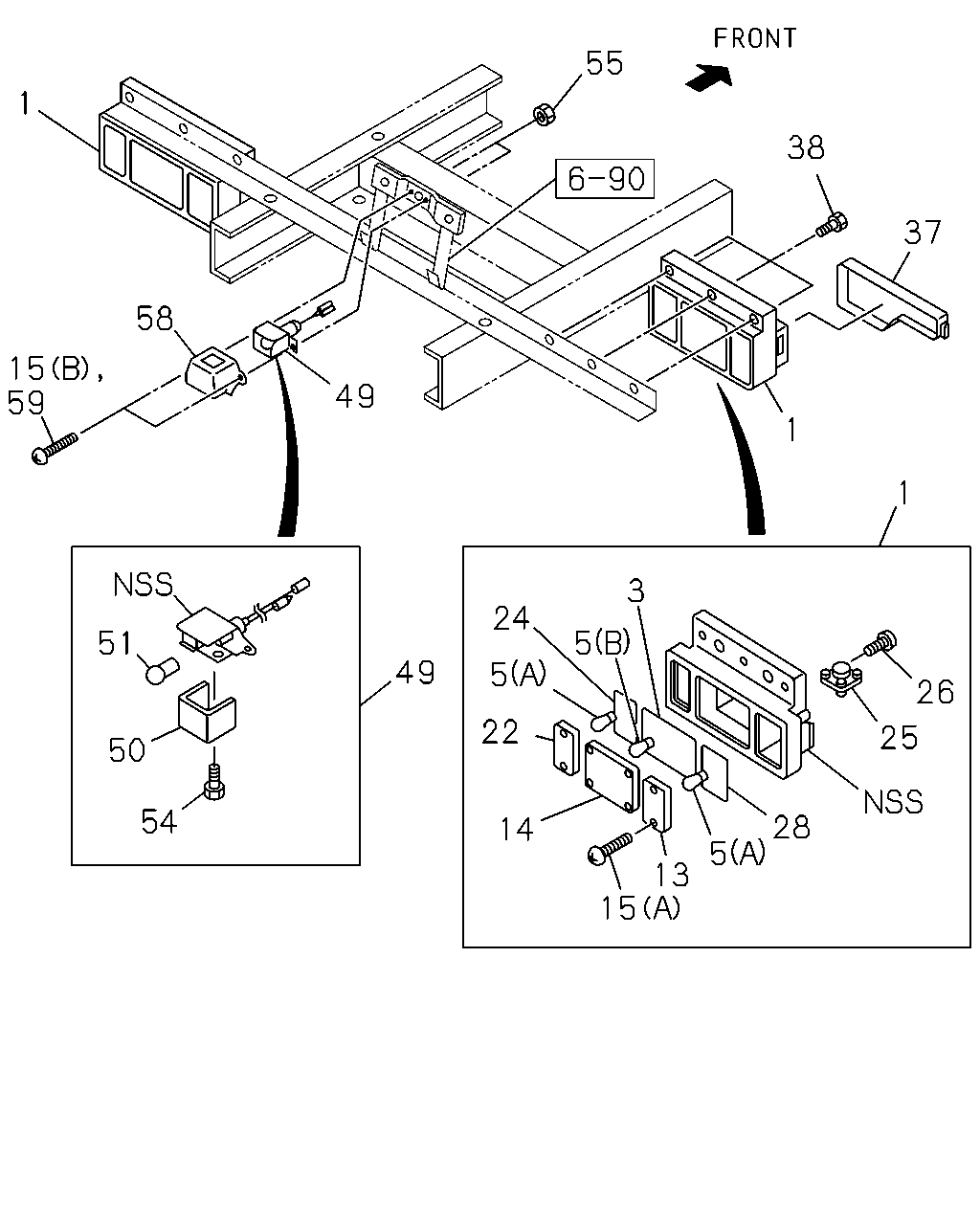

çizim 420548
55 1 38 6 90 37 58 15 59 49 1 1 3 24 51 5 49 5 26 22 25 50 54 28 14 5 13 15
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
TAI 		8-97965-454-0 01 1 9701-9905
1 LAMP ASM; RR COMB
TAI 		8-97966-966-0 01 1 9906-0411
1 LAMP ASM; RR COMB
TAI 		8-97966-966-0 01 1 0412-0610
1 LAMP ASM; RR COMB
TAI 		8-97213-369-0 01 1 0611-
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> TAI 		8-97965-455-0 01 1 9701-9905
1 LAMP ASM; RR COMB
TAI 		8-97966-965-0 01 1 9906-0411
1 LAMP ASM; RR COMB
TAI 		8-97966-965-0 01 1 0412-0610
1 LAMP ASM; RR COMB
TAI 		8-97213-370-0 01 1 0611-
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-94178-618-1 01 1 9701-9905
3 GASKET; RR COMB LAMP
LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-097-0 01 1 9701-9905
3 GASKET; RR COMB LAMP
BACK BUZZER<YM9> LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-097-0 01 1 9701-9905
3 GASKET; RR COMB LAMP
TAI 		8-97967-097-0 02 1 9906-0411
3 GASKET; RR COMB LAMP
TAI 		8-97967-097-0 02 1 0412-0610
3 GASKET; RR COMB LAMP
TAI 		8-94257-505-0 01 1 0611-
3 GASKET; RR COMB LAMP
TAI 		8-94257-505-0 01 1 0611-
3 GASKET; RR COMB LAMP
EXC. BACK BUZZER<YM9> TAI 		8-94257-505-0 01 1 9701-9905
5 BULB; RR COMB LAMP
(B) L=ALL MODEL,R=BACK BUZZER 12V 21/5W TAI 		8-97967-094-0 01 1 9701-9905
5 BULB; RR COMB LAMP
BACK BUZZER<YM9> (B) L=ALL MODEL,R=BACK BUZZER 12V 21/5W TAI 		8-97967-094-0 01 1 9701-9905
5 BULB; RR COMB LAMP
(B) 12V 21/5W TAI 		8-97967-094-0 02 1 9906-0411
5 BULB; RR COMB LAMP
(B) 12V 21/5W TAI 		8-97967-094-0 02 1 0412-0610
5 BULB; RR COMB LAMP
(A) 24V 21W TAI 		1-82194-036-0 02 1 0611-
5 BULB; RR COMB LAMP
(A) 24V 21W TAI 		1-82194-036-0 02 1 0611-
5 BULB; RR COMB LAMP
(A) L=ALL MODEL,R=BACK BUZZER 12V 21W TAI 		8-97967-095-0 02 1 9701-9905
5 BULB; RR COMB LAMP
BACK BUZZER<YM9> (A) L=ALL MODEL,R=BACK BUZZER 12V 21W TAI 		8-97967-095-0 02 1 9701-9905
5 BULB; RR COMB LAMP
(A) 12V 21W TAI 		8-97967-095-0 04 1 9906-0411
5 BULB; RR COMB LAMP
(A) 12V 21W TAI 		8-97967-095-0 04 1 0412-0610
5 BULB; RR COMB LAMP
(B) 24V 21/5W TAI 		1-82194-038-0 01 1 0611-
5 BULB; RR COMB LAMP
(B) 24V 21/5W TAI 		1-82194-038-0 01 1 0611-
5 BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (A) 12V 21W 		8-94124-074-0 02 1 9701-9905
5 BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (B) 12V 21/5W 		8-94125-959-0 01 1 9701-9905
13 LENS; TURN SIGNAL
TAI 		8-97967-099-0 01 1 9701-0411
13 LENS; TURN SIGNAL
TAI 		8-97967-099-0 01 1 0412-0610
13 LENS; TURN SIGNAL
TAI 		8-94174-639-0 01 1 0611-
13 LENS; TURN SIGNAL
BACK BUZZER<YM9> TAI 		8-97967-100-0 01 1 9701-9905
13 LENS; TURN SIGNAL
TAI 		8-97967-100-0 01 1 9906-0411
13 LENS; TURN SIGNAL
TAI 		8-97967-100-0 01 1 0412-0610
13 LENS; TURN SIGNAL
TAI 		8-94174-638-0 01 1 0611-
13 LENS; TURN SIGNAL
EXC. BACK BUZZER<YM9> TAI 		8-94174-638-0 01 1 9701-9905
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-97967-101-0 01 1 9701-0411
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-97967-101-0 01 1 0412-0610
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-94178-625-0 01 1 0611-
14 LENS; TAIL & STOP,RR COMB LAMP
BACK BUZZER<YM9> TAI 		8-97967-102-0 01 1 9701-9905
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-97967-102-0 01 1 9906-0411
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-97967-102-0 01 1 0412-0610
14 LENS; TAIL & STOP,RR COMB LAMP
TAI 		8-94178-624-0 01 1 0611-
14 LENS; TAIL & STOP,RR COMB LAMP
EXC. BACK BUZZER<YM9> TAI 		8-94178-624-0 01 1 9701-9905
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9701-9704
15 SCREW; RR COMB LAMP
RR BODY FLAT BED(RS6) (B) LICENSE PLATE LAMP M5X20 		9-93490-520-0 02 1 9705-
15 SCREW; RR COMB LAMP
(B) LICENSE PLATE LAMP M5X20 		9-93490-520-0 02 1 9701-9704
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9705-9905
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 9906-0411
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0412-0610
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0611-
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0611-
22 LENS; BACKUP,RR COMB LAMP
LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-103-0 01 1 9701-9905
22 LENS; BACKUP,RR COMB LAMP
BACK BUZZER<YM9> LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-103-0 01 1 9701-9905
22 LENS; BACKUP,RR COMB LAMP
TAI 		8-97967-103-0 02 1 9906-0411
22 LENS; BACKUP,RR COMB LAMP
TAI 		8-97967-103-0 02 1 0412-0610
22 LENS; BACKUP,RR COMB LAMP
TAI 		8-94257-512-1 01 1 0611-
22 LENS; BACKUP,RR COMB LAMP
TAI 		8-94257-512-1 01 1 0611-
22 LENS; BACKUP,RR COMB LAMP
EXC. BACK BUZZER<YM9> TAI 		8-94257-512-1 01 1 9701-9905
24 GASKET; BACK,LAMP
LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-098-0 01 1 9701-9905
24 GASKET; BACK,LAMP
BACK BUZZER<YM9> LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-098-0 01 1 9701-9905
24 GASKET; BACK,LAMP
TAI 		8-97967-098-0 02 1 9906-0411
24 GASKET; BACK,LAMP
TAI 		8-97967-098-0 02 1 0412-0610
24 GASKET; BACK,LAMP
TAI 		8-94257-506-0 01 1 0611-
24 GASKET; BACK,LAMP
TAI 		8-94257-506-0 01 1 0611-
24 GASKET; BACK,LAMP
EXC. BACK BUZZER<YM9> TAI 		8-94257-506-0 01 1 9701-9905
25 HORN ASM; BACK
BACK BUZZER<YM9> TAI 		8-94257-518-0 01 1 9701-9905
25 HORN ASM; BACK
TAI 		8-94257-518-0 01 1 9906-0411
25 HORN ASM; BACK
TAI 		8-94257-518-0 01 1 0412-
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 9701-9905
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0611-
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 0611-
28 GASKET; TURN,LAMP
LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-096-0 01 1 9701-9905
28 GASKET; TURN,LAMP
BACK BUZZER<YM9> LH=ALL MODEL,RH=BACK BUZZER TAI 		8-97967-096-0 01 1 9701-9905
28 GASKET; TURN,LAMP
TAI 		8-97967-096-0 02 1 9906-0411
28 GASKET; TURN,LAMP
TAI 		8-97967-096-0 02 1 0412-0610
28 GASKET; TURN,LAMP
TAI 		8-94257-507-0 01 1 0611-
28 GASKET; TURN,LAMP
TAI 		8-94257-507-0 01 1 0611-
28 GASKET; TURN,LAMP
EXC. BACK BUZZER<YM9> TAI 		8-94257-507-0 01 1 9701-9905
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 9701-0411
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0412-
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 9701-0411
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0412-
38 BOLT; LAMP,RR COMB
M6X20 		8-94402-623-0 06 1 9701-0411
38 BOLT; LAMP,RR COMB
M6X20 		8-94402-623-0 06 1 0412-
49 LAMP; LICENSE PLATE
TAI 		8-97965-464-0 01 1 9701-0411
49 LAMP; LICENSE PLATE
TAI 		8-97965-464-0 01 1 0412-0610
49 LAMP; LICENSE PLATE
TAI 		5-82120-021-1 01 1 0611-
50 LENS; LICENSE PLATE LAMP
TAI 		5-82125-004-0 01 1 9701-0411
50 LENS; LICENSE PLATE LAMP
TAI 		5-82125-004-0 01 1 0412-
51 BULB; LICENSE PLATE LAMP
12V 10W TAI 		8-94126-494-0 01 1 9701-0411
51 BULB; LICENSE PLATE LAMP
12V 10W TAI 		8-94126-494-0 01 1 0412-0610
51 BULB; LICENSE PLATE LAMP
24V 12W TAI 		1-82194-004-0 01 1 0611-
54 SCREW; LICENSE PLATE LAMP
M4X8 TAI 		8-94419-312-0 01 1 9701-0411
54 SCREW; LICENSE PLATE LAMP
M4X8 TAI 		8-94419-312-0 01 1 0412-
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 9701-0411
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 0412-
58 COVER; LICENSE PLATE LAMP 8-97048-582-0 01 1 9701-0411
58 COVER; LICENSE PLATE LAMP 8-97048-582-0 01 1 0412-
59 SCREW; TAP,LICENSE LAMP BODY
EXC. RR BODY FLAT BED(RS6) M5X20 		9-93490-520-0 02 1 9705-0411
59 SCREW; TAP,LICENSE LAMP BODY
EXC. RR BODY FLAT BED(RS6) M5X20 		9-93490-520-0 02 1 0412-
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 02 1 0412-
