Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11110 - CYJ NZ JAPAN NEW SHORT TERM 2004
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

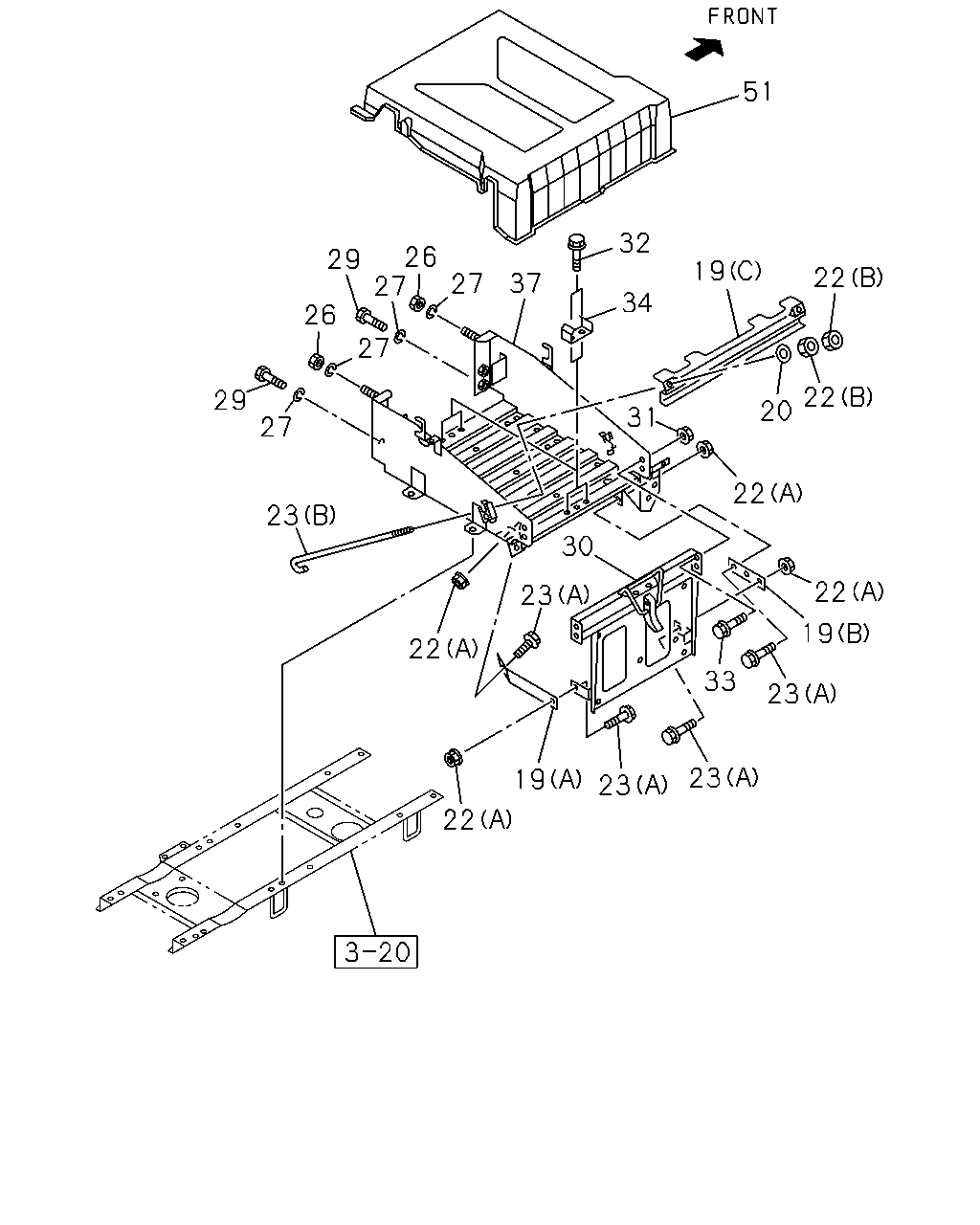

5-20 — BATTERY CARRIER
(#13914) — 19 parça
51
22
22
20
31
19
32
34
37
27
26
27
29
26
27
29
27
23
22
30
23
22
22
19
33
23
22
19
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0710-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0710-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0710-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0710-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0710-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0710-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0710-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0710-
26
NUT; BRKT
M14
1-09440-072-0
02
1
0710-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0710-
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0710-
30
PLATE; BATTERY
1-53619-148-1
01
1
0710-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0710-
32
BOLT; PLATE TO SPACER
M8X16 FLANGE
0-28050-816-0
04
1
0710-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0710-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
1-53619-084-0
02
1
0710-
37
BRACKET; BATTERY
1-53610-161-3
01
1
0710-
51
COVER; BATTERY
1-53612-068-0
01
1
0710-
