Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#139139) — 412 parça

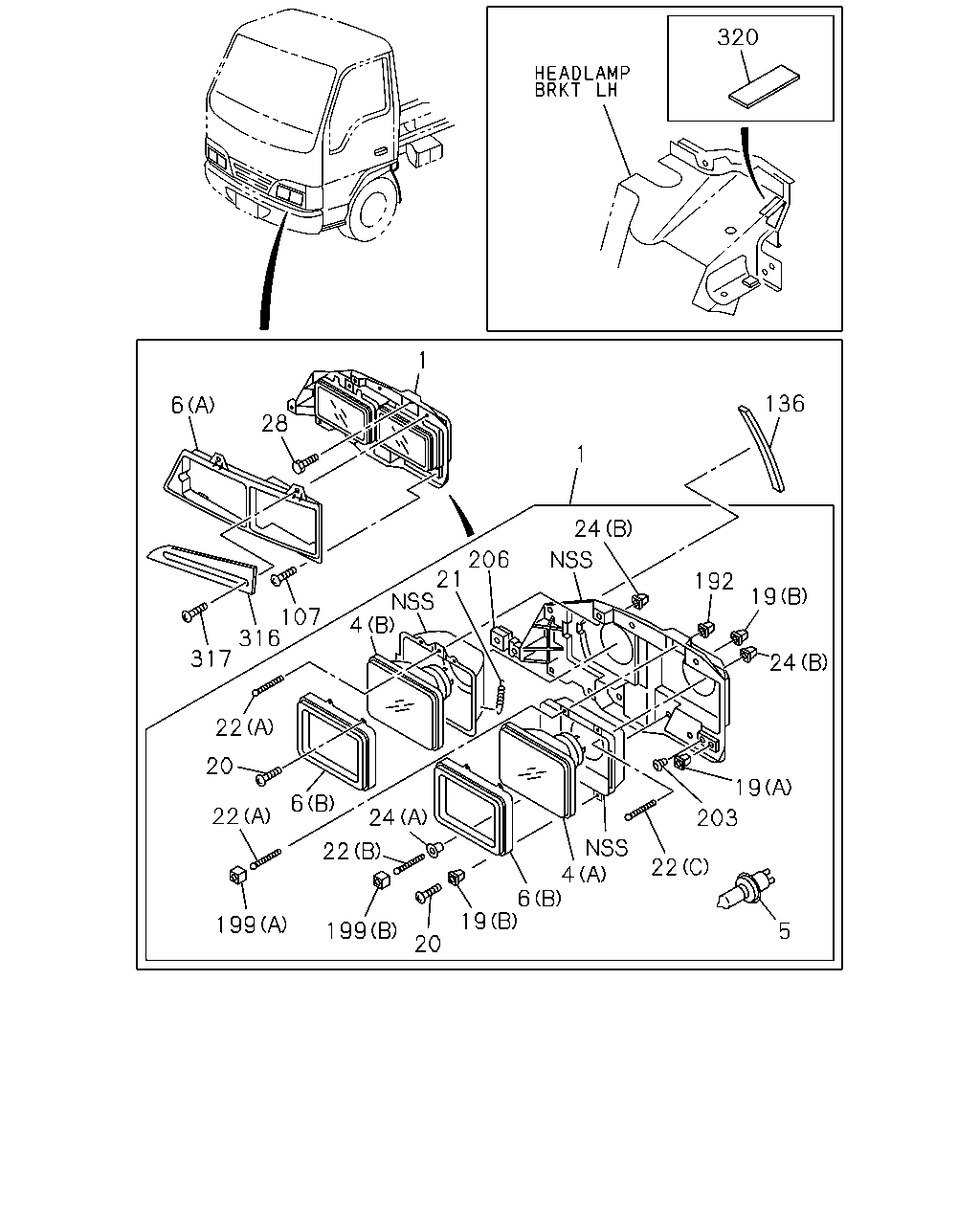

320 1 136 6 28 1 24 206 21 4 192 19 107 316 317 24 22 20 19 6 24 22 203 4 6 19 22 22 199 199 5 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD TAI	8-97965-459-0	01	1	9701-0411
1	LAMP ASM; HEAD TAI	8-97965-459-0	01	1	0412-0511
1	LAMP ASM; HEAD	8-97369-571-3	01	1	0512-0610
1	LAMP ASM; HEAD	8-97376-898-2	01	1	0611-0701
1	LAMP ASM; HEAD	8-98053-914-0	01	1	0702-
1	LAMP ASM; HEAD TAI	8-97965-458-0	01	1	9701-0411
1	LAMP ASM; HEAD TAI	8-97965-458-0	01	1	0412-0511
1	LAMP ASM; HEAD	8-97369-570-3	01	1	0512-0610
1	LAMP ASM; HEAD	8-97376-897-2	01	1	0611-0701
1	LAMP ASM; HEAD	8-98053-913-0	01	1	0702-
4	HEADLAMP UNIT (A) TAI	8-97967-121-0	02	1	9701-0411
4	HEADLAMP UNIT (A) TAI	8-97967-121-0	02	1	0412-0511
4	HEADLAMP UNIT (B) TAI	8-97967-122-0	01	1	9701-0411
4	HEADLAMP UNIT (B) TAI	8-97967-122-0	01	1	0412-0511
4	HEADLAMP UNIT (C)	8-98009-825-0	01	1	0512-0610
4	HEADLAMP UNIT (C)	8-98009-823-0	01	1	0611-
4	HEADLAMP UNIT (B) TAI	8-97967-123-0	01	1	9701-0411
4	HEADLAMP UNIT (B) TAI	8-97967-123-0	01	1	0412-0511
4	HEADLAMP UNIT (C)	8-98009-824-0	01	1	0512-0610
4	HEADLAMP UNIT (C)	8-98009-822-0	01	1	0611-
5	BULB; HEADLAMP 12V 60/55W TAI	8-97967-104-0	02	1	9701-0411
5	BULB; HEADLAMP 12V 60/55W TAI	8-97967-104-0	02	1	0412-0511
5	BULB; HEADLAMP 12V 60/55W	8-97106-708-0	02	1	0512-0610
5	BULB; HEADLAMP 24V 75/70W TAI	1-82194-063-0	02	1	0611-
5	BULB; HEADLAMP 12V 55W TAI	8-97967-105-0	02	1	9701-0411
5	BULB; HEADLAMP 12V 55W TAI	8-97967-105-0	02	1	0412-0511
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	9701-0411
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	0412-0511
19	NUT; HEADLAMP (B) TAI	8-97967-114-0	08	1	9701-0411
19	NUT; HEADLAMP (B) TAI	8-97967-114-0	08	1	0412-0511
19	NUT; HEADLAMP (A) TAI	8-97967-118-0	08	1	9701-0411
19	NUT; HEADLAMP (A) TAI	8-97967-118-0	08	1	0412-0511
20	SCREW; HEADLAMP TAI	8-97967-119-0	16	1	9701-0411
20	SCREW; HEADLAMP TAI	8-97967-119-0	16	1	0412-0511
20	SCREW; HEADLAMP	8-97378-871-0	02	1	0512-
21	SPRING; ADJ HEADLAMP TAI	8-97967-112-0	02	1	9701-0411
21	SPRING; ADJ HEADLAMP TAI	8-97967-112-0	02	1	0412-0511
22	SCREW; ADJ,HEADLAMP (B) TAI	8-97967-108-0	02	1	9701-0411
22	SCREW; ADJ,HEADLAMP (B) TAI	8-97967-108-0	02	1	0412-0511
22	SCREW; ADJ,HEADLAMP (A) TAI	8-97967-109-0	04	1	9701-0411
22	SCREW; ADJ,HEADLAMP (A) TAI	8-97967-109-0	04	1	0412-0511
22	SCREW; ADJ,HEADLAMP (C) TAI	8-97967-110-0	02	1	9701-0411
22	SCREW; ADJ,HEADLAMP (C) TAI	8-97967-110-0	02	1	0412-0511
24	MOUNTING; ADJ SCREW HD LAMP (A) TAI	8-97967-107-0	02	1	9701-0411
24	MOUNTING; ADJ SCREW HD LAMP (A) TAI	8-97967-107-0	02	1	0412-0511
24	MOUNTING; ADJ SCREW HD LAMP (B) TAI	8-97967-115-0	06	1	9701-0411
24	MOUNTING; ADJ SCREW HD LAMP (B) TAI	8-97967-115-0	06	1	0412-0511
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER TAI	8-94279-203-0	08	1	9701-0411
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER TAI	8-94279-203-0	08	1	0412-0607
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-
107	SCREW; RIM,HEADLAMP M4X20 TAPPING	8-94279-391-0	04	1	9701-0202
107	SCREW; RIM,HEADLAMP M4X20 TAPPING	8-97326-998-0	04	1	0203-0411
107	SCREW; RIM,HEADLAMP M4X20 TAPPING	8-97326-998-0	04	1	0412-0511
136	SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	9701-9701
136	SEAL; HEADLAMP 25X25 TAI	8-94272-533-0	02	1	0512-
192	PIVOT; HEADLAMP TAI	8-97967-111-0	02	1	9701-0411
192	PIVOT; HEADLAMP TAI	8-97967-111-0	02	1	0412-0511
199	BUSHING (B) TAI	8-97967-106-0	02	1	9701-0411
199	BUSHING (B) TAI	8-97967-106-0	02	1	0412-0511
199	BUSHING (A) TAI	8-97967-116-0	04	1	9701-0411
199	BUSHING (A) TAI	8-97967-116-0	04	1	0412-0511
203	FASTENER; HEADLAMP TAI	8-97967-117-0	04	1	9701-0411
203	FASTENER; HEADLAMP TAI	8-97967-117-0	04	1	0412-0511
206	HOLDER; HEADLAMP TAI	8-97967-113-0	02	1	9701-0411
206	HOLDER; HEADLAMP TAI	8-97967-113-0	02	1	0412-0511
316	ORNAMENT; HEAD LAMP TAI	8-97840-152-0	01	1	9701-0312
316	ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57> TAI	8-97840-152-0	01	1	0401-0411
316	ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57> TAI	8-97840-152-0	01	1	0412-0511
316	ORNAMENT; HEAD LAMP TAI	8-97840-151-0	01	1	9701-0312
316	ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57> TAI	8-97840-151-0	01	1	0401-0411
316	ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57> TAI	8-97840-151-0	01	1	0412-0511
316	ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-592-0	01	1	0401-0411
316	ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-592-0	01	1	0412-0511
316	ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-591-0	01	1	0401-0411
316	ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-591-0	01	1	0412-0511
317	SCREW; ORNAMENT M4X20 TAPPING	8-94279-391-0	04	1	9701-0202
317	SCREW; ORNAMENT M4X20 TAPPING	8-97326-998-0	04	1	0203-0411
317	SCREW; ORNAMENT M4X20 TAPPING	8-97326-998-0	04	1	0412-0511
320	SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	9701-0411
320	SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0412-

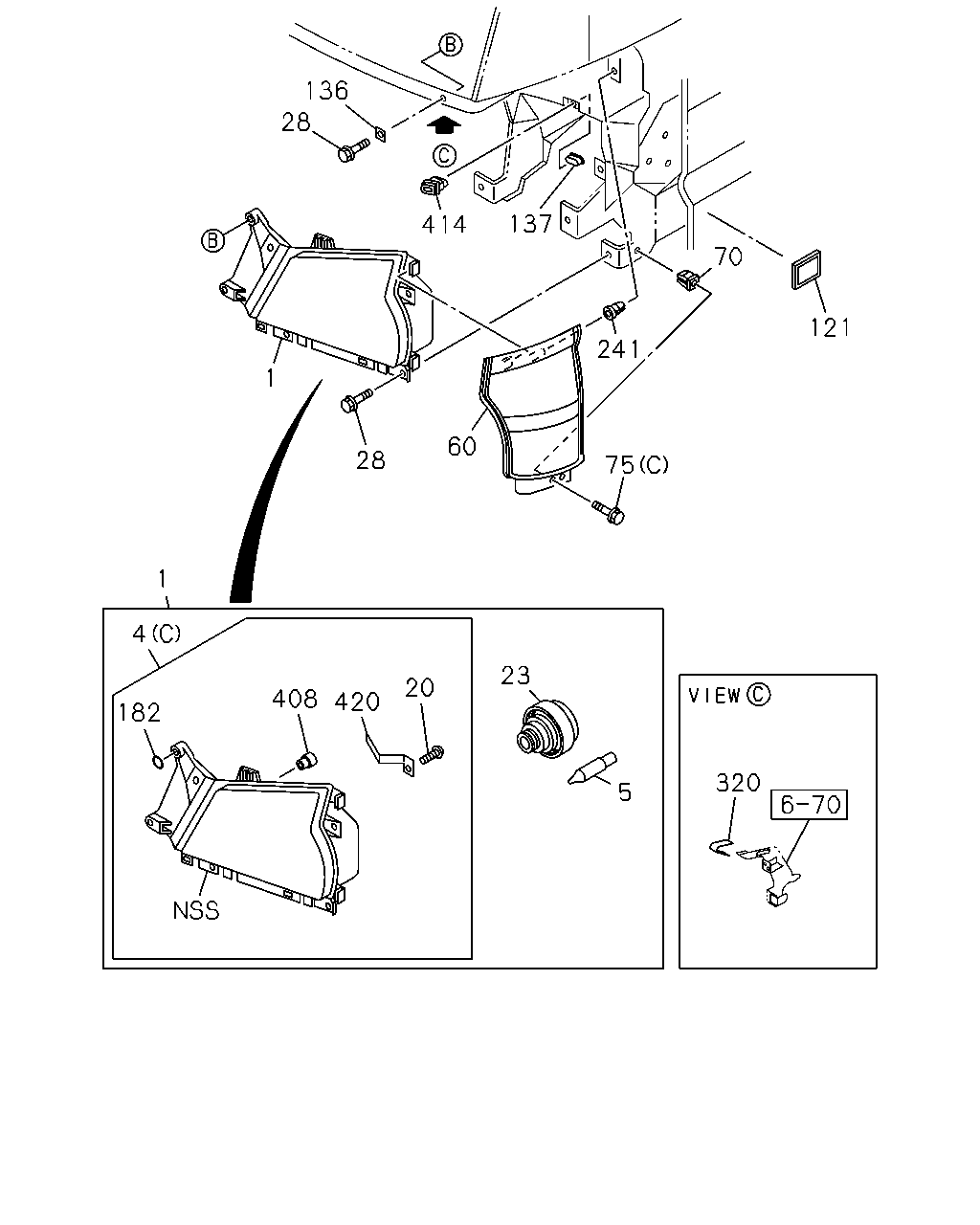

136 28 137 414 70 121 241 1 60 28 75 1 4 23 20 408 420 182 320 6 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD TAI	8-97965-459-0	01	1	9701-0411
1	LAMP ASM; HEAD TAI	8-97965-459-0	01	1	0412-0511
1	LAMP ASM; HEAD	8-97369-571-3	01	1	0512-0610
1	LAMP ASM; HEAD	8-97376-898-2	01	1	0611-0701
1	LAMP ASM; HEAD	8-98053-914-0	01	1	0702-
1	LAMP ASM; HEAD TAI	8-97965-458-0	01	1	9701-0411
1	LAMP ASM; HEAD TAI	8-97965-458-0	01	1	0412-0511
1	LAMP ASM; HEAD	8-97369-570-3	01	1	0512-0610
1	LAMP ASM; HEAD	8-97376-897-2	01	1	0611-0701
1	LAMP ASM; HEAD	8-98053-913-0	01	1	0702-
4	HEADLAMP UNIT (A) TAI	8-97967-121-0	02	1	9701-0411
4	HEADLAMP UNIT (A) TAI	8-97967-121-0	02	1	0412-0511
4	HEADLAMP UNIT (B) TAI	8-97967-122-0	01	1	9701-0411
4	HEADLAMP UNIT (B) TAI	8-97967-122-0	01	1	0412-0511
4	HEADLAMP UNIT (C)	8-98009-825-0	01	1	0512-0610
4	HEADLAMP UNIT (C)	8-98009-823-0	01	1	0611-
4	HEADLAMP UNIT (B) TAI	8-97967-123-0	01	1	9701-0411
4	HEADLAMP UNIT (B) TAI	8-97967-123-0	01	1	0412-0511
4	HEADLAMP UNIT (C)	8-98009-824-0	01	1	0512-0610
4	HEADLAMP UNIT (C)	8-98009-822-0	01	1	0611-
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	9701-0411
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	0412-0511
20	SCREW; HEADLAMP TAI	8-97967-119-0	16	1	9701-0411
20	SCREW; HEADLAMP TAI	8-97967-119-0	16	1	0412-0511
20	SCREW; HEADLAMP	8-97378-871-0	02	1	0512-
23	COVER; BULB,HEADLAMP USA	8-97232-491-0	02	1	0512-
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER TAI	8-94279-203-0	08	1	9701-0411
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER TAI	8-94279-203-0	08	1	0412-0607
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-
60	LAMP ASM; FRT COMB TAI	8-97965-457-1	01	1	9701-0411
60	LAMP ASM; FRT COMB TAI	8-97965-457-1	01	1	0412-0511
60	LAMP ASM; FRT COMB	8-98010-890-0	01	1	0512-0610
60	LAMP ASM; FRT COMB	8-98010-892-0	01	1	0611-
60	LAMP ASM; FRT COMB TAI	8-97965-456-1	01	1	9701-0411
60	LAMP ASM; FRT COMB TAI	8-97965-456-1	01	1	0412-0511
60	LAMP ASM; FRT COMB	8-98010-889-0	01	1	0512-0610
60	LAMP ASM; FRT COMB	8-98010-891-0	01	1	0611-
70	GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	9701-0411
70	GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	0412-0511
70	GROMMET; SCREW,FRT COMB LAMP	1-09983-081-0	02	1	0512-
75	SCREW; FRT COMB LAMP (A) TAI	8-97966-431-0	08	1	9701-0411
75	SCREW; FRT COMB LAMP (A) TAI	8-97966-431-0	08	1	0412-0511
75	SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0512-
75	SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0512-
121	REFLECTOR; REFLEX	8-98013-990-1	02	1	0512-
136	SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	9701-9701
136	SEAL; HEADLAMP 25X25 TAI	8-94272-533-0	02	1	0512-
137	GROMMET; HEADLAMP	8-97581-666-0	02	1	0512-
182	GASKET; HEADLAMP	8-97378-869-0	02	1	0512-
241	GROMMET; FRT LAMP	8-94452-095-0	04	1	9701-0411
241	GROMMET; FRT LAMP	8-94452-095-0	04	1	0412-0511
241	GROMMET; FRT LAMP	8-97380-030-0	02	1	0512-
320	SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	9701-0411
320	SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0412-
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0512-
414	PIN; HEADLAMP,RIM	8-97581-667-0	02	1	0512-
420	SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	0512-

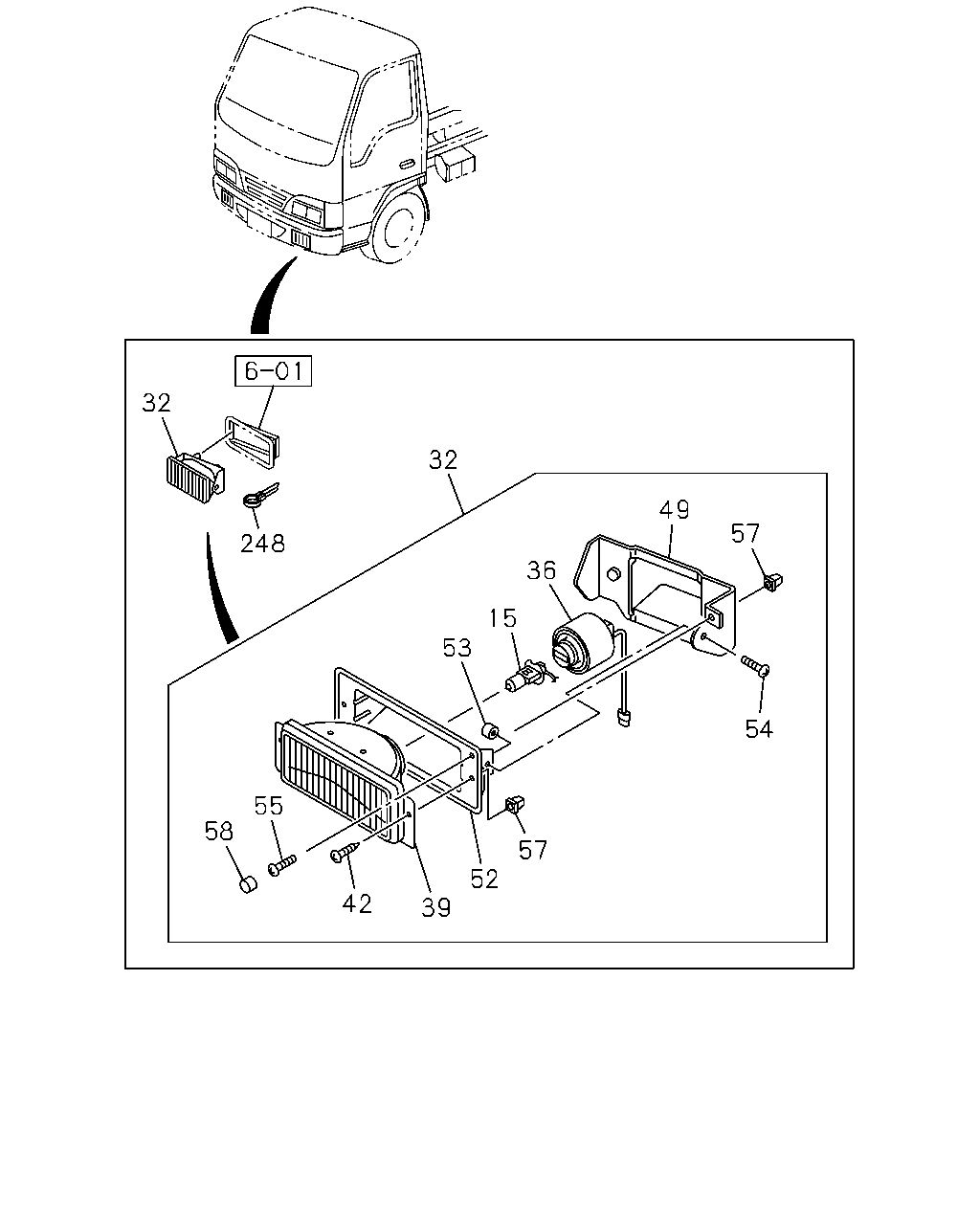

6 32 32 49 57 248 36 15 53 54 55 58 57 52 42 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	9701-0411
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	0412-0511
15	BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	9701-9905
15	BULB; FOG LAMP FRT BUMPER DARK GRAY<EQ9> 12V 55W	8-97093-859-0	02	1	9906-0207
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> 12V 55W	8-97093-859-0	02	1	9906-0207
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0208-0411
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0412-0610
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 24V 55W	8-97093-860-0	02	1	0611-0611
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 24V 70W	8-97203-926-0	02	1	0611-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97070-959-1	01	1	9701-9905
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97070-959-1	01	1	9906-0003
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97070-959-1	01	1	9906-0003
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97248-540-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97248-540-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-540-0	01	1	0208-0411
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-540-0	01	1	0412-0610
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-542-0	01	1	0611-0611
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-98022-409-0	01	1	0611-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97070-958-1	01	1	9701-9905
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97070-958-1	01	1	9906-0003
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97070-958-1	01	1	9906-0003
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97248-539-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97248-539-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-539-0	01	1	0208-0411
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-539-0	01	1	0412-0610
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-541-0	01	1	0611-0611
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-98022-408-0	01	1	0611-
36	CORD; FOG LAMP FOG LAMP<T96>	8-97095-518-0	02	1	9701-9905
36	CORD; FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97095-518-0	02	1	9906-0207
36	CORD; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97095-518-0	02	1	9906-0207
36	CORD; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97095-518-0	02	1	0208-0411
36	CORD; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97095-518-0	02	1	0412-0610
39	UNIT; FOG LAMP FOG LAMP<T96>	8-97104-060-0	02	1	9701-9905
39	UNIT; FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97119-300-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97119-300-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97119-300-0	01	1	0208-0411
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97119-300-0	01	1	0412-0610
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97119-301-0	01	1	0611-0611
39	UNIT; FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-060-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-060-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-060-0	01	1	0208-0411
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-060-0	01	1	0412-0610
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-061-0	01	1	0611-0611
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-98020-463-0	02	1	0611-
42	SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	9701-9905
42	SCREW; LENS,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-089-0	04	1	9906-0207
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-089-0	04	1	9906-0207
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-089-0	04	1	0208-0411
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-089-0	04	1	0412-0610
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-977-0	08	1	0611-
49	BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	9701-9905
49	BRACKET; LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-091-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-091-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-091-0	01	1	0208-0411
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-091-0	01	1	0412-0610
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97379-141-0	01	1	0611-
49	BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	9701-9905
49	BRACKET; LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-090-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-090-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-090-0	01	1	0208-0411
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-090-0	01	1	0412-0610
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-985-0	01	1	0611-
52	RING; MTG,FOG LAMP FOG LAMP<T96>	8-97104-062-0	02	1	9701-9905
52	RING; MTG,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-062-0	02	1	9906-0207
52	RING; MTG,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-062-0	02	1	9906-0207
52	RING; MTG,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-062-0	02	1	0208-0411
52	RING; MTG,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-062-0	02	1	0412-0610
53	NUT; MTG RING,FOG LAMP FOG LAMP<T96>	8-94379-802-0	04	1	9701-9905
53	NUT; MTG RING,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-94379-802-0	04	1	9906-0207
53	NUT; MTG RING,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-94379-802-0	04	1	9906-0207
53	NUT; MTG RING,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-94379-802-0	04	1	0208-0411
53	NUT; MTG RING,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-94379-802-0	04	1	0412-0610
54	BOLT; MTG RING,FOG LAMP FOG LAMP<T96> M5X12	8-94379-803-0	04	1	9701-9905
54	BOLT; MTG RING,FOG LAMP FRT BUMPER DARK GRAY<EQ9> M5X12	8-94379-803-0	04	1	9906-0207
54	BOLT; MTG RING,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> M5X12	8-94379-803-0	04	1	9906-0207
54	BOLT; MTG RING,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> M5X12	8-94379-803-0	04	1	0208-0411
54	BOLT; MTG RING,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> M5X12	8-94379-803-0	04	1	0412-0610
55	SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	9701-9905
55	SCREW; ADJ,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-087-0	02	1	9906-0207
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-087-0	02	1	9906-0207
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-087-0	02	1	0208-0411
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-087-0	02	1	0412-0610
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-978-0	02	1	0611-
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	9701-9905
57	NUT; UNIT TO SCREW,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-94379-806-0	06	1	9906-0207
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-94379-806-0	06	1	9906-0207
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-94379-806-0	06	1	0208-0411
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-94379-806-0	06	1	0412-0610
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-981-0	02	1	0611-
58	HOLDER; FOG LAMP FOG LAMP<T96>	8-97104-088-0	02	1	9701-9905
58	HOLDER; FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-088-0	02	1	9906-0207
58	HOLDER; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-088-0	02	1	9906-0207
58	HOLDER; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-088-0	02	1	0208-0411
58	HOLDER; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-088-0	02	1	0412-0610
248	CLIP; HARNESS FOG LAMP<T96> ID=20	5-09700-321-0	02	1	9705-9905
248	CLIP; HARNESS FRT BUMPER DARK GRAY<EQ9> ID=20	5-09700-321-0	02	1	9906-0207
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> ID=20	5-09700-321-0	02	1	9906-0207
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> ID=20	5-09700-321-0	02	1	0208-0411
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> ID=20	5-09700-321-0	02	1	0412-0610
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> ID=20	5-09700-321-0	04	1	0611-

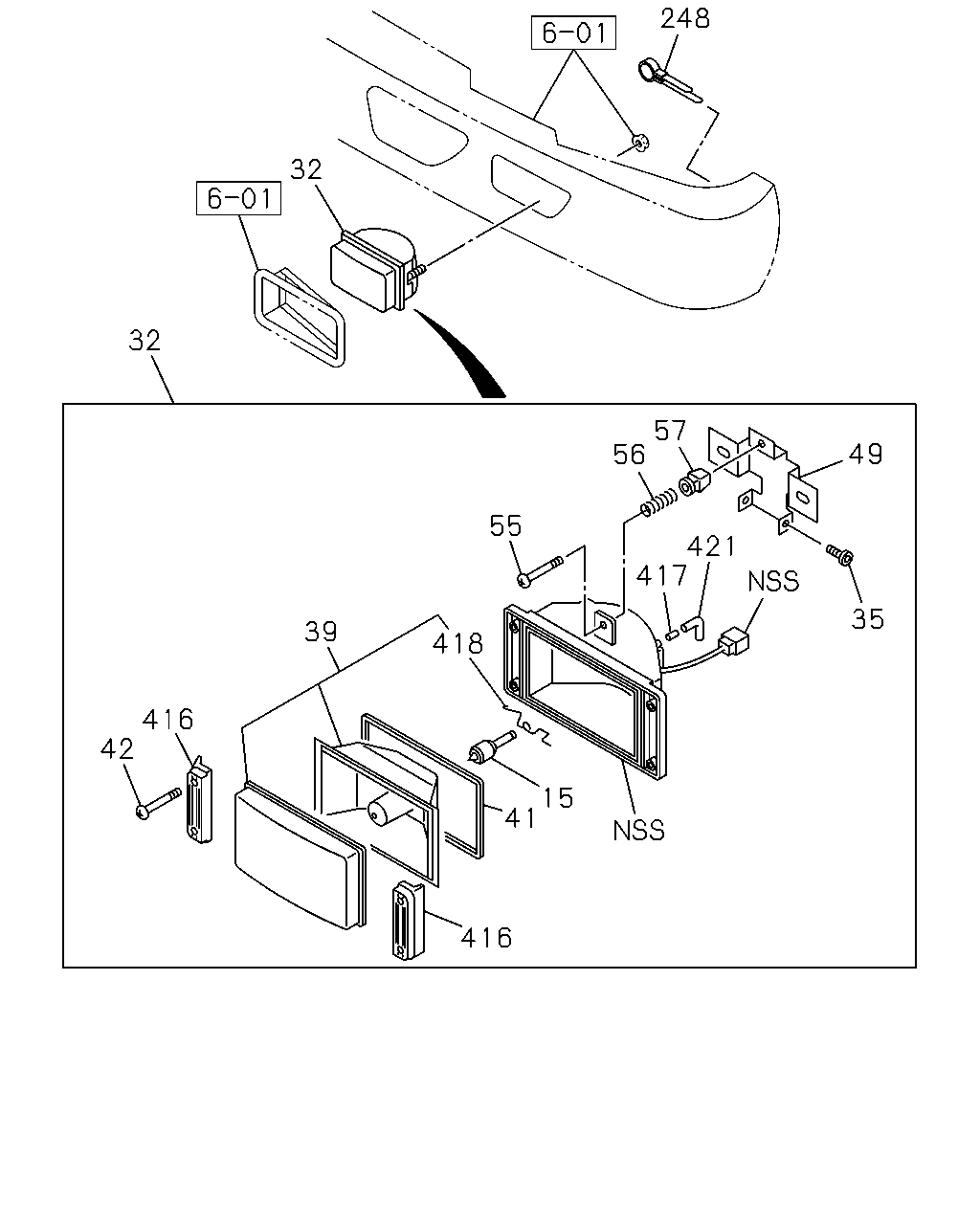

248 6 32 6 32 57 56 49 55 421 417 35 39 418 416 42 15 41 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	9701-0411
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	0412-0511
15	BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	9701-9905
15	BULB; FOG LAMP FRT BUMPER DARK GRAY<EQ9> 12V 55W	8-97093-859-0	02	1	9906-0207
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> 12V 55W	8-97093-859-0	02	1	9906-0207
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0208-0411
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0412-0610
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 24V 55W	8-97093-860-0	02	1	0611-0611
15	BULB; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 24V 70W	8-97203-926-0	02	1	0611-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97070-959-1	01	1	9701-9905
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97070-959-1	01	1	9906-0003
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97070-959-1	01	1	9906-0003
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97248-540-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97248-540-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-540-0	01	1	0208-0411
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-540-0	01	1	0412-0610
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-542-0	01	1	0611-0611
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-98022-409-0	01	1	0611-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97070-958-1	01	1	9701-9905
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97070-958-1	01	1	9906-0003
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97070-958-1	01	1	9906-0003
32	LAMP ASM; FOG FRT BUMPER DARK GRAY<EQ9>	8-97248-539-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97248-539-0	01	1	0004-0207
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-539-0	01	1	0208-0411
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-539-0	01	1	0412-0610
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97248-541-0	01	1	0611-0611
32	LAMP ASM; FOG BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-98022-408-0	01	1	0611-
35	SCREW; RIM,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-979-0	04	1	0611-
39	UNIT; FOG LAMP FOG LAMP<T96>	8-97104-060-0	02	1	9701-9905
39	UNIT; FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97119-300-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97119-300-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97119-300-0	01	1	0208-0411
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97119-300-0	01	1	0412-0610
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97119-301-0	01	1	0611-0611
39	UNIT; FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-060-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-060-0	01	1	9906-0207
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-060-0	01	1	0208-0411
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-060-0	01	1	0412-0610
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-061-0	01	1	0611-0611
39	UNIT; FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-98020-463-0	02	1	0611-
41	GASKET; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-986-0	02	1	0611-
42	SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	9701-9905
42	SCREW; LENS,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-089-0	04	1	9906-0207
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-089-0	04	1	9906-0207
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-089-0	04	1	0208-0411
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-089-0	04	1	0412-0610
42	SCREW; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-977-0	08	1	0611-
49	BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	9701-9905
49	BRACKET; LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-091-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-091-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-091-0	01	1	0208-0411
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-091-0	01	1	0412-0610
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97379-141-0	01	1	0611-
49	BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	9701-9905
49	BRACKET; LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-090-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-090-0	01	1	9906-0207
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-090-0	01	1	0208-0411
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-090-0	01	1	0412-0610
49	BRACKET; LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-985-0	01	1	0611-
55	SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	9701-9905
55	SCREW; ADJ,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-97104-087-0	02	1	9906-0207
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-97104-087-0	02	1	9906-0207
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-087-0	02	1	0208-0411
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97104-087-0	02	1	0412-0610
55	SCREW; ADJ,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-978-0	02	1	0611-
56	SPRING; COIL,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-980-0	02	1	0611-
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	9701-9905
57	NUT; UNIT TO SCREW,FOG LAMP FRT BUMPER DARK GRAY<EQ9>	8-94379-806-0	06	1	9906-0207
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>	8-94379-806-0	06	1	9906-0207
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-94379-806-0	06	1	0208-0411
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-94379-806-0	06	1	0412-0610
57	NUT; UNIT TO SCREW,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-981-0	02	1	0611-
248	CLIP; HARNESS FOG LAMP<T96> ID=20	5-09700-321-0	02	1	9705-9905
248	CLIP; HARNESS FRT BUMPER DARK GRAY<EQ9> ID=20	5-09700-321-0	02	1	9906-0207
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> ID=20	5-09700-321-0	02	1	9906-0207
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> ID=20	5-09700-321-0	02	1	0208-0411
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> ID=20	5-09700-321-0	02	1	0412-0610
248	CLIP; HARNESS BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> ID=20	5-09700-321-0	04	1	0611-
416	CLAMP; LENS,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-976-0	04	1	0611-
417	FILTER; BREATHER,LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-983-0	04	1	0611-
418	SPRING; BULB,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-982-0	02	1	0611-
421	TUBE; BREATHER,FOG LAMP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96>	8-97378-984-0	04	1	0611-

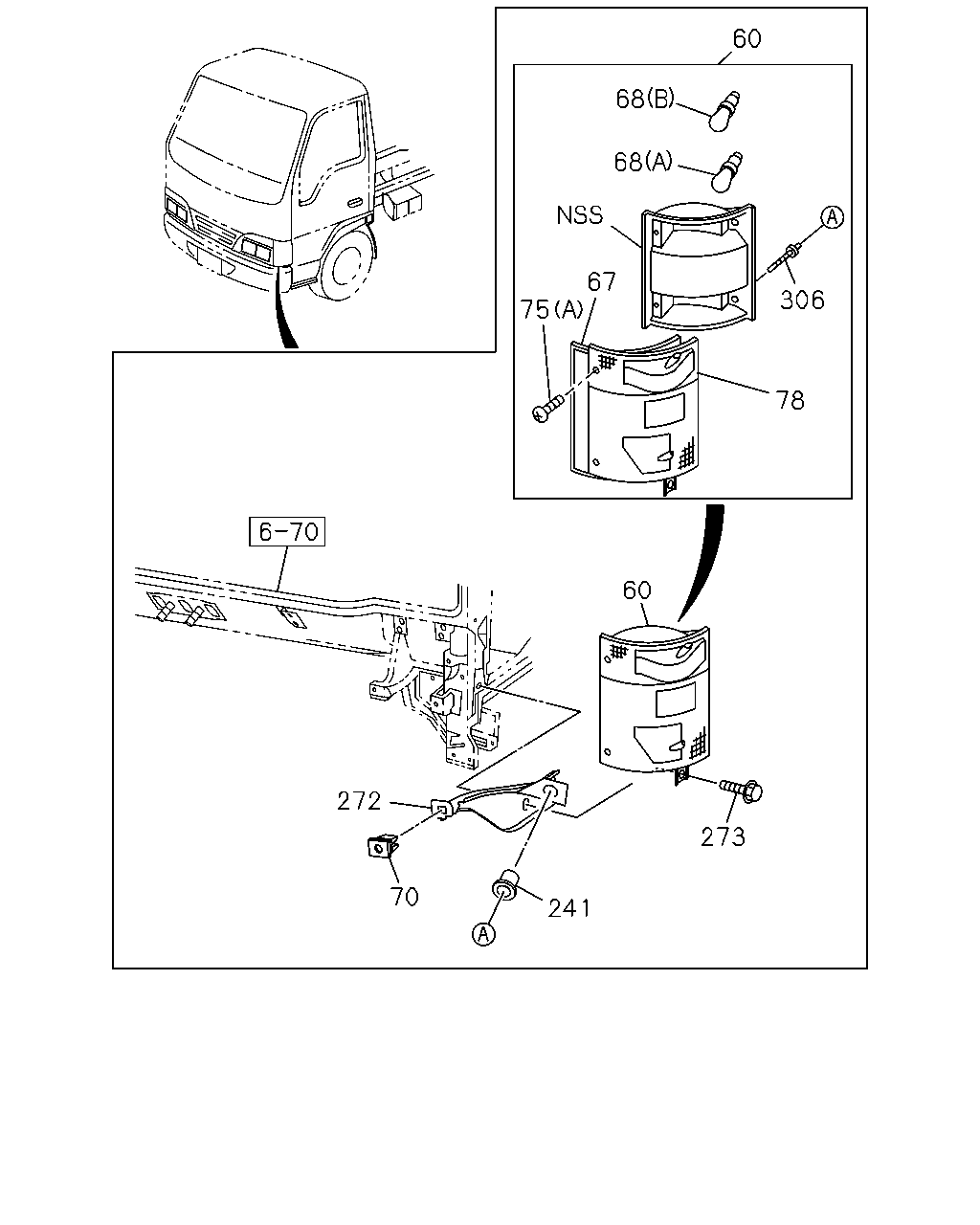

60 68 68 67 306 75 78 6 70 60 272 273 70 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	9701-0411
6	RIM; HEADLAMP (B) TAI	8-97967-120-0	04	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-098-0	01	1	0412-0511
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	9701-0411
6	RIM; HEADLAMP (A) TAI	8-97840-097-0	01	1	0412-0511
60	LAMP ASM; FRT COMB TAI	8-97965-457-1	01	1	9701-0411
60	LAMP ASM; FRT COMB TAI	8-97965-457-1	01	1	0412-0511
60	LAMP ASM; FRT COMB	8-98010-890-0	01	1	0512-0610
60	LAMP ASM; FRT COMB	8-98010-892-0	01	1	0611-
60	LAMP ASM; FRT COMB TAI	8-97965-456-1	01	1	9701-0411
60	LAMP ASM; FRT COMB TAI	8-97965-456-1	01	1	0412-0511
60	LAMP ASM; FRT COMB	8-98010-889-0	01	1	0512-0610
60	LAMP ASM; FRT COMB	8-98010-891-0	01	1	0611-
67	GASKET; FRT COMB LAMP TAI	8-97966-430-0	02	1	9701-0411
67	GASKET; FRT COMB LAMP TAI	8-97966-430-0	02	1	0412-0511
67	GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0512-
68	BULB; FRT COMB LAMP (B) 12V 21W TAI	8-97966-432-0	02	1	9701-0411
68	BULB; FRT COMB LAMP (B) 12V 21W TAI	8-97966-432-0	02	1	0412-0511
68	BULB; FRT COMB LAMP (C) 12V 21/5W	8-94125-959-0	02	1	0512-0610
68	BULB; FRT COMB LAMP (C) 24V 21/5W TAI	8-94125-957-0	02	1	0611-
68	BULB; FRT COMB LAMP (A) 12V 27/8W TAI	8-97966-433-0	02	1	9701-0411
68	BULB; FRT COMB LAMP (A) 12V 27/8W TAI	8-97966-433-0	02	1	0412-0511
68	BULB; FRT COMB LAMP (D) 12V 21W	8-97304-590-0	02	1	0512-0610
68	BULB; FRT COMB LAMP (D) 24V 21W AMBER	8-97323-806-0	02	1	0611-
70	GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	9701-0411
70	GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	0412-0511
70	GROMMET; SCREW,FRT COMB LAMP	1-09983-081-0	02	1	0512-
75	SCREW; FRT COMB LAMP (A) TAI	8-97966-431-0	08	1	9701-0411
75	SCREW; FRT COMB LAMP (A) TAI	8-97966-431-0	08	1	0412-0511
75	SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0512-
75	SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0512-
78	LENS ASM; FRT COMB TAI	8-97966-429-0	01	1	9701-0411
78	LENS ASM; FRT COMB TAI	8-97966-429-0	01	1	0412-0511
78	LENS ASM; FRT COMB TAI	8-97966-428-0	01	1	9701-0411
78	LENS ASM; FRT COMB TAI	8-97966-428-0	01	1	0412-0511
241	GROMMET; FRT LAMP	8-94452-095-0	04	1	9701-0411
241	GROMMET; FRT LAMP	8-94452-095-0	04	1	0412-0511
241	GROMMET; FRT LAMP	8-97380-030-0	02	1	0512-
272	BRACKET; FRT COMB LAMP	8-97853-237-2	01	1	9701-0411
272	BRACKET; FRT COMB LAMP	8-97853-237-2	01	1	0412-0511
272	BRACKET; FRT COMB LAMP	8-97853-236-2	01	1	9701-0411
272	BRACKET; FRT COMB LAMP	8-97853-236-2	01	1	0412-0511
273	BOLT; BRKT M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9701-0411
273	BOLT; BRKT M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0412-0511
306	PIVOT; FRT COMB LAMP TAI	8-97966-434-0	04	1	9701-0411
306	PIVOT; FRT COMB LAMP TAI	8-97966-434-0	04	1	0412-0511

60 93 75 75 315 67 419 76 68 68 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	LAMP ASM; FRT COMB TAI	8-97965-457-1	01	1	9701-0411
60	LAMP ASM; FRT COMB TAI	8-97965-457-1	01	1	0412-0511
60	LAMP ASM; FRT COMB	8-98010-890-0	01	1	0512-0610
60	LAMP ASM; FRT COMB	8-98010-892-0	01	1	0611-
60	LAMP ASM; FRT COMB TAI	8-97965-456-1	01	1	9701-0411
60	LAMP ASM; FRT COMB TAI	8-97965-456-1	01	1	0412-0511
60	LAMP ASM; FRT COMB	8-98010-889-0	01	1	0512-0610
60	LAMP ASM; FRT COMB	8-98010-891-0	01	1	0611-
67	GASKET; FRT COMB LAMP TAI	8-97966-430-0	02	1	9701-0411
67	GASKET; FRT COMB LAMP TAI	8-97966-430-0	02	1	0412-0511
67	GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0512-
68	BULB; FRT COMB LAMP (B) 12V 21W TAI	8-97966-432-0	02	1	9701-0411
68	BULB; FRT COMB LAMP (B) 12V 21W TAI	8-97966-432-0	02	1	0412-0511
68	BULB; FRT COMB LAMP (C) 12V 21/5W	8-94125-959-0	02	1	0512-0610
68	BULB; FRT COMB LAMP (C) 24V 21/5W TAI	8-94125-957-0	02	1	0611-
68	BULB; FRT COMB LAMP (A) 12V 27/8W TAI	8-97966-433-0	02	1	9701-0411
68	BULB; FRT COMB LAMP (A) 12V 27/8W TAI	8-97966-433-0	02	1	0412-0511
68	BULB; FRT COMB LAMP (D) 12V 21W	8-97304-590-0	02	1	0512-0610
68	BULB; FRT COMB LAMP (D) 24V 21W AMBER	8-97323-806-0	02	1	0611-
75	SCREW; FRT COMB LAMP (A) TAI	8-97966-431-0	08	1	9701-0411
75	SCREW; FRT COMB LAMP (A) TAI	8-97966-431-0	08	1	0412-0511
75	SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0512-
75	SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0512-
76	LENS; FRT COMB LAMP	8-97378-966-0	01	1	0512-
76	LENS; FRT COMB LAMP	8-97378-965-0	01	1	0512-
93	BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	0512-
93	BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	0512-
315	HARNESS; FRT COMB LAMP	8-98010-916-0	02	1	0512-
419	LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	0512-
419	LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
