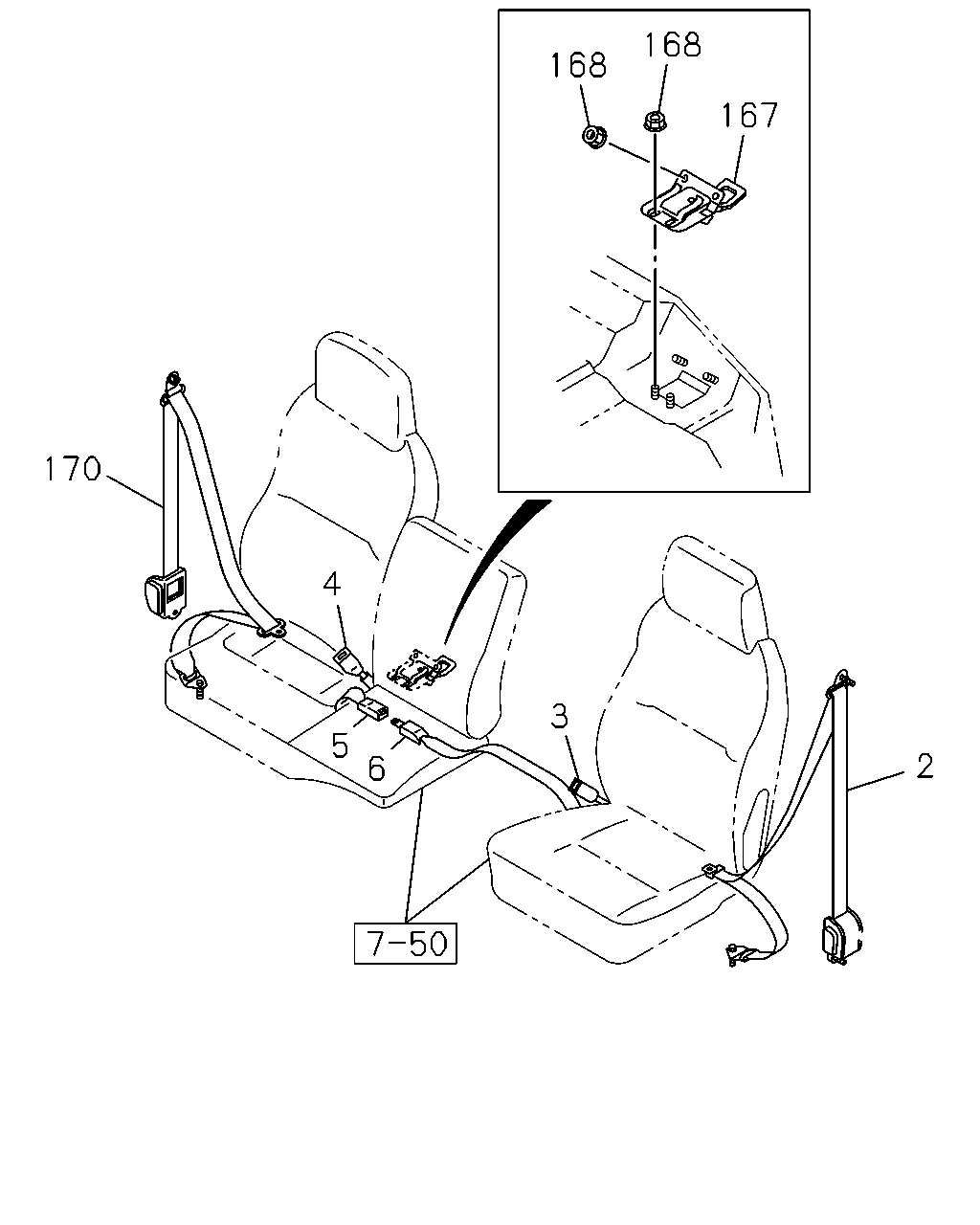

7-60 — SEAT BELT (#139138) — 57 parça

6 20 152 177 161 166 165 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BELT; CENTER SEAT,TONGUE SIDE DARK BEIGE TAI	8-97840-080-0	01	1	9701-9905
6	BELT; CENTER SEAT,TONGUE SIDE DARK GRAY TAI	8-97966-856-0	01	1	9906-0404
6	BELT; CENTER SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-423-0	01	1	0405-0411
6	BELT; CENTER SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-423-0	01	1	0412-0511
6	BELT; CENTER SEAT,TONGUE SIDE GRAY TAI	8-97967-490-0	01	1	0512-
152	PROTECTOR L=30 SERVICED BY L=190	1-71998-300-0	02	1	9701-0011
152	PROTECTOR	8-97287-563-0	02	1	0012-0411
152	PROTECTOR	8-97287-563-0	02	1	0412-
161	REINFORCEMENT; SEAT BELT ANCHOR	8-97850-442-2	01	1	9701-9905
161	REINFORCEMENT; SEAT BELT ANCHOR TAI	8-97840-294-0	01	1	9906-0411
161	REINFORCEMENT; SEAT BELT ANCHOR TAI	8-97840-294-0	01	1	0412-
165	HOOK; SEAT BELT ANCHOR	8-97850-377-3	01	1	9701-9710
165	HOOK; SEAT BELT ANCHOR	8-97869-416-0	01	1	9711-9905
165	HOOK; SEAT BELT ANCHOR TAI	8-97840-295-0	01	1	9906-0411
165	HOOK; SEAT BELT ANCHOR TAI	8-97840-295-0	01	1	0412-
166	BOLT; SEAT BELT ANCHOR M8X25 FLANGE	0-28680-825-0	04	1	9701-0411
166	BOLT; SEAT BELT ANCHOR M8X25 FLANGE	0-28680-825-0	04	1	0412-0512
166	BOLT; SEAT BELT ANCHOR M8X25 FLANGE	0-28650-825-0	04	1	0601-
177	NUT M8 W/LK WASHER	8-94327-073-0	01	1	9701-0411
177	NUT M8 W/LK WASHER	8-94327-073-0	01	1	0412-

168 168 167 170 4 3 5 2 6 7 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BELT; SEAT,TONGUE SIDE DARK BEIGE TAI	8-97840-074-0	01	1	9701-9905
2	BELT; SEAT,TONGUE SIDE DARK GRAY TAI	8-97966-854-0	01	1	9906-0012
2	BELT; SEAT,TONGUE SIDE DARK GRAY TAI	8-97967-215-0	01	1	0101-0404
2	BELT; SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-420-0	01	1	0405-0411
2	BELT; SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-420-0	01	1	0412-0511
2	BELT; SEAT,TONGUE SIDE GRAY TAI	8-97967-479-0	01	1	0512-
3	BELT; SEAT,BUCKLE SIDE DARK BEIGE TAI	8-97840-072-0	01	1	9701-9905
3	BELT; SEAT,BUCKLE SIDE DARK GRAY TAI	8-97966-852-0	01	1	9906-0404
3	BELT; SEAT,BUCKLE SIDE DARK GRAY TAI	8-97400-419-0	01	1	0405-0411
3	BELT; SEAT,BUCKLE SIDE DARK GRAY TAI	8-97400-419-0	01	1	0412-0511
3	BELT; SEAT,BUCKLE SIDE GRAY TAI	8-97967-478-0	01	1	0512-
4	BELT; PASSENGER SEAT,BUCKLE SIDE DARK BEIGE TAI	8-97840-076-0	01	1	9701-9905
4	BELT; PASSENGER SEAT,BUCKLE SIDE DARK GRAY TAI	8-97966-853-0	01	1	9906-0404
4	BELT; PASSENGER SEAT,BUCKLE SIDE DARK GRAY TAI	8-97400-421-0	01	1	0405-0411
4	BELT; PASSENGER SEAT,BUCKLE SIDE DARK GRAY TAI	8-97400-421-0	01	1	0412-0511
4	BELT; PASSENGER SEAT,BUCKLE SIDE GRAY TAI	8-97967-486-0	01	1	0512-
5	BELT; CENTER SEAT,BUCKLE SIDE DARK BEIGE TAI	8-97840-078-0	01	1	9701-9905
5	BELT; CENTER SEAT,BUCKLE SIDE DARK GRAY TAI	8-97966-855-0	01	1	9906-0404
5	BELT; CENTER SEAT,BUCKLE SIDE DARK GRAY TAI	8-97400-422-0	01	1	0405-0411
5	BELT; CENTER SEAT,BUCKLE SIDE DARK GRAY TAI	8-97400-422-0	01	1	0412-0511
5	BELT; CENTER SEAT,BUCKLE SIDE GRAY TAI	8-97967-489-0	01	1	0512-
6	BELT; CENTER SEAT,TONGUE SIDE DARK BEIGE TAI	8-97840-080-0	01	1	9701-9905
6	BELT; CENTER SEAT,TONGUE SIDE DARK GRAY TAI	8-97966-856-0	01	1	9906-0404
6	BELT; CENTER SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-423-0	01	1	0405-0411
6	BELT; CENTER SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-423-0	01	1	0412-0511
6	BELT; CENTER SEAT,TONGUE SIDE GRAY TAI	8-97967-490-0	01	1	0512-
167	PLATE; ANCHOR	8-97853-700-5	01	1	9701-9710
167	PLATE; ANCHOR	8-97869-412-1	01	1	9711-0411
167	PLATE; ANCHOR	8-97869-412-2	01	1	0412-
168	NUT; ANCHOR PLATE M8 FLANGE TAI	5-09440-005-0	04	1	9701-0411
168	NUT; ANCHOR PLATE M8 FLANGE TAI	5-09440-005-0	04	1	0412-
170	BELT; PASSENGER SEAT,TONGUE SIDE DARK BEIGE TAI	8-97840-074-0	01	1	9701-9905
170	BELT; PASSENGER SEAT,TONGUE SIDE DARK GRAY TAI	8-97966-854-0	01	1	9906-0012
170	BELT; PASSENGER SEAT,TONGUE SIDE DARK GRAY TAI	8-97967-215-0	01	1	0101-0406
170	BELT; PASSENGER SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-420-0	01	1	0407-0411
170	BELT; PASSENGER SEAT,TONGUE SIDE DARK GRAY TAI	8-97400-420-0	01	1	0412-0511
170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY TAI	8-97967-479-0	01	1	0512-
