◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#139137) — 237 parça
çizim 420515
1 17 99 18 2 16 19 12 24 228 13 15 72 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-633-5 01 1 9701-9905
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-078-0 01 1 9906-0207
1 BACK ASM; SEAT
DARK GRAY TAI 		8-97967-078-0 01 1 0208-0411
1 BACK ASM; SEAT
DARK GRAY TAI 		8-97967-078-0 01 1 0412-
1 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-632-3 01 1 9701-0207
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-647-3 01 1 9701-9905
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-079-0 01 1 9906-0207
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY TAI 		8-97967-079-0 01 1 0208-0411
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY TAI 		8-97967-079-0 01 1 0412-
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-646-1 01 1 9701-0207
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-719-4 01 1 9701-9905
12 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-719-5 01 1 9906-0207
12 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK BEIGE 		8-97854-656-1 01 1 9701-9905
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-657-3 01 1 9701-9905
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-080-0 01 1 9906-0207
12 CUSHION; SEAT,FRT
DARK GRAY TAI 		8-97967-080-0 01 1 0208-0411
12 CUSHION; SEAT,FRT
DARK GRAY TAI 		8-97967-080-0 01 1 0412-
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-727-2 01 1 9701-9905
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-727-3 01 1 9906-0207
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK BEIGE 		8-97854-662-1 01 1 9701-9905
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-663-3 01 1 9701-9905
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-081-0 01 1 9906-0207
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY TAI 		8-97967-081-0 01 1 0208-0411
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY TAI 		8-97967-081-0 01 1 0412-
15 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-0 01 1 9701-9905
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-410-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-410-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-411-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-411-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (A) DRIVER TAI 		8-97966-990-0 01 1 9906-0207
16 ADJUSTER ASM; RECLINING
(A) DRIVER TAI 		8-97966-990-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
(A) DRIVER TAI 		8-97966-990-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (B) PASSENGER BLACK 		8-97859-274-3 01 1 9701-0207
17 BOLT; RECLINING
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> M8X18 TAI 		8-94279-109-1 02 1 9701-9905
17 BOLT; RECLINING
EXC. MANUAL TILT CAB<RWZ> M8X18 TAI 		8-94279-109-1 02 1 9701-9905
17 BOLT; RECLINING
M8X18 TAI 		8-94279-109-1 02 1 9906-0006
17 BOLT; RECLINING
SEAT CLOTH<7FL> M8X18 TAI 		8-94279-109-1 02 1 0007-0207
17 BOLT; RECLINING
M8X18 TAI 		8-94279-109-1 02 1 0208-0411
17 BOLT; RECLINING
M8X18 TAI 		8-94279-109-1 02 1 0412-
17 BOLT; RECLINING
EXC. SEAT CLOTH<7FL> M8X20 TAI 		8-97255-906-0 02 1 0007-0207
18 COVER; RECLINING
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-667-0 01 1 9701-9905
18 COVER; RECLINING
EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-667-0 01 1 9701-9905
18 COVER; RECLINING
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-667-0 01 1 9906-0207
18 COVER; RECLINING
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-082-0 01 1 9906-0207
18 COVER; RECLINING
DARK GRAY TAI 		8-97967-082-0 01 1 0208-0411
18 COVER; RECLINING
DARK GRAY TAI 		8-97967-082-0 01 1 0412-0511
18 COVER; RECLINING
GRAY TAI 		8-97967-491-0 01 1 0512-
19 SCREW; COVER
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9701-9905
19 SCREW; COVER
EXC. MANUAL TILT CAB<RWZ> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9701-9905
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9906-0411
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0412-0604
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-
24 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-669-0 01 1 9701-9905
24 KNOB; RECLINING,FRT,SEAT
EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-669-0 01 1 9701-9905
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-669-0 01 1 9906-0207
24 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-083-0 01 1 9906-0207
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY TAI 		8-97967-083-0 01 1 0208-0411
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY TAI 		8-97967-083-0 01 1 0412-0511
24 KNOB; RECLINING,FRT,SEAT
GRAY TAI 		8-97967-492-0 01 1 0512-
63 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> 		8-97854-670-2 01 1 9701-9905
63 ADJUSTER; SEAT SLIDE
EXC. MANUAL TILT CAB<RWZ> 		8-97854-670-2 01 1 9701-9905
63 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> 		8-97854-670-3 01 1 9906-0207
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> TAI 		8-97967-001-0 01 1 9906-0207
63 ADJUSTER; SEAT SLIDE
TAI 		8-97967-001-0 01 1 0208-0411
63 ADJUSTER; SEAT SLIDE
TAI 		8-97967-001-0 01 1 0412-
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9701-0411
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0412-
69 NUT; FRT SEAT
M8 TAI 		1-09984-109-0 01 1 9701-0411
69 NUT; FRT SEAT
M8 TAI 		1-09984-109-0 01 1 0412-
71 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9701-9905
71 BOLT; ADJ TO SEAT
EXC. MANUAL TILT CAB<RWZ> M8X30 W/LK WASHER 		0-50040-830-0 02 1 9701-9905
71 BOLT; ADJ TO SEAT
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9906-0006
71 BOLT; ADJ TO SEAT
SEAT CLOTH<7FL> M8X30 W/LK WASHER 		0-50040-830-0 02 1 0007-0207
71 BOLT; ADJ TO SEAT
M8X30 W/LK WASHER 		0-50040-830-0 02 1 0208-0411
71 BOLT; ADJ TO SEAT
M8X30 W/LK WASHER 		0-50040-830-0 02 1 0412-0512
71 BOLT; ADJ TO SEAT
M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601-
71 BOLT; ADJ TO SEAT
EXC. SEAT CLOTH<7FL> M8X35 W/LK WASHER 		0-50040-835-0 02 1 0007-0207
72 SPACER; SEAT ADJ
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> TAI 		8-97854-671-0 02 1 9701-9905
72 SPACER; SEAT ADJ
EXC. MANUAL TILT CAB<RWZ> TAI 		8-97854-671-0 02 1 9701-9905
72 SPACER; SEAT ADJ
TAI 		8-97854-671-0 02 1 9906-0411
72 SPACER; SEAT ADJ
TAI 		8-97854-671-0 02 1 0412-
99 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> TAI 		8-97854-087-0 01 1 9701-9905
99 BUSHING; SEAT BACK
EXC. MANUAL TILT CAB<RWZ> TAI 		8-97854-087-0 01 1 9701-9905
99 BUSHING; SEAT BACK
TAI 		8-97854-087-0 01 1 9906-0411
99 BUSHING; SEAT BACK
TAI 		8-97854-087-0 01 1 0412-
228 SCREW; KNOB
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> M4X6 TAI 		8-97042-273-0 01 1 9701-9905
228 SCREW; KNOB
EXC. MANUAL TILT CAB<RWZ> M4X6 TAI 		8-97042-273-0 01 1 9701-9905
228 SCREW; KNOB
M4X6 TAI 		8-97042-273-0 01 1 9906-0411
228 SCREW; KNOB
M4X6 TAI 		8-97042-273-0 01 1 0412-
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 01 1 9701-0411
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 01 1 0412-

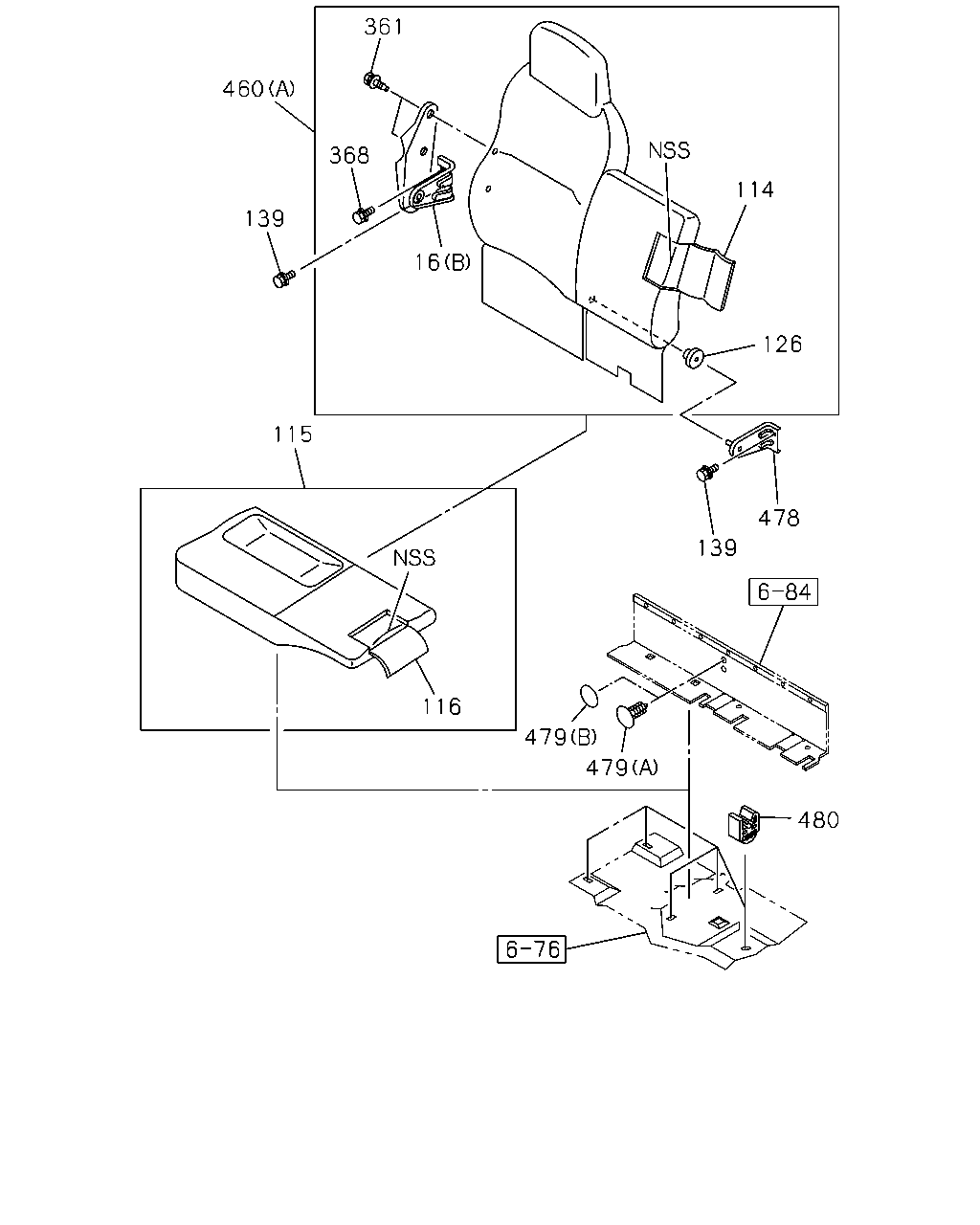

çizim 420516
361 460 368 114 139 16 126 115 478 139 6 84 116 479 479 480 6 76
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-410-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-410-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-411-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-411-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (A) DRIVER TAI 		8-97966-990-0 01 1 9906-0207
16 ADJUSTER ASM; RECLINING
(A) DRIVER TAI 		8-97966-990-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
(A) DRIVER TAI 		8-97966-990-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (B) PASSENGER BLACK 		8-97859-274-3 01 1 9701-0207
114 COVER; TRIM,PASSENGER SEAT,BACK
INTERIOR DELUXE<RBB> TAI 		8-97967-407-0 01 1 0208-0411
114 COVER; TRIM,PASSENGER SEAT,BACK
INTERIOR DELUXE<RBB> TAI 		8-97967-407-0 01 1 0412-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-084-0 01 1 9906-0207
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INTERIOR DELUXE<RBB> DARK GRAY TAI 		8-97967-084-0 01 1 0208-0411
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INTERIOR DELUXE<RBB> DARK GRAY TAI 		8-97967-084-0 01 1 0412-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-689-4 01 1 9701-0207
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE TAI 		8-97840-070-0 01 1 9701-9905
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97966-914-0 01 1 9906-0207
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY TAI 		8-97966-914-0 01 1 0208-0411
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY TAI 		8-97966-914-0 01 1 0412-
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-583-5 01 1 9701-0207
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-085-0 01 1 9906-0207
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY TAI 		8-97967-085-0 01 1 0208-0411
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY TAI 		8-97967-085-0 01 1 0412-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-677-4 01 1 9701-0207
126 BUSHING; HINGE,RECLINING
INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 02 1 0208-0208
126 BUSHING; HINGE,RECLINING
INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 02 1 0209-0411
126 BUSHING; HINGE,RECLINING
INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 02 1 0412-
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> TAI 		8-97966-986-0 01 1 9906-0207
126 BUSHING; HINGE,RECLINING
EXC. INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 01 1 0208-0411
126 BUSHING; HINGE,RECLINING
EXC. INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 01 1 0412-
126 BUSHING; HINGE,RECLINING
EXC. SEAT CLOTH<7FL> TAI 		8-97854-900-0 01 1 9701-0207
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9701-0207
139 BOLT; PASSENGER SEAT
INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0208-0411
139 BOLT; PASSENGER SEAT
INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0412-
139 BOLT; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0208-0411
139 BOLT; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0412-
361 BOLT; ADJ,RECLINING
INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 04 1 0208-0411
361 BOLT; ADJ,RECLINING
INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 04 1 0412-
361 BOLT; ADJ,RECLINING
EXC. SEAT CLOTH<7FL> M8X18 TAI 		8-94279-109-1 02 1 9701-9905
361 BOLT; ADJ,RECLINING
M8X18 TAI 		8-94279-109-1 02 1 9906-0006
361 BOLT; ADJ,RECLINING
SEAT CLOTH<7FL> M8X18 TAI 		8-94279-109-1 02 1 0007-0207
361 BOLT; ADJ,RECLINING
EXC. INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 02 1 0208-0411
361 BOLT; ADJ,RECLINING
EXC. INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 02 1 0412-
361 BOLT; ADJ,RECLINING
EXC. SEAT CLOTH<7FL> M8X20 TAI 		8-97255-906-0 02 1 0007-0207
368 BOLT; SEAT
INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0208-0411
368 BOLT; SEAT
SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9906-0207
368 BOLT; SEAT
EXC. INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0208-0208
368 BOLT; SEAT
SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0209-0411
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0412-
368 BOLT; SEAT
EXC. SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9701-0207
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (C) DARK GRAY TAI 		8-97967-349-1 01 1 0208-0411
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (C) DARK GRAY TAI 		8-97967-349-1 01 1 0412-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK BEIGE TAI 		8-97840-068-0 01 1 9701-9905
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY TAI 		8-97966-913-0 01 1 9906-0207
460 BACK ASM; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> (A) DARK GRAY TAI 		8-97966-913-0 01 1 0208-0411
460 BACK ASM; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> (A) DARK GRAY TAI 		8-97966-913-0 01 1 0412-
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-595-6 01 1 9701-0207
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (B) DARK GRAY TAI 		8-97967-348-1 01 1 0208-0411
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (B) DARK GRAY TAI 		8-97967-348-1 01 1 0412-
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-187-0 01 1 9701-9905
478 BRACKET ASM; HINGE,PASSENGER SEAT
TAI 		8-97840-307-0 01 1 9906-0207
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> TAI 		8-97840-307-0 01 1 0208-0411
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> TAI 		8-97840-307-0 01 1 0412-
478 BRACKET ASM; HINGE,PASSENGER SEAT
INTERIOR DELUXE<RBB> TAI 		8-97967-263-0 01 1 0208-0411
478 BRACKET ASM; HINGE,PASSENGER SEAT
INTERIOR DELUXE<RBB> TAI 		8-97967-263-0 01 1 0412-
479 PLUG; HINGE
(A) OD=15 L=14.5 		1-76378-157-0 02 1 9701-0207
479 PLUG; HINGE
EXC. INTERIOR DELUXE<RBB> (A) OD=15 L=14.5 		1-76378-157-0 02 1 0208-0411
479 PLUG; HINGE
EXC. INTERIOR DELUXE<RBB> (A) OD=15 L=14.5 		1-76378-157-0 02 1 0412-0506
479 PLUG; HINGE
EXC. INTERIOR DELUXE<RBB> (B) OD=25 BLACK TAI 		1-76798-019-0 02 1 0507-
480 CLIP; CUSHION 8-94279-977-0 05 1 9701-0411
480 CLIP; CUSHION 8-94279-977-0 05 1 0412-

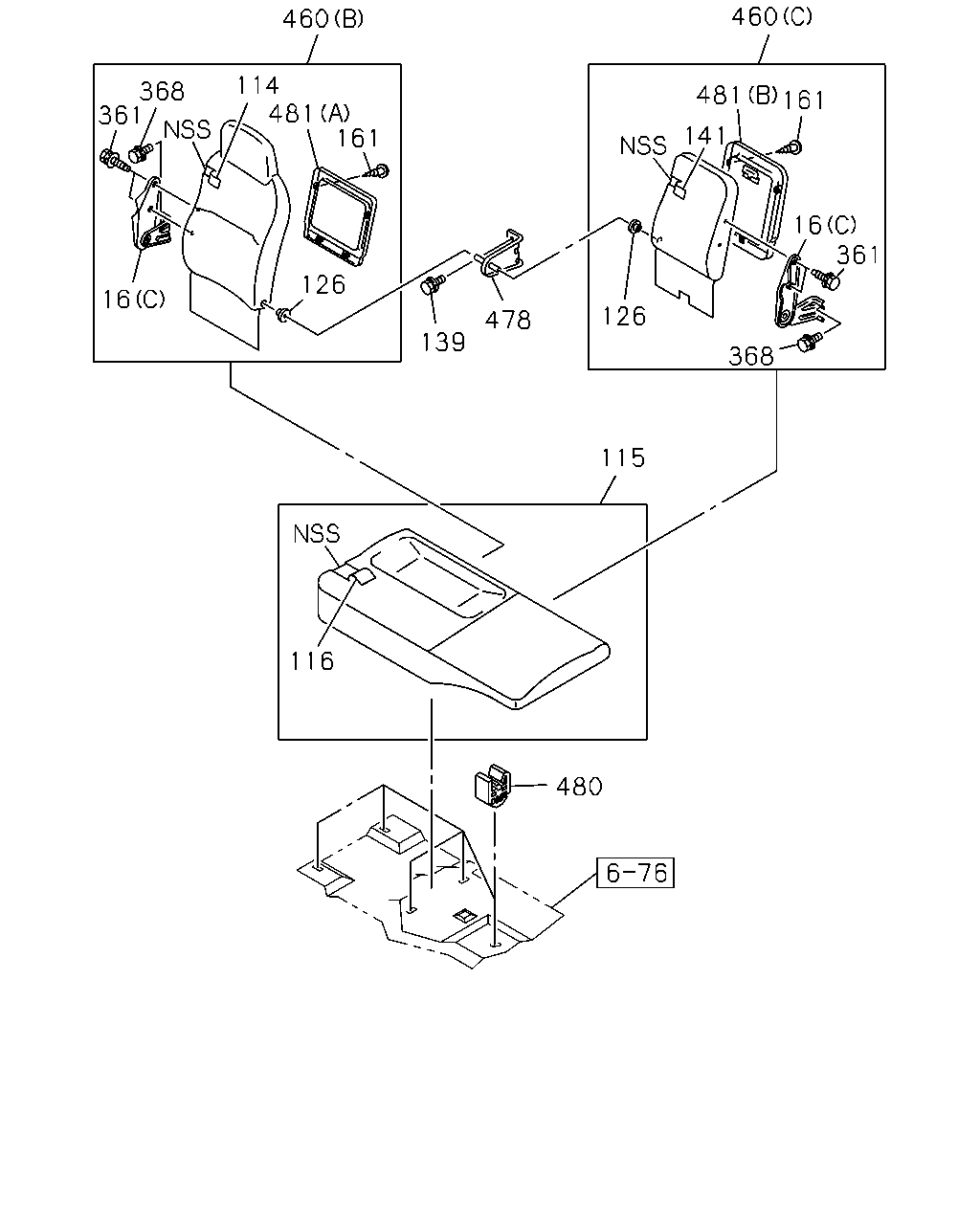

çizim 420523
460 460 114 481 368 361 481 161 161 141 16 361 126 16 126 478 139 368 115 116 480 6 76
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-410-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-410-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-411-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
INTERIOR DELUXE<RBB> (C) PASSENGER BLACK TAI 		8-97967-411-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (A) DRIVER TAI 		8-97966-990-0 01 1 9906-0207
16 ADJUSTER ASM; RECLINING
(A) DRIVER TAI 		8-97966-990-0 01 1 0208-0411
16 ADJUSTER ASM; RECLINING
(A) DRIVER TAI 		8-97966-990-0 01 1 0412-
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (B) PASSENGER BLACK 		8-97859-274-3 01 1 9701-0207
114 COVER; TRIM,PASSENGER SEAT,BACK
INTERIOR DELUXE<RBB> TAI 		8-97967-407-0 01 1 0208-0411
114 COVER; TRIM,PASSENGER SEAT,BACK
INTERIOR DELUXE<RBB> TAI 		8-97967-407-0 01 1 0412-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-084-0 01 1 9906-0207
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INTERIOR DELUXE<RBB> DARK GRAY TAI 		8-97967-084-0 01 1 0208-0411
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INTERIOR DELUXE<RBB> DARK GRAY TAI 		8-97967-084-0 01 1 0412-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-689-4 01 1 9701-0207
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE TAI 		8-97840-070-0 01 1 9701-9905
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97966-914-0 01 1 9906-0207
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY TAI 		8-97966-914-0 01 1 0208-0411
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY TAI 		8-97966-914-0 01 1 0412-
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-583-5 01 1 9701-0207
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY TAI 		8-97967-085-0 01 1 9906-0207
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY TAI 		8-97967-085-0 01 1 0208-0411
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY TAI 		8-97967-085-0 01 1 0412-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-677-4 01 1 9701-0207
126 BUSHING; HINGE,RECLINING
INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 02 1 0208-0208
126 BUSHING; HINGE,RECLINING
INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 02 1 0209-0411
126 BUSHING; HINGE,RECLINING
INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 02 1 0412-
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> TAI 		8-97966-986-0 01 1 9906-0207
126 BUSHING; HINGE,RECLINING
EXC. INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 01 1 0208-0411
126 BUSHING; HINGE,RECLINING
EXC. INTERIOR DELUXE<RBB> TAI 		8-97966-986-0 01 1 0412-
126 BUSHING; HINGE,RECLINING
EXC. SEAT CLOTH<7FL> TAI 		8-97854-900-0 01 1 9701-0207
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9701-0207
139 BOLT; PASSENGER SEAT
INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0208-0411
139 BOLT; PASSENGER SEAT
INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0412-
139 BOLT; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0208-0411
139 BOLT; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0412-
141 COVER; TRIM,BENCH SEAT,BACK
INTERIOR DELUXE<RBB> TAI 		8-97967-406-0 01 1 0208-0411
141 COVER; TRIM,BENCH SEAT,BACK
INTERIOR DELUXE<RBB> TAI 		8-97967-406-0 01 1 0412-
161 SCREW; CONSOLE
INTERIOR DELUXE<RBB> M4X12 USA 		8-94279-351-0 08 1 0208-0208
161 SCREW; CONSOLE
INTERIOR DELUXE<RBB> M4X12 USA 		8-94279-351-0 07 1 0209-0411
161 SCREW; CONSOLE
INTERIOR DELUXE<RBB> M4X12 USA 		8-94279-351-0 07 1 0412-
361 BOLT; ADJ,RECLINING
INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 04 1 0208-0411
361 BOLT; ADJ,RECLINING
INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 04 1 0412-
361 BOLT; ADJ,RECLINING
EXC. SEAT CLOTH<7FL> M8X18 TAI 		8-94279-109-1 02 1 9701-9905
361 BOLT; ADJ,RECLINING
M8X18 TAI 		8-94279-109-1 02 1 9906-0006
361 BOLT; ADJ,RECLINING
SEAT CLOTH<7FL> M8X18 TAI 		8-94279-109-1 02 1 0007-0207
361 BOLT; ADJ,RECLINING
EXC. INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 02 1 0208-0411
361 BOLT; ADJ,RECLINING
EXC. INTERIOR DELUXE<RBB> M8X18 TAI 		8-94279-109-1 02 1 0412-
361 BOLT; ADJ,RECLINING
EXC. SEAT CLOTH<7FL> M8X20 TAI 		8-97255-906-0 02 1 0007-0207
368 BOLT; SEAT
INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0208-0411
368 BOLT; SEAT
SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9906-0207
368 BOLT; SEAT
EXC. INTERIOR DELUXE<RBB> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0208-0208
368 BOLT; SEAT
SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0209-0411
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0412-
368 BOLT; SEAT
EXC. SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9701-0207
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (C) DARK GRAY TAI 		8-97967-349-1 01 1 0208-0411
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (C) DARK GRAY TAI 		8-97967-349-1 01 1 0412-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK BEIGE TAI 		8-97840-068-0 01 1 9701-9905
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY TAI 		8-97966-913-0 01 1 9906-0207
460 BACK ASM; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> (A) DARK GRAY TAI 		8-97966-913-0 01 1 0208-0411
460 BACK ASM; PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> (A) DARK GRAY TAI 		8-97966-913-0 01 1 0412-
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-595-6 01 1 9701-0207
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (B) DARK GRAY TAI 		8-97967-348-1 01 1 0208-0411
460 BACK ASM; PASSENGER SEAT
INTERIOR DELUXE<RBB> (B) DARK GRAY TAI 		8-97967-348-1 01 1 0412-
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-187-0 01 1 9701-9905
478 BRACKET ASM; HINGE,PASSENGER SEAT
TAI 		8-97840-307-0 01 1 9906-0207
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> TAI 		8-97840-307-0 01 1 0208-0411
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. INTERIOR DELUXE<RBB> TAI 		8-97840-307-0 01 1 0412-
478 BRACKET ASM; HINGE,PASSENGER SEAT
INTERIOR DELUXE<RBB> TAI 		8-97967-263-0 01 1 0208-0411
478 BRACKET ASM; HINGE,PASSENGER SEAT
INTERIOR DELUXE<RBB> TAI 		8-97967-263-0 01 1 0412-
480 CLIP; CUSHION 8-94279-977-0 05 1 9701-0411
480 CLIP; CUSHION 8-94279-977-0 05 1 0412-
481 TRAY; SEAT BACK
INTERIOR DELUXE<RBB> (B) TAI 		8-97967-408-0 01 1 0208-0411
481 TRAY; SEAT BACK
INTERIOR DELUXE<RBB> (B) TAI 		8-97967-408-0 01 1 0412-
481 TRAY; SEAT BACK
INTERIOR DELUXE<RBB> (A) TAI 		8-97967-409-0 01 1 0208-0411
481 TRAY; SEAT BACK
INTERIOR DELUXE<RBB> (A) TAI 		8-97967-409-0 01 1 0412-
çizim 420671
41
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> TAI 		8-97840-066-0 01 1 9701-9905
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
