Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#139136) — 251 parça

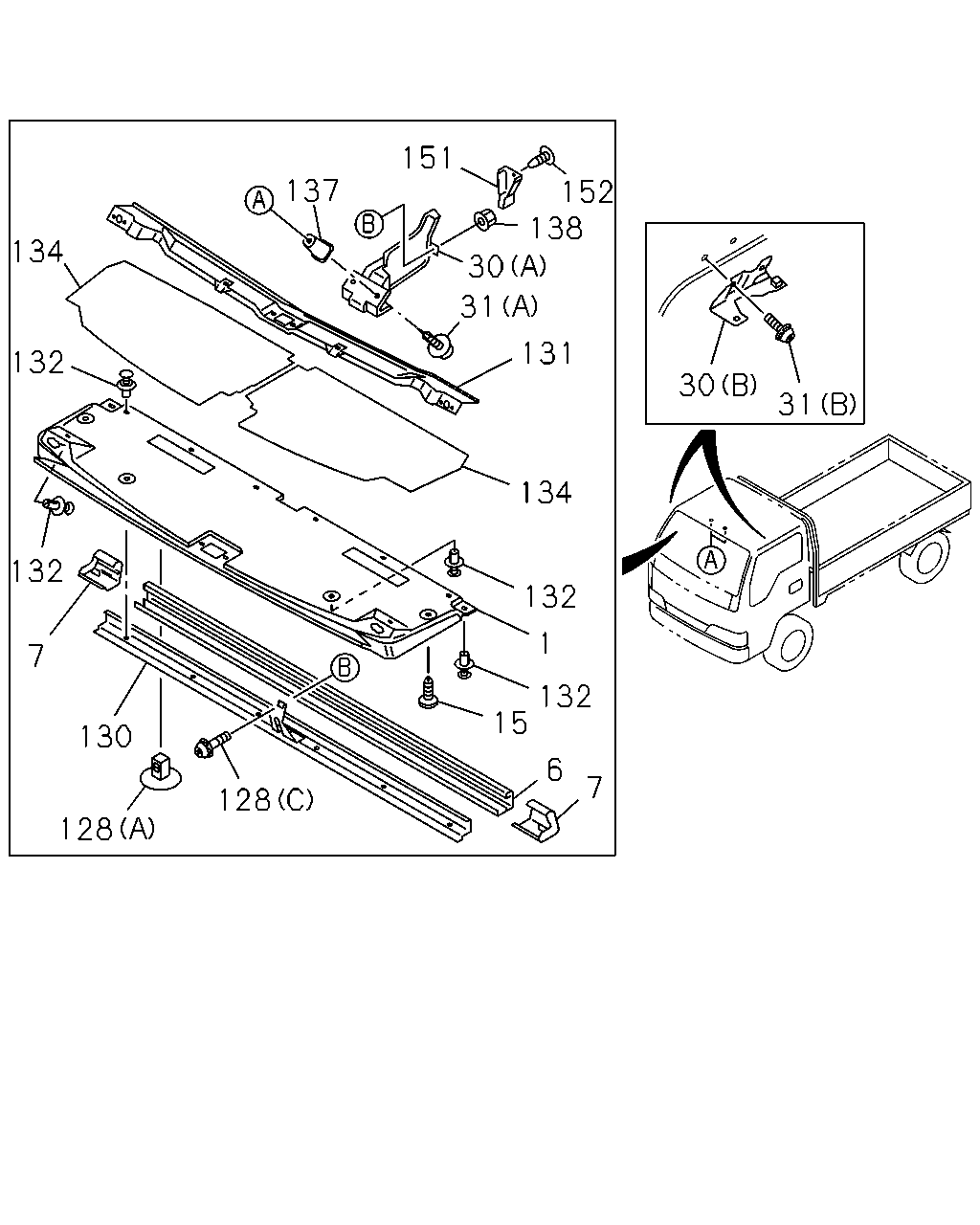

151 137 152 138 134 30 31 131 132 30 31 134 132 132 1 7 132 15 130 6 7 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97869-050-0	01	1	9811-9905
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97892-371-5	01	1	9906-0105
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97994-818-0	01	1	0106-0207
1	BOARD; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-0	01	1	0208-0411
1	BOARD; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-1	01	1	0412-
1	BOARD; HEADER SHELF LIGHT GRAY	8-97994-818-1	01	1	0412-
6	FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> GRAY	8-97856-055-1	01	1	9811-9905
7	FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9811-9905
7	FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9811-9905
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9811-9905
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	9906-0207
15	FASTENER; HEADER SHELF BOARD CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0208-0411
15	FASTENER; HEADER SHELF BOARD CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0412-
15	FASTENER; HEADER SHELF BOARD LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0412-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9811-9905
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (A)	8-97859-388-1	01	1	9906-0207
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0208-0411
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0412-
30	BRACKET ASM; HEADER SHELF (A)	8-97859-388-4	01	1	0412-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9811-9905
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B)	8-97856-797-2	01	1	9906-0207
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0208-0411
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0412-
30	BRACKET ASM; HEADER SHELF (B)	8-97856-797-3	01	1	0412-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9811-9905
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B)	8-97856-798-2	01	1	9906-0207
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0208-0411
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0412-
30	BRACKET ASM; HEADER SHELF (B)	8-97856-798-3	01	1	0412-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9811-9905
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9906-0207
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0208-0405
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A) M5X16	8-94279-341-0	02	1	0406-0411
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A) M5X16	8-94279-341-0	02	1	0412-
31	SCREW; BRKT,HEADER SHELF (A) M5X16	8-94279-341-0	02	1	0412-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9811-9905
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9906-0207
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0208-0411
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0412-
31	SCREW; BRKT,HEADER SHELF (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0412-
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0208-0411
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0412-
128	FASTENER; HEADER SHELF EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0412-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	9811-9905
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (C)	8-97892-737-0	03	1	9906-0207
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0208-0411
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0412-
128	FASTENER; HEADER SHELF (C)	8-97892-737-0	03	1	0412-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97853-998-2	01	1	9811-9905
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B) LIGHT GRAY	8-97892-153-2	02	1	9906-0207
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY	8-97892-153-2	02	1	0208-0411
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY	8-97892-153-2	02	1	0412-
128	FASTENER; HEADER SHELF (B) LIGHT GRAY	8-97892-153-2	02	1	0412-
130	REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-531-1	01	1	9811-9905
131	REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-742-6	01	1	9811-9905
132	FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9811-9905
134	SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-478-0	02	1	9811-9905
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	9811-9905
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ>	8-94279-039-0	01	1	9906-0207
137	GROMMET; SCREW,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0208-0405
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	9811-9905
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> M8 FLANGE	0-91150-108-0	01	1	9906-0207
138	NUT; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	0208-0411
138	NUT; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	0412-0602
138	NUT; BRKT,HEADER SHELF M8 FLANGE	0-91150-108-0	01	1	0412-0602
138	NUT; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91180-108-0	01	1	0603-
138	NUT; BRKT,HEADER SHELF M8 FLANGE	0-91180-108-0	01	1	0603-
151	COVER; BRKT TRAY ROOF HEAD<7EJ>	1-73318-553-1	01	1	9811-9905
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-250-0	01	1	9906-0207
151	COVER; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-250-0	01	1	0208-0411
151	COVER; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-250-0	01	1	0412-
151	COVER; BRKT LIGHT GRAY	8-97867-250-0	01	1	0412-
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> GRAY	8-97857-053-0	02	1	9811-9905
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-185-0	02	1	9906-0207
152	CLIP; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-185-0	02	1	0208-0411
152	CLIP; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-185-0	02	1	0412-
152	CLIP; BRKT LIGHT GRAY	8-97867-185-0	02	1	0412-

30 31 152 151 128 128 137 138 30 31 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97869-050-0	01	1	9811-9905
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97892-371-5	01	1	9906-0105
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97994-818-0	01	1	0106-0207
1	BOARD; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-0	01	1	0208-0411
1	BOARD; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-1	01	1	0412-
1	BOARD; HEADER SHELF LIGHT GRAY	8-97994-818-1	01	1	0412-
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9811-9905
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	9906-0207
15	FASTENER; HEADER SHELF BOARD CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0208-0411
15	FASTENER; HEADER SHELF BOARD CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0412-
15	FASTENER; HEADER SHELF BOARD LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0412-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9811-9905
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (A)	8-97859-388-1	01	1	9906-0207
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0208-0411
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0412-
30	BRACKET ASM; HEADER SHELF (A)	8-97859-388-4	01	1	0412-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9811-9905
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B)	8-97856-797-2	01	1	9906-0207
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0208-0411
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0412-
30	BRACKET ASM; HEADER SHELF (B)	8-97856-797-3	01	1	0412-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9811-9905
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B)	8-97856-798-2	01	1	9906-0207
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0208-0411
30	BRACKET ASM; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0412-
30	BRACKET ASM; HEADER SHELF (B)	8-97856-798-3	01	1	0412-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9811-9905
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9906-0207
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0208-0405
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A) M5X16	8-94279-341-0	02	1	0406-0411
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (A) M5X16	8-94279-341-0	02	1	0412-
31	SCREW; BRKT,HEADER SHELF (A) M5X16	8-94279-341-0	02	1	0412-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9811-9905
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9906-0207
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0208-0411
31	SCREW; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0412-
31	SCREW; BRKT,HEADER SHELF (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0412-
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0208-0411
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0412-
128	FASTENER; HEADER SHELF EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0412-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	9811-9905
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (C)	8-97892-737-0	03	1	9906-0207
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0208-0411
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0412-
128	FASTENER; HEADER SHELF (C)	8-97892-737-0	03	1	0412-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97853-998-2	01	1	9811-9905
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B) LIGHT GRAY	8-97892-153-2	02	1	9906-0207
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY	8-97892-153-2	02	1	0208-0411
128	FASTENER; HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY	8-97892-153-2	02	1	0412-
128	FASTENER; HEADER SHELF (B) LIGHT GRAY	8-97892-153-2	02	1	0412-
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	9811-9905
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ>	8-94279-039-0	01	1	9906-0207
137	GROMMET; SCREW,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0208-0405
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	9811-9905
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> M8 FLANGE	0-91150-108-0	01	1	9906-0207
138	NUT; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	0208-0411
138	NUT; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	0412-0602
138	NUT; BRKT,HEADER SHELF M8 FLANGE	0-91150-108-0	01	1	0412-0602
138	NUT; BRKT,HEADER SHELF CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91180-108-0	01	1	0603-
138	NUT; BRKT,HEADER SHELF M8 FLANGE	0-91180-108-0	01	1	0603-
151	COVER; BRKT TRAY ROOF HEAD<7EJ>	1-73318-553-1	01	1	9811-9905
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-250-0	01	1	9906-0207
151	COVER; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-250-0	01	1	0208-0411
151	COVER; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-250-0	01	1	0412-
151	COVER; BRKT LIGHT GRAY	8-97867-250-0	01	1	0412-
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> GRAY	8-97857-053-0	02	1	9811-9905
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-185-0	02	1	9906-0207
152	CLIP; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-185-0	02	1	0208-0411
152	CLIP; BRKT CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-185-0	02	1	0412-
152	CLIP; BRKT LIGHT GRAY	8-97867-185-0	02	1	0412-

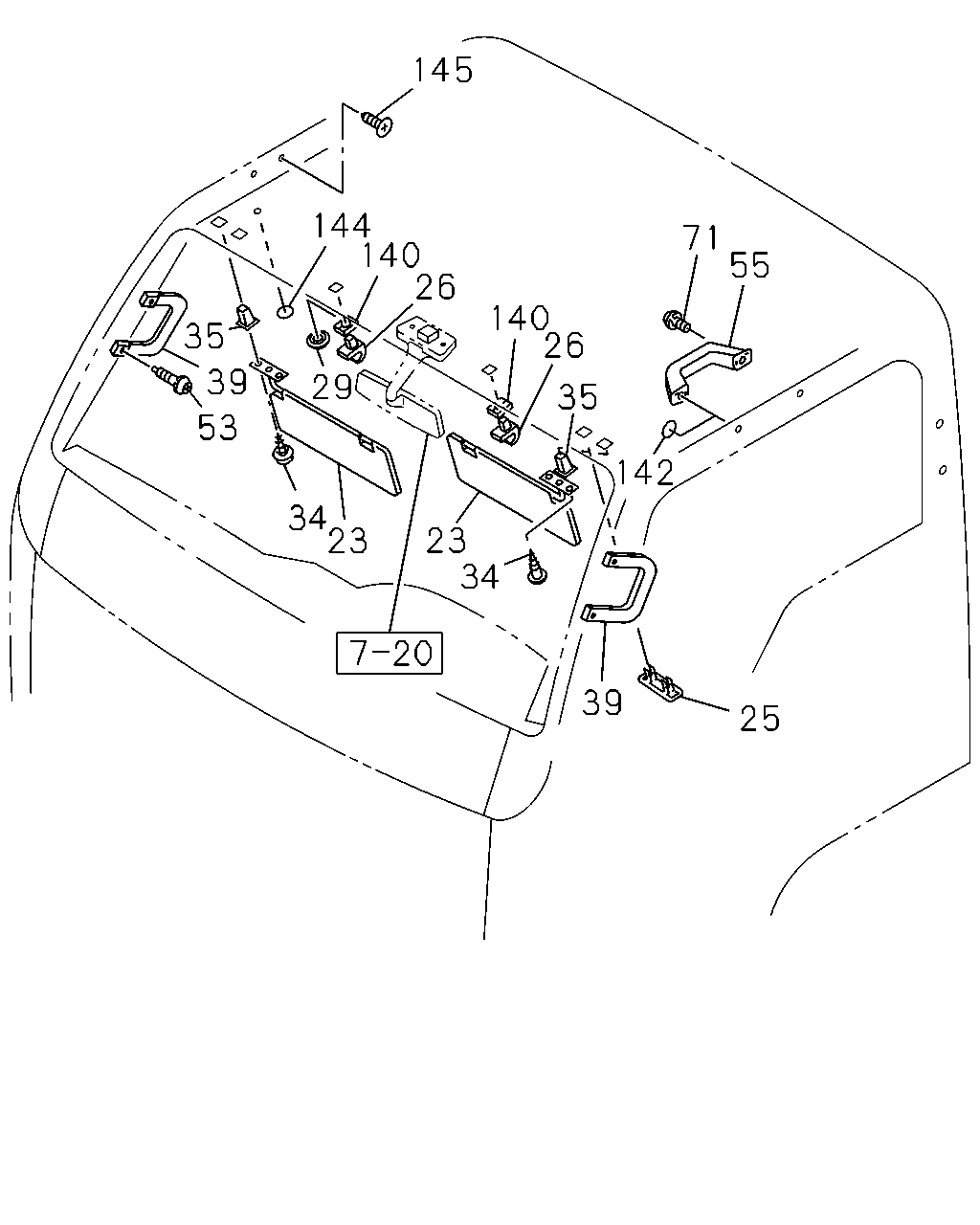

145 144 140 26 71 55 140 26 35 39 29 35 142 53 34 23 23 34 7 20 39 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9811-9905
7	FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9811-9905
23	SUN VISOR GRAY TAI	8-97840-046-1	01	1	9701-9809
23	SUN VISOR CAB-LOW ROOF<6XQ> GRAY TAI	8-97840-046-1	01	1	9810-9905
23	SUN VISOR CAB-LOW ROOF<6XQ> DARK GRAY TAI	8-97840-278-1	01	1	9906-
23	SUN VISOR CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY TAI	8-97840-380-1	01	1	0208-0411
23	SUN VISOR CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY TAI	8-97840-380-1	01	1	0412-
23	SUN VISOR LIGHT GRAY TAI	8-97840-380-1	01	1	0412-
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> GRAY TAI	8-97840-049-1	01	1	9701-9809
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> GRAY TAI	8-97840-049-1	01	1	9810-9905
23	SUN VISOR CAB-LOW ROOF<6XQ> LIGHT GRAY TAI	8-97840-279-1	01	1	9906-0207
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> LIGHT GRAY TAI	8-97840-279-1	01	1	0208-
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY TAI	8-97840-381-1	01	1	0208-0411
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY TAI	8-97840-381-1	01	1	0412-
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY TAI	8-97840-381-1	01	1	0412-
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> GRAY	8-97856-237-2	01	1	9810-9905
23	SUN VISOR TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97868-631-2	01	1	9906-0207
23	SUN VISOR TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> GRAY	8-97856-034-3	01	1	9810-9905
23	SUN VISOR TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-841-3	01	1	9906-0207
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-968-3	01	1	9701-9905
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-846-3	01	1	0208-0411
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-846-3	01	1	0412-0610
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-201-3	01	1	0611-
26	HOLDER; SUN VISOR CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0208-0411
26	HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0208-0411
26	HOLDER; SUN VISOR CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0412-0610
26	HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0412-0610
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0412-0610
26	HOLDER; SUN VISOR CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
26	HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> GRAY	8-97856-239-0	02	1	9701-9702
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	02	1	9703-9809
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> GRAY	8-97853-966-2	02	1	9810-9905
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-966-2	02	1	9810-9905
26	HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	02	1	9906-0207
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	02	1	9906-0207
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0208-0411
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	02	1	0208-0411
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0412-0610
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	02	1	0412-0610
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	02	1	0412-0610
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-198-2	02	1	0611-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-198-2	02	1	0611-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	02	1	0611-
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97856-239-0	01	1	9701-9702
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9703-9809
26	HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9810-9905
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>,CAB-LOW ROOF<6XQ> GRAY	8-97853-966-2	01	1	9810-9905
29	HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> OD=15.0	8-94279-040-0	01	1	9701-9905
29	HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> OD=15.0	8-94279-040-0	01	1	0208-0411
29	HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> OD=15.0	8-94279-040-0	01	1	0412-
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20 TAI	5-09981-059-0	04	1	9701-9905
34	SCREW; SUN VISOR M5X20 TAI	5-09981-059-0	04	1	9906-0207
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20 TAI	5-09981-059-0	04	1	0208-0411
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20 TAI	5-09981-059-0	04	1	0412-
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 TAI	5-09981-059-0	02	1	9701-9905
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 TAI	5-09981-059-0	02	1	0208-0411
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 TAI	5-09981-059-0	02	1	0412-
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	9701-9905
35	GROMMET; SCREW,SUN VISOR	8-94279-039-0	04	1	9906-0207
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0208-0411
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0412-
35	GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	02	1	9701-9905
35	GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	02	1	0208-0411
35	GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	02	1	0412-
39	HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	9701-9905
39	HANDLE; ASSIST,A-POST DARK GRAY TAI	8-97867-209-0	02	1	9906-0411
39	HANDLE; ASSIST,A-POST DARK GRAY TAI	8-97867-209-0	02	1	0412-0511
39	HANDLE; ASSIST,A-POST GRAY	8-97582-194-1	02	1	0512-0702
39	HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	0703-
53	SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	9701-0411
53	SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	0412-
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	9701-9905
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY TAI	8-97098-476-2	01	1	9906-0411
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY TAI	8-97098-476-2	01	1	0412-0511
55	GRIP; ASSIST,CAB SIDE UPR GRAY	8-97582-294-2	01	1	0512-0610
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	0611-
71	SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	9701-9905
71	SCREW M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	9906-0411
71	SCREW M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	0412-
140	SPACER; HOLDER,SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-152-1	01	1	0208-
140	SPACER; HOLDER,SUN VISOR SUNVISOR PASSENGER SIDE<D20> GRAY	8-97856-335-1	02	1	9701-9809
140	SPACER; HOLDER,SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> GRAY	8-97856-335-1	02	1	9810-9905
140	SPACER; HOLDER,SUN VISOR CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-152-1	02	1	9906-0207
140	SPACER; HOLDER,SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-152-1	02	1	0208-
140	SPACER; HOLDER,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97856-335-1	01	1	9701-9809
140	SPACER; HOLDER,SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97856-335-1	01	1	9810-9905
142	SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9701-9704
142	SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9705-9905
142	SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9701-9905
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9701-9704
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916) OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9705-9810
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916) OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9811-9905
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9811-9905
144	SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9906-9908
144	SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK TAI	5-76777-036-0	02	1	9906-9908
144	SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK TAI	5-76777-036-0	04	1	9909-9909
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9701-9810
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9811-9908
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9811-9908
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9909-9909
145	PLUG; HOLE OD=12 L=14.8	8-94279-921-0	04	1	9701-9810
145	PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8	8-94279-921-0	04	1	9811-9909

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
