Isuzu WW
▶
TRUCKS
▶
NHR
▶
50760 - NHR/NKR TAIWAN
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-41 - UNDER COVER; INSTRUMENT
▶

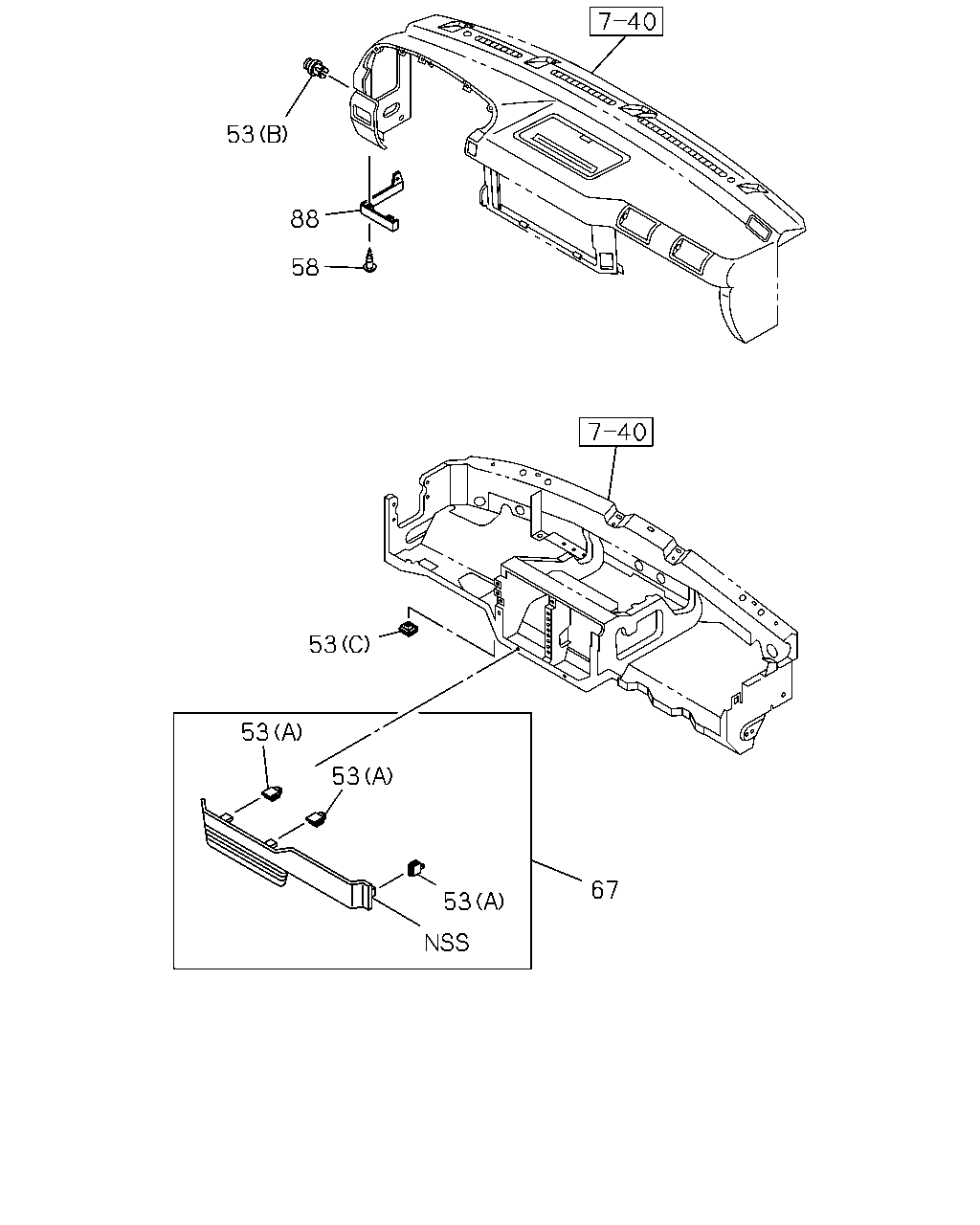

7-41 — UNDER COVER; INSTRUMENT
(#139134) — 18 parça
7
40
53
88
58
7
40
53
53
53
67
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNDER COVER
(A)
8-97853-169-0
03
1
9701-0411
53
CLIP; UNDER COVER
(A)
8-97853-169-0
03
1
0412-
53
CLIP; UNDER COVER
(C)
8-97853-249-5
03
1
9701-0411
53
CLIP; UNDER COVER
(C)
8-97853-249-5
03
1
0412-
53
CLIP; UNDER COVER
(B) DARK BEIGE
8-97856-011-0
01
1
9701-9905
53
CLIP; UNDER COVER
(B) DARK GRAY
8-97857-542-0
01
1
9906-0411
53
CLIP; UNDER COVER
(B) DARK GRAY
8-97857-542-0
01
1
0412-0511
53
CLIP; UNDER COVER
(B) DARK GRAY
8-97582-246-0
01
1
0512-
58
SCREW; UNDER COVER
M5X14 TAI
8-94279-325-0
02
1
9701-0411
58
SCREW; UNDER COVER
M5X14 TAI
8-94279-325-0
02
1
0412-
67
COVER; UNDER,INST PNL
8-97857-187-1
01
1
9701-0411
67
COVER; UNDER,INST PNL
8-97857-187-1
01
1
0412-
88
COVER; UNDER,INST PNL SIDE
DARK BEIGE
8-97856-918-1
01
1
9701-9905
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97857-539-1
01
1
9906-0411
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97857-539-1
01
1
0412-0511
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97585-432-1
01
1
0512-0610
88
COVER; UNDER,INST PNL SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY
8-97585-432-1
01
1
0611-
88
COVER; UNDER,INST PNL SIDE
TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY
8-97401-318-0
01
1
0611-
