7-40 — INSTRUMENT PANEL AND BOX (#139133) — 183 parça

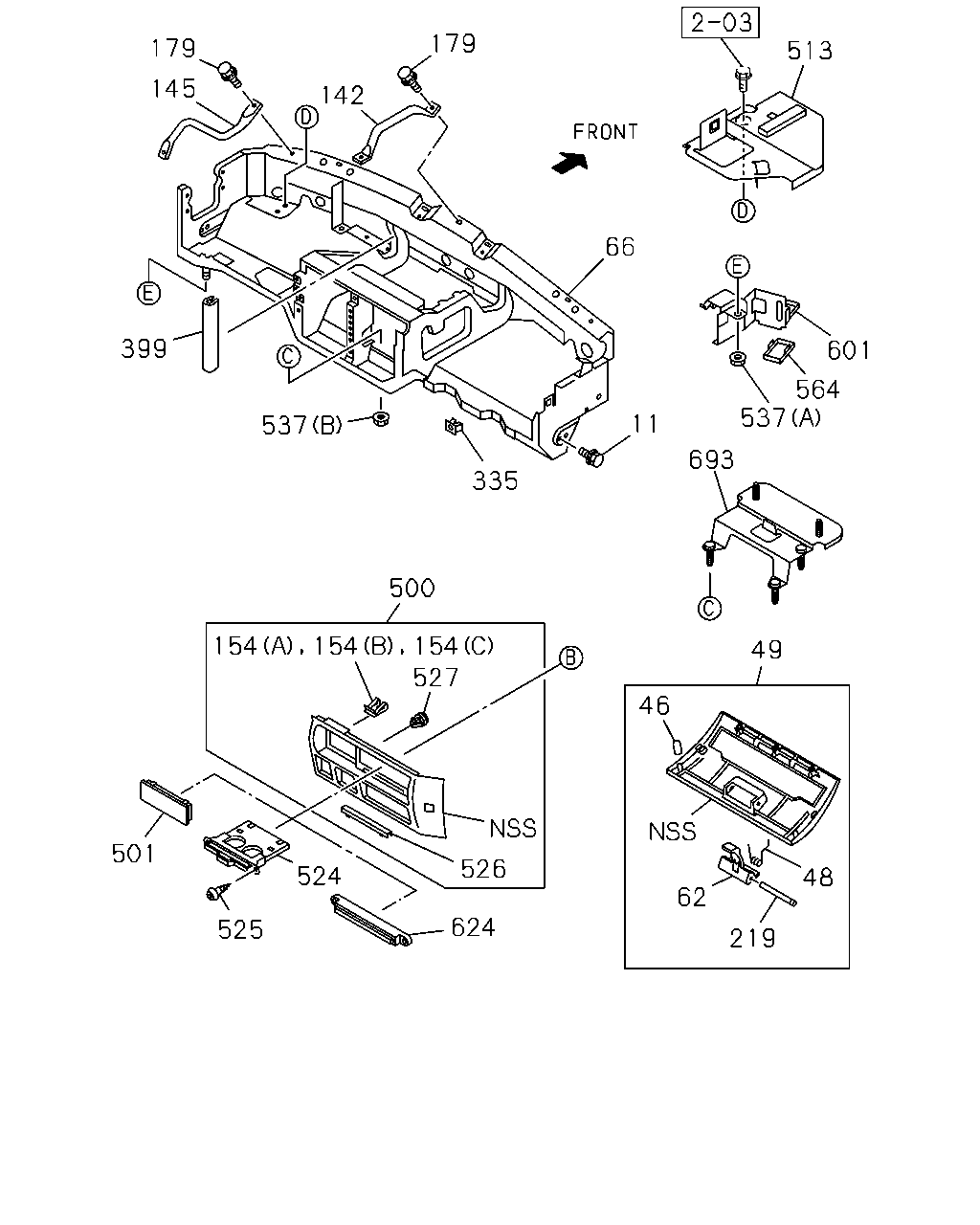

2 179 179 513 145 142 66 399 601 564 537 11 537 693 33 500 154 154 154 527 49 46 501 524 526 48 62 624 525 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9701-0106
11	BOLT; INST PNL M8X23 FLANGE	8-97264-766-0	04	1	0107-0411
11	BOLT; INST PNL M8X23 FLANGE	8-97264-766-0	04	1	0412-
46	CAP; GLOVE BOX STOPPER TAI	8-94270-538-0	02	1	9701-0208
48	SPRING; GLOVE BOX LID	8-97853-750-1	01	1	9701-0411
48	SPRING; GLOVE BOX LID	8-97853-750-1	01	1	0412-
49	LID; GLOVE BOX DARK BEIGE	8-97853-859-3	01	1	9701-9905
49	LID; GLOVE BOX DARK GRAY	8-97859-798-5	01	1	9906-0411
49	LID; GLOVE BOX DARK GRAY	8-97859-798-5	01	1	0412-0511
49	LID; GLOVE BOX DARK GRAY	8-97582-199-5	01	1	0512-
62	KNOB; GLOVE BOX LID DARK BEIGE	8-97853-861-1	01	1	9701-9905
62	KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	9906-0411
62	KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	0412-0511
62	KNOB; GLOVE BOX LID DARK GRAY	8-97582-487-1	01	1	0512-
66	REINFORCEMENT; INST PANEL	8-97867-898-5	01	1	9701-9909
66	REINFORCEMENT; INST PANEL	8-97896-978-0	01	1	9910-0006
66	REINFORCEMENT; INST PANEL	8-97898-464-6	01	1	0007-0411
66	REINFORCEMENT; INST PANEL	8-97898-464-7	01	1	0412-0610
66	REINFORCEMENT; INST PANEL	8-98016-835-2	01	1	0611-
142	STAY; INST PANEL	8-97856-196-2	01	1	9701-9905
142	STAY; INST PANEL TAI	8-97840-308-0	01	1	9906-0411
142	STAY; INST PANEL TAI	8-97840-308-0	01	1	0412-
145	STAY; INST PANEL SIDE	8-97856-197-2	01	1	9701-9905
145	STAY; INST PANEL SIDE TAI	8-97840-296-0	01	1	9906-0411
145	STAY; INST PANEL SIDE TAI	8-97840-296-0	01	1	0412-
154	NUT (A) M5 SPIRE NUT	8-94279-051-0	01	1	9701-9702
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	03	1	9701-9702
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	04	1	9703-9806
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	01	1	9807-9901
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	03	1	9807-9901
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	04	1	9902-9905
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	04	1	9906-0411
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	04	1	0412-
179	BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9701-0307
179	BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	0308-0411
179	BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	0412-0512
179	BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	0-50640-612-0	02	1	0601-
219	SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	9701-0411
219	SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	0412-
335	GROMMET; GLOVE BOX LK D=8.6X7.7 L=7.5 TAI	8-94279-078-0	02	1	9701-0411
335	GROMMET; GLOVE BOX LK D=8.6X7.7 L=7.5 TAI	8-94279-078-0	02	1	0412-
399	FINISHER; HARNESS L=50 TAI	8-94270-377-1	01	1	9701-0411
399	FINISHER; HARNESS L=50 TAI	8-94270-377-1	01	1	0412-
500	CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE	8-97857-897-2	01	1	9701-9702
500	CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE	8-97856-920-5	01	1	9701-9702
500	CLUSTER; INST CENTER DARK BEIGE	8-97856-920-6	01	1	9703-9905
500	CLUSTER; INST CENTER DARK GRAY	8-97868-656-6	01	1	9906-0207
500	CLUSTER; INST CENTER DARK GRAY	8-97868-656-7	01	1	0208-0411
500	CLUSTER; INST CENTER DARK GRAY	8-97868-656-7	01	1	0412-0511
500	CLUSTER; INST CENTER DARK GRAY	8-97587-475-7	01	1	0512-0610
500	CLUSTER; INST CENTER DARK GRAY	8-97588-862-4	01	1	0611-
501	COVER; HOLE,INST CENTER CLUSTER	8-97406-950-3	01	1	0611-
513	BRACKET; RELAY	8-97410-713-2	01	1	0611-
524	STAND ASM; CUP,INST CUP HOLDER<7KZ> TAI	8-97853-172-8	01	1	9701-0207
524	STAND ASM; CUP,INST TAI	8-97853-172-8	01	1	0208-0411
524	STAND ASM; CUP,INST TAI	8-97853-172-8	01	1	0412-
525	SCREW; CUP STAND M5X14 TAI	8-94279-325-0	02	1	9701-0411
525	SCREW; CUP STAND M5X14 TAI	8-94279-325-0	02	1	0412-
526	GUIDE; POCKET,INST CLUSTER DARK BEIGE	8-97853-896-1	01	1	9703-9905
526	GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97857-503-1	01	1	9906-0411
526	GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97857-503-1	01	1	0412-0511
526	GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97582-490-1	01	1	0512-0610
527	CLIP; INST CLUSTER	8-97853-169-0	04	1	9701-0411
527	CLIP; INST CLUSTER	8-97853-169-0	04	1	0412-
537	NUT; BRKT (B) M6 FLANGE	0-91180-106-0	03	1	0611-
537	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8 FLANGE	0-91180-108-0	01	1	0611-
564	COVER; SW TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-97856-401-3	01	1	0611-
601	BRACKET; SW TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97583-896-2	01	1	0611-
624	COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-0	01	1	9701-0207
693	BRACKET; DRM	8-98017-994-0	01	1	0611-

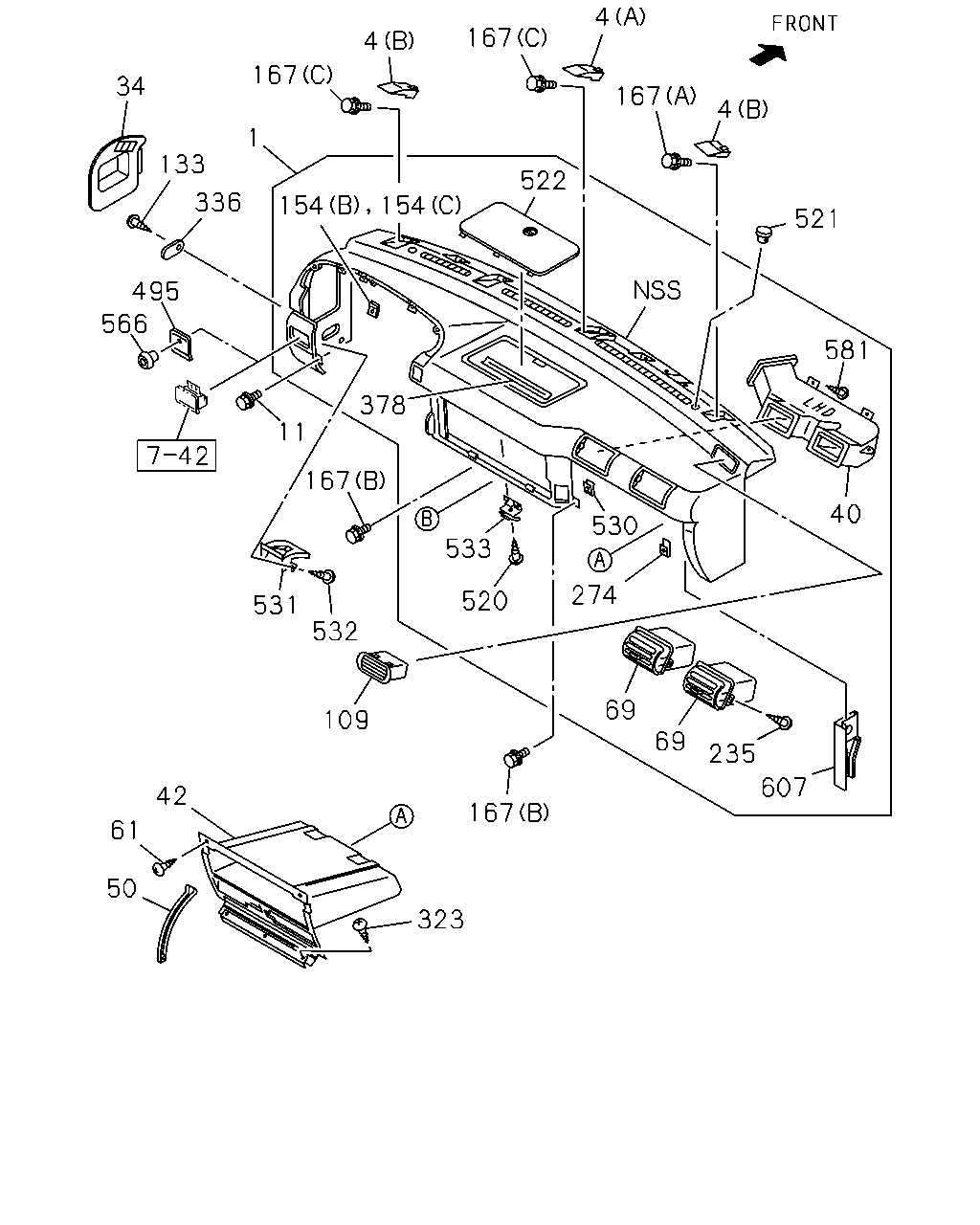

4 167 4 167 34 167 4 1 133 522 336 154 154 521 495 566 581 378 11 7 42 167 40 530 533 274 520 531 532 69 109 69 235 607 42 167 61 50 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL; INST DARK BEIGE	8-97855-258-4	01	1	9701-9905
1	PANEL; INST DARK GRAY	8-97868-658-4	01	1	9906-9911
1	PANEL; INST DARK GRAY	8-97195-961-2	01	1	9912-0411
1	PANEL; INST DARK GRAY	8-97195-961-2	01	1	0412-0511
1	PANEL; INST DARK GRAY	8-97587-476-2	01	1	0512-
4	COVER; INST PNL (A) DARK BEIGE	8-97853-880-3	02	1	9701-9905
4	COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	9906-0411
4	COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	0412-0511
4	COVER; INST PNL (A) DARK GRAY	8-97582-215-3	02	1	0512-
4	COVER; INST PNL (B) DARK BEIGE	8-97853-882-3	01	1	9701-9905
4	COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	9906-0411
4	COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	0412-0511
4	COVER; INST PNL (B) DARK GRAY	8-97582-217-3	01	1	0512-
4	COVER; INST PNL (B) DARK BEIGE	8-97853-881-3	01	1	9701-9905
4	COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	9906-0411
4	COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	0412-0511
4	COVER; INST PNL (B) DARK GRAY	8-97582-216-3	01	1	0512-
11	BOLT; INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9701-0106
11	BOLT; INST PNL M8X23 FLANGE	8-97264-766-0	04	1	0107-0411
11	BOLT; INST PNL M8X23 FLANGE	8-97264-766-0	04	1	0412-
34	LID; OIL TANK DARK BEIGE	8-97856-919-5	01	1	9701-9905
34	LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	9906-0411
34	LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	0412-0511
34	LID; OIL TANK DARK GRAY	8-97585-433-5	01	1	0512-
40	DUCT; VENT,SIDE CLUSTER BEZEL	8-97069-824-0	01	1	9701-0007
40	DUCT; VENT,SIDE CLUSTER BEZEL	8-97262-698-0	01	1	0008-0411
40	DUCT; VENT,SIDE CLUSTER BEZEL	8-97262-698-0	01	1	0412-
42	BOX; GLOVE,INST PNL	8-97853-150-5	01	1	9701-0411
42	BOX; GLOVE,INST PNL	8-97853-150-5	01	1	0412-
50	STOPPER; LID,GLOVE BOX,INST CLUSTER	8-97853-152-0	02	1	9701-0411
50	STOPPER; LID,GLOVE BOX,INST CLUSTER	8-97853-152-0	02	1	0412-
61	SCREW; GLOVE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9701-0411
61	SCREW; GLOVE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0412-0604
61	SCREW; GLOVE BOX M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0605-
69	GRILLE; SIDE,AIR OUTLET DARK BEIGE	8-97853-878-2	02	1	9701-9905
69	GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97857-519-2	02	1	9906-9911
69	GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	9912-0207
69	GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97857-519-2	02	1	0208-0301
69	GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	0302-0411
69	GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	0412-0511
69	GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97582-612-0	02	1	0512-
109	GRILLE; INST PNL SIDE,UPR DARK BEIGE	8-97856-923-0	01	1	9701-9905
109	GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	9906-0411
109	GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	0412-0511
109	GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97585-436-0	01	1	0512-
133	SCREW; COVER,INST PNL M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	9701-0411
133	SCREW; COVER,INST PNL M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	0412-0604
133	SCREW; COVER,INST PNL M5X20 TAPPING W/PL WASHER	0-74160-520-0	02	1	0605-
154	NUT (A) M5 SPIRE NUT	8-94279-051-0	01	1	9701-9702
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	03	1	9701-9702
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	04	1	9703-9806
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	01	1	9807-9901
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	03	1	9807-9901
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	04	1	9902-9905
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	04	1	9906-0411
154	NUT (C) M6 SPIRE NUT TAI	8-97210-973-1	04	1	0412-
167	BOLT; REINF TO INST (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	06	1	9701-0411
167	BOLT; REINF TO INST (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	06	1	0412-
167	BOLT; REINF TO INST (B) M6X25	8-94279-204-0	02	1	9701-0411
167	BOLT; REINF TO INST (B) M6X25	8-94279-204-0	02	1	0412-
167	BOLT; REINF TO INST (C) M6X24 FLANGE	8-94279-231-1	02	1	9701-0411
167	BOLT; REINF TO INST (C) M6X24 FLANGE	8-94279-231-1	02	1	0412-
235	SCREW; GRILLE M5X14 TAI	8-94279-325-0	04	1	9701-0411
235	SCREW; GRILLE M5X14 TAI	8-94279-325-0	04	1	0412-
274	NUT; GLOVE BOX M5 SPIRE NUT	8-94279-051-0	02	1	9701-0411
274	NUT; GLOVE BOX M5 SPIRE NUT	8-94279-051-0	02	1	0412-
323	SCREW; GLOVE BOX LK M5X14 TAI	8-94279-325-0	03	1	9701-0411
323	SCREW; GLOVE BOX LK M5X14 TAI	8-94279-325-0	03	1	0412-
335	GROMMET; GLOVE BOX LK D=8.6X7.7 L=7.5 TAI	8-94279-078-0	02	1	9701-0411
335	GROMMET; GLOVE BOX LK D=8.6X7.7 L=7.5 TAI	8-94279-078-0	02	1	0412-
336	COVER; INST PANEL SIDE DARK BEIGE	8-97853-885-4	02	1	9701-9905
336	COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	9906-0411
336	COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	0412-0511
336	COVER; INST PANEL SIDE DARK GRAY	8-97582-218-4	02	1	0512-
378	SEAL; INST PANEL	8-97853-938-0	01	1	9701-9810
378	SEAL; INST PANEL	8-97209-399-0	01	1	9811-0411
378	SEAL; INST PANEL	8-97209-399-0	01	1	0412-
495	BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9701-9905
495	BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	9906-0207
495	BEZEL; SW DARK GRAY	8-97857-548-4	01	1	0208-0411
495	BEZEL; SW DARK GRAY	8-97857-548-4	01	1	0412-0511
495	BEZEL; SW DARK GRAY	8-97582-214-4	01	1	0512-
520	SCREW; CLIP,SPRING M5X14 TAI	8-94279-325-0	03	1	9701-9905
520	SCREW; CLIP,SPRING M5X14 TAI	8-94279-325-0	03	1	9906-0411
520	SCREW; CLIP,SPRING M5X14 TAI	8-94279-325-0	03	1	0412-
521	COVER; SUN SENSOR DARK BEIGE	8-97853-890-2	01	1	9701-9905
521	COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	9906-0207
521	COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	0208-0411
521	COVER; SUN SENSOR 4JH1 ENG(RJX) DARK GRAY	8-97857-529-2	01	1	0208-0411
521	COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	0412-0511
521	COVER; SUN SENSOR 4JH1 ENG(RJX) DARK GRAY	8-97857-529-2	01	1	0412-0511
521	COVER; SUN SENSOR DARK GRAY	8-97582-334-2	01	1	0512-0610
521	COVER; SUN SENSOR 4JH1-TC ENG(RDM) DARK GRAY	8-97582-334-2	01	1	0512-0610
521	COVER; SUN SENSOR DARK GRAY	8-97582-334-2	01	1	0611-
522	LID; RELAY BOX DARK BEIGE	8-97853-876-5	01	1	9701-9905
522	LID; RELAY BOX DARK GRAY	8-97857-520-6	01	1	9906-0411
522	LID; RELAY BOX DARK GRAY	8-97857-520-6	01	1	0412-0511
522	LID; RELAY BOX DARK GRAY	8-97582-494-6	01	1	0512-
530	CLIP; GLOVE BOX	8-97856-135-0	01	1	9701-0411
530	CLIP; GLOVE BOX	8-97856-135-0	01	1	0412-
531	CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU>	8-97853-130-0	01	1	9701-0207
532	SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> M5X14 TAI	8-94279-325-0	02	1	9701-0207
533	CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	9701-0411
533	CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	0412-
566	PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9701-9905
566	PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	9906-0207
566	PLUG; HOLE DARK GRAY	8-97868-413-0	01	1	0208-0411
566	PLUG; HOLE DARK GRAY	8-97868-413-0	01	1	0412-0511
566	PLUG; HOLE DARK GRAY	8-97582-247-0	01	1	0512-
581	SCREW M5X14 TAI	8-94279-325-0	02	1	9701-0411
581	SCREW M5X14 TAI	8-94279-325-0	02	1	0412-
607	FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	9701-0411
607	FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	0412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
