Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#139131) — 340 parça

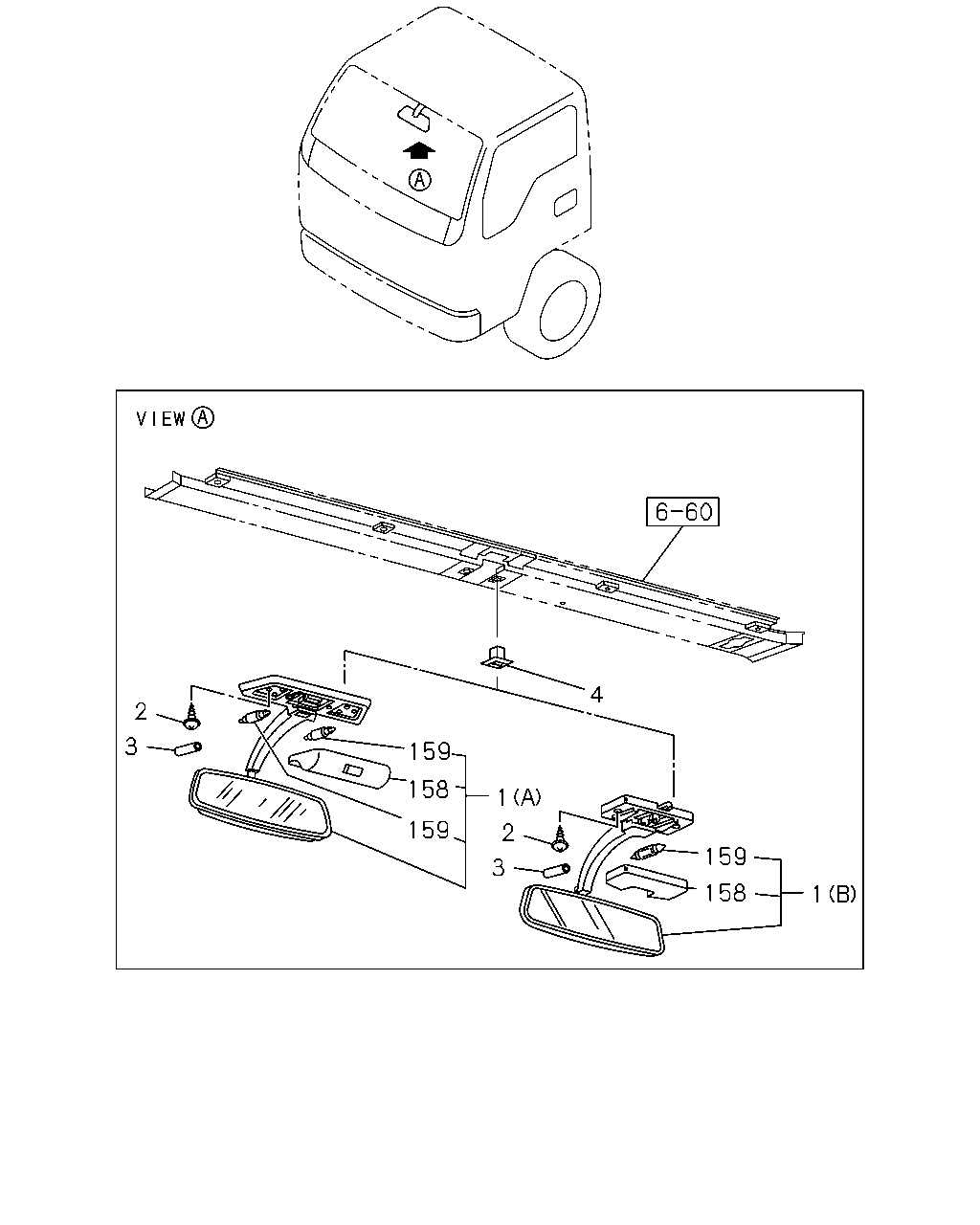

6 60 4 2 3 159 158 1 159 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM (A) GRAY TAI	8-97840-043-0	01	1	9701-9809
1	MIRROR; ROOM CAB-LOW ROOF<6XQ> (A) GRAY TAI	8-97840-043-0	01	1	9810-9901
1	MIRROR; ROOM (A) GRAY TAI	8-97840-043-0	01	1	9902-9905
1	MIRROR; ROOM (A) DARK GRAY TAI	8-97840-280-0	01	1	9906-0207
1	MIRROR; ROOM CAB-HIGH ROOF<S2F> (A) DARK GRAY	8-97855-273-0	01	1	0208-0411
1	MIRROR; ROOM CAB-HIGH ROOF<S2F> (A) DARK GRAY	8-97855-273-0	01	1	0412-0608
1	MIRROR; ROOM (A) DARK GRAY	8-97855-273-0	01	1	0412-0608
1	MIRROR; ROOM CAB-HIGH ROOF<S2F> (A) LIGHT GRAY	8-97582-971-0	01	1	0609-0610
1	MIRROR; ROOM (A) LIGHT GRAY	8-97582-971-0	01	1	0609-0610
1	MIRROR; ROOM CAB-HIGH ROOF<S2F> (A) LIGHT GRAY	8-97582-243-0	01	1	0611-0611
1	MIRROR; ROOM (A) LIGHT GRAY	8-97582-243-0	01	1	0611-0611
1	MIRROR; ROOM CAB-HIGH ROOF<S2F> (A) DARK GRAY	8-97406-216-0	01	1	0611-
1	MIRROR; ROOM (A) DARK GRAY	8-97406-216-0	01	1	0611-
1	MIRROR; ROOM CAB-LOW ROOF<6XQ> (B) DARK GRAY TAI	8-97840-280-0	01	1	0208-0608
1	MIRROR; ROOM CAB-LOW ROOF<6XQ> (B) LIGHT GRAY TAI	8-97967-557-0	01	1	0609-0610
1	MIRROR; ROOM CAB-LOW ROOF<6XQ> (B) TAI	8-97967-564-0	01	1	0611-
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> (B) GRAY	8-97853-835-2	01	1	9810-9901
2	SCREW; MIRROR TO BODY M5X20 TAI	5-09981-059-0	02	1	9701-0405
2	SCREW; MIRROR TO BODY CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M5X20 TAI	5-09981-059-0	02	1	0406-0411
2	SCREW; MIRROR TO BODY CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ> M5X20 TAI	5-09981-059-0	02	1	0412-
2	SCREW; MIRROR TO BODY M5X20 TAI	5-09981-059-0	02	1	0412-
2	SCREW; MIRROR TO BODY CAB-HIGH ROOF<S2F> EXC. TRAY ROOF HEAD<7EJ> M5X16	8-94279-341-0	02	1	0406-
2	SCREW; MIRROR TO BODY CAB-LOW ROOF<6XQ> M5X16	8-94279-341-0	02	1	0406-
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	9701-0411
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0412-
3	STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	9701-0411
3	STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	0412-
4	GROMMET; SCREW,ROOM MIRROR	8-94279-039-0	01	1	9701-0405
4	GROMMET; SCREW,ROOM MIRROR CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0406-0411
4	GROMMET; SCREW,ROOM MIRROR CAB-HIGH ROOF<S2F> TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0412-
4	GROMMET; SCREW,ROOM MIRROR	8-94279-039-0	01	1	0412-
158	LENS; ROOM LAMP TAI	8-97840-229-0	01	1	9701-9809
158	LENS; ROOM LAMP CAB-LOW ROOF<6XQ> TAI	8-97840-229-0	01	1	9810-9901
158	LENS; ROOM LAMP TAI	8-97840-229-0	01	1	9902-0207
158	LENS; ROOM LAMP CAB-HIGH ROOF<S2F>	8-97859-773-0	01	1	0208-0411
158	LENS; ROOM LAMP CAB-HIGH ROOF<S2F>	8-97859-773-0	01	1	0412-
158	LENS; ROOM LAMP	8-97859-773-0	01	1	0412-
158	LENS; ROOM LAMP CAB-LOW ROOF<6XQ> TAI	8-97840-229-0	01	1	0208-
158	LENS; ROOM LAMP TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> TAI	5-73117-108-1	01	1	9810-9901
159	BULB; ROOM LAMP 12V 10W TAI	8-97840-234-0	01	1	9701-9809
159	BULB; ROOM LAMP CAB-LOW ROOF<6XQ> 12V 10W TAI	8-97840-234-0	01	1	9810-9901
159	BULB; ROOM LAMP 12V 10W TAI	8-97840-234-0	01	1	9902-0207
159	BULB; ROOM LAMP CAB-HIGH ROOF<S2F> 12V 10W	8-97128-771-0	02	1	0208-0411
159	BULB; ROOM LAMP CAB-HIGH ROOF<S2F> 12V 10W	8-97128-771-0	02	1	0412-0610
159	BULB; ROOM LAMP 12V 10W	8-97128-771-0	02	1	0412-0610
159	BULB; ROOM LAMP CAB-HIGH ROOF<S2F> 24V 10W TAI	5-82194-030-0	02	1	0611-
159	BULB; ROOM LAMP 24V 10W TAI	5-82194-030-0	02	1	0611-
159	BULB; ROOM LAMP CAB-LOW ROOF<6XQ> 12V 10W TAI	8-97840-234-0	01	1	0208-0610
159	BULB; ROOM LAMP CAB-LOW ROOF<6XQ> TAI	8-97967-563-0	01	1	0611-
159	BULB; ROOM LAMP TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> 12V 10W	5-82194-015-0	01	1	9810-9901

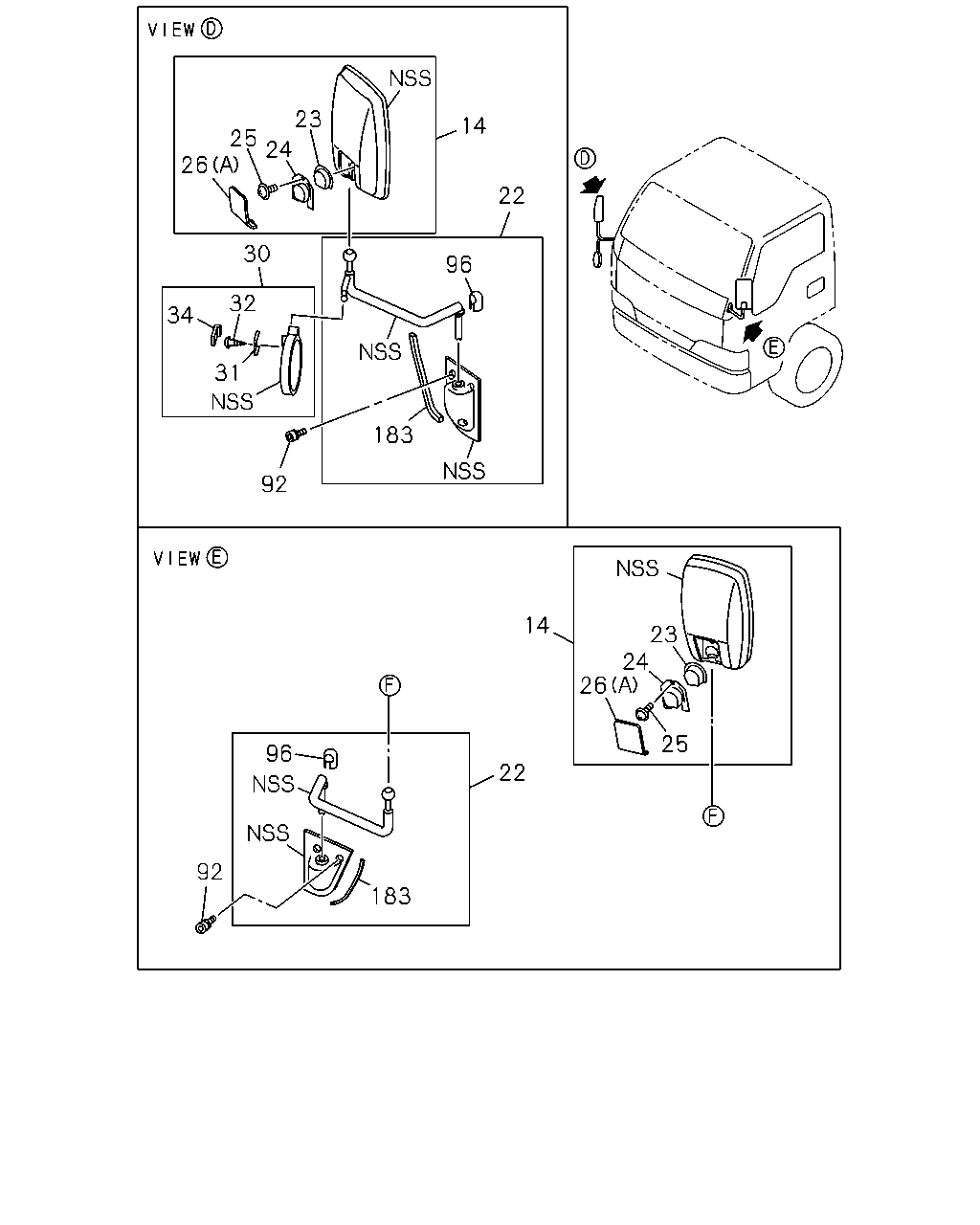

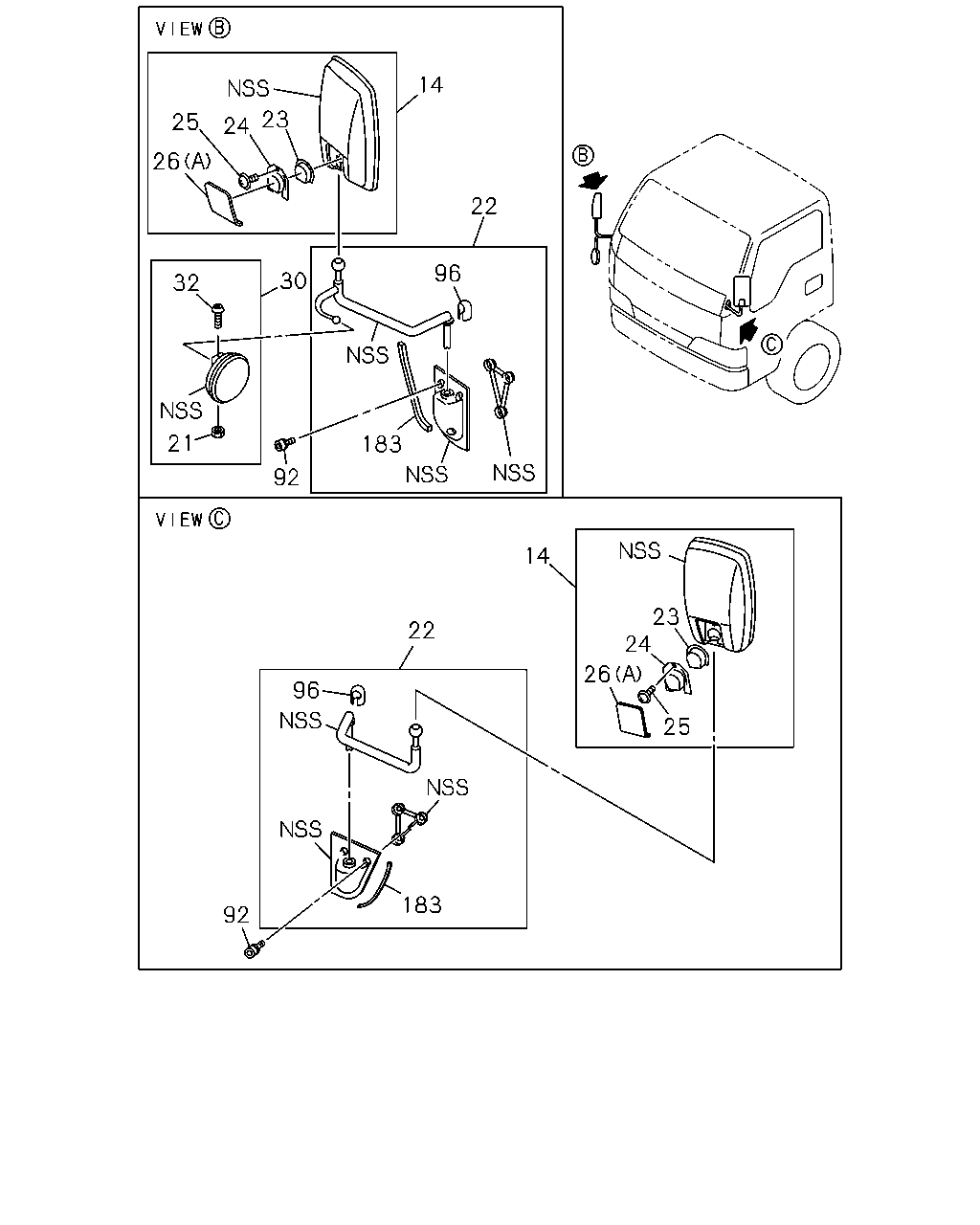

14 23 25 24 26 22 96 30 32 21 183 92 14 23 24 22 26 96 25 183 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9701-9905
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9906-0411
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9906-0411
14	MIRROR ASM; OUTSIDE SHORT RH/LH,LONG LH TAI	8-97840-202-0	01	1	0412-0511
14	MIRROR ASM; OUTSIDE SHORT RH/LH,LONG LH TAI	8-97840-202-0	01	1	0412-0511
14	MIRROR ASM; OUTSIDE UNDER MIRROR<RR9> TAI	8-97840-202-0	01	1	9701-9905
14	MIRROR ASM; OUTSIDE EXC. UNDER MIRROR<RR9>	8-94262-542-3	01	1	9701-9905
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0412-0511
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0512-
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0512-
21	NUT; MIRROR UNDER MIRROR<RR9> TAI	8-97840-258-0	02	1	9701-9905
21	NUT; MIRROR TAI	8-97840-258-0	02	1	9906-0511
22	STAY; OUTSIDE MIRROR TAI	8-97840-205-0	01	1	9701-0411
22	STAY; OUTSIDE MIRROR TAI	8-97840-205-0	01	1	0412-0511
22	STAY; OUTSIDE MIRROR	8-97582-991-3	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-576-1	01	1	0702-
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-204-0	01	1	9701-9905
22	STAY; OUTSIDE MIRROR TAI	8-97840-204-0	01	1	9906-0511
22	STAY; OUTSIDE MIRROR	8-97582-986-4	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-571-1	01	1	0702-
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-735-7	01	1	9701-9905
22	STAY; OUTSIDE MIRROR	8-97866-940-0	01	1	0412-0511
22	STAY; OUTSIDE MIRROR	8-97582-988-3	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-573-1	01	1	0702-
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9906-0411
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9906-0411
23	WASHER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-252-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-252-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-252-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=2.0	8-94262-545-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0512-
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0512-
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9906-0411
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9906-0411
24	HOLDER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-253-0	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-253-0	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-253-0	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=1.6	8-94262-546-1	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0512-
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0512-
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9906-0411
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9906-0411
25	SCREW; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-259-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-259-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-259-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> M6X30	8-94279-365-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0512-
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9701-9905
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9906-0411
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9906-0411
26	COVER; OUTSIDE MIRROR (A) SHORT RH/LH,LONG LH TAI	8-97840-254-0	01	1	0412-0511
26	COVER; OUTSIDE MIRROR (A) SHORT RH/LH,LONG LH TAI	8-97840-254-0	01	1	0412-0511
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	01	1	0512-
26	COVER; OUTSIDE MIRROR UNDER MIRROR<RR9> (A) TAI	8-97840-254-0	01	1	9701-9905
26	COVER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A) T=2.3	8-94262-547-2	01	1	9701-9905
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE TAI	8-97582-840-4	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE TAI	8-97582-831-5	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE TAI	8-97582-844-4	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE TAI	8-97582-835-5	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0412-0511
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0512-
30	MIRROR; UNDER UNDER MIRROR<RR9> TAI	8-97840-203-0	01	1	9701-9905
30	MIRROR; UNDER TAI	8-97840-203-0	01	1	9906-0511
30	MIRROR; UNDER	8-94262-625-2	01	1	0412-0511
30	MIRROR; UNDER	8-94262-625-2	01	1	0512-
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> TAI	8-97840-257-0	02	1	9701-9905
32	SCREW; UNDER MIRROR TAI	8-97840-257-0	02	1	9906-0511
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0412-0511
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0512-
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9701-0411
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0412-0511
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0512-
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9701-9905
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9906-0411
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9906-0411
96	CAP; MIRROR STAY SHORT RH/LH,LONG LH TAI	8-97840-219-0	01	1	0412-0511
96	CAP; MIRROR STAY SHORT RH/LH,LONG LH TAI	8-97840-219-0	01	1	0412-0511
96	CAP; MIRROR STAY UNDER MIRROR<RR9> TAI	8-97840-219-0	01	1	9701-9905
96	CAP; MIRROR STAY EXC. UNDER MIRROR<RR9> OD=40	8-97853-206-2	01	1	9701-9905
96	CAP; MIRROR STAY OD=40	8-97853-206-2	01	1	0412-0511
96	CAP; MIRROR STAY	8-97581-631-2	02	1	0512-
183	FINISHER; MIRROR SHORT RH/LH,LONG LH TAI	8-97840-220-0	01	1	0412-0511
183	FINISHER; MIRROR SHORT RH/LH,LONG LH TAI	8-97840-220-0	01	1	0412-0511
183	FINISHER; MIRROR	8-97857-925-0	01	1	0412-0511

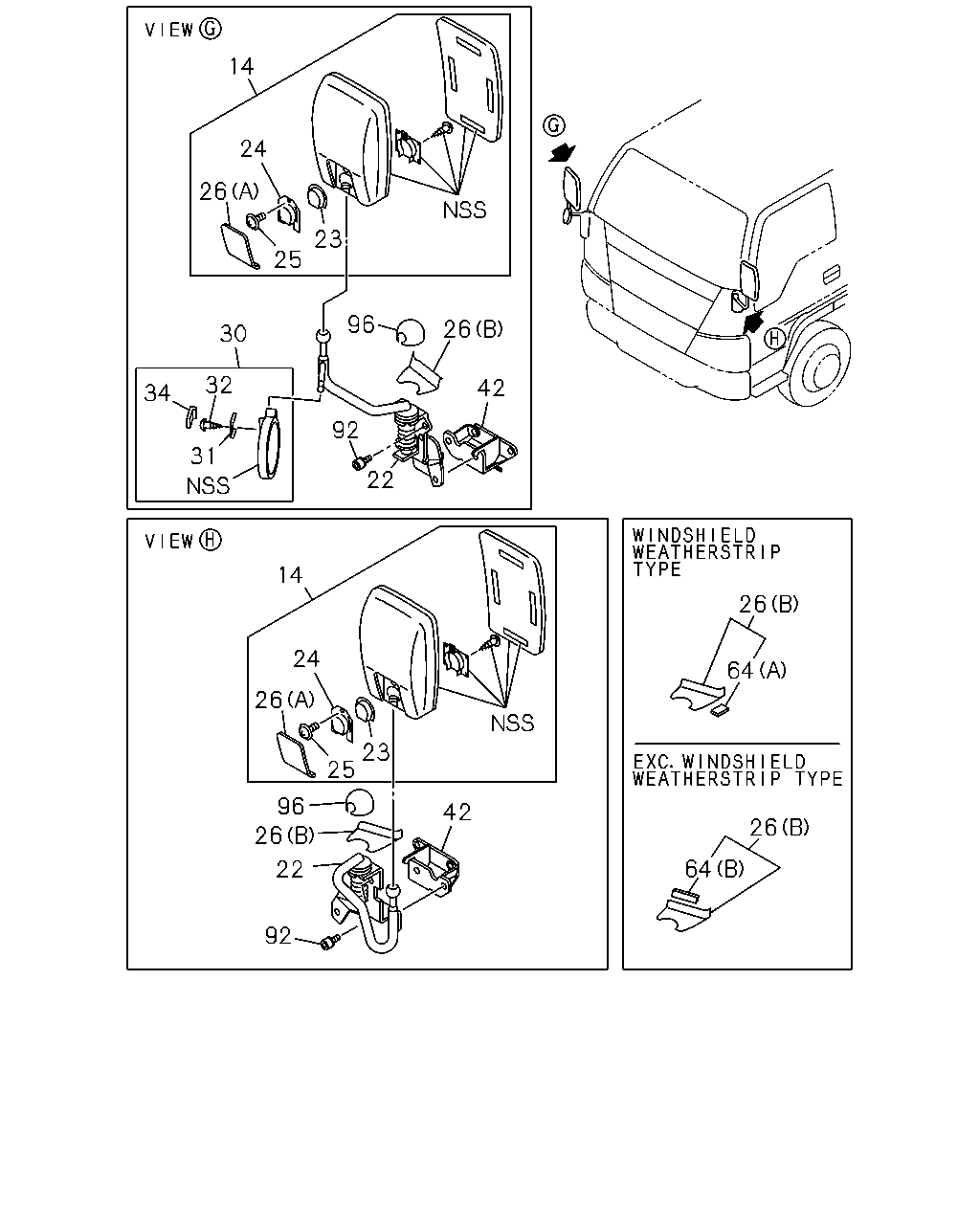

23 14 25 24 26 22 30 96 32 34 31 183 92 14 23 24 26 25 96 22 92 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9701-9905
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9906-0411
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9906-0411
14	MIRROR ASM; OUTSIDE SHORT RH/LH,LONG LH TAI	8-97840-202-0	01	1	0412-0511
14	MIRROR ASM; OUTSIDE SHORT RH/LH,LONG LH TAI	8-97840-202-0	01	1	0412-0511
14	MIRROR ASM; OUTSIDE UNDER MIRROR<RR9> TAI	8-97840-202-0	01	1	9701-9905
14	MIRROR ASM; OUTSIDE EXC. UNDER MIRROR<RR9>	8-94262-542-3	01	1	9701-9905
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0412-0511
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0512-
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0512-
22	STAY; OUTSIDE MIRROR TAI	8-97840-205-0	01	1	9701-0411
22	STAY; OUTSIDE MIRROR TAI	8-97840-205-0	01	1	0412-0511
22	STAY; OUTSIDE MIRROR	8-97582-991-3	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-576-1	01	1	0702-
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-204-0	01	1	9701-9905
22	STAY; OUTSIDE MIRROR TAI	8-97840-204-0	01	1	9906-0511
22	STAY; OUTSIDE MIRROR	8-97582-986-4	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-571-1	01	1	0702-
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-735-7	01	1	9701-9905
22	STAY; OUTSIDE MIRROR	8-97866-940-0	01	1	0412-0511
22	STAY; OUTSIDE MIRROR	8-97582-988-3	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-573-1	01	1	0702-
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9906-0411
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9906-0411
23	WASHER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-252-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-252-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-252-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=2.0	8-94262-545-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0512-
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0512-
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9906-0411
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9906-0411
24	HOLDER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-253-0	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-253-0	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-253-0	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=1.6	8-94262-546-1	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0512-
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0512-
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9906-0411
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9906-0411
25	SCREW; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-259-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-259-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-259-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> M6X30	8-94279-365-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0512-
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9701-9905
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9906-0411
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9906-0411
26	COVER; OUTSIDE MIRROR (A) SHORT RH/LH,LONG LH TAI	8-97840-254-0	01	1	0412-0511
26	COVER; OUTSIDE MIRROR (A) SHORT RH/LH,LONG LH TAI	8-97840-254-0	01	1	0412-0511
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	01	1	0512-
26	COVER; OUTSIDE MIRROR UNDER MIRROR<RR9> (A) TAI	8-97840-254-0	01	1	9701-9905
26	COVER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A) T=2.3	8-94262-547-2	01	1	9701-9905
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE TAI	8-97582-840-4	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE TAI	8-97582-831-5	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE TAI	8-97582-844-4	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE TAI	8-97582-835-5	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0412-0511
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0512-
30	MIRROR; UNDER UNDER MIRROR<RR9> TAI	8-97840-203-0	01	1	9701-9905
30	MIRROR; UNDER TAI	8-97840-203-0	01	1	9906-0511
30	MIRROR; UNDER	8-94262-625-2	01	1	0412-0511
30	MIRROR; UNDER	8-94262-625-2	01	1	0512-
31	PLATE; MIRROR	8-94262-631-0	01	1	0412-0511
31	PLATE; MIRROR	8-94262-631-0	01	1	0512-
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> TAI	8-97840-257-0	02	1	9701-9905
32	SCREW; UNDER MIRROR TAI	8-97840-257-0	02	1	9906-0511
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0412-0511
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0512-
34	CAP; MIRROR	8-94262-629-0	01	1	0412-0511
34	CAP; MIRROR	8-94262-629-0	01	1	0512-
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9701-0411
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0412-0511
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0512-
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9701-9905
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9906-0411
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9906-0411
96	CAP; MIRROR STAY SHORT RH/LH,LONG LH TAI	8-97840-219-0	01	1	0412-0511
96	CAP; MIRROR STAY SHORT RH/LH,LONG LH TAI	8-97840-219-0	01	1	0412-0511
96	CAP; MIRROR STAY UNDER MIRROR<RR9> TAI	8-97840-219-0	01	1	9701-9905
96	CAP; MIRROR STAY EXC. UNDER MIRROR<RR9> OD=40	8-97853-206-2	01	1	9701-9905
96	CAP; MIRROR STAY OD=40	8-97853-206-2	01	1	0412-0511
96	CAP; MIRROR STAY	8-97581-631-2	02	1	0512-
183	FINISHER; MIRROR SHORT RH/LH,LONG LH TAI	8-97840-220-0	01	1	0412-0511
183	FINISHER; MIRROR SHORT RH/LH,LONG LH TAI	8-97840-220-0	01	1	0412-0511
183	FINISHER; MIRROR	8-97857-925-0	01	1	0412-0511

14 24 26 23 25 96 26 30 32 42 34 92 31 22 14 26 24 64 26 23 25 96 42 26 26 64 22 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9701-9905
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9906-0411
14	MIRROR ASM; OUTSIDE TAI	8-97840-202-0	01	1	9906-0411
14	MIRROR ASM; OUTSIDE SHORT RH/LH,LONG LH TAI	8-97840-202-0	01	1	0412-0511
14	MIRROR ASM; OUTSIDE SHORT RH/LH,LONG LH TAI	8-97840-202-0	01	1	0412-0511
14	MIRROR ASM; OUTSIDE UNDER MIRROR<RR9> TAI	8-97840-202-0	01	1	9701-9905
14	MIRROR ASM; OUTSIDE EXC. UNDER MIRROR<RR9>	8-94262-542-3	01	1	9701-9905
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0412-0511
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0512-
14	MIRROR ASM; OUTSIDE	8-94262-542-3	01	1	0512-
22	STAY; OUTSIDE MIRROR TAI	8-97840-205-0	01	1	9701-0411
22	STAY; OUTSIDE MIRROR TAI	8-97840-205-0	01	1	0412-0511
22	STAY; OUTSIDE MIRROR	8-97582-991-3	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-576-1	01	1	0702-
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-204-0	01	1	9701-9905
22	STAY; OUTSIDE MIRROR TAI	8-97840-204-0	01	1	9906-0511
22	STAY; OUTSIDE MIRROR	8-97582-986-4	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-571-1	01	1	0702-
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-735-7	01	1	9701-9905
22	STAY; OUTSIDE MIRROR	8-97866-940-0	01	1	0412-0511
22	STAY; OUTSIDE MIRROR	8-97582-988-3	01	1	0512-0701
22	STAY; OUTSIDE MIRROR	8-98039-573-1	01	1	0702-
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9906-0411
23	WASHER; OUTSIDE MIRROR TAI	8-97840-252-0	01	1	9906-0411
23	WASHER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-252-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-252-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-252-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=2.0	8-94262-545-0	01	1	9701-9905
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0412-0511
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0512-
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0512-
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9906-0411
24	HOLDER; OUTSIDE MIRROR TAI	8-97840-253-0	01	1	9906-0411
24	HOLDER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-253-0	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-253-0	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-253-0	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=1.6	8-94262-546-1	01	1	9701-9905
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0412-0511
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0512-
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0512-
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9906-0411
25	SCREW; OUTSIDE MIRROR TAI	8-97840-259-0	01	1	9906-0411
25	SCREW; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-259-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR SHORT RH/LH,LONG LH TAI	8-97840-259-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR UNDER MIRROR<RR9> TAI	8-97840-259-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> M6X30	8-94279-365-0	01	1	9701-9905
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0412-0511
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0512-
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9701-9905
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9906-0411
26	COVER; OUTSIDE MIRROR (A) TAI	8-97840-254-0	01	1	9906-0411
26	COVER; OUTSIDE MIRROR (A) SHORT RH/LH,LONG LH TAI	8-97840-254-0	01	1	0412-0511
26	COVER; OUTSIDE MIRROR (A) SHORT RH/LH,LONG LH TAI	8-97840-254-0	01	1	0412-0511
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	01	1	0512-
26	COVER; OUTSIDE MIRROR UNDER MIRROR<RR9> (A) TAI	8-97840-254-0	01	1	9701-9905
26	COVER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A) T=2.3	8-94262-547-2	01	1	9701-9905
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE TAI	8-97582-840-4	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE TAI	8-97582-831-5	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE TAI	8-97582-844-4	01	1	0512-
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE TAI	8-97582-835-5	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0412-0511
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0512-
30	MIRROR; UNDER UNDER MIRROR<RR9> TAI	8-97840-203-0	01	1	9701-9905
30	MIRROR; UNDER TAI	8-97840-203-0	01	1	9906-0511
30	MIRROR; UNDER	8-94262-625-2	01	1	0412-0511
30	MIRROR; UNDER	8-94262-625-2	01	1	0512-
31	PLATE; MIRROR	8-94262-631-0	01	1	0412-0511
31	PLATE; MIRROR	8-94262-631-0	01	1	0512-
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> TAI	8-97840-257-0	02	1	9701-9905
32	SCREW; UNDER MIRROR TAI	8-97840-257-0	02	1	9906-0511
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0412-0511
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0512-
34	CAP; MIRROR	8-94262-629-0	01	1	0412-0511
34	CAP; MIRROR	8-94262-629-0	01	1	0512-
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-755-2	01	1	0512-
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-625-2	01	1	0512-
64	SEAL; MIRROR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-98015-058-0	02	1	0512-
64	SEAL; MIRROR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0512-
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9701-0411
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0412-0511
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0512-
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9701-9905
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9906-0411
96	CAP; MIRROR STAY TAI	8-97840-219-0	01	1	9906-0411
96	CAP; MIRROR STAY SHORT RH/LH,LONG LH TAI	8-97840-219-0	01	1	0412-0511
96	CAP; MIRROR STAY SHORT RH/LH,LONG LH TAI	8-97840-219-0	01	1	0412-0511
96	CAP; MIRROR STAY UNDER MIRROR<RR9> TAI	8-97840-219-0	01	1	9701-9905
96	CAP; MIRROR STAY EXC. UNDER MIRROR<RR9> OD=40	8-97853-206-2	01	1	9701-9905
96	CAP; MIRROR STAY OD=40	8-97853-206-2	01	1	0412-0511
96	CAP; MIRROR STAY	8-97581-631-2	02	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
