◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#139125) — 79 parça

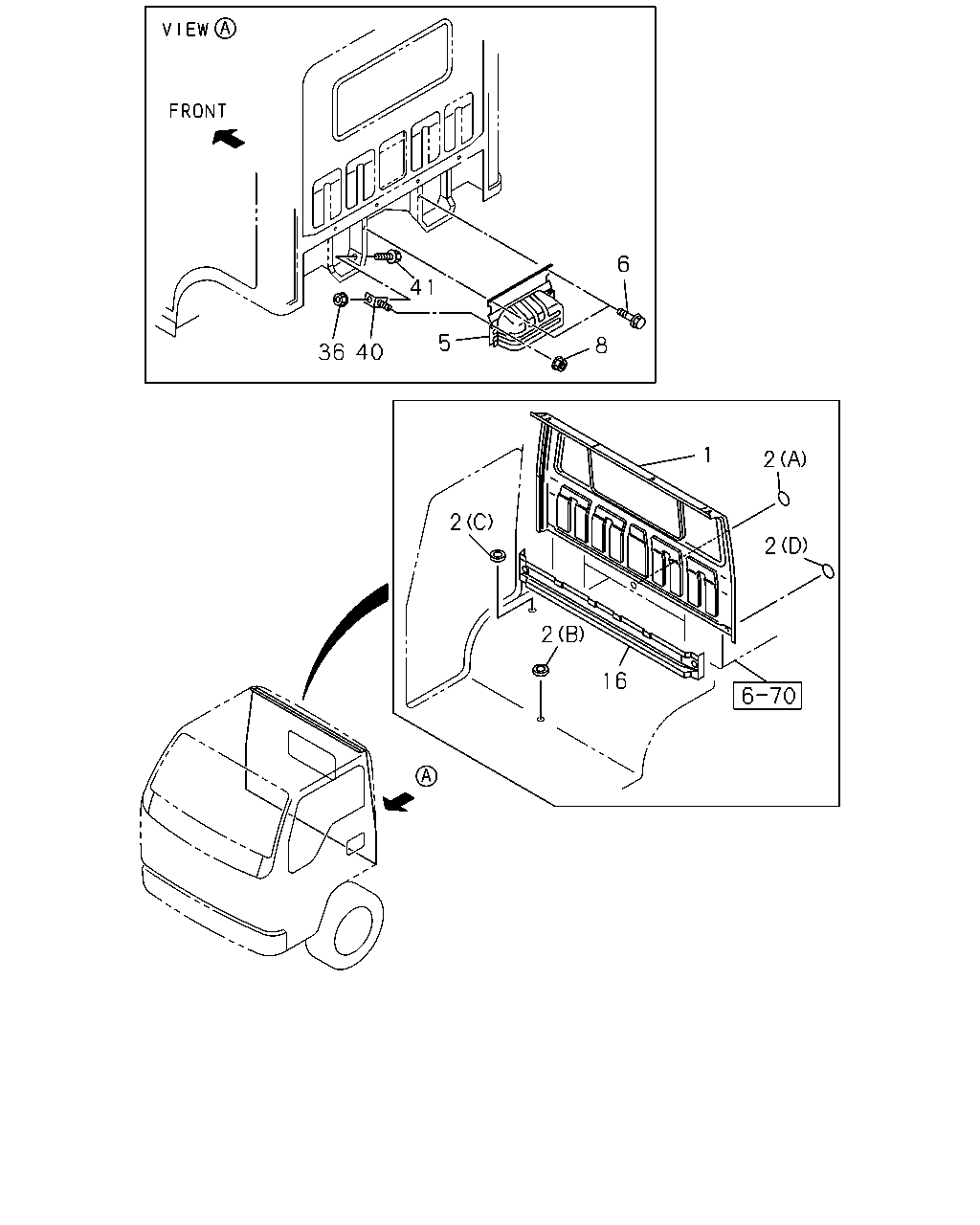

çizim 420574
6 41 5 8 36 40 1 2 2 2 2 16 6 70
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; BACK OUTER
TAI 		8-97840-239-0 01 1 9701-9809
1 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ> TAI 		8-97840-239-0 01 1 9810-9905
1 PANEL; BACK OUTER
4JG2 ENG(RJC) CAB-LOW ROOF<6XQ> TAI 		8-97840-239-0 01 1 9906-0207
1 PANEL; BACK OUTER
4JH1 ENG(RJX) CAB-LOW ROOF<6XQ> TAI 		8-97840-239-0 01 1 0208-0511
1 PANEL; BACK OUTER
4JH1-TC ENG(RDM) CAB-LOW ROOF<6XQ> TAI 		8-97840-239-0 01 1 0512-0610
1 PANEL; BACK OUTER
4JJ1 ENG(LFB) CAB-LOW ROOF<6XQ> TAI 		8-97840-239-0 01 1 0611-
1 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9810-9905
1 PANEL; BACK OUTER
4JG2 ENG(RJC) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9906-0207
1 PANEL; BACK OUTER
4JH1 ENG(RJX) CAB-HIGH ROOF<S2F> 		8-97851-352-2 01 1 0208-0411
1 PANEL; BACK OUTER
4JH1 ENG(RJX) CAB-HIGH ROOF<S2F> 		8-97851-352-2 01 1 0412-0511
1 PANEL; BACK OUTER
4JH1 ENG(RJX) 		8-97851-352-2 01 1 0412-0511
1 PANEL; BACK OUTER
4JH1-TC ENG(RDM) CAB-HIGH ROOF<S2F> 		8-97851-352-2 01 1 0512-0610
1 PANEL; BACK OUTER
4JH1-TC ENG(RDM) 		8-97851-352-2 01 1 0512-0610
1 PANEL; BACK OUTER
4JJ1 ENG(LFB) CAB-HIGH ROOF<S2F> 		8-97851-352-2 01 1 0611-
1 PANEL; BACK OUTER
4JJ1 ENG(LFB) 		8-97851-352-2 01 1 0611-
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 BLACK 		1-76798-018-0 02 1 9701-9810
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811-0411
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412-0710
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=32 BLACK 		8-98031-126-0 02 1 0711-
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK TAI 		1-76798-019-0 04 1 9701-0411
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK TAI 		1-76798-019-0 04 1 0412-
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=28.5 		8-94279-711-0 02 1 9701-0411
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=28.5 		8-94279-711-0 02 1 0412-
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=16.2 		8-94492-493-0 02 1 9701-0411
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=16.2 		8-94492-493-0 02 1 0412-0512
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=15.0 		8-94279-040-0 02 1 0601-
5 PANEL; CAB BACK
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) 		8-97259-949-1 01 1 0504-0505
5 PANEL; CAB BACK
4JH1 ENG(RJX) EXC. RR BODY FLAT BED(RS6) 		8-97259-949-1 01 1 0506-0511
5 PANEL; CAB BACK
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) 		8-97259-949-1 01 1 0506-0511
5 PANEL; CAB BACK
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) 		8-97259-949-2 01 1 0512-0610
5 PANEL; CAB BACK
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) 		8-97259-949-2 01 1 0512-0610
6 BOLT; BACK PANEL
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28680-820-0 02 1 0504-0505
6 BOLT; BACK PANEL
4JH1 ENG(RJX) EXC. RR BODY FLAT BED(RS6) M8X20 FLANGE 		0-28680-820-0 02 1 0506-0511
6 BOLT; BACK PANEL
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28680-820-0 02 1 0506-0511
6 BOLT; BACK PANEL
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
6 BOLT; BACK PANEL
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
6 BOLT; BACK PANEL
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610
6 BOLT; BACK PANEL
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610
8 NUT; BACK PANEL
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91150-108-0 02 1 0504-0505
8 NUT; BACK PANEL
4JH1 ENG(RJX) EXC. RR BODY FLAT BED(RS6) M8 FLANGE 		0-91150-108-0 02 1 0506-0511
8 NUT; BACK PANEL
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91150-108-0 02 1 0506-0511
8 NUT; BACK PANEL
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
8 NUT; BACK PANEL
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
8 NUT; BACK PANEL
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
8 NUT; BACK PANEL
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
16 REINFORCEMENT; BACK OUTER PNL
TAI 		8-97840-024-0 01 1 9701-9809
16 REINFORCEMENT; BACK OUTER PNL
CAB-LOW ROOF<6XQ> TAI 		8-97840-024-0 01 1 9810-9905
16 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) CAB-LOW ROOF<6XQ> TAI 		8-97840-024-0 01 1 9906-0207
16 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) CAB-LOW ROOF<6XQ> TAI 		8-97840-024-1 01 1 0208-0511
16 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM) CAB-LOW ROOF<6XQ> TAI 		8-97840-024-1 01 1 0512-0610
16 REINFORCEMENT; BACK OUTER PNL
4JJ1 ENG(LFB) CAB-LOW ROOF<6XQ> TAI 		8-97840-024-1 01 1 0611-
16 REINFORCEMENT; BACK OUTER PNL
EXC. CAB-LOW ROOF<6XQ> 		8-97867-215-0 01 1 9810-9905
16 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) EXC. CAB-LOW ROOF<6XQ> 		8-97867-215-0 01 1 9906-0207
16 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) CAB-HIGH ROOF<S2F> 		8-97867-215-0 01 1 0208-0411
16 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) CAB-HIGH ROOF<S2F> 		8-97867-215-0 01 1 0412-0511
16 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) 		8-97867-215-0 01 1 0412-0511
16 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM) CAB-HIGH ROOF<S2F> 		8-97867-215-0 01 1 0512-0610
16 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM) 		8-97867-215-0 01 1 0512-0610
16 REINFORCEMENT; BACK OUTER PNL
4JJ1 ENG(LFB) CAB-HIGH ROOF<S2F> 		8-97867-215-0 01 1 0611-
16 REINFORCEMENT; BACK OUTER PNL
4JJ1 ENG(LFB) 		8-97867-215-0 01 1 0611-
36 NUT; BRKT
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91150-108-0 02 1 0504-0505
36 NUT; BRKT
4JH1 ENG(RJX) EXC. RR BODY FLAT BED(RS6) M8 FLANGE 		0-91150-108-0 02 1 0506-0511
36 NUT; BRKT
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91150-108-0 02 1 0506-0511
36 NUT; BRKT
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
36 NUT; BRKT
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
36 NUT; BRKT
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
36 NUT; BRKT
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
40 BRACKET; BACK PANEL
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) 		8-97322-264-0 02 1 0504-0505
40 BRACKET; BACK PANEL
4JH1 ENG(RJX) EXC. RR BODY FLAT BED(RS6) 		8-97322-264-0 02 1 0506-0511
40 BRACKET; BACK PANEL
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) 		8-97322-264-0 02 1 0506-0511
40 BRACKET; BACK PANEL
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) 		8-97322-264-0 02 1 0512-0610
40 BRACKET; BACK PANEL
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) 		8-97322-264-0 02 1 0512-0610
41 BOLT
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28680-820-0 02 1 0504-0505
41 BOLT
4JH1 ENG(RJX) EXC. RR BODY FLAT BED(RS6) M8X20 FLANGE 		0-28680-820-0 02 1 0506-0511
41 BOLT
4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28680-820-0 02 1 0506-0511
41 BOLT
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
41 BOLT
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
41 BOLT
4JH1-TC ENG(RDM) EXC. RR BODY FLAT BED(RS6) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610
41 BOLT
4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610
