6-76 — FLOOR EQUIPMENT AND SEALING (#139123) — 83 parça

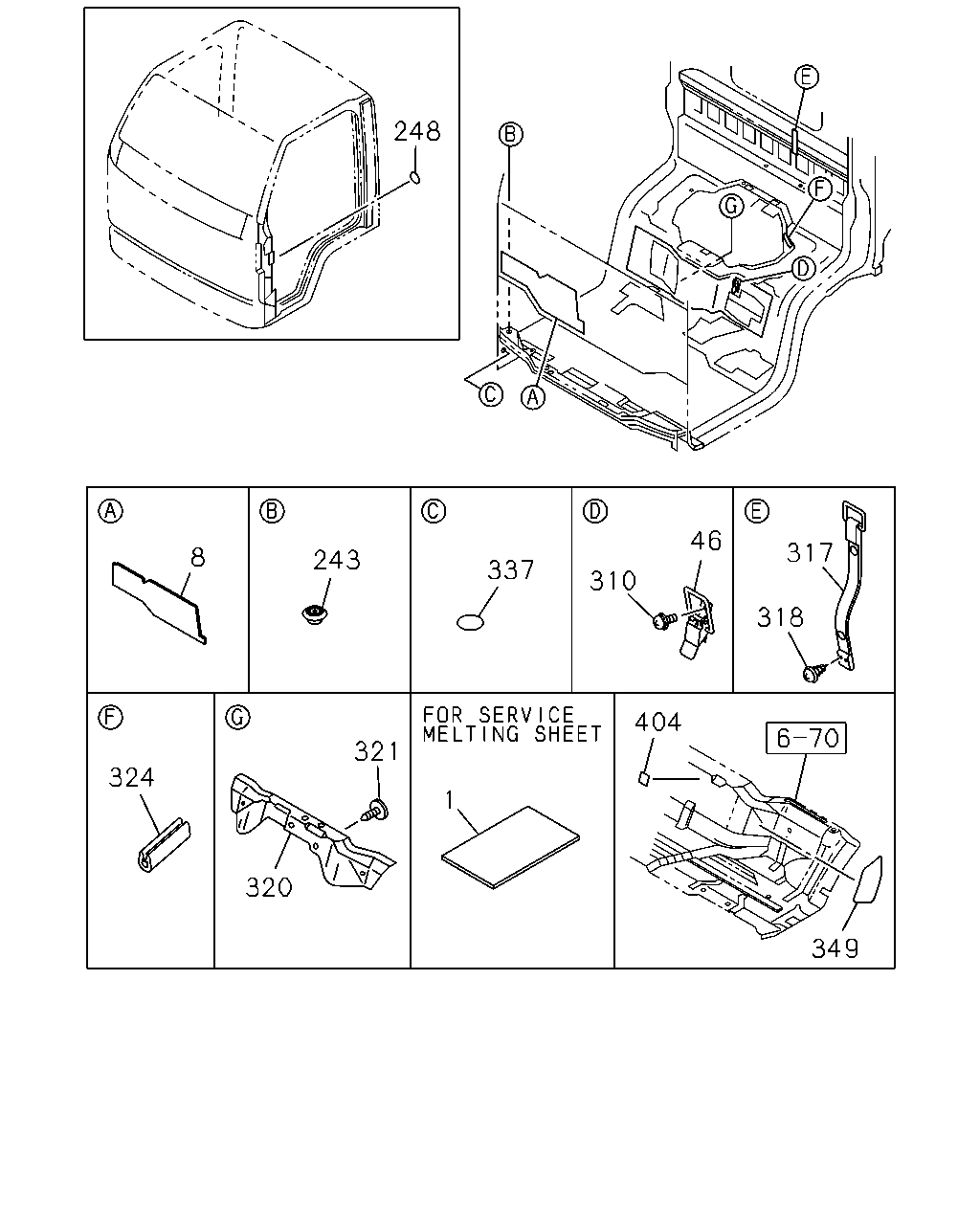

248 46 317 8 243 337 310 318 404 6 70 321 324 1 320 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	01	1	9701-0411
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	01	1	0412-
8	MAT; SILENCER,FRT PANEL	8-97853-604-2	01	1	9701-0411
8	MAT; SILENCER,FRT PANEL	8-97853-604-2	01	1	0412-0506
8	MAT; SILENCER,FRT PANEL	8-97581-659-3	01	1	0507-0606
8	MAT; SILENCER,FRT PANEL	8-97853-603-2	01	1	9701-0411
8	MAT; SILENCER,FRT PANEL	8-97853-603-2	01	1	0412-0506
8	MAT; SILENCER,FRT PANEL	8-97581-658-3	01	1	0507-0606
8	MAT; SILENCER,FRT PANEL	8-98019-713-1	02	1	0607-
46	HOOK ASM; ENG COVER	8-97853-632-2	02	1	9701-0411
46	HOOK ASM; ENG COVER	8-97853-632-2	02	1	0412-
70	SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	9701-9905
243	GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-94279-716-0	01	1	9701-0002
243	GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-97898-423-0	01	1	0003-0207
243	GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-97898-423-0	01	1	0208-0411
243	GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-97898-423-0	01	1	0412-
248	SEAL; EXT,FRT & RR OD=36 T=0.05 BLACK	5-76777-035-0	04	1	0307-0411
248	SEAL; EXT,FRT & RR OD=36 T=0.05 BLACK	5-76777-035-0	04	1	0412-0511
310	SCREW; ENG COVER HOOK M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9701-0411
310	SCREW; ENG COVER HOOK M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0412-
317	BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-4	01	1	9701-0411
317	BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-4	01	1	0412-
318	SCREW; BAND M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9701-0411
318	SCREW; BAND M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0412-0604
318	SCREW; BAND M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-
320	INSULATOR; FLOOR,FRT TAI	8-97840-039-1	01	1	9701-0411
320	INSULATOR; FLOOR,FRT TAI	8-97840-039-1	01	1	0412-0610
321	CLIP; INSULATOR,FLOOR OD=28 BLACK	8-94279-997-0	04	1	9701-9904
321	CLIP; INSULATOR,FLOOR OD=30	8-94279-952-0	04	1	9905-0304
321	CLIP; INSULATOR,FLOOR OD=30	8-94279-952-0	03	1	0305-0411
321	CLIP; INSULATOR,FLOOR OD=30	8-94279-952-0	03	1	0412-0610
324	FINISHER; FLOOR PANEL L=140	8-97867-865-0	01	1	9701-9812
324	FINISHER; FLOOR PANEL L=140	8-97892-742-0	01	1	9901-0411
324	FINISHER; FLOOR PANEL L=140	8-97892-742-0	01	1	0412-
337	SEAL; CLIP HOLE OD=25 BLACK TAI	1-76798-019-0	01	1	9701-0010
337	SEAL; CLIP HOLE OD=20 T=0.05 BLACK TAI	5-76777-036-0	01	1	0011-0411
337	SEAL; CLIP HOLE OD=20 T=0.05 BLACK TAI	5-76777-036-0	01	1	0412-
337	SEAL; CLIP HOLE EXC. MANUAL TILT CAB<RWZ> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9701-9905
349	PROTECTOR	8-98039-389-1	01	1	0611-0705
349	PROTECTOR	8-98090-192-1	01	1	0706-
349	PROTECTOR	8-98039-388-1	01	1	0611-0705
349	PROTECTOR	8-98090-191-1	01	1	0706-
404	SEAL; FLOOR,HOLE	8-98040-837-0	01	1	0611-

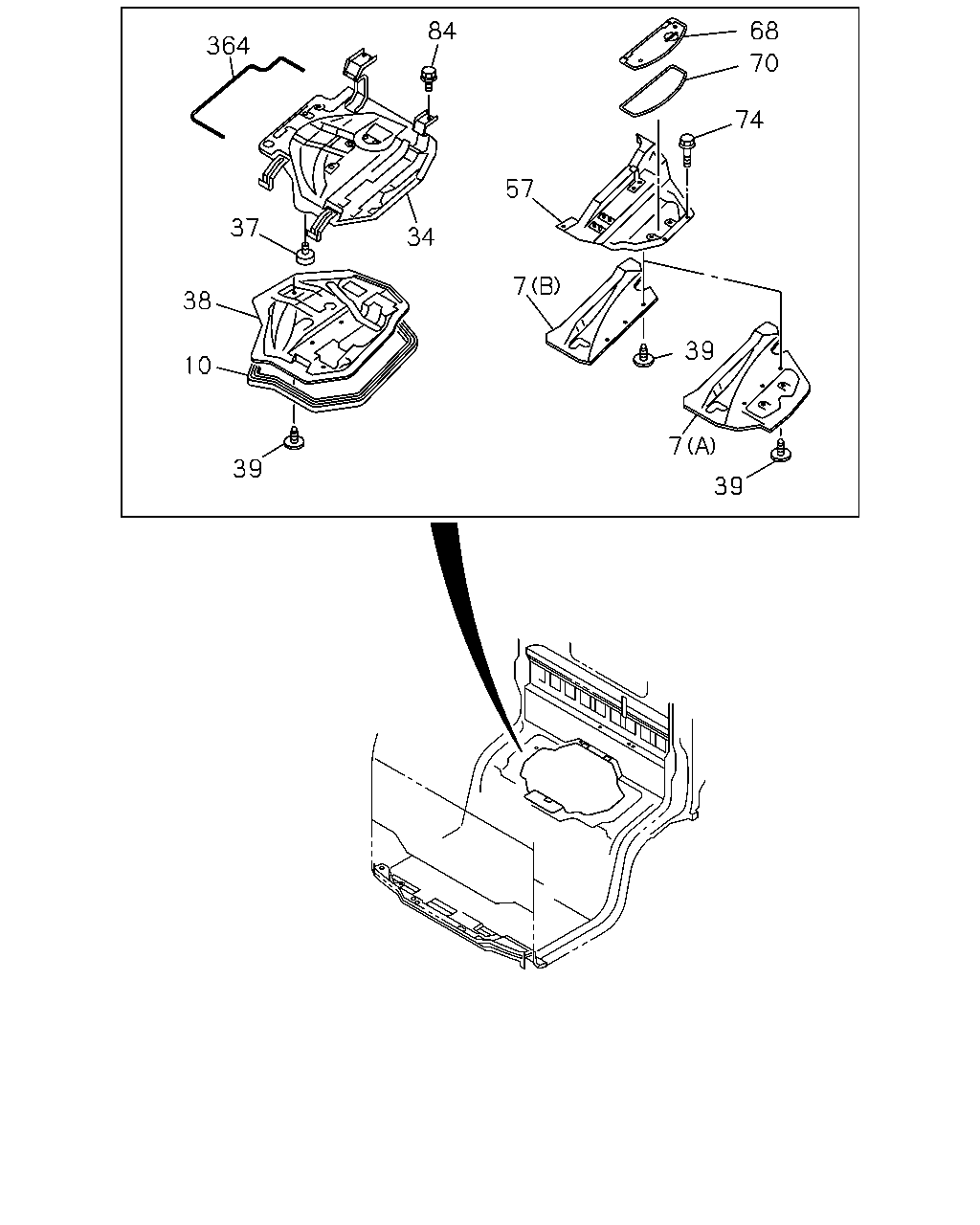

84 68 364 70 74 57 37 34 7 38 39 10 7 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ> (A) TAI	8-97840-040-0	01	1	9701-9905
7	INSULATOR; SUPPORT COVER (A) TAI	8-97840-040-0	01	1	9906-0411
7	INSULATOR; SUPPORT COVER (A) TAI	8-97840-040-0	01	1	0412-
7	INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-208-1	01	1	9701-9905
10	SEAL; ENG COVER	8-97853-010-3	01	1	9701-0411
10	SEAL; ENG COVER	8-97853-010-4	01	1	0412-
34	COVER ASM; ENG,CAB FLOOR	8-97850-678-1	01	1	9701-0411
34	COVER ASM; ENG,CAB FLOOR	8-97850-678-1	01	1	0412-
37	RUBBER; BUFFER,ENG COVER OD=30 T=10	5-74917-001-2	02	1	9701-0411
37	RUBBER; BUFFER,ENG COVER OD=30 T=10	5-74917-001-2	02	1	0412-
38	INSULATOR; ENG COVER TAI	8-97840-041-0	01	1	9701-0411
38	INSULATOR; ENG COVER TAI	8-97840-041-0	01	1	0412-
39	CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9701-9904
39	CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9701-9904
39	CLIP; INSULATOR,COVER OD=30	8-94279-952-0	05	1	9905-9905
39	CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	05	1	9905-9905
39	CLIP; INSULATOR,COVER OD=30	8-94279-952-0	05	1	9906-0411
39	CLIP; INSULATOR,COVER OD=30	8-94279-952-0	05	1	0412-
39	CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	07	1	9701-9904
39	CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	07	1	9905-9905
39	CLIP; INSULATOR,COVER OD=30	8-94279-952-0	07	1	9906-0411
39	CLIP; INSULATOR,COVER OD=30	8-94279-952-0	07	1	0412-
57	COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-693-1	01	1	9701-9905
57	COVER ASM; SUPPORT,CAB FLOOR	8-97866-693-1	01	1	9906-0411
57	COVER ASM; SUPPORT,CAB FLOOR	8-97866-693-1	01	1	0412-
57	COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-694-1	01	1	9701-9905
68	COVER ASM; SUB,ENG COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-712-3	01	1	9701-9905
70	SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	9701-9905
74	BOLT; SUPPORT COVER TO FLOOR M8X20 FLANGE	0-28680-820-0	04	1	9701-0411
74	BOLT; SUPPORT COVER TO FLOOR M8X20 FLANGE	0-28680-820-0	04	1	0412-0512
74	BOLT; SUPPORT COVER TO FLOOR M8X20 FLANGE	0-28650-820-0	04	1	0601-
74	BOLT; SUPPORT COVER TO FLOOR M8X25 FLANGE	0-28680-825-0	01	1	9701-0411
74	BOLT; SUPPORT COVER TO FLOOR M8X25 FLANGE	0-28680-825-0	01	1	0412-0512
74	BOLT; SUPPORT COVER TO FLOOR M8X25 FLANGE	0-28650-825-0	01	1	0601-
84	BOLT; ENG COVER HINGE M8X20 FLANGE	0-28680-820-0	04	1	9701-0411
84	BOLT; ENG COVER HINGE M8X20 FLANGE	0-28680-820-0	04	1	0412-0512
84	BOLT; ENG COVER HINGE M8X20 FLANGE	0-28650-820-0	04	1	0601-
364	FINISHER; ENG COVER SIDE L=1100	8-97890-598-0	01	1	9709-9812
364	FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	9901-0411
364	FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0412-
