◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#139122) — 28 parça

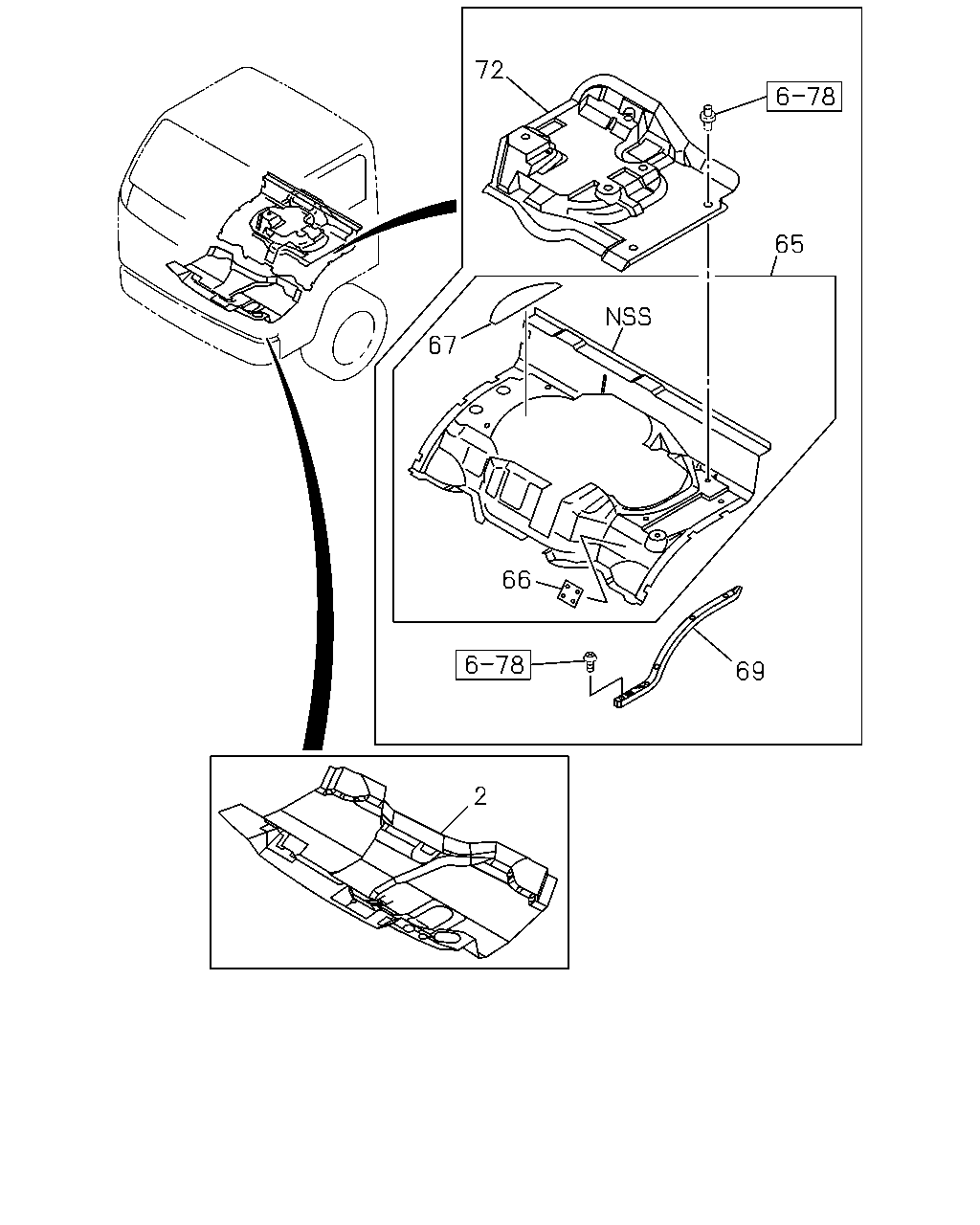

çizim 420688
72 6 78 65 67 66 6 78 69 2
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE TAI 		8-97840-155-0 01 1 9701-9905
2 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY TAI 		8-97840-276-1 01 1 9906-0411
2 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY TAI 		8-97840-276-2 01 1 0412-
2 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE TAI 		8-97840-154-0 01 1 9701-9905
2 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY TAI 		8-97840-277-1 01 1 9906-0411
2 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY TAI 		8-97840-277-2 01 1 0412-
65 MAT ASM; SILENCER,CAB FLOOR
DARK BEIGE TAI 		8-97840-053-1 01 1 9701-9905
65 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY TAI 		8-97840-281-1 01 1 9906-0411
65 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY TAI 		8-97840-281-1 01 1 0412-
66 HOOK; COVER
DARK BEIGE TAI 		8-97840-169-0 02 1 9701-9905
66 HOOK; COVER
DARK GRAY TAI 		8-97840-288-0 02 1 9906-0411
66 HOOK; COVER
DARK GRAY TAI 		8-97840-288-0 02 1 0412-
67 LID; COVER
DARK BEIGE TAI 		8-97840-168-0 01 1 9701-9706
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-958-0 01 1 9701-9905
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9906-0411
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-1 01 1 0412-0511
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0512-0702
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-957-0 01 1 9701-9905
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9906-0411
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-1 01 1 0412-0511
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0512-0702
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703-
72 MAT; SILENCER,ENG COVER
DARK BEIGE TAI 		8-97840-051-0 01 1 9701-9905
72 MAT; SILENCER,ENG COVER
DARK GRAY TAI 		8-97840-282-0 01 1 9906-0207
72 MAT; SILENCER,ENG COVER
DARK GRAY TAI 		8-97840-282-0 01 1 0208-0411
72 MAT; SILENCER,ENG COVER
DARK GRAY TAI 		8-97840-282-0 01 1 0412-0610
72 MAT; SILENCER,ENG COVER
DARK GRAY TAI 		8-97407-372-0 01 1 0611-
