◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#139121) — 70 parça

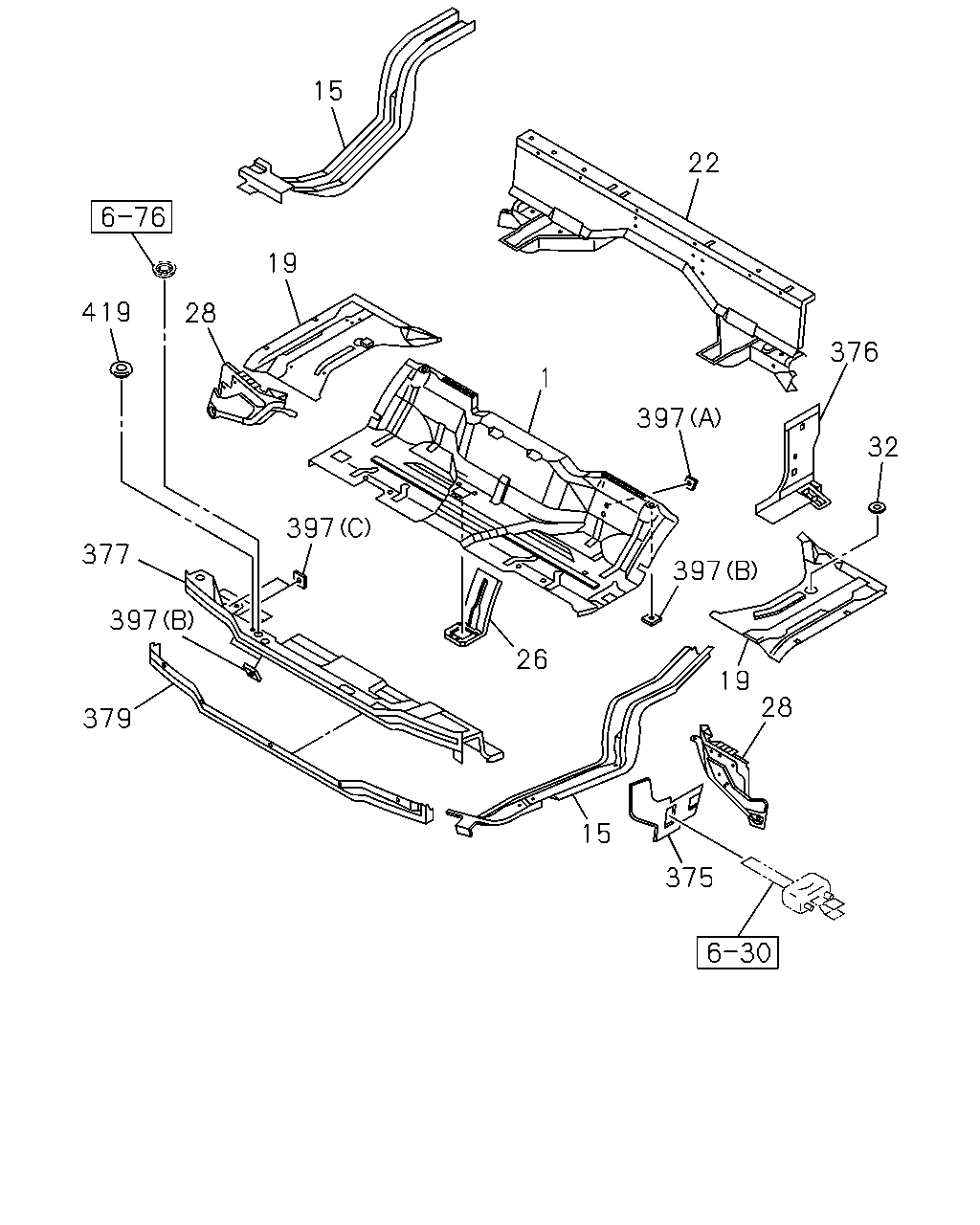

çizim 420567
15 22 6 76 19 419 28 376 1 397 32 397 377 397 397 26 19 28 379 15 375 6 30
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
TAI 		8-97850-332-7 01 1 9701-0411
1 PANEL; FLOOR
TAI 		8-97850-332-7 01 1 0412-
15 FRAME; UNDER
TAI 		8-97850-060-9 01 1 9701-0411
15 FRAME; UNDER
TAI 		8-97850-060-9 01 1 0412-
15 FRAME; UNDER
TAI 		8-97850-059-9 01 1 9701-0411
15 FRAME; UNDER
TAI 		8-97850-059-9 01 1 0412-0505
15 FRAME; UNDER
TAI 		8-98013-405-0 01 1 0506-
19 PANEL; FLOOR SIDE,REAR 8-97850-337-4 01 1 9701-0411
19 PANEL; FLOOR SIDE,REAR 8-97850-337-5 01 1 0412-
19 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9701-0411
19 PANEL; FLOOR SIDE,REAR 8-97850-335-5 01 1 0412-
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-345-6 01 1 9701-9804
22 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-5 01 1 9701-9804
22 FRAME; FLOOR REAR 8-97850-345-8 01 1 9805-0411
22 FRAME; FLOOR REAR 8-97850-345-8 01 1 0412-0612
22 FRAME; FLOOR REAR
TAI 		8-98036-530-0 01 1 0701-0701
22 FRAME; FLOOR REAR 8-97850-345-8 01 1 0701-0711
22 FRAME; FLOOR REAR 8-98082-185-2 01 1 0712-
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9701-0411
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 0412-
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9701-0411
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0412-
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9701-0411
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0412-
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 9701-0411
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0412-
375 CLOSING; PILLAR 8-97850-087-3 01 1 9701-0411
375 CLOSING; PILLAR 8-97850-087-4 01 1 0412-
375 CLOSING; PILLAR 8-97850-086-4 01 1 9701-0411
375 CLOSING; PILLAR 8-97850-086-5 01 1 0412-
376 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9701-9811
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 9812-0411
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0412-
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9701-0411
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0412-
377 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 9701-0411
377 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 0412-
379 PANEL 8-97850-050-2 01 1 9701-0306
379 PANEL 8-97581-639-0 01 1 0307-0411
379 PANEL 8-97581-639-0 01 1 0412-
397 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 9701-0411
397 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0412-
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9701-0411
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0412-
397 NUT; PIERCE
(B) M8 		9-09114-048-0 03 1 9701-0411
397 NUT; PIERCE
(B) M8 		9-09114-048-0 03 1 0412-
397 NUT; PIERCE
(B) M8 		9-09114-048-0 04 1 9701-0411
397 NUT; PIERCE
(B) M8 		9-09114-048-0 04 1 0412-
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 9701-0411
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 0412-

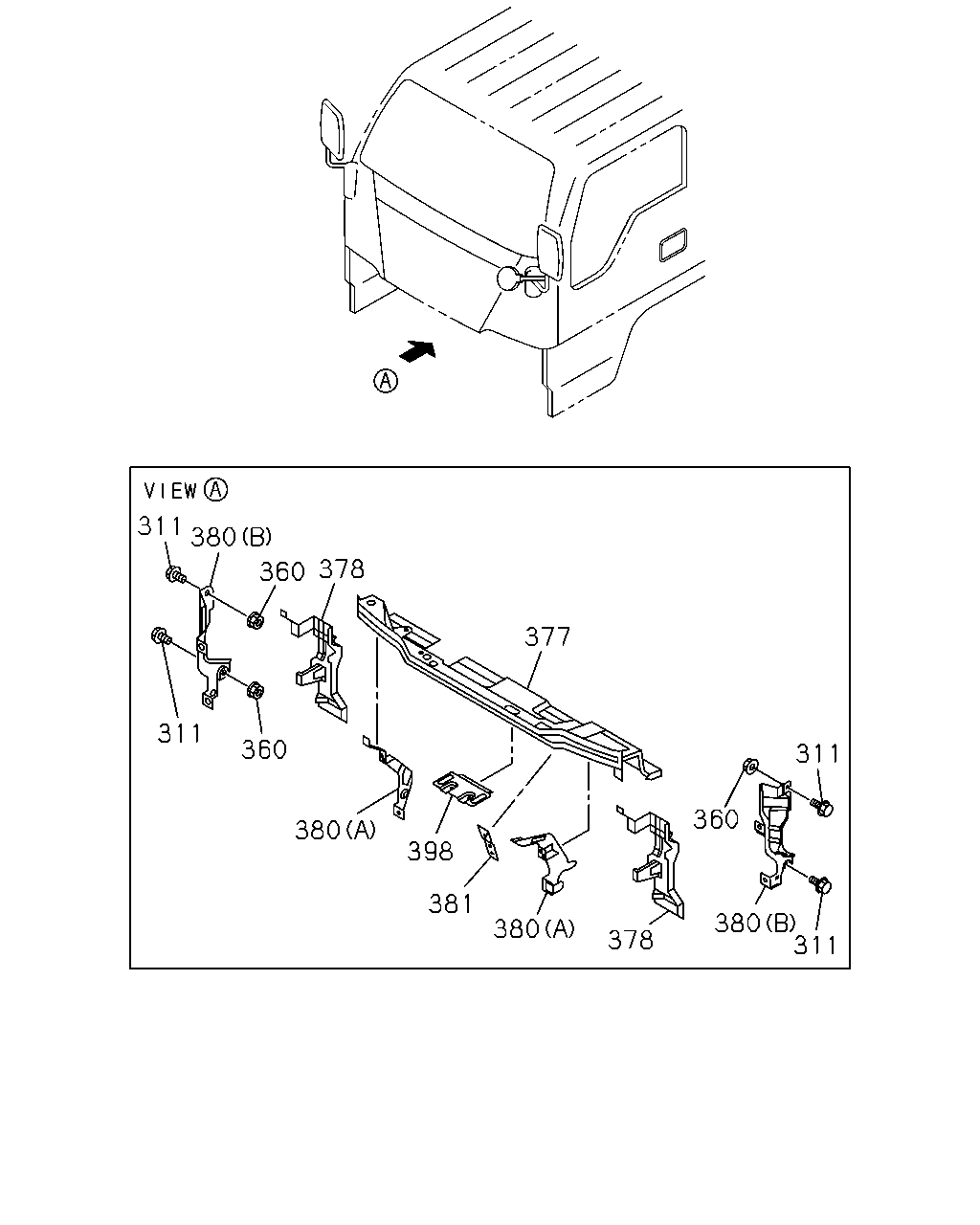

çizim 420568
311 380 378 360 377 311 360 311 360 380 398 381 380 311 380 378
BalonParca AdiParca NoAdetTipApplied Date
311 BOLT; BRKT
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 04 1 0512-
360 NUT; BRKT
M6 POP NUT 		8-94279-537-0 02 1 0512-
377 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 9701-0411
377 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 0412-
378 GASSET; LWR 8-97850-672-1 01 1 9701-0305
378 GASSET; LWR 8-97581-828-1 01 1 0306-0411
378 GASSET; LWR 8-97581-828-2 01 1 0412-
378 GASSET; LWR 8-97850-671-0 01 1 9701-0305
378 GASSET; LWR 8-97581-827-1 01 1 0306-0411
378 GASSET; LWR 8-97581-827-2 01 1 0412-
380 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 9701-0411
380 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 0412-
380 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 9701-0411
380 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 0412-
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 0512-
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 0512-
381 BRACKET; AIR INTAKE DUCT,FRT
TAI 		8-97850-352-1 01 1 9701-0411
381 BRACKET; AIR INTAKE DUCT,FRT
TAI 		8-97850-352-1 01 1 0412-
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9701-0411
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0412-
