Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#139118) — 277 parça

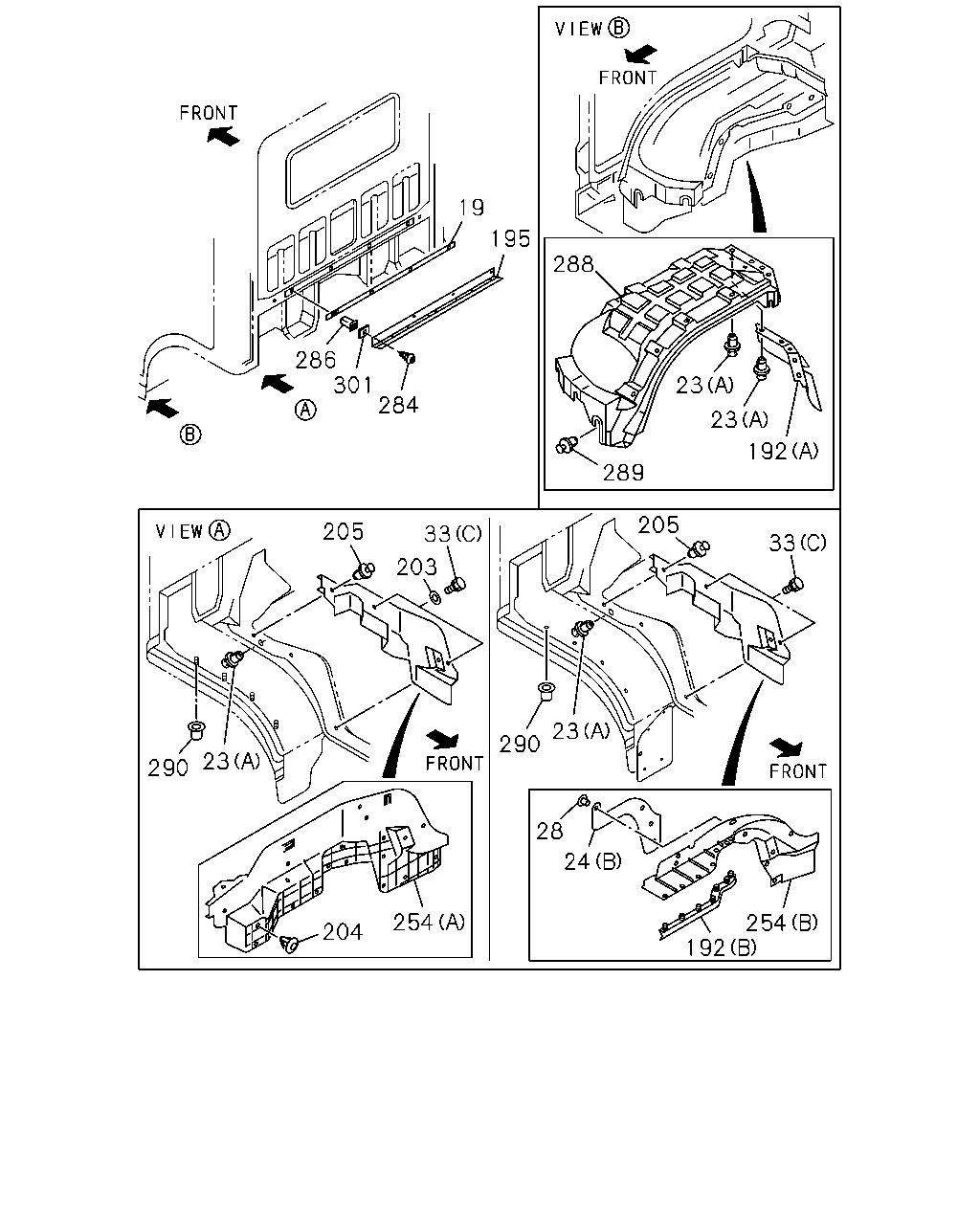

19 195 288 286 301 284 23 23 192 289 205 205 33 33 203 23 290 23 290 28 24 254 254 192 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9701-0411
19	SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0412-
23	FASTENER; MUD COVER (A) OD=8.3	8-94279-989-0	10	1	9701-0207
23	FASTENER; MUD COVER (A) OD=8.3	8-97997-832-0	10	1	0208-0411
23	FASTENER; MUD COVER (A) OD=8.3	8-97997-832-0	10	1	0412-
23	FASTENER; MUD COVER (B) OD=8.3	8-94279-989-0	02	1	0208-0411
23	FASTENER; MUD COVER (B) OD=8.3	8-94279-989-0	02	1	0412-
24	PLATE; MUD COVER (A) TAI	8-97095-186-0	02	1	9701-9905
24	PLATE; MUD COVER (A) TAI	8-97967-073-0	02	1	9906-0411
24	PLATE; MUD COVER (A) TAI	8-97967-073-0	02	1	0412-0610
24	PLATE; MUD COVER (A) TAI	8-97095-186-0	02	1	0611-
24	PLATE; MUD COVER (B)	8-97996-187-2	01	1	0611-
28	CLIP OD=14	8-97582-733-0	04	1	0611-
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	9701-0411
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0412-0512
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	9701-0411
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0412-0512
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	9701-0411
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0412-0512
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER TAI	8-94279-104-0	01	1	9701-0411
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER TAI	8-94279-104-0	01	1	0412-
192	SEAL; MUD COVER (A) TAI	8-97840-032-0	02	1	9701-0411
192	SEAL; MUD COVER (A) TAI	8-97840-032-1	02	1	0412-0610
192	SEAL; MUD COVER (A)	8-97896-994-1	02	1	0611-
192	SEAL; MUD COVER (B)	8-98032-333-1	01	1	0611-
192	SEAL; MUD COVER (B)	8-98032-335-1	01	1	0611-
195	PROTECTOR; HEAT	8-97035-834-2	01	1	9803-9904
195	PROTECTOR; HEAT	8-97898-001-0	01	1	9905-9905
195	PROTECTOR; HEAT	8-97898-001-1	01	1	9906-0411
195	PROTECTOR; HEAT	8-97898-001-1	01	1	0412-0412
195	PROTECTOR; HEAT	8-97035-834-2	01	1	0501-0503
195	PROTECTOR; HEAT	8-97898-001-1	01	1	0501-
195	PROTECTOR; HEAT 4JH1 ENG(RJX) G.V.W. 5.0-5.5TON(RPT)	8-97035-834-2	01	1	0504-0511
195	PROTECTOR; HEAT	8-97035-834-3	01	1	0512-
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9701-0411
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0412-0604
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	9701-9702
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON TAI	8-94242-150-0	02	1	9701-0411
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON TAI	8-94242-150-0	02	1	0412-
254	COVER; MUD,VALANCE (A)	8-97853-072-4	01	1	9701-0411
254	COVER; MUD,VALANCE (A)	8-97853-072-4	01	1	0412-0610
254	COVER; MUD,VALANCE (B)	8-97898-947-5	01	1	0611-
254	COVER; MUD,VALANCE (A)	8-97853-071-4	01	1	9701-0411
254	COVER; MUD,VALANCE (A)	8-97853-071-4	01	1	0412-0610
254	COVER; MUD,VALANCE (B)	8-97898-946-6	01	1	0611-
284	SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9701-0411
284	SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0412-0503
284	SCREW; HEAT PROTECTOR 4JH1 ENG(RJX) RR BODY FLAT BED(RS6) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0504-0505
284	SCREW; HEAT PROTECTOR 4JH1 ENG(RJX) G.V.W. 5.0-5.5TON(RPT) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0504-0505
284	SCREW; HEAT PROTECTOR 4JH1 ENG(RJX) RR BODY FLAT BED(RS6) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0506-0511
284	SCREW; HEAT PROTECTOR 4JH1 ENG(RJX) G.V.W. 5.0-5.5TON(RPT) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0506-0511
284	SCREW; HEAT PROTECTOR 4JH1-TC ENG(RDM) RR BODY FLAT BED(RS6) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0512-0610
284	SCREW; HEAT PROTECTOR 4JH1-TC ENG(RDM) G.V.W. 5.0-5.5TON(RPT) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0512-0610
284	SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0611-
286	GROMMET; SCREW,HEAT PROTECTOR TAI	8-94279-043-0	04	1	9701-0101
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-0411
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0412-
288	LINER; TIRE HOUSE	8-97890-579-0	01	1	9712-9712
288	LINER; TIRE HOUSE	8-97853-716-6	01	1	9801-9803
288	LINER; TIRE HOUSE	8-97890-579-1	01	1	9804-0212
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-0411
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0412-
288	LINER; TIRE HOUSE	8-97890-578-0	01	1	9712-9712
288	LINER; TIRE HOUSE	8-97853-715-6	01	1	9801-9803
288	LINER; TIRE HOUSE	8-97890-578-1	01	1	9804-0212
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-0411
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0412-
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	9701-0212
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0301-0411
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0412-
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9701-0411
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0412-
301	HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9701-0101
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-0411
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0412-

288 23 6 70 219 6 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	FASTENER; MUD COVER (A) OD=8.3	8-94279-989-0	10	1	9701-0207
23	FASTENER; MUD COVER (A) OD=8.3	8-97997-832-0	10	1	0208-0411
23	FASTENER; MUD COVER (A) OD=8.3	8-97997-832-0	10	1	0412-
23	FASTENER; MUD COVER (B) OD=8.3	8-94279-989-0	02	1	0208-0411
23	FASTENER; MUD COVER (B) OD=8.3	8-94279-989-0	02	1	0412-
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) M8X20 FLANGE	0-28680-820-0	08	1	0506-0507
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28680-820-0	12	1	0512-0512
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28650-820-0	12	1	0601-0610
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28680-820-0	10	1	0504-0507
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) M8X20 FLANGE	0-28680-820-0	10	1	0508-0511
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28680-820-0	10	1	0508-0511
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28680-820-0	10	1	0512-0512
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28650-820-0	10	1	0601-0610
219	FLAP; MUD GUARD (A)	8-97036-107-2	02	1	9701-9903
219	FLAP; MUD GUARD (A) TAI	8-97218-078-0	02	1	9904-9905
219	FLAP; MUD GUARD (A) TAI	8-97967-072-0	02	1	9906-0411
219	FLAP; MUD GUARD (A) TAI	8-97967-072-0	02	1	0412-0610
219	FLAP; MUD GUARD (A) TAI	8-97218-078-0	02	1	0611-
219	FLAP; MUD GUARD (B)	8-97857-549-1	01	1	0208-0411
219	FLAP; MUD GUARD (B)	8-97857-549-1	01	1	0412-0610
219	FLAP; MUD GUARD (B)	8-98056-387-0	01	1	0611-
288	LINER; TIRE HOUSE	8-97890-579-0	01	1	9712-9712
288	LINER; TIRE HOUSE	8-97853-716-6	01	1	9801-9803
288	LINER; TIRE HOUSE	8-97890-579-1	01	1	9804-0212
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-0411
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0412-
288	LINER; TIRE HOUSE	8-97890-578-0	01	1	9712-9712
288	LINER; TIRE HOUSE	8-97853-715-6	01	1	9801-9803
288	LINER; TIRE HOUSE	8-97890-578-1	01	1	9804-0212
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-0411
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0412-

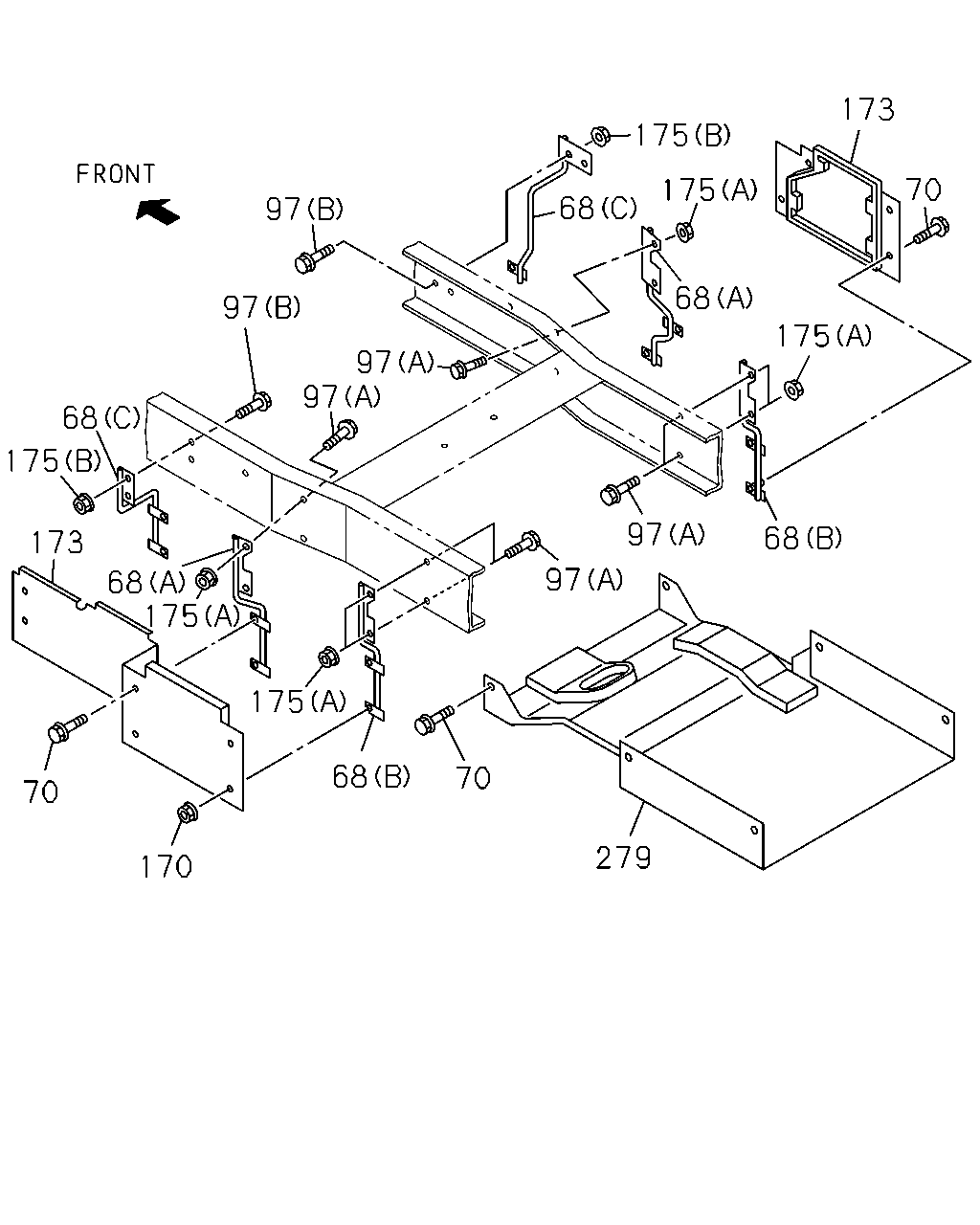

173 175 70 175 68 97 68 97 175 97 97 68 175 97 68 173 68 175 97 175 68 70 70 279 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	STAY; COVER 4JH1 ENG(RJX) (B)	8-97314-385-0	01	1	0506-0511
68	STAY; COVER 4JH1-TC ENG(RDM) (B)	8-97314-385-0	01	1	0512-0610
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (A)	8-97205-955-2	01	1	0504-0511
68	STAY; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (A)	8-97205-955-2	01	1	0512-0610
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (B)	8-97205-968-2	01	1	0504-0511
68	STAY; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (B)	8-97205-968-2	01	1	0512-0610
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (C)	8-97259-956-0	01	1	0504-0505
68	STAY; COVER 4JH1 ENG(RJX) (C)	8-97259-956-0	01	1	0506-0511
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (C)	8-97259-956-0	01	1	0506-0511
68	STAY; COVER 4JH1-TC ENG(RDM) (C)	8-97259-956-0	01	1	0512-0610
68	STAY; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (C)	8-97259-956-0	01	1	0512-0610
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (A)	8-97205-956-2	01	1	0504-0511
68	STAY; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (A)	8-97205-956-2	01	1	0512-0610
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (C)	8-97205-971-4	01	1	0504-0505
68	STAY; COVER 4JH1 ENG(RJX) (C)	8-97205-971-4	01	1	0506-0511
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (C)	8-97205-971-4	01	1	0506-0511
68	STAY; COVER 4JH1-TC ENG(RDM) (C)	8-97205-971-4	01	1	0512-0610
68	STAY; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (C)	8-97205-971-4	01	1	0512-0610
68	STAY; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (B)	8-97259-092-0	01	1	0504-0511
68	STAY; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (B)	8-97259-092-0	01	1	0512-0610
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) M8X20 FLANGE	0-28680-820-0	08	1	0506-0507
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28680-820-0	12	1	0512-0512
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28650-820-0	12	1	0601-0610
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28680-820-0	10	1	0504-0507
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) M8X20 FLANGE	0-28680-820-0	10	1	0508-0511
70	BOLT; COVER TO STAY 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28680-820-0	10	1	0508-0511
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28680-820-0	10	1	0512-0512
70	BOLT; COVER TO STAY 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8X20 FLANGE	0-28650-820-0	10	1	0601-0610
97	BOLT; STAY TO FRAME 4JH1 ENG(RJX) (A) M10X25 FLANGE	0-28681-025-0	04	1	0506-0507
97	BOLT; STAY TO FRAME 4JH1 ENG(RJX) (A) M10X25 FLANGE	0-28681-025-0	02	1	0508-0511
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) (A) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-0610
97	BOLT; STAY TO FRAME 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (B) M8X20 FLANGE	0-28680-820-0	04	1	0504-0505
97	BOLT; STAY TO FRAME 4JH1 ENG(RJX) (B) M8X20 FLANGE	0-28680-820-0	04	1	0506-0511
97	BOLT; STAY TO FRAME 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (B) M8X20 FLANGE	0-28680-820-0	04	1	0506-0511
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) (B) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (B) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-0610
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-0610
97	BOLT; STAY TO FRAME 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (A) M10X25 FLANGE	0-28681-025-0	08	1	0504-0511
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (A) M10X25 FLANGE	0-28681-025-0	08	1	0512-0512
97	BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-0610
170	NUT; COVER 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	04	1	0508-0511
170	NUT; COVER 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	04	1	0512-0602
170	NUT; COVER 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	04	1	0603-0610
170	NUT; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE	0-91150-108-0	01	1	0504-0505
170	NUT; COVER 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0506-0507
170	NUT; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE	0-91150-108-0	01	1	0506-0507
170	NUT; COVER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE	0-91150-108-0	01	1	0508-0511
170	NUT; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE	0-91150-108-0	01	1	0512-0602
170	NUT; COVER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) M8 FLANGE	0-91180-108-0	01	1	0603-0610
173	COVER; TRANS SIDE 4JH1 ENG(RJX)	8-98015-063-1	01	1	0506-0511
173	COVER; TRANS SIDE 4JH1-TC ENG(RDM)	8-98015-063-1	01	1	0512-0610
173	COVER; TRANS SIDE 4JH1 ENG(RJX)	8-98015-062-0	01	1	0506-0511
173	COVER; TRANS SIDE 4JH1-TC ENG(RDM)	8-98015-062-0	01	1	0512-0610
173	COVER; TRANS SIDE 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR)	8-97306-997-0	01	1	0504-0511
173	COVER; TRANS SIDE 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR)	8-97306-997-0	01	1	0512-0610
173	COVER; TRANS SIDE 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR)	8-97306-995-0	01	1	0504-0511
173	COVER; TRANS SIDE 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR)	8-97306-995-0	01	1	0512-0610
175	NUT; STAY FIX 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	04	1	0506-0507
175	NUT; STAY FIX 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	02	1	0508-0511
175	NUT; STAY FIX 4JH1-TC ENG(RDM) (A) M10 FLANGE	0-91150-110-0	02	1	0512-0602
175	NUT; STAY FIX 4JH1-TC ENG(RDM) (A) M10 FLANGE	0-91180-110-0	02	1	0603-0610
175	NUT; STAY FIX 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (B) M8 FLANGE	0-91150-108-0	04	1	0504-0511
175	NUT; STAY FIX 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (B) M8 FLANGE	0-91150-108-0	04	1	0512-0602
175	NUT; STAY FIX 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (B) M8 FLANGE	0-91180-108-0	04	1	0603-0610
175	NUT; STAY FIX 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR) (A) M10 FLANGE	0-91150-110-0	08	1	0504-0511
175	NUT; STAY FIX 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (A) M10 FLANGE	0-91150-110-0	08	1	0512-0602
175	NUT; STAY FIX 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR) (A) M10 FLANGE	0-91180-110-0	08	1	0603-0610
279	COVER; UNDER 4JH1 ENG(RJX)	8-98015-061-0	01	1	0506-0511
279	COVER; UNDER 4JH1-TC ENG(RDM)	8-98015-061-0	01	1	0512-0610
279	COVER; UNDER 4JH1 ENG(RJX) G.V.W. 4.0-4.5TON(RPR)	8-97352-228-0	01	1	0504-0511
279	COVER; UNDER 4JH1-TC ENG(RDM) G.V.W. 4.0-4.5TON(RPR)	8-97352-228-0	01	1	0512-0610

112 92 285 112 5 10 5 10 285 145 5 24 66 3 145 3 5 66 76 24 76 33 33 33 33 219 33 219 5 10 5 10 140 140 150 150 140 140 140 140 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GUARD; MUD,RR TAI	8-97048-729-1	01	1	9701-9905
3	GUARD; MUD,RR TAI	8-97967-071-0	01	1	9906-0411
3	GUARD; MUD,RR TAI	8-97967-071-0	01	1	0412-0610
3	GUARD; MUD,RR TAI	8-97366-988-1	01	1	0611-
3	GUARD; MUD,RR TAI	8-97048-728-3	01	1	9701-9905
3	GUARD; MUD,RR TAI	8-97967-070-0	01	1	9906-0411
3	GUARD; MUD,RR TAI	8-97967-070-0	01	1	0412-0610
3	GUARD; MUD,RR TAI	8-98003-974-0	01	1	0611-
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	9701-0411
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0412-0512
5	NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-
24	PLATE; MUD COVER (A) TAI	8-97095-186-0	02	1	9701-9905
24	PLATE; MUD COVER (A) TAI	8-97967-073-0	02	1	9906-0411
24	PLATE; MUD COVER (A) TAI	8-97967-073-0	02	1	0412-0610
24	PLATE; MUD COVER (A) TAI	8-97095-186-0	02	1	0611-
24	PLATE; MUD COVER (B)	8-97996-187-2	01	1	0611-
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	9701-0411
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0412-0512
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	9701-0411
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0412-0512
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	9701-0411
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0412-0512
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER TAI	8-94279-104-0	01	1	9701-0411
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER TAI	8-94279-104-0	01	1	0412-
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	9701-0411
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0412-0603
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	02	1	9701-0411
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	02	1	0412-0512
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	02	1	0601-
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	9701-0411
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	0412-0602
92	NUT; MUD COVER M8 FLANGE	0-91180-108-0	02	1	0603-
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	9701-0411
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0412-0512
112	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0601-
139	PANEL; SIDE (A)	8-97083-093-1	01	1	9701-9905
139	PANEL; SIDE 4JG2 ENG(RJC) (A)	8-97083-093-1	01	1	9906-0207
139	PANEL; SIDE 4JH1 ENG(RJX) (A)	8-97035-774-3	01	1	0208-0411
139	PANEL; SIDE 4JH1 ENG(RJX) (A)	8-97035-774-3	01	1	0412-0511
139	PANEL; SIDE 4JH1-TC ENG(RDM) (A)	8-97035-774-3	01	1	0512-0610
139	PANEL; SIDE 4JJ1 ENG(LFB) (C)	8-97388-535-1	01	1	0611-
139	PANEL; SIDE (B)	8-97078-381-1	01	1	9701-9905
139	PANEL; SIDE 4JG2 ENG(RJC) (B)	8-97078-381-1	01	1	9906-0207
139	PANEL; SIDE 4JH1 ENG(RJX) (B)	8-97078-381-1	01	1	0208-0411
139	PANEL; SIDE 4JH1 ENG(RJX) (B)	8-97078-381-1	01	1	0412-0511
139	PANEL; SIDE 4JH1-TC ENG(RDM) (B)	8-97078-381-1	01	1	0512-0610
139	PANEL; SIDE 4JJ1 ENG(LFB) (D)	8-97388-534-0	01	1	0611-
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	02	1	9701-0207
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	03	1	9701-9905
140	BOLT; SIDE PANEL 4JG2 ENG(RJC) M8X20 FLANGE	0-28480-820-0	03	1	9906-0207
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	02	1	9701-9905
140	BOLT; SIDE PANEL 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9906-0207
140	BOLT; SIDE PANEL 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	07	1	0208-0411
140	BOLT; SIDE PANEL 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	07	1	0412-0511
140	BOLT; SIDE PANEL 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	07	1	0512-0512
140	BOLT; SIDE PANEL 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	07	1	0601-0610
140	BOLT; SIDE PANEL 4JJ1 ENG(LFB) M8X25 W/LK&PL WASHER	1-09030-074-0	05	1	0611-0611
140	BOLT; SIDE PANEL 4JJ1 ENG(LFB) M8X25 W/LK&PL WASHER	1-09030-093-0	05	1	0612-
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	9701-0411
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0412-0602
145	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	03	1	9701-9905
150	NUT; SIDE PANEL 4JG2 ENG(RJC) M8 FLANGE	0-91150-108-0	03	1	9906-0207
150	NUT; SIDE PANEL 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0208-0411
150	NUT; SIDE PANEL 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0412-0511
150	NUT; SIDE PANEL 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	01	1	0512-0602
150	NUT; SIDE PANEL 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	01	1	0603-0610
219	FLAP; MUD GUARD (A)	8-97036-107-2	02	1	9701-9903
219	FLAP; MUD GUARD (A) TAI	8-97218-078-0	02	1	9904-9905
219	FLAP; MUD GUARD (A) TAI	8-97967-072-0	02	1	9906-0411
219	FLAP; MUD GUARD (A) TAI	8-97967-072-0	02	1	0412-0610
219	FLAP; MUD GUARD (A) TAI	8-97218-078-0	02	1	0611-
219	FLAP; MUD GUARD (B)	8-97857-549-1	01	1	0208-0411
219	FLAP; MUD GUARD (B)	8-97857-549-1	01	1	0412-0610
219	FLAP; MUD GUARD (B)	8-98056-387-0	01	1	0611-
285	BRACKET; MUD COVER (A)	8-97035-780-2	01	1	9701-9707
285	BRACKET; MUD COVER (A) TAI	8-97965-884-0	01	1	9708-9905
285	BRACKET; MUD COVER 4JG2 ENG(RJC) (A) TAI	8-97965-884-0	01	1	9906-0207
285	BRACKET; MUD COVER 4JH1 ENG(RJX) (A) TAI	8-97967-306-0	01	1	0208-0411
285	BRACKET; MUD COVER 4JH1 ENG(RJX) (A) TAI	8-97967-306-0	01	1	0412-0511
285	BRACKET; MUD COVER 4JH1-TC ENG(RDM) (A) TAI	8-97967-306-0	01	1	0512-0610
285	BRACKET; MUD COVER 4JJ1 ENG(LFB) (A) TAI	8-97967-306-0	01	1	0611-
285	BRACKET; MUD COVER (B)	8-97089-653-2	01	1	9701-9707
285	BRACKET; MUD COVER (B) TAI	8-97965-883-0	01	1	9708-9905
285	BRACKET; MUD COVER 4JG2 ENG(RJC) (B) TAI	8-97965-883-0	01	1	9906-0207
285	BRACKET; MUD COVER 4JH1 ENG(RJX) (B) TAI	8-97965-883-0	01	1	0208-0411
285	BRACKET; MUD COVER 4JH1 ENG(RJX) (B) TAI	8-97965-883-0	01	1	0412-0511
285	BRACKET; MUD COVER 4JH1-TC ENG(RDM) (B) TAI	8-97965-883-0	01	1	0512-0610
285	BRACKET; MUD COVER 4JJ1 ENG(LFB) (B) TAI	8-97965-883-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
