6-32 — FRONT DOOR LOCK AND HANDLE (#139115) — 100 parça

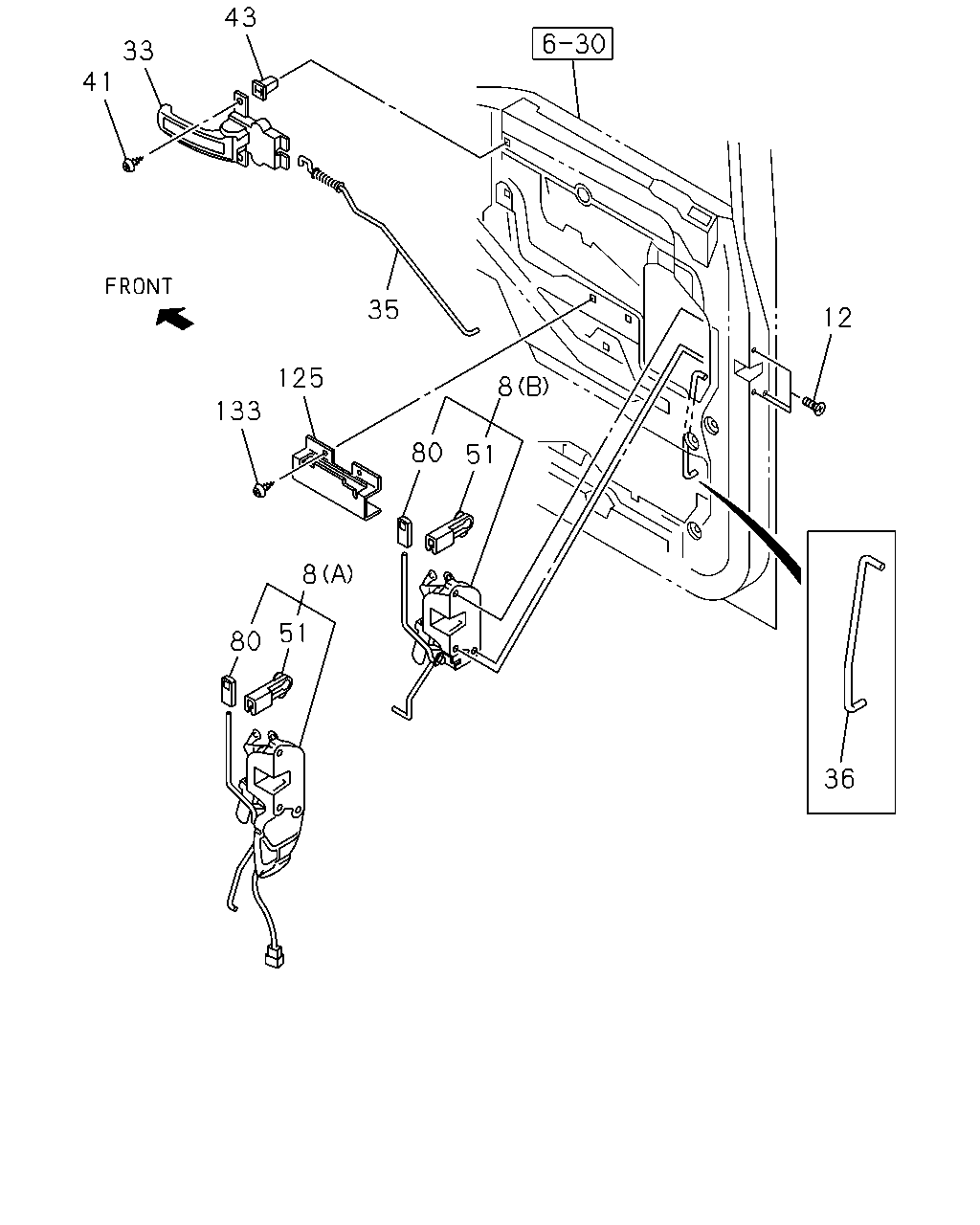

43 6 30 33 41 35 12 125 8 133 80 51 8 51 80 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LOCK; DOOR,FRT DOOR (B) DARK GRAY	8-97892-198-1	01	1	9906-0207
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY	8-97892-198-1	01	1	0208-0411
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY	8-97892-198-1	01	1	0412-0511
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97582-298-2	01	1	0512-0610
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97406-310-2	01	1	0611-
8	LOCK; DOOR,FRT DOOR (B) DARK GRAY	8-97892-098-1	01	1	9906-0207
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY	8-97892-098-1	01	1	0208-0411
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY	8-97892-098-1	01	1	0412-0511
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97582-297-2	01	1	0512-0610
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97406-309-2	01	1	0611-
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK BEIGE	8-97852-636-3	01	1	9701-9905
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK BEIGE	8-97852-637-3	01	1	9701-9905
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97892-679-1	01	1	0208-0411
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97892-679-1	01	1	0412-0511
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97587-490-2	01	1	0512-
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97892-680-1	01	1	0208-0411
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97892-680-1	01	1	0412-0511
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97585-444-2	01	1	0512-0610
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97588-868-2	01	1	0611-
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE	8-97852-413-3	01	1	9701-9905
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE	8-97852-412-3	01	1	9701-9905
12	SCREW; DOOR LK M6X16	1-09981-447-1	06	1	9701-0411
12	SCREW; DOOR LK M6X16	1-09981-447-1	06	1	0412-
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97866-600-1	01	1	9701-9905
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-602-1	01	1	9906-0411
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-602-1	01	1	0412-0511
33	LEVER ASM; INSIDE,FRT DOOR GRAY	8-97582-305-1	01	1	0512-0611
33	LEVER ASM; INSIDE,FRT DOOR GRAY	8-97409-389-0	01	1	0612-
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97866-599-1	01	1	9701-9905
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-601-1	01	1	9906-0411
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-601-1	01	1	0412-0511
33	LEVER ASM; INSIDE,FRT DOOR GRAY	8-97582-304-1	01	1	0512-0611
33	LEVER ASM; INSIDE,FRT DOOR GRAY	8-97409-388-0	01	1	0612-
35	LINK; DOOR LOCK,INSIDE	8-97852-110-1	01	1	9701-9905
35	LINK; DOOR LOCK,INSIDE	8-97890-887-2	01	1	9906-0411
35	LINK; DOOR LOCK,INSIDE	8-97890-887-2	01	1	0412-
35	LINK; DOOR LOCK,INSIDE	8-97852-109-1	01	1	9701-9905
35	LINK; DOOR LOCK,INSIDE	8-97890-886-2	01	1	9906-0411
35	LINK; DOOR LOCK,INSIDE	8-97890-886-2	01	1	0412-
36	LINK; DOOR LOCK,OUTSIDE	8-97852-335-0	01	1	9701-9905
36	LINK; DOOR LOCK,OUTSIDE	8-97890-885-0	01	1	9906-0411
36	LINK; DOOR LOCK,OUTSIDE	8-97890-885-0	01	1	0412-
36	LINK; DOOR LOCK,OUTSIDE	8-97852-334-0	01	1	9701-9905
36	LINK; DOOR LOCK,OUTSIDE	8-97890-884-0	01	1	9906-0411
36	LINK; DOOR LOCK,OUTSIDE	8-97890-884-0	01	1	0412-
41	SCREW; INSIDE HANDLE M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9701-0411
41	SCREW; INSIDE HANDLE M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0412-0604
41	SCREW; INSIDE HANDLE M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0605-
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9701-9705
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5 TAI	8-94279-078-0	04	1	9706-0411
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5 TAI	8-94279-078-0	04	1	0412-
51	SNAP; FRT DOOR LOCK CONT ROD	8-97859-069-0	01	1	9701-0411
51	SNAP; FRT DOOR LOCK CONT ROD	8-97859-069-0	01	1	0412-
51	SNAP; FRT DOOR LOCK CONT ROD	8-97852-643-0	01	1	9701-0411
51	SNAP; FRT DOOR LOCK CONT ROD	8-97852-643-0	01	1	0412-
80	KNOB; DOOR LOCK EXC. AUTO DOOR LOCK<AU4> GRAY	8-97406-876-0	02	1	0611-
80	KNOB; DOOR LOCK AUTO DOOR LOCK<AU4>	8-97859-070-0	02	1	9701-9905
80	KNOB; DOOR LOCK	8-97098-574-0	02	1	9906-0411
80	KNOB; DOOR LOCK	8-97098-574-0	02	1	0412-0511
80	KNOB; DOOR LOCK	8-97582-706-0	02	1	0512-0610
80	KNOB; DOOR LOCK AUTO DOOR LOCK<AU4> GRAY	8-97582-706-0	02	1	0611-
80	KNOB; DOOR LOCK EXC. AUTO DOOR LOCK<AU4>	8-97852-656-0	02	1	9701-9905
125	BRACKET; DOOR PULL	8-97852-125-1	02	1	9701-9905
125	BRACKET; DOOR PULL TAI	8-97840-306-0	02	1	9906-0411
125	BRACKET; DOOR PULL TAI	8-97840-306-0	02	1	0412-
133	SCREW; DOOR PULL STAY M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9701-0411
133	SCREW; DOOR PULL STAY M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0412-0604
133	SCREW; DOOR PULL STAY M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	0605-

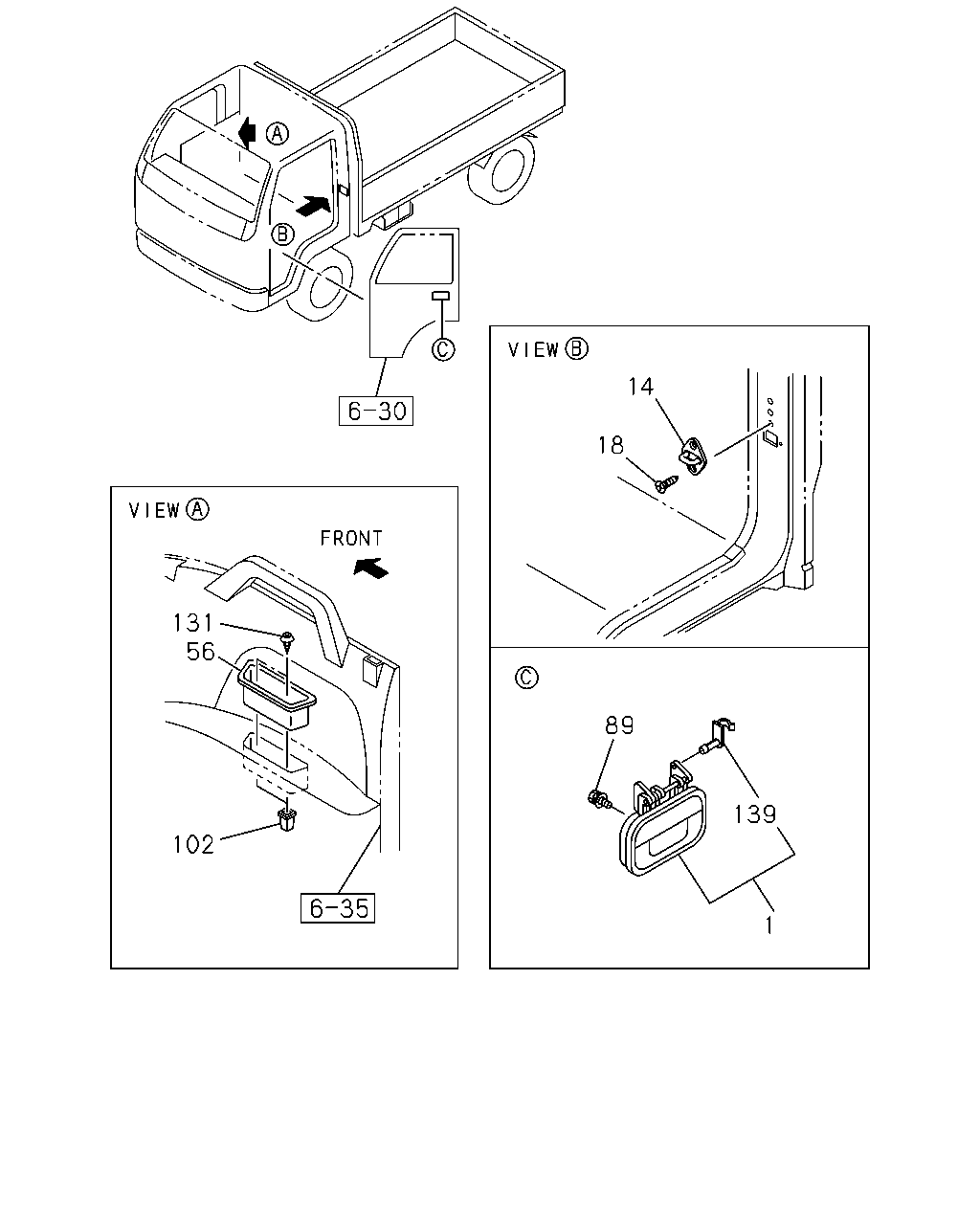

14 6 30 18 131 56 89 139 102 6 35 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; OUTSIDE,FRT DOOR	8-97867-722-1	01	1	9701-0411
1	HANDLE; OUTSIDE,FRT DOOR	8-97867-722-1	01	1	0412-
1	HANDLE; OUTSIDE,FRT DOOR	8-97867-721-1	01	1	9701-0411
1	HANDLE; OUTSIDE,FRT DOOR	8-97867-721-1	01	1	0412-
14	STRIKER; FRT DOOR	8-97852-106-1	02	1	9701-9903
14	STRIKER; FRT DOOR	8-97221-702-0	02	1	9904-0411
14	STRIKER; FRT DOOR	8-97221-702-1	02	1	0412-
18	SCREW; DOOR STRIKER M8X20	1-09981-450-3	04	1	9701-9903
18	SCREW; DOOR STRIKER M8X23 W/LK WASHER	8-97221-701-0	04	1	9904-0411
18	SCREW; DOOR STRIKER M8X23 W/LK WASHER	8-97221-701-0	04	1	0412-
35	LINK; DOOR LOCK,INSIDE	8-97852-110-1	01	1	9701-9905
35	LINK; DOOR LOCK,INSIDE	8-97890-887-2	01	1	9906-0411
35	LINK; DOOR LOCK,INSIDE	8-97890-887-2	01	1	0412-
35	LINK; DOOR LOCK,INSIDE	8-97852-109-1	01	1	9701-9905
35	LINK; DOOR LOCK,INSIDE	8-97890-886-2	01	1	9906-0411
35	LINK; DOOR LOCK,INSIDE	8-97890-886-2	01	1	0412-
56	ESCUTCHEON; LOCK KNOB DARK BEIGE	8-97852-421-3	02	1	9701-9905
56	ESCUTCHEON; LOCK KNOB DARK GRAY TAI	8-97840-314-0	02	1	9906-0411
56	ESCUTCHEON; LOCK KNOB DARK GRAY TAI	8-97840-314-0	02	1	0412-0511
56	ESCUTCHEON; LOCK KNOB GRAY TAI	8-97967-477-0	02	1	0512-
89	BOLT; DOOR OUTSIDE HANDLE M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9701-0411
89	BOLT; DOOR OUTSIDE HANDLE M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0412-
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9701-9705
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5 TAI	8-94279-078-0	06	1	9706-0411
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5 TAI	8-94279-078-0	06	1	0412-
131	SCREW; ESCUTCHEON,DOOR PULL M5X12 TAPPING W/PL WASHER	0-74110-512-0	06	1	9701-0411
131	SCREW; ESCUTCHEON,DOOR PULL M5X12 TAPPING W/PL WASHER	0-74110-512-0	06	1	0412-0604
131	SCREW; ESCUTCHEON,DOOR PULL M5X12 TAPPING W/PL WASHER	0-74160-512-0	06	1	0605-
139	HOLDER; ROD,DOOR HANDLE	8-97852-652-1	01	1	9701-0411
139	HOLDER; ROD,DOOR HANDLE	8-97852-652-1	01	1	0412-
139	HOLDER; ROD,DOOR HANDLE	8-97852-651-1	01	1	9701-0411
139	HOLDER; ROD,DOOR HANDLE	8-97852-651-1	01	1	0412-
