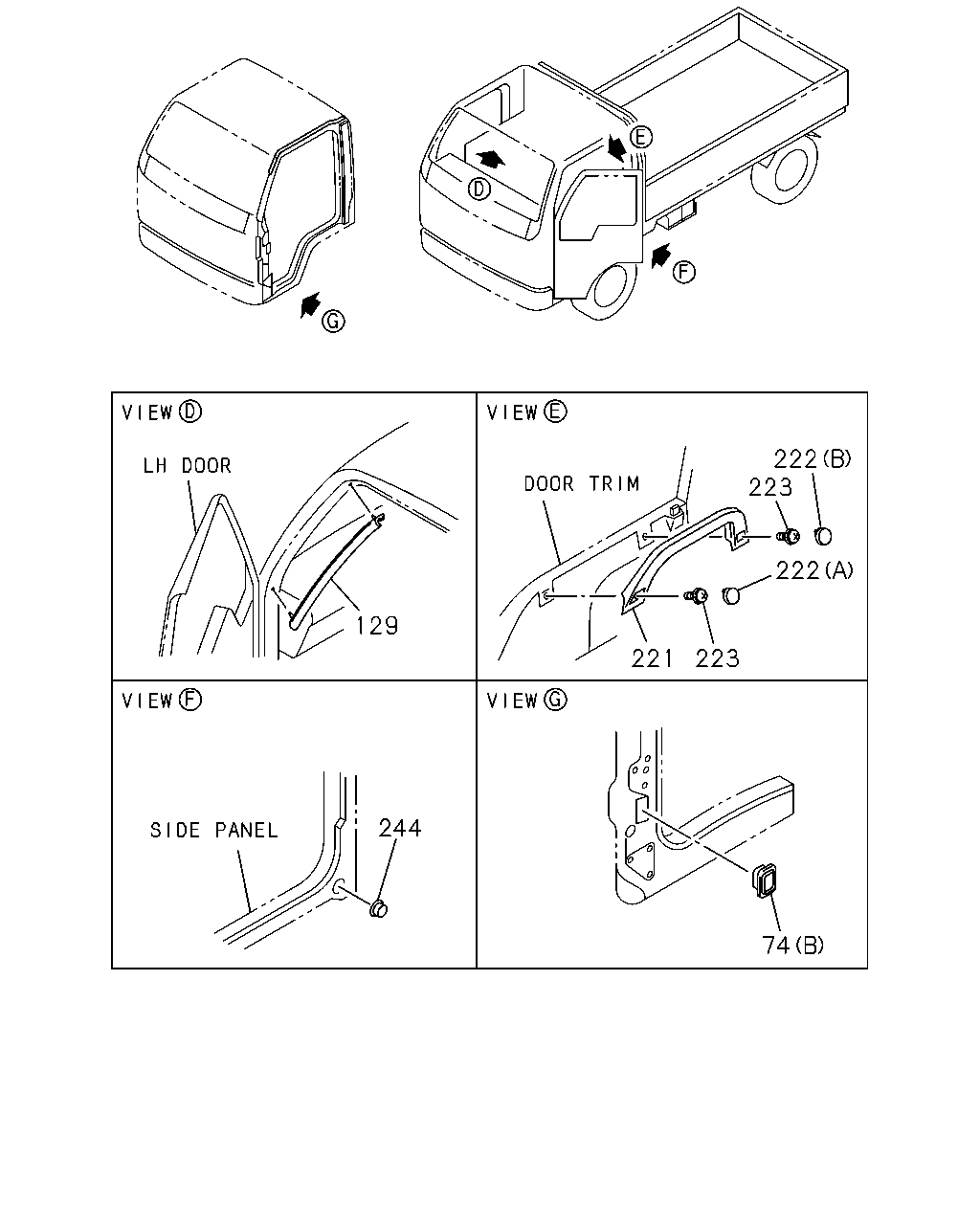

6-31 — FRONT DOOR GLASS AND REGULATOR (#139114) — 148 parça

222 223 222 129 221 223 244 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
74	GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32>, ANTENNA<U73>,RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1	8-94279-053-0	02	1	9701-9905
74	GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32>, ANTENNA<U73>,RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-94279-736-0	02	1	9701-9905
129	SEAL; DOOR,SUB UPR	8-97857-841-0	02	1	9701-9809
129	SEAL; DOOR,SUB UPR CAB-LOW ROOF<6XQ>	8-97857-841-0	02	1	9810-
129	SEAL; DOOR,SUB UPR EXC. CAB-LOW ROOF<6XQ>	8-97852-147-3	01	1	9810-0207
129	SEAL; DOOR,SUB UPR CAB-HIGH ROOF<S2F>	8-97852-147-3	01	1	0208-0411
129	SEAL; DOOR,SUB UPR CAB-HIGH ROOF<S2F>	8-97852-147-3	01	1	0412-
129	SEAL; DOOR,SUB UPR	8-97852-147-3	01	1	0412-
129	SEAL; DOOR,SUB UPR EXC. CAB-LOW ROOF<6XQ>	8-97852-146-3	01	1	9810-0207
129	SEAL; DOOR,SUB UPR CAB-HIGH ROOF<S2F>	8-97852-146-3	01	1	0208-0411
129	SEAL; DOOR,SUB UPR CAB-HIGH ROOF<S2F>	8-97852-146-3	01	1	0412-
129	SEAL; DOOR,SUB UPR	8-97852-146-3	01	1	0412-
221	BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK BEIGE	8-97867-821-1	01	1	9810-9905
221	BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97867-822-1	01	1	9906-0112
221	BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97995-853-0	01	1	0201-0207
221	BAR ASM; DOOR GLASS GUARD CAB-HIGH ROOF<S2F> DARK GRAY	8-97995-853-0	01	1	0208-0411
221	BAR ASM; DOOR GLASS GUARD CAB-HIGH ROOF<S2F> DARK GRAY	8-97995-853-0	01	1	0412-0511
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97995-853-0	01	1	0412-0511
221	BAR ASM; DOOR GLASS GUARD CAB-HIGH ROOF<S2F> GRAY	8-97582-310-1	01	1	0512-
221	BAR ASM; DOOR GLASS GUARD GRAY	8-97582-310-1	01	1	0512-
221	BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK BEIGE	8-97867-819-1	01	1	9810-9905
221	BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97867-820-1	01	1	9906-0112
221	BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97995-850-0	01	1	0201-0207
221	BAR ASM; DOOR GLASS GUARD CAB-HIGH ROOF<S2F> DARK GRAY	8-97995-850-0	01	1	0208-0411
221	BAR ASM; DOOR GLASS GUARD CAB-HIGH ROOF<S2F> DARK GRAY	8-97995-850-0	01	1	0412-0511
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97995-850-0	01	1	0412-0511
221	BAR ASM; DOOR GLASS GUARD CAB-HIGH ROOF<S2F> GRAY	8-97582-309-1	01	1	0512-
221	BAR ASM; DOOR GLASS GUARD GRAY	8-97582-309-1	01	1	0512-
222	CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (A) FRONT DARK BEIGE	8-97867-823-0	02	1	9810-9905
222	CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (A) FRONT DARK GRAY	8-97867-824-0	02	1	9906-0112
222	CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (A) FRONT DARK GRAY	8-97995-856-0	02	1	0201-0207
222	CAP; GUARD BAR CAB-HIGH ROOF<S2F> (A) FRONT DARK GRAY	8-97995-856-0	02	1	0208-0411
222	CAP; GUARD BAR CAB-HIGH ROOF<S2F> (A) FRONT DARK GRAY	8-97995-856-0	02	1	0412-0511
222	CAP; GUARD BAR (A) FRONT DARK GRAY	8-97995-856-0	02	1	0412-0511
222	CAP; GUARD BAR CAB-HIGH ROOF<S2F> (A) FRONT GRAY	8-97582-312-0	02	1	0512-
222	CAP; GUARD BAR (A) FRONT GRAY	8-97582-312-0	02	1	0512-
222	CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (B) REAR DARK BEIGE	8-97867-825-0	02	1	9810-9905
222	CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (B) REAR DARK GRAY	8-97867-826-0	02	1	9906-0112
222	CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (B) REAR DARK GRAY	8-97995-859-0	02	1	0201-0207
222	CAP; GUARD BAR CAB-HIGH ROOF<S2F> (B) REAR DARK GRAY	8-97995-859-0	02	1	0208-0411
222	CAP; GUARD BAR CAB-HIGH ROOF<S2F> (B) REAR DARK GRAY	8-97995-859-0	02	1	0412-0511
222	CAP; GUARD BAR (B) REAR DARK GRAY	8-97995-859-0	02	1	0412-0511
222	CAP; GUARD BAR CAB-HIGH ROOF<S2F> (B) REAR GRAY	8-97582-313-0	02	1	0512-
222	CAP; GUARD BAR (B) REAR GRAY	8-97582-313-0	02	1	0512-
223	SCREW; GUARD BAR EXC. CAB-LOW ROOF<6XQ> M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9810-0112
223	SCREW; GUARD BAR EXC. CAB-LOW ROOF<6XQ> M6X24 W/LK&PL WASHER TAI	8-94279-404-0	04	1	0201-0207
223	SCREW; GUARD BAR CAB-HIGH ROOF<S2F> M6X24 W/LK&PL WASHER TAI	8-94279-404-0	04	1	0208-0411
223	SCREW; GUARD BAR CAB-HIGH ROOF<S2F> M6X24 W/LK&PL WASHER TAI	8-94279-404-0	04	1	0412-
223	SCREW; GUARD BAR M6X24 W/LK&PL WASHER TAI	8-94279-404-0	04	1	0412-
244	STOPPER; DOOR	8-97857-394-0	02	1	9701-9706
244	STOPPER; DOOR	8-97890-484-0	02	1	9707-0411
244	STOPPER; DOOR	8-97890-484-0	02	1	0412-

220 1 192 7 6 219 192 34 192 72 72 207 192 31 207 188 12 204 17 207 33 215 24 24 21 74 19 43 187 6 30 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR TAI	8-97840-059-0	01	1	9701-9809
1	GLASS; FRT DOOR CAB-LOW ROOF<6XQ> TAI	8-97840-059-0	01	1	9810-
1	GLASS; FRT DOOR TAI	8-97840-058-0	01	1	9701-9809
1	GLASS; FRT DOOR CAB-LOW ROOF<6XQ> TAI	8-97840-058-0	01	1	9810-
1	GLASS; FRT DOOR EXC. CAB-LOW ROOF<6XQ> ASAHI TAI	8-97867-418-0	01	1	9810-9905
1	GLASS; FRT DOOR EXC. CAB-LOW ROOF<6XQ> TAI	8-97840-319-0	01	1	9906-0207
1	GLASS; FRT DOOR CAB-HIGH ROOF<S2F> TAI	8-97840-319-0	01	1	0208-0411
1	GLASS; FRT DOOR CAB-HIGH ROOF<S2F> TAI	8-97840-319-0	01	1	0412-
1	GLASS; FRT DOOR TAI	8-97840-319-0	01	1	0412-
1	GLASS; FRT DOOR EXC. CAB-LOW ROOF<6XQ> ASAHI TAI	8-97867-417-0	01	1	9810-9905
1	GLASS; FRT DOOR EXC. CAB-LOW ROOF<6XQ> TAI	8-97840-318-0	01	1	9906-0207
1	GLASS; FRT DOOR CAB-HIGH ROOF<S2F> TAI	8-97840-318-0	01	1	0208-0411
1	GLASS; FRT DOOR CAB-HIGH ROOF<S2F> TAI	8-97840-318-0	01	1	0412-
1	GLASS; FRT DOOR TAI	8-97840-318-0	01	1	0412-
6	CHANNEL; DOOR GLASS W/ROLLER	8-97852-367-0	02	1	9701-0003
6	CHANNEL; DOOR GLASS W/ROLLER	8-97898-424-0	02	1	0004-0207
6	CHANNEL; DOOR GLASS W/ROLLER	8-97898-424-1	02	1	0208-0411
6	CHANNEL; DOOR GLASS W/ROLLER	8-97898-424-1	02	1	0412-
7	GLASS RUN; FRT DOOR	8-97852-114-4	01	1	9701-9809
7	GLASS RUN; FRT DOOR CAB-LOW ROOF<6XQ>	8-97852-114-4	01	1	9810-
7	GLASS RUN; FRT DOOR	8-97852-113-4	01	1	9701-9809
7	GLASS RUN; FRT DOOR CAB-LOW ROOF<6XQ>	8-97852-113-4	01	1	9810-
7	GLASS RUN; FRT DOOR EXC. CAB-LOW ROOF<6XQ>	8-97852-143-4	01	1	9810-0207
7	GLASS RUN; FRT DOOR CAB-HIGH ROOF<S2F>	8-97852-143-4	01	1	0208-0411
7	GLASS RUN; FRT DOOR CAB-HIGH ROOF<S2F>	8-97852-143-4	01	1	0412-
7	GLASS RUN; FRT DOOR	8-97852-143-4	01	1	0412-
7	GLASS RUN; FRT DOOR EXC. CAB-LOW ROOF<6XQ>	8-97852-142-4	01	1	9810-0207
7	GLASS RUN; FRT DOOR CAB-HIGH ROOF<S2F>	8-97852-142-4	01	1	0208-0411
7	GLASS RUN; FRT DOOR CAB-HIGH ROOF<S2F>	8-97852-142-4	01	1	0412-
7	GLASS RUN; FRT DOOR	8-97852-142-4	01	1	0412-
12	CHANNEL; GLASS RUN,FRT	8-97852-112-5	01	1	9701-0411
12	CHANNEL; GLASS RUN,FRT	8-97852-112-5	01	1	0412-
12	CHANNEL; GLASS RUN,FRT	8-97852-111-5	01	1	9701-0411
12	CHANNEL; GLASS RUN,FRT	8-97852-111-5	01	1	0412-
17	SCREW; RR CHANNEL M6X16 W/LK&PL WASHER TAI	8-94279-402-0	04	1	9701-0305
17	SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	8-97582-826-0	04	1	0306-0411
17	SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	8-97582-826-0	04	1	0412-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A32>	8-97852-116-7	01	1	9701-0411
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A32>	8-97852-116-7	01	1	0412-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A32>	8-97852-115-7	01	1	9701-0411
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A32>	8-97852-115-7	01	1	0412-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97868-064-0	01	1	9701-0002
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97898-478-0	01	1	0003-0411
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97898-478-0	01	1	0412-0610
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97898-480-0	01	1	0611-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97868-063-0	01	1	9701-0002
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97898-477-0	01	1	0003-0411
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97898-477-0	01	1	0412-0610
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A32>	8-97898-479-0	01	1	0611-
24	SCREW; WINDOW REG M6X8 W/LK&PL WASHER	8-94279-401-0	10	1	9701-0411
24	SCREW; WINDOW REG M6X8 W/LK&PL WASHER	8-94279-401-0	10	1	0412-
31	STOPPER; RUBBER,DOOR INNER	8-97852-022-1	02	1	9701-0411
31	STOPPER; RUBBER,DOOR INNER	8-97852-022-1	02	1	0412-
33	SCREW; REG MOTOR POWER WINDOW<A32>	8-98097-389-0	06	1	0611-
34	STOPPER; WINDOW REG TAI	8-97852-012-0	02	1	9701-0411
34	STOPPER; WINDOW REG TAI	8-97852-012-0	02	1	0412-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A32> DARK BEIGE	8-97852-452-0	02	1	9701-9905
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A32> DARK GRAY	8-97098-453-0	02	1	9906-0411
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A32> DARK GRAY	8-97098-453-0	02	1	0412-0511
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A32> GRAY	8-97582-306-0	02	1	0512-0709
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A32> GRAY	8-98090-302-0	02	1	0710-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A32>	8-94220-591-0	02	1	9701-0411
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A32>	8-94220-591-0	02	1	0412-
72	SEAL; WAIST,FRT DOOR (A) INNER	8-97852-118-5	01	1	9701-0411
72	SEAL; WAIST,FRT DOOR (A) INNER	8-97852-118-6	01	1	0412-
72	SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-293-5	01	1	9701-0411
72	SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-293-6	01	1	0412-
72	SEAL; WAIST,FRT DOOR (A) INNER	8-97852-117-5	01	1	9701-0411
72	SEAL; WAIST,FRT DOOR (A) INNER	8-97852-117-6	01	1	0412-
72	SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-292-5	01	1	9701-0411
72	SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-292-6	01	1	0412-
74	GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32>, ANTENNA<U73>,RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1	8-94279-053-0	02	1	9701-9905
74	GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A32>, ANTENNA<U73>,RADIO AM/FM 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-94279-736-0	02	1	9701-9905
187	REGULATOR ASM; DOOR POWER WINDOW<A32>	8-97868-114-2	01	1	9701-0411
187	REGULATOR ASM; DOOR POWER WINDOW<A32>	8-97868-114-2	01	1	0412-
187	REGULATOR ASM; DOOR POWER WINDOW<A32>	8-97868-113-2	01	1	9701-0411
187	REGULATOR ASM; DOOR POWER WINDOW<A32>	8-97868-113-2	01	1	0412-
188	PROTECTOR; DOOR SEAL	8-97994-698-0	02	1	0112-0207
192	HOLDER; DOOR GLASS (A) TAI	8-97852-076-1	04	1	9701-0411
192	HOLDER; DOOR GLASS (A) TAI	8-97852-076-1	04	1	0412-
192	HOLDER; DOOR GLASS (B) TAI	8-97852-077-1	04	1	9701-0411
192	HOLDER; DOOR GLASS (B) TAI	8-97852-077-1	04	1	0412-
204	RUBBER; SHIELD,FRT DOOR	8-97852-093-2	01	1	9701-0411
204	RUBBER; SHIELD,FRT DOOR	8-97852-093-2	01	1	0412-
204	RUBBER; SHIELD,FRT DOOR	8-97852-092-2	01	1	9701-0411
204	RUBBER; SHIELD,FRT DOOR	8-97852-092-2	01	1	0412-
207	SCREW; DOOR GLASS M6X16 TAPPING W/PL WASHER	1-09981-452-0	08	1	9701-9706
207	SCREW; DOOR GLASS REAR M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9707-0411
207	SCREW; DOOR GLASS REAR M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	0412-
207	SCREW; DOOR GLASS FRONT M6X14.5 W/PL WASHER TAPPING	8-94279-014-0	04	1	9707-0411
207	SCREW; DOOR GLASS FRONT M6X14.5 W/PL WASHER TAPPING	8-94279-014-0	04	1	0412-
215	SPACER; WINDOW REG POWER WINDOW<A32>	8-97388-942-0	02	1	0611-
219	GROMMET; SCREW,CHANNEL,REG	8-94326-756-0	04	1	9701-0411
219	GROMMET; SCREW,CHANNEL,REG	8-94326-756-0	04	1	0412-
220	SEAL; LINK ROD	8-97852-321-0	02	1	9701-0411
220	SEAL; LINK ROD	8-97852-321-0	02	1	0412-
