6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#139111) — 94 parça

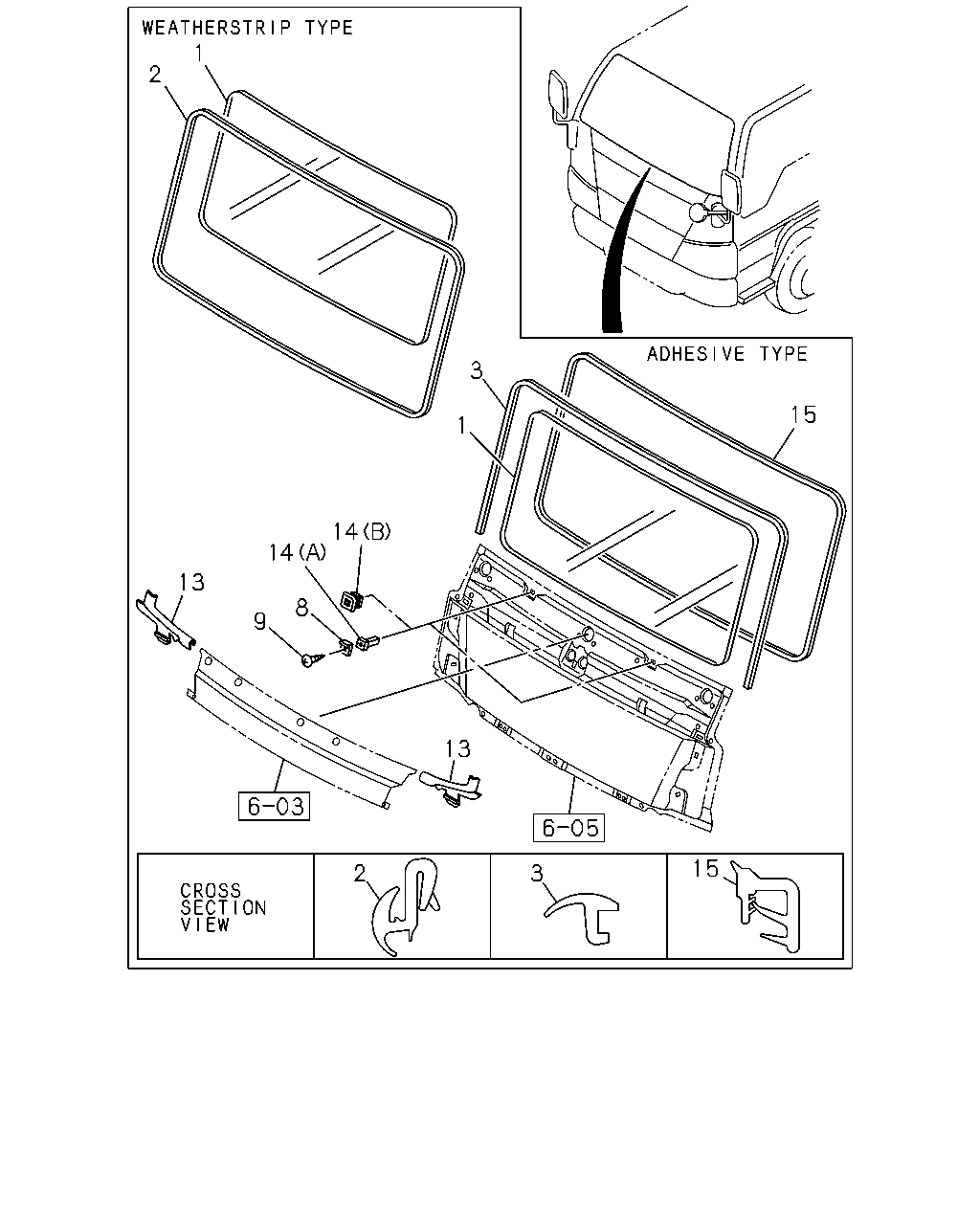

1 2 3 15 1 2 13 3 14 13 15 6 14 8 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; WINDSHIELD TAI	8-97840-056-0	01	1	9701-9809
1	GLASS; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97840-056-0	01	1	9810-0102
1	GLASS; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97840-375-0	01	1	0103-
1	GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ> TAI	8-97869-123-0	01	1	9810-9905
1	GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ> TAI	8-97840-322-0	01	1	9906-0207
1	GLASS; WINDSHIELD CAB-HIGH ROOF<S2F> TAI	8-97840-322-0	01	1	0208-0411
1	GLASS; WINDSHIELD CAB-HIGH ROOF<S2F> TAI	8-97840-322-0	01	1	0412-
1	GLASS; WINDSHIELD TAI	8-97840-322-0	01	1	0412-
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-3	01	1	9701-0411
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0412-
3	MOLDING; WINDSHIELD	8-97857-906-1	01	1	9701-9802
3	MOLDING; WINDSHIELD	8-97890-213-1	01	1	9803-9809
3	MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97890-213-2	01	1	9810-0511
3	MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-623-3	01	1	0512-
3	MOLDING; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-1	01	1	9810-0207
3	MOLDING; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0208-0411
3	MOLDING; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0412-0511
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0412-0511
3	MOLDING; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0512-
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0512-
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9701-0305
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-0411
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0412-
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 TAI	8-94279-325-0	02	1	9701-0411
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 TAI	8-94279-325-0	02	1	0412-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9701-0411
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0412-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0512-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9701-0411
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0412-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0512-
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	9701-0411
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	0412-
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL TAI	8-94279-043-0	02	1	0306-0411
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL TAI	8-94279-043-0	02	1	0412-
15	FINISHER; WINDSHIELD DARK BEIGE TAI	8-97840-055-0	01	1	9701-9809
15	FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> DARK BEIGE TAI	8-97840-055-0	01	1	9810-9905
15	FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97840-283-0	01	1	9906-0511
15	FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97967-474-0	01	1	0512-
15	FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE	8-97853-804-4	01	1	9810-9905
15	FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-4	01	1	9906-9910
15	FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	9911-0207
15	FINISHER; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	0208-0411
15	FINISHER; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	0412-0511
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	0412-0511
15	FINISHER; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97967-476-0	01	1	0512-
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97967-476-0	01	1	0512-

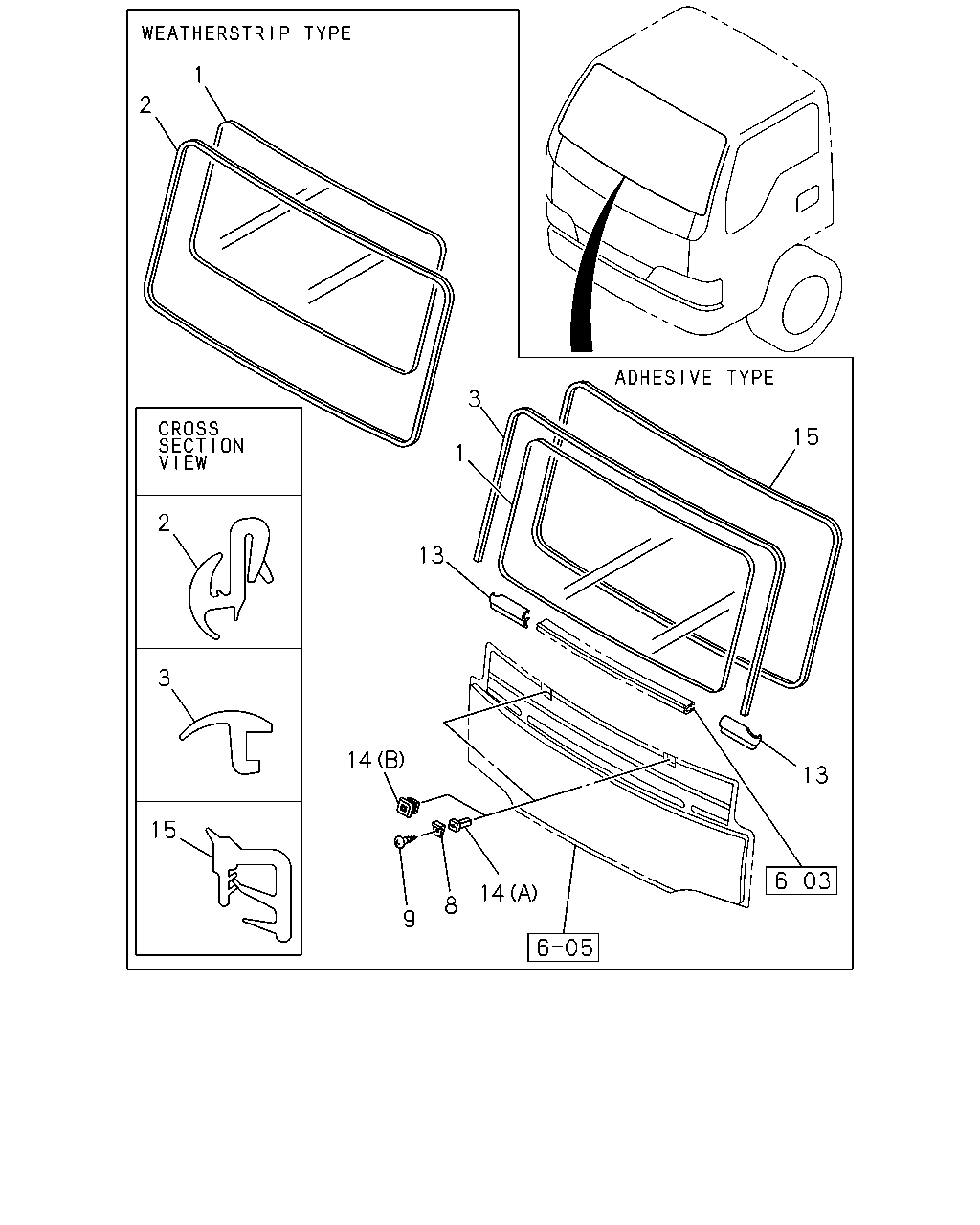

1 2 3 15 1 14 14 13 8 9 13 6 6 15 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; WINDSHIELD TAI	8-97840-056-0	01	1	9701-9809
1	GLASS; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97840-056-0	01	1	9810-0102
1	GLASS; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97840-375-0	01	1	0103-
1	GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ> TAI	8-97869-123-0	01	1	9810-9905
1	GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ> TAI	8-97840-322-0	01	1	9906-0207
1	GLASS; WINDSHIELD CAB-HIGH ROOF<S2F> TAI	8-97840-322-0	01	1	0208-0411
1	GLASS; WINDSHIELD CAB-HIGH ROOF<S2F> TAI	8-97840-322-0	01	1	0412-
1	GLASS; WINDSHIELD TAI	8-97840-322-0	01	1	0412-
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-3	01	1	9701-0411
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0412-
3	MOLDING; WINDSHIELD	8-97857-906-1	01	1	9701-9802
3	MOLDING; WINDSHIELD	8-97890-213-1	01	1	9803-9809
3	MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97890-213-2	01	1	9810-0511
3	MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-623-3	01	1	0512-
3	MOLDING; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-1	01	1	9810-0207
3	MOLDING; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0208-0411
3	MOLDING; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0412-0511
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0412-0511
3	MOLDING; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0512-
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0512-
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9701-0305
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-0411
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0412-
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 TAI	8-94279-325-0	02	1	9701-0411
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 TAI	8-94279-325-0	02	1	0412-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9701-0411
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0412-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0512-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9701-0411
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0412-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0512-
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	9701-0411
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	0412-
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL TAI	8-94279-043-0	02	1	0306-0411
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL TAI	8-94279-043-0	02	1	0412-
15	FINISHER; WINDSHIELD DARK BEIGE TAI	8-97840-055-0	01	1	9701-9809
15	FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> DARK BEIGE TAI	8-97840-055-0	01	1	9810-9905
15	FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97840-283-0	01	1	9906-0511
15	FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> TAI	8-97967-474-0	01	1	0512-
15	FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE	8-97853-804-4	01	1	9810-9905
15	FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-4	01	1	9906-9910
15	FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	9911-0207
15	FINISHER; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	0208-0411
15	FINISHER; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	0412-0511
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97840-362-0	01	1	0412-0511
15	FINISHER; WINDSHIELD CAB-HIGH ROOF<S2F> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97967-476-0	01	1	0512-
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> TAI	8-97967-476-0	01	1	0512-
