◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#139110) — 105 parça

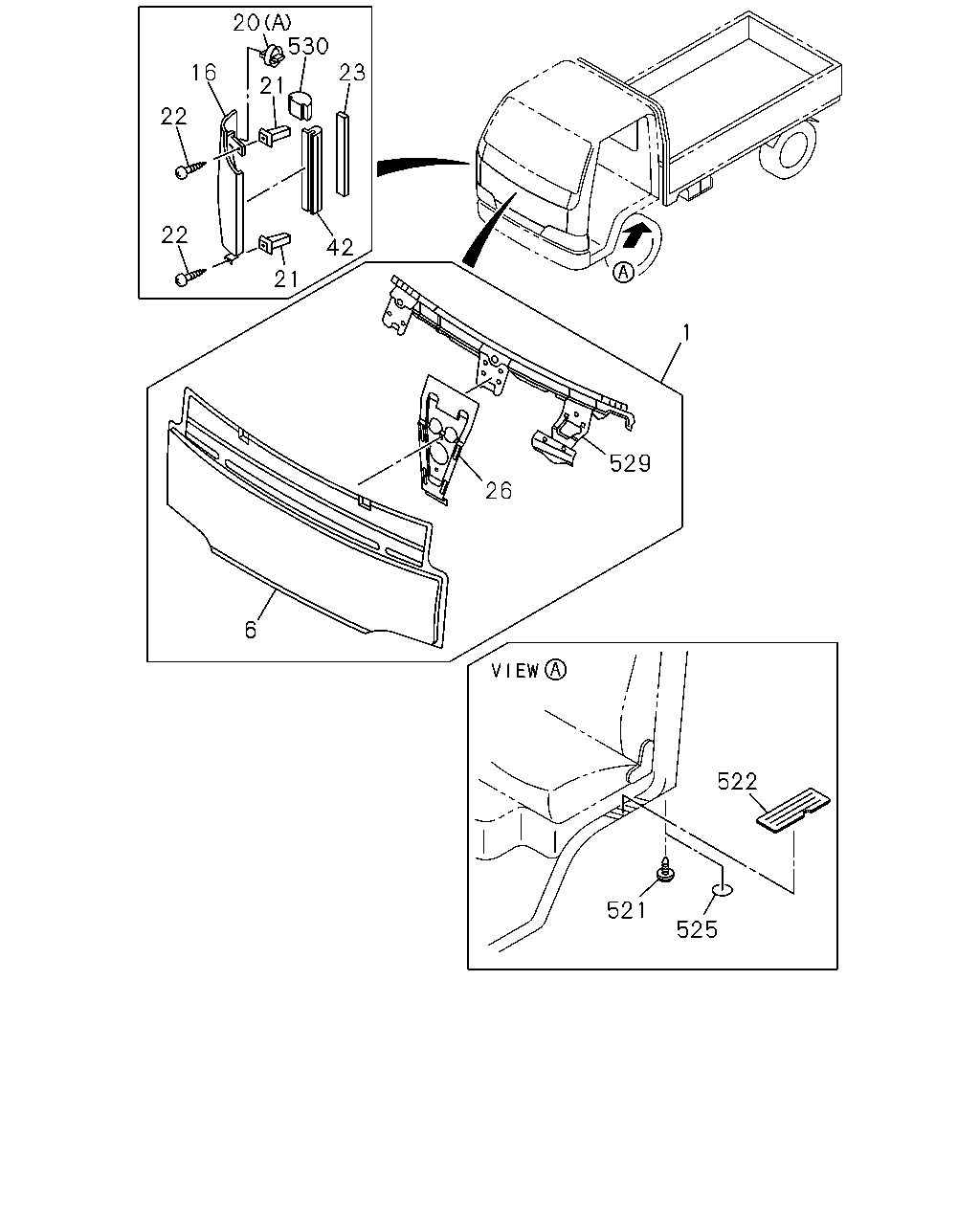

çizim 420508
20 530 23 16 21 22 22 42 21 1 529 26 6 522 521 525
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
TAI 		8-97840-001-0 01 1 9701-9905
1 PANEL ASM; FRT
TAI 		8-97840-268-1 01 1 9906-0411
1 PANEL ASM; FRT
TAI 		8-97840-268-1 01 1 0412-0511
1 PANEL ASM; FRT
TAI 		8-97582-868-0 01 1 0512-
6 PANEL; FRONT
TAI 		8-97840-011-0 01 1 9701-9905
6 PANEL; FRONT
TAI 		8-97840-269-0 01 1 9906-0411
6 PANEL; FRONT
TAI 		8-97840-269-0 01 1 0412-0511
6 PANEL; FRONT 8-97582-871-2 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0611-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0611-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0611-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0611-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9701-9810
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-685-0 01 1 9811-9902
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 9903-0411
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0412-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE TAI 		8-97582-169-3 01 1 0512-0610
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9701-9810
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-684-0 01 1 9811-9902
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 9903-0411
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0412-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE TAI 		8-97582-153-3 01 1 0512-0610
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE TAI 		8-97582-174-3 01 1 0512-0610
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE TAI 		8-97582-158-3 01 1 0512-0610
20 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 9701-0411
20 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0412-0511
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0512-
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0512-
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0512-
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 06 1 9701-0411
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 06 1 0412-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING TAI 		8-94279-123-0 06 1 9701-0411
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING TAI 		8-94279-123-0 06 1 0412-0511
23 PIECE; DIST,FRT PANEL SIDE 8-97857-444-0 02 1 9701-0410
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0411
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0412-0511
26 PANEL; REINF,FRT PANEL CENTER,INNER
TAI 		8-97840-009-0 01 1 9701-0411
26 PANEL; REINF,FRT PANEL CENTER,INNER
TAI 		8-97840-009-0 01 1 0412-0511
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-038-1 01 1 0512-
42 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0611-
42 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0611-
42 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 9701-0411
42 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0412-0511
521 PLUG; HOLE,FENDER
MANUAL TILT CAB<RWZ> OD=15 L=14.5 		1-76378-157-0 03 1 9701-9905
521 PLUG; HOLE,FENDER
OD=15 L=14.5 		1-76378-157-0 03 1 9906-0304
521 PLUG; HOLE,FENDER
EXC. MANUAL TILT CAB<RWZ> OD=15 L=14.5 		1-76378-157-0 06 1 9701-9905
522 PROTECTOR; SILL SIDE
DARK BEIGE 		8-97856-689-3 01 1 9701-9905
522 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 9906-0411
522 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 0412-0511
525 SEAL; FENDER
OD=25 BLACK TAI 		1-76798-019-0 03 1 0305-0411
525 SEAL; FENDER
OD=25 BLACK TAI 		1-76798-019-0 03 1 0412-
529 REINFORCEMENT; PANEL
TAI 		8-97851-373-1 01 1 9701-9809
529 REINFORCEMENT; PANEL
TAI 		8-97840-022-0 01 1 9810-9812
529 REINFORCEMENT; PANEL
TAI 		8-97851-373-2 01 1 9901-0411
529 REINFORCEMENT; PANEL
TAI 		8-97851-373-2 01 1 0412-
530 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 9701-0411
530 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 0412-0511

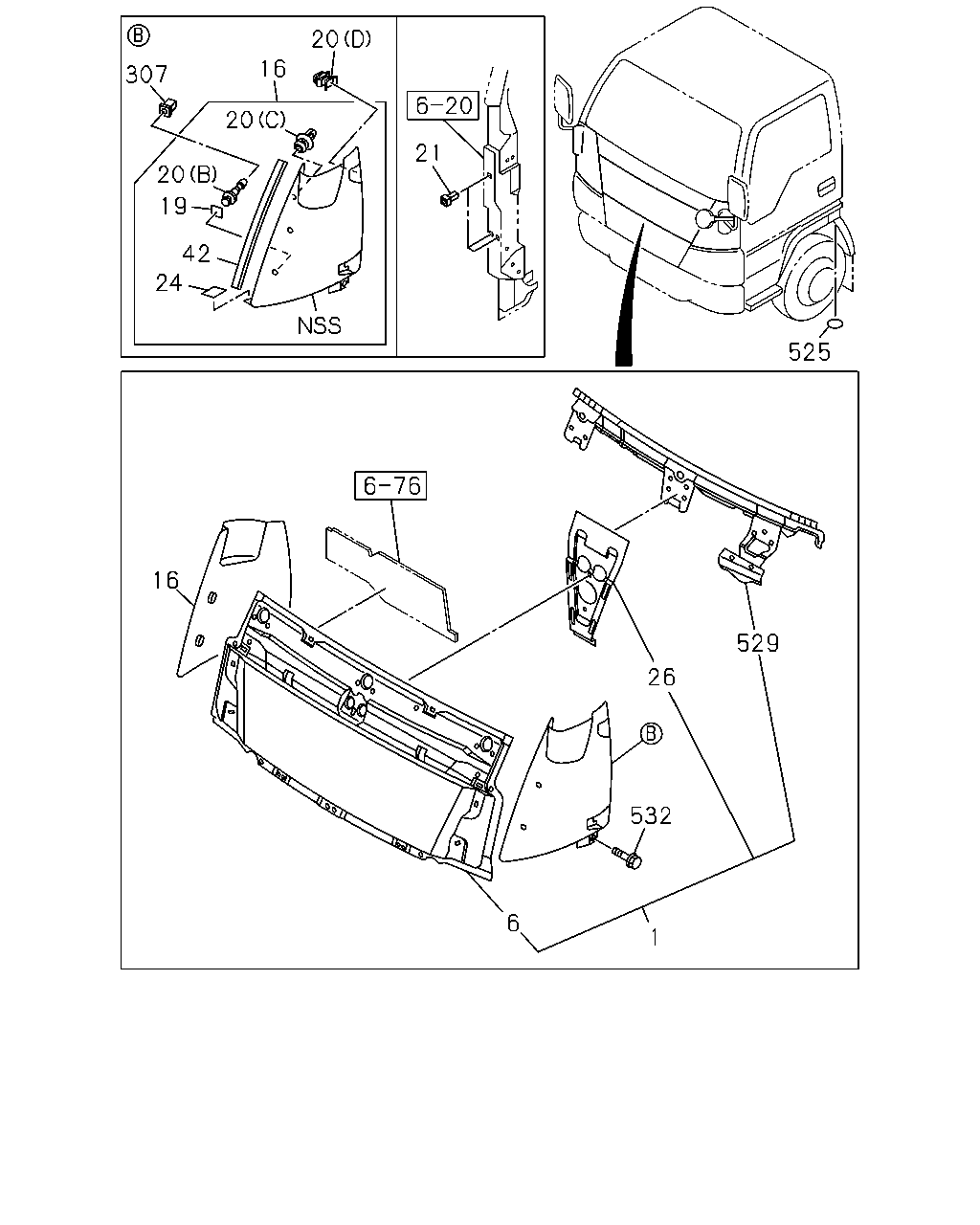

çizim 420513
20 16 307 6 20 20 21 20 19 42 24 525 6 76 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
TAI 		8-97840-001-0 01 1 9701-9905
1 PANEL ASM; FRT
TAI 		8-97840-268-1 01 1 9906-0411
1 PANEL ASM; FRT
TAI 		8-97840-268-1 01 1 0412-0511
1 PANEL ASM; FRT
TAI 		8-97582-868-0 01 1 0512-
6 PANEL; FRONT
TAI 		8-97840-011-0 01 1 9701-9905
6 PANEL; FRONT
TAI 		8-97840-269-0 01 1 9906-0411
6 PANEL; FRONT
TAI 		8-97840-269-0 01 1 0412-0511
6 PANEL; FRONT 8-97582-871-2 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0611-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0611-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0611-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0611-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9701-9810
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-685-0 01 1 9811-9902
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 9903-0411
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0412-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE TAI 		8-97582-169-3 01 1 0512-0610
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9701-9810
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-684-0 01 1 9811-9902
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 9903-0411
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0412-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE TAI 		8-97582-153-3 01 1 0512-0610
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE TAI 		8-97582-174-3 01 1 0512-0610
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE TAI 		8-97582-158-3 01 1 0512-0610
19 SEAL; FRT SIDE PANEL
TAI 		8-97581-676-0 04 1 0512-
20 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 9701-0411
20 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0412-0511
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0512-
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0512-
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0512-
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 06 1 9701-0411
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 06 1 0412-
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0512-
26 PANEL; REINF,FRT PANEL CENTER,INNER
TAI 		8-97840-009-0 01 1 9701-0411
26 PANEL; REINF,FRT PANEL CENTER,INNER
TAI 		8-97840-009-0 01 1 0412-0511
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-038-1 01 1 0512-
42 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0611-
42 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0611-
42 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 9701-0411
42 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0412-0511
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0512-
525 SEAL; FENDER
OD=25 BLACK TAI 		1-76798-019-0 03 1 0305-0411
525 SEAL; FENDER
OD=25 BLACK TAI 		1-76798-019-0 03 1 0412-
529 REINFORCEMENT; PANEL
TAI 		8-97851-373-1 01 1 9701-9809
529 REINFORCEMENT; PANEL
TAI 		8-97840-022-0 01 1 9810-9812
529 REINFORCEMENT; PANEL
TAI 		8-97851-373-2 01 1 9901-0411
529 REINFORCEMENT; PANEL
TAI 		8-97851-373-2 01 1 0412-
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0512-
