◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#139109) — 143 parça

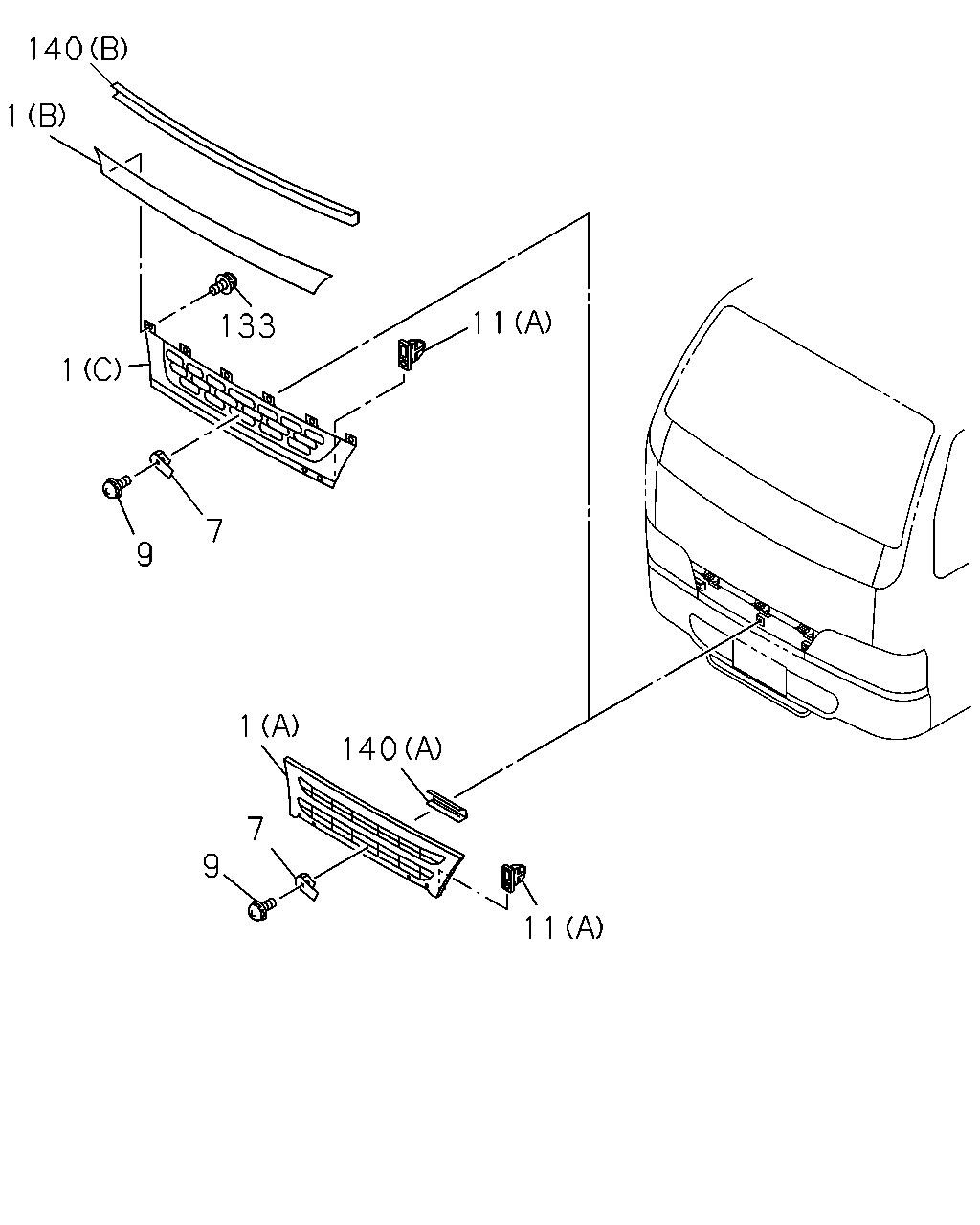

çizim 420612
140 1 11 133 1 7 9 1 140 7 9 11
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR ADRIATIC BLUE(730) (A) BLUE TAI 		8-97840-157-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) (A) WHITE TAI 		8-97840-156-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) (A) WHITE TAI 		8-97840-271-0 01 1 9906-0312
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE TAI 		8-97840-271-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE TAI 		8-97840-271-0 01 1 0412-0511
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0512-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97995-758-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97995-758-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0512-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-026-0 01 1 0401-0411
1 GRILLE; RAD
EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-026-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) (A) RED TAI 		8-97840-158-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR HIGHWAY YELLOW(916) (A) DARK YELLOW TAI 		8-97840-159-0 01 1 9705-9905
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) (A) BLUE TAI 		8-97840-031-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) (A) BLUE TAI 		8-97840-270-0 01 1 9906-0312
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) BLUE TAI 		8-97840-270-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) BLUE TAI 		8-97840-270-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (C) BLUE 		8-97995-759-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (C) BLUE 		8-97995-759-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0512-
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 9701-0411
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 0412-0505
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506-
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9701-0411
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0412-
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9701-0411
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0412-
11 CLIP; RAD GRILLE
(A) TAI 		8-97840-112-0 02 1 9701-9905
11 CLIP; RAD GRILLE
(A) WHITE TAI 		8-97892-729-0 02 1 9906-0411
11 CLIP; RAD GRILLE
(A) WHITE TAI 		8-97892-729-0 02 1 0412-0511
11 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0512-
133 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> M5X12 		8-97995-036-0 06 1 0401-0411
133 SCREW; COVER
EXTERIOR ORNAMENTATION DELUXE<B57> M5X12 		8-97995-036-0 06 1 0412-0511
133 SCREW; COVER
M5X12 W/PL WASHER 		8-94385-565-0 06 1 0512-0610
140 SEAL; RAD GRILLE
(A) TAI 		8-97840-125-0 01 1 9701-0312
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) TAI 		8-97840-125-0 01 1 0401-0411
140 SEAL; RAD GRILLE
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) TAI 		8-97840-125-0 01 1 0412-0511
140 SEAL; RAD GRILLE
(C) 		8-97583-411-1 02 1 0512-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-037-0 01 1 0401-0411
140 SEAL; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-037-0 01 1 0412-0511
140 SEAL; RAD GRILLE
(D) TAI 		8-97581-664-0 01 1 0512-

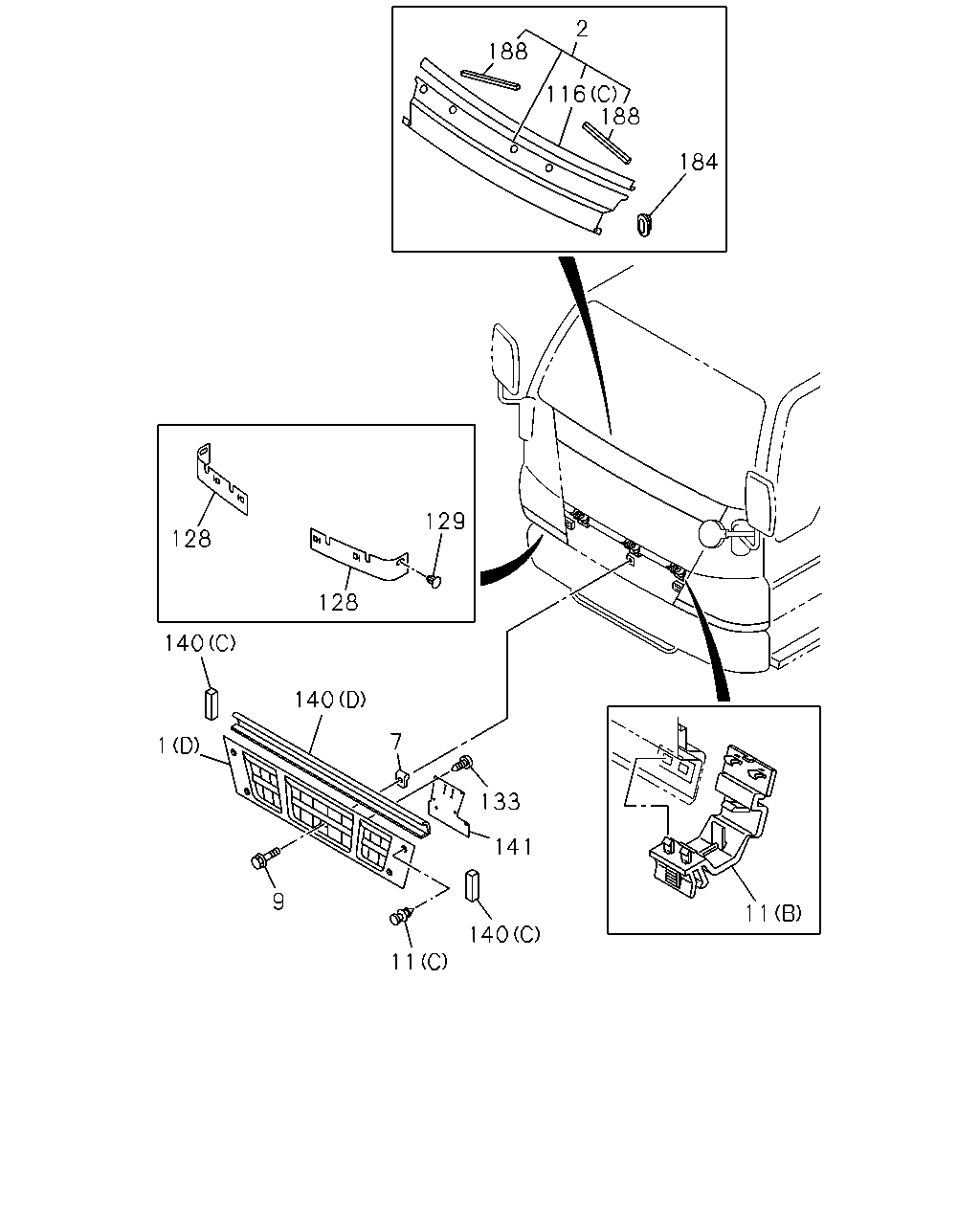

çizim 420613
2 188 116 188 184 129 128 128 140 140 7 1 133 141 9 11 140 11
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR ADRIATIC BLUE(730) (A) BLUE TAI 		8-97840-157-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) (A) WHITE TAI 		8-97840-156-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) (A) WHITE TAI 		8-97840-271-0 01 1 9906-0312
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE TAI 		8-97840-271-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE TAI 		8-97840-271-0 01 1 0412-0511
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0512-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97995-758-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97995-758-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0512-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-026-0 01 1 0401-0411
1 GRILLE; RAD
EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-026-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) (A) RED TAI 		8-97840-158-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR HIGHWAY YELLOW(916) (A) DARK YELLOW TAI 		8-97840-159-0 01 1 9705-9905
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) (A) BLUE TAI 		8-97840-031-0 01 1 9701-9905
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) (A) BLUE TAI 		8-97840-270-0 01 1 9906-0312
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) BLUE TAI 		8-97840-270-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) BLUE TAI 		8-97840-270-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (C) BLUE 		8-97995-759-0 01 1 0401-0411
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (C) BLUE 		8-97995-759-0 01 1 0412-0511
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0512-
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-819-6 01 1 9701-9905
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-581-3 01 1 9906-0411
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-581-3 01 1 0412-0511
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97585-546-3 01 1 0512-
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-253-6 01 1 9701-9905
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-580-3 01 1 9906-0411
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-580-3 01 1 0412-0511
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97582-873-5 01 1 0512-
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 9701-0411
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 0412-0505
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506-
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9701-0411
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0412-
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9701-0411
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0412-
11 CLIP; RAD GRILLE
(A) TAI 		8-97840-112-0 02 1 9701-9905
11 CLIP; RAD GRILLE
(A) WHITE TAI 		8-97892-729-0 02 1 9906-0411
11 CLIP; RAD GRILLE
(A) WHITE TAI 		8-97892-729-0 02 1 0412-0511
11 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0512-
116 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9701-0411
116 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0412-0511
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 9701-0411
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0412-0511
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-655-1 01 1 0512-
128 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 0512-0610
128 COVER; HEADLAMP GRILLE 8-98015-934-0 01 1 0611-
128 COVER; HEADLAMP GRILLE 8-98056-385-0 01 1 0611-
129 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0512-
133 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> M5X12 		8-97995-036-0 06 1 0401-0411
133 SCREW; COVER
EXTERIOR ORNAMENTATION DELUXE<B57> M5X12 		8-97995-036-0 06 1 0412-0511
133 SCREW; COVER
M5X12 W/PL WASHER 		8-94385-565-0 06 1 0512-0610
140 SEAL; RAD GRILLE
(A) TAI 		8-97840-125-0 01 1 9701-0312
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) TAI 		8-97840-125-0 01 1 0401-0411
140 SEAL; RAD GRILLE
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) TAI 		8-97840-125-0 01 1 0412-0511
140 SEAL; RAD GRILLE
(C) 		8-97583-411-1 02 1 0512-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-037-0 01 1 0401-0411
140 SEAL; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> (B) 		8-97995-037-0 01 1 0412-0511
140 SEAL; RAD GRILLE
(D) TAI 		8-97581-664-0 01 1 0512-
141 COVER; RAD GRILLE 8-97581-648-1 01 1 0512-0610
184 GROMMET; ORNAMENT 8-97581-668-0 03 1 0512-0602
184 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603-
188 SEAL; ORNAMENT 8-97584-800-0 02 1 0512-

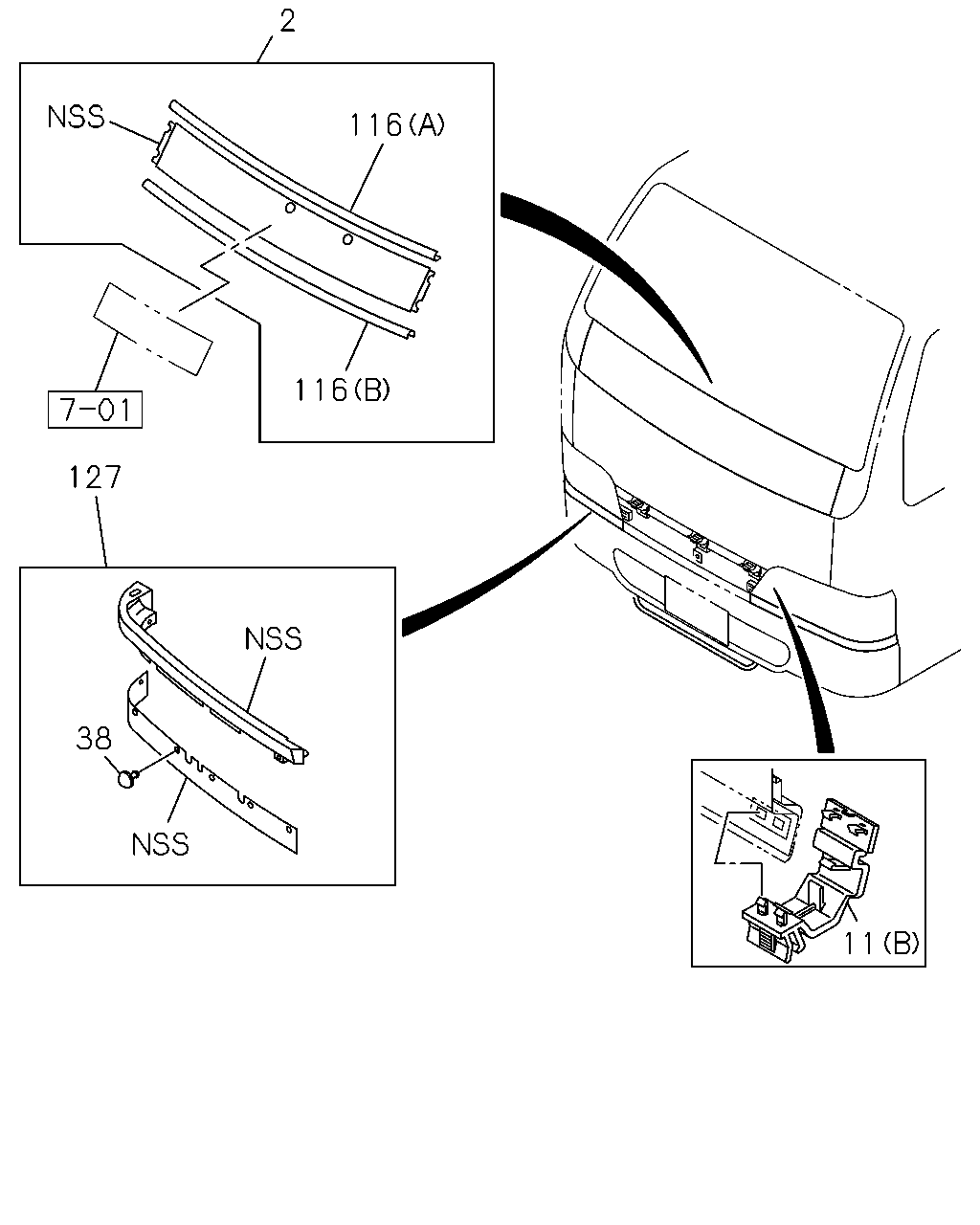

çizim 420736
2 116 116 7 127 38 11
BalonParca AdiParca NoAdetTipApplied Date
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-819-6 01 1 9701-9905
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-581-3 01 1 9906-0411
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-581-3 01 1 0412-0511
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97585-546-3 01 1 0512-
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-253-6 01 1 9701-9905
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-580-3 01 1 9906-0411
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-580-3 01 1 0412-0511
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97582-873-5 01 1 0512-
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 9701-0411
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 0412-0505
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506-
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9701-0411
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0412-
11 CLIP; RAD GRILLE
(A) TAI 		8-97840-112-0 02 1 9701-9905
11 CLIP; RAD GRILLE
(A) WHITE TAI 		8-97892-729-0 02 1 9906-0411
11 CLIP; RAD GRILLE
(A) WHITE TAI 		8-97892-729-0 02 1 0412-0511
11 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0512-
38 CLIP; GRILLE
TAI 		8-97840-094-0 10 1 9701-0411
38 CLIP; GRILLE
TAI 		8-97840-094-0 10 1 0412-0511
116 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9701-0411
116 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0412-0511
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 9701-0411
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0412-0511
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-655-1 01 1 0512-
127 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) TAI 		8-97840-160-0 01 1 9701-9905
127 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) TAI 		8-97840-164-0 01 1 9701-9905
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) TAI 		8-97840-162-0 01 1 9701-0411
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) TAI 		8-97840-162-0 01 1 0412-0511
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) TAI 		8-97840-165-0 01 1 9701-0207
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) TAI 		8-97840-385-0 01 1 0208-0411
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) TAI 		8-97840-385-0 01 1 0412-0511
127 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) TAI 		8-97840-161-0 01 1 9701-9905
127 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) TAI 		8-97840-166-0 01 1 9701-9905
127 GRILLE; HEADLAMP,LWR
BODY COLOR HIGHWAY YELLOW(916) TAI 		8-97840-163-0 01 1 9705-9905
127 GRILLE; HEADLAMP,LWR
BODY COLOR HIGHWAY YELLOW(916) TAI 		8-97840-167-0 01 1 9705-9905
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) TAI 		8-97840-027-0 01 1 9701-0411
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) TAI 		8-97840-027-0 01 1 0412-0511
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) TAI 		8-97840-029-0 01 1 9701-0207
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) TAI 		8-97840-384-0 01 1 0208-0411
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) TAI 		8-97840-384-0 01 1 0412-0511
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
