5-15 — CAB MOUNTING; CAB SIDE (#139105) — 152 parça
çizim 420138
15 12 5 10 38 324 1 5 10 3
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97114-078-2 01 1 9701-9905
1 LEVER; TORSION BAR 8-97114-078-3 01 1 9906-0111
1 LEVER; TORSION BAR 8-97328-485-1 01 1 0112-0411
1 LEVER; TORSION BAR 8-97328-485-1 01 1 0412-
1 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97114-082-0 01 1 9701-9905
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 9701-9905
3 BOLT; LEVER
M12X50 		8-94401-729-1 06 1 9906-0111
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0112-0411
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0412-0611
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97359-033-0 06 1 0612-
3 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 04 1 9701-9905
12 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> TAI 		8-97171-326-0 01 1 9701-9905
12 BAR; TORSION,UPR
TAI 		8-97171-326-0 01 1 9906-0404
12 BAR; TORSION,UPR 8-97261-873-0 01 1 0405-0411
12 BAR; TORSION,UPR 8-97261-873-0 01 1 0412-
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 9701-9905
15 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 9906-0411
15 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 0412-0610
15 RING; SNAP,TORSION BAR 8-94258-173-0 01 1 0611-0611
15 RING; SNAP,TORSION BAR 8-97359-034-0 01 1 0611-
38 NUT; LK
M14 		0-91110-514-0 01 1 0611-
324 BOLT; ADJUST
M14X55 		8-97190-103-1 01 1 0611-0611
324 BOLT; ADJUST
M14X55 		8-98004-319-1 01 1 0611-

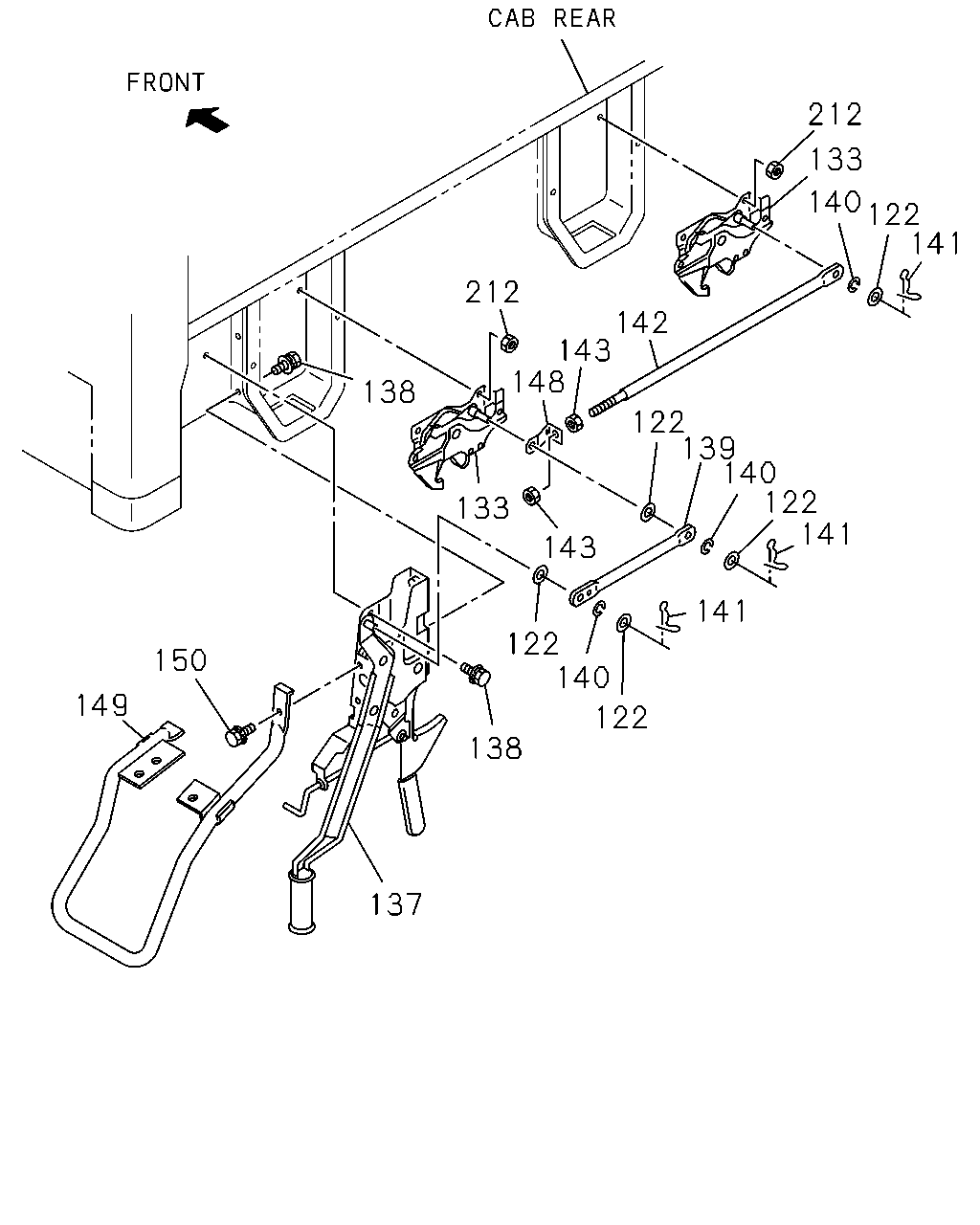

çizim 420570
212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137
BalonParca AdiParca NoAdetTipApplied Date
122 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=12.5 OD=22 		8-94279-627-0 05 1 9701-9905
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 05 1 9906-0411
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 05 1 0412-0707
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		0-91610-512-0 05 1 0708-
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-5 01 1 9701-9905
133 LOCK ASM; CAB 8-97853-056-6 01 1 9906-0411
133 LOCK ASM; CAB 8-97853-056-8 01 1 0412-
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-6 01 1 9701-9905
133 LOCK ASM; CAB 8-97853-055-7 01 1 9906-0411
133 LOCK ASM; CAB 8-97853-055-9 01 1 0412-
137 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97853-051-5 01 1 9701-9905
137 CONTROL UNIT; CAB LOCK 8-97853-051-8 01 1 9906-0411
137 CONTROL UNIT; CAB LOCK 8-97853-051-8 01 1 0412-0610
137 CONTROL UNIT; CAB LOCK 8-98053-744-1 01 1 0611-
138 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 03 1 9701-9905
138 BOLT; CAB LOCK CONT UNIT
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 03 1 9906-0411
138 BOLT; CAB LOCK CONT UNIT
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 03 1 0412-
139 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-0 01 1 9701-9905
139 ROD; CAB LOCK,LEVER TO HOOK 8-97853-053-1 01 1 9906-0302
139 ROD; CAB LOCK,LEVER TO HOOK 8-97997-597-0 01 1 0303-0411
139 ROD; CAB LOCK,LEVER TO HOOK 8-97997-597-0 01 1 0412-
140 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 9701-9905
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-94279-629-0 03 1 9906-0411
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-94279-629-0 03 1 0412-0611
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-98060-839-0 03 1 0612-
141 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> TAI 		1-09987-158-1 03 1 9701-9905
141 PIN; SNAP,CAB LOCK ROD
TAI 		1-09987-158-1 03 1 9906-0411
141 PIN; SNAP,CAB LOCK ROD
TAI 		1-09987-158-1 03 1 0412-
142 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-099-1 01 1 9701-9905
142 ROD; HOOK TO HOOK 8-97856-099-1 01 1 9906-0411
142 ROD; HOOK TO HOOK 8-97856-099-1 01 1 0412-
143 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> M10 		1-09984-142-0 02 1 9701-9905
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		1-09984-142-0 02 1 9906-0411
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		1-09984-142-0 02 1 0412-
148 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 9701-9905
148 JOINT; JAW,HOOK TO HOOK 8-97856-106-0 01 1 9906-0411
148 JOINT; JAW,HOOK TO HOOK 8-97856-106-0 01 1 0412-
149 HANDLE; TILT
MANUAL TILT CAB<RWZ> 		8-97853-054-4 01 1 9701-9905
149 HANDLE; TILT
TAI 		8-97840-305-0 01 1 9906-0411
149 HANDLE; TILT
TAI 		8-97840-305-0 01 1 0412-
150 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28680-825-0 03 1 9701-9905
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28680-825-0 03 1 9906-0411
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28680-825-0 03 1 0412-0512
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28650-825-0 03 1 0601-0610
150 BOLT; TILT HANDLE
M8X20 FLANGE 		0-28650-820-0 03 1 0611-
212 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE TAI 		1-09985-340-0 08 1 9701-9905
212 NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE TAI 		1-09985-340-0 08 1 9906-0411
212 NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE TAI 		1-09985-340-0 08 1 0412-0711
212 NUT; BRKT,CAB LOCK
M8 FLANGE 		0-91180-108-0 08 1 0712-

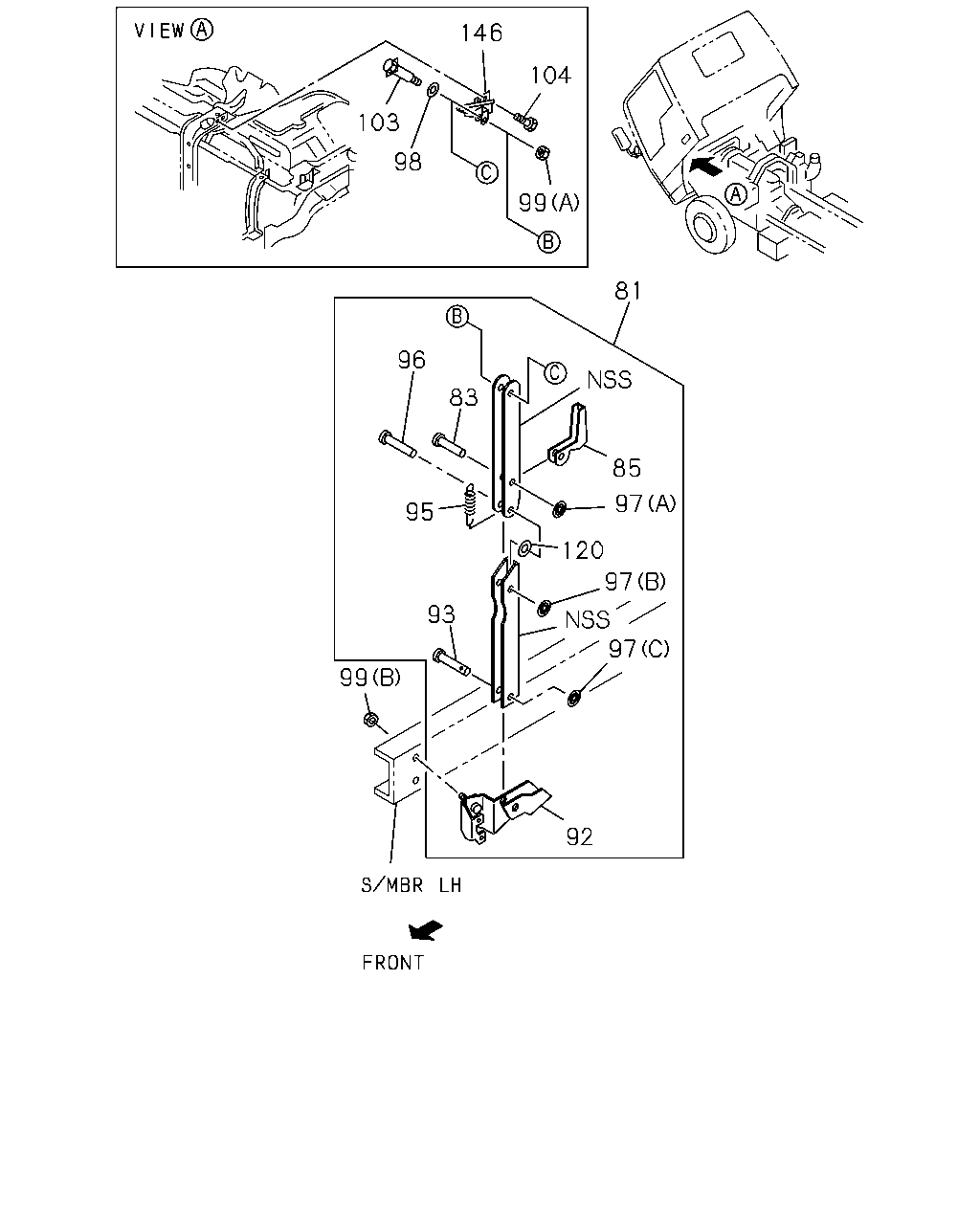

çizim 420571
146 104 103 98 99 81 96 83 85 97 95 120 97 93 97 99 92
BalonParca AdiParca NoAdetTipApplied Date
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> 		8-97120-940-0 01 1 9701-9905
81 STAY ASM; CAB TILT 8-97120-940-0 01 1 9906-0411
81 STAY ASM; CAB TILT 8-97120-940-0 01 1 0412-
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 9701-9905
83 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 9906-0411
83 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 0412-
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 9701-9905
85 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 9906-0411
85 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 0412-
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> 		8-97096-654-0 01 1 9701-9905
92 BRACKET; CAB STAY TO FRAME 8-97096-654-0 01 1 9906-0411
92 BRACKET; CAB STAY TO FRAME 8-97096-654-0 01 1 0412-
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> 		8-97039-549-0 01 1 9701-9812
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53 		8-97218-926-0 01 1 9901-9905
93 PIN; CAB STAY
OD=12 L=53 		8-97218-926-0 01 1 9906-0411
93 PIN; CAB STAY
OD=12 L=53 		8-97218-926-0 01 1 0412-
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 9701-9905
95 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 9906-0411
95 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 0412-
96 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 9701-9905
96 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 9906-0411
96 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 0412-
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT TAI 		8-97022-565-0 01 1 9701-9905
97 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT TAI 		8-97022-565-0 01 1 9906-0411
97 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT TAI 		8-97022-565-0 01 1 0412-
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT TAI 		8-97022-566-0 01 1 9701-9905
97 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT TAI 		8-97022-566-0 01 1 9906-0411
97 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT TAI 		8-97022-566-0 01 1 0412-
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9701-9905
97 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9906-0411
97 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0412-
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=6.5 OD=28.0 		8-97076-467-0 01 1 9701-9707
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9708-9905
98 WASHER; CAB STAY
ID=10.5 OD=28.0 		8-97184-701-0 01 1 9906-0411
98 WASHER; CAB STAY
ID=10.5 OD=28.0 		8-97184-701-0 01 1 0412-
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M6 FLANGE 		0-91150-106-0 01 1 9701-9707
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (B) M10 FLANGE 		0-91150-110-0 02 1 9701-9905
99 NUT; CAB STAY
(B) M10 FLANGE 		0-91150-110-0 02 1 9906-0411
99 NUT; CAB STAY
(B) M10 FLANGE 		0-91150-110-0 02 1 0412-0602
99 NUT; CAB STAY
(B) M10 FLANGE 		0-91180-110-0 02 1 0603-
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-94317-772-0 01 1 9708-9711
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9712-9905
99 NUT; CAB STAY
(A) M10 		8-97185-205-1 01 1 9906-0411
99 NUT; CAB STAY
(A) M10 		8-97185-205-1 01 1 0412-
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M6X29.5 		8-97076-843-1 01 1 9701-9707
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9708-9905
103 PIN; JOINT,CAB STAY
M10X40 		8-97184-683-0 01 1 9906-0411
103 PIN; JOINT,CAB STAY
M10X40 		8-97184-683-0 01 1 0412-
104 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9701-9905
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28690-820-0 03 1 9906-0411
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28690-820-0 03 1 0412-0512
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28660-820-0 03 1 0601-
120 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 9701-9905
120 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 9906-0411
120 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 0412-
146 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-587-1 01 1 9701-9905
146 BRACKET ASM; CAB STAY UPR
TAI 		8-97966-890-0 01 1 9906-0411
146 BRACKET ASM; CAB STAY UPR
TAI 		8-97966-890-0 01 1 0412-0610
146 BRACKET ASM; CAB STAY UPR
TAI 		8-97169-324-1 01 1 0611-

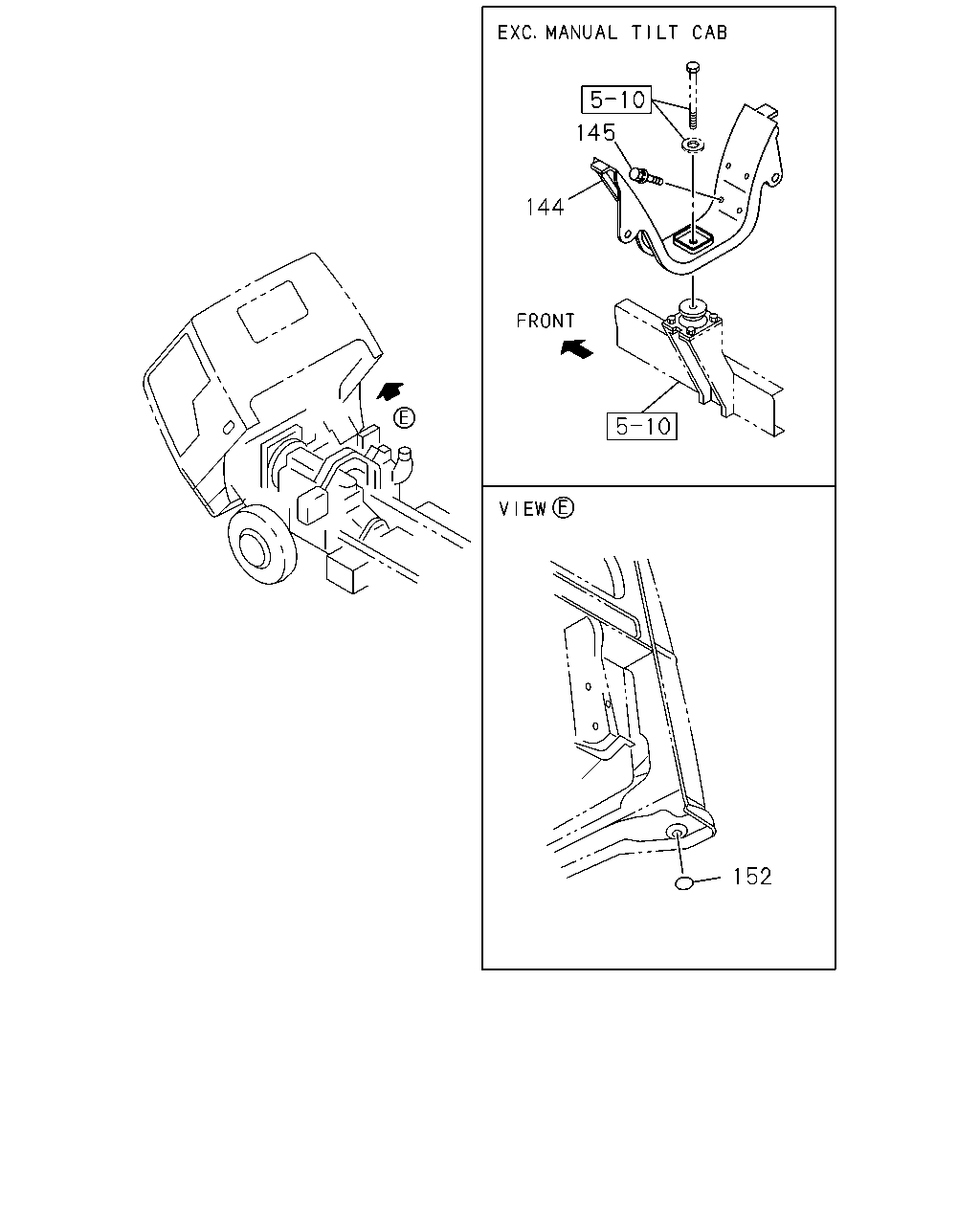

çizim 420595
5 10 145 144 5 10 152
BalonParca AdiParca NoAdetTipApplied Date
144 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9701-9905
145 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 12 1 9701-9905
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=19 		8-94279-055-0 02 1 9701-0210
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK TAI 		1-76798-019-0 02 1 0211-0411
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK TAI 		1-76798-019-0 02 1 0412-
çizim 420647
15 2 5 10 1 5 10 3 15 5 10 1 5 10 3
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97114-078-2 01 1 9701-9905
1 LEVER; TORSION BAR 8-97114-078-3 01 1 9906-0111
1 LEVER; TORSION BAR 8-97328-485-1 01 1 0112-0411
1 LEVER; TORSION BAR 8-97328-485-1 01 1 0412-
1 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97114-082-0 01 1 9701-9905
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 9701-9905
3 BOLT; LEVER
M12X50 		8-94401-729-1 06 1 9906-0111
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0112-0411
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0412-0611
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97359-033-0 06 1 0612-
3 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 04 1 9701-9905
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 9701-9905
15 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 9906-0411
15 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 0412-0610
15 RING; SNAP,TORSION BAR 8-94258-173-0 01 1 0611-0611
15 RING; SNAP,TORSION BAR 8-97359-034-0 01 1 0611-
