◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#139102) — 159 parça

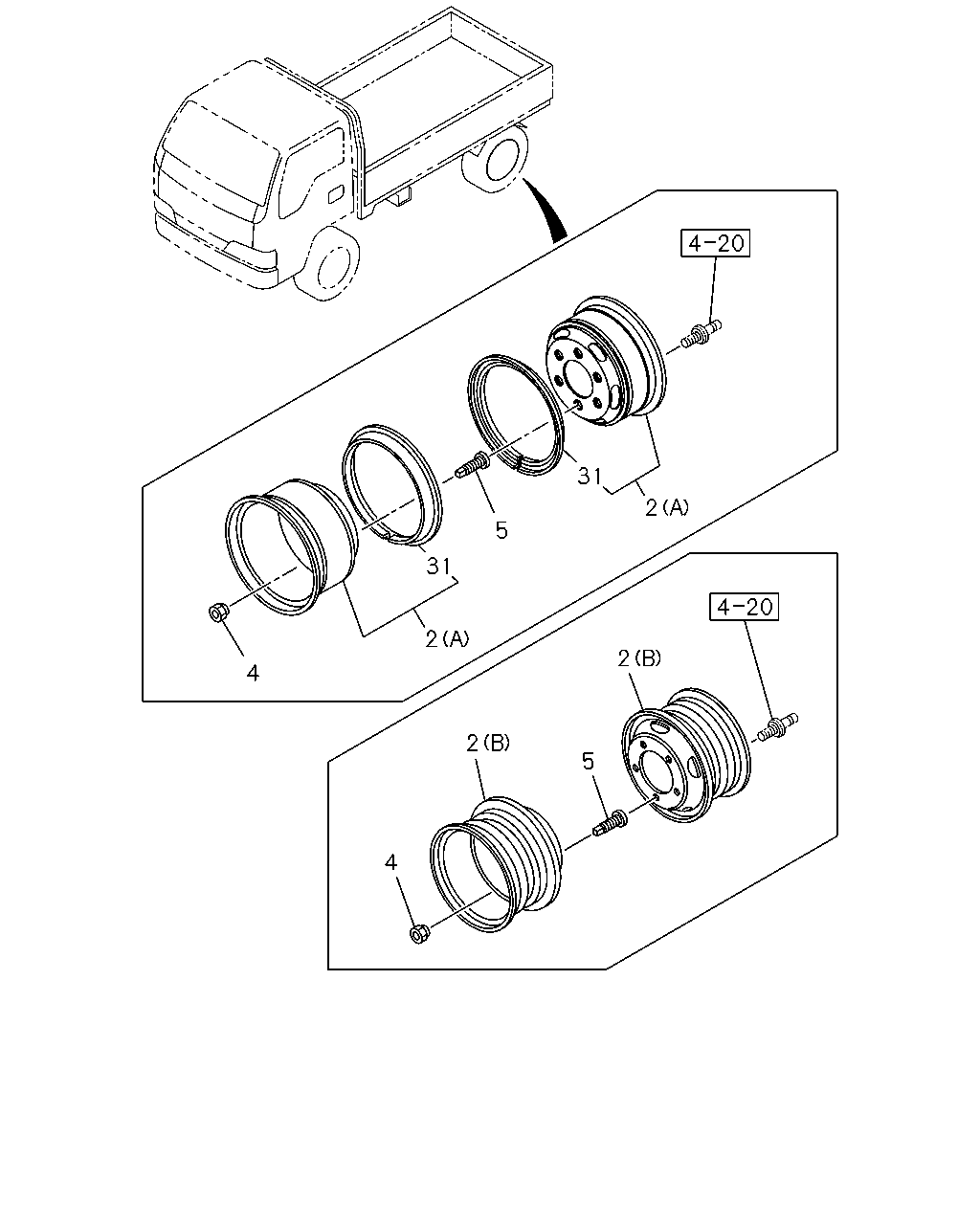

çizim 420537
4 20 31 2 5 31 4 20 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
(A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 01 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 01 1 9810-0207
2 WHEEL; DISC
(A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 01 1 0208-0610
2 WHEEL; DISC
(B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 02 1 0611-
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 02 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 02 1 9810-0207
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 02 1 0208-0511
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 02 1 0512-0610
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 9810-0207
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 0208-0610
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97967-574-0 01 1 0611-
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 9810-0207
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 0208-0511
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 0512-0610
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97967-574-0 04 1 0611-
2 WHEEL; DISC
FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 01 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-15-10 15X5.5F-115(CRT) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 01 1 0501-0610
2 WHEEL; DISC
FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 06 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-15-10 15X5.5F-115(CRT) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 06 1 0501-0610
2 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 01 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(CRS) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 01 1 0501-0610
2 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0611-
2 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 06 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(CRS) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 06 1 0501-0610
2 WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0611-
2 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0611-
4 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 9701-0610
4 NUT; WHEEL,RR AXLE
M25 LH THREAD 		8-98007-831-0 06 1 0611-
4 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 9701-0610
4 NUT; WHEEL,RR AXLE
M25 RH THREAD 		8-98007-830-0 06 1 0611-
4 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 0412-0610
4 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0611-
4 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 0412-0610
4 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 9701-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		8-98007-829-0 06 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 9701-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		8-98007-828-0 06 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0412-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0412-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611-
31 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9701-9809
31 RING; SIDE,DISC WHEEL
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9810-0207
31 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 01 1 0208-0610
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9701-9809
31 RING; SIDE,DISC WHEEL
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9810-0207
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 02 1 0208-0511
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 02 1 0512-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 15X5.5F-115(CRT) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 15X5.5F-115(CRT) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(CRS) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(CRS) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0501-0610
çizim 420622
31 2 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
(A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 01 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 01 1 9810-0207
2 WHEEL; DISC
(A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 01 1 0208-0610
2 WHEEL; DISC
(B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 02 1 0611-
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 02 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 02 1 9810-0207
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 02 1 0208-0511
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 02 1 0512-0610
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 9810-0207
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 0208-0610
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97967-574-0 01 1 0611-
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 9810-0207
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 0208-0511
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 0512-0610
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97967-574-0 04 1 0611-
2 WHEEL; DISC
FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 01 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-15-10 15X5.5F-115(CRT) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 01 1 0501-0610
2 WHEEL; DISC
FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 06 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-15-10 15X5.5F-115(CRT) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 06 1 0501-0610
2 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 01 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(CRS) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 01 1 0501-0610
2 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0611-
2 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 06 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(CRS) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 06 1 0501-0610
2 WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0611-
2 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0611-
31 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9701-9809
31 RING; SIDE,DISC WHEEL
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9810-0207
31 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 01 1 0208-0610
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9701-9809
31 RING; SIDE,DISC WHEEL
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9810-0207
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 02 1 0208-0511
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 02 1 0512-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 15X5.5F-115(CRT) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 15X5.5F-115(CRT) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(CRS) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(CRS) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0501-0610
çizim 420702
3 4 11 31 2 2 3 4 11
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
(A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 01 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 01 1 9810-0207
2 WHEEL; DISC
(A) FRONT SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 01 1 0208-0610
2 WHEEL; DISC
(B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 02 1 0611-
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 02 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-94116-196-0 02 1 9810-0207
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 02 1 0208-0511
2 WHEEL; DISC
(A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE TAI 		8-97967-310-0 02 1 0512-0610
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 9810-0207
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 01 1 0208-0610
2 WHEEL; DISC
(B) REAR SPARE 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97967-574-0 01 1 0611-
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 9701-9809
2 WHEEL; DISC
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) (B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 9810-0207
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 0208-0511
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97965-368-0 04 1 0512-0610
2 WHEEL; DISC
(B) REAR 4.5JX14 OFFSET=100.5 BLACK 6-HOLE TAI 		8-97967-574-0 04 1 0611-
2 WHEEL; DISC
FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 01 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-15-10 15X5.5F-115(CRT) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 01 1 0501-0610
2 WHEEL; DISC
FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 06 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-15-10 15X5.5F-115(CRT) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE TAI 		8-94116-198-0 06 1 0501-0610
2 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 01 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(CRS) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 01 1 0501-0610
2 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0611-
2 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 06 1 0412-0412
2 WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(CRS) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE TAI 		8-94378-330-1 06 1 0501-0610
2 WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0611-
2 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0611-
3 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9701-0610
3 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9701-0610
3 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0412-0610
3 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0611-
3 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0412-0610
3 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0611-
4 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 9701-0610
4 NUT; WHEEL,RR AXLE
M25 LH THREAD 		8-98007-831-0 06 1 0611-
4 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 9701-0610
4 NUT; WHEEL,RR AXLE
M25 RH THREAD 		8-98007-830-0 06 1 0611-
4 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 0412-0610
4 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0611-
4 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 0412-0610
4 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0611-
31 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9701-9809
31 RING; SIDE,DISC WHEEL
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9810-0207
31 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 01 1 0208-0610
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9701-9809
31 RING; SIDE,DISC WHEEL
FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9810-0207
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 02 1 0208-0511
31 RING; SIDE,DISC WHEEL
FRONT 15X5.50F STAMP, BLACK TAI 		8-97967-309-0 02 1 0512-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 15X5.5F-115(CRT) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-10 15X5.5F-115(CRT) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(CRS) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0501-0610
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0412-0412
31 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(CRS) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0501-0610
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
