4-65B — REAR LEAF SPRING (#139101) — 16 parça

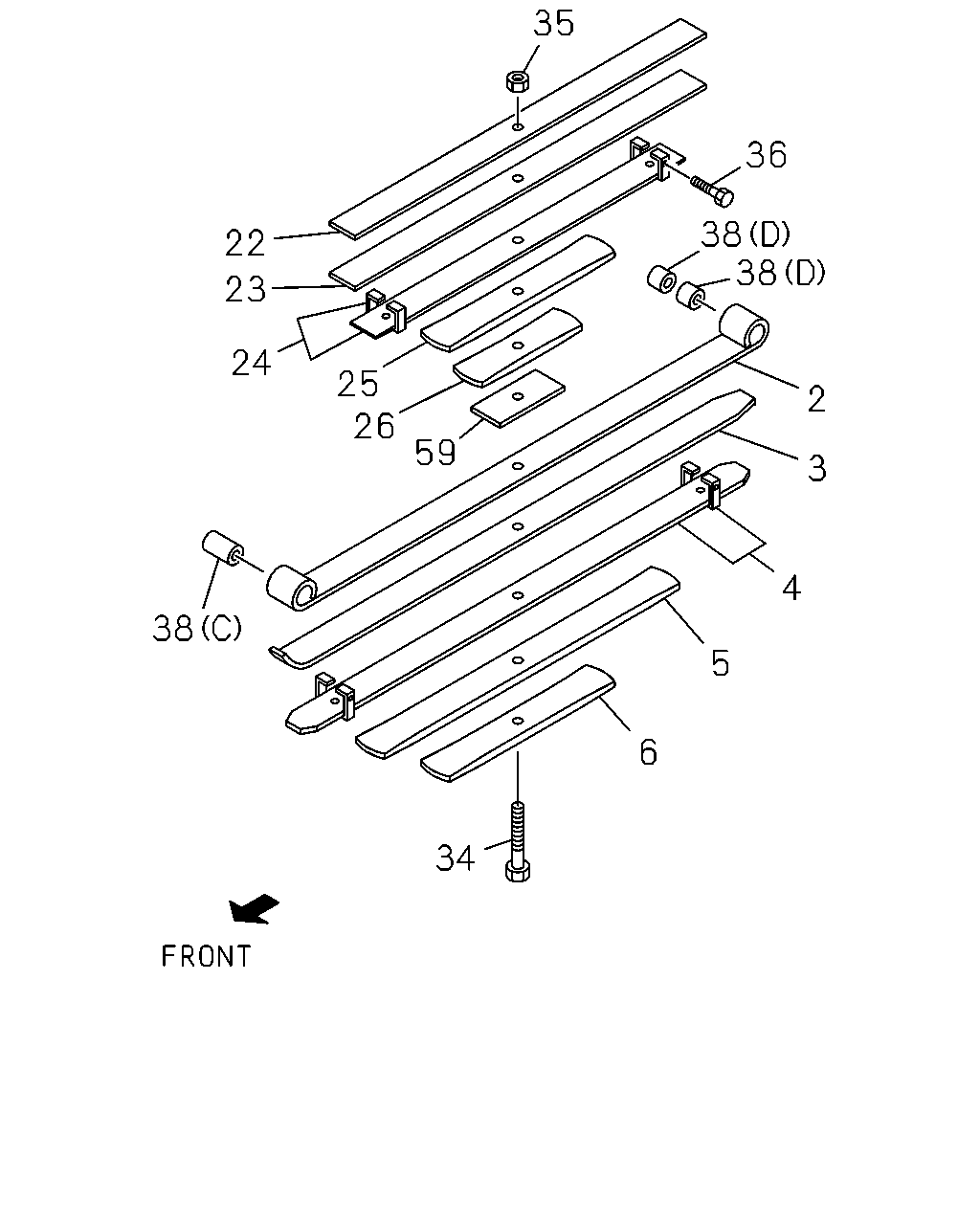

çizim 420536
35 36 38 38 22 23 24 25 26 2 59 3 4 38 5 6 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
TAI ASM PART: A = 8-97967-433-0 		8-97967-434-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
TAI ASM PART: A = 8-97967-433-0 		8-97967-435-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
TAI ASM PART: A = 8-97967-433-0 		8-97967-436-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
TAI ASM PART: A = 8-97967-433-0 		8-97967-437-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
TAI ASM PART: A = 8-97967-433-0 		8-97967-438-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
TAI ASM PART: A = 8-97967-433-0 		8-97967-439-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
TAI ASM PART: A = 8-97967-433-0 		8-97967-440-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
TAI ASM PART: A = 8-97967-433-0 		8-97967-441-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
TAI ASM PART: A = 8-97967-433-0 		8-97967-442-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
TAI ASM PART: A = 8-97967-433-0 		8-97967-443-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=125, TAI ASM PART: A = 8-97967-433-0 		8-97967-450-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12, TAI ASM PART: A = 8-97967-433-0 		8-97967-161-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
TAI ASM PART: A = 8-97967-433-0 		8-97967-445-0 01 1 -
38 BUSHING; LEAF SPR,RR
(D), TAI ASM PART: A = 8-97967-433-0 		8-97967-448-0 02 1 -
38 BUSHING; LEAF SPR,RR
(C), TAI ASM PART: A = 8-97967-433-0 		8-97967-449-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6, TAI ASM PART: A = 8-97967-433-0 		8-97967-444-0 01 1 -
