Isuzu WW
▶
TRUCKS
▶
NHR
▶
50760 - NHR/NKR TAIWAN
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

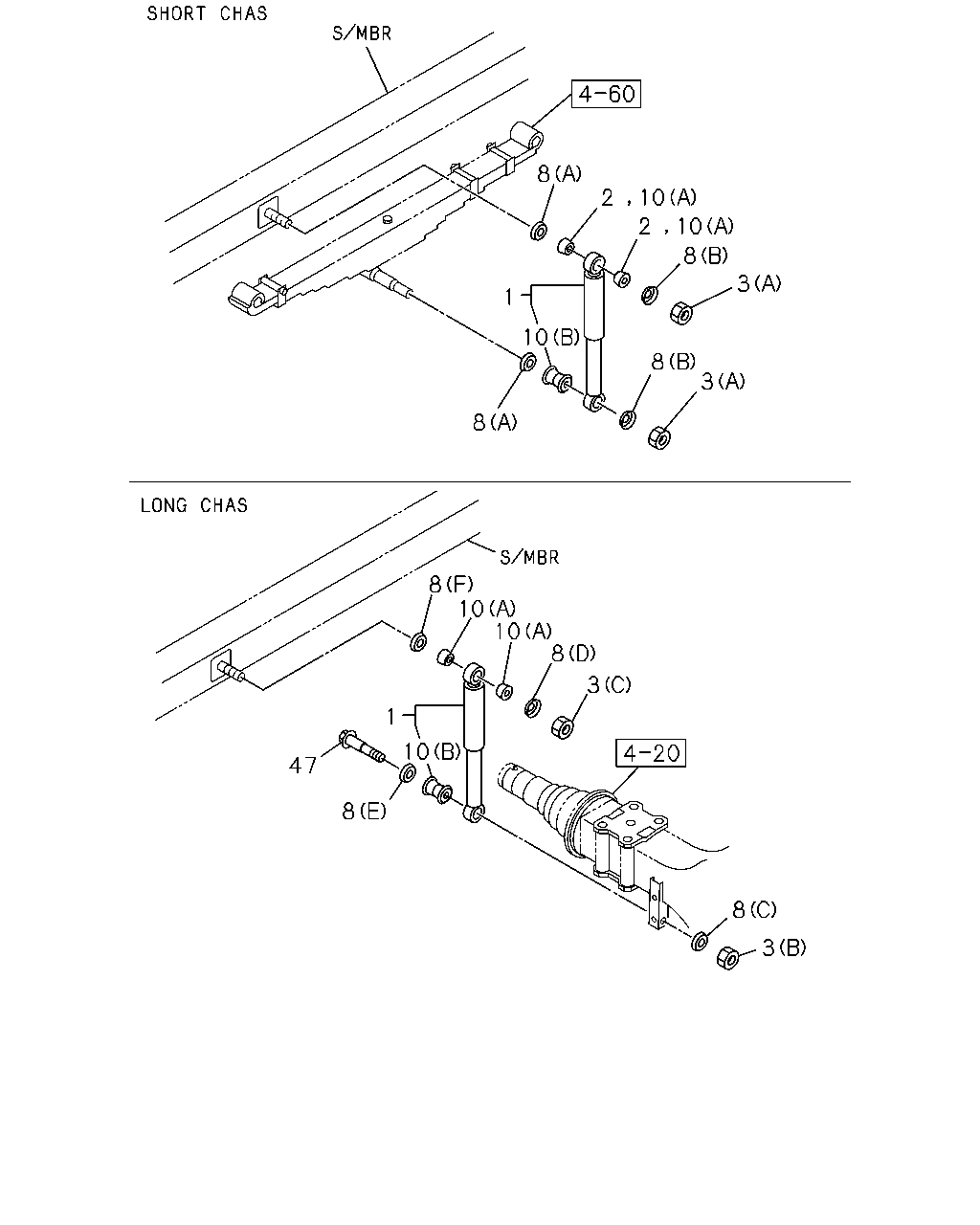

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#139099) — 26 parça
4
60
8
2
10
2
10
8
3
1
10
8
3
8
8
10
10
8
3
1
10
4
20
47
8
8
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
8-97035-995-3
02
1
9701-0003
1
ABSORBER ASM; SHOCK,RR
8-97253-656-0
02
1
0004-
1
ABSORBER ASM; SHOCK,RR
8-97253-651-2
02
1
0412-
2
BUSHING; RUBBER,S/ABS,LWR
KYB
8-94132-727-1
04
1
9701-0404
3
NUT; S/ABS
(A) M12
9-99110-412-0
04
1
9701-0512
3
NUT; S/ABS
(A) M12 TAI
0-91110-512-0
04
1
0601-
3
NUT; S/ABS
(C) M14
9-99111-414-0
02
1
0412-0512
3
NUT; S/ABS
(C) M14
0-91111-514-0
02
1
0601-0612
3
NUT; S/ABS
(C) M14
0-91110-514-0
02
1
0701-
3
NUT; S/ABS
(B) M16
9-99111-516-0
02
1
0412-0512
3
NUT; S/ABS
(B) M16
0-91111-516-0
02
1
0601-
8
WASHER; S/ABS
(A) ID=16.5
9-51679-021-0
04
1
9701-
8
WASHER; S/ABS
(B) ID=12.5
9-51679-022-0
04
1
9701-
8
WASHER; S/ABS
(E) ID=16.4
8-94137-482-1
02
1
0412-0610
8
WASHER; S/ABS
(E) ID=16.4
8-97360-118-0
02
1
0611-
8
WASHER; S/ABS
(C) ID=16.5
8-97070-925-1
02
1
0412-0611
8
WASHER; S/ABS
(C) ID=16.5
8-98011-489-0
02
1
0612-
8
WASHER; S/ABS
(D) ID=15.0
9-51679-012-0
02
1
0412-0611
8
WASHER; S/ABS
(D) ID=15
8-97360-056-0
02
1
0612-
8
WASHER; S/ABS
(F) ID=20.0
9-51679-013-0
02
1
0412-0611
8
WASHER; S/ABS
(F) ID=20.0
8-97360-057-0
02
1
0612-
10
BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94224-694-0
02
1
9701-
10
BUSHING; RUBBER,S/ABS
(A) KYB
8-94132-727-1
04
1
0405-
10
BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94382-149-0
02
1
0412-
10
BUSHING; RUBBER,S/ABS
(A) TOKICO
9-51631-014-0
04
1
0412-
47
PIN; S/ABS SETTING
8-97316-972-0
02
1
0412-
