4-60 — REAR SUSPENSION (#139098) — 132 parça

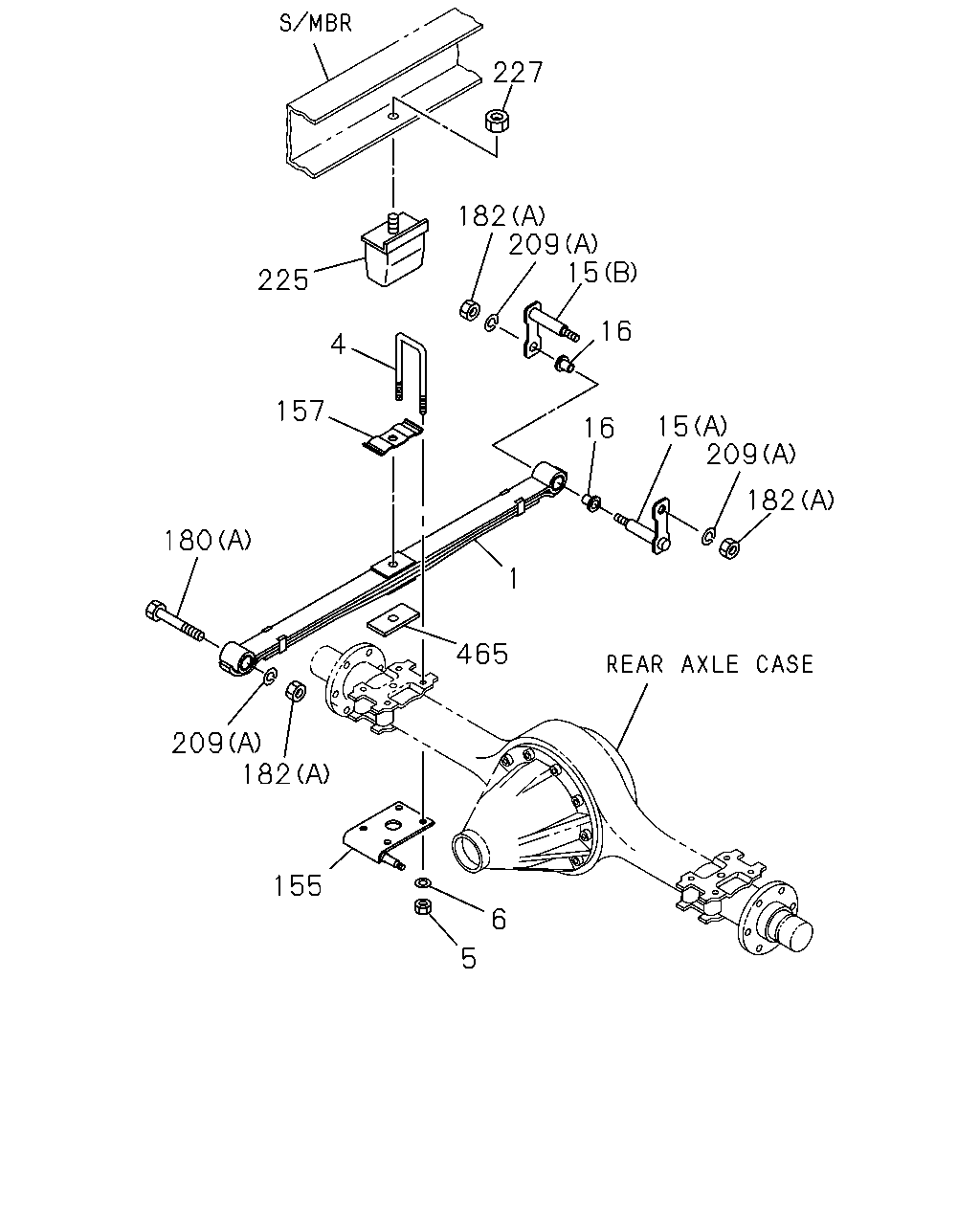

227 182 209 15 225 16 4 157 15 209 16 182 180 1 465 209 182 155 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF TAI	8-97965-123-0	02	1	9701-9809
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. RR BODY FLAT BED(RS6) 3-LEAF TAI	8-97965-123-0	02	1	9810-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. RR BODY FLAT BED(RS6) 3-LEAF TAI	8-97966-483-0	02	1	9810-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF TAI	8-97967-433-0	02	1	0412-
4	U-BOLT; RR SPR L=215	8-94127-918-3	04	1	9701-
4	U-BOLT; RR SPR L=265	8-94127-923-3	04	1	0412-
5	NUT; U-BOLT,RR SPR M16	8-94107-767-0	08	1	9701-0411
5	NUT; U-BOLT,RR SPR M16	8-94107-767-0	08	1	0412-0611
5	NUT; U-BOLT,RR SPR M16	8-97360-121-0	08	1	0612-
6	WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	9701-0411
6	WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0412-0610
6	WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0611-
15	SHACKLE; RR SPR (B) OUTER TAI	8-97965-363-0	02	1	9701-
15	SHACKLE; RR SPR (A) INNER TAI	8-97965-364-0	02	1	9701-
15	SHACKLE; RR SPR (C) OUTER	8-94118-511-3	02	1	0412-
15	SHACKLE; RR SPR (D) INNER	8-94118-512-4	02	1	0412-0611
15	SHACKLE; RR SPR (D) INNER	8-97360-011-0	02	1	0612-
16	BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	9701-
155	BRACKET; S/ABS	8-94128-361-4	01	1	9701-9707
155	BRACKET; S/ABS TAI	8-97965-866-1	01	1	9708-
155	BRACKET; S/ABS	8-94128-360-4	01	1	9701-9707
155	BRACKET; S/ABS TAI	8-97965-865-1	01	1	9708-
157	CLAMP; UPR,RR SPR L=130 T=8	8-94128-484-3	02	1	9701-9707
157	CLAMP; UPR,RR SPR L=130 T=8 TAI	8-97965-868-0	02	1	9708-
157	CLAMP; UPR,RR SPR L=130 T=4.5	8-94119-069-2	02	1	0412-
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	9-51361-602-2	02	1	9701-0411
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	9-51361-602-2	02	1	0412-0611
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	8-98011-487-0	02	1	0612-
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	9701-0411
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0412-0610
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0412-0611
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0612-
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0412-0610
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	06	1	9701-9704
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	06	1	9706-0404
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	02	1	0405-0411
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	04	1	0412-0512
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	0-91110-516-0	04	1	0601-
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	04	1	0405-0411
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	02	1	0412-0512
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	0-91110-516-0	02	1	0601-
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16	8-94107-767-0	06	1	9701-9704
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97147-389-0	06	1	9705-9705
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	06	1	9706-0404
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	02	1	0405-0411
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	04	1	0412-0610
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97360-125-0	04	1	0611-
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	04	1	0405-0411
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	02	1	0412-0610
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97360-125-0	02	1	0611-
182	NUT; PIN,RR SPR (B) M18	9-99110-518-0	02	1	0412-0512
182	NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	0601-
209	WASHER; PL (A) ID=16.5	8-97070-925-1	06	1	9701-9704
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	06	1	9706-0404
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	02	1	0405-0611
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-98011-489-0	02	1	0612-
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	04	1	0405-0411
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	04	1	0412-0611
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-98011-489-0	04	1	0612-
209	WASHER; PL (B) ID=19	8-97073-435-1	02	1	0412-0611
209	WASHER; PL (B) ID=19	8-97360-119-0	02	1	0612-
225	RUBBER; CUSHION,RR SPR TAI	8-97965-318-0	02	1	9701-
225	RUBBER; CUSHION,RR SPR	8-94118-510-5	02	1	0412-
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	9701-0411
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	0412-0602
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-112-0	02	1	0603-
465	SHIM; ADJ RR BODY FLAT BED(RS6) TAI	8-97966-357-0	AR	1	9801-

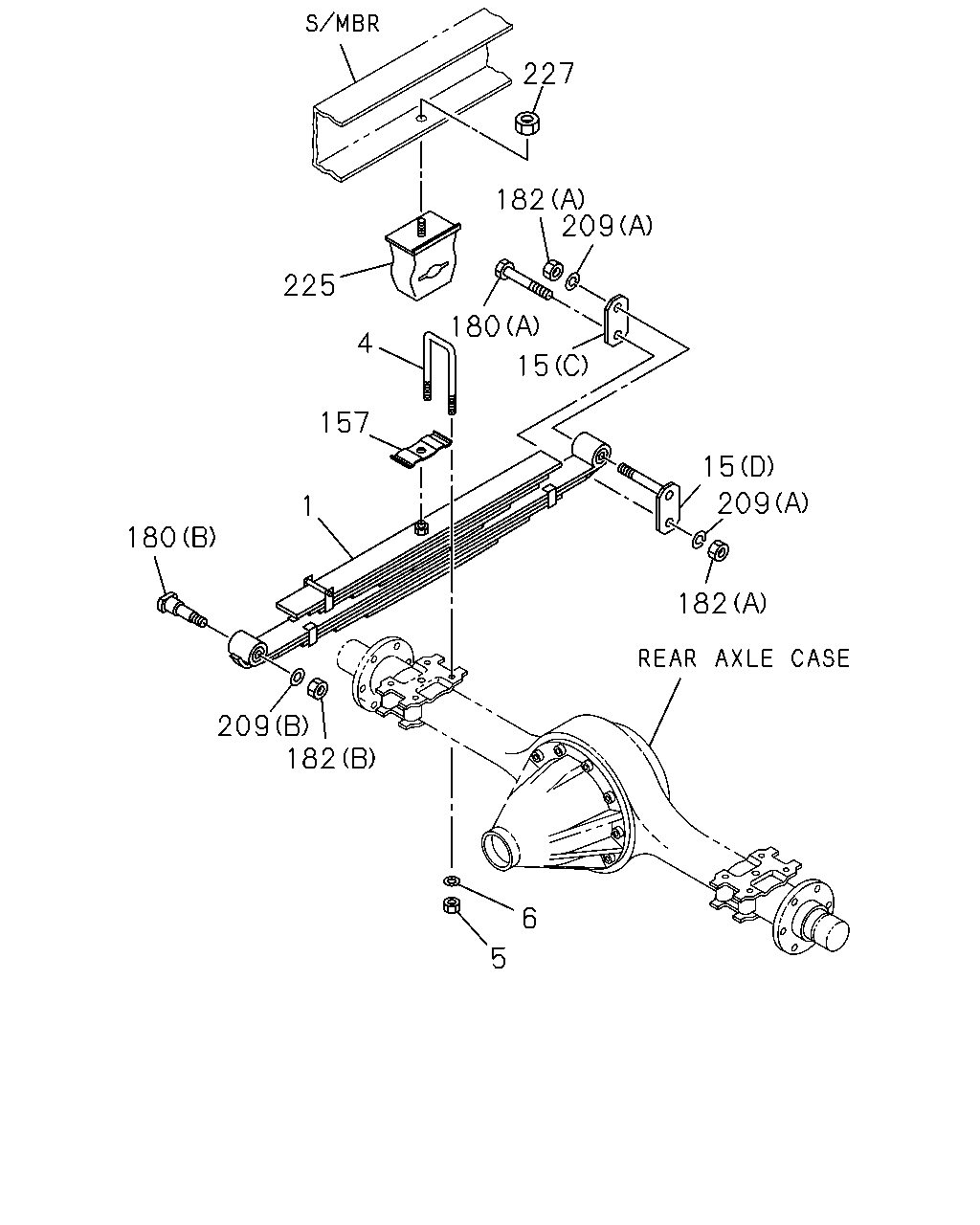

227 182 209 225 180 4 15 157 15 209 1 180 182 209 182 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF TAI	8-97965-123-0	02	1	9701-9809
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. RR BODY FLAT BED(RS6) 3-LEAF TAI	8-97965-123-0	02	1	9810-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. RR BODY FLAT BED(RS6) 3-LEAF TAI	8-97966-483-0	02	1	9810-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF TAI	8-97967-433-0	02	1	0412-
4	U-BOLT; RR SPR L=215	8-94127-918-3	04	1	9701-
4	U-BOLT; RR SPR L=265	8-94127-923-3	04	1	0412-
5	NUT; U-BOLT,RR SPR M16	8-94107-767-0	08	1	9701-0411
5	NUT; U-BOLT,RR SPR M16	8-94107-767-0	08	1	0412-0611
5	NUT; U-BOLT,RR SPR M16	8-97360-121-0	08	1	0612-
6	WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	9701-0411
6	WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0412-0610
6	WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0611-
15	SHACKLE; RR SPR (B) OUTER TAI	8-97965-363-0	02	1	9701-
15	SHACKLE; RR SPR (A) INNER TAI	8-97965-364-0	02	1	9701-
15	SHACKLE; RR SPR (C) OUTER	8-94118-511-3	02	1	0412-
15	SHACKLE; RR SPR (D) INNER	8-94118-512-4	02	1	0412-0611
15	SHACKLE; RR SPR (D) INNER	8-97360-011-0	02	1	0612-
157	CLAMP; UPR,RR SPR L=130 T=8	8-94128-484-3	02	1	9701-9707
157	CLAMP; UPR,RR SPR L=130 T=8 TAI	8-97965-868-0	02	1	9708-
157	CLAMP; UPR,RR SPR L=130 T=4.5	8-94119-069-2	02	1	0412-
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	9-51361-602-2	02	1	9701-0411
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	9-51361-602-2	02	1	0412-0611
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	8-98011-487-0	02	1	0612-
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	9701-0411
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0412-0610
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0412-0611
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0612-
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0412-0610
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	06	1	9701-9704
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	06	1	9706-0404
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	02	1	0405-0411
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	04	1	0412-0512
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	0-91110-516-0	04	1	0601-
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	04	1	0405-0411
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	9-99110-516-0	02	1	0412-0512
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	0-91110-516-0	02	1	0601-
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16	8-94107-767-0	06	1	9701-9704
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97147-389-0	06	1	9705-9705
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	06	1	9706-0404
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	02	1	0405-0411
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	04	1	0412-0610
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97360-125-0	04	1	0611-
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	04	1	0405-0411
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	02	1	0412-0610
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97360-125-0	02	1	0611-
182	NUT; PIN,RR SPR (B) M18	9-99110-518-0	02	1	0412-0512
182	NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	0601-
209	WASHER; PL (A) ID=16.5	8-97070-925-1	06	1	9701-9704
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	06	1	9706-0404
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	02	1	0405-0611
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-98011-489-0	02	1	0612-
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	04	1	0405-0411
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-97070-925-1	04	1	0412-0611
209	WASHER; PL KD PREPARATORY PACK<6HF> (A) ID=16.5	8-98011-489-0	04	1	0612-
209	WASHER; PL (B) ID=19	8-97073-435-1	02	1	0412-0611
209	WASHER; PL (B) ID=19	8-97360-119-0	02	1	0612-
225	RUBBER; CUSHION,RR SPR TAI	8-97965-318-0	02	1	9701-
225	RUBBER; CUSHION,RR SPR	8-94118-510-5	02	1	0412-
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	9701-0411
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	0412-0602
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-112-0	02	1	0603-
