◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55B - FRONT LEAF SPRING ▶
4-55B — FRONT LEAF SPRING (#139097) — 19 parça

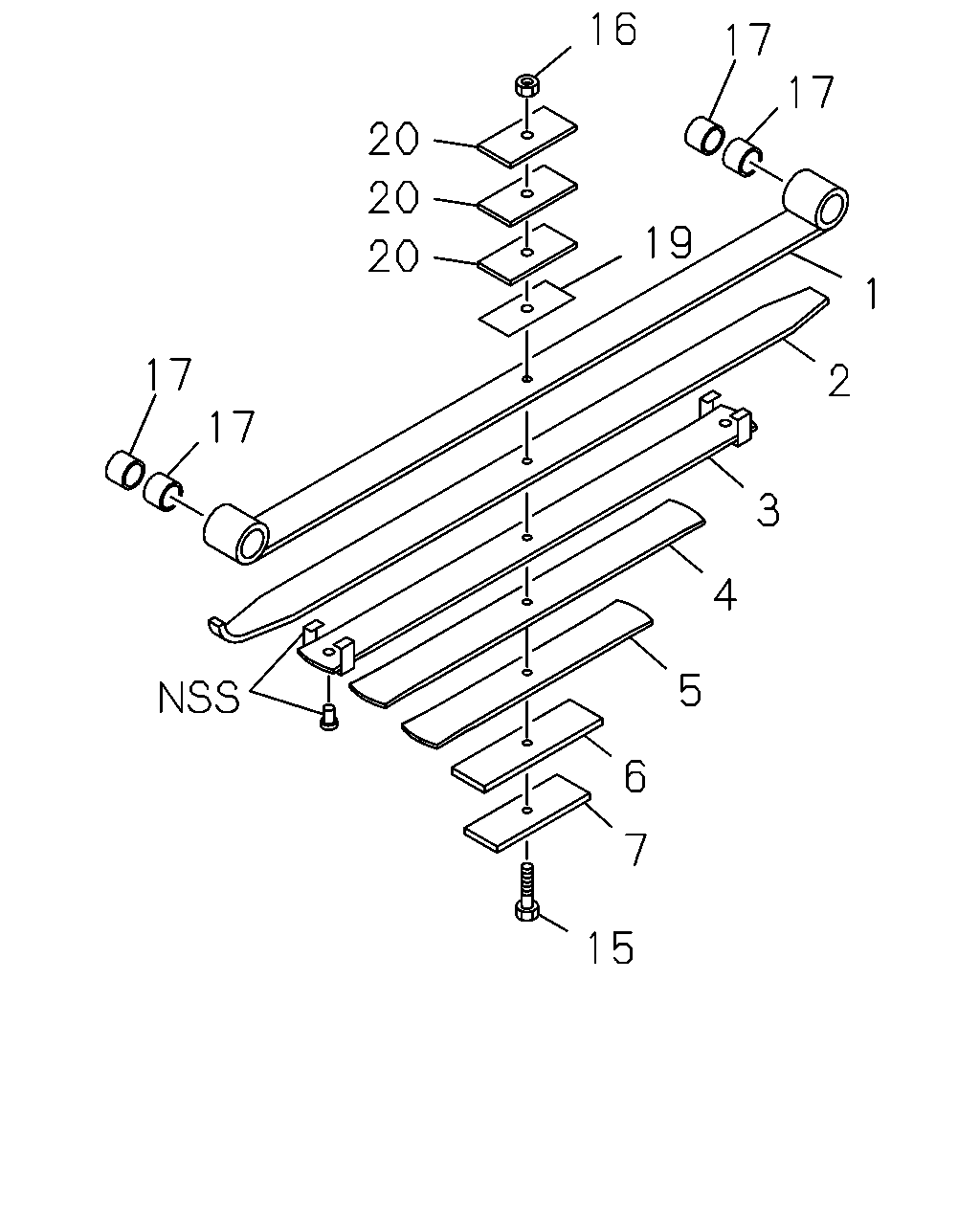

çizim 420519
16 17 17 20 20 19 20 1 17 17 2 3 4 5 6 7 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
TAI ASM PART: A = 8-98042-916-0 		8-98045-595-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
TAI ASM PART: B = 8-98042-919-0 		8-98045-596-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
TAI ASM PART: A = 8-98042-916-0 		8-98030-700-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
TAI ASM PART: B = 8-98042-919-0 		8-98030-707-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
TAI ASM PART: A = 8-98042-916-0 		8-98030-701-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
TAI ASM PART: B = 8-98042-919-0 		8-98030-708-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
TAI ASM PART: A = 8-98042-916-0 		8-98030-702-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
TAI ASM PART: B = 8-98042-919-0 		8-98030-709-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
TAI ASM PART: A = 8-98042-916-0 		8-98030-703-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
TAI ASM PART: B = 8-98042-919-0 		8-98030-710-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
TAI ASM PART: A = 8-98042-916-0 		8-98030-704-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
TAI ASM PART: B = 8-98042-919-0 		8-98030-711-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
TAI ASM PART: A = 8-98042-916-0 		8-98030-705-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
TAI ASM PART: B = 8-98042-919-0 		8-98030-712-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100, TAI ASM PART: A = 8-98042-916-0, B = 8-98042-919-0 		8-94448-004-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10, TAI ASM PART: A = 8-98042-916-0, B = 8-98042-919-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=43.25, TAI ASM PART: A = 8-98042-916-0, B = 8-98042-919-0 		8-98040-327-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1, TAI ASM PART: A = 8-98042-916-0, B = 8-98042-919-0 		8-94478-008-1 01 1 -
20 SEAT; LEAF SPR,FRT
T=8, TAI ASM PART: A = 8-98042-916-0, B = 8-98042-919-0 		8-94360-988-0 03 1 -
