◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#139093) — 280 parça

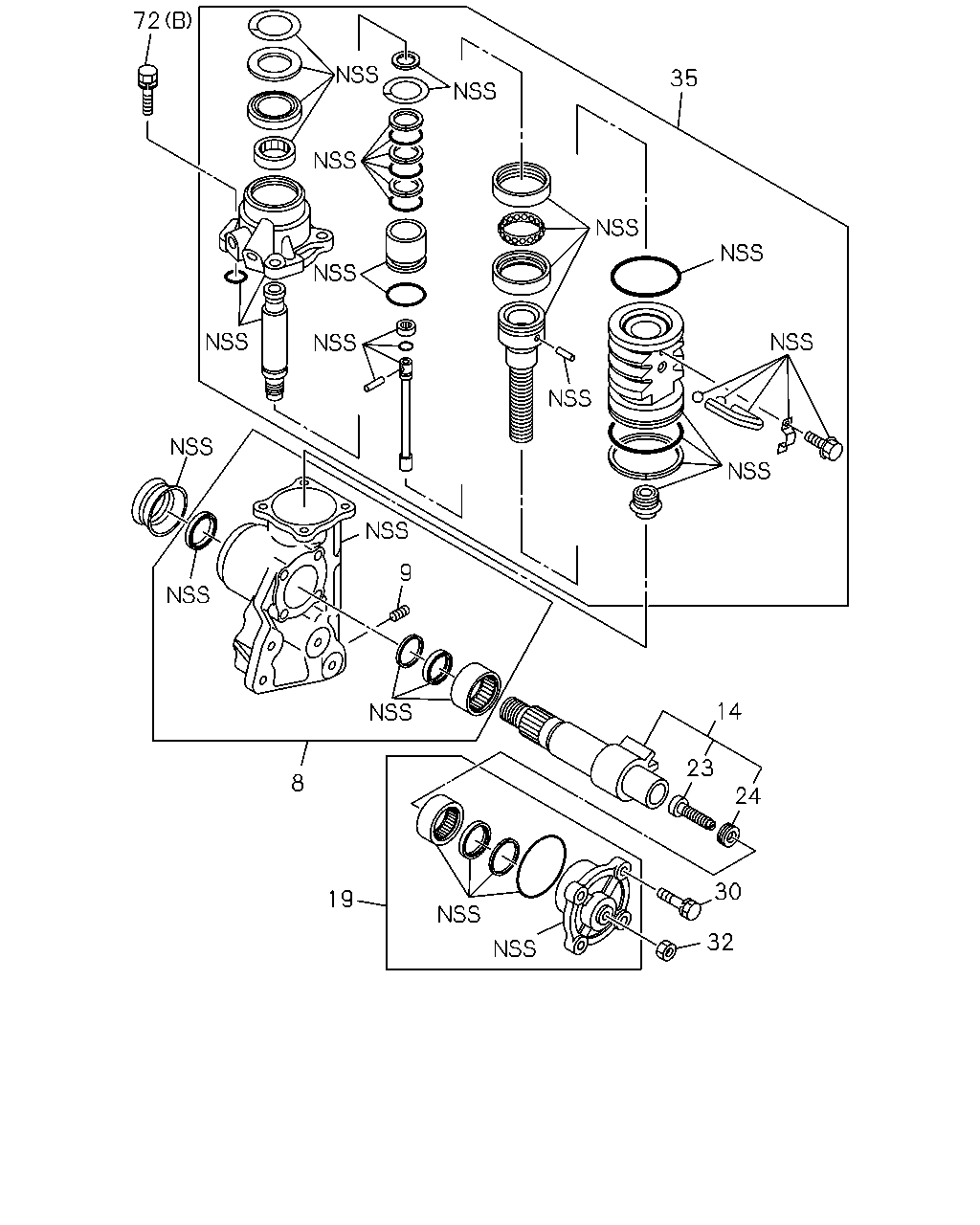

çizim 420134
72 35 9 14 23 8 24 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-576-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97108-213-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97202-838-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-705-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 01 1 -1111
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 02 1 1112-
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-588-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-731-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97202-840-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0 		8-97306-555-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-137-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-933-1 01 1 -0702
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-601-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-333-0 01 1 0703-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0, E = 8-97356-105-8 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		9-44277-014-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0, E = 8-97356-105-8 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-836-0 04 1 -0702
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-592-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-336-0 04 1 0703-
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: B = 8-97069-706-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97069-706-0 		9-09111-410-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-579-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97218-599-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97305-046-0 		8-97306-554-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-135-1 01 1 -0803
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98112-932-1 01 1 0804-
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: E = 8-97356-105-8 		1-44519-110-0 04 1 -0702
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-44579-005-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: C = 8-97173-466-3 		8-97014-835-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: D = 8-97305-046-0 		8-97014-836-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: C = 8-97173-466-3 		8-97014-836-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-336-0 04 1 0703-
çizim 420135
1 132 12 47 7 12
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-705-1 		8-97108-207-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97218-602-1 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-105-8 		8-97356-138-0 01 1 -1111
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-105-8 		8-98171-736-0 01 1 1112-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09625-068-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		9-09924-502-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09639-008-0 02 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 8-97069-705-1 		5-09623-052-0 02 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), OD=64 ASM PART: A = 8-97069-705-1 		5-09623-054-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 8-97069-705-1 		5-09623-055-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E), OD=85 ASM PART: A = 8-97069-705-1 		5-09623-056-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 8-97069-705-1 		5-09623-057-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 8-97069-705-1 		5-09623-061-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97108-208-0 01 1 -

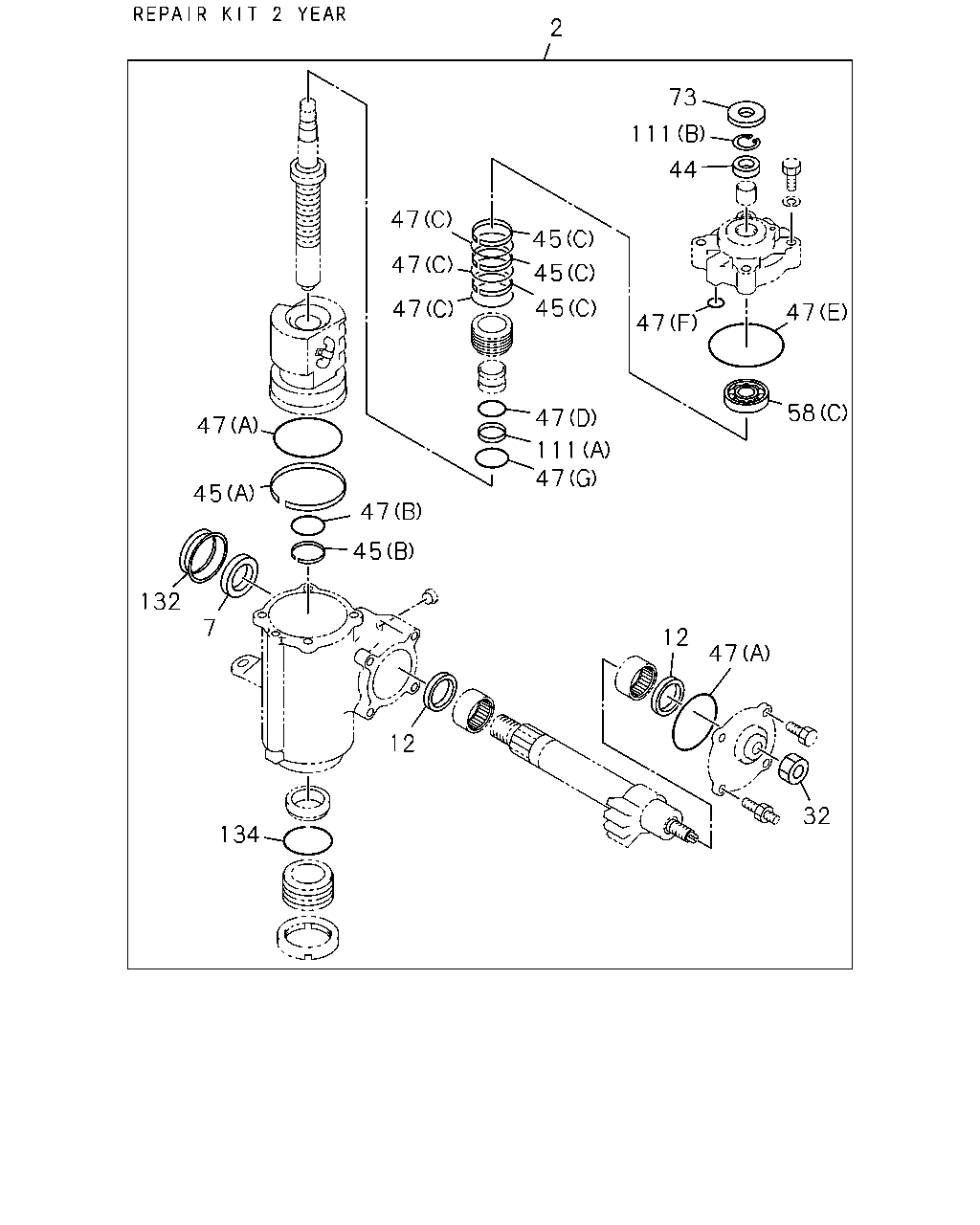

çizim 420599
2 73 111 44 47 47 45 47 45 45 47 47 58 47 47 111 47 45 47 45 132 7 12 47 12 32 134
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97069-705-1 		8-97108-205-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09625-068-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		9-09924-502-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09639-008-0 02 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97069-706-0 		9-09111-410-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09625-070-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-97069-705-1 		8-94118-091-0 01 1 -
45 RING; RET
(A) ASM PART: A = 8-97069-705-1 		5-09629-003-0 01 1 -
45 RING; RET
(B) ASM PART: A = 8-97069-705-1 		5-09629-004-0 01 1 -
45 RING; RET
(C) ASM PART: A = 8-97069-705-1 		5-09629-005-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 8-97069-705-1 		5-09623-052-0 02 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), OD=64 ASM PART: A = 8-97069-705-1 		5-09623-054-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 8-97069-705-1 		5-09623-055-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E), OD=85 ASM PART: A = 8-97069-705-1 		5-09623-056-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 8-97069-705-1 		5-09623-057-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 8-97069-705-1 		5-09623-061-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 8-97069-705-1 		5-09811-036-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-09811-041-0 01 1 -
58 BEARING; HSG STRG UNIT
(C) ASM PART: A = 8-97069-705-1 		5-09820-019-2 01 1 -
58 BEARING; HSG STRG UNIT
(D) ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-812-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44579-006-0 01 1 -
111 RING; BACKUP
(A) ASM PART: A = 8-97069-705-1 		5-09629-006-0 01 1 -
111 RING; BACKUP
(B) ASM PART: A = 8-97069-705-1 		5-44579-001-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97108-208-0 01 1 -
134 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97069-705-1 		1-44159-027-0 01 1 -

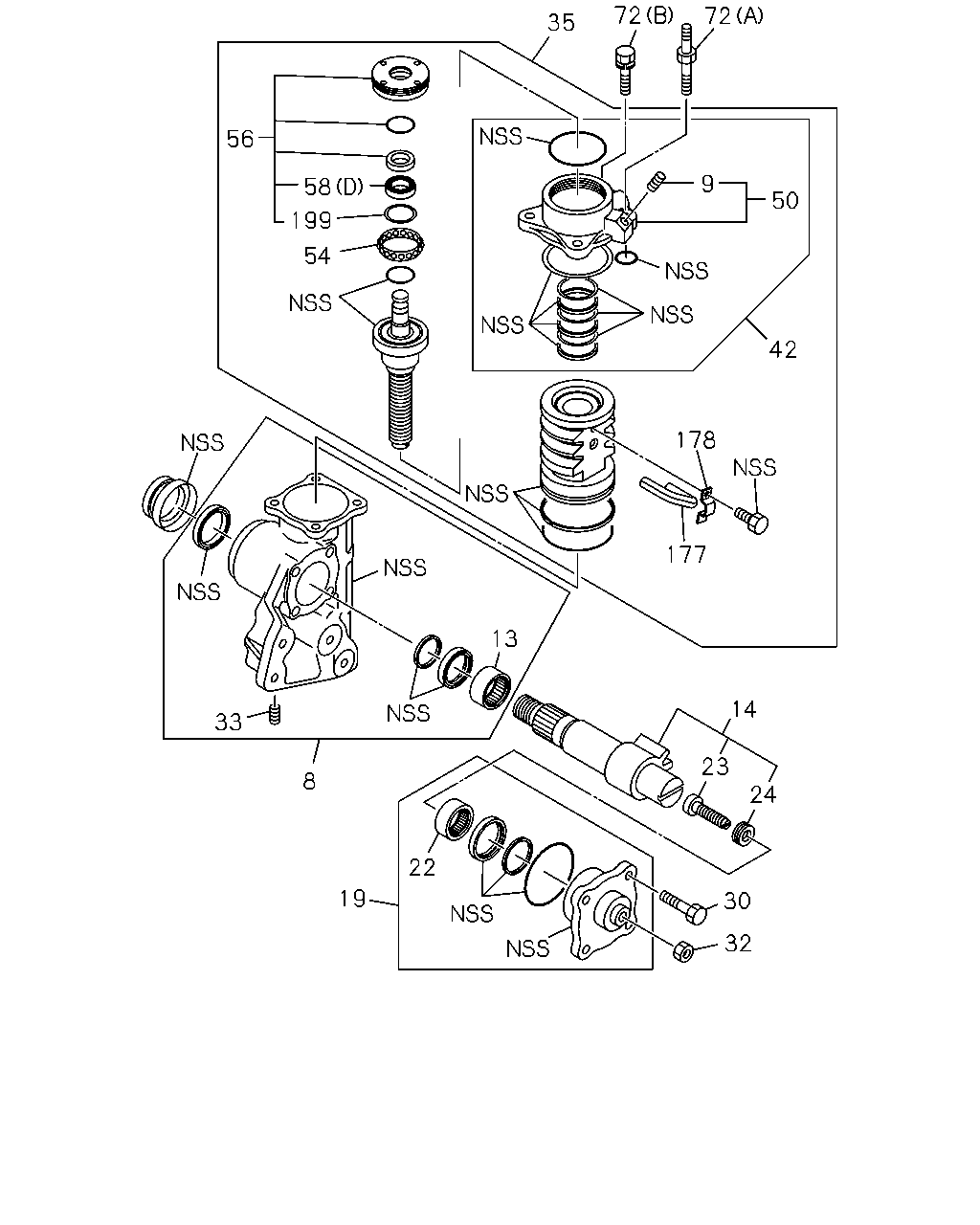

çizim 420604
72 72 35 56 9 58 50 199 54 42 178 177 13 14 33 23 8 24 22 19 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-576-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97108-213-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97202-838-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-705-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 01 1 -1111
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 02 1 1112-
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09811-042-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97076-368-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-588-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-731-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97202-840-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0 		8-97306-555-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-137-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-933-1 01 1 -0702
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-601-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-333-0 01 1 0703-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09811-039-0 02 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09811-042-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97014-839-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0, E = 8-97356-105-8 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		9-44277-014-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0, E = 8-97356-105-8 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-836-0 04 1 -0702
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-592-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-336-0 04 1 0703-
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: B = 8-97069-706-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97069-706-0 		9-09111-410-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-820-0 02 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-579-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97218-599-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97305-046-0 		8-97306-554-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-135-1 01 1 -0803
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98112-932-1 01 1 0804-
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-822-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-821-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-810-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97076-364-1 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 8-97069-705-1 		5-09811-036-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-09811-041-0 01 1 -
58 BEARING; HSG STRG UNIT
(C) ASM PART: A = 8-97069-705-1 		5-09820-019-2 01 1 -
58 BEARING; HSG STRG UNIT
(D) ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-812-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: E = 8-97356-105-8 		1-44519-110-0 04 1 -0702
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-44579-005-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: C = 8-97173-466-3 		8-97014-835-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: D = 8-97305-046-0 		8-97014-836-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: C = 8-97173-466-3 		8-97014-836-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-336-0 04 1 0703-
177 TUBE; BALL BRG STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-809-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-808-0 01 1 -
199 WASHER; WAVE,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97201-812-0 01 1 -

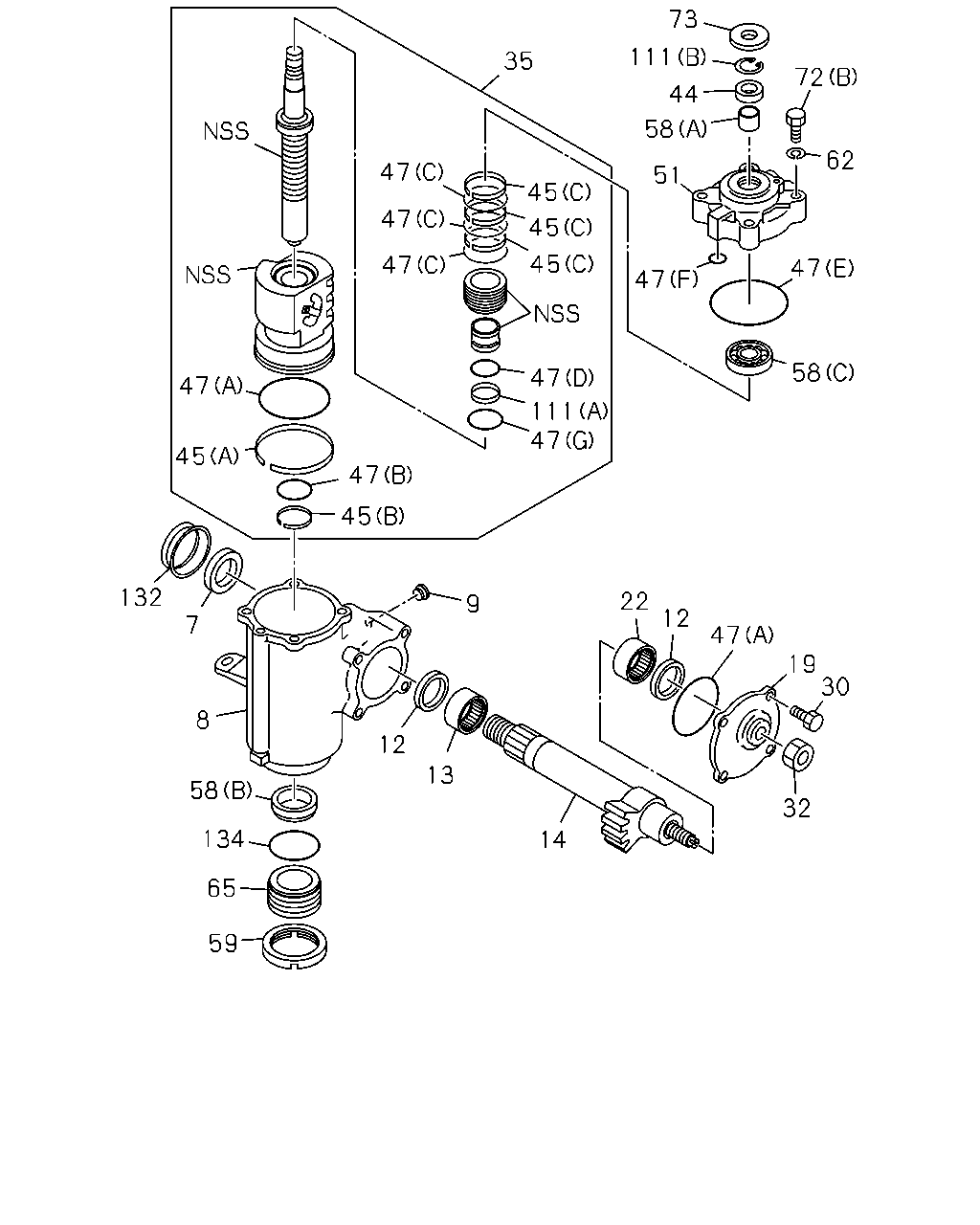

çizim 420668
73 111 35 72 44 58 62 47 51 45 47 47 45 45 47 47 58 47 47 111 47 45 47 45 132 22 9 12 7 47 19 30 8 12 13 58 32 134 14 65 59
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09625-068-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		9-09924-502-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-576-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97108-213-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97202-838-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-705-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 01 1 -1111
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 02 1 1112-
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09639-008-0 02 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09811-042-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97076-368-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-588-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-731-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97202-840-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0 		8-97306-555-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-137-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-933-1 01 1 -0702
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-601-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-333-0 01 1 0703-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09811-039-0 02 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09811-042-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97014-839-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-836-0 04 1 -0702
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-592-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-336-0 04 1 0703-
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: B = 8-97069-706-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97069-706-0 		9-09111-410-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-579-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97218-599-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97305-046-0 		8-97306-554-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-135-1 01 1 -0803
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98112-932-1 01 1 0804-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09625-070-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-97069-705-1 		8-94118-091-0 01 1 -
45 RING; RET
(A) ASM PART: A = 8-97069-705-1 		5-09629-003-0 01 1 -
45 RING; RET
(B) ASM PART: A = 8-97069-705-1 		5-09629-004-0 01 1 -
45 RING; RET
(C) ASM PART: A = 8-97069-705-1 		5-09629-005-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 8-97069-705-1 		5-09623-052-0 02 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), OD=64 ASM PART: A = 8-97069-705-1 		5-09623-054-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 8-97069-705-1 		5-09623-055-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E), OD=85 ASM PART: A = 8-97069-705-1 		5-09623-056-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 8-97069-705-1 		5-09623-057-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 8-97069-705-1 		5-09623-061-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-584-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 8-97069-705-1 		5-09811-036-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-09811-041-0 01 1 -
58 BEARING; HSG STRG UNIT
(C) ASM PART: A = 8-97069-705-1 		5-09820-019-2 01 1 -
58 BEARING; HSG STRG UNIT
(D) ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-812-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44259-003-0 01 1 -
59 NUT; COVER STRG UNIT
M7.2 ASM PART: B = 8-97069-706-0 		8-94128-207-0 01 1 -
62 WASHER; HSG BOLT
ASM PART: A = 8-97069-705-1 		5-09509-010-0 04 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 8-97069-705-1 		1-44251-063-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: E = 8-97356-105-8 		1-44519-110-0 04 1 -0702
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97069-705-1 		5-44579-005-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: C = 8-97173-466-3 		8-97014-835-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: D = 8-97305-046-0 		8-97014-836-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: C = 8-97173-466-3 		8-97014-836-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-336-0 04 1 0703-
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44579-006-0 01 1 -
111 RING; BACKUP
(A) ASM PART: A = 8-97069-705-1 		5-09629-006-0 01 1 -
111 RING; BACKUP
(B) ASM PART: A = 8-97069-705-1 		5-44579-001-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97108-208-0 01 1 -
134 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97069-705-1 		1-44159-027-0 01 1 -

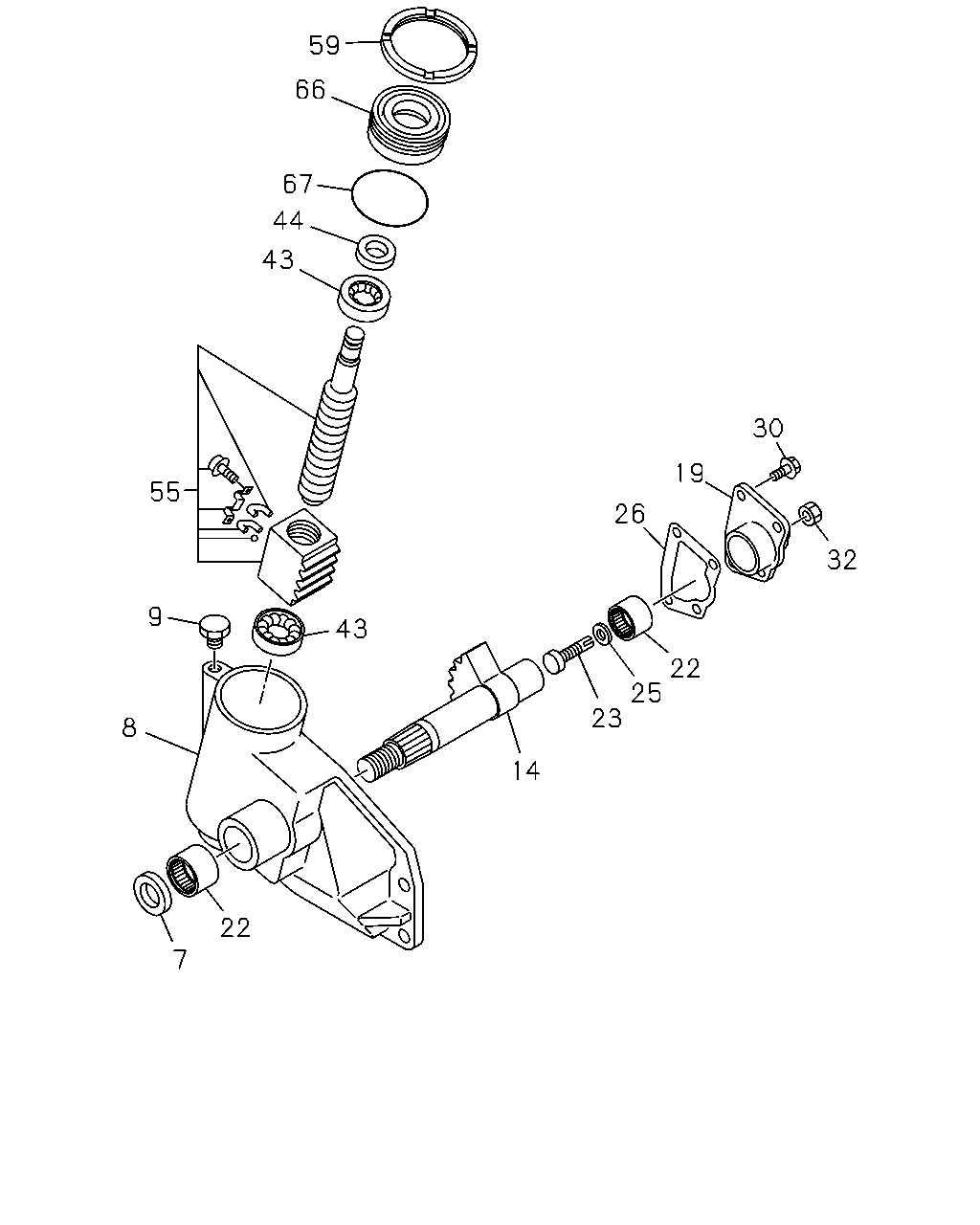

çizim 420694
59 66 67 44 43 30 19 55 26 32 9 43 22 25 23 8 14 22 7
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09625-068-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		9-09924-502-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-576-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97108-213-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97202-838-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-705-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 01 1 -1111
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-820-0 02 1 1112-
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-588-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-731-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97202-840-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0 		8-97306-555-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97356-137-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-933-1 01 1 -0702
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-601-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-333-0 01 1 0703-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09811-039-0 02 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-09811-042-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 8-97173-466-3 		8-97014-839-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0, E = 8-97356-105-8 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: B = 8-97069-706-0 		9-44279-008-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: B = 8-97069-706-0 		9-44279-009-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: B = 8-97069-706-0 		9-44279-010-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: B = 8-97069-706-0 		9-44279-011-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: B = 8-97069-706-0 		9-44279-012-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-737-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-836-0 04 1 -0702
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-705-1 		8-97093-592-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-336-0 04 1 0703-
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: B = 8-97069-706-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-105-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97069-706-0 		9-09111-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: B = 8-97069-706-0 		8-94128-202-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 8-97069-706-0 		5-09625-070-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-97069-705-1 		8-94118-091-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97108-218-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: A = 8-97069-705-1 		5-44259-003-0 01 1 -
59 NUT; COVER STRG UNIT
M7.2 ASM PART: B = 8-97069-706-0 		8-94128-207-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-735-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 8-97069-706-0 		8-97107-738-0 01 1 -

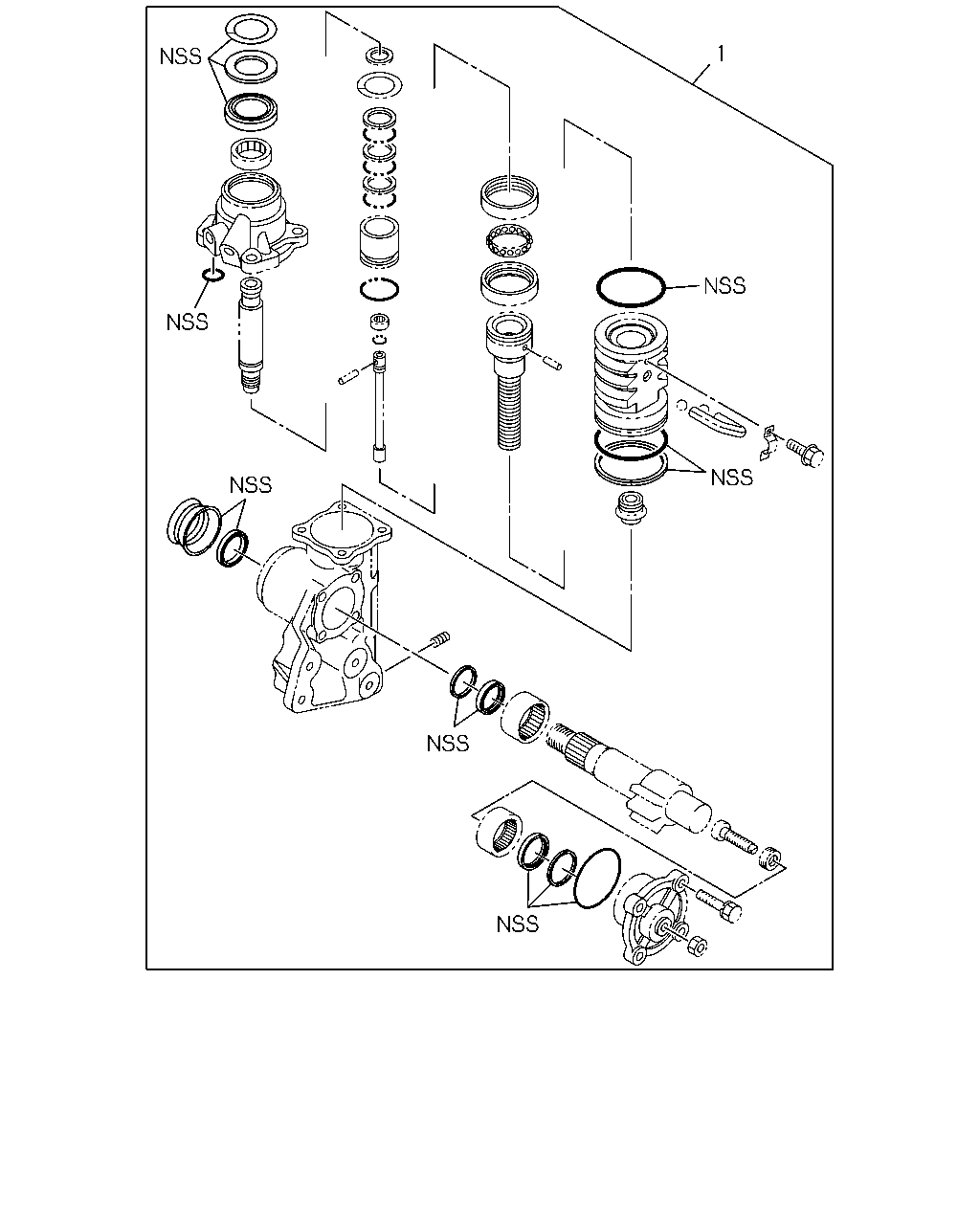

çizim 420719
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-705-1 		8-97108-207-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97218-602-1 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-105-8 		8-97356-138-0 01 1 -1111
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-105-8 		8-98171-736-0 01 1 1112-

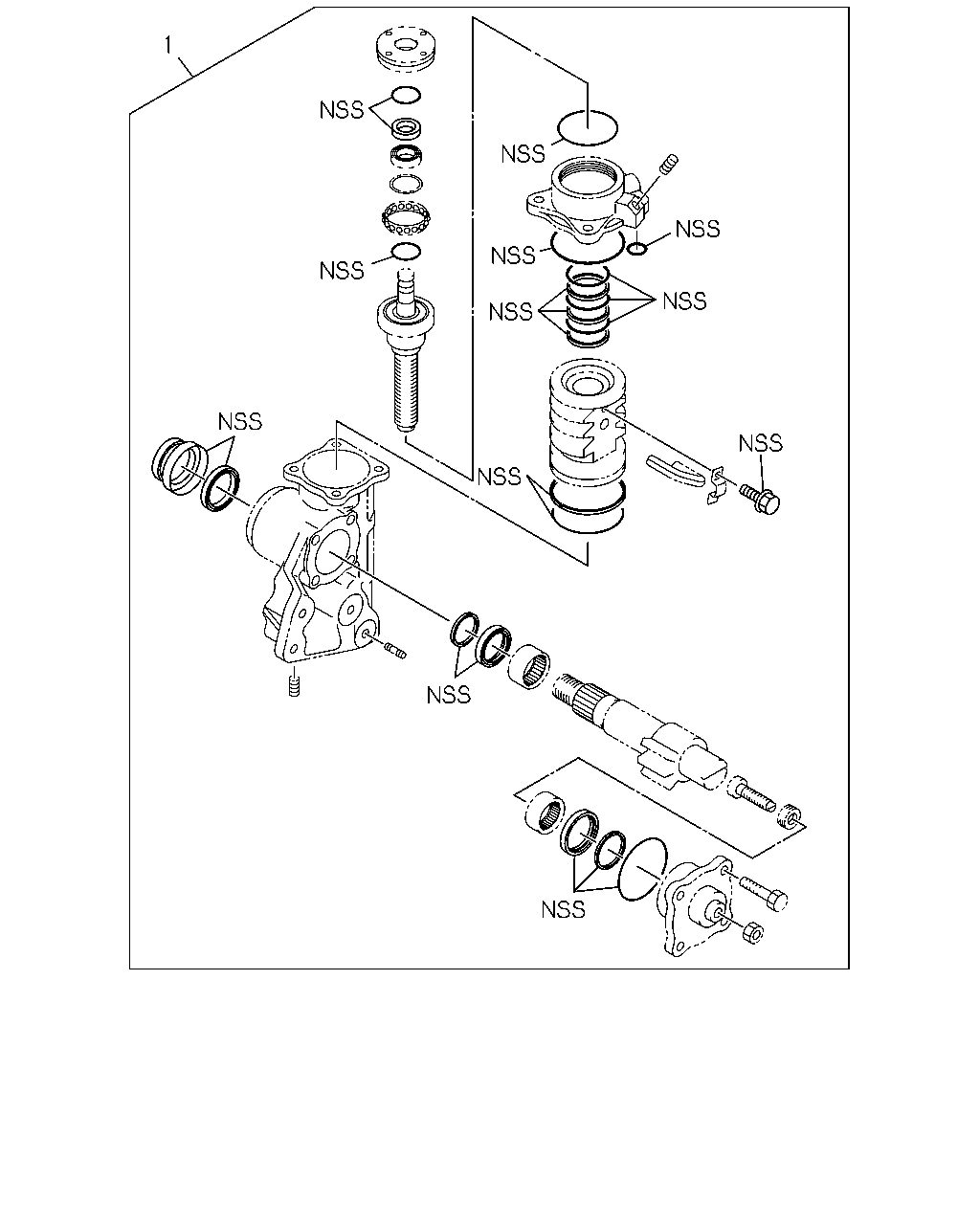

çizim 420746
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-705-1 		8-97108-207-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97173-466-3, D = 8-97305-046-0 		8-97218-602-1 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-105-8 		8-97356-138-0 01 1 -1111
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-105-8 		8-98171-736-0 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
