4-36 — POWER STEERING CONTROL; ENGINE SIDE (#139092) — 101 parça

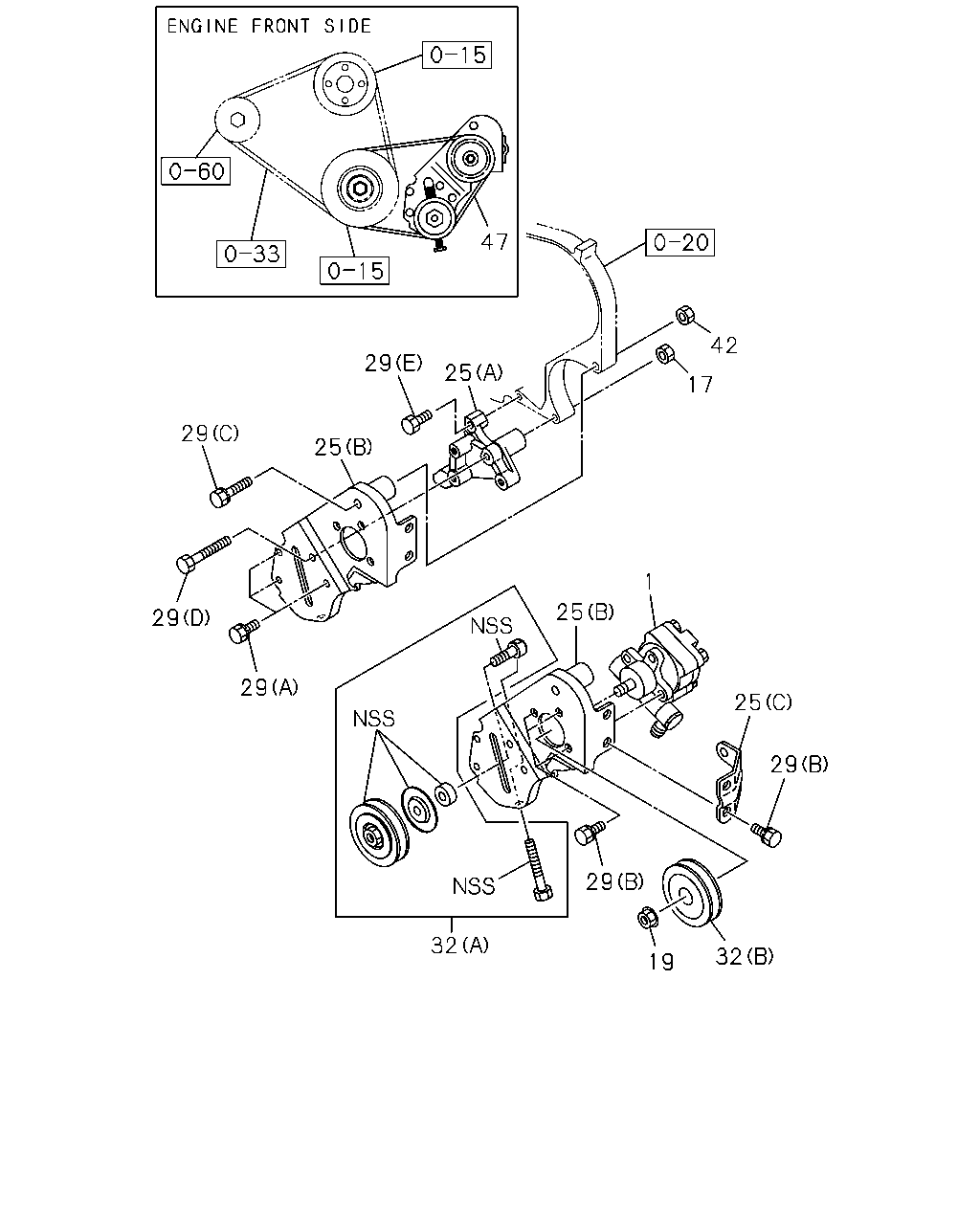

15 60 47 20 33 15 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97084-207-0	01	1	9701-9903
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97226-344-0	01	1	9904-9905
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40>	8-97226-344-0	01	1	9906-0001
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40>	8-97247-061-2	01	1	0002-0206
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40>	8-97354-730-0	01	1	0207-0207
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97354-730-0	01	1	0208-0411
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97354-730-0	01	1	0412-0610
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG(LFB)	8-98006-823-3	01	1	0611-
17	NUT; POWER STRG PUMP POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9701-9905
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC) POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9906-0207
17	NUT; POWER STRG PUMP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0208-0411
17	NUT; POWER STRG PUMP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0412-0511
17	NUT; POWER STRG PUMP 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	01	1	0512-0602
17	NUT; POWER STRG PUMP 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	01	1	0603-0610
17	NUT; POWER STRG PUMP 4JJ1 ENG(LFB) M8 FLANGE	0-91180-208-0	03	1	0611-
19	NUT; PULLEY,OIL PUMP POWER STEERING<N40> M12	8-94139-015-0	01	1	9701-9905
19	NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC) POWER STEERING<N40> M12	8-94139-015-0	01	1	9906-0207
19	NUT; PULLEY,OIL PUMP M12	8-94139-015-0	01	1	0208-0411
19	NUT; PULLEY,OIL PUMP M12	8-94139-015-0	01	1	0412-0610
25	BRACKET; P/S PUMP POWER STEERING<N40> (A) TAI	8-97965-417-0	01	1	9701-9905
25	BRACKET; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40> (A) TAI	8-97965-417-0	01	1	9906-0207
25	BRACKET; P/S PUMP 4JH1 ENG(RJX) (B)	8-97065-974-0	01	1	0208-0411
25	BRACKET; P/S PUMP 4JH1 ENG(RJX) (B)	8-97065-974-0	01	1	0412-0511
25	BRACKET; P/S PUMP 4JH1-TC ENG(RDM) (B)	8-97065-974-0	01	1	0512-0610
25	BRACKET; P/S PUMP POWER STEERING<N40> (B) TAI	8-97965-418-0	01	1	9701-9905
25	BRACKET; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40> (B) TAI	8-97965-418-0	01	1	9906-0207
25	BRACKET; P/S PUMP 4JH1 ENG(RJX) (A)	8-97107-869-0	01	1	0208-0411
25	BRACKET; P/S PUMP 4JH1 ENG(RJX) (A)	8-97107-869-0	01	1	0412-0511
25	BRACKET; P/S PUMP 4JH1-TC ENG(RDM) (A)	8-97107-869-0	01	1	0512-0610
25	BRACKET; P/S PUMP POWER STEERING<N40> (C) TAI	8-97965-425-0	01	1	9701-9905
25	BRACKET; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40> (C) TAI	8-97965-425-0	01	1	9906-0207
25	BRACKET; P/S PUMP 4JH1 ENG(RJX) (C)	8-97107-872-0	01	1	0208-0411
25	BRACKET; P/S PUMP 4JH1 ENG(RJX) (C)	8-97107-872-0	01	1	0412-0511
25	BRACKET; P/S PUMP 4JH1-TC ENG(RDM) (C)	8-97107-872-0	01	1	0512-0610
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (A) M8X18 W/LK WASHER	0-50040-818-0	03	1	9701-9905
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> (A) M8X18 W/LK WASHER	0-50040-818-0	03	1	9906-0207
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (A) M8X16 FLANGE	0-28080-816-0	03	1	0208-0411
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (A) M8X16 FLANGE	0-28080-816-0	03	1	0412-0511
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (A) M8X16 FLANGE	0-28080-816-0	03	1	0512-0512
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-0610
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (C) M10X100 W/LK WASHER	0-50041-000-0	01	1	9701-9905
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> (C) M10X100 W/LK WASHER	0-50041-000-0	01	1	9906-0207
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (C) M10X100 FLANGE	0-28081-000-0	01	1	0208-0411
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (C) M10X100 FLANGE	0-28081-000-0	01	1	0412-0511
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (C) M10X100 FLANGE	0-28081-000-0	01	1	0512-0512
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (C) M10X100 FLANGE	0-28051-000-0	01	1	0601-0610
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (B) M10X20 W/LK WASHER	0-50041-020-0	05	1	9701-9905
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> (B) M10X20 W/LK WASHER	0-50041-020-0	05	1	9906-0207
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (B) M10X20 FLANGE	0-28681-020-0	05	1	0208-0411
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (B) M10X20 FLANGE	0-28681-020-0	05	1	0412-0511
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (B) M10X20 FLANGE	0-28681-020-0	05	1	0512-0512
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (B) M10X20 FLANGE	0-28651-020-0	05	1	0601-0610
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9701-9905
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9906-0207
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (D) M8X100 FLANGE	0-28080-800-0	01	1	0208-0411
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (D) M8X100 FLANGE	0-28080-800-0	01	1	0412-0511
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (D) M8X100 FLANGE	0-28080-800-0	01	1	0512-0512
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (D) M8X100 FLANGE	0-28050-800-0	01	1	0601-0610
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (E) M8X65 W/LK WASHER	8-94205-986-1	01	1	9701-9903
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (E) M8X60 FLANGE	0-28080-860-0	01	1	9904-9905
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> (E) M8X60 FLANGE	0-28080-860-0	01	1	9906-0207
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (E) M8X60 FLANGE	0-28080-860-0	01	1	0208-0411
29	BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) (E) M8X60 FLANGE	0-28080-860-0	01	1	0412-0511
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (E) M8X60 FLANGE	0-28080-860-0	01	1	0512-0512
29	BOLT; BRKT,POWER STRG 4JH1-TC ENG(RDM) (E) M8X60 FLANGE	0-28050-860-0	01	1	0601-0610
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-94128-866-0	01	1	9701-9707
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A) TAI	8-97965-850-0	01	1	9708-9905
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) POWER STEERING<N40> (A) TAI	8-97965-850-0	01	1	9906-0207
32	PULLEY; IDLER,P/S 4JH1 ENG(RJX) (A) TAI	8-97965-850-0	01	1	0208-0411
32	PULLEY; IDLER,P/S 4JH1 ENG(RJX) (A) TAI	8-97965-850-0	01	1	0412-0511
32	PULLEY; IDLER,P/S 4JH1-TC ENG(RDM) (A) TAI	8-97965-850-0	01	1	0512-0610
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-97084-332-0	01	1	9701-9905
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) POWER STEERING<N40> (B)	8-97084-332-0	01	1	9906-0207
32	PULLEY; IDLER,P/S (B)	8-97084-332-2	01	1	0208-0411
32	PULLEY; IDLER,P/S (B)	8-97084-332-2	01	1	0412-0610
42	NUT; ADJ PLATE POWER STEERING<N40> M10 FLANGE	0-91150-110-0	01	1	9701-9905
42	NUT; ADJ PLATE 4JG2 ENG(RJC) POWER STEERING<N40> M10 FLANGE	0-91150-110-0	01	1	9906-0207
42	NUT; ADJ PLATE 4JH1 ENG(RJX) M10 FLANGE	0-91150-110-0	01	1	0208-0411
42	NUT; ADJ PLATE 4JH1 ENG(RJX) M10 FLANGE	0-91150-110-0	01	1	0412-0511
42	NUT; ADJ PLATE 4JH1-TC ENG(RDM) M10 FLANGE	0-91150-110-0	01	1	0512-0602
42	NUT; ADJ PLATE 4JH1-TC ENG(RDM) M10 FLANGE	0-91180-110-0	01	1	0603-0610
47	BELT; P/S PUMP POWER STEERING<N40>	8-97085-131-0	01	1	9701-9905
47	BELT; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40>	8-97085-131-0	01	1	9906-0207
47	BELT; P/S PUMP 4JH1 ENG(RJX)	8-97085-131-0	01	1	0208-0411
47	BELT; P/S PUMP 4JH1 ENG(RJX)	8-97085-131-0	01	1	0412-0511
47	BELT; P/S PUMP 4JH1-TC ENG(RDM)	8-97085-131-0	01	1	0512-0610

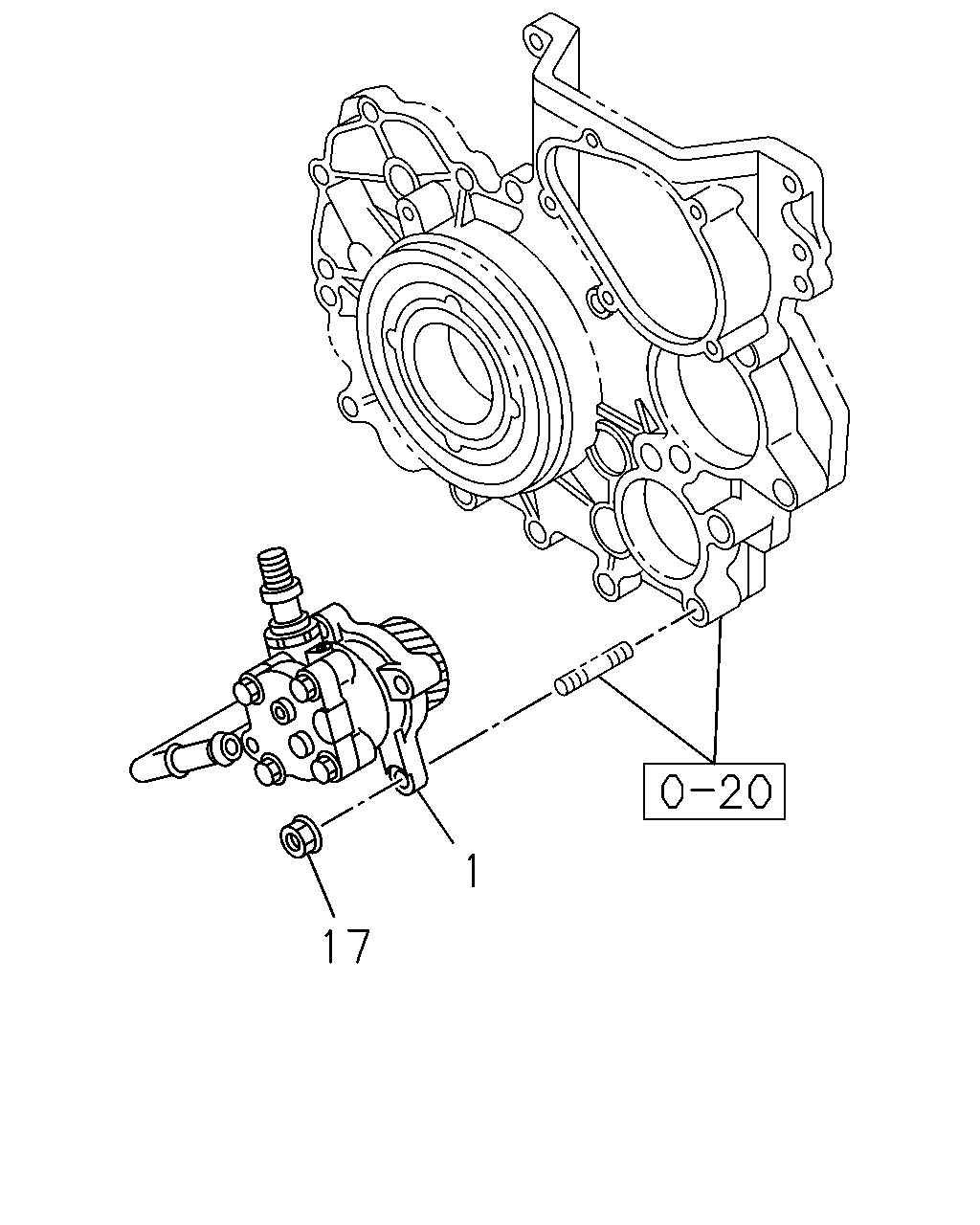

20 1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97084-207-0	01	1	9701-9903
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97226-344-0	01	1	9904-9905
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40>	8-97226-344-0	01	1	9906-0001
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40>	8-97247-061-2	01	1	0002-0206
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40>	8-97354-730-0	01	1	0207-0207
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97354-730-0	01	1	0208-0411
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97354-730-0	01	1	0412-0610
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG(LFB)	8-98006-823-3	01	1	0611-
17	NUT; POWER STRG PUMP POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9701-9905
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC) POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9906-0207
17	NUT; POWER STRG PUMP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0208-0411
17	NUT; POWER STRG PUMP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0412-0511
17	NUT; POWER STRG PUMP 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	01	1	0512-0602
17	NUT; POWER STRG PUMP 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	01	1	0603-0610
17	NUT; POWER STRG PUMP 4JJ1 ENG(LFB) M8 FLANGE	0-91180-208-0	03	1	0611-
