Sayfa 4-31 - Isuzu EPC

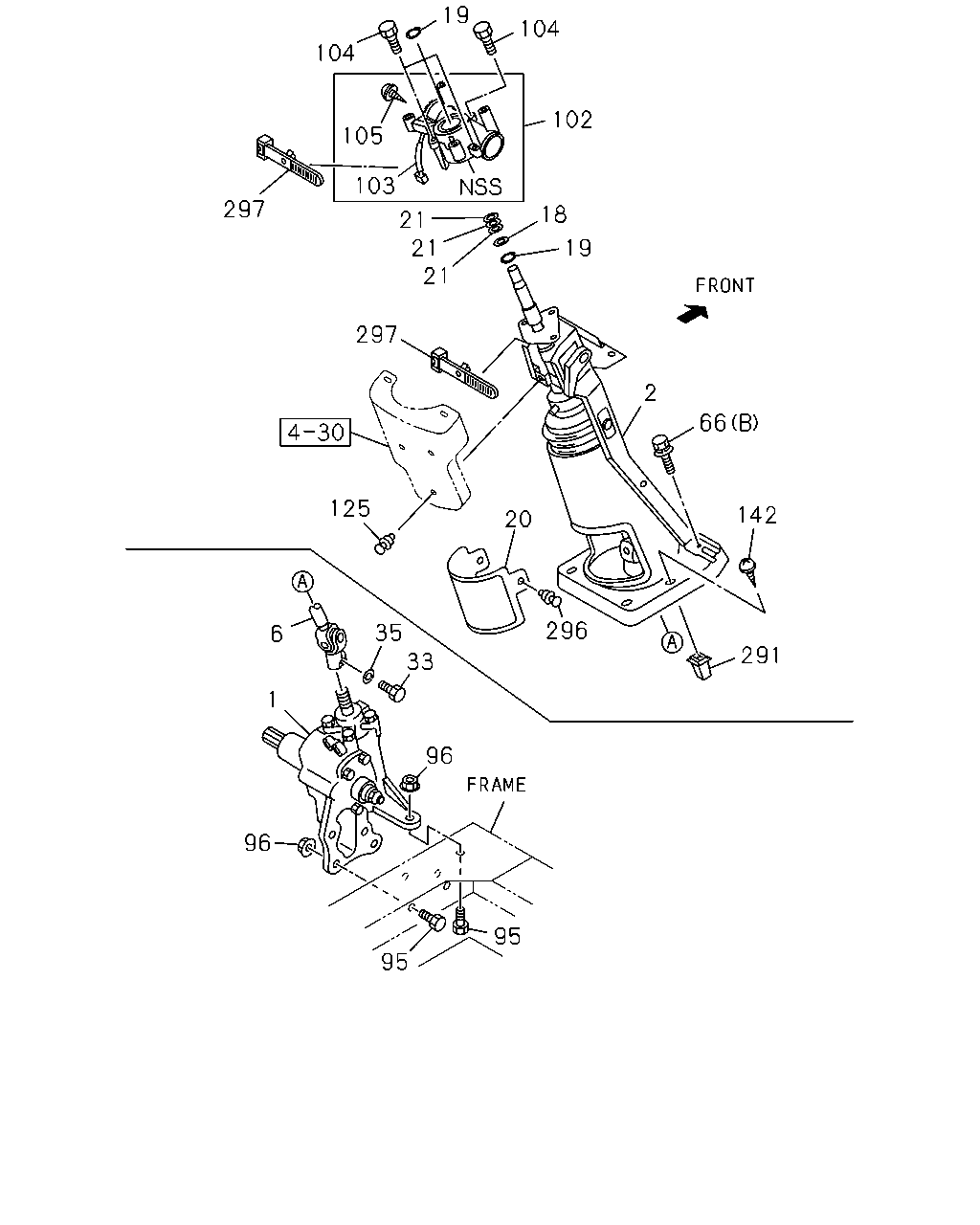

4-31 — STEERING COLUMN AND SHAFT (#139089) — 303 parça

19 104 104 102 105 103 297 18 21 21 21 19 297 2 66 4 30 125 142 20 296 35 6 291 33 1 96 96 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97069-705-1	01	1	9701-9905
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40>	8-97173-466-3	01	1	9906-0207
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97305-046-0	01	1	0208-0302
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97356-105-1	01	1	0303-0411
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97356-105-8	01	1	0412-
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97069-706-0	01	1	9701-0207
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9701-9812
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-9905
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	9906-0207
2	SHAFT ASM; STRG BLACK TAI	8-97967-355-0	01	1	0208-0411
2	SHAFT ASM; STRG BLACK TAI	8-97967-355-0	01	1	0412-
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9701-9812
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-9905
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	9906-0207
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97157-807-0	01	1	9701-9702
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9703-9905
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	9906-0207
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-0	01	1	0208-0208
4	SHAFT; STRG	8-97096-763-0	01	1	9701-9702
4	SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9703-9712
4	SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-9812
4	SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-110-0	01	1	9801-9812
4	SHAFT; STRG TILT STEERING<N33> TAI	8-97201-110-1	01	1	9901-0207
4	SHAFT; STRG TAI	8-97201-110-1	01	1	0208-0411
4	SHAFT; STRG TAI	8-97201-110-1	01	1	0412-
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9703-0207
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0208
6	SHAFT; STRG LWR	8-97094-625-1	01	1	9701-9702
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9703-9712
6	SHAFT; STRG LWR TILT STEERING<N33> TAI	8-97201-107-0	01	1	9801-0207
6	SHAFT; STRG LWR TAI	8-97201-107-0	01	1	0208-0411
6	SHAFT; STRG LWR TAI	8-97201-107-0	01	1	0412-
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9703-0207
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0208
18	WASHER; STEERING SHAFT ID=19	8-94146-919-0	01	1	9701-0411
18	WASHER; STEERING SHAFT ID=19	8-94146-919-0	01	1	0412-
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	02	1	9701-0411
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	02	1	0412-
20	COVER; STRG SHAFT DARK BEIGE	8-97097-005-1	01	1	9701-9704
20	COVER; STRG SHAFT DARK BEIGE	8-97158-892-0	01	1	9705-9905
20	COVER; STRG SHAFT BLACK	8-97291-634-1	01	1	9906-0411
20	COVER; STRG SHAFT BLACK	8-97291-634-1	01	1	0412-
21	WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	9701-0411
21	WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	0412-
33	BOLT; STRG SHAFT TO UNIT M10X33	8-94249-011-1	01	1	9701-9801
33	BOLT; STRG SHAFT TO UNIT EXC. TILT STEERING<N33> M10X33	8-94249-011-1	01	1	9802-0207
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	9802-0207
33	BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	0208-0411
33	BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	0412-
35	WASHER; LK,STRG SHAFT ID=10.2	9-09150-810-0	01	1	9701-9801
35	WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> ID=10.2	9-09150-810-0	01	1	9802-0207
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> ID=8.2	9-09150-508-0	01	1	9802-0207
35	WASHER; LK,STRG SHAFT ID=8.2	9-09150-508-0	01	1	0208-0411
35	WASHER; LK,STRG SHAFT ID=8.2	9-09150-508-0	01	1	0412-0603
35	WASHER; LK,STRG SHAFT ID=8.2	0-91510-508-0	01	1	0604-
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	04	1	9701-0411
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	04	1	0412-0611
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-
66	BOLT; STRG COLUMN TILT STEERING<N33> (A) TAI	8-97076-831-0	01	1	9701-0207
66	BOLT; STRG COLUMN (A) TAI	8-97076-831-0	01	1	0208-0411
66	BOLT; STRG COLUMN (A) TAI	8-97076-831-0	01	1	0412-
95	BOLT; STRG UNIT M12X39	8-97029-320-0	05	1	9701-9809
95	BOLT; STRG UNIT M12X45	8-97212-810-1	05	1	9810-0411
95	BOLT; STRG UNIT M12X45	8-97212-810-1	05	1	0412-
96	NUT; STRG UNIT M12 FLANGE	8-94436-194-0	05	1	9701-0411
96	NUT; STRG UNIT M12 FLANGE	8-94436-194-0	05	1	0412-0610
96	NUT; STRG UNIT M12 FLANGE	8-97359-618-0	05	1	0611-
102	LOCK ASM; STRG	8-97170-365-0	01	1	9701-9905
102	LOCK ASM; STRG 4JG2 ENG(RJC)	8-97170-365-0	01	1	9906-0207
102	LOCK ASM; STRG 4JH1 ENG(RJX)	8-97170-365-0	01	1	0208-0308
102	LOCK ASM; STRG 4JH1 ENG(RJX)	8-97170-364-0	01	1	0309-0411
102	LOCK ASM; STRG 4JH1 ENG(RJX)	8-97170-364-0	01	1	0412-0511
102	LOCK ASM; STRG 4JH1-TC ENG(RDM)	8-97170-364-0	01	1	0512-0610
102	LOCK ASM; STRG 4JJ1 ENG(LFB)	8-97170-364-0	01	1	0611-
103	SWITCH; IGNITION	8-97117-997-0	01	1	9701-9905
103	SWITCH; IGNITION 4JG2 ENG(RJC)	8-97117-997-0	01	1	9906-0207
103	SWITCH; IGNITION 4JH1 ENG(RJX)	8-97117-997-0	01	1	0208-0308
103	SWITCH; IGNITION 4JH1 ENG(RJX)	8-97088-268-0	01	1	0309-0411
103	SWITCH; IGNITION 4JH1 ENG(RJX)	8-97088-268-0	01	1	0412-0511
103	SWITCH; IGNITION 4JH1-TC ENG(RDM)	8-97088-268-0	01	1	0512-0610
103	SWITCH; IGNITION 4JJ1 ENG(LFB)	8-97088-268-0	01	1	0611-
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER USA	8-97122-790-0	03	1	9701-0411
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER USA	8-97122-790-0	03	1	0412-
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9701-9905
105	SCREW; IGN SW 4JG2 ENG(RJC) M4X12 W/LK WASHER	9-03910-412-0	01	1	9906-0207
105	SCREW; IGN SW 4JH1 ENG(RJX) M4X12 W/LK WASHER	9-03910-412-0	01	1	0208-0411
105	SCREW; IGN SW 4JH1 ENG(RJX) M4X12 W/LK WASHER	9-03910-412-0	01	1	0412-0511
105	SCREW; IGN SW 4JH1-TC ENG(RDM) M4X12 W/LK WASHER	9-03910-412-0	01	1	0512-0610
105	SCREW; IGN SW 4JJ1 ENG(LFB) M4X12 W/LK WASHER	9-03910-412-0	01	1	0611-
125	CLIP; STRG SHAFT DARK BEIGE	8-97856-011-0	01	1	9701-9905
125	CLIP; STRG SHAFT DARK GRAY	8-97857-542-0	01	1	9906-0411
125	CLIP; STRG SHAFT DARK GRAY	8-97857-542-0	01	1	0412-0511
125	CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	0512-
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74305-520-0	06	1	9701-0411
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74305-520-0	06	1	0412-0604
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74365-520-0	06	1	0605-0612
142	SCREW; BRKT COWL M5X18 TAPPING	0-72180-518-0	06	1	0701-
291	GROMMET; STRG SHAFT COVER H=15	8-94463-268-1	06	1	9701-0411
291	GROMMET; STRG SHAFT COVER H=15	8-94463-268-1	06	1	0412-
296	CLIP; COVER DARK BEIGE	8-97856-011-0	01	1	9701-9905
296	CLIP; COVER BLACK	8-97868-409-0	01	1	9906-0411
296	CLIP; COVER BLACK	8-97868-409-0	01	1	0412-
297	CLIP; BAND L=145 USA	8-94257-575-1	03	1	9701-9812
297	CLIP; BAND L=145 USA	8-94257-575-1	02	1	9901-9901
297	CLIP; BAND L=145 USA	8-94257-575-1	03	1	9902-0411
297	CLIP; BAND L=145 USA	8-94257-575-1	03	1	0412-

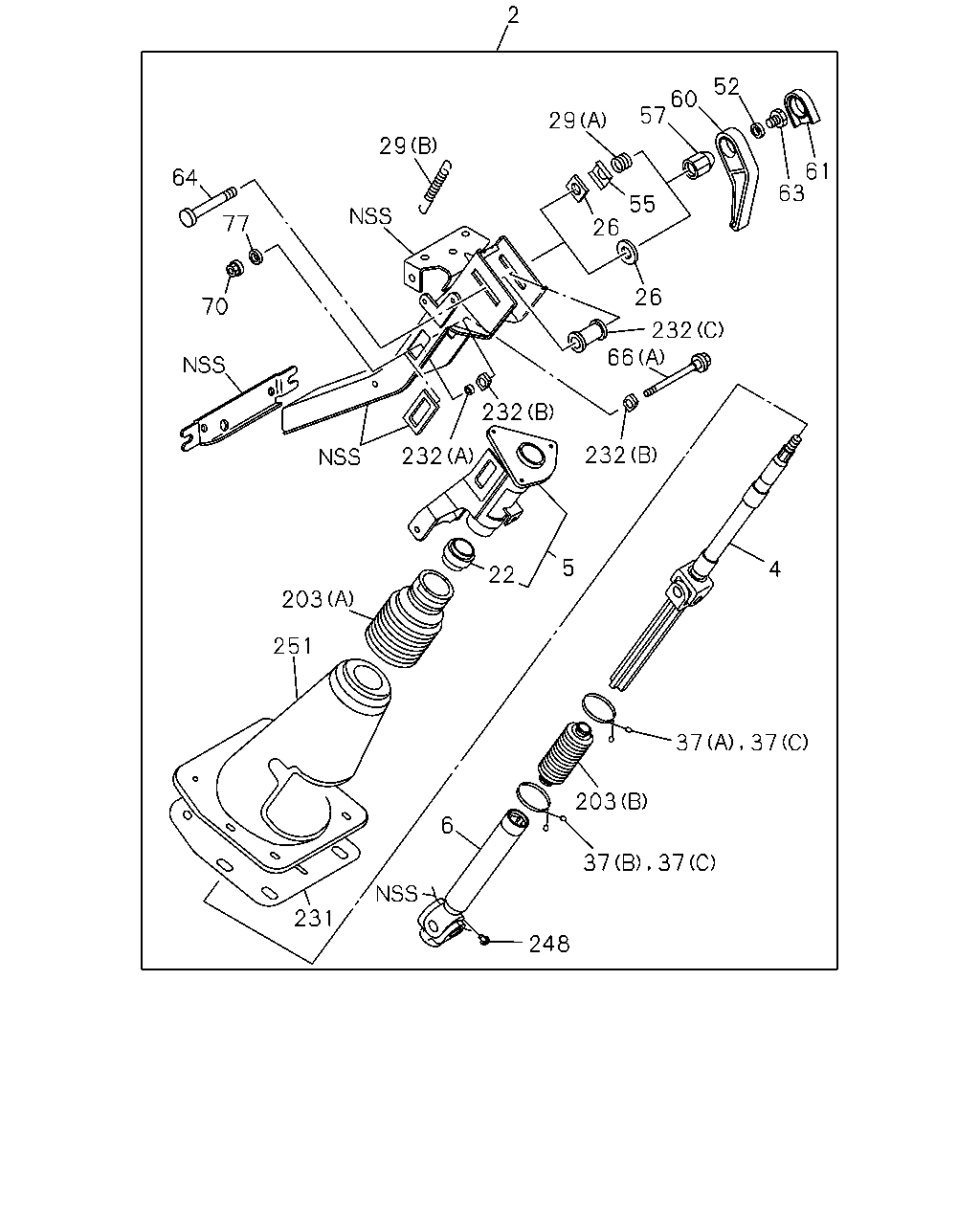

2 52 60 57 29 29 61 63 64 55 77 26 26 70 232 66 232 232 232 5 4 22 203 251 37 37 203 6 231 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9701-9812
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-9905
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	9906-0207
2	SHAFT ASM; STRG BLACK TAI	8-97967-355-0	01	1	0208-0411
2	SHAFT ASM; STRG BLACK TAI	8-97967-355-0	01	1	0412-
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9701-9812
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-9905
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	9906-0207
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97157-807-0	01	1	9701-9702
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9703-9905
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	9906-0207
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-0	01	1	0208-0208
4	SHAFT; STRG	8-97096-763-0	01	1	9701-9702
4	SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9703-9712
4	SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-9812
4	SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-110-0	01	1	9801-9812
4	SHAFT; STRG TILT STEERING<N33> TAI	8-97201-110-1	01	1	9901-0207
4	SHAFT; STRG TAI	8-97201-110-1	01	1	0208-0411
4	SHAFT; STRG TAI	8-97201-110-1	01	1	0412-
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9703-0207
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0208
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9701-0207
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> TAI	8-97093-792-2	01	1	9701-0207
5	COLUMN; STRG TAI	8-97093-792-2	01	1	0208-0411
5	COLUMN; STRG TAI	8-97093-792-2	01	1	0412-
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	9701-9702
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97173-626-0	01	1	9703-0207
6	SHAFT; STRG LWR	8-97094-625-1	01	1	9701-9702
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9703-9712
6	SHAFT; STRG LWR TILT STEERING<N33> TAI	8-97201-107-0	01	1	9801-0207
6	SHAFT; STRG LWR TAI	8-97201-107-0	01	1	0208-0411
6	SHAFT; STRG LWR TAI	8-97201-107-0	01	1	0412-
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9703-0207
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0208
22	BUSHING; STRG COLUMN TAI	8-97076-821-0	01	1	9701-9702
22	BUSHING; STRG COLUMN TILT STEERING<N33> TAI	8-97076-821-0	01	1	9703-0207
22	BUSHING; STRG COLUMN TAI	8-97076-821-0	01	1	0208-0411
22	BUSHING; STRG COLUMN TAI	8-97076-821-0	01	1	0412-
22	BUSHING; STRG COLUMN EXC. TILT STEERING<N33>	8-97201-085-0	01	1	9703-0207
26	PLATE; ADJ TILT STEERING<N33>	8-97076-827-0	01	1	9701-9812
26	PLATE; ADJ TILT STEERING<N33> TAI	8-97222-989-0	01	1	9901-0207
26	PLATE; ADJ TAI	8-97222-989-0	01	1	0208-0411
26	PLATE; ADJ TAI	8-97222-989-0	01	1	0412-
29	SPRING; COLUMN TILT STEERING<N33> (B) TAI	8-97076-811-0	01	1	9701-0207
29	SPRING; COLUMN (B) TAI	8-97076-811-0	01	1	0208-0411
29	SPRING; COLUMN (B) TAI	8-97076-811-0	01	1	0412-
29	SPRING; COLUMN TILT STEERING<N33> (A)	8-97076-829-0	01	1	9701-9812
37	CLAMP; BOOT TO SHAFT (B)	8-94165-569-0	01	1	9701-9702
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (B)	8-94165-569-0	01	1	9703-9812
37	CLAMP; BOOT TO SHAFT (A)	8-94165-570-0	01	1	9701-9702
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (A)	8-94165-570-0	01	1	9703-9812
37	CLAMP; BOOT TO SHAFT EXC. TILT STEERING<N33> (C) TAI	8-97173-630-0	02	1	9703-9812
37	CLAMP; BOOT TO SHAFT (C) TAI	8-97173-630-0	02	1	9901-0411
37	CLAMP; BOOT TO SHAFT (C) TAI	8-97173-630-0	02	1	0412-
52	WASHER; PL,ADJ LEVER TILT STEERING<N33> TAI	8-97076-813-0	01	1	9701-0207
52	WASHER; PL,ADJ LEVER TAI	8-97076-813-0	01	1	0208-0411
52	WASHER; PL,ADJ LEVER TAI	8-97076-813-0	01	1	0412-
55	PLATE; GUIDE TILT STEERING<N33>	8-97076-828-0	01	1	9701-9812
57	NUT; ADJ BOLT TILT STEERING<N33>	8-97076-826-0	01	1	9701-9812
57	NUT; ADJ BOLT TILT STEERING<N33> TAI	8-97222-988-0	01	1	9901-0207
57	NUT; ADJ BOLT TAI	8-97222-988-0	01	1	0208-0411
57	NUT; ADJ BOLT TAI	8-97222-988-0	01	1	0412-
60	LEVER; ADJ,STRG COLUMN TILT STEERING<N33> TAI	8-97076-830-0	01	1	9701-0207
60	LEVER; ADJ,STRG COLUMN TAI	8-97076-830-0	01	1	0208-0411
60	LEVER; ADJ,STRG COLUMN TAI	8-97076-830-0	01	1	0412-
61	CAP; ADJ LEVER,TILT STRG TILT STEERING<N33> TAI	8-97076-814-0	01	1	9701-0207
61	CAP; ADJ LEVER,TILT STRG TAI	8-97076-814-0	01	1	0208-0411
61	CAP; ADJ LEVER,TILT STRG TAI	8-97076-814-0	01	1	0412-
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-824-0	01	1	9701-9812
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33> TAI	8-97222-986-0	01	1	9901-0207
63	BOLT; ADJ LEVER,TILT STRG TAI	8-97222-986-0	01	1	0208-0411
63	BOLT; ADJ LEVER,TILT STRG TAI	8-97222-986-0	01	1	0412-
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97076-825-0	01	1	9701-9812
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33> TAI	8-97222-987-0	01	1	9901-0207
64	BOLT; ADJ,PROTECTOR TAI	8-97222-987-0	01	1	0208-0411
64	BOLT; ADJ,PROTECTOR TAI	8-97222-987-0	01	1	0412-
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	04	1	9701-0411
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	04	1	0412-0611
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-
66	BOLT; STRG COLUMN TILT STEERING<N33> (A) TAI	8-97076-831-0	01	1	9701-0207
66	BOLT; STRG COLUMN (A) TAI	8-97076-831-0	01	1	0208-0411
66	BOLT; STRG COLUMN (A) TAI	8-97076-831-0	01	1	0412-
70	NUT; STRG COLUMN TILT STEERING<N33> TAI	8-97076-807-0	01	1	9701-0207
70	NUT; STRG COLUMN TAI	8-97076-807-0	01	1	0208-0411
70	NUT; STRG COLUMN TAI	8-97076-807-0	01	1	0412-
77	WASHER; PL,COLUMN TILT STEERING<N33> TAI	8-97076-804-0	01	1	9701-0207
77	WASHER; PL,COLUMN TAI	8-97076-804-0	01	1	0208-0411
77	WASHER; PL,COLUMN TAI	8-97076-804-0	01	1	0412-
203	BOOT; STRG COLUMN LWR (A) TAI	8-97076-822-0	01	1	9701-9702
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (A) TAI	8-97076-822-0	01	1	9703-0207
203	BOOT; STRG COLUMN LWR (A) TAI	8-97076-822-0	01	1	0208-0411
203	BOOT; STRG COLUMN LWR (A) TAI	8-97076-822-0	01	1	0412-
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-94127-878-0	01	1	9701-9712
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B) TAI	8-97201-115-0	01	1	9801-0207
203	BOOT; STRG COLUMN LWR (B) TAI	8-97201-115-0	01	1	0208-0411
203	BOOT; STRG COLUMN LWR (B) TAI	8-97201-115-0	01	1	0412-
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-94159-074-0	01	1	9701-9702
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97173-631-0	01	1	9703-0207
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97351-851-0	01	1	0208-0208
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-97173-632-0	01	1	9703-0207
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9701-9702
231	SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9703-0207
231	SEAL; RUBBER,STRG COLUMN TAI	8-97076-808-0	01	1	0208-0411
231	SEAL; RUBBER,STRG COLUMN TAI	8-97076-808-0	01	1	0412-
231	SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9703-0207
232	SPACER; STRG SHAFT TILT STEERING<N33> (B) TAI	8-97076-805-0	02	1	9701-0207
232	SPACER; STRG SHAFT (B) TAI	8-97076-805-0	02	1	0208-0411
232	SPACER; STRG SHAFT (B) TAI	8-97076-805-0	02	1	0412-
232	SPACER; STRG SHAFT TILT STEERING<N33> (A) TAI	8-97076-806-0	01	1	9701-0207
232	SPACER; STRG SHAFT (A) TAI	8-97076-806-0	01	1	0208-0411
232	SPACER; STRG SHAFT (A) TAI	8-97076-806-0	01	1	0412-
232	SPACER; STRG SHAFT TILT STEERING<N33> (C) TAI	8-97148-277-0	01	1	9701-0207
232	SPACER; STRG SHAFT (C) TAI	8-97148-277-0	01	1	0208-0411
232	SPACER; STRG SHAFT (C) TAI	8-97148-277-0	01	1	0412-
248	SCREW; YOKE	8-97076-819-0	01	1	9701-9702
248	SCREW; YOKE TILT STEERING<N33>	8-97076-819-0	01	1	9703-9712
248	SCREW; YOKE TILT STEERING<N33> TAI	8-97222-984-0	01	1	9901-0207
248	SCREW; YOKE TAI	8-97222-984-0	01	1	0208-0411
248	SCREW; YOKE TAI	8-97222-984-0	01	1	0412-
251	COVER; LWR DARK BEIGE	8-97157-808-0	01	1	9701-9702
251	COVER; LWR TILT STEERING<N33> DARK BEIGE	8-97157-808-1	01	1	9703-9905
251	COVER; LWR TILT STEERING<N33> BLACK TAI	8-97159-168-1	01	1	9906-0207
251	COVER; LWR BLACK TAI	8-97159-168-1	01	1	0208-0411
251	COVER; LWR BLACK TAI	8-97159-168-1	01	1	0412-
251	COVER; LWR EXC. TILT STEERING<N33> DARK BEIGE	8-97158-976-0	01	1	9703-9905
251	COVER; LWR EXC. TILT STEERING<N33> BLACK	8-97159-175-0	01	1	9906-0207

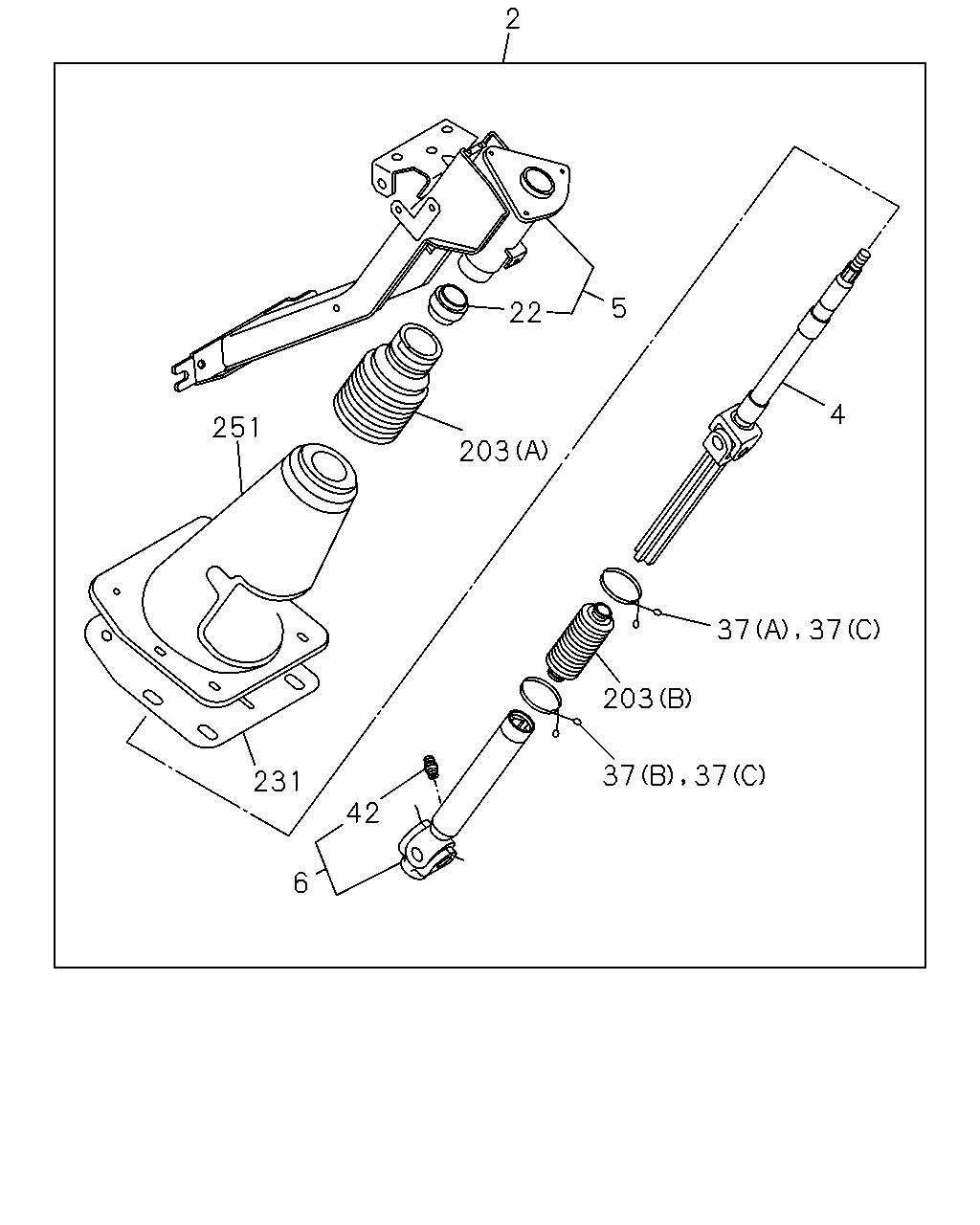

2 5 22 4 251 203 37 37 203 231 42 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-1	01	1	9701-9812
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-632-0	01	1	9901-9905
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	9906-0207
2	SHAFT ASM; STRG BLACK TAI	8-97967-355-0	01	1	0208-0411
2	SHAFT ASM; STRG BLACK TAI	8-97967-355-0	01	1	0412-
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-804-1	01	1	9701-9812
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97291-628-0	01	1	9901-9905
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	9906-0207
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97157-807-0	01	1	9701-9702
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9703-9905
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	9906-0207
2	SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-0	01	1	0208-0208
4	SHAFT; STRG	8-97096-763-0	01	1	9701-9702
4	SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9703-9712
4	SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-9812
4	SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-110-0	01	1	9801-9812
4	SHAFT; STRG TILT STEERING<N33> TAI	8-97201-110-1	01	1	9901-0207
4	SHAFT; STRG TAI	8-97201-110-1	01	1	0208-0411
4	SHAFT; STRG TAI	8-97201-110-1	01	1	0412-
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9703-0207
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0208
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9701-0207
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> TAI	8-97093-792-2	01	1	9701-0207
5	COLUMN; STRG TAI	8-97093-792-2	01	1	0208-0411
5	COLUMN; STRG TAI	8-97093-792-2	01	1	0412-
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	9701-9702
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97173-626-0	01	1	9703-0207
6	SHAFT; STRG LWR	8-97094-625-1	01	1	9701-9702
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9703-9712
6	SHAFT; STRG LWR TILT STEERING<N33> TAI	8-97201-107-0	01	1	9801-0207
6	SHAFT; STRG LWR TAI	8-97201-107-0	01	1	0208-0411
6	SHAFT; STRG LWR TAI	8-97201-107-0	01	1	0412-
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9703-0207
6	SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0208
22	BUSHING; STRG COLUMN TAI	8-97076-821-0	01	1	9701-9702
22	BUSHING; STRG COLUMN TILT STEERING<N33> TAI	8-97076-821-0	01	1	9703-0207
22	BUSHING; STRG COLUMN TAI	8-97076-821-0	01	1	0208-0411
22	BUSHING; STRG COLUMN TAI	8-97076-821-0	01	1	0412-
22	BUSHING; STRG COLUMN EXC. TILT STEERING<N33>	8-97201-085-0	01	1	9703-0207
37	CLAMP; BOOT TO SHAFT (B)	8-94165-569-0	01	1	9701-9702
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (B)	8-94165-569-0	01	1	9703-9812
37	CLAMP; BOOT TO SHAFT (A)	8-94165-570-0	01	1	9701-9702
37	CLAMP; BOOT TO SHAFT TILT STEERING<N33> (A)	8-94165-570-0	01	1	9703-9812
37	CLAMP; BOOT TO SHAFT EXC. TILT STEERING<N33> (C) TAI	8-97173-630-0	02	1	9703-9812
37	CLAMP; BOOT TO SHAFT (C) TAI	8-97173-630-0	02	1	9901-0411
37	CLAMP; BOOT TO SHAFT (C) TAI	8-97173-630-0	02	1	0412-
42	NIPPLE; GREASE,SLEEVE YOKE EXC. TILT STEERING<N33>	8-97178-201-0	01	1	0208-0208
203	BOOT; STRG COLUMN LWR (A) TAI	8-97076-822-0	01	1	9701-9702
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (A) TAI	8-97076-822-0	01	1	9703-0207
203	BOOT; STRG COLUMN LWR (A) TAI	8-97076-822-0	01	1	0208-0411
203	BOOT; STRG COLUMN LWR (A) TAI	8-97076-822-0	01	1	0412-
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-94127-878-0	01	1	9701-9712
203	BOOT; STRG COLUMN LWR TILT STEERING<N33> (B) TAI	8-97201-115-0	01	1	9801-0207
203	BOOT; STRG COLUMN LWR (B) TAI	8-97201-115-0	01	1	0208-0411
203	BOOT; STRG COLUMN LWR (B) TAI	8-97201-115-0	01	1	0412-
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-94159-074-0	01	1	9701-9702
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97173-631-0	01	1	9703-0207
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97351-851-0	01	1	0208-0208
203	BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-97173-632-0	01	1	9703-0207
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9701-9702
231	SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9703-0207
231	SEAL; RUBBER,STRG COLUMN TAI	8-97076-808-0	01	1	0208-0411
231	SEAL; RUBBER,STRG COLUMN TAI	8-97076-808-0	01	1	0412-
231	SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9703-0207
251	COVER; LWR DARK BEIGE	8-97157-808-0	01	1	9701-9702
251	COVER; LWR TILT STEERING<N33> DARK BEIGE	8-97157-808-1	01	1	9703-9905
251	COVER; LWR TILT STEERING<N33> BLACK TAI	8-97159-168-1	01	1	9906-0207
251	COVER; LWR BLACK TAI	8-97159-168-1	01	1	0208-0411
251	COVER; LWR BLACK TAI	8-97159-168-1	01	1	0412-
251	COVER; LWR EXC. TILT STEERING<N33> DARK BEIGE	8-97158-976-0	01	1	9703-9905
251	COVER; LWR EXC. TILT STEERING<N33> BLACK	8-97159-175-0	01	1	9906-0207

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
