Isuzu WW
▶
TRUCKS
▶
NHR
▶
50760 - NHR/NKR TAIWAN
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

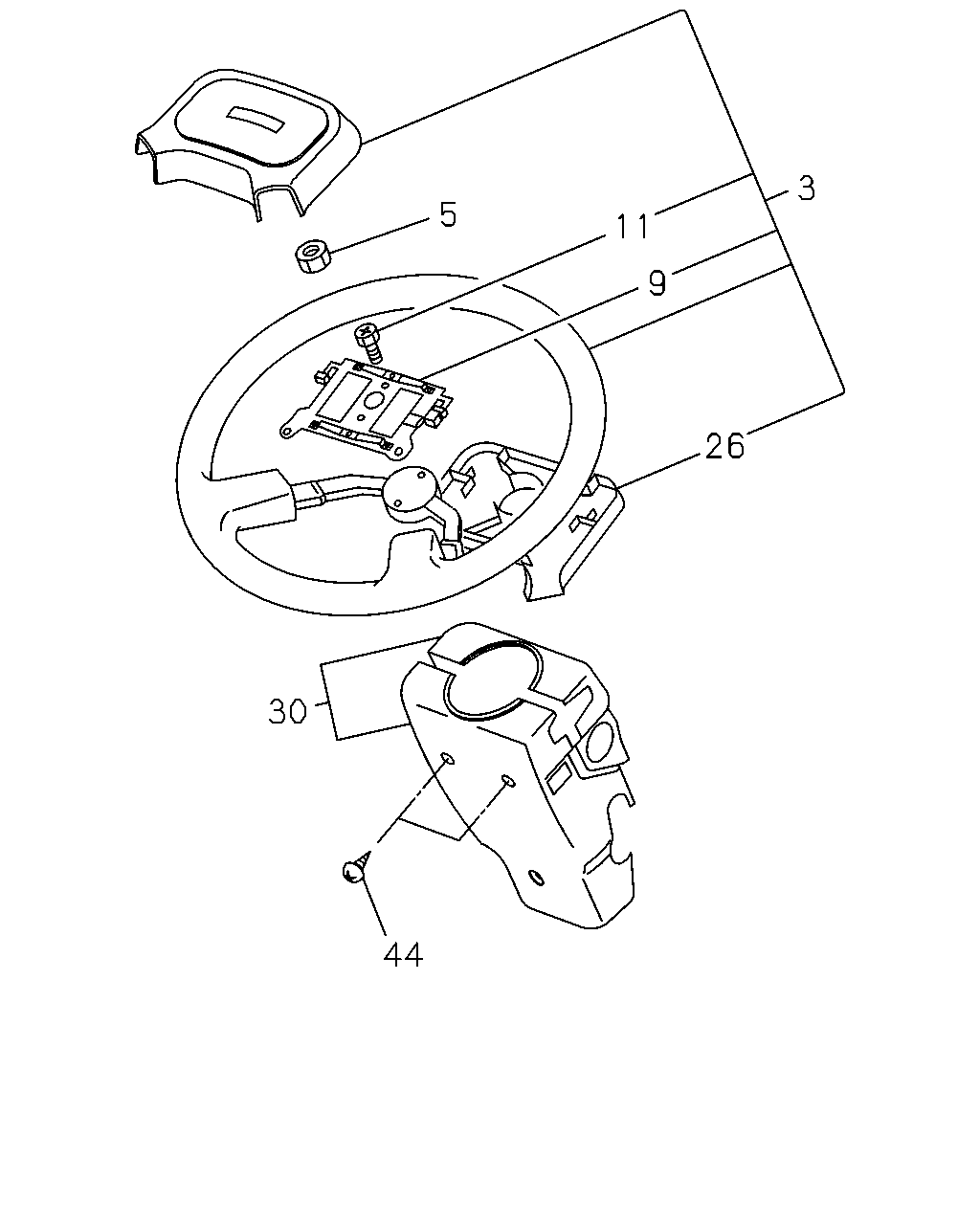

4-30 — STEERING WHEEL AND COWL
(#139088) — 23 parça
3
5
11
9
26
30
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
DARK BEIGE TAI
8-97965-519-1
01
1
9701-9905
3
WHEEL; STRG
DARK GRAY TAI
8-97966-707-1
01
1
9906-0411
3
WHEEL; STRG
DARK GRAY TAI
8-97966-707-1
01
1
0412-0511
3
WHEEL; STRG
DARK GRAY TAI
8-97967-487-1
01
1
0512-
5
NUT; STRG WHEEL TO SHAFT
M14
9-99111-414-0
01
1
9701-0411
5
NUT; STRG WHEEL TO SHAFT
M14
9-99111-414-0
01
1
0412-0512
5
NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
0601-
9
PLATE; HORN CONTACT
TAI
8-97967-165-0
01
1
9701-0411
9
PLATE; HORN CONTACT
TAI
8-97967-165-0
01
1
0412-
11
SCREW; PLATE TO BUTTON
TAI
8-97967-166-0
02
1
9701-0411
11
SCREW; PLATE TO BUTTON
TAI
8-97967-166-0
02
1
0412-
26
COVER; STRG WHEEL,LWR
DARK BEIGE TAI
8-97967-168-0
01
1
9701-9905
26
COVER; STRG WHEEL,LWR
DARK GRAY TAI
8-97967-170-0
01
1
9906-0411
26
COVER; STRG WHEEL,LWR
DARK GRAY TAI
8-97967-170-0
01
1
0412-0511
26
COVER; STRG WHEEL,LWR
DARK GRAY TAI
8-97967-497-0
01
1
0512-
30
COWL; STEERING
TILT STEERING<N33> DARK BEIGE TAI
8-97856-001-8
01
1
9701-9701
30
COWL; STEERING
DARK BEIGE TAI
8-97840-236-0
01
1
9702-9905
30
COWL; STEERING
DARK GRAY TAI
8-97966-857-0
01
1
9906-0411
30
COWL; STEERING
DARK GRAY TAI
8-97966-857-0
01
1
0412-0511
30
COWL; STEERING
DARK GRAY TAI
8-97967-485-0
01
1
0512-
30
COWL; STEERING
EXC. TILT STEERING<N33> DARK BEIGE
8-97856-002-7
01
1
9701-9701
44
SCREW; STRG COWL
M5X16 W/LK&PL WASHER TAI
8-94279-400-0
02
1
9701-0411
44
SCREW; STRG COWL
M5X16 W/LK&PL WASHER TAI
8-94279-400-0
02
1
0412-
