Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#139087) — 216 parça

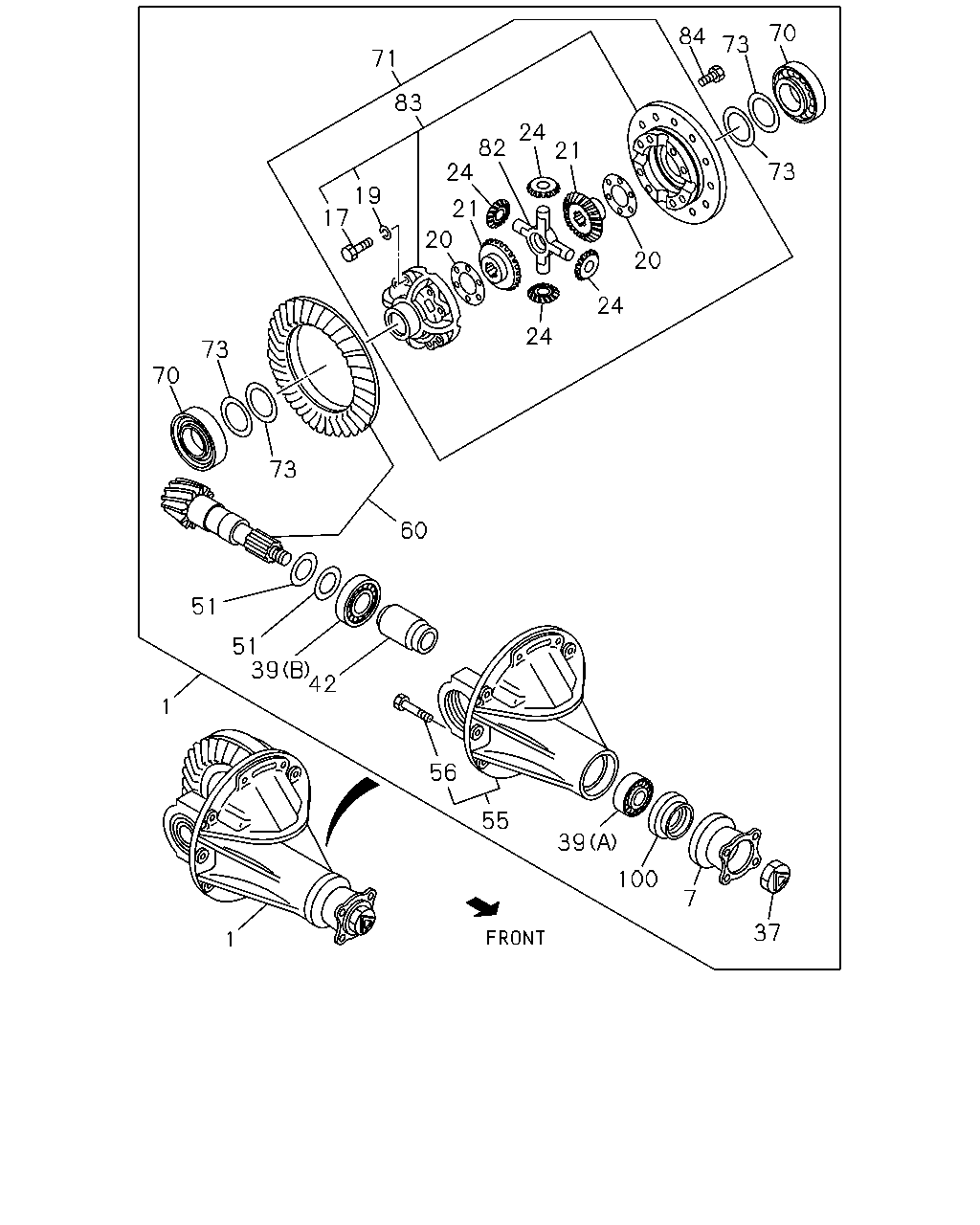

70 84 73 71 83 24 21 82 24 73 19 17 21 20 20 24 24 73 70 73 60 51 51 39 42 56 55 39 100 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	FLANGE; FINAL	8-94477-723-4	01	1	0208-0411
7	FLANGE; FINAL	8-94477-723-4	01	1	0412-
7	FLANGE; FINAL FINAL GEAR RATIO 41/8(RU1) TAI	8-97075-216-2	01	1	9701-9905
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0208-0411
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0412-
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1) M12X58 TAI	5-09020-007-1	08	1	9701-9905
19	WASHER; LK,DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1) ID=12.2	9-09150-612-0	08	1	9701-9905
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0208-0411
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0412-
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/8(RU1) T=1.00 TAI	9-41562-602-0	02	1	9701-9905
21	GEAR; SIDE,DIFF Z=20	8-97300-269-0	02	1	0208-0303
21	GEAR; SIDE,DIFF Z=20	8-97362-599-0	02	1	0304-0411
21	GEAR; SIDE,DIFF Z=20	8-97362-599-0	02	1	0412-
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8(RU1) Z=18 TAI	9-41561-047-1	02	1	9701-9905
24	GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0208-0303
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0411
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0412-0510
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8(RU1) Z=10 TAI	9-41551-029-1	04	1	9701-9905
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0208-0411
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0412-
37	NUT; DRIVING PINION FINAL GEAR RATIO 41/8(RU1) M24 FLANGE TAI	8-94376-261-1	01	1	9701-9905
39	BEARING; FINAL PINION FINAL GEAR RATIO 41/8(RU1) (A) OUTER NSK TAI	9-00093-078-0	01	1	9701-9905
39	BEARING; FINAL PINION FINAL GEAR RATIO 41/8(RU1) (B) INNER JTEKT TAI	9-00093-079-0	01	1	9701-9905
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0208-0411
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0412-
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 41/8(RU1) L=53.35 TAI	9-41219-634-1	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.12 TAI	9-41219-608-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.16 TAI	9-41219-610-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.20 TAI	9-41219-612-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.24 TAI	9-41219-614-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.28 TAI	9-41219-616-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.32 TAI	9-41219-618-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.36 TAI	9-41219-620-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.40 TAI	9-41219-622-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.44 TAI	9-41219-624-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.48 TAI	9-41219-626-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.52 TAI	9-41219-628-0	01	1	9701-9905
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) OD=89.5 T=2.56 TAI	9-41219-630-0	01	1	9701-9905
55	CARRIER; DIFF	8-97307-760-0	01	1	0208-0411
55	CARRIER; DIFF	8-97307-760-0	01	1	0412-
55	CARRIER; DIFF FINAL GEAR RATIO 41/8(RU1) TAI	8-94376-227-1	01	1	9701-9905
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0208-0411
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0412-
56	BOLT; BRG CAP FINAL GEAR RATIO 41/8(RU1) M14X80 TAI	8-94365-377-2	04	1	9701-9905
60	GEAR SET; FINAL DRIVE,RR 43/8	8-97319-159-0	01	1	0208-0610
60	GEAR SET; FINAL DRIVE,RR 43/11	8-97263-251-1	01	1	0611-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8 TAI	8-97076-962-0	01	1	9701-9905
60	GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0412-0412
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0501-0511
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) G.V.W. 4.0-4.5TON(RPR) 39/7	8-97319-160-0	01	1	0512-0610
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR) 43/10	8-97319-155-0	01	1	0611-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT) 41/7	8-97319-161-0	01	1	0501-0610
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.0-5.5TON(RPT) 41/9	8-97319-156-0	01	1	0611-
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0208-0411
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0412-
70	BEARING; DIFF CAGE FINAL GEAR RATIO 41/8(RU1) NSK TAI	9-00032-211-0	02	1	9701-9905
71	CAGE ASM; DIFF,FINAL DRIVE	8-97319-040-0	01	1	0208-0303
71	CAGE ASM; DIFF,FINAL DRIVE	8-97356-486-0	01	1	0304-0304
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0304-0411
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0412-0510
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0511-0610
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-0	01	1	0611-
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-180-0	01	1	0611-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) TAI	9-41510-605-0	01	1	9701-9905
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 41/8(RU1) T=0.50 TAI	9-41519-009-0	AR	1	9701-9905
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 41/8(RU1) T=0.25 TAI	9-41519-010-0	AR	1	9701-9905
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 41/8(RU1) T=0.30 TAI	9-41519-601-0	AR	1	9701-9905
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 41/8(RU1) T=0.35 TAI	9-41519-602-0	AR	1	9701-9905
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0208-0411
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0412-
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/8(RU1) TAI	9-41521-611-0	01	1	9701-9905
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0208-0411
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0412-0610
83	CAGE ASM; DIFF	8-97319-398-1	01	1	0611-
83	CAGE ASM; DIFF	8-97262-082-2	01	1	0611-
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) TAI	9-41510-610-0	01	1	9701-9905
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0208-0411
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0412-
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1) M12X22 TAI	9-09600-066-3	12	1	9701-9905
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0208-0411
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0412-
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 41/8(RU1) OD=78 NOK TAI	8-94408-084-1	01	1	9701-9905
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 41/8(RU1) OD=78 TKK	8-94408-085-1	01	1	9808-9905

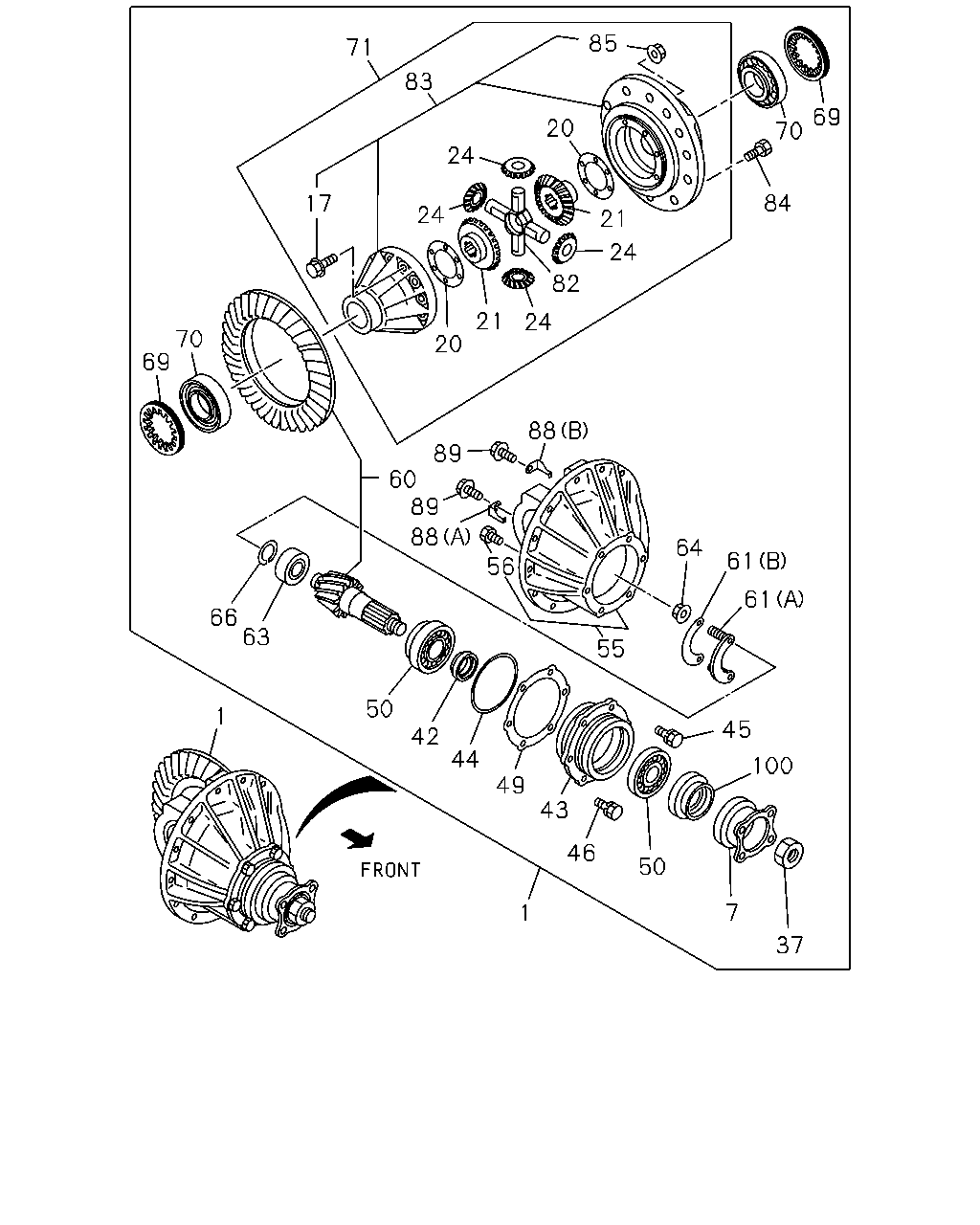

85 71 83 69 20 70 24 84 17 24 21 24 82 21 24 70 69 20 88 89 60 89 88 64 61 56 61 66 63 55 50 1 45 42 44 100 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR 43/8	8-97319-256-0	01	1	0208-0303
1	DRIVE ASM; FINAL,RR 43/8	8-97356-438-0	01	1	0304-0304
1	DRIVE ASM; FINAL,RR 43/8	8-97363-111-0	01	1	0304-0510
1	DRIVE ASM; FINAL,RR 43/8	8-98015-140-0	01	1	0511-0610
1	DRIVE ASM; FINAL,RR 43/11	8-98015-134-0	01	1	0611-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8 TAI	8-97080-668-0	01	1	9701-9905
1	DRIVE ASM; FINAL,RR 39/7	8-97363-112-0	01	1	0412-0412
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97363-112-0	01	1	0501-0510
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-141-0	01	1	0511-0511
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) G.V.W. 4.0-4.5TON(RPR) 39/7	8-98015-141-0	01	1	0512-0610
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR) 43/10	8-98015-136-0	01	1	0611-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT) 41/7	8-97363-113-0	01	1	0501-0510
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT) 41/7	8-98015-142-0	01	1	0511-0610
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.0-5.5TON(RPT) 41/9	8-98015-137-0	01	1	0611-
7	FLANGE; FINAL	8-94477-723-4	01	1	0208-0411
7	FLANGE; FINAL	8-94477-723-4	01	1	0412-
7	FLANGE; FINAL FINAL GEAR RATIO 41/8(RU1) TAI	8-97075-216-2	01	1	9701-9905
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0208-0411
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0412-
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1) M12X58 TAI	5-09020-007-1	08	1	9701-9905
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0208-0411
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0412-
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/8(RU1) T=1.00 TAI	9-41562-602-0	02	1	9701-9905
21	GEAR; SIDE,DIFF Z=20	8-97300-269-0	02	1	0208-0303
21	GEAR; SIDE,DIFF Z=20	8-97362-599-0	02	1	0304-0411
21	GEAR; SIDE,DIFF Z=20	8-97362-599-0	02	1	0412-
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/8(RU1) Z=18 TAI	9-41561-047-1	02	1	9701-9905
24	GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0208-0303
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0411
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0412-0510
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-
24	GEAR; PINION,DIFF FINAL GEAR RATIO 41/8(RU1) Z=10 TAI	9-41551-029-1	04	1	9701-9905
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0208-0411
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0412-
37	NUT; DRIVING PINION FINAL GEAR RATIO 41/8(RU1) M24 FLANGE TAI	8-94376-261-1	01	1	9701-9905
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0208-0411
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0412-
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 41/8(RU1) L=53.35 TAI	9-41219-634-1	01	1	9701-9905
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0208-0411
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0412-
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0208-0411
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0412-
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0208-0411
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0412-
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0208-0411
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0412-
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0208-0411
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0412-
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0208-0411
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0412-
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0208-0411
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0412-
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0208-0411
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0412-
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0208-0411
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0412-
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0208-0411
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0412-
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0208-0411
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0412-
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0208-0411
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0412-
55	CARRIER; DIFF	8-97307-760-0	01	1	0208-0411
55	CARRIER; DIFF	8-97307-760-0	01	1	0412-
55	CARRIER; DIFF FINAL GEAR RATIO 41/8(RU1) TAI	8-94376-227-1	01	1	9701-9905
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0208-0411
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0412-
56	BOLT; BRG CAP FINAL GEAR RATIO 41/8(RU1) M14X80 TAI	8-94365-377-2	04	1	9701-9905
60	GEAR SET; FINAL DRIVE,RR 43/8	8-97319-159-0	01	1	0208-0610
60	GEAR SET; FINAL DRIVE,RR 43/11	8-97263-251-1	01	1	0611-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8 TAI	8-97076-962-0	01	1	9701-9905
60	GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0412-0412
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0501-0511
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) G.V.W. 4.0-4.5TON(RPR) 39/7	8-97319-160-0	01	1	0512-0610
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR) 43/10	8-97319-155-0	01	1	0611-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT) 41/7	8-97319-161-0	01	1	0501-0610
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.0-5.5TON(RPT) 41/9	8-97319-156-0	01	1	0611-
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0208-0411
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0412-
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0208-0411
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0412-
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0208-0411
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0412-0610
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0611-
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0208-0411
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0412-0610
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0611-
63	BEARING; PINION PILOT NSK	8-97309-525-0	01	1	0611-
63	BEARING; PINION PILOT JTEKT	8-97309-526-0	01	1	0611-
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	0208-0411
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	0412-0602
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0603-
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0208-0411
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0412-
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0208-0411
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0412-
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0208-0411
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0412-
70	BEARING; DIFF CAGE FINAL GEAR RATIO 41/8(RU1) NSK TAI	9-00032-211-0	02	1	9701-9905
71	CAGE ASM; DIFF,FINAL DRIVE	8-97319-040-0	01	1	0208-0303
71	CAGE ASM; DIFF,FINAL DRIVE	8-97356-486-0	01	1	0304-0304
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0304-0411
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0412-0510
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0511-0610
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-0	01	1	0611-
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-180-0	01	1	0611-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) TAI	9-41510-605-0	01	1	9701-9905
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0208-0411
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0412-
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/8(RU1) TAI	9-41521-611-0	01	1	9701-9905
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0208-0411
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0412-0610
83	CAGE ASM; DIFF	8-97319-398-1	01	1	0611-
83	CAGE ASM; DIFF	8-97262-082-2	01	1	0611-
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) TAI	9-41510-610-0	01	1	9701-9905
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0208-0411
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0412-
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1) M12X22 TAI	9-09600-066-3	12	1	9701-9905
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91150-210-0	12	1	0208-0411
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91150-210-0	12	1	0412-0602
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91180-210-0	12	1	0603-
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0208-0411
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0412-
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0208-0411
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0412-
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	02	1	0208-0411
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	02	1	0412-0512
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	0601-
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0208-0411
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0412-
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 41/8(RU1) OD=78 NOK TAI	8-94408-084-1	01	1	9701-9905
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 41/8(RU1) OD=78 TKK	8-94408-085-1	01	1	9808-9905

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
