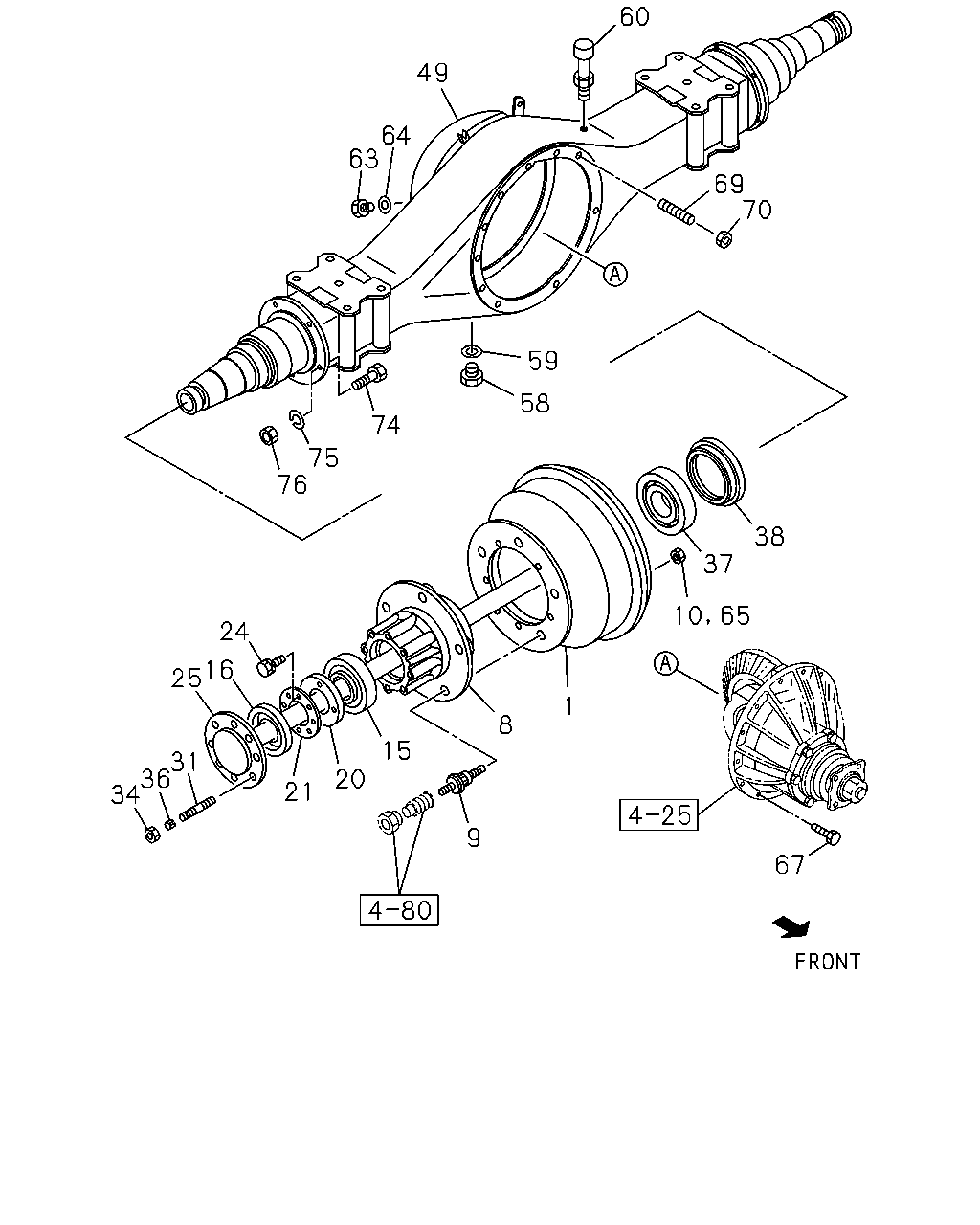

4-20 — REAR AXLE CASE AND SHAFT (#139086) — 288 parça

60 49 64 63 69 70 59 58 74 75 76 38 37 1065 24 16 25 1 8 15 31 36 34 20 21 4 25 67 4 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-283-0	02	1	9701-9804
1	DRUM; BRK,RR FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-283-0	02	1	9805-0207
1	DRUM; BRK,RR TAI	8-97965-283-0	02	1	0208-0610
1	DRUM; BRK,RR	5-42315-041-4	02	1	0611-
1	DRUM; BRK,RR FINAL GEAR RATIO 41/8(RU1) TAI	5-42315-041-2	02	1	9701-9905
1	DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR)	8-94382-884-4	02	1	0412-0412
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7(GV1) G.V.W. 4.0-4.5TON(RPR)	8-94382-884-4	02	1	0501-0610
1	DRUM; BRK,RR FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-94382-884-4	02	1	0611-
1	DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0412-0412
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0501-0511
1	DRUM; BRK,RR FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0512-0610
1	DRUM; BRK,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0611-
8	HUB; RR AXLE FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-384-0	02	1	9701-9804
8	HUB; RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-384-0	02	1	9805-0207
8	HUB; RR AXLE TAI	8-97965-384-0	02	1	0208-0610
8	HUB; RR AXLE	8-97032-606-3	02	1	0611-
8	HUB; RR AXLE FINAL GEAR RATIO 41/8(RU1) TAI	8-97032-606-2	02	1	9701-9905
8	HUB; RR AXLE	8-97026-139-3	02	1	0412-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) NSK TAI	9-00093-082-0	02	1	9701-9804
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-082-0	02	1	9805-9905
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-082-0	02	1	9906-0207
15	BEARING; HUB OUTER,RR AXLE NSK TAI	9-00093-082-0	02	1	0208-0411
15	BEARING; HUB OUTER,RR AXLE NSK TAI	9-00093-082-0	02	1	0412-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-674-0	02	1	9701-9804
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-674-0	02	1	9805-0207
16	SEAL; OIL,RR HUB,OUTER TAI	8-97965-674-0	02	1	0208-0610
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 41/8(RU1) TKK TAI	8-94336-315-1	02	1	9701-9905
16	SEAL; OIL,RR HUB,OUTER TKK TAI	8-94336-315-2	02	1	0412-0610
16	SEAL; OIL,RR HUB,OUTER TKK TAI	8-94336-315-2	02	1	0611-
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0412-0610
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0611-
20	NUT; BRG,RR HUB FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M52	8-97137-092-0	02	1	9701-9804
20	NUT; BRG,RR HUB FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M52	8-97137-092-0	02	1	9805-9905
20	NUT; BRG,RR HUB FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M52	8-97137-092-0	02	1	9906-0207
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0208-0411
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0412-
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) ID=52	9-09853-214-0	02	1	9701-9804
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=52	9-09853-214-0	02	1	9805-9905
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=52	9-09853-214-0	02	1	9906-0207
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0208-0411
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0412-
24	BOLT; LK WASHER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M6X12 W/LK WASHER	0-50040-612-0	04	1	9701-9804
24	BOLT; LK WASHER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M6X12 W/LK WASHER	0-50040-612-0	04	1	9805-9905
24	BOLT; LK WASHER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M6X12 W/LK WASHER	0-50040-612-0	04	1	9906-0207
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	0208-0411
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	0412-0512
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50540-612-0	04	1	0601-0611
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0612-
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-383-0	02	1	9701-9804
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-383-0	02	1	9805-0207
25	SHAFT; AXLE,RR	8-97030-537-0	02	1	0208-
25	SHAFT; AXLE,RR FINAL GEAR RATIO 41/8(RU1) TAI	8-97029-900-0	02	1	9701-9702
25	SHAFT; AXLE,RR FINAL GEAR RATIO 41/8(RU1) TAI	8-94341-978-0	02	1	9703-9905
25	SHAFT; AXLE,RR	8-97032-496-0	02	1	0412-
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	5-09300-066-1	12	1	0208-0709
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0710-
31	STUD; AXLE SHAFT TO HUB FINAL GEAR RATIO 41/8(RU1) M10X30 L=49	5-09300-066-1	12	1	9701-9905
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	5-09300-066-1	16	1	0412-0709
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0710-
34	NUT; AXLE SHAFT M10 FLANGE	0-91150-210-0	12	1	0208-0602
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	12	1	0603-
34	NUT; AXLE SHAFT FINAL GEAR RATIO 41/8(RU1) M10 FLANGE	0-91150-210-0	12	1	9701-9905
34	NUT; AXLE SHAFT M10 FLANGE	0-91150-210-0	16	1	0412-0602
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	16	1	0603-
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	9-09855-207-0	12	1	0208-0709
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0710-
36	WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 41/8(RU1) ID=10.5	9-09855-207-0	12	1	9701-9905
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	9-09855-207-0	16	1	0412-0709
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0710-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) NSK TAI	9-00093-081-0	02	1	9701-9804
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-081-0	02	1	9805-9905
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-081-0	02	1	9906-0207
37	BEARING; HUB INNER,RR AXLE NSK TAI	9-00093-081-0	02	1	0208-0411
37	BEARING; HUB INNER,RR AXLE NSK TAI	9-00093-081-0	02	1	0412-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) TKK	8-94336-314-0	02	1	9701-9804
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TKK	8-94336-314-1	02	1	9805-9905
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TKK	8-94336-314-1	02	1	9906-0207
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0208-0411
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0412-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) NOK	8-94367-959-0	02	1	9701-9804
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NOK	8-94367-959-0	02	1	9805-9905
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NOK	8-94367-959-0	02	1	9906-0207
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0208-0411
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0412-
49	CASE; RR AXLE FINAL GEAR RATIO 37/7(7WR) TAI	8-97966-437-0	01	1	9805-9910
49	CASE; RR AXLE FINAL GEAR RATIO 37/7(7WR) TAI	8-97967-193-0	01	1	9911-0207
49	CASE; RR AXLE FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-453-0	01	1	9701-9910
49	CASE; RR AXLE FINAL GEAR RATIO 39/8(RV9) TAI	8-97967-194-0	01	1	9911-0207
49	CASE; RR AXLE	8-97324-654-2	01	1	0208-
49	CASE; RR AXLE FINAL GEAR RATIO 41/8(RU1) TAI	8-97032-770-2	01	1	9701-9905
49	CASE; RR AXLE	8-97032-861-5	01	1	0412-
58	PLUG; DRAIN,AXLE CASE M16X12.5 TAI	8-97109-869-0	01	1	0208-0411
58	PLUG; DRAIN,AXLE CASE M16X12.5 TAI	8-97109-869-0	01	1	0412-0611
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0612-
58	PLUG; DRAIN,AXLE CASE FINAL GEAR RATIO 41/8(RU1) M16X12.5 TAI	8-97109-869-0	01	1	9701-9905
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0208-0411
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0412-
59	GASKET; DRAIN PLUG FINAL GEAR RATIO 41/8(RU1) ID=16.2 OD=24	9-09571-416-0	01	1	9701-9905
60	BREATHER; RR AXLE CASE	8-94416-611-1	01	1	9701-0409
60	BREATHER; RR AXLE CASE	8-97383-656-0	01	1	0410-0411
60	BREATHER; RR AXLE CASE	8-97383-656-0	01	1	0412-0606
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0607-
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	9-09662-005-0	01	1	0208-0411
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	9-09662-005-0	01	1	0412-0611
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0612-
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR RATIO 41/8(RU1) M20X10.5	9-09662-005-0	01	1	9701-9905
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0208-0411
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0412-
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR RATIO 41/8(RU1) ID=20 OD=30	8-94462-734-0	01	1	9701-9905
65	NUT M16 FLANGE TAI	1-09449-065-0	12	1	0502-
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0208-0411
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0412-0610
67	BOLT; FINAL DRIVE SETTING M10X40	0-10956-040-0	11	1	0611-0611
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0611-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/8(RU1) M10X40 W/LK WASHER	0-50061-040-0	08	1	9701-9905
69	STUD; AXLE CASE M10X40.5 L=52.5 TAI	8-97026-282-0	02	1	0208-0411
69	STUD; AXLE CASE M10X40.5 L=52.5 TAI	8-97026-282-0	02	1	0412-0610
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0611-
69	STUD; AXLE CASE FINAL GEAR RATIO 41/8(RU1) M10X40.5 L=52.5 TAI	8-97026-282-0	02	1	9701-9905
70	NUT; CARRIER M10 FLANGE	0-91150-210-0	02	1	0208-0411
70	NUT; CARRIER M10 FLANGE	0-91150-210-0	02	1	0412-0602
70	NUT; CARRIER M10 FLANGE	0-91180-210-0	02	1	0603-
70	NUT; CARRIER FINAL GEAR RATIO 41/8(RU1) M10 FLANGE	0-91150-210-0	02	1	9701-9905
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M12X32	5-09000-078-0	08	1	9701-9804
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12X32	5-09000-078-0	08	1	9805-9905
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12X32	5-09000-078-0	08	1	9906-0207
74	BOLT; RR BRK ASM SETTING M12X32	5-09000-078-0	08	1	0208-0611
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	08	1	0612-
74	BOLT; RR BRK ASM SETTING M12X32	5-09000-078-0	12	1	0412-0611
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0612-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) ID=12.2	9-09150-612-0	08	1	9701-9804
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=12.2	9-09150-612-0	08	1	9805-9905
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=12.2	9-09150-612-0	08	1	9906-0207
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	9-09150-612-0	08	1	0208-0603
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-612-0	08	1	0604-0611
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	08	1	0612-
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	9-09150-612-0	12	1	0412-0603
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-612-0	12	1	0604-0611
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0612-
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M12	9-99110-512-0	08	1	9701-9804
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12	9-99110-512-0	08	1	9805-9905
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12	9-99110-512-0	08	1	9906-0207
76	NUT; RR BRK ASM SETTING M12	9-99110-512-0	08	1	0208-0512
76	NUT; RR BRK ASM SETTING M12 TAI	0-91110-512-0	08	1	0601-
76	NUT; RR BRK ASM SETTING M12	9-99110-512-0	12	1	0412-0512
76	NUT; RR BRK ASM SETTING M12 TAI	0-91110-512-0	12	1	0601-

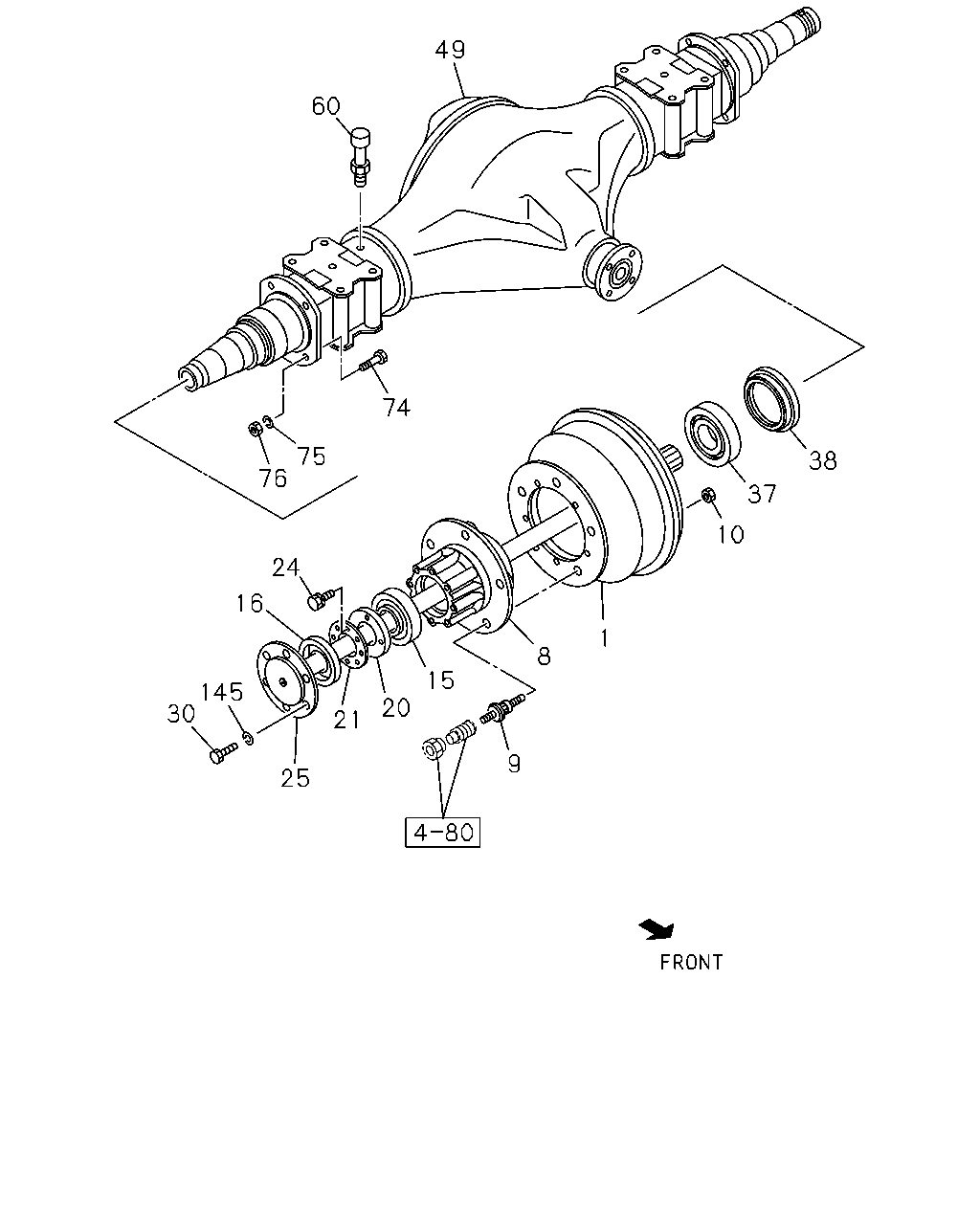

49 60 74 75 76 38 37 10 24 16 1 8 15 145 30 20 21 9 25 4 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-283-0	02	1	9701-9804
1	DRUM; BRK,RR FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-283-0	02	1	9805-0207
1	DRUM; BRK,RR TAI	8-97965-283-0	02	1	0208-0610
1	DRUM; BRK,RR	5-42315-041-4	02	1	0611-
1	DRUM; BRK,RR FINAL GEAR RATIO 41/8(RU1) TAI	5-42315-041-2	02	1	9701-9905
1	DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR)	8-94382-884-4	02	1	0412-0412
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7(GV1) G.V.W. 4.0-4.5TON(RPR)	8-94382-884-4	02	1	0501-0610
1	DRUM; BRK,RR FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-94382-884-4	02	1	0611-
1	DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0412-0412
1	DRUM; BRK,RR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0501-0511
1	DRUM; BRK,RR FINAL GEAR RATIO 41/7(R41) G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0512-0610
1	DRUM; BRK,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.0-5.5TON(RPT)	8-97034-770-3	02	1	0611-
8	HUB; RR AXLE FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-384-0	02	1	9701-9804
8	HUB; RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-384-0	02	1	9805-0207
8	HUB; RR AXLE TAI	8-97965-384-0	02	1	0208-0610
8	HUB; RR AXLE	8-97032-606-3	02	1	0611-
8	HUB; RR AXLE FINAL GEAR RATIO 41/8(RU1) TAI	8-97032-606-2	02	1	9701-9905
8	HUB; RR AXLE	8-97026-139-3	02	1	0412-
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M16X35,M16X26 LH THREAD	8-94365-255-0	06	1	9701-9804
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16X35,M16X26 LH THREAD	8-94365-255-0	06	1	9805-9905
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16X35,M16X26 LH THREAD	8-94365-255-0	06	1	9906-0207
9	PIN; WHEEL,RR AXLE M16X35,M16X26 LH THREAD	8-94365-255-0	06	1	0208-0501
9	PIN; WHEEL,RR AXLE M16X26 LH THREAD,M16X37 RH THREAD	8-98000-406-1	06	1	0502-
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M16X35,M16X26 RH THREAD	8-94365-254-0	06	1	9701-9804
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16X35,M16X26 RH THREAD	8-94365-254-0	06	1	9805-9905
9	PIN; WHEEL,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16X35,M16X26 RH THREAD	8-94365-254-0	06	1	9906-0207
9	PIN; WHEEL,RR AXLE M16X35,M16X26 RH THREAD	8-94365-254-0	06	1	0208-0501
9	PIN; WHEEL,RR AXLE M16X26,M16X37 RH THREAD	8-98000-404-1	06	1	0502-
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0412-
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0412-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M16 LH THREAD	8-94161-997-0	06	1	9701-9804
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16 LH THREAD	8-94161-997-0	06	1	9805-9905
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16 LH THREAD	8-94161-997-0	06	1	9906-0207
10	NUT; WHEEL PIN,RR AXLE M16 LH THREAD	8-94161-997-0	06	1	0208-0501
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M16	9-99110-516-0	06	1	9701-9804
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16	9-99110-516-0	06	1	9805-9905
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M16	9-99110-516-0	06	1	9906-0207
10	NUT; WHEEL PIN,RR AXLE M16	9-99110-516-0	06	1	0208-0501
10	NUT; WHEEL PIN,RR AXLE M20 TAI	9-99110-520-0	10	1	0412-0512
10	NUT; WHEEL PIN,RR AXLE M20	0-91110-520-0	10	1	0601-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) NSK TAI	9-00093-082-0	02	1	9701-9804
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-082-0	02	1	9805-9905
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-082-0	02	1	9906-0207
15	BEARING; HUB OUTER,RR AXLE NSK TAI	9-00093-082-0	02	1	0208-0411
15	BEARING; HUB OUTER,RR AXLE NSK TAI	9-00093-082-0	02	1	0412-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-674-0	02	1	9701-9804
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-674-0	02	1	9805-0207
16	SEAL; OIL,RR HUB,OUTER TAI	8-97965-674-0	02	1	0208-0610
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR RATIO 41/8(RU1) TKK TAI	8-94336-315-1	02	1	9701-9905
16	SEAL; OIL,RR HUB,OUTER TKK TAI	8-94336-315-2	02	1	0412-0610
16	SEAL; OIL,RR HUB,OUTER TKK TAI	8-94336-315-2	02	1	0611-
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0412-0610
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0611-
20	NUT; BRG,RR HUB FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M52	8-97137-092-0	02	1	9701-9804
20	NUT; BRG,RR HUB FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M52	8-97137-092-0	02	1	9805-9905
20	NUT; BRG,RR HUB FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M52	8-97137-092-0	02	1	9906-0207
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0208-0411
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0412-
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) ID=52	9-09853-214-0	02	1	9701-9804
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=52	9-09853-214-0	02	1	9805-9905
21	WASHER; LK,BRG NUT FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=52	9-09853-214-0	02	1	9906-0207
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0208-0411
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0412-
24	BOLT; LK WASHER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M6X12 W/LK WASHER	0-50040-612-0	04	1	9701-9804
24	BOLT; LK WASHER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M6X12 W/LK WASHER	0-50040-612-0	04	1	9805-9905
24	BOLT; LK WASHER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M6X12 W/LK WASHER	0-50040-612-0	04	1	9906-0207
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	0208-0411
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	0412-0512
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50540-612-0	04	1	0601-0611
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0612-
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-383-0	02	1	9701-9804
25	SHAFT; AXLE,RR FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-383-0	02	1	9805-0207
25	SHAFT; AXLE,RR	8-97030-537-0	02	1	0208-
25	SHAFT; AXLE,RR FINAL GEAR RATIO 41/8(RU1) TAI	8-97029-900-0	02	1	9701-9702
25	SHAFT; AXLE,RR FINAL GEAR RATIO 41/8(RU1) TAI	8-94341-978-0	02	1	9703-9905
25	SHAFT; AXLE,RR	8-97032-496-0	02	1	0412-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-672-0	12	1	9701-9804
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-672-0	12	1	9805-0207
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) NSK TAI	9-00093-081-0	02	1	9701-9804
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-081-0	02	1	9805-9905
37	BEARING; HUB INNER,RR AXLE FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NSK TAI	9-00093-081-0	02	1	9906-0207
37	BEARING; HUB INNER,RR AXLE NSK TAI	9-00093-081-0	02	1	0208-0411
37	BEARING; HUB INNER,RR AXLE NSK TAI	9-00093-081-0	02	1	0412-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) TKK	8-94336-314-0	02	1	9701-9804
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TKK	8-94336-314-1	02	1	9805-9905
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TKK	8-94336-314-1	02	1	9906-0207
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0208-0411
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0412-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) NOK	8-94367-959-0	02	1	9701-9804
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NOK	8-94367-959-0	02	1	9805-9905
38	SEAL; OIL,RR HUB,INNER FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NOK	8-94367-959-0	02	1	9906-0207
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0208-0411
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0412-
49	CASE; RR AXLE FINAL GEAR RATIO 37/7(7WR) TAI	8-97966-437-0	01	1	9805-9910
49	CASE; RR AXLE FINAL GEAR RATIO 37/7(7WR) TAI	8-97967-193-0	01	1	9911-0207
49	CASE; RR AXLE FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-453-0	01	1	9701-9910
49	CASE; RR AXLE FINAL GEAR RATIO 39/8(RV9) TAI	8-97967-194-0	01	1	9911-0207
49	CASE; RR AXLE	8-97324-654-2	01	1	0208-
49	CASE; RR AXLE FINAL GEAR RATIO 41/8(RU1) TAI	8-97032-770-2	01	1	9701-9905
49	CASE; RR AXLE	8-97032-861-5	01	1	0412-
60	BREATHER; RR AXLE CASE	8-94416-611-1	01	1	9701-0409
60	BREATHER; RR AXLE CASE	8-97383-656-0	01	1	0410-0411
60	BREATHER; RR AXLE CASE	8-97383-656-0	01	1	0412-0606
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0607-
65	NUT M16 FLANGE TAI	1-09449-065-0	12	1	0502-
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M12X32	5-09000-078-0	08	1	9701-9804
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12X32	5-09000-078-0	08	1	9805-9905
74	BOLT; RR BRK ASM SETTING FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12X32	5-09000-078-0	08	1	9906-0207
74	BOLT; RR BRK ASM SETTING M12X32	5-09000-078-0	08	1	0208-0611
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	08	1	0612-
74	BOLT; RR BRK ASM SETTING M12X32	5-09000-078-0	12	1	0412-0611
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0612-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) ID=12.2	9-09150-612-0	08	1	9701-9804
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=12.2	9-09150-612-0	08	1	9805-9905
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) ID=12.2	9-09150-612-0	08	1	9906-0207
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	9-09150-612-0	08	1	0208-0603
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-612-0	08	1	0604-0611
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	08	1	0612-
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	9-09150-612-0	12	1	0412-0603
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-612-0	12	1	0604-0611
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0612-
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M12	9-99110-512-0	08	1	9701-9804
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12	9-99110-512-0	08	1	9805-9905
76	NUT; RR BRK ASM SETTING FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) M12	9-99110-512-0	08	1	9906-0207
76	NUT; RR BRK ASM SETTING M12	9-99110-512-0	08	1	0208-0512
76	NUT; RR BRK ASM SETTING M12 TAI	0-91110-512-0	08	1	0601-
76	NUT; RR BRK ASM SETTING M12	9-99110-512-0	12	1	0412-0512
76	NUT; RR BRK ASM SETTING M12 TAI	0-91110-512-0	12	1	0601-
145	WASHER; LK,RR HUB FINAL GEAR RATIO 39/8(RV9) TAI	8-97965-673-0	12	1	9701-9804
145	WASHER; LK,RR HUB FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) TAI	8-97965-673-0	12	1	9805-0207

274 96 67 67 3 45 96 274 67 67 3 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	NUT M16 FLANGE TAI	1-09449-065-0	12	1	0502-
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0208-0411
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0412-0610
67	BOLT; FINAL DRIVE SETTING M10X40	0-10956-040-0	11	1	0611-0611
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0611-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/8(RU1) M10X40 W/LK WASHER	0-50061-040-0	08	1	9701-9905
96	BRACKET; LSPV,AXLE CASE (A)	8-97011-997-3	01	1	0208-0610
96	BRACKET; LSPV,AXLE CASE (A)	8-98030-956-0	01	1	0611-
96	BRACKET; LSPV,AXLE CASE (B)	8-97161-213-1	01	1	0412-0508
96	BRACKET; LSPV,AXLE CASE (B)	8-98024-418-0	01	1	0509-0610
96	BRACKET; LSPV,AXLE CASE (B)	8-98030-957-0	01	1	0611-
274	WASHER; HSG ID=10.2	0-91510-810-0	11	1	0611-0611

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
