Sayfa 4-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶

4-10 — FRONT AXLE (#139084) — 218 parça

116 85 126 4 50 116 115 82 134 108 85 126 238 109 109 108 96 91 4 50 242 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	KING PIN KIT FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA)	5-87832-220-1	01	1	0611-0707
4	KING PIN KIT	5-87832-220-2	01	1	0708-
4	KING PIN KIT	5-87830-978-1	01	1	9701-9905
4	KING PIN KIT	5-87831-608-2	01	1	9906-0411
4	KING PIN KIT	5-87831-608-2	01	1	0412-0511
4	KING PIN KIT	5-87832-183-2	01	1	0512-0610
4	KING PIN KIT	5-87832-183-2	01	1	0611-0611
4	KING PIN KIT FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ)	5-87832-183-2	01	1	0611-0611
4	KING PIN KIT	5-87832-209-0	01	1	0611-0707
4	KING PIN KIT FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ)	5-87832-209-0	01	1	0611-0707
82	BAR; STAB,FRT SUSP	8-97170-624-1	01	1	9810-9905
82	BAR; STAB,FRT SUSP TAI	8-97967-077-0	01	1	9906-
82	BAR; STAB,FRT SUSP	8-97170-624-1	01	1	0412-
85	WASHER; STAB TO FRAME	9-51779-027-0	04	1	9810-9905
85	WASHER; STAB TO FRAME	9-51779-027-0	04	1	0412-
91	BUSHING; RUBBER,STAB BAR TAI	8-97170-752-0	02	1	9810-9905
91	BUSHING; RUBBER,STAB BAR TAI	8-97966-951-0	02	1	9906-
91	BUSHING; RUBBER,STAB BAR TAI	8-97170-752-0	02	1	0412-
96	NUT; STAB BAR TO CONT ARM M10 LOCK NUT	9-09131-510-0	02	1	9810-0411
96	NUT; STAB BAR TO CONT ARM M10 LOCK NUT	9-09131-510-0	02	1	0412-0603
96	NUT; STAB BAR TO CONT ARM M10 LOCK NUT	0-91370-010-0	02	1	0604-
106	BOLT; CAP FIX M10X25 FLANGE	0-28681-025-0	02	1	0412-0512
106	BOLT; CAP FIX M10X25 FLANGE	0-28651-025-0	02	1	0601-
108	CAP TAI	8-97170-631-0	04	1	9810-9905
108	CAP TAI	8-97966-947-0	04	1	9906-
108	CAP TAI	8-97170-631-0	04	1	0412-
109	BUFFER; STAB BAR TAI	8-97170-622-0	04	1	9810-9905
109	BUFFER; STAB BAR TAI	8-97966-948-0	04	1	9906-
109	BUFFER; STAB BAR TAI	8-97170-622-0	04	1	0412-
115	WASHER; CENTER,STAB TO FRAME ID=15.0 OD=32	9-51631-049-0	02	1	9810-9905
115	WASHER; CENTER,STAB TO FRAME ID=15.0 OD=32	8-97387-669-0	02	1	0412-
116	NUT; LK,STAB TO FRAME M10 LOCK NUT	9-09131-510-0	02	1	9810-9905
116	NUT; LK,STAB TO FRAME M10 LOCK NUT	9-09131-510-0	02	1	0412-0603
116	NUT; LK,STAB TO FRAME M10 LOCK NUT	0-91370-010-0	02	1	0604-
126	RUBBER; MTG,STAB BAR	5-51631-017-0	04	1	9810-9905
126	RUBBER; MTG,STAB BAR	5-51631-017-0	04	1	0412-
134	BRACKET; STAB TO AXLE	8-97304-056-0	01	1	0412-
134	BRACKET; STAB TO AXLE	8-97304-055-0	01	1	0412-
238	ROD LINK ASM; STABILIZER,FRT	8-94441-472-3	02	1	9906-9910
238	ROD LINK ASM; STABILIZER,FRT	8-97239-907-0	02	1	9911-
238	ROD LINK ASM; STABILIZER,FRT	8-97170-751-0	02	1	0412-
242	CAP; LINK ROD	8-94178-430-2	02	1	9906-
242	CAP; LINK ROD	8-97170-746-0	02	1	0412-

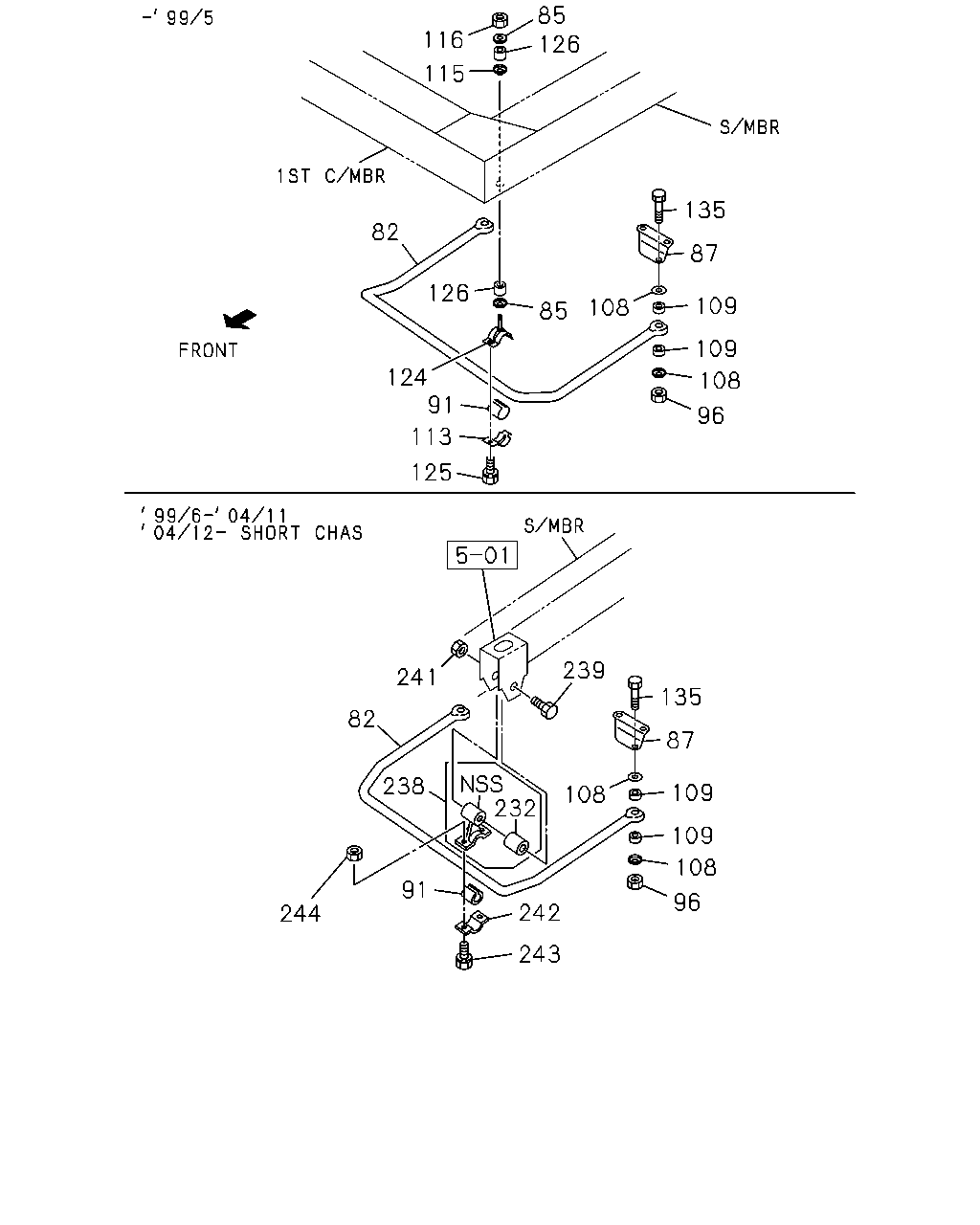

85 126 116 115 135 82 87 126 109 108 85 109 124 91 108 96 113 125 5 239 241 135 82 87 232 238 109 108 109 108 91 96 242 244 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP	8-97170-624-1	01	1	9810-9905
82	BAR; STAB,FRT SUSP TAI	8-97967-077-0	01	1	9906-
82	BAR; STAB,FRT SUSP	8-97170-624-1	01	1	0412-
85	WASHER; STAB TO FRAME	9-51779-027-0	04	1	9810-9905
85	WASHER; STAB TO FRAME	9-51779-027-0	04	1	0412-
87	BRACKET; STABILIZER TAI	8-97170-634-0	01	1	9810-9905
87	BRACKET; STABILIZER TAI	8-97966-946-0	01	1	9906-0411
87	BRACKET; STABILIZER TAI	8-97966-946-0	01	1	0412-
87	BRACKET; STABILIZER TAI	8-97170-633-0	01	1	9810-9905
87	BRACKET; STABILIZER TAI	8-97966-943-0	01	1	9906-0411
87	BRACKET; STABILIZER TAI	8-97966-943-0	01	1	0412-
91	BUSHING; RUBBER,STAB BAR TAI	8-97170-752-0	02	1	9810-9905
91	BUSHING; RUBBER,STAB BAR TAI	8-97966-951-0	02	1	9906-
91	BUSHING; RUBBER,STAB BAR TAI	8-97170-752-0	02	1	0412-
96	NUT; STAB BAR TO CONT ARM M10 LOCK NUT	9-09131-510-0	02	1	9810-0411
96	NUT; STAB BAR TO CONT ARM M10 LOCK NUT	9-09131-510-0	02	1	0412-0603
96	NUT; STAB BAR TO CONT ARM M10 LOCK NUT	0-91370-010-0	02	1	0604-
108	CAP TAI	8-97170-631-0	04	1	9810-9905
108	CAP TAI	8-97966-947-0	04	1	9906-
108	CAP TAI	8-97170-631-0	04	1	0412-
109	BUFFER; STAB BAR TAI	8-97170-622-0	04	1	9810-9905
109	BUFFER; STAB BAR TAI	8-97966-948-0	04	1	9906-
109	BUFFER; STAB BAR TAI	8-97170-622-0	04	1	0412-
113	BRACKET; STAB TO BODY,LWR	8-97170-746-0	02	1	9810-9905
115	WASHER; CENTER,STAB TO FRAME ID=15.0 OD=32	9-51631-049-0	02	1	9810-9905
115	WASHER; CENTER,STAB TO FRAME ID=15.0 OD=32	8-97387-669-0	02	1	0412-
116	NUT; LK,STAB TO FRAME M10 LOCK NUT	9-09131-510-0	02	1	9810-9905
116	NUT; LK,STAB TO FRAME M10 LOCK NUT	9-09131-510-0	02	1	0412-0603
116	NUT; LK,STAB TO FRAME M10 LOCK NUT	0-91370-010-0	02	1	0604-
124	BRACKET; STAB TO BODY,UPR	8-97170-751-0	02	1	9810-9905
125	BOLT; STAB TO BODY M10X30 W/LK WASHER	0-50041-030-0	02	1	9810-9905
126	RUBBER; MTG,STAB BAR	5-51631-017-0	04	1	9810-9905
126	RUBBER; MTG,STAB BAR	5-51631-017-0	04	1	0412-
135	BOLT; BRKT TO STAB TAI	8-97170-627-0	02	1	9810-9905
135	BOLT; BRKT TO STAB TAI	8-97966-944-0	02	1	9906-
232	BUSHING; LINK ROD	8-94331-581-0	02	1	9906-9910
232	BUSHING; LINK ROD	8-97239-911-0	02	1	9911-
238	ROD LINK ASM; STABILIZER,FRT	8-94441-472-3	02	1	9906-9910
238	ROD LINK ASM; STABILIZER,FRT	8-97239-907-0	02	1	9911-
238	ROD LINK ASM; STABILIZER,FRT	8-97170-751-0	02	1	0412-
239	BOLT; LINK ROD M14X70 FLANGE	0-28881-470-0	02	1	9906-0512
239	BOLT; LINK ROD M14X70 FLANGE	0-28851-470-0	02	1	0601-
241	NUT; LINK ROD M14 FLANGE	0-91150-114-0	02	1	9906-0306
241	NUT; LINK ROD M14 FLANGE USA	8-94137-483-0	02	1	0307-0610
241	NUT; LINK ROD M14 FLANGE	8-97360-124-0	02	1	0611-
242	CAP; LINK ROD	8-94178-430-2	02	1	9906-
242	CAP; LINK ROD	8-97170-746-0	02	1	0412-
243	BOLT; LINK ROD M10X25 FLANGE	0-28681-025-0	04	1	9906-0512
243	BOLT; LINK ROD M10X25 FLANGE	0-28651-025-0	04	1	0601-
244	NUT; LINK ROD M10 FLANGE	0-91150-210-0	04	1	9906-0602
244	NUT; LINK ROD M10 FLANGE	0-91180-210-0	04	1	0603-

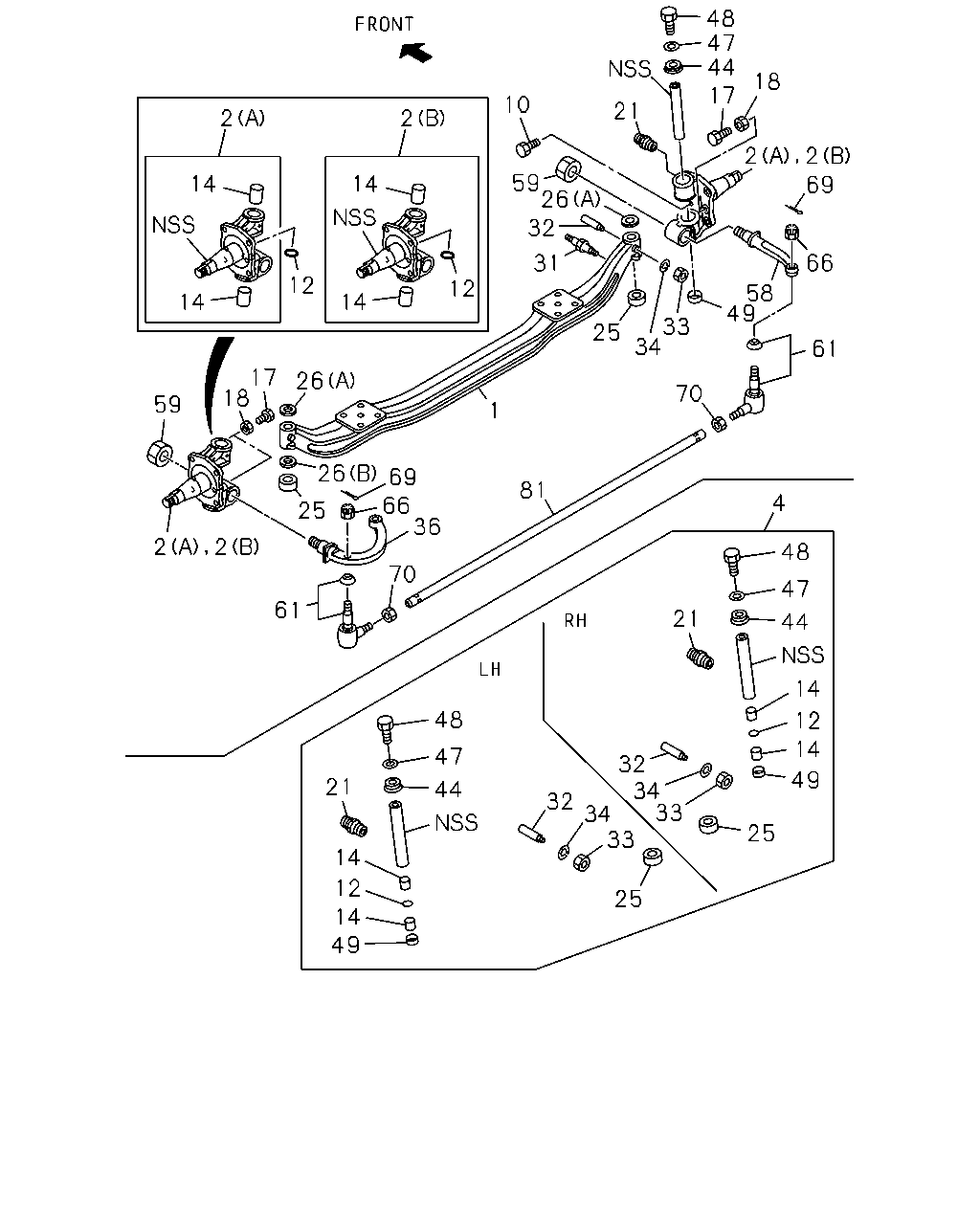

48 47 44 17 18 10 21 2 2 2 2 59 26 32 14 14 69 31 66 12 12 58 49 14 14 33 34 25 61 17 18 26 70 59 1 2 69 66 25 36 81 4 2 2 48 70 47 61 21 44 14 48 12 14 47 32 34 33 49 21 44 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	8-94246-310-4	01	1	9701-9905
1	AXLE; FRT	8-97137-585-2	01	1	9906-0411
1	AXLE; FRT	8-97137-585-4	01	1	0412-
2	KNUCKLE; FRT AXLE (B)	8-94169-412-0	01	1	9701-9905
2	KNUCKLE; FRT AXLE (B)	8-94169-411-0	01	1	9701-9905
2	KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-682-0	01	1	9906-9907
2	KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-681-0	01	1	9906-9907
2	KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-783-0	01	1	9906-9907
2	KNUCKLE; FRT AXLE (B)	8-97141-783-0	01	1	9908-9909
2	KNUCKLE; FRT AXLE (A)	8-97230-682-0	01	1	9910-0008
2	KNUCKLE; FRT AXLE (A)	8-97261-546-1	01	1	0009-0411
2	KNUCKLE; FRT AXLE (A)	8-97261-546-1	01	1	0412-
2	KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-781-0	01	1	9906-9907
2	KNUCKLE; FRT AXLE (B)	8-97141-781-0	01	1	9908-9909
2	KNUCKLE; FRT AXLE (A)	8-97230-681-0	01	1	9910-0008
2	KNUCKLE; FRT AXLE (A)	8-97261-545-1	01	1	0009-0411
2	KNUCKLE; FRT AXLE (A)	8-97261-545-1	01	1	0412-
4	KING PIN KIT FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA)	5-87832-220-1	01	1	0611-0707
4	KING PIN KIT	5-87832-220-2	01	1	0708-
4	KING PIN KIT	5-87830-978-1	01	1	9701-9905
4	KING PIN KIT	5-87831-608-2	01	1	9906-0411
4	KING PIN KIT	5-87831-608-2	01	1	0412-0511
4	KING PIN KIT	5-87832-183-2	01	1	0512-0610
4	KING PIN KIT	5-87832-183-2	01	1	0611-0611
4	KING PIN KIT FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ)	5-87832-183-2	01	1	0611-0611
4	KING PIN KIT	5-87832-209-0	01	1	0611-0707
4	KING PIN KIT FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ)	5-87832-209-0	01	1	0611-0707
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9701-0411
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0412-0610
10	PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0611-
12	GASKET; KNUCKLE	9-09561-230-0	02	1	9701-0411
12	GASKET; KNUCKLE	9-09561-230-0	02	1	0412-0707
12	GASKET; KNUCKLE	8-98084-500-0	02	1	0708-
14	BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9701-0411
14	BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0412-
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	9701-0411
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	0412-
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	9701-0411
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0412-0611
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	9701-0411
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	0412-0512
18	NUT; STOPPER BOLT,KNUCKLE M12	0-91111-512-0	03	1	0601-
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	9701-0411
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	0412-0607
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	0-90301-406-0	04	1	0608-
25	BEARING; THRUST,KING PIN	8-94248-883-1	02	1	9701-9905
25	BEARING; THRUST,KING PIN	8-94248-883-2	01	1	9906-0411
25	BEARING; THRUST,KING PIN	8-94248-883-2	01	1	0412-
25	BEARING; THRUST,KING PIN	8-97141-943-0	01	1	9906-0411
25	BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0412-
26	SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	9701-0411
26	SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0412-
26	SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	9701-0411
26	SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0412-
26	SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	9701-0411
26	SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0412-
26	SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	9701-0411
26	SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0412-
26	SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	9701-0411
26	SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0412-
26	SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	9701-0411
26	SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0412-
26	SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	9701-0411
26	SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0412-
26	SHIM; KING PIN,BRG (B) T=1.95	8-94168-490-0	01	1	9906-0411
26	SHIM; KING PIN,BRG (B) T=1.95	8-94168-490-0	01	1	0412-
31	PIN; S/ABS,LWR	8-94249-010-1	02	1	9701-9905
31	PIN; S/ABS,LWR	8-97141-944-0	02	1	9906-0411
31	PIN; S/ABS,LWR	8-97141-944-0	02	1	0412-
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	9701-0411
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	0412-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9701-0411
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0412-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9701-0411
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0412-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	8-97070-139-0	01	1	9701-9905
36	ARM; KNUCKLE	8-97168-291-1	01	1	9906-0411
36	ARM; KNUCKLE	8-97168-291-4	01	1	0412-
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	9701-0411
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	0412-0611
44	COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-
47	WASHER; PL,COVER,KING PIN ID=10.5	9-09164-510-0	02	1	9701-0402
48	BOLT; COVER M10X16	0-20801-016-0	02	1	9701-9804
48	BOLT; COVER M10X16	0-20801-016-0	02	1	9810-0402
48	BOLT; COVER M10X12 FLANGE	0-28081-012-0	02	1	0403-0411
48	BOLT; COVER M10X12 FLANGE	0-28081-012-0	02	1	0412-0512
48	BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0601-
49	CAP; KNUCKLE	8-94248-566-0	02	1	9701-0008
49	CAP; KNUCKLE	8-97261-587-0	02	1	0009-0411
49	CAP; KNUCKLE	8-97261-587-0	02	1	0412-0611
49	CAP; KNUCKLE	8-97360-024-0	02	1	0612-
58	ARM; TIE ROD	8-97032-913-0	01	1	9805-9905
58	ARM; TIE ROD	8-97168-292-0	01	1	9906-0411
58	ARM; TIE ROD	8-97168-292-0	01	1	0412-
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	9701-0411
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	0412-0611
59	NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-
61	ROD END; TIE ROD	8-97107-349-2	01	1	9701-9905
61	ROD END; TIE ROD	8-97222-510-0	01	1	9906-0204
61	ROD END; TIE ROD	8-97142-101-1	01	1	0205-0411
61	ROD END; TIE ROD	8-97142-101-1	01	1	0412-
61	ROD END; TIE ROD	8-97107-348-2	01	1	9701-9905
61	ROD END; TIE ROD	8-97222-509-0	01	1	9906-0204
61	ROD END; TIE ROD	8-97142-100-1	01	1	0205-0411
61	ROD END; TIE ROD	8-97142-100-1	01	1	0412-
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	9701-0411
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	0412-0605
66	NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0606-
69	PIN; SPLIT,TIE ROD END OD=3.7 L=25	9-08114-025-0	02	1	9701-9703
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	9704-0411
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	0412-0606
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0607-
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9701-0411
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0412-
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	9701-0411
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	0412-0512
70	NUT; TIE ROD END M20	0-91111-520-0	01	1	0601-0610
70	NUT; TIE ROD END M20	8-98043-530-0	01	1	0611-
81	ROD; TIE	8-97061-866-0	01	1	9701-9905
81	ROD; TIE	8-97142-023-0	01	1	9906-0411
81	ROD; TIE	8-97142-023-0	01	1	0412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
