Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#139083) — 289 parça

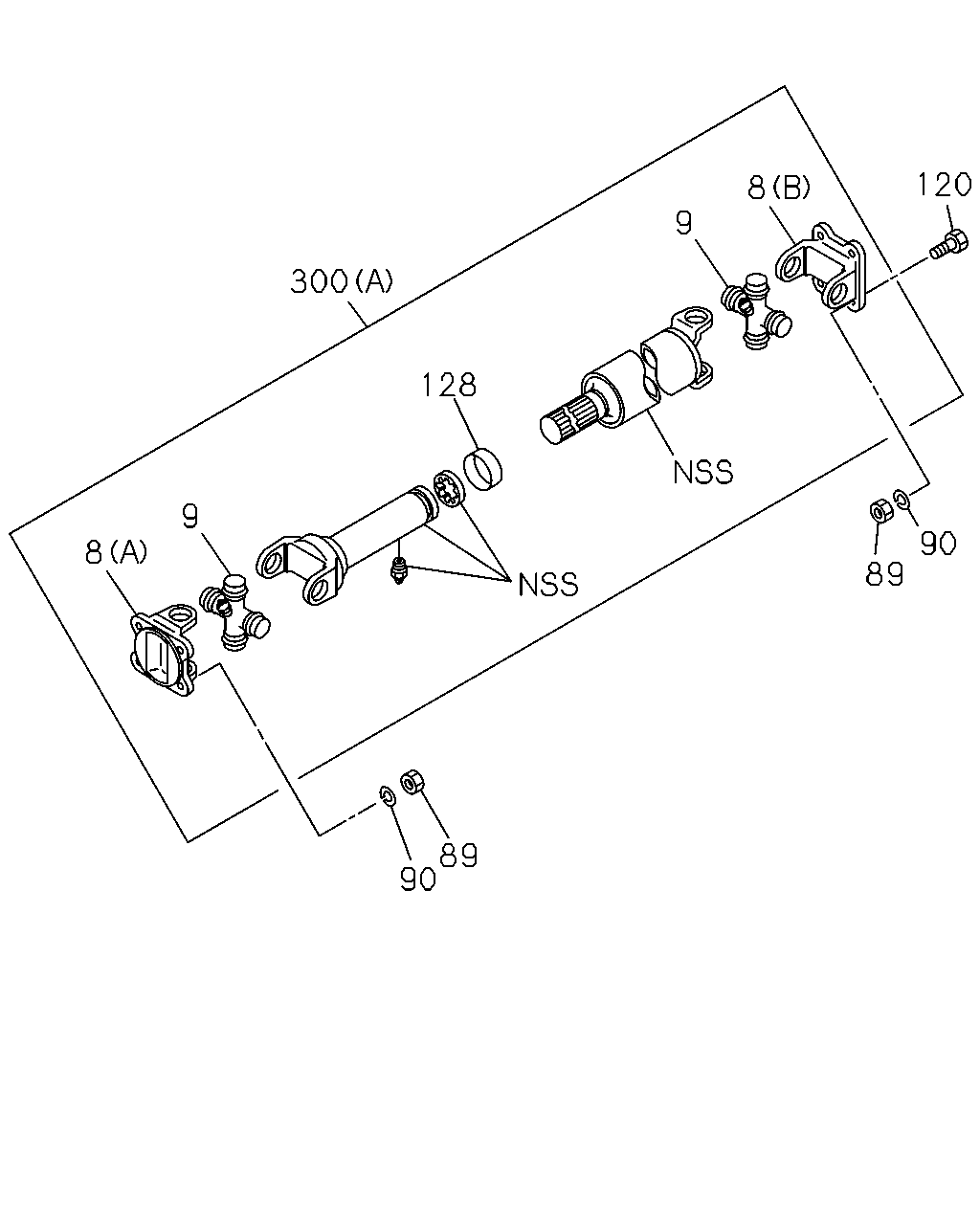

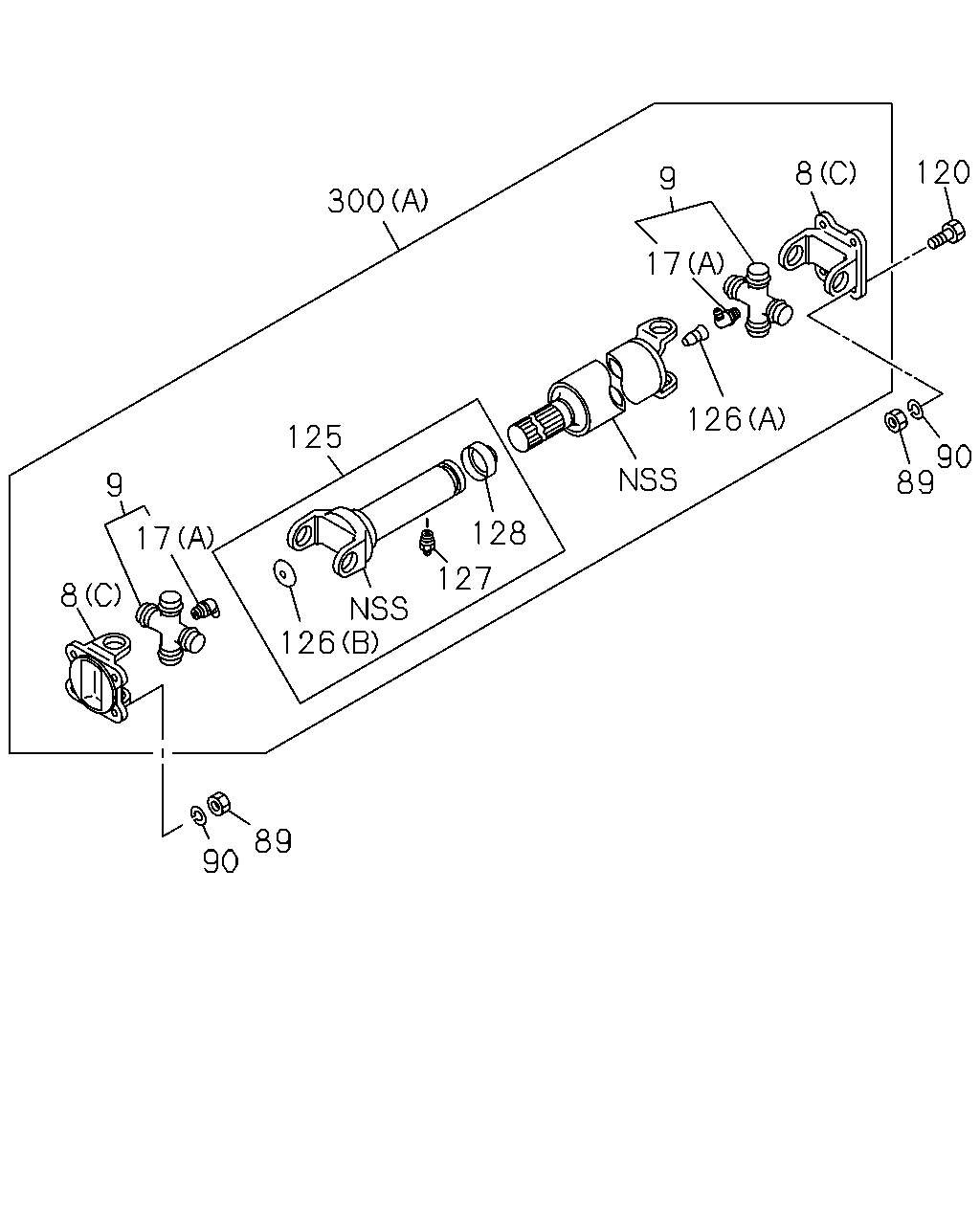

120 8 9 300 17 126 125 90 89 9 128 17 127 8 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT (A) TAI	8-97355-409-0	01	1	9701-0207
8	YOKE; FLANGE,PROP SHAFT (B) TAI	8-97355-416-0	01	1	9701-0207
8	YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0208-0511
8	YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0512-0610
8	YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0611-
8	YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (C)	8-97322-663-0	03	1	0412-0511
8	YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C)	8-97322-663-0	03	1	0512-0610
8	YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C)	8-97322-663-0	01	1	0611-
9	JOURNAL ASM; PROP SHAFT TAI	8-97356-224-0	02	1	9701-0207
9	JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97322-749-0	02	1	0208-0511
9	JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97322-749-0	02	1	0512-0610
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97322-749-0	02	1	0611-0612
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98033-605-0	02	1	0701-
9	JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97322-749-0	03	1	0412-0511
9	JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97322-749-0	03	1	0512-0610
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97322-749-0	01	1	0611-0612
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98033-605-0	01	1	0701-
17	NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0208-0511
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-0610
17	NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0611-
17	NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (B) M6 STRAIGHT	9-09031-006-0	01	1	0412-0511
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-0610
17	NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0611-
17	NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	03	1	0412-0511
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	03	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	03	1	0601-0610
17	NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	01	1	0611-
89	NUT; YOKE TO RR AXLE M10 USA	8-94159-009-1	08	1	9701-9905
89	NUT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10 USA	8-94159-009-1	08	1	9906-0207
89	NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	08	1	0208-0511
89	NUT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12	8-94477-841-0	08	1	0512-0610
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-94477-841-0	08	1	0611-0611
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-97365-450-0	08	1	0611-
89	NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	12	1	0412-0511
89	NUT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12	8-94477-841-0	12	1	0512-0610
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-94477-841-0	12	1	0611-0611
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-97365-450-0	12	1	0611-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	08	1	9701-9905
90	WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC) ID=10.2	9-09150-610-0	08	1	9906-0207
90	WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) ID=12.2	9-09150-812-0	08	1	0208-0511
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	9-09150-812-0	08	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	0-91510-812-0	08	1	0604-0610
90	WASHER; LK,YOKE TO RR AXLE 4JJ1 ENG(LFB) ID=12.2	0-91510-812-0	08	1	0611-
90	WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) ID=12.2	9-09150-812-0	12	1	0412-0511
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	9-09150-812-0	12	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	0-91510-812-0	12	1	0604-0610
90	WASHER; LK,YOKE TO RR AXLE 4JJ1 ENG(LFB) ID=12.2	0-91510-812-0	12	1	0611-
120	BOLT; YOKE TO RR AXLE M10X32	8-94146-551-2	04	1	9701-9905
120	BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10X32	8-94146-551-2	04	1	9906-0207
120	BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	04	1	0208-0511
120	BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12X35	8-94477-842-0	04	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-94477-842-0	04	1	0611-0611
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-97365-451-0	04	1	0611-
120	BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	08	1	0412-0511
120	BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12X35	8-94477-842-0	08	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-94477-842-0	08	1	0611-0611
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-97365-451-0	08	1	0611-
125	YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0208-0411
125	YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0412-0511
125	YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0512-0610
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0611-
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0208-0511
126	PLUG; SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0512-0610
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0208-0411
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0412-0511
126	PLUG; SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0512-0610
126	PLUG; SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0611-
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (A)	1-09600-023-0	02	1	0412-0511
126	PLUG; SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A)	1-09600-023-0	02	1	0512-0610
126	PLUG; SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0611-
126	PLUG; SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0611-
127	NIPPLE; GREASE,SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) M6 STRAIGHT	9-09031-006-0	01	1	0208-0411
127	NIPPLE; GREASE,SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) M6 STRAIGHT	9-09031-006-0	01	1	0412-0511
127	NIPPLE; GREASE,SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
127	NIPPLE; GREASE,SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) M6 STRAIGHT	0-90301-406-0	01	1	0608-0610
127	NIPPLE; GREASE,SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) M6 STRAIGHT	0-90301-406-0	01	1	0611-
128	SEAL; SLEEVE TAI	8-97355-414-0	01	1	9701-0207
128	SEAL; SLEEVE 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97145-746-0	01	1	0208-0411
128	SEAL; SLEEVE 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97145-746-0	01	1	0412-0511
128	SEAL; SLEEVE 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97145-746-0	01	1	0512-0610
128	SEAL; SLEEVE 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97145-746-0	01	1	0611-
300	SHAFT ASM; PROP,RR (A) L=1075 TAI	8-97965-276-1	01	1	9701-9905
300	SHAFT ASM; PROP,RR 4JG2 ENG(RJC) M/T MSB5S(R45) (A) L=1075 TAI	8-97965-276-1	01	1	9906-0207
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (A) L=984	8-97308-055-2	01	1	0208-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) L=984	8-97308-055-2	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=969	8-97308-053-2	01	1	0611-
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=932	8-98018-870-0	01	1	0611-
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (B) L=802	8-97308-048-3	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B) L=802	8-97308-048-3	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=712	8-98019-108-0	01	1	0611-
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (C) L=1059	8-97308-060-2	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C) L=1059	8-97308-060-2	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C) L=1090	8-97364-108-2	01	1	0611-
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=787	8-98018-869-0	01	1	0611-

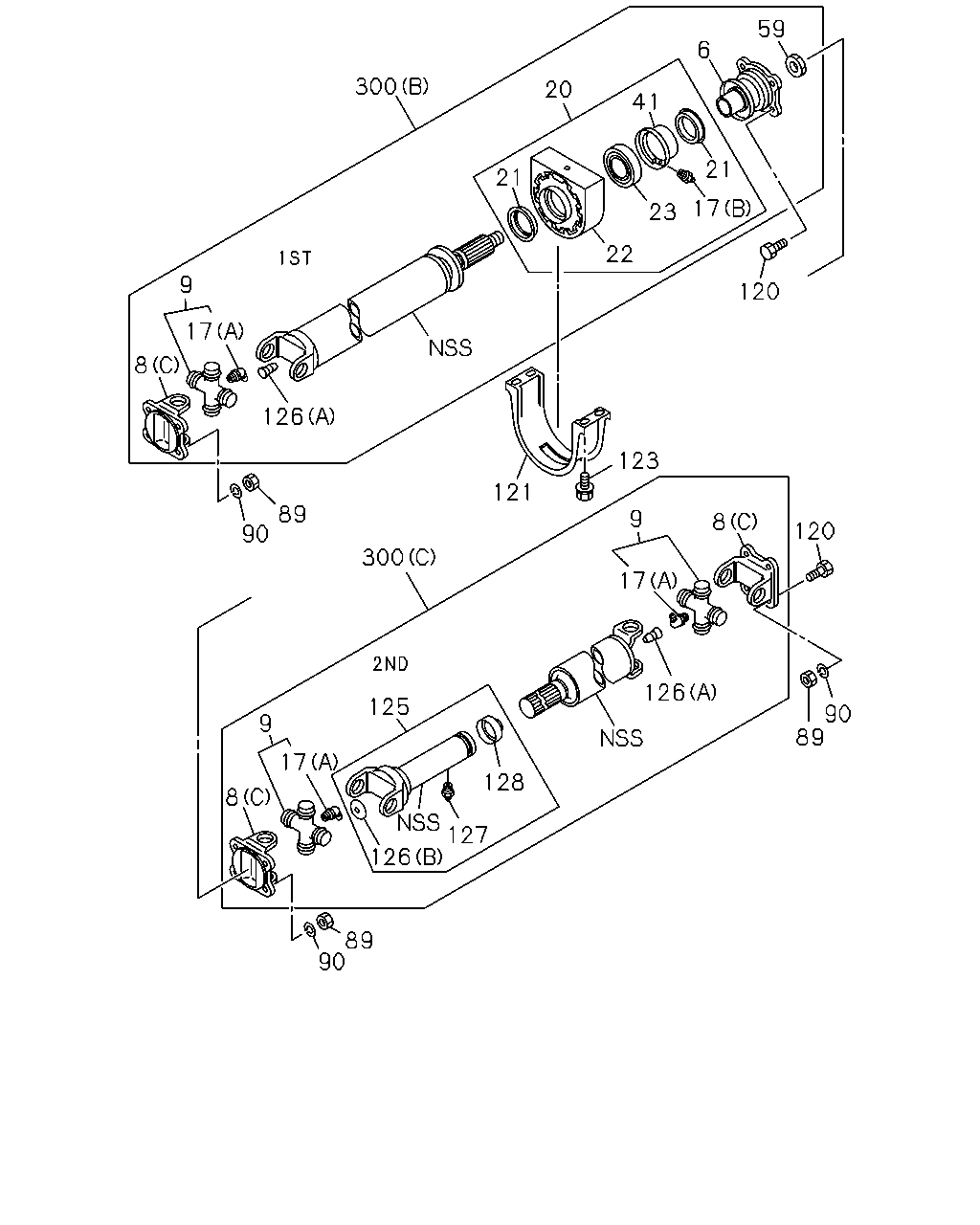

59 6 300 20 41 21 21 17 23 22 9 120 17 8 126 123 121 89 90 9 8 120 300 17 126 125 90 89 9 17 128 8 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	COUPLING ASM; DRIVER,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97036-123-0	01	1	0412-0511
6	COUPLING ASM; DRIVER,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97036-123-0	01	1	0512-0610
6	COUPLING ASM; DRIVER,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97036-123-0	01	1	0611-
8	YOKE; FLANGE,PROP SHAFT (A) TAI	8-97355-409-0	01	1	9701-0207
8	YOKE; FLANGE,PROP SHAFT (B) TAI	8-97355-416-0	01	1	9701-0207
8	YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0208-0511
8	YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0512-0610
8	YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0611-
8	YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (C)	8-97322-663-0	03	1	0412-0511
8	YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C)	8-97322-663-0	03	1	0512-0610
8	YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C)	8-97322-663-0	01	1	0611-
9	JOURNAL ASM; PROP SHAFT TAI	8-97356-224-0	02	1	9701-0207
9	JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97322-749-0	02	1	0208-0511
9	JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97322-749-0	02	1	0512-0610
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97322-749-0	02	1	0611-0612
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98033-605-0	02	1	0701-
9	JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97322-749-0	03	1	0412-0511
9	JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97322-749-0	03	1	0512-0610
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97322-749-0	01	1	0611-0612
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98033-605-0	01	1	0701-
17	NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0208-0511
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-0610
17	NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0611-
17	NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (B) M6 STRAIGHT	9-09031-006-0	01	1	0412-0511
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-0610
17	NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0611-
17	NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	03	1	0412-0511
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	03	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	03	1	0601-0610
17	NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	01	1	0611-
20	BEARING ASM; CTR,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0412-0511
20	BEARING ASM; CTR,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0512-0610
20	BEARING ASM; CTR,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0611-0702
20	BEARING ASM; CTR,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98020-880-0	01	1	0703-
21	SEAL; OIL,CENTER BRG 4JH1 ENG(RJX) M/T MYY5T(RSM) ID=49	5-09625-067-1	02	1	0412-0511
21	SEAL; OIL,CENTER BRG 4JH1-TC ENG(RDM) M/T MYY5T(RSM) ID=49	5-09625-067-1	02	1	0512-0610
21	SEAL; OIL,CENTER BRG 4JJ1 ENG(LFB) M/T MYY5T(RSM) ID=49	5-09625-067-1	02	1	0611-
22	RUBBER; CUSHION,CENTER BRG,1ST 4JH1 ENG(RJX) M/T MYY5T(RSM)	5-37516-005-1	01	1	0412-0511
22	RUBBER; CUSHION,CENTER BRG,1ST 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	5-37516-005-2	01	1	0512-0610
22	RUBBER; CUSHION,CENTER BRG,1ST 4JJ1 ENG(LFB) M/T MYY5T(RSM)	5-37516-005-2	01	1	0611-0612
22	RUBBER; CUSHION,CENTER BRG,1ST 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98020-875-0	01	1	0701-
23	BEARING; CENTER,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0412-0511
23	BEARING; CENTER,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0512-0610
23	BEARING; CENTER,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0611-
41	COVER; CENTER BRG,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	5-37512-004-0	01	1	0412-0511
41	COVER; CENTER BRG,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	5-37512-004-0	01	1	0512-0610
41	COVER; CENTER BRG,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	5-37512-004-0	01	1	0611-0612
41	COVER; CENTER BRG,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98020-795-0	01	1	0701-
59	NUT; RET TO SUPPORT 4JH1 ENG(RJX) M/T MYY5T(RSM) M27 H=25	8-97253-126-0	01	1	0412-0511
59	NUT; RET TO SUPPORT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) M27 H=25	8-97253-126-0	01	1	0512-0610
59	NUT; RET TO SUPPORT 4JJ1 ENG(LFB) M/T MYY5T(RSM) M27 H=25	8-97253-126-0	01	1	0611-0612
59	NUT; RET TO SUPPORT 4JJ1 ENG(LFB) M/T MYY5T(RSM) M27 H=25	8-97360-410-0	01	1	0701-
89	NUT; YOKE TO RR AXLE M10 USA	8-94159-009-1	08	1	9701-9905
89	NUT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10 USA	8-94159-009-1	08	1	9906-0207
89	NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	08	1	0208-0511
89	NUT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12	8-94477-841-0	08	1	0512-0610
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-94477-841-0	08	1	0611-0611
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-97365-450-0	08	1	0611-
89	NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	12	1	0412-0511
89	NUT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12	8-94477-841-0	12	1	0512-0610
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-94477-841-0	12	1	0611-0611
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-97365-450-0	12	1	0611-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	08	1	9701-9905
90	WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC) ID=10.2	9-09150-610-0	08	1	9906-0207
90	WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) ID=12.2	9-09150-812-0	08	1	0208-0511
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	9-09150-812-0	08	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	0-91510-812-0	08	1	0604-0610
90	WASHER; LK,YOKE TO RR AXLE 4JJ1 ENG(LFB) ID=12.2	0-91510-812-0	08	1	0611-
90	WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) ID=12.2	9-09150-812-0	12	1	0412-0511
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	9-09150-812-0	12	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	0-91510-812-0	12	1	0604-0610
90	WASHER; LK,YOKE TO RR AXLE 4JJ1 ENG(LFB) ID=12.2	0-91510-812-0	12	1	0611-
120	BOLT; YOKE TO RR AXLE M10X32	8-94146-551-2	04	1	9701-9905
120	BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10X32	8-94146-551-2	04	1	9906-0207
120	BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	04	1	0208-0511
120	BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12X35	8-94477-842-0	04	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-94477-842-0	04	1	0611-0611
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-97365-451-0	04	1	0611-
120	BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	08	1	0412-0511
120	BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12X35	8-94477-842-0	08	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-94477-842-0	08	1	0611-0611
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-97365-451-0	08	1	0611-
121	RETAINER; CUSHION RUBBER 4JH1 ENG(RJX)	8-97035-623-1	01	1	0412-0511
121	RETAINER; CUSHION RUBBER 4JH1-TC ENG(RDM)	8-97035-623-1	01	1	0512-0610
121	RETAINER; CUSHION RUBBER 4JJ1 ENG(LFB)	8-97035-623-1	01	1	0611-
123	BOLT; RET 4JH1 ENG(RJX) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0412-0511
123	BOLT; RET 4JH1-TC ENG(RDM) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0512-0512
123	BOLT; RET 4JH1-TC ENG(RDM) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-0610
123	BOLT; RET 4JJ1 ENG(LFB) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0611-
125	YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0208-0411
125	YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0412-0511
125	YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0512-0610
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0611-
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0208-0511
126	PLUG; SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0512-0610
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0208-0411
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0412-0511
126	PLUG; SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0512-0610
126	PLUG; SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0611-
126	PLUG; SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) (A)	1-09600-023-0	02	1	0412-0511
126	PLUG; SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A)	1-09600-023-0	02	1	0512-0610
126	PLUG; SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0611-
126	PLUG; SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0611-
127	NIPPLE; GREASE,SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) M6 STRAIGHT	9-09031-006-0	01	1	0208-0411
127	NIPPLE; GREASE,SPLINED YOKE 4JH1 ENG(RJX) M/T MYY5T(RSM) M6 STRAIGHT	9-09031-006-0	01	1	0412-0511
127	NIPPLE; GREASE,SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
127	NIPPLE; GREASE,SPLINED YOKE 4JH1-TC ENG(RDM) M/T MYY5T(RSM) M6 STRAIGHT	0-90301-406-0	01	1	0608-0610
127	NIPPLE; GREASE,SPLINED YOKE 4JJ1 ENG(LFB) M/T MYY5T(RSM) M6 STRAIGHT	0-90301-406-0	01	1	0611-
128	SEAL; SLEEVE TAI	8-97355-414-0	01	1	9701-0207
128	SEAL; SLEEVE 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97145-746-0	01	1	0208-0411
128	SEAL; SLEEVE 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97145-746-0	01	1	0412-0511
128	SEAL; SLEEVE 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97145-746-0	01	1	0512-0610
128	SEAL; SLEEVE 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97145-746-0	01	1	0611-
300	SHAFT ASM; PROP,RR (A) L=1075 TAI	8-97965-276-1	01	1	9701-9905
300	SHAFT ASM; PROP,RR 4JG2 ENG(RJC) M/T MSB5S(R45) (A) L=1075 TAI	8-97965-276-1	01	1	9906-0207
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (A) L=984	8-97308-055-2	01	1	0208-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) L=984	8-97308-055-2	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=969	8-97308-053-2	01	1	0611-
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=932	8-98018-870-0	01	1	0611-
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (B) L=802	8-97308-048-3	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B) L=802	8-97308-048-3	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=712	8-98019-108-0	01	1	0611-
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (C) L=1059	8-97308-060-2	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C) L=1059	8-97308-060-2	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C) L=1090	8-97364-108-2	01	1	0611-
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=787	8-98018-869-0	01	1	0611-

120 8 9 300 128 9 90 8 89 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT (A) TAI	8-97355-409-0	01	1	9701-0207
8	YOKE; FLANGE,PROP SHAFT (B) TAI	8-97355-416-0	01	1	9701-0207
8	YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0208-0511
8	YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0512-0610
8	YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C)	8-97322-663-0	02	1	0611-
8	YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM) (C)	8-97322-663-0	03	1	0412-0511
8	YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C)	8-97322-663-0	03	1	0512-0610
8	YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C)	8-97322-663-0	01	1	0611-
9	JOURNAL ASM; PROP SHAFT TAI	8-97356-224-0	02	1	9701-0207
9	JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97322-749-0	02	1	0208-0511
9	JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97322-749-0	02	1	0512-0610
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97322-749-0	02	1	0611-0612
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98033-605-0	02	1	0701-
9	JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97322-749-0	03	1	0412-0511
9	JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97322-749-0	03	1	0512-0610
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97322-749-0	01	1	0611-0612
9	JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-98033-605-0	01	1	0701-
89	NUT; YOKE TO RR AXLE M10 USA	8-94159-009-1	08	1	9701-9905
89	NUT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10 USA	8-94159-009-1	08	1	9906-0207
89	NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	08	1	0208-0511
89	NUT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12	8-94477-841-0	08	1	0512-0610
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-94477-841-0	08	1	0611-0611
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-97365-450-0	08	1	0611-
89	NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	12	1	0412-0511
89	NUT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12	8-94477-841-0	12	1	0512-0610
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-94477-841-0	12	1	0611-0611
89	NUT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12	8-97365-450-0	12	1	0611-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	08	1	9701-9905
90	WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC) ID=10.2	9-09150-610-0	08	1	9906-0207
90	WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) ID=12.2	9-09150-812-0	08	1	0208-0511
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	9-09150-812-0	08	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	0-91510-812-0	08	1	0604-0610
90	WASHER; LK,YOKE TO RR AXLE 4JJ1 ENG(LFB) ID=12.2	0-91510-812-0	08	1	0611-
90	WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) ID=12.2	9-09150-812-0	12	1	0412-0511
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	9-09150-812-0	12	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) ID=12.2	0-91510-812-0	12	1	0604-0610
90	WASHER; LK,YOKE TO RR AXLE 4JJ1 ENG(LFB) ID=12.2	0-91510-812-0	12	1	0611-
120	BOLT; YOKE TO RR AXLE M10X32	8-94146-551-2	04	1	9701-9905
120	BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10X32	8-94146-551-2	04	1	9906-0207
120	BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	04	1	0208-0511
120	BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12X35	8-94477-842-0	04	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-94477-842-0	04	1	0611-0611
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-97365-451-0	04	1	0611-
120	BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	08	1	0412-0511
120	BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M12X35	8-94477-842-0	08	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-94477-842-0	08	1	0611-0611
120	BOLT; YOKE TO RR AXLE 4JJ1 ENG(LFB) M12X35	8-97365-451-0	08	1	0611-
128	SEAL; SLEEVE TAI	8-97355-414-0	01	1	9701-0207
128	SEAL; SLEEVE 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97145-746-0	01	1	0208-0411
128	SEAL; SLEEVE 4JH1 ENG(RJX) M/T MYY5T(RSM)	8-97145-746-0	01	1	0412-0511
128	SEAL; SLEEVE 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97145-746-0	01	1	0512-0610
128	SEAL; SLEEVE 4JJ1 ENG(LFB) M/T MYY5T(RSM)	8-97145-746-0	01	1	0611-
300	SHAFT ASM; PROP,RR (A) L=1075 TAI	8-97965-276-1	01	1	9701-9905
300	SHAFT ASM; PROP,RR 4JG2 ENG(RJC) M/T MSB5S(R45) (A) L=1075 TAI	8-97965-276-1	01	1	9906-0207
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (A) L=984	8-97308-055-2	01	1	0208-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) L=984	8-97308-055-2	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=969	8-97308-053-2	01	1	0611-
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=932	8-98018-870-0	01	1	0611-
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (B) L=802	8-97308-048-3	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (B) L=802	8-97308-048-3	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=712	8-98019-108-0	01	1	0611-
300	SHAFT ASM; PROP,RR 4JH1 ENG(RJX) M/T MYY5T(RSM) (C) L=1059	8-97308-060-2	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C) L=1059	8-97308-060-2	01	1	0512-0610
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) (C) L=1090	8-97364-108-2	01	1	0611-
300	SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=787	8-98018-869-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
